Yamaha DHR10 10" 2-Way Bi-Amp Powered Speaker

Save $74.00
Yamaha
Price:
$865.00 $939.00
Contact us for availability

Description

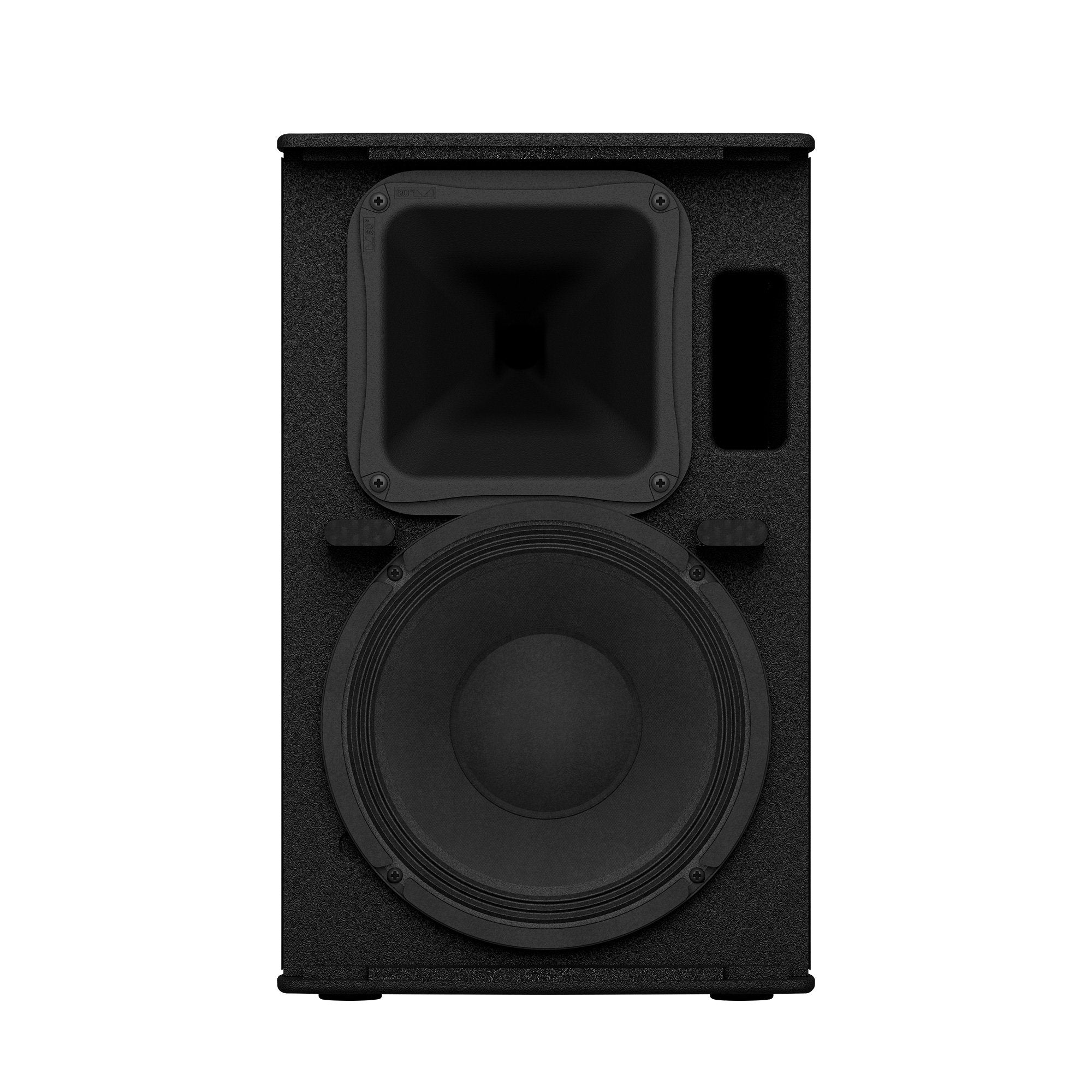

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
  • A pole socket for use on a stand
  • Rigging points for use with eye bolts
  • Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
DHR15
DHR12M
DHR10
Speaker type 2-way, Bi-amped Powered Speaker, Bass-reflex 2-way, Bi-amped Powered Speaker, Bass-reflex 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB) 44 Hz - 20 kHz 55 Hz - 20 kHz 52 Hz - 20 kHz
Coverage area H90ﾟ x V60ﾟ H90ﾟ x V90ﾟ H90ﾟ x V60ﾟ (Rotatable)
Crossover 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) 1.9 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m) 131 dB SPL 129 dB SPL 128 dB SPL
Components LF Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite
HF Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Amplifier class Class-D Class-D Class-D
Power rating Dynamic 1,000 W (LF: 800 W, HF: 200 W) *1 1,000 W (LF: 800 W, HF: 200 W) *1 700 W (LF: 500 W, HF: 200 W) *1
Continuous 465 W (LF: 400 W, HF: 65 W) 465 W (LF: 400 W, HF: 65 W) 325 W (LF: 260 W, HF: 65 W)
Cooling Fan cooling, 4 speeds Fan cooling, 4 speeds Fan cooling, 4 speeds
Power consumption 74 W (1/8power), 18 W (Idle) 74 W (1/8power), 18 W (Idle) 60 W (1/8power), 18 W (Idle)
Power requirements 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz 100 V, 100-120 V, 220-240 V, 110/127/220V (Brazil), 50/60 Hz 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters 24 bit 48 kHz Sampling 24 bit 48 kHz Sampling 24 bit 48 kHz Sampling
Processors HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

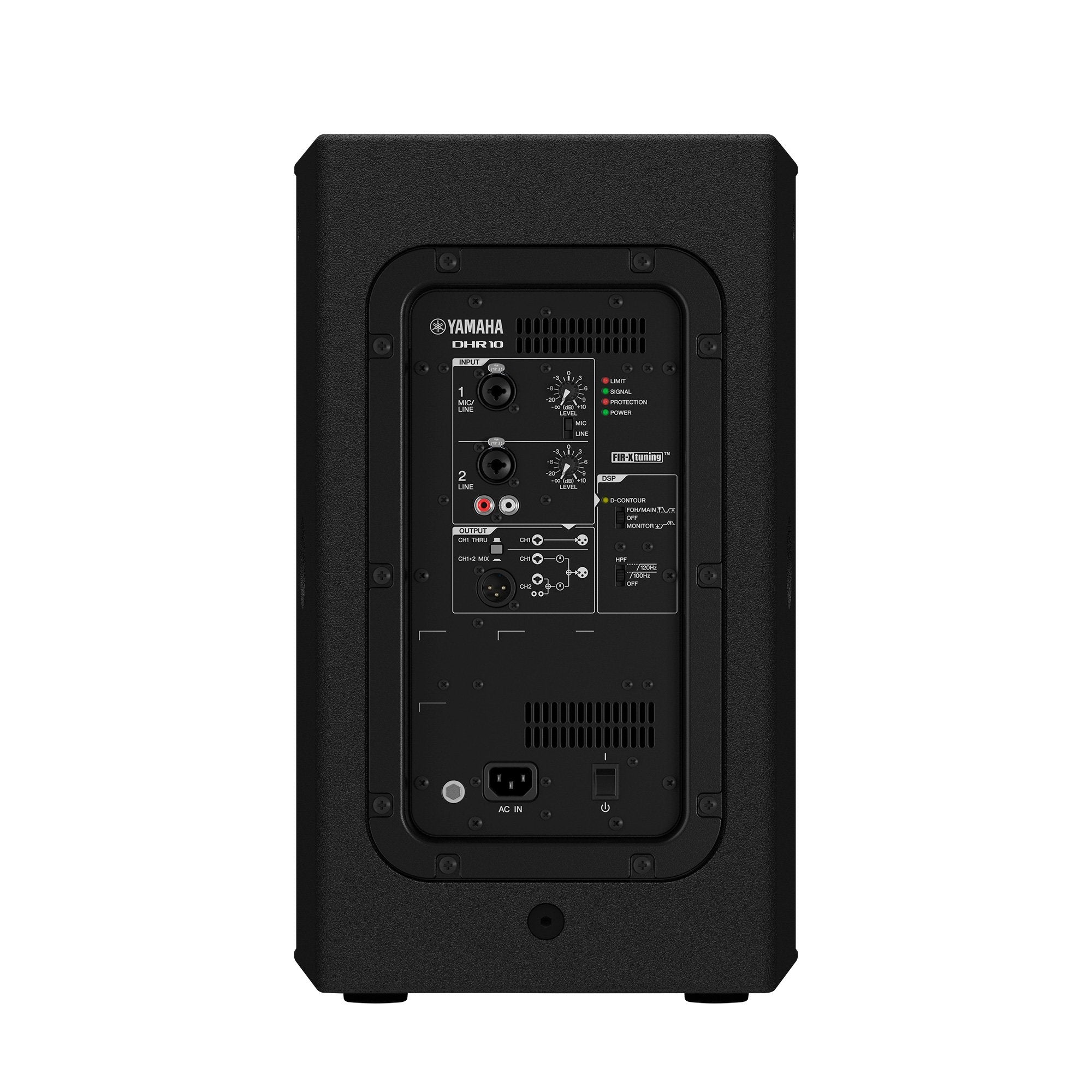

I/O connectors INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
Cabinet material Plywood Plywood Plywood
Finish Durable Polyurea Painting, Black Durable Polyurea Painting, Black Durable Polyurea Painting, Black
Handle Side x2 Side x1 Top x1
Pole socket Φ35 mm x2 (Bottom, 0° or -7°) Φ35 mm x1 (Bottom) Φ35 mm x1 (Bottom)
Rigging Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) - Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Floor Monitor Angle - 57° -
Dimensions W 432 mm (17.0") 500 mm (19.7") 305 mm (12.0")
H 692 mm (27.2") (with rubber feet) 343 mm (13.5") (with rubber feet) 494 mm (19.5") (with rubber feet)
D 405 mm (15.9") 454 mm (17.9") 300 mm (11.8")
Net weight 24.0 kg (52.9 lbs) 16.5 kg (36.4 lbs) 15.0 kg (33.1 lbs)
Options - - U-bracket: UB-DXRDHR10
