Description
- Description
IPX6 LINE ARRAY SYSTEM
- IPX6 Waterproof Line array
- Wax wrapped components
- Anti-corrosion stainless steel hardware
- Waterproof input connectors
- Plywood construction in aluminium cabinets
- 2 x 8″ element – WLA-28XF
- 2 x 15″ flying subwoofer element – WLA-28SUBXF
- 2 x 18″ subwoofer – WLA-218BXF

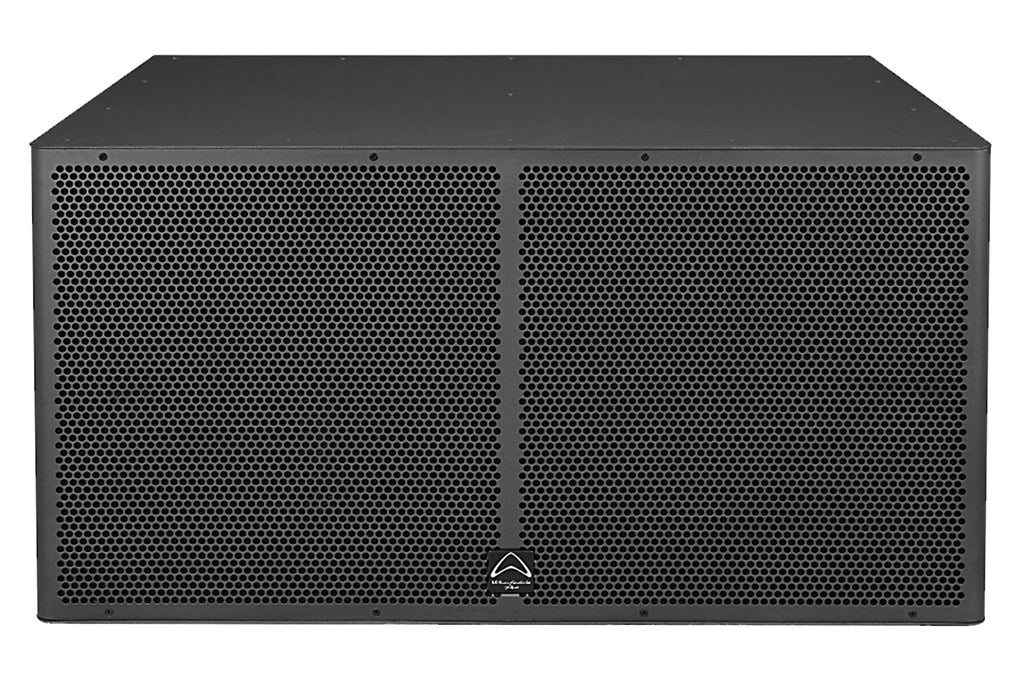

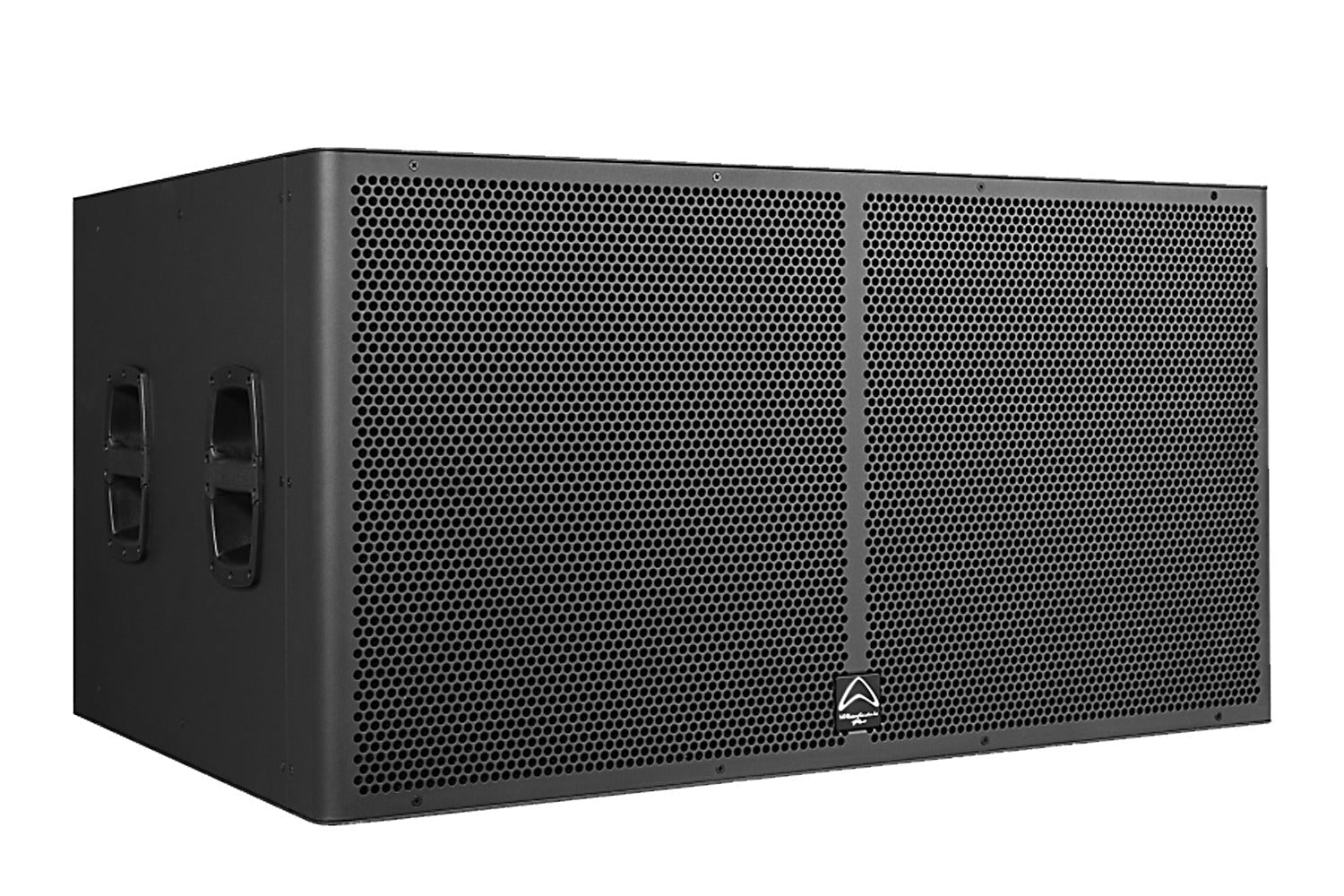

WLA-218BXF
- Dual 18” subwoofer
- 18mm Plywood construction
- Wax wrapped components

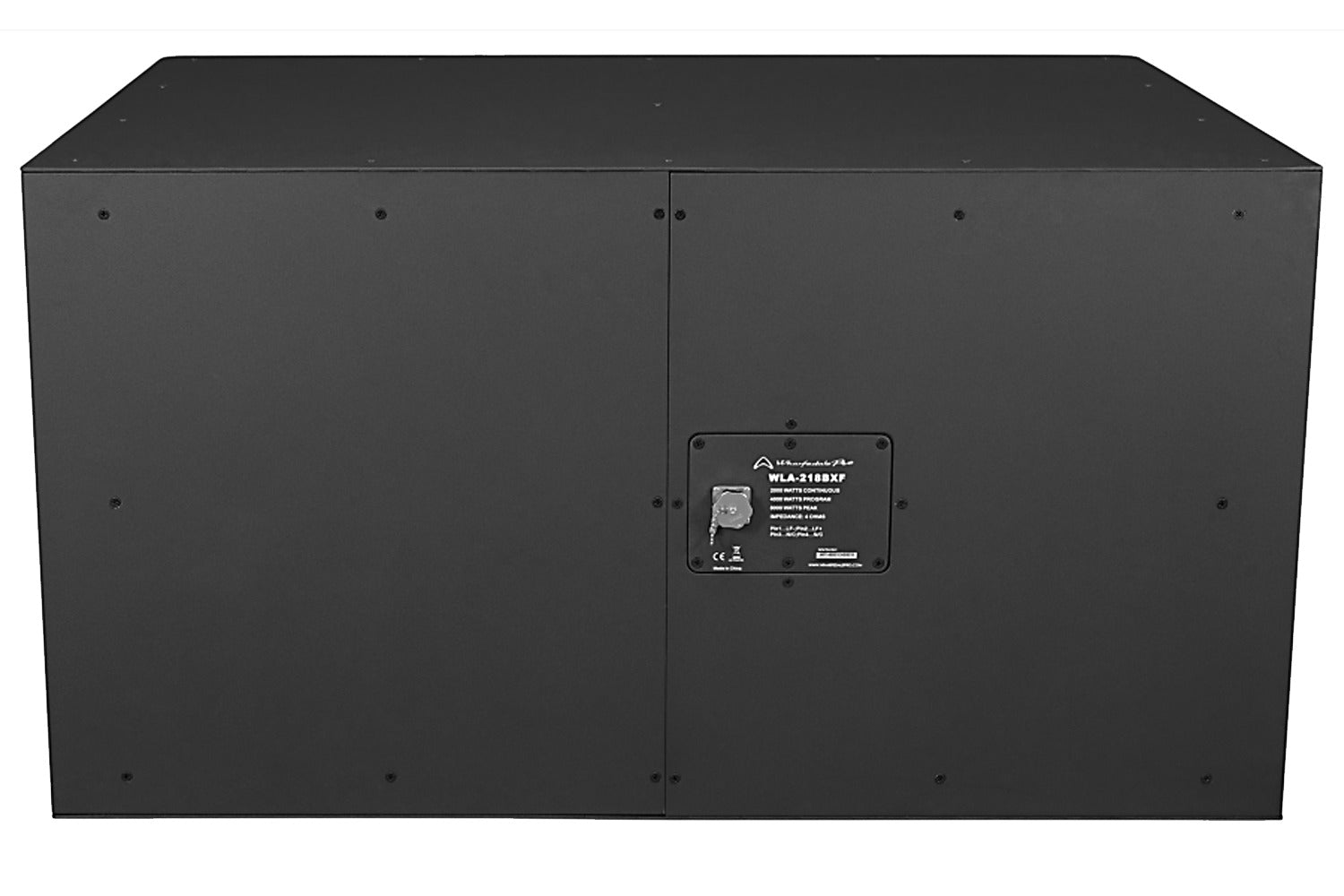

- Single WY-24K4Z waterproof input connector
- WY-24K4Z Cable connector included
- 148 dB Max SPL @ 1 m
IPX6
With the same reliability and high performance characteristics as the original ‘non-F’ models, these WLA-28X ‘F’ models are IPX6 Certified.
This certification states that there should be no harmful effects when “Water is projected in powerful jets (12.5mm nozzle) against the enclosure from any direction”
With rust-proof aluminium grilles, components wrapped in wax and anti-corrosion stainless and aluminium screws and hardware, the F models are made for the rain and long-term environmental exposure.
In addition, to reduce any risk of standing water, and to help rental companies with storage, the front grille has been flattened.
AMPS & DSP
A Versadrive DSP (such as SC-48 FIR) or a DP-F / DP-N series amplifier with internal FIR filtering is highly recommended to get the most from the system. Phase, EQ and filtering should be applied and this way, the physics of the system can be truly optimised – delivering that sub-bass, power and clarity that this system can deliver.
SPECIFICATIONS
| Model Name | WLA-218BXF |
|---|---|
| System Type | Passive |
| Configuration | 2 x 18″ Subwoofer |
| Frequency Response (+/- 3dB) | 30-800 Hz |
| Frequency Range (- 10 dB) | 25-1.0 KHz |
| (Passive)Sensitivity 2.83v/1m | 109 dB |
| (Passive)Calculated Maximum SPL @1m | 148 dB |
| System Rated Impedance | 4Ω |
| Low Frequency Transducer | |
| Size (mm / inches) | 470 mm / 18” |
| Voice Coil Size (mm / inches) | 102 mm / 4.0” |
| LF Magnet Material | ferrite |
| LF Frame Material | aluminium |
| Rated Impedance | 8 Ω x 2 |
| LF Power re:AES2-2012 | 1000 W x 2 |
| High Frequency Transducer | |
| HF Driver Type: | – |
| Coil Size (mm / inches) | – |
| Exit Size (mm / inches) | – |
| HF Magnet Material | – |
| Diaphragm Material | – |
| Rated Impedance | – |
| HF Power re:AES2-2012 | – |
| Waveguide Type | – |
| Nominal Coverage (H x V) | – |
| System Continuous Power (w) | 2000 W |
| System Programme Power (w) | 4000 W |
| System Peak Power (w) | 8000 W |
| Crossover frequency | |
| Hardware | 1 x WY-24K4Z (waterproof) |
| Rigging | |
| pole mount | No |

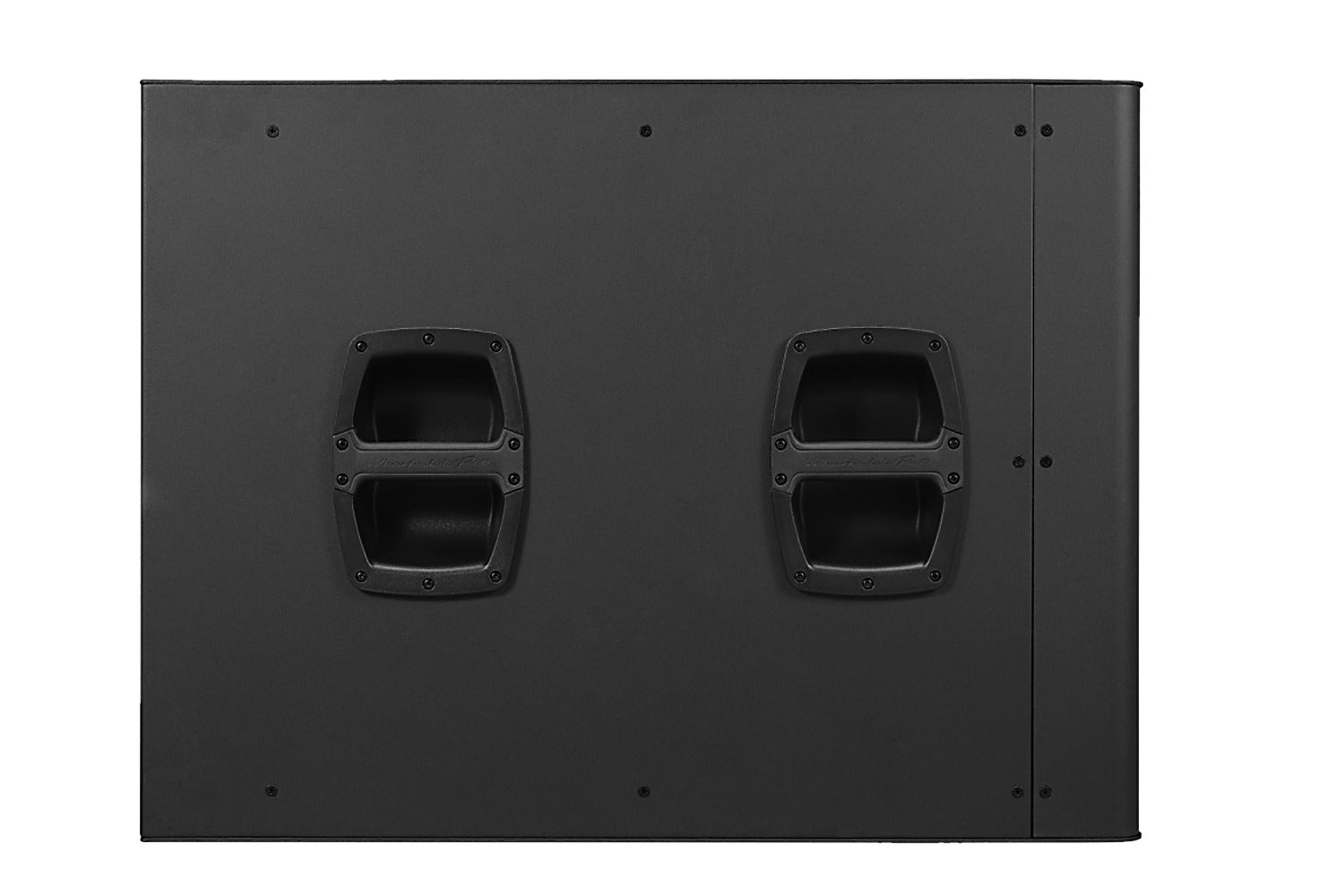

| handles | Yes |
| cabinet type | square |
| Enclosure Material and finish | 18 mm plywood/3.0 mm Aluminium |
| Colour Options | Waterproof black paint |
| Grille Material & Finish | 3.0 mm Black Aluminium |
| Dimensions – Unpacked (mm / inches): | |
| Height front | 568 mm / 22.4″ |
| Height Rear | 568 mm / 22.4″ |
| Width | 1073 mm / 42.2″ |
| Depth | 757 mm / 29.8″ |
| Dimensions – Packed (mm / inches): | |
| Height | 644 mm / 25.4″ |
| Width Front | 1143 mm / 45.0″ |
| Width Rear | 1143 mm / 45.0″ |
| Depth | 827 mm / 32.6″ |
| Weight | |
| Net Weight (kg / lbs) | 97.0kg / 213.4 lbs |
| Gross Weight (kg / lbs) | 111.0kg / 244.2 lbs |
