Description
WLA-210XF SERIES
IPX6 ARRAY
- IPX6 Waterproof Line array
- Wax wrapped components
- Anti-corrosion stainless steel hardware
- Waterproof input connectors
- Plywood construction in aluminium cabinets
- 2 x 10″ element – WLA-210XF
- 2 x 15″ flying subwoofer element – WLA-210XSUBF
- 2 x 18″ subwoofer – WLA-218BXF

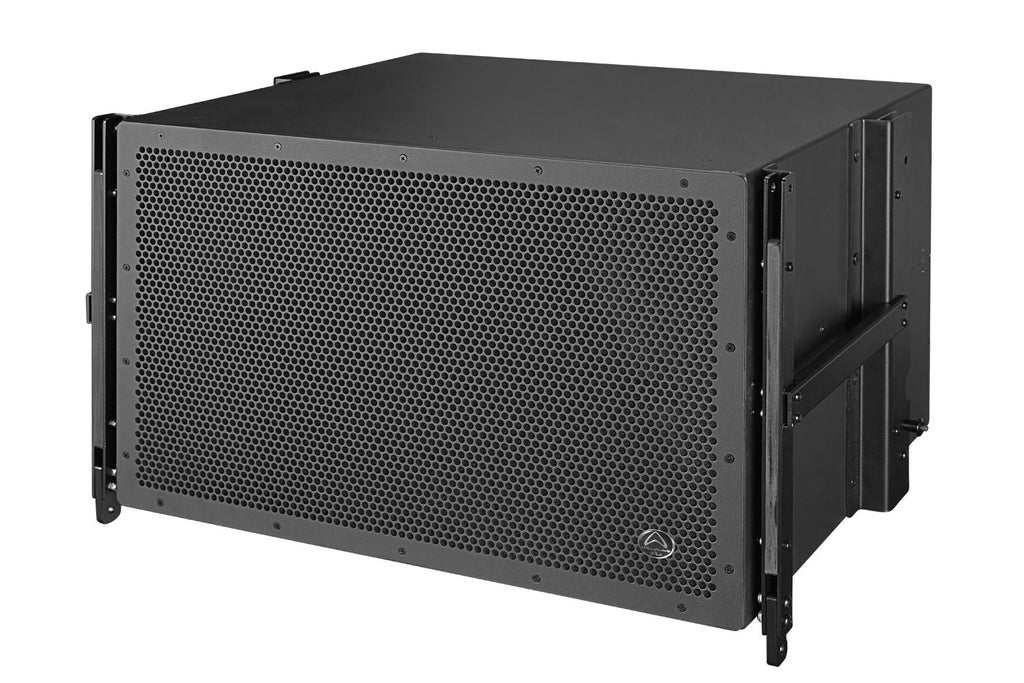

WLA-210XSUBF
- 2 x 15″ LF drivers with 4.0″ voice coils
- 145 dB Max SPL
- 18 mm Birch plywood construction

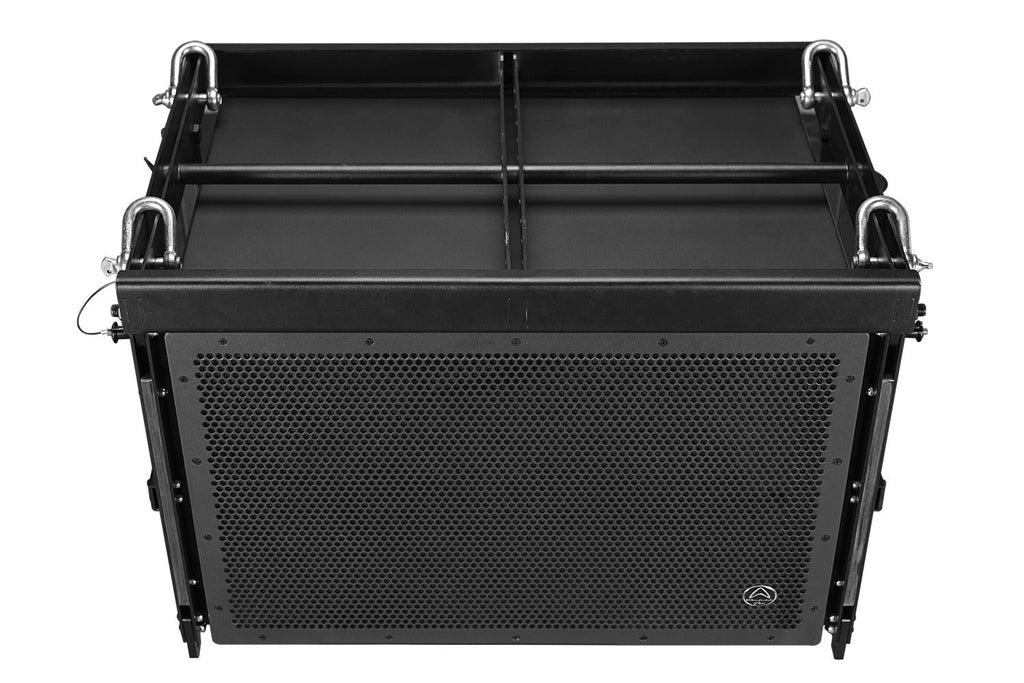

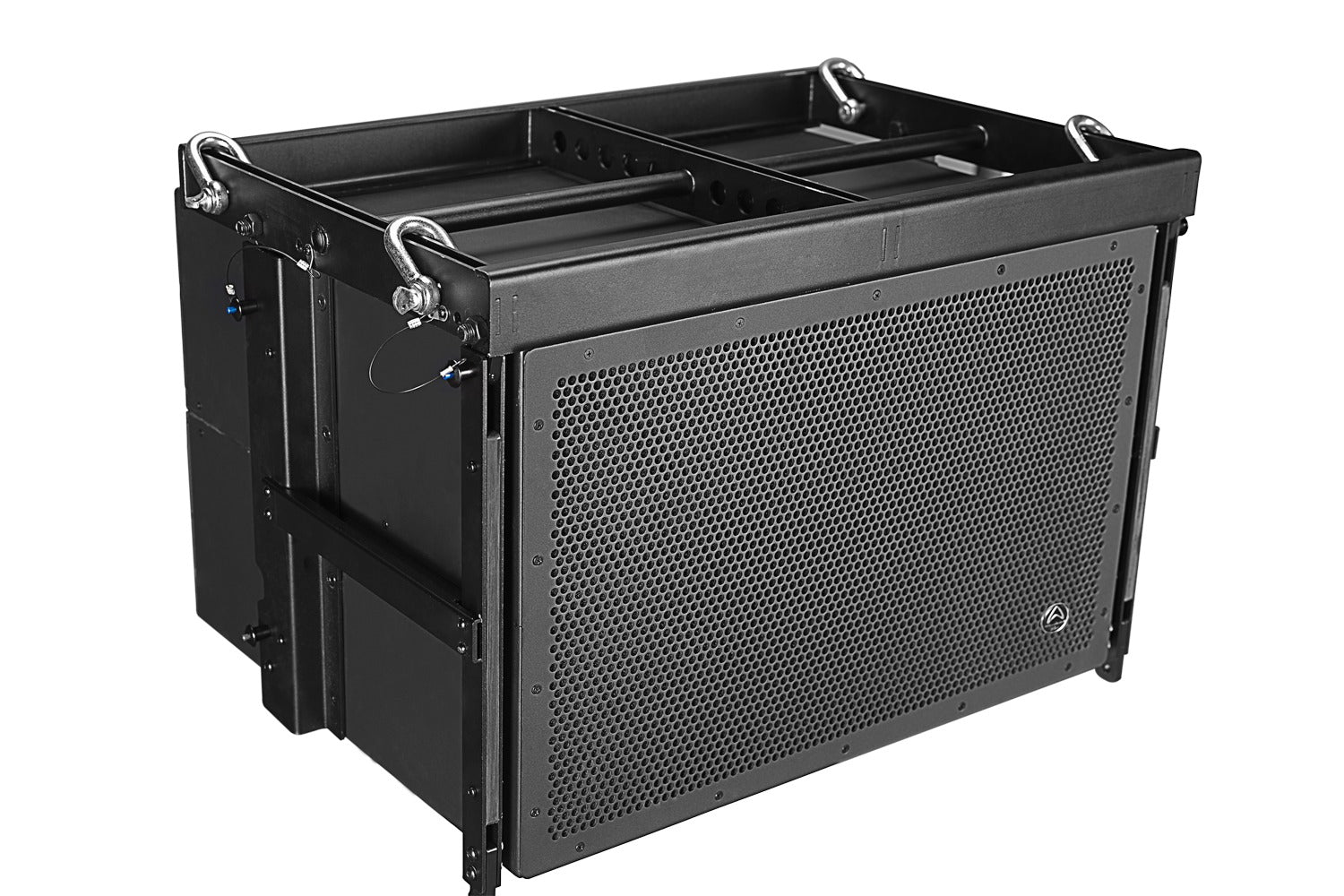

- Integral rigging system
- 1200 watts AES (RMS)
- 2400 watts Programme
- 4800 watts Peak
- 4 Ω impedance

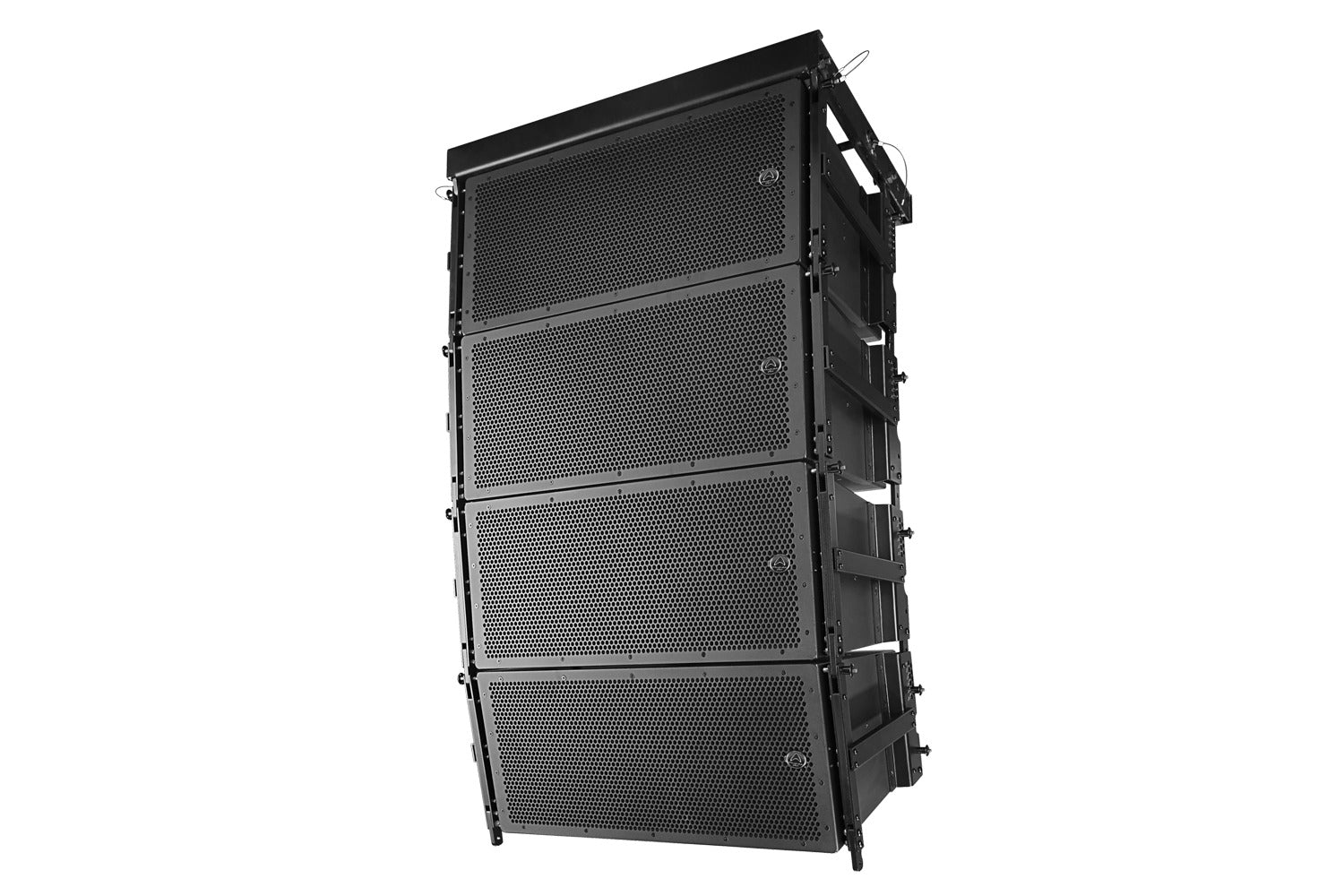

FLY OR GROUND STACK
WLA-210XF rigging doubles up as an optimised ground stacking system, using the WLA-210FXSUB subwoofer as a base.
Arrays of WLA-210XF line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.
The optional WLA-XF Common Fly Frame supports up to 8 WLA-210XF elements plus a WLA-210XSUBF.

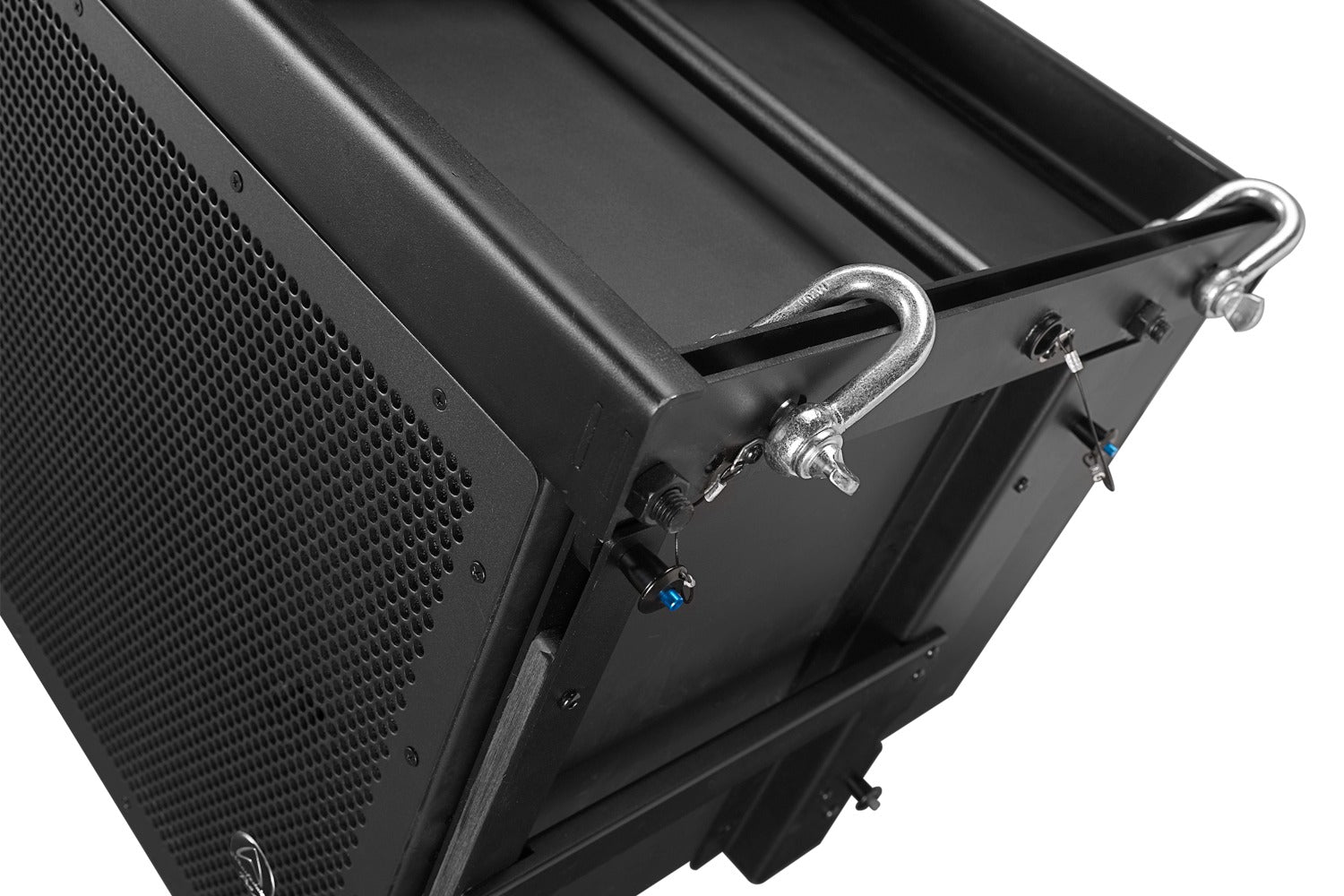

Stainless steel construction / Anti-rust materials / For flying……or ground stacking
CONNECTORS
All models of the WLA-210XF system use certified input connectors.
Inside the carton box there are also the cable connectors needed for easy system setup.
IPX6 CERTIFIED
With the same reliability and high performance characteristics as the original ‘non-F’ models, these WLA-210X ‘F’ models are IPX6 Certified.
This certification states that there should be no harmful effects when “Water is projected in powerful jets (12.5mm nozzle) against the enclosure from any direction”
With rust-proof aluminium grilles, components wrapped in wax and anti-corrosion stainless and aluminium screws and hardware, the F models are made for the rain and long-term environmental exposure.
In addition, to reduce any risk of standing water, and to help rental companies with storage, the front grille has been flattened.
AMPS & DSP
A Versadrive DSP (such as SC-48 FIR) or a DP-N series amplifier with internal FIR filtering is highly recommended to get the most from the system. Phase, EQ and filtering should be applied and this way, the physics of the system can be truly optimised – delivering that sub-bass, power and clarity that this system can deliver.
SPECIFICATIONS
| Model Name | WLA-210XSUBF |
|---|---|
| System Type | IPX6 waterproof |
| Configuration | 2 x 15″ subwoofer |
| Freq Response (+/-3 dB) | 39 Hz – 900 Hz |
| Freq Range (-10 dB) | 35 Hz – 1.5 KHz |
| Sensitivity (2.83 v / 1 m) | 108 dB |
| Calc Max SPL @1 m | 145 dB |
| System Impedance | 4 Ω |
| LF Transducer | |
| Size | 2 x 381 mm / 15” |
| Voice Coil Size | 100 mm / 4.0” |
| Rated Impedance | 2 x 8 Ω |
| LF Power (re:AES2-2012) | 2 x 600 W |
| HF Transducer | |
| Compression driver | |
| Voice Coil Size | |
| Exit Size | |
| Diaphragm Material | |
| Rated Impedance | |
| HF (re:AES2-2012) | |
| Coverage (H x V) | |
| Power | |
| Continuous Power | 1200 W |
| Programme Power | 2400 W |
| Peak Power | 4800 W |
| Crossover frequency | No |
| Operational Modes: | No |
| Input Connector | 1 x WY-24K4Z (waterproof) |
| Hardware | Integral |
| non adjustable | |
| Enclosure Material | 15 mm, 18 mm Ply |
| Finish | Waterproof Paint |
| Grille Material | 3.0 mm Aluminium |
| Dims- (Unpacked) | |
| Height Front | 494 mm / 19.4″ |
| Height Rear | 494 mm / 19.4″ |
| Width | 845 mm / 33.3″ |
| Depth | 653 mm / 25.7″ |
| Dims – (Packed) | |
| Height | 933 mm / 36.7″ |
| Width Front | 723 mm / 28.5″ |
| Width Rear | 723 mm / 28.5″ |
| Depth | 584 mm / 23.0″ |
| Weight | |
| Net Weight | 81.0 kg / 178.2 lbs |
| Gross Weight | 86.4 kg / 190.1 lbs |
