WLA-210XSUB
Wharfedale Pro WLA-210XSUB - Dual 15" LF driver passive subwoofer
- Dual 15″ LF drivers
- 145 dB Max SPL @ 1 meter
- 18 mm birch plywood construction
OPTIMISED GROUND STACKING

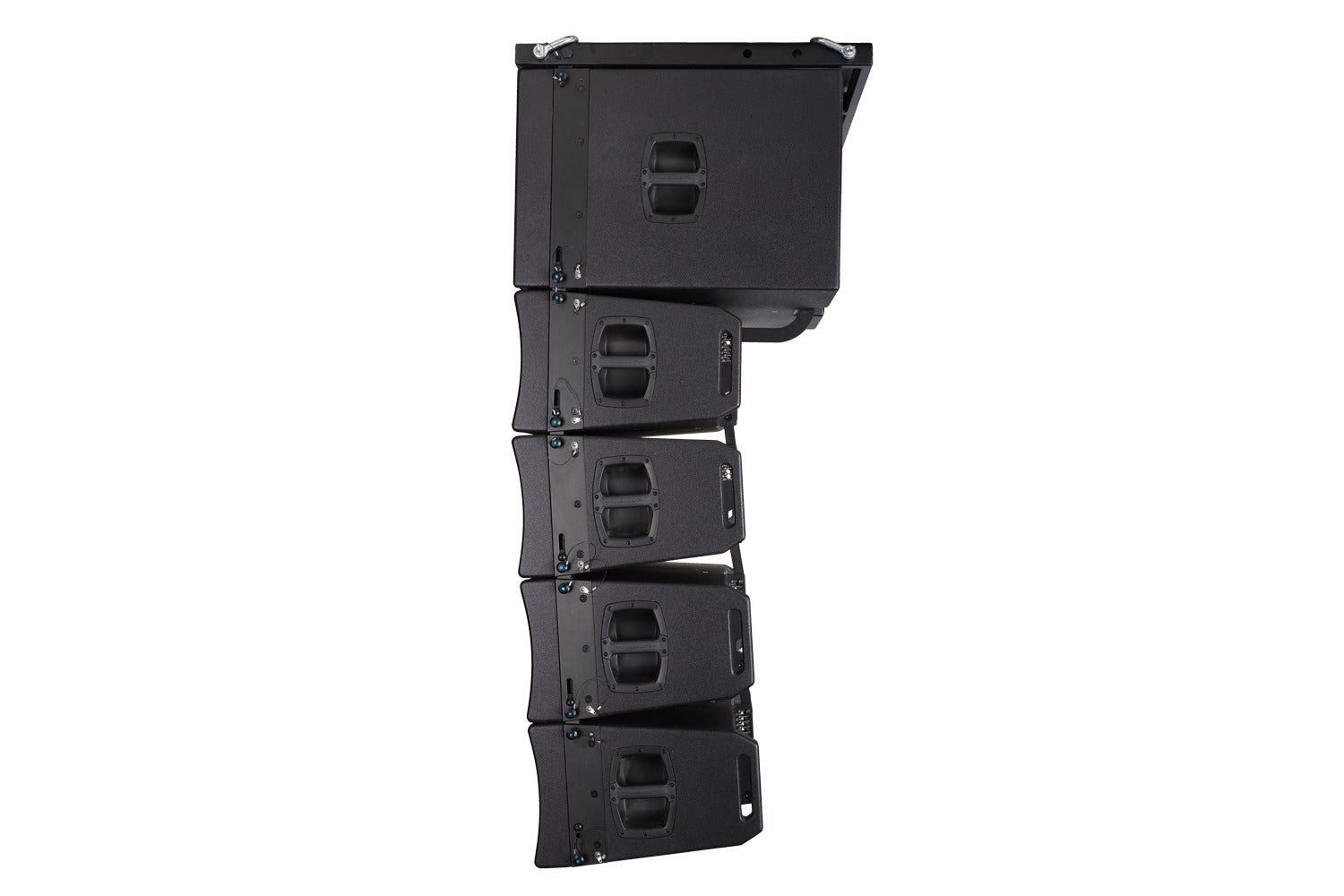

WLA-210X rigging doubles up as an optimised ground stacking system, using the WLA-210XSUB subwoofer as a base.
Arrays of WLA-210X line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.
SPECIFICATIONS
| Model Name | WLA-210XSUB |
|---|---|
| System Type | Passive |
| Configuration | Dual 15” Subwoofer |
| Frequency Response (+/-3 dB) | 39 Hz – 900 Hz |
| Frequency Range (-10 dB) | 35 Hz -1.5 KHz |
| Sensitivity (2.83 v / 1 m) | 108 dB |
| Calculated Maximum SPL @1 m | 145 dB |
| System Rated Impedance | 4 Ω |
| Low Frequency Transducer | |
| Size | 2 x 381 mm / 2 x 15” |
| Voice Coil Size | 101.6 mm / 4” |
| Rated Impedance | 8 Ω x 2 |
| LF Power (re:AES2-2012) | 2 x 600 W |
| Power | |
| System Continuous Power | 1200 W |
| System Programme Power | 2400 W |
| System Peak Power | 4800 W |
| Crossover frequency | No |
| Input Connector | 2 x speakON compatible |
| Hardware | Integral side plate non adjustable |
| Enclosure | |
| Enclosure Material | 18 mm Plywood |
| Finish | Rhino Black Paint |
| Grille Material & Finish | 1.2 mm Black Steel |
| Dimensions – (Unpacked) | |
| Height Front | 485 mm / 19.1″ |
| Height Rear | 485 mm / 19.1″ |
| Width | 760 mm / 29.9″ |
| Depth | 716 mm / 28.2″ |
| Dimensions – (Packed) | |
| Height | 575 mm / 22.6″ |
| Width Front | 850 mm / 33.5″ |
| Width Rear | 850 mm / 33.5″ |
| Depth | 806 mm / 31.7″ |
| Weight | |
| Net Weight (kg / lbs) | 63.0 kg / 138.4 lbs |
| Gross Weight (kg / lbs) | 68.0 kg / 149.6 lbs |
