Description

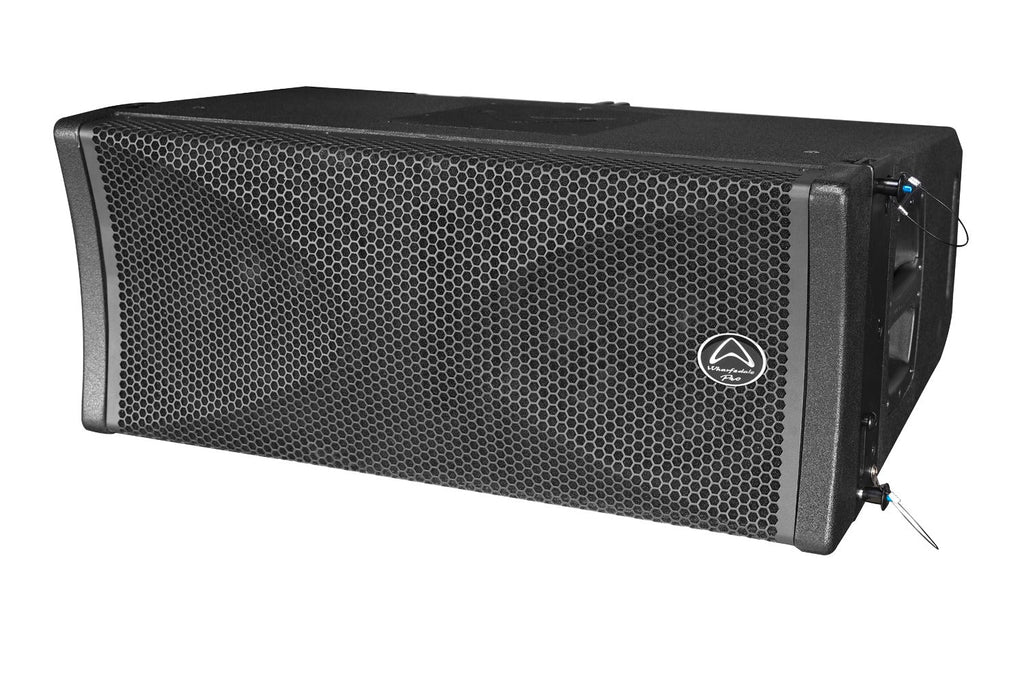

WLA-210X
- 2 x 10″ LF drivers
- 3″ Neodymium HF compression driver
- 138 dB Max SPL
- 15mm / 18mm Birch plywood construction
- Integral, side plate adjustable rigging system
- 100° x 10° dispersion
- 180 watts programme HF
- 1600 watts programme LF
- 16 Ω impedance
DUAL 10"

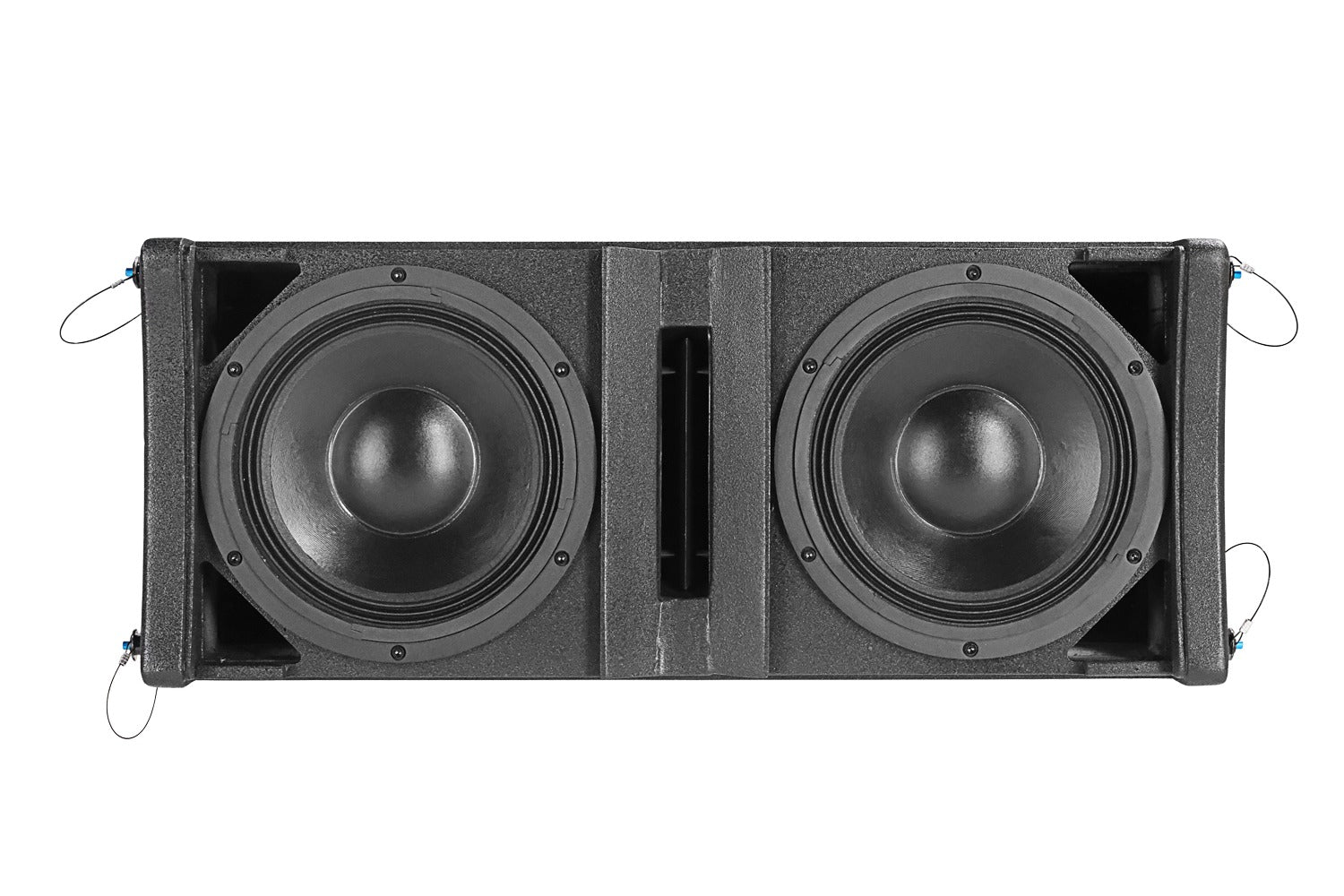

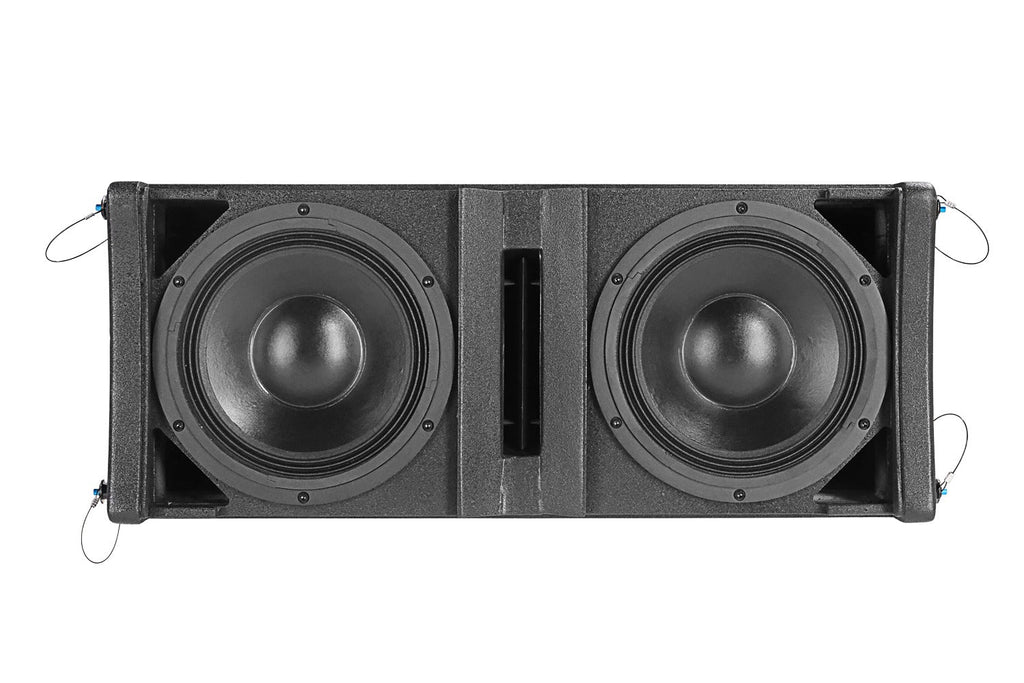

At the heart of the WLA-210X are 2 x 10″ custom Wharfedale Pro LF drivers.
These feature 4.0″ voice coils to ensure high efficiency and high power handling.
The HF Compression driver is also custom made by Wharfedale Pro. Using a neodymium magnet and a 3.0″ voice coil, this compression driver is coupled to a 100° x 10° waveguide.
These custom designed transducers are what give a WLA-210X system its incredible sound and power handling capacity.
JUST IMAGINE
Imagine your dream system! You can configure a WLA series rig to suit your needs!
To help your design and system preparations, you can download some recommended system diagrams. These range from small to large and use a selection of our different amplifier ranges.
OPTIMISED GROUND STACKING
WLA-210X rigging doubles up as an optimised ground stacking system, using the WLA-210XSUB subwoofer as a base.
Arrays of WLA-210X line array elements can be aimed downwards by as much as 10° to cover audience areas close to a stage, as well as upward by as much as 10° in order to better cover distant balcony seating areas.
BI-AMP & PASSIVE MODES
In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker.
In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.
AMPS & DSP
A Versadrive DSP (such as SC-48 FIR) or a DP-N series amplifier with internal FIR filtering is highly recommended to get the most from the system. Phase, EQ and filtering should be applied and this way, the physics of the system can be truly optimised – delivering that sub-bass, power and clarity that this system can deliver.
SPECIFICATIONS
| Model Name | WLA-210X |
|---|---|
| System Type | Passive |
| Configuration | Two-way 2 x 10” |
| Frequency Response (+/-3 dB) | 65 Hz – 20 KHz |
| Frequency Range (-10 dB) | 60 Hz – 20 KHz |
| Sensitivity (2.83 v / 1 m) | 102 dB |
| Calculated Maximum SPL @1 m | LF:135 dB HF:138 dB |
| System Rated Impedance | 16 Ω |
| Low Frequency Transducer | |
| Size | 2 x 260 mm / 2 x 10” |
| Voice Coil Size | 65 mm / 2.5” |
| Rated Impedance | 8 Ω x 2 |
| LF Power (re:AES2-2012) | 2 x 400 W |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver – Neo |
| Voice Coil Size | 75 mm / 3.0” |
| Exit Size | 35.56 mm / 1.4” |
| Diaphragm Material | Titanium |
| Rated Impedance | 8 Ω |
| HF Power (re:AES2-2012) | 80 W |
| Nominal Coverage (H x V) | 100° x 10° |
| Power | |
| System Continuous Power | LF:800 W HF:90 W |
| System Programme Power | LF:1800 W HF:180 W |
| System Peak Power | LF:3600 W HF:360 W |
| Crossover frequency | 1.5 KHz |

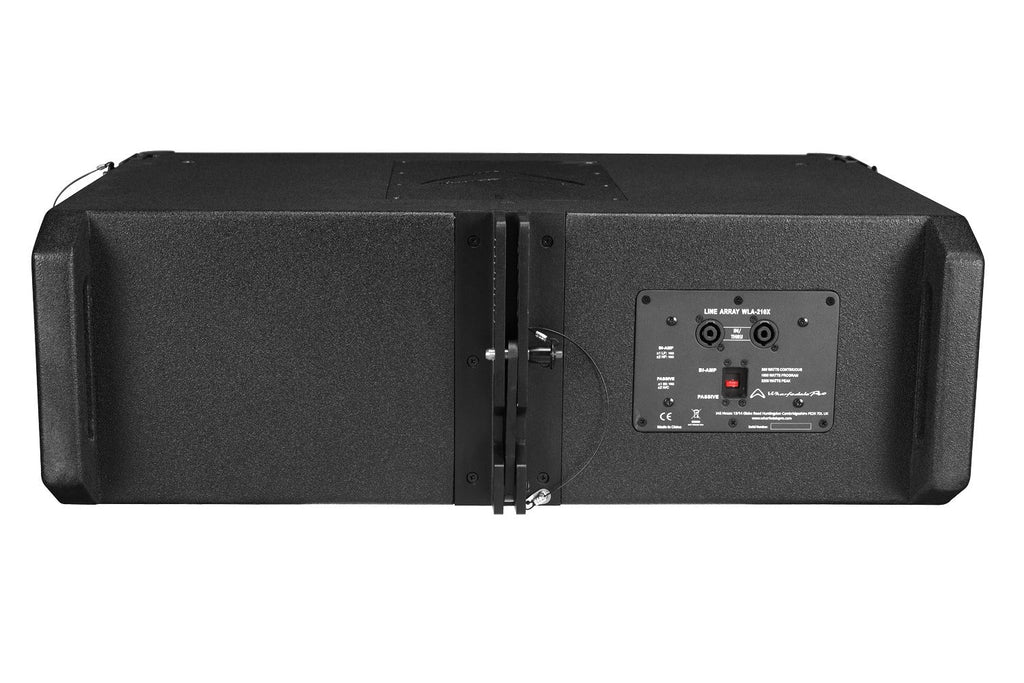

| Input Connector | 2 x speakON compatible |
| Hardware | Integral side plate adjustable rigging 0°-10° |
| Enclosure | |
| Enclosure Material | 15 mm / 18 mm Plywood |
| Finish | Rhino Black Paint |
| Grille Material & Finish | 1.2 mm Black Steel |
| Dimensions – (Unpacked) | |
| Height Front | 314 mm / 12.4” |
| Height Rear | 240.2 mm / 9.46” |
| Width | 760 mm / 29.9” |
| Depth | 504 mm / 19.84” |
| Dimensions – (Packed) | |
| Height | 404 mm / 15.9” |
| Width Front | 855 mm / 33.7” |
| Width Rear | 855 mm / 33.7” |
| Depth | 594 mm / 23.4” |
| Weight | |
| Net Weight (kg / lbs) | 34.8 kg / 76.6 lbs |
| Gross Weight (kg / lbs) | 38.5 kg / 84.7 lbs |
