Description
- Description

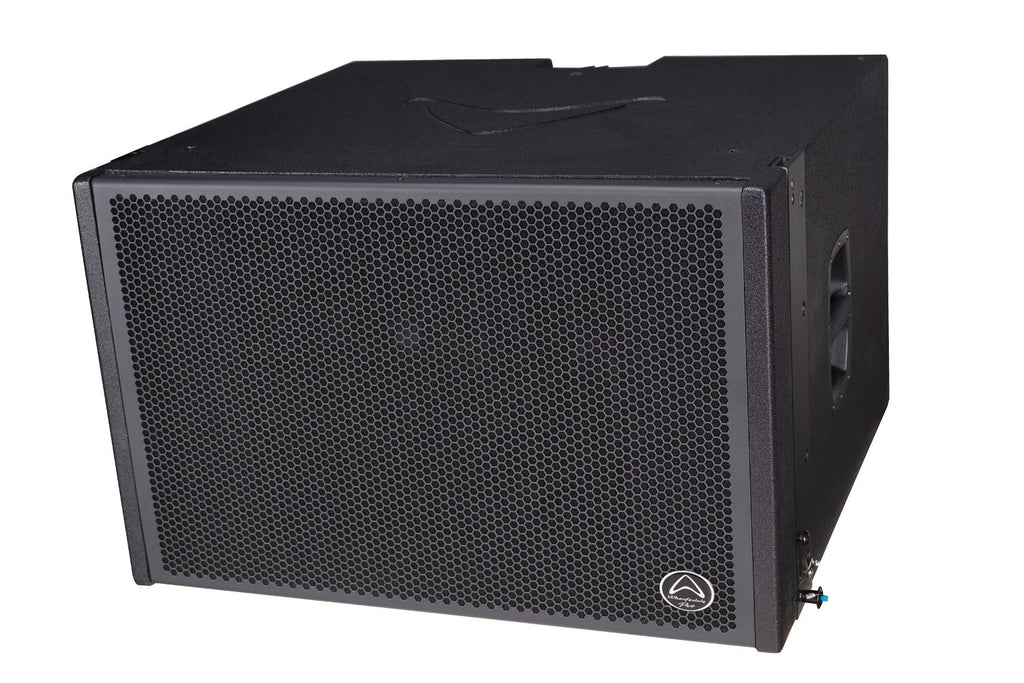

WLA-210SUBA
- 2000 Watts continuous
- Dual 15″ subwoofer
- Internal DSP with 8 presets
- Network connection using RS485 protocol
- 145 dB Max SPL @ 1 m
PHASE PLUGS
The two crafted phase plugs result in a more consistent frequency response off axis.
The design is usually unseen behind the grille…..but the impact these have on the system performance is stunning.
EVO-FOLD
The central 3.0″ HF compression driver is directly coupled to our EVO-Fold waveguide.
EVO-Fold reduces the usual phase issues that traditional 2-way line arrays have due to them having the drive units physically some distance apart in the array. The HF compression driver is loaded to a unique EVO-Fold horn. The EVO-Fold horn combines a unique folded and manifold design. The most advanced FEM technology has been used to create this.
The high-mid energy exits produce a uniphasic sound in the widest range of frequencies. And visually, the detail of the EVO-Fold waveguide is a work of art.
INTERNAL DSP WITH FIR
8 x DSP Presets – built in – including FIR.
Easy to get great results – fast.
For the subwoofers (WLA-210SUBA and WLA-218BA) the AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.
SOFTWARE CONTROL
DOWNLOAD THE SOFTWARE - COMING SOON
DUAL 10"
At the heart of the WLA-210A are 2 x 10″ custom Wharfedale Pro LF drivers.
Designed and Engineered in the UK, they deliver the power to impress.
ABOUT THE CLARITY
The HF compression driver delivers additional clarity and performance with enhanced definition.
It is custom made by Wharfedale Pro and is coupled to the EVO-Fold waveguide resulting in 100° x 10° dispersion.
OPTIONAL FLY FRAME

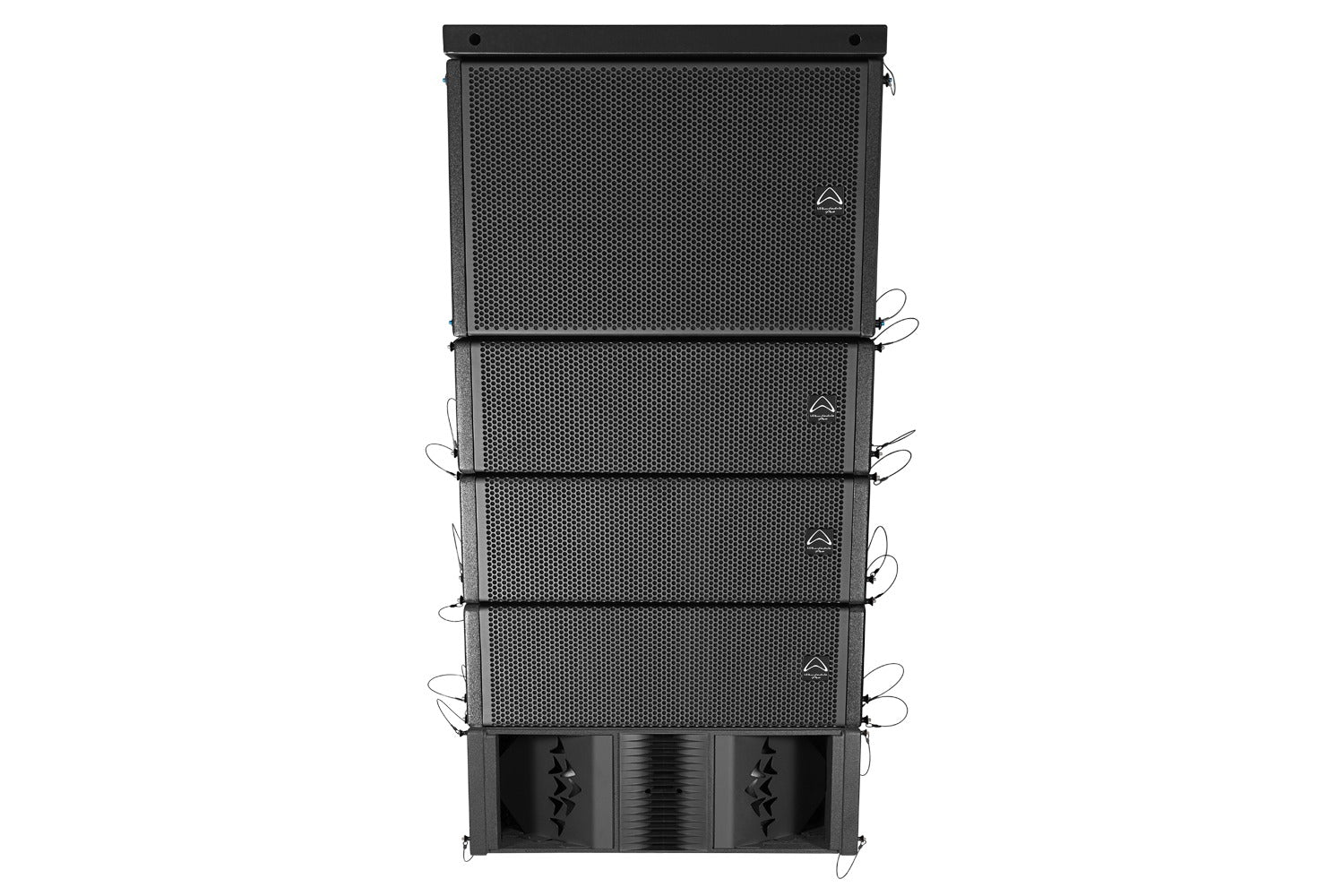

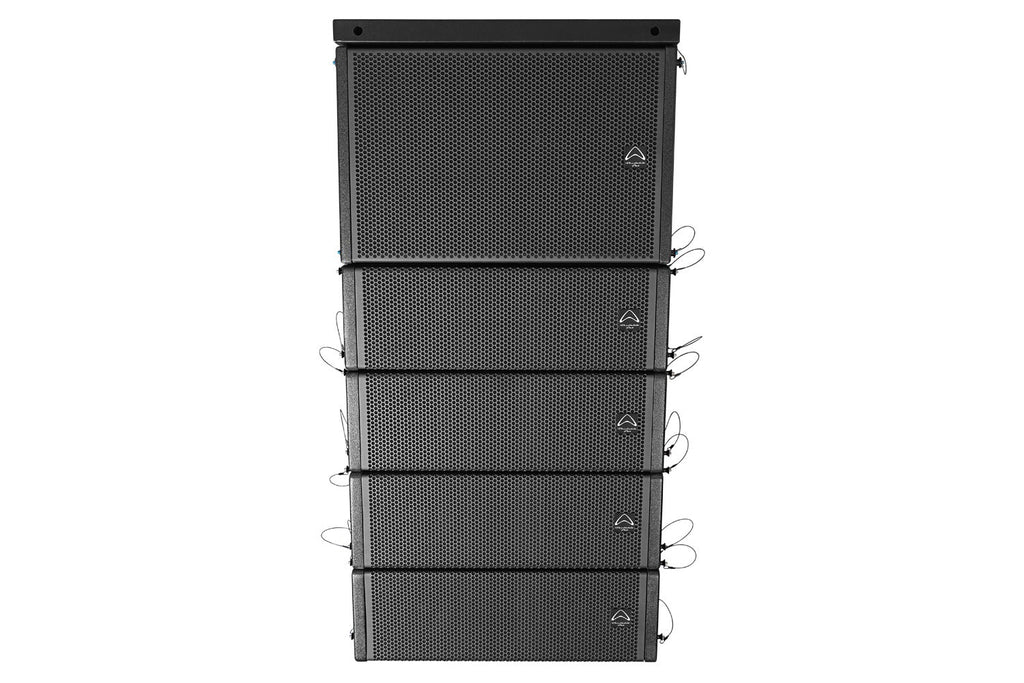

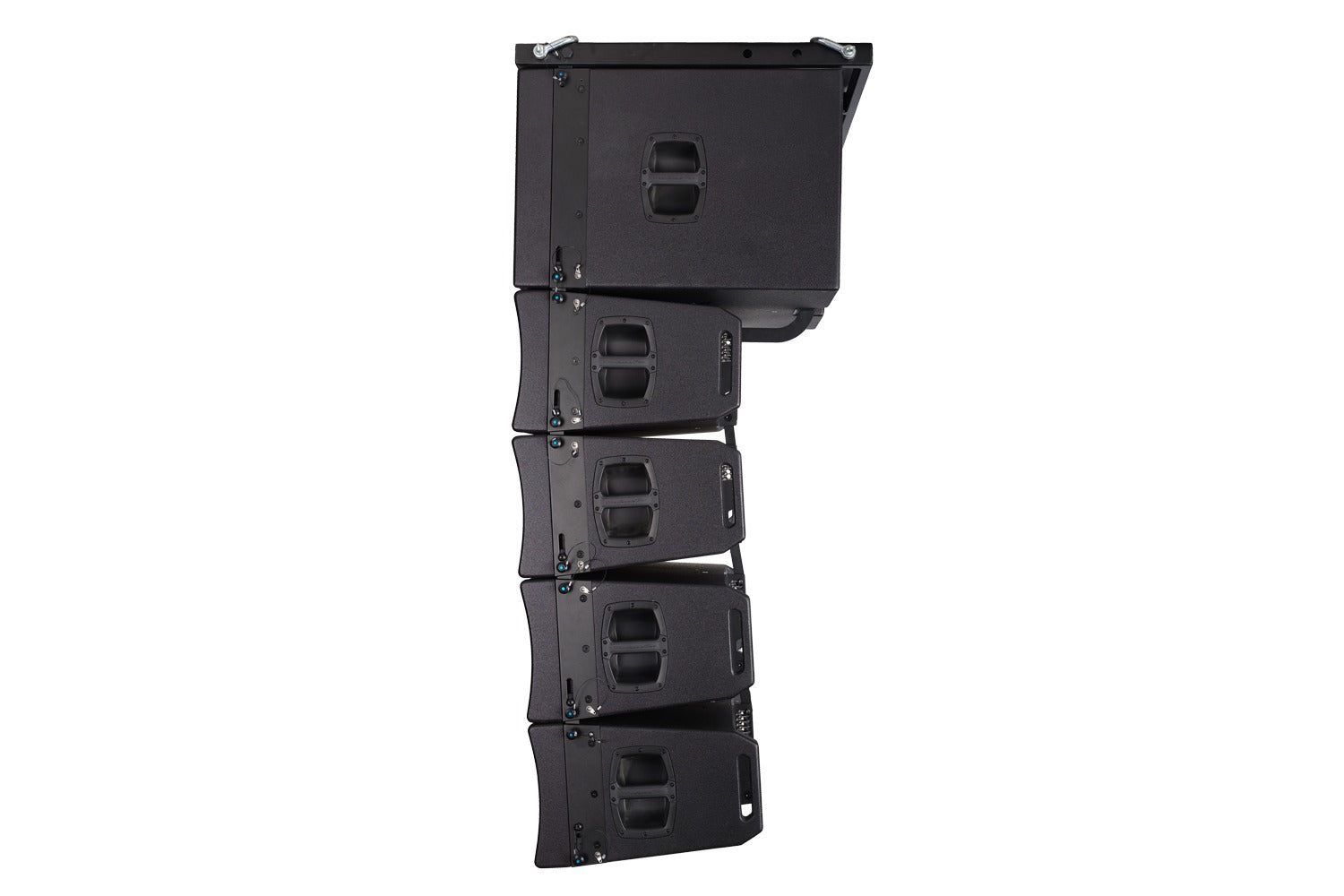

Arrays can be assembled using only WLA-210A line array elements or with the WLA-210SUBA Subwoofers at the top of the array.
The WLA-210X Common Fly frame supports up to 12 x WLA-210A elements and a WLA-210SUBA.
EASE DOWNLOAD
WLA-210A models are supported with EASE .gll files.
SPECIFICATIONS
| Model Name | WLA-210SUBA |
|---|---|
| System Type | Active 2 x 15″ Subwoofer |
| Frequency Response (+/-3 dB) | 39 Hz-125 HZ |
| Frequency Range (-10 dB) | 35 Hz-163 KHz |
| Loudspeaker Sensitivity @ 1 W / 1 m) | 108 dB |
| Maximum SPL(peak)(@1 m) | 145 dB |
| Waveguide Type | |
| Nominal Coverage (H x V) | – |
| Signal Processing | DSP based, 8 presets |
| Preset list | A) FLOWN B) FLOWN with 218 C) STACK D) STACK with 218 E) CARDIOID AUDIENCE F) CARDIOID STAGE G) CUSTOM H) CUSTOM |
| Amplifiers | |
| Amplifier Design | Class D |
| Power Rating: | 4000 W Peak / 2000 W Continuous |
| Power On Protection | Power switch on/off mute |
| Thermal Protection | Amplifier Shut Down. Auto Reset |
| Low Line Voltage Shut Down | 60% Nominal Line Voltage |
| Driver Protection | RMS, Peak Limiters and DC |
| DC and Short Protection | Yes |
| Limiter Indicator | Red LED |
| Signal Indicator | Green LED |
| Power/Active Indicator | White LED |
| Find Function Indicator | Blue LED |
| Input Sensitivity | +4 dBu |
| Maximum Input Level | +18 dBu |
| Input Impedance | Balanced: 10 KΩ |
| AC Power details – Power Supply | High Efficiency Switching Mode Power Supply |
| Connectors | |
| Input Connector | Balanced socket XLR Connector |
| Link Connector | Balanced pin XLR Connector |
| UPDATE | USB Type B |
| NETWORK (RS485) | RJ45 |
| AC Power Options | AC 100-120 V~ and 220-240 V~, 50/60 Hz Automatic |
| AC Input Connector | powerCON |
| AC Loop Through Connector | powerCON |
| Hardware – Rigging | Integral side plate |
| Enclosure Material and finish | 15 mm / 18 mm Plywood |
| Colour Options | Black Rhino Paint |
| Grille Material & Finish | 1.5 Steel |
| Unpacked dimensions – Height | 485 mm / 19.1″ |
| Width (Front) | 760 mm / 29.9″ |
| Width (Back) | 760 mm / 29.9″ |
| Depth | 775 mm / 30.67″ |
| Packed Dimensions – Height | 575 mm / 22.6″ |
| Width (Front) | 850 mm / 33.5″ |
| Width (Back) | 850 mm / 33.5″ |
| Depth | 865 mm / 34.6″ |
| Net Weight (Kg / lbs) | 68.0 Kg / 149.6 lbs |
| Gross Weight (Kg / lbs) | 72.5 Kg / 159.5 lbs |
