Event Lighting F100WWMZ - 100W Warm White Fresnel with Manual Zoom

Event Lighting F100WWMZ - 100W Warm fresnel offers smooth, even warm white light, ideal for replacing traditional fresnels. With adjustable dimming curves down to 16 bit, it uses much less power without the need for costly dimming racks and power distribution. Its manual zoom shift adjusts between 30-65 degrees, creating a soft field with over 95% CRI, and its temperature-controlled fan-cooling ensures a nearly silent performance. It's equipped with Neutrik powercon connectors for 3-pin DMX and comes with a set of barn doors for beam shaping and glare reduction. Suitable for theaters, broadcast studios and other stages, the Event Lighting LED fresnel is an energy-saving, long-lasting fixture.



Photometrics

• Light Source: 100 W 3,000K COB LED
• CRI: 90
• Beam Angle: 12°~25°
• Field Angle: 30°~65°
• Output: 4928 lux @ 2.5 m @ 12°, 2005 lux @ 2.5 m @ 25°
• Lens: 150 mm Fresnel
• PWM: 8,000 Hz
• LED Lifespan: 50,000 hours

Effects

• Dimming: 0~100% 8 / 16-bit
• Strobe: 1~25 Hz
• Zoom: Manual Zoom 12°~25°

Power

• Power Supply: 100~240 V AC, 50/60 Hz, 100 W
• Power Connection: Neutrik® PowerCON in / out

Control

• Operational Modes: DMX, Manual, Master / Slave
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 1 / 2 / 3
• Control Interface: 5-pin XLR

Housing

• Housing Materials: Aluminium and ABS, matte black finish
• Cooling: Sensor Thermostat Controlled Variable Speed Fan
• Net Weight: 5 kg
• Overall Size: 395 X 270 X 360mm

Accessories

• Barn Door: Included

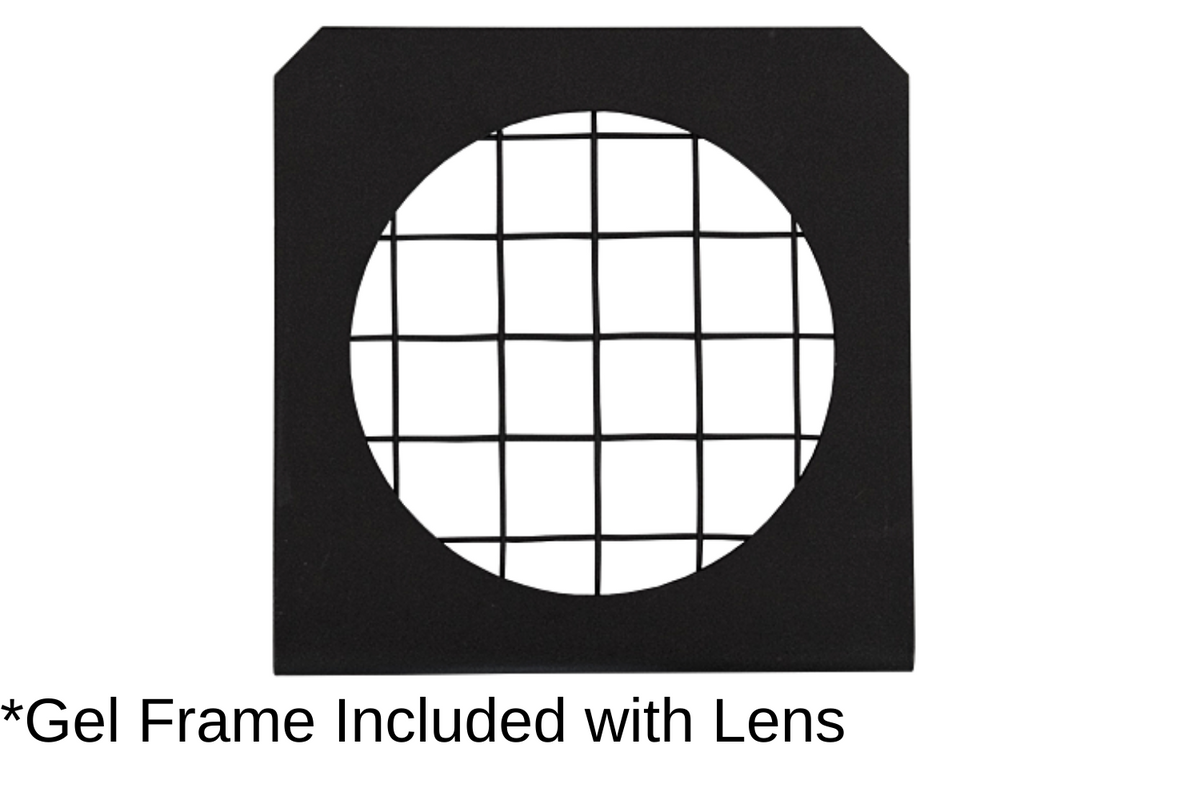

• Gel Frame: Included
• Neutrik® PowerCON Piggy Back: Included5
