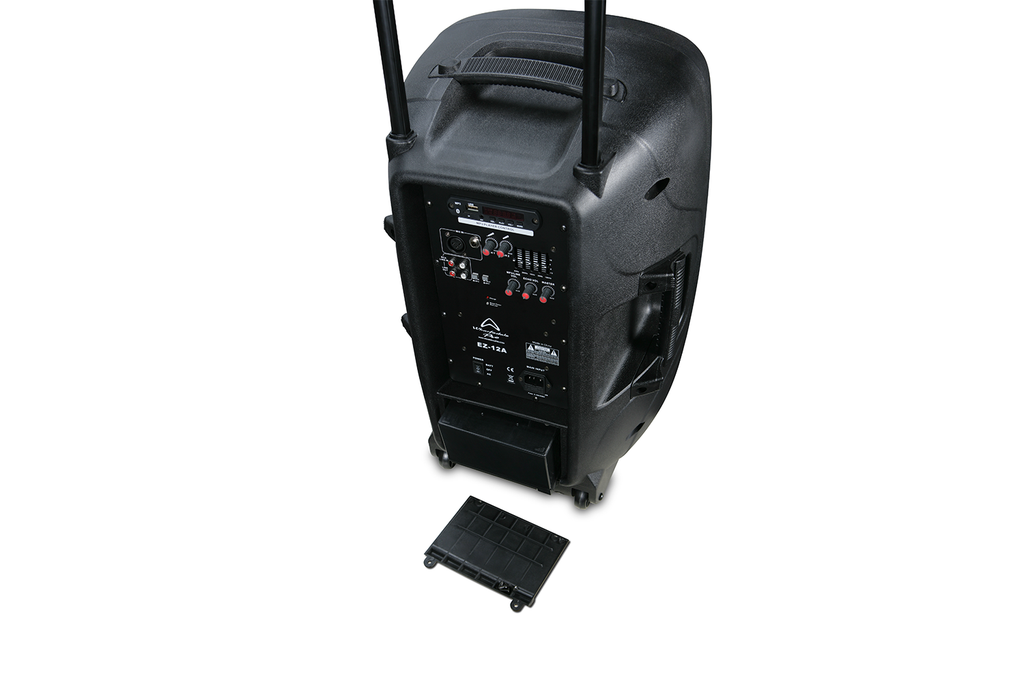

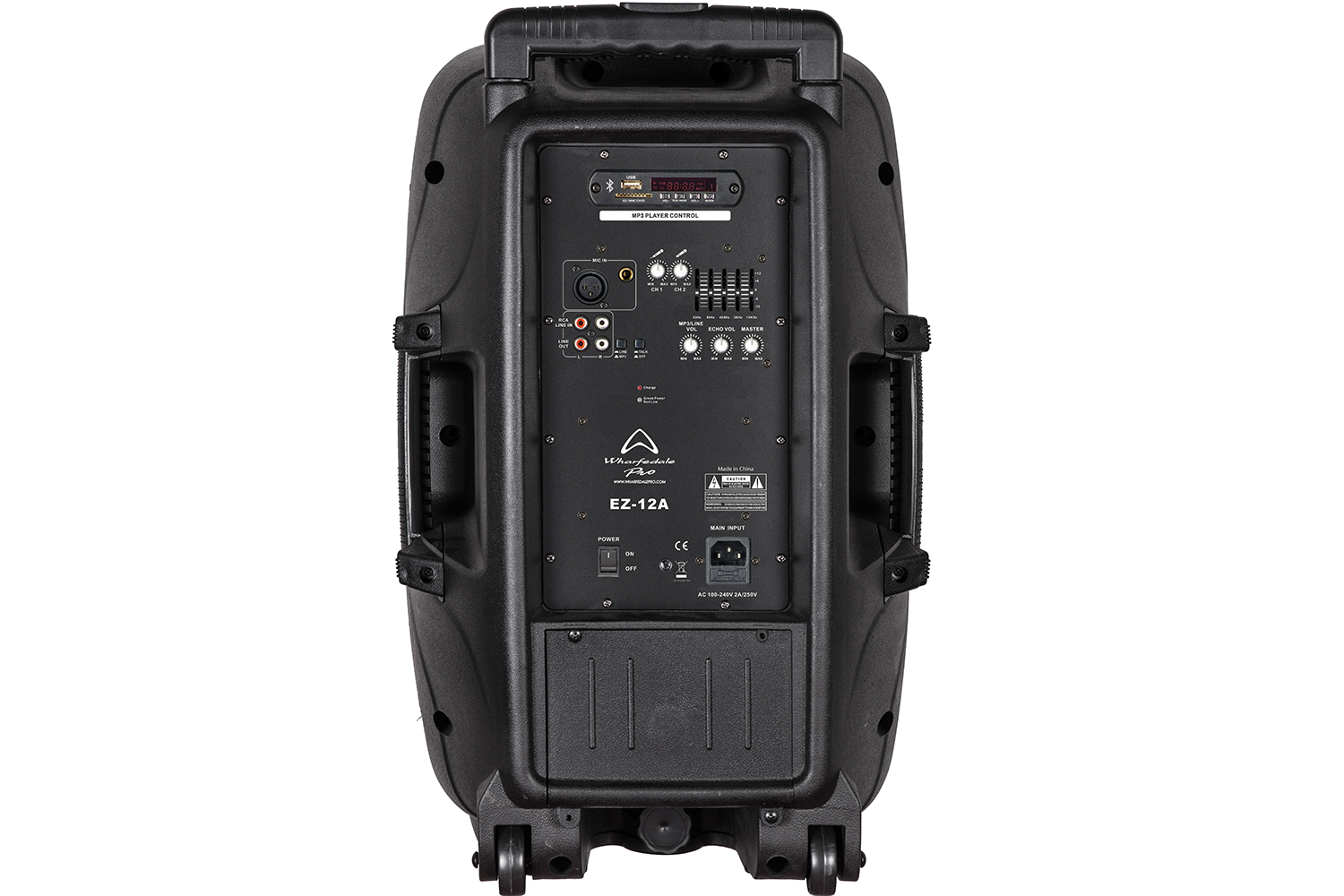

The rear panel controls are user-friendly. These give easy access to input levels, internal echo processing, the 5-Band graphic EQ and a very handy dedicated control knob for the MP3 player volume.
The MP3 section plays audio files from either USB drive or TF card and has a clear LED display.
The simple controls allow inexperienced users to put on a professional show!
|
|
|
|

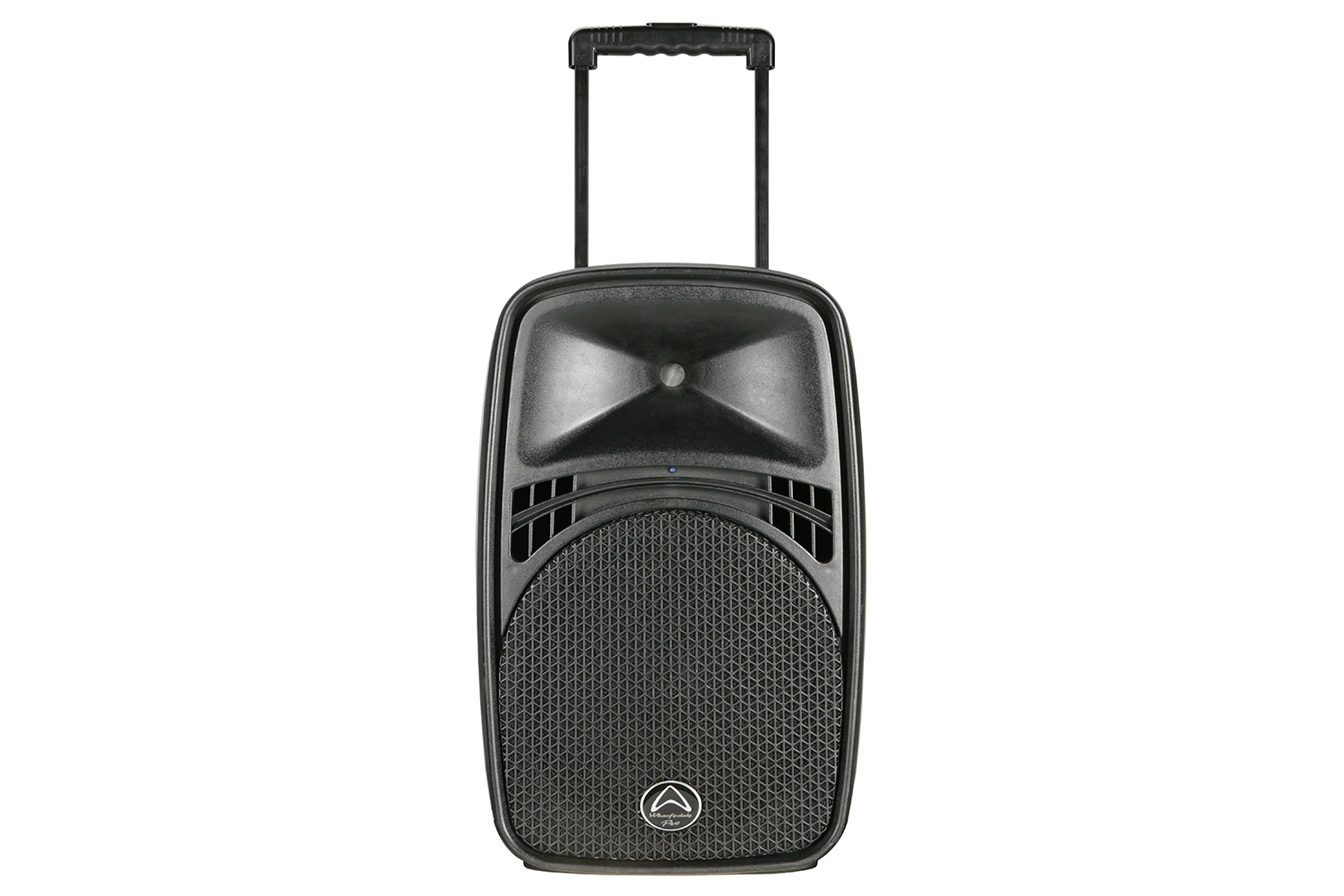

Model Name
|
EZ-12A
|
|
System Type
|
Active portable PA
|
|
Frequency range
|
65 Hz – 18 KHz
|
|
Frequency range
|
4 Ω
|
|
LF Transducer size
|
12”
|
|
LF Transducer voice coil
|
38 mm / 1.5”
|
|
HF Transducer
|
1”
|
|
Dispersion (H x V)
|
90° x 50°
|
|
Max SPL
|
115 dB
|
|
Mic input
|
XLR and 1/4” jack
|
|
Line input
|
L/R RCA connector
|
|
Line output
|
L/R RCA connector
|
|
5-Band graphic EQ
|
63 Hz / 80 Hz / 480 Hz / 3 KHz / 10 KHz +/-12 dB
|
|
Rx : Wireless mic
|
2 models available (600 – 606 MHz or
863 – 865 MHz)
|
|

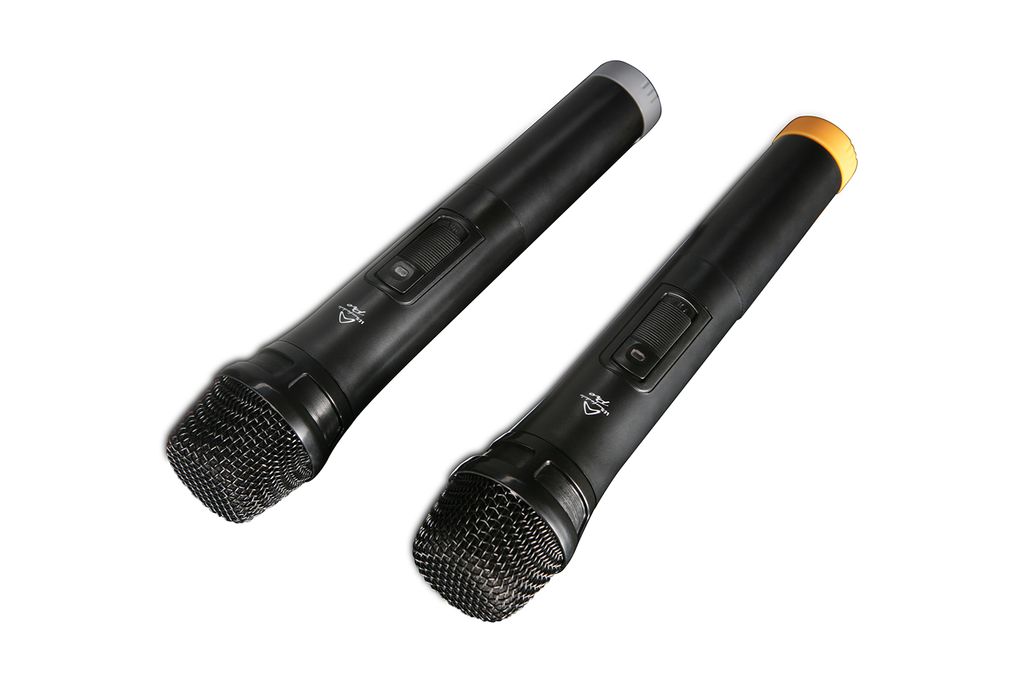

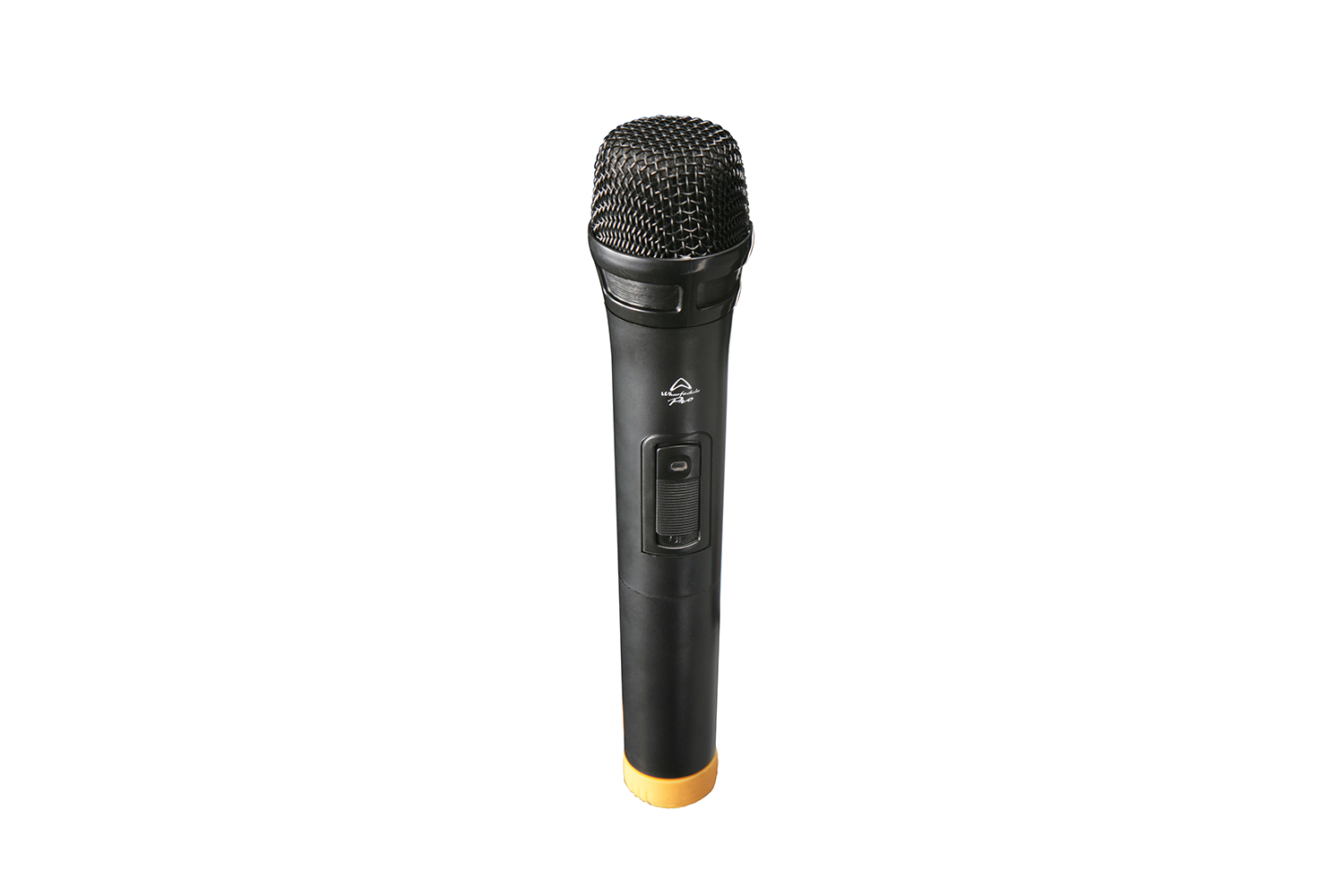

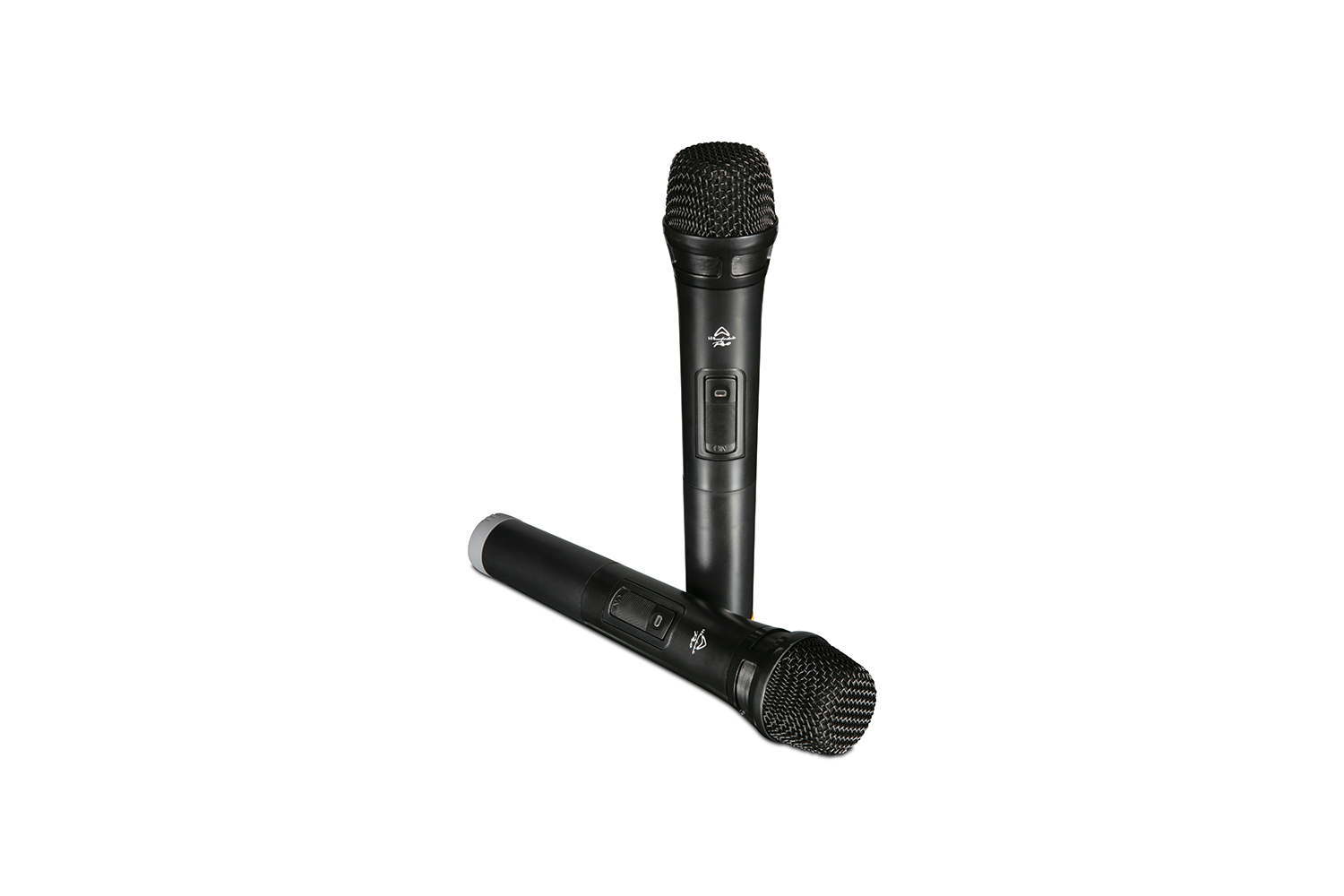

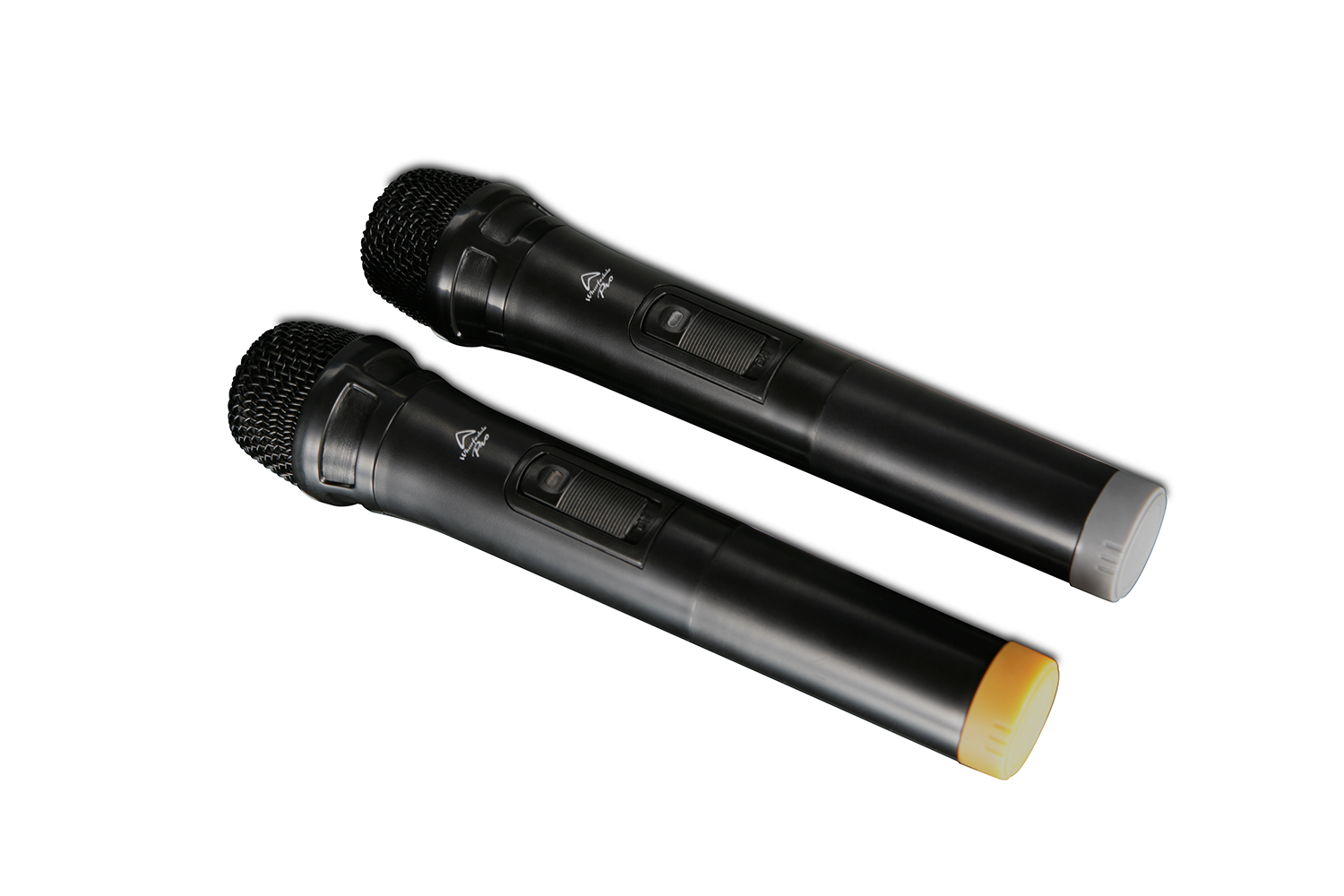

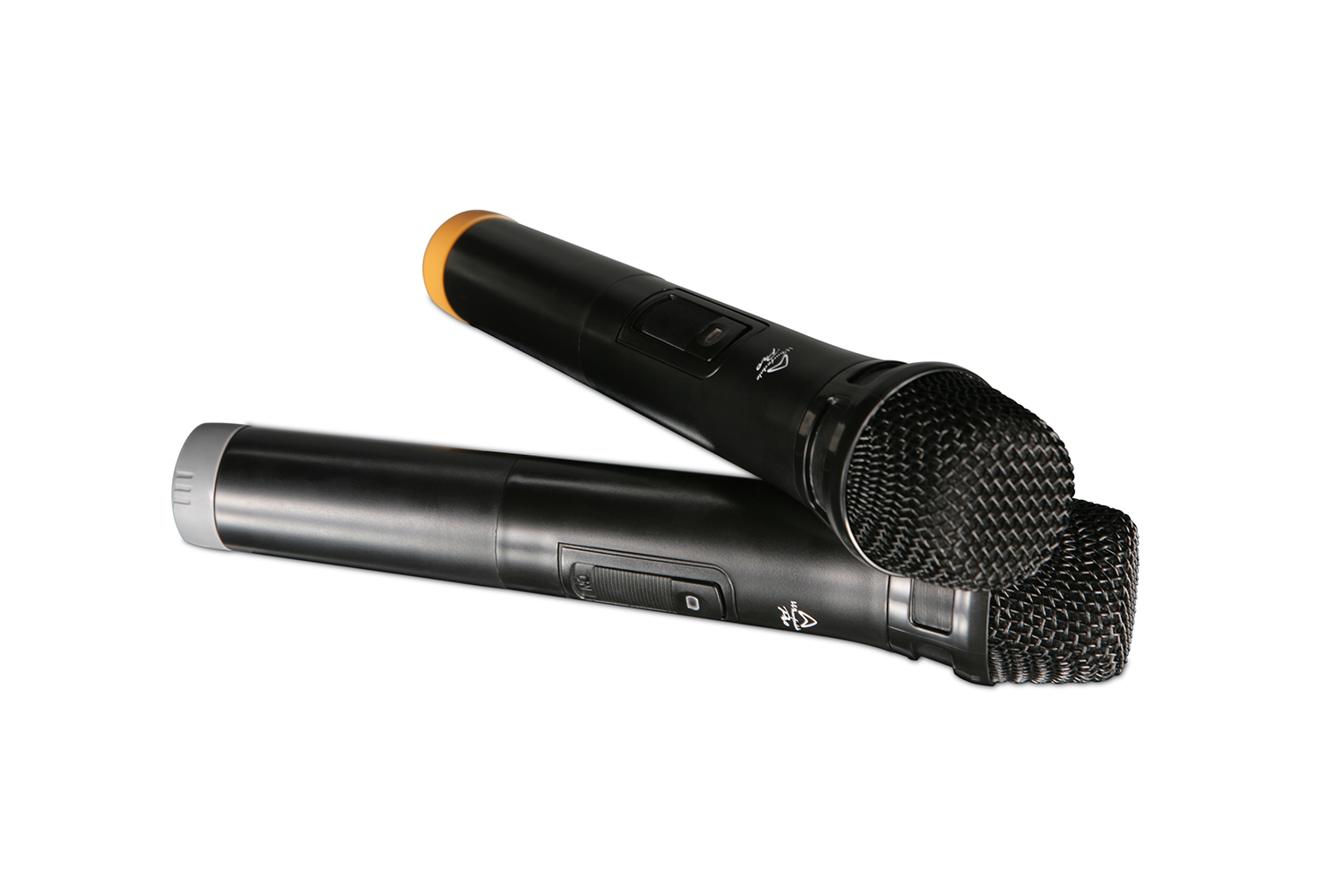

Wireless handheld microphones
|
2 pcs included
|
|
Wireless microphone range
|
40 m (theoretical value)
|
|
Echo
|
Yes
|
|
MP3 player
|
Yes (USB/TF)
|
|
Bluetooth range
|
10 m
|
|
Power (Peak)
|
100 w
|
|
Battery power
|
Up to 5 hours. (6 hours charge time)
12 v, 7.5 Ah lead acid battery
|
|
Amp THD
|
0.1% 20 Hz-20 KHz
|
|
Amp frequency response
|
20 Hz – 20 KHz +/-1 dB
|
|
Input voltage
|
100 v-240 v 50 Hz / 60 Hz
|
|
Dimensions
|
420 x 350 x 640 mm
|
|
Net weight
|
10.5 kg
|
|
Gross weight
|
12.5 kg
|
