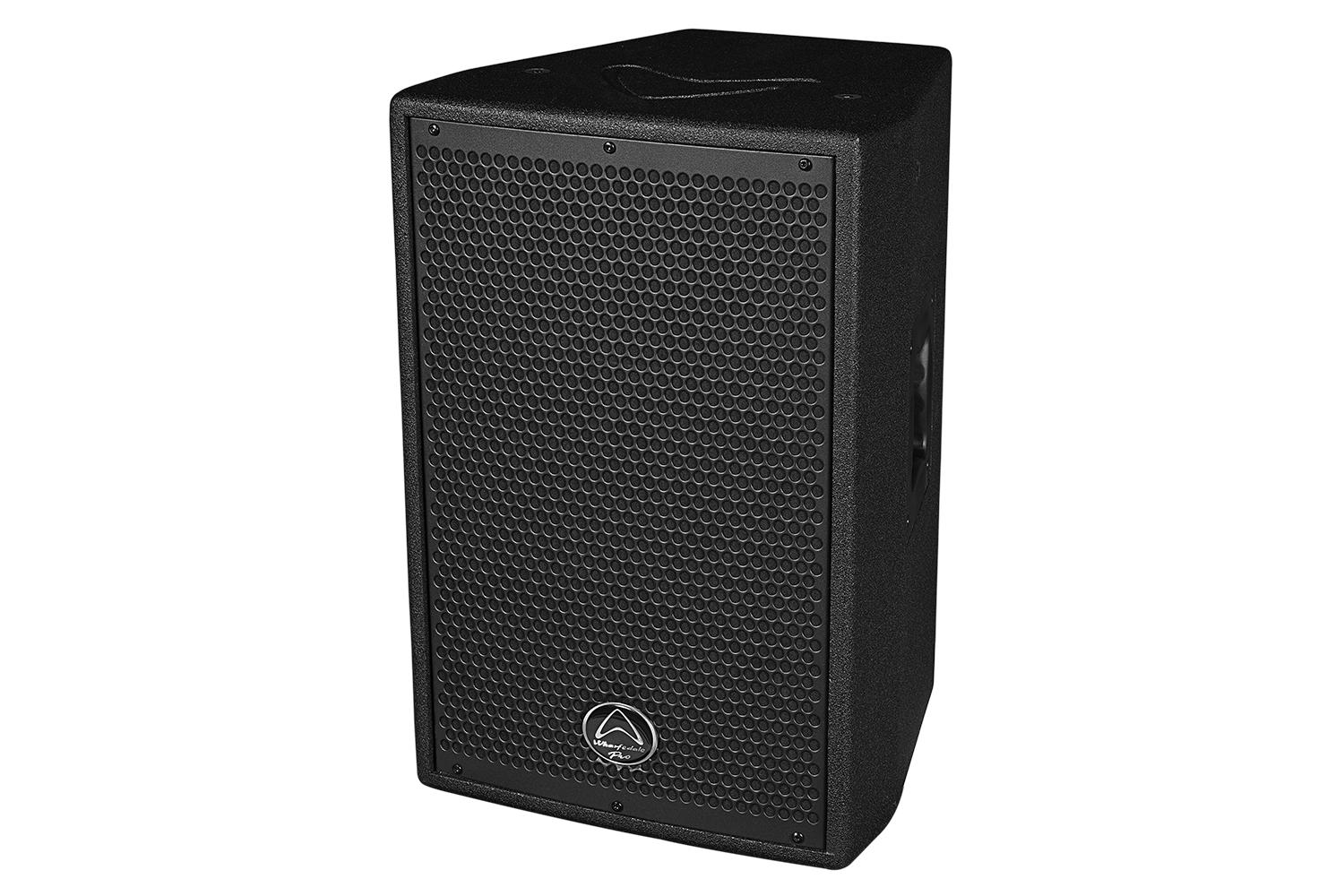

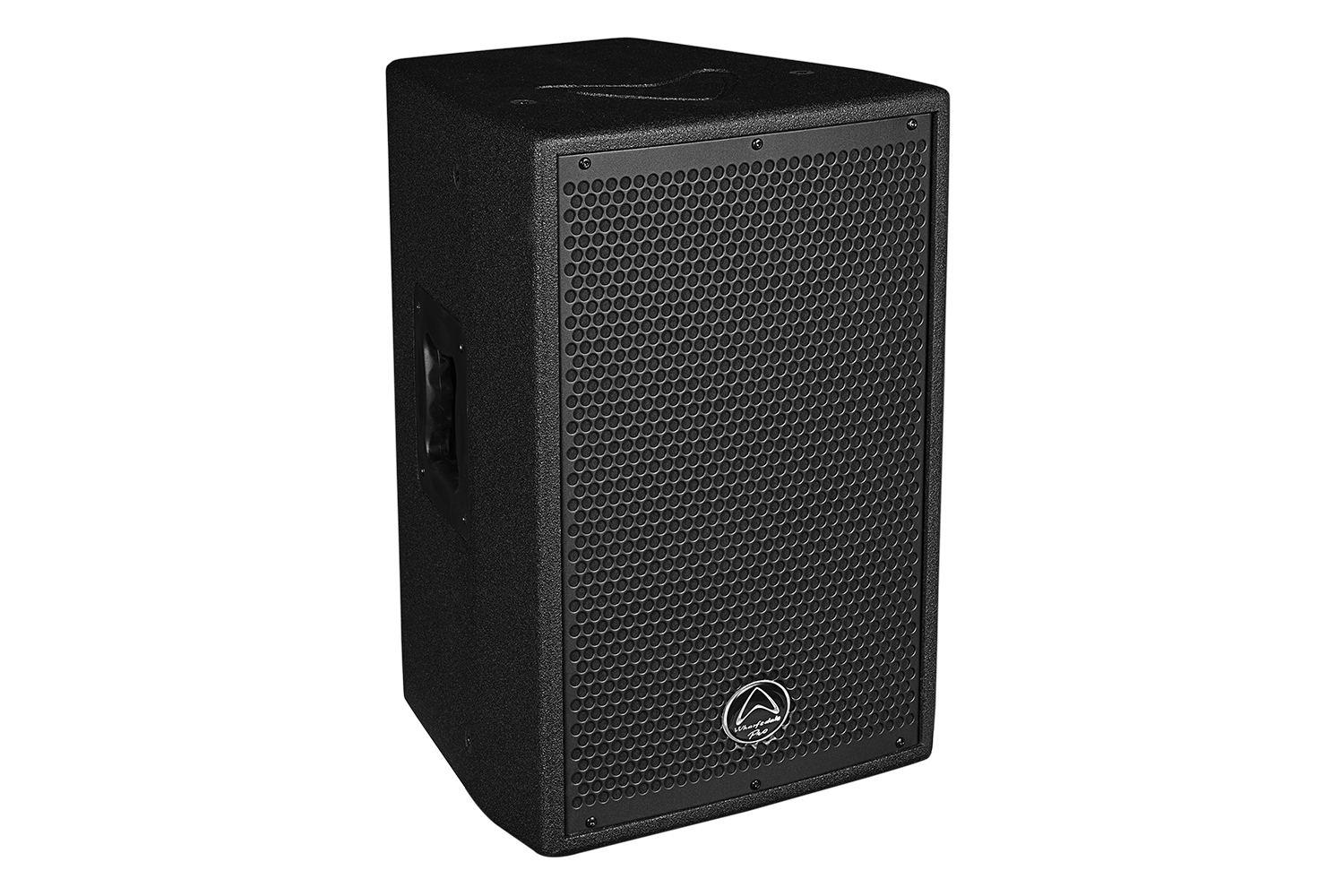

Description
- Birch plywood construction
- Re-engineered robust crossover design
- Suitable for touring, rental and installation
- 1.4″ Exit, 2″ Titanium Diaphragm Compression Drivers
- Proprietary 90° x 60° Elliptical Wave Guide Horn design
- Bi-amp and Passive mode switching
- Extremely durable Rhino Rock finished cabinets
- Multiple M6, M8 & M10 rigging points and integral tripod stand adapter

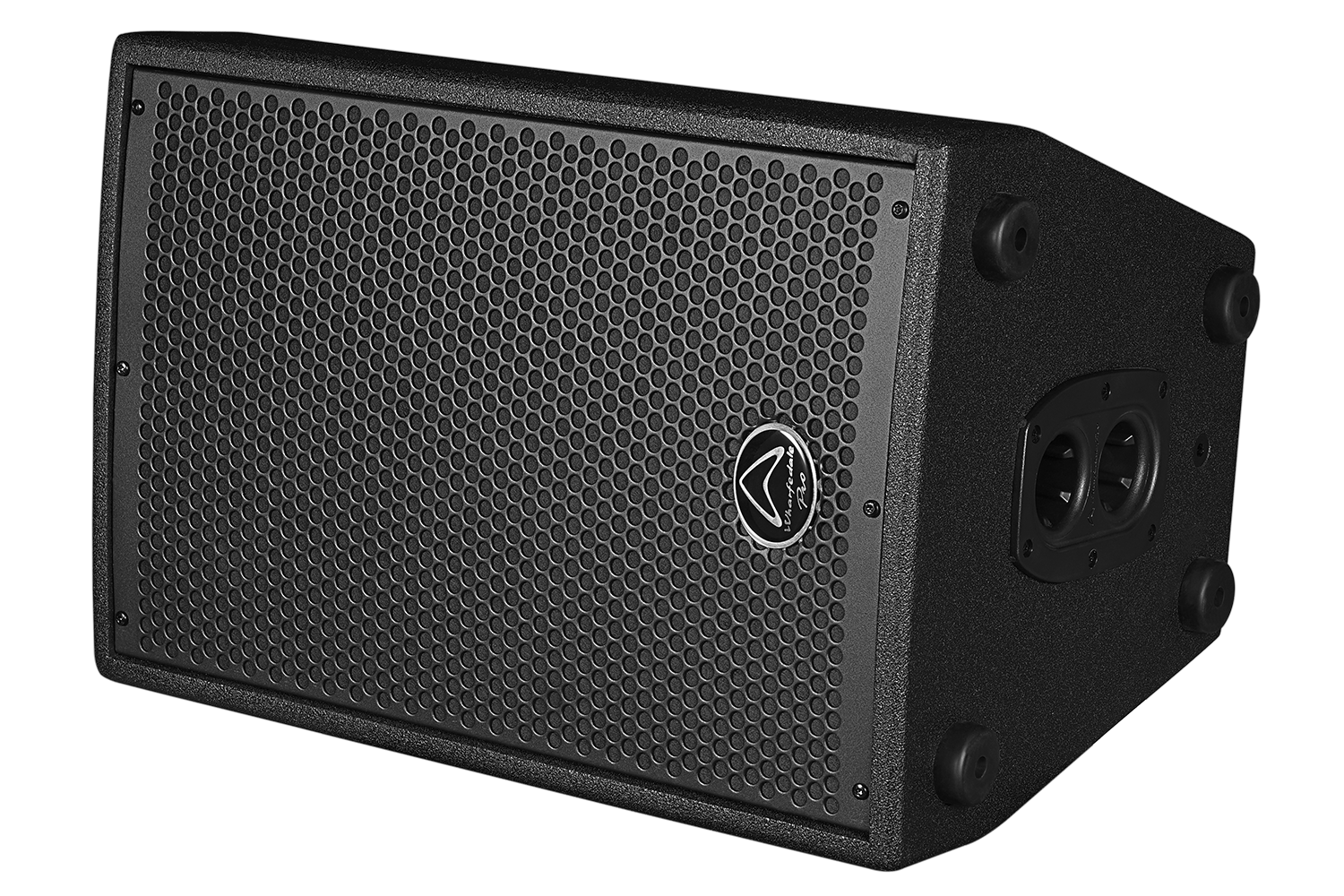

- Trapezoid shape for arrays and stage monitoring
- Dual spider technology on 18″ woofers
- Rubberised 4-way handles
- 10″ 2-way passive
- 1.75″ voice coil HF driver
- 2.5″ LF voice coil
- 300 watts AES (RMS)
- 600 watts Programme
- 1200 watts Peak
- 129 dB Max SPL @ 1 meter
BIRCH PLYWOOD
All Delta-X models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
Delta-X is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a Delta-X will always look as good as the day you unboxed it.
SOLID AS A ROCK
As with all Wharfedale Pro PA systems, years of expertise is behind a loudspeaker built to last, with thanks to our high standards of quality control.
The Delta-X series are coated in the highest quality Rhino Rock paint finish – a chip resistant texture with a professional, discrete aesthetic whilst being prepared for the rigours of life on the road.
ROUTED LOGO
Delta-X features a routed Wharfedale Pro logo.
It is a logo to be proud of. A logo that lets your audience know that the sound of your even will be of the highest possible quality.
NEW CROSSOVER DESIGN
Internally Delta-X models have a new crossover design and construction.
Using new component positioning and bracing, the sensitive crossover electronics have been re-engineered to improve long term performance and reliability – even at the highest of volumes.

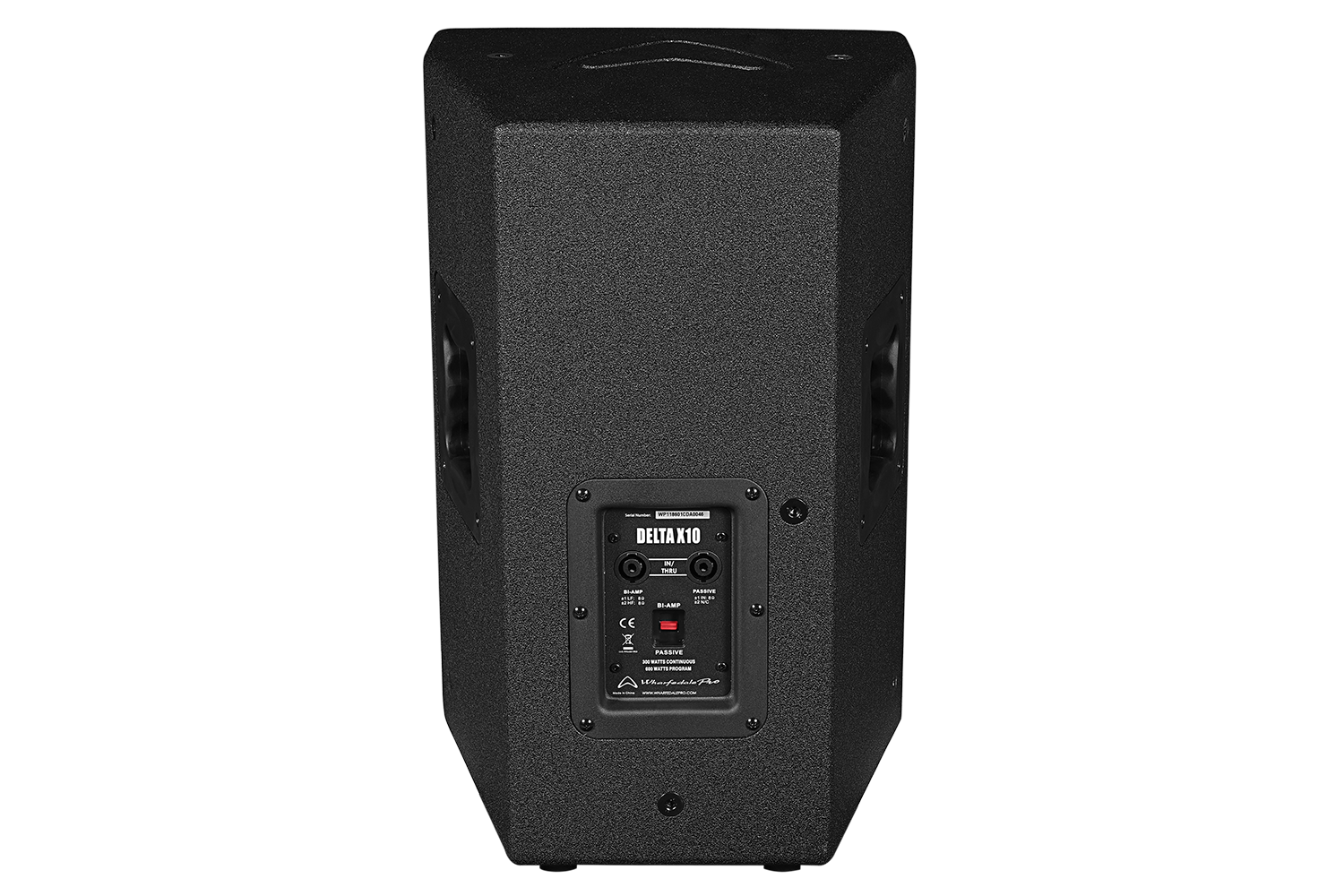

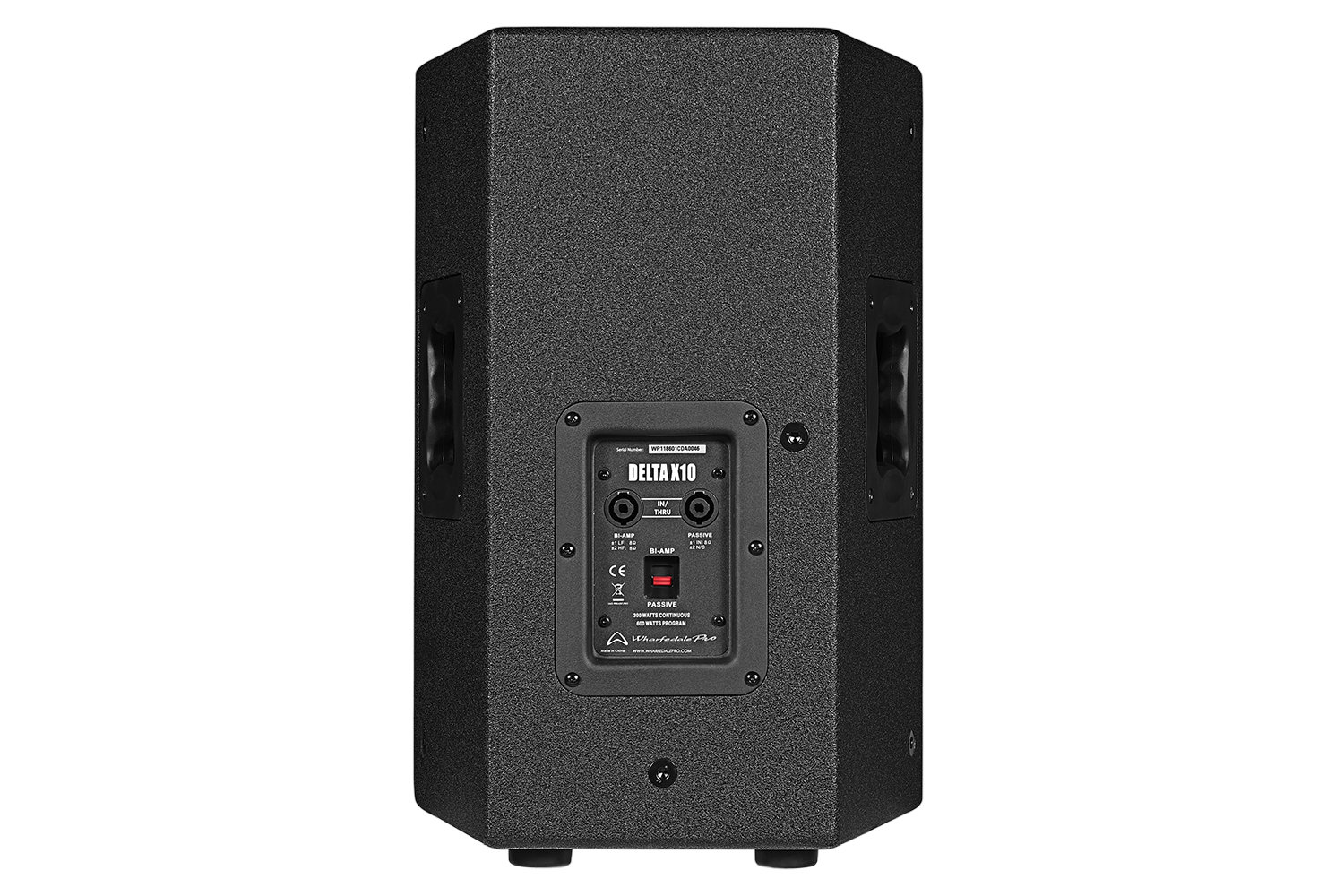

BI-AMP & PASSIVE MODES
In BI-AMP mode, two power amplifiers can be used. This gives you the advantage of being able to select the best power amplifier specifications for each driver inside the loudspeaker. In a BI-AMP configuration, an external crossover is used to separate the frequencies and this splits the signal to the dedicated LF amplifier and the HF amplifier. This way, each amplifier is only working on the given frequency range and, in turn, is powering the corresponding driver inside the loudspeaker.
In PASSIVE mode, a single amplifier can be used to power all drivers inside the loudspeaker. The full frequency range is put into the loudspeaker and the loudspeakers’ internal crossover separates the frequencies, delivering the right frequencies to the right driver. In the example of a 2-way passive loudspeaker, this means that the single amplifier is powering both the HF compression driver and the LF transducer. The internal crossover takes care of both the frequency and power separation.
|
|
|
|
Model Name |
Delta X10 |
|
System Type |
Passive |
|
Configuration |
Two-way |
|
Frequency Response (+/-3 dB) |
65 Hz-20 KHz |
|
Frequency Range (-10 dB) |
60 Hz-20 KHz |
|
Sensitivity (2.83 v / 1 m) |
97 dB |
|
Calculated Maximum SPL @1 m |
128 dB |
|
System Rated Impedance |
8 Ω |
|
Low Frequency Transducer |
|
|
Size |
288 mm / 10″ |
|
Voice Coil Size |
63.5 mm / 2.5″ |
|
Rated Impedance |
8 Ω |
|
LF Power (re:AES2-2012) |
300 w |
|
High Frequency Transducer |
|
|
HF Driver Type |
Compression Driver |
|
Voice Coil Size |
44.5 mm / 1.75″ Titanium |
|
Exit Size |
25.4 mm / 1″ |
|
Diaphragm Material |
Titanium |
|
Rated Impedance |
8 Ω |
|
HF Power (re:AES2-2012) |
40 w |
|
Nominal Coverage (H x V) |
90⁰ x 60⁰ |
|
Power |
|
|
System Continuous Power |
300 w |
|
System Programme Power |
600 w |
|
System Peak Power |
1200 w |
|
Crossover frequency |
2.8 KHz |
|
Input Connector |
2 x NL4 (speakON Compatible) |
|
Hardware |
|
|
Pole Mount |
Dual Angle (0⁰/10⁰) 35 mm |
|
Handles |
2 on Sides |
|
Enclosure |
|
|
Enclosure Material |
15 mm Plywood |
|
Finish |
Rhino Rock |
|
Grille Material & Finish |
1.5 mm Steel Black or White |
|
Dimensions – Unpacked |
|
|
Height |
500 mm / 19.7” |
|
Width Front |
338 mm / 13.3” |
|
Width Rear |
212.4 mm / 8.4” |
|
Depth |
330 mm / 13” |
|
Dimensions – Packed |
|
|
Height |
575 mm / 22.6″ |
|
Width Front |
400 mm / 15.7″ |
|
Width Rear |
300 mm / 11.8″ |
|
Depth |
386 mm / 15.2″ |
|
Weight |
|
|
Net Weight (kg / lbs) |
16.58 kg / 36.5 lbs |
|
Gross Weight (kg / lbs) |
19.6 kg / 43.0 lbs |
