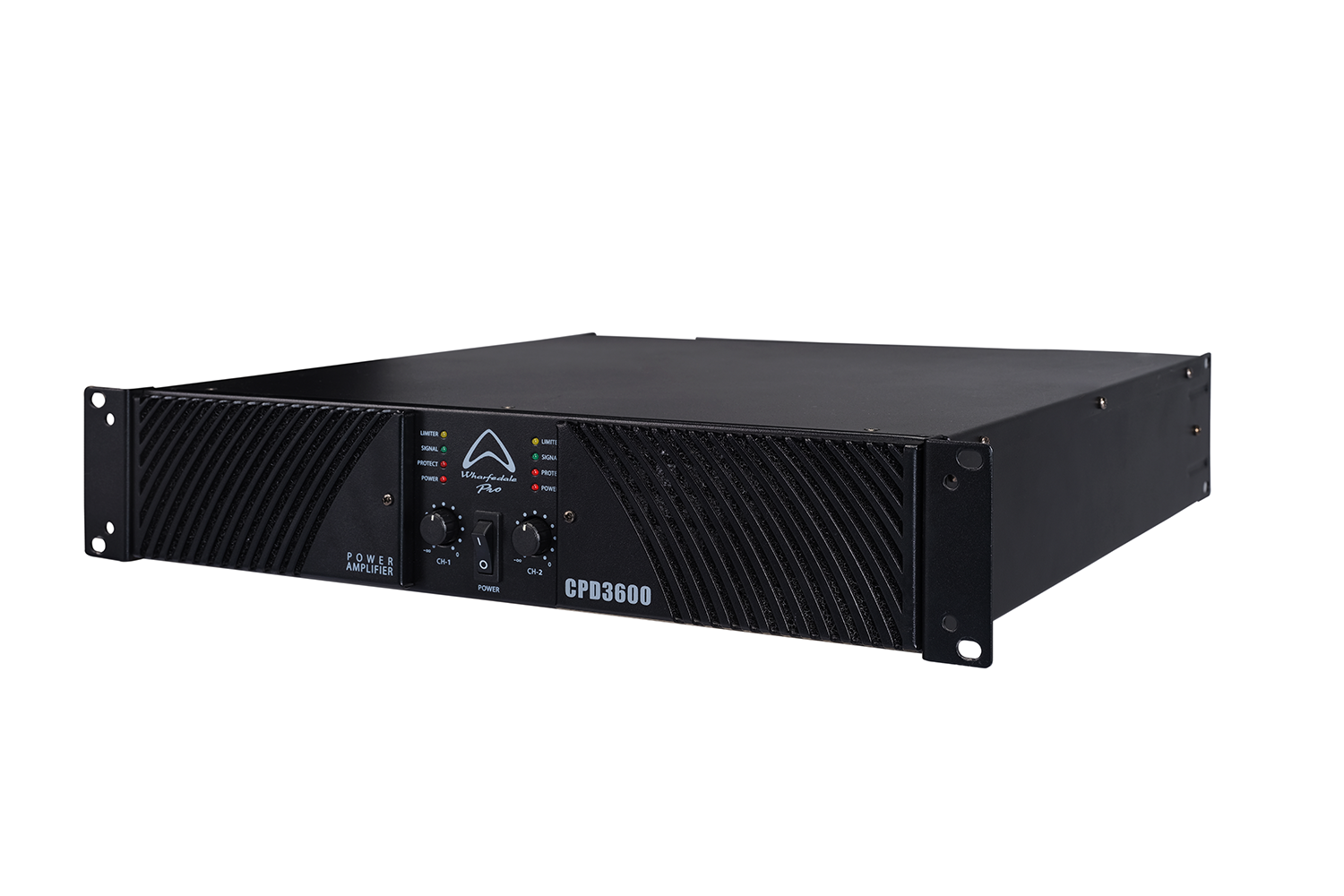

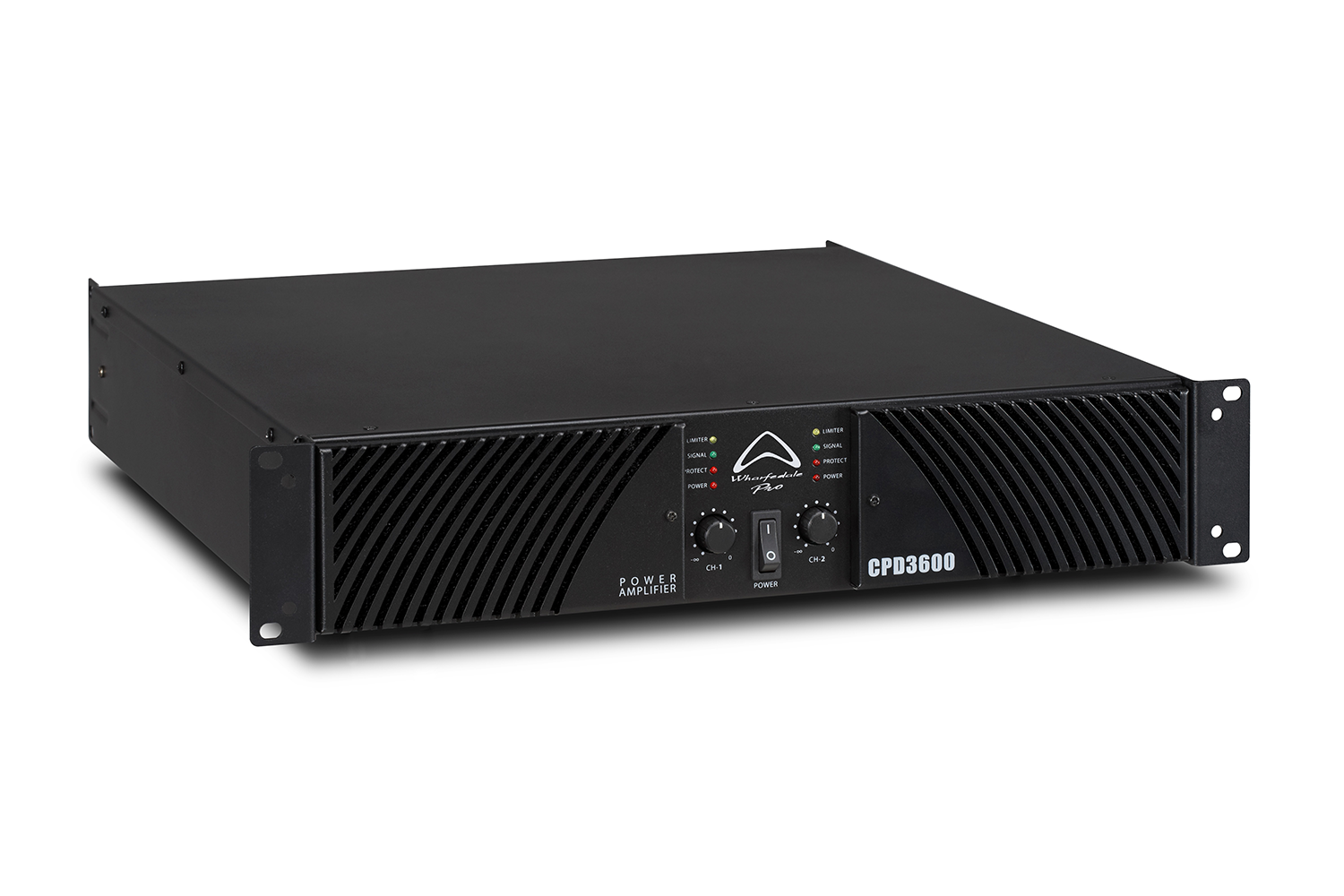

Wharfedale Pro CPD3600 Amplifier
Wharfedale Pro CPD3600 Amplifier
Wharfedale Pro CPD3600 Amplifier
Wharfedale Pro CPD3600 Amplifier
Roll over image to zoom in Click on image to zoom
Wharfedale Pro CPD3600 AmplifierWharfedale Pro CPD3600 AmplifierWharfedale Pro CPD3600 AmplifierWharfedale Pro CPD3600 Amplifier

Wharfedale Pro CPD3600 Amplifier

Wharfedale Pro
Price:
$809.00
Contact us for availability

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

CPD SERIES

EARTH SHAKING AUDIO

  • Class H Technology (CPD2600 / CPD3600 / CPD4800)
  • Class AB Technology (CPD1000 / CPD1600)
  • Suitable for mobile use, touring, rental and installation
  • Stereo, Parallel and Bridge modes
  • 2 x XLR inputs
  • 2 x speakON compatible outputs
  • Switchable limiter
  • Status and clip LEDs
  • Thermal, overcurrent, DC and output short protect circuitry
  • Continuously variable speed fan

CPD3600

  • 2 channels
  • 8 Ohm 2 x 870 Watts
  • 4 Ohm 2 x 1300 Watts
  • 8 Ohm Bridged 1 x 2590 Watts

MASSIVE TRANSFORMERS

CPD series are built around a massive heavy-duty toroidal transformer.

This delivers smooth and consistent power into the amplifier electronic circuits, resulting in stable and reliable output power, even in environments where AC may fluctuate.

EASY CLEANING

Amplifiers often work in hot and dusty environments and, over time, the fans of an amplifier can easily suck this in.  Dirty cooling fans reduce efficiency and can lead to overheating.

Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.

This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.  That’s cool !

Model Name

CPD3600

Stereo Power Output : RMS


8 Ω x 2

870 w

4 Ω x 2

1300 w

Bridged Mono Power Output : RMS


8 Ω

2590 w

Frequency Response

20 Hz – 30 KHz

Topology

Class H

Inputs

2 x XLR

Outputs

2 x NL4

2 x XLR

Input Sensitivity & impedance


Sensitivity

0 dBu (0.775 Vrms)

Balanced XLR input

20 KΩ

Maximum Input Level

22 dBu (9.7 Vrms)

Voltage Gain

41 dB

Slew Rate

>40 V / us

Crosstalk

<-70 dB

S/N

>100 dB

Distortion (1 W)

<0.02%

Damping Factor

>300

Controls

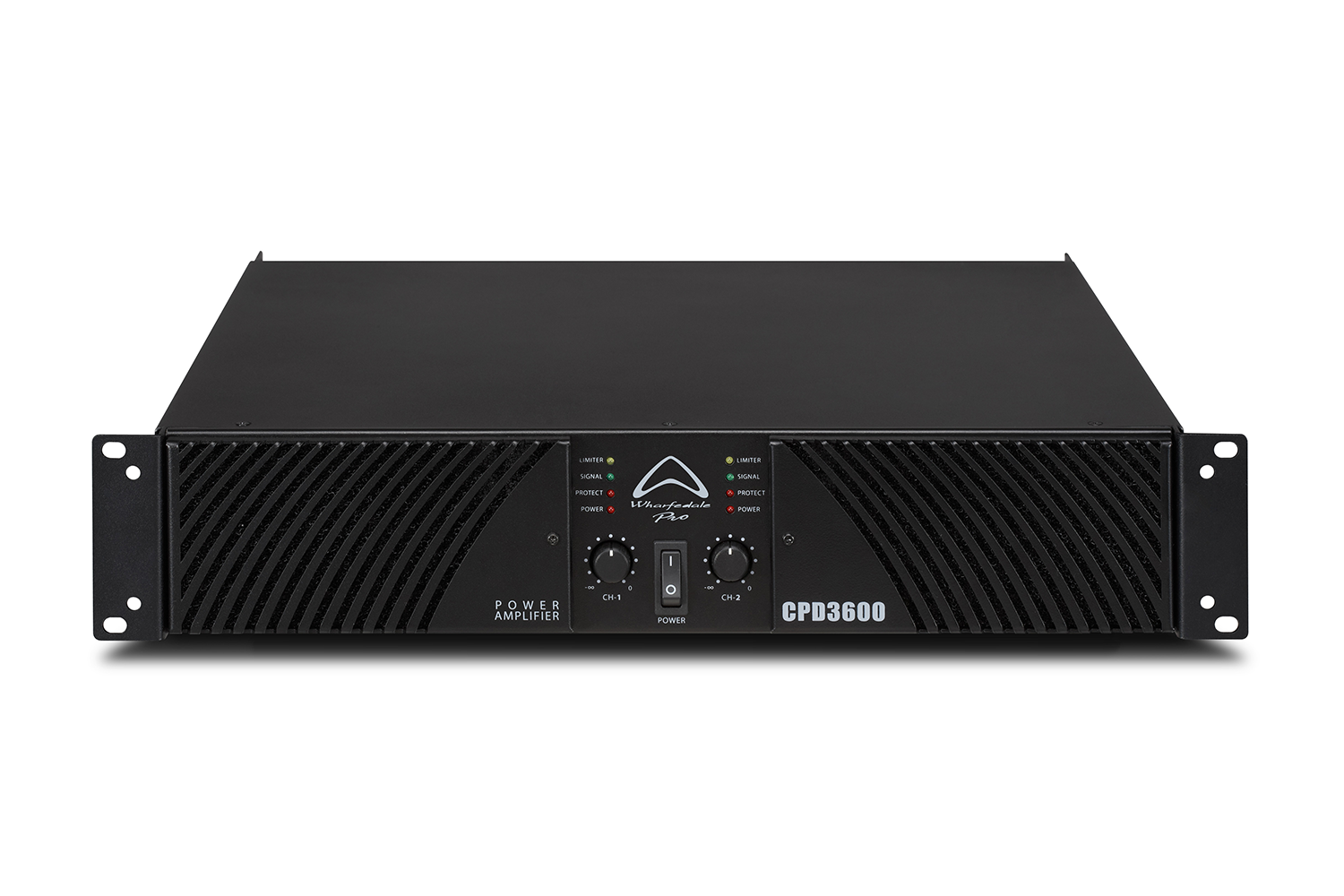

Front panel

AC Switch, CH 1 and CH 2 Gain Knobs

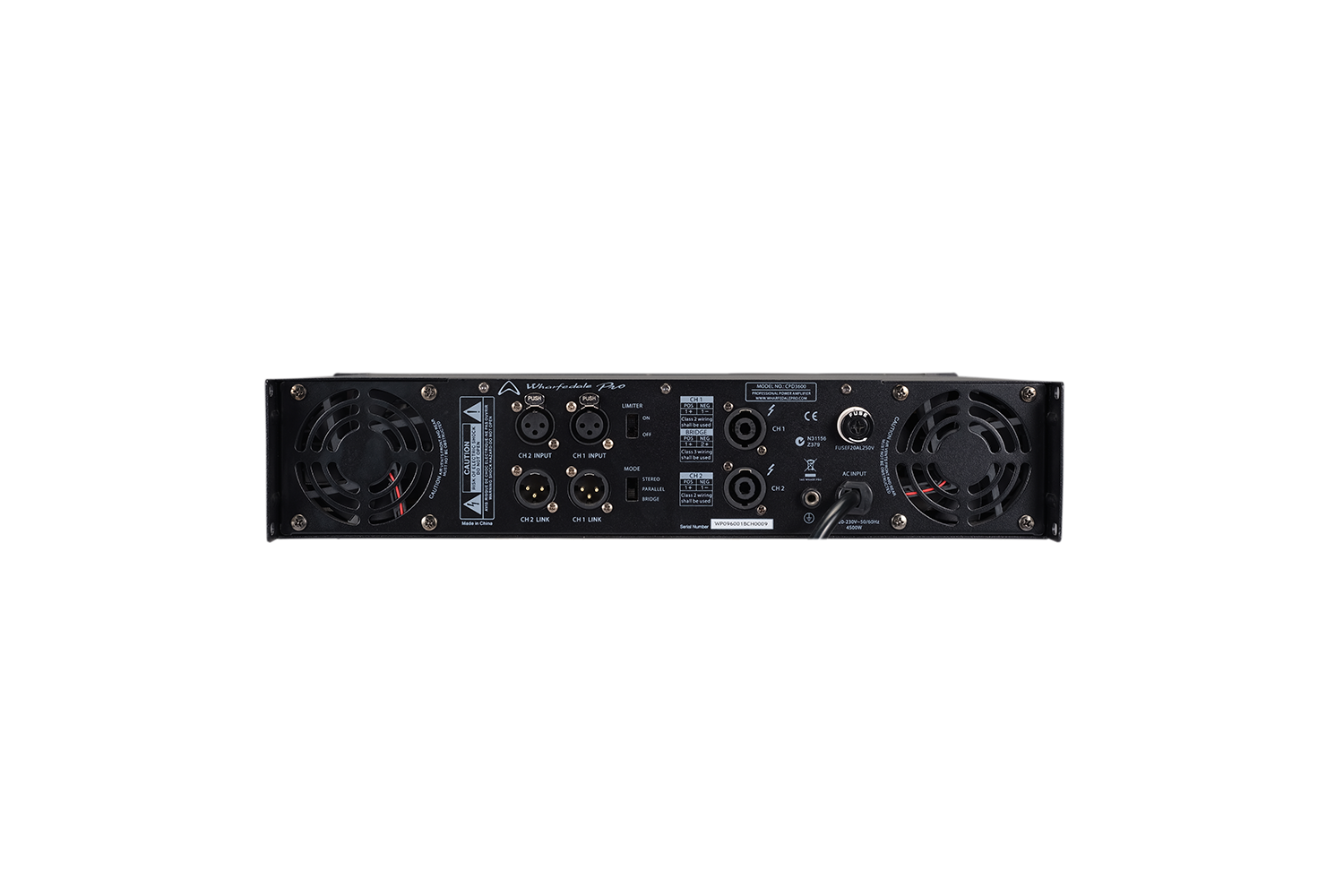

Rear panel

Parallel, Stereo & Bridge Mode Switch; Limiter Switch

Protections

Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute

Indicators

Power, Protect, Signal, Peak

Cooling

Variable Speed Fan

Dimensions

88 x 483 x 450 mm

Net Weight

22 kg / 48.50 lbs

Gross Weight

25.5 kg / 56.22 lbs
