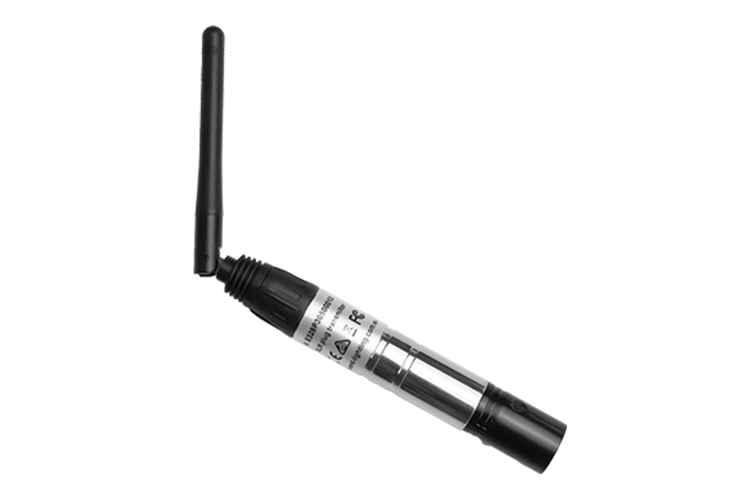

Event Lighting CRMXXLRTX - Wireless DMX 3-pin XLR plug transmitter 2.4Ghz CRMX protocol

Event Lighting Wireless DMX offers the ultimate freedom for quick setups, touring, and any scenario where cable runs just won’t cut it. The CRMXLRRXA acts as a powerful transmitter, delivering reliable CRMX signal communication without the limits of wired connections.

Specifications：

• Maximum Transmission power: 22dBm
• Receiver Sensitivity: -110dBm

• Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
• Spread Spectrum: FHSS, 1100 hops/s
• Modulation GFSK
• ARM processor: 32-bit
• 3-pin Male XLR
• Channel Groups: 6 in ELDMX mode
• Protocols: ELDMX, WDMX, GZ
• Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Dimensions

• Size:125x18x18mm
• Weight: 110 g

Environmental Limits

• Operating Temperature: -40 ~ 85 °C
• Storage Temperature: -65 ~ 150 °C
• Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

• Power supply: 5VDC

Warranty: 3 years
