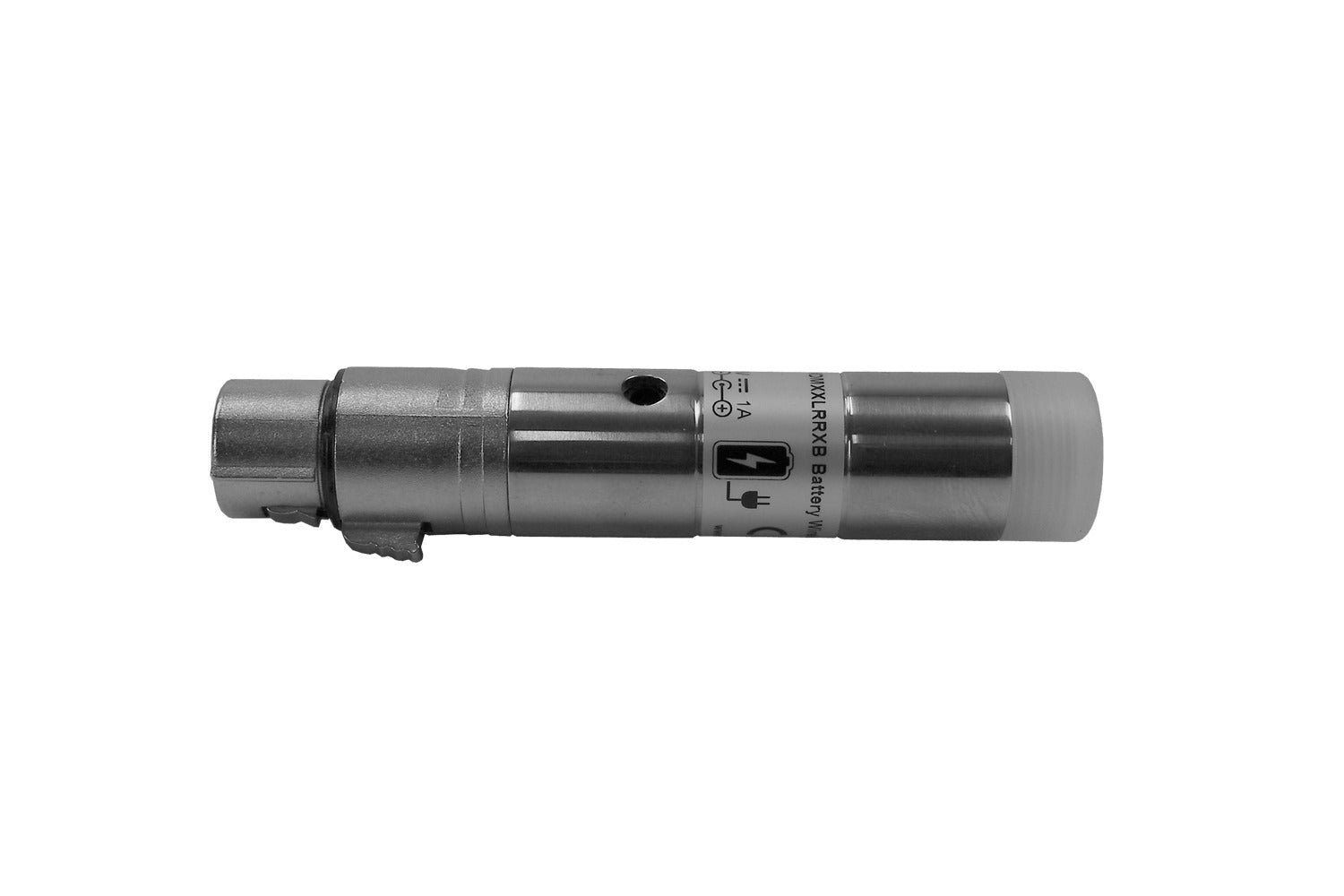

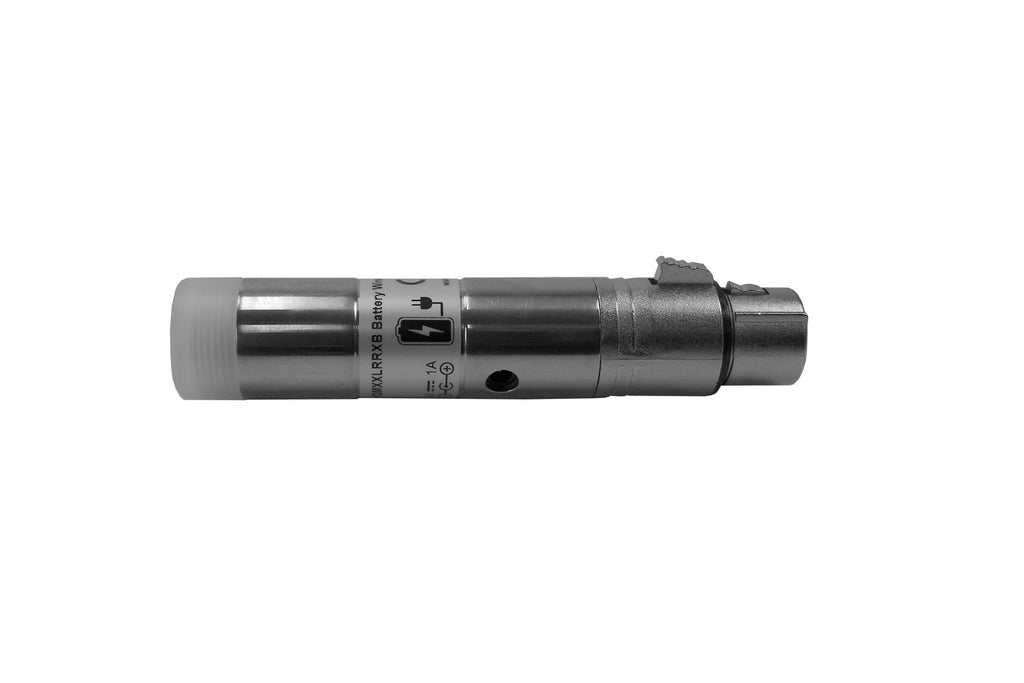

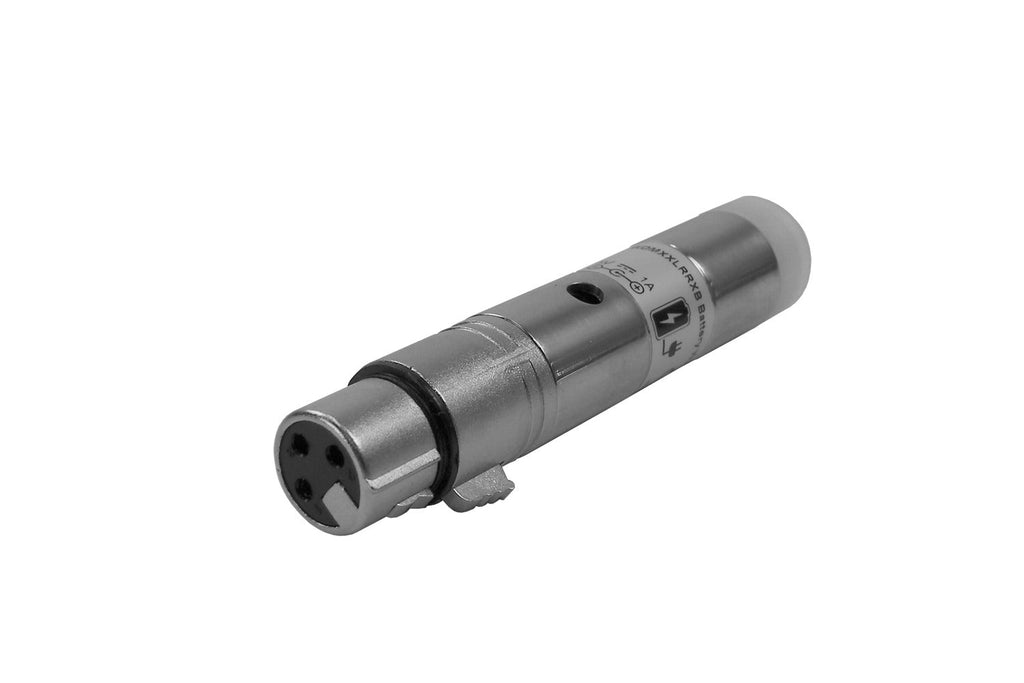

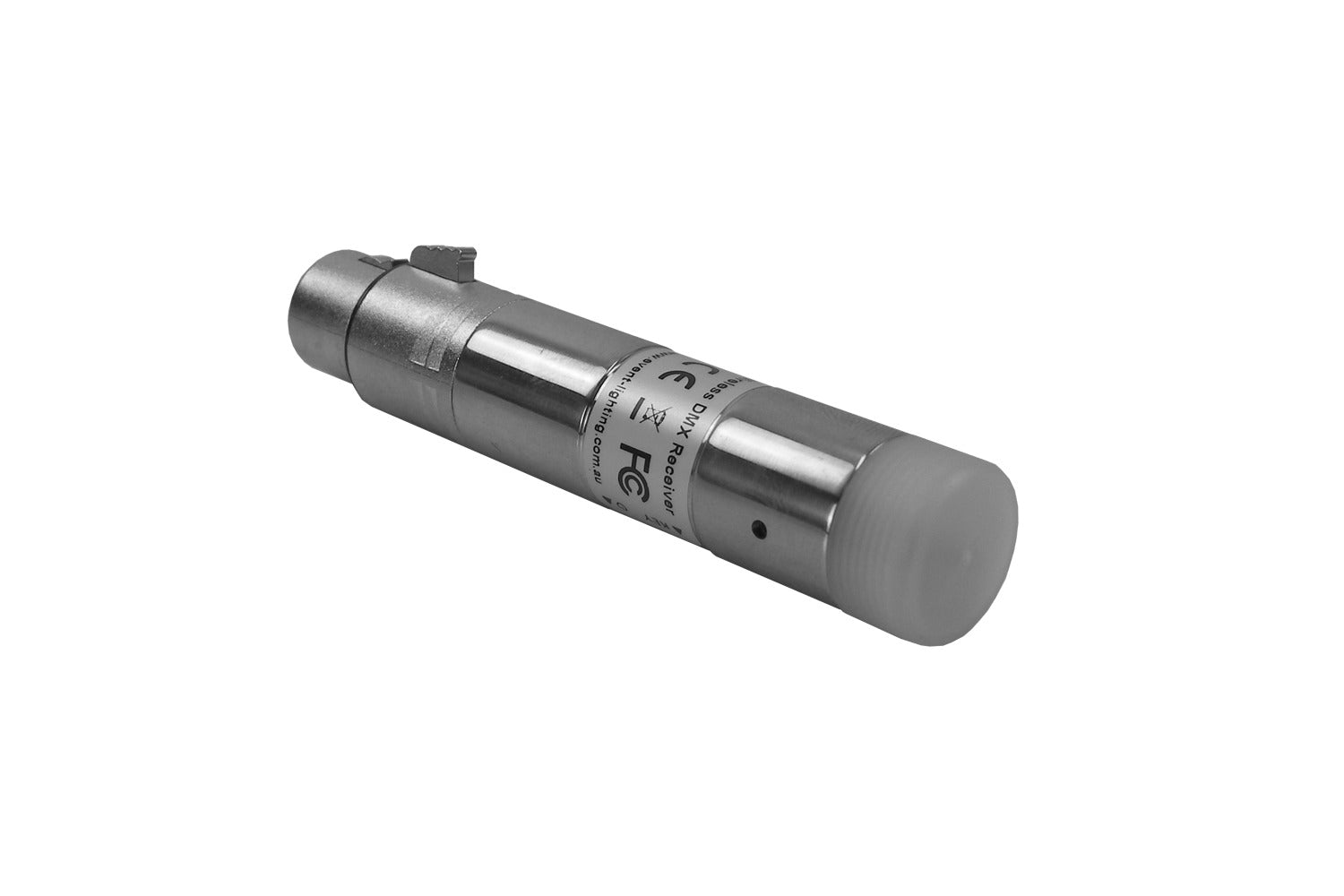

Event Lighting WDMXXLRRXB - Wireless DMX 3-pin XLR plug receiver 2.4Ghz W DMX protocol


Price:
Sale price$209.00
Contact us for availability

Description

Wireless DMX is the ideal solution for fast setups, temporary installations, touring and production duties or places where you are physically unable to run DMX cables. WDMXXLRRXB operates as a receiver to communicate WDMX signals.



Specifications:

  • Maximum Transmission power: 22dBm
  • Receiver Sensitivity: -94dBm
  • Band: 2.402Ghz – 2.480Ghz, ISM, 79 channels
  • Spread Spectrum: FHSS, 1100 hops/s
  • Modulation GFSK
  • ARM processor: 32-bit
  • 3-pin Female XLR
  • Channel Groups: 6 in ELDMX mode
  • Protocols: ELDMX, WDMX, GZ
  • Automatic Reboot Trigger: Built-in WDT (watchdog timer)

Dimensions

  • Size:85x18x18mm
  • Weight: 110 g

Environmental Limits

  • Operating Temperature: -40 ~ 85 °C
  • Storage Temperature: -65 ~ 150 °C
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements

  • Power supply: 5VDC
  • Battery Type: Rechargeable Lithium Battery
  • Charging input: 500 mA@5V DC
  • Charging time: 90% @ 50 minutes, 70 minutes full charge Discharge time: 20 hours max.

Coverage Area

Transmitter

Receiver

Line of sight MAX

Through a single brick wall*

WDMXXLRTX

WDMXXLRRXB

200m

30m

Please Note: Distance is given as measured in ideal RF conditions. Actual distance will vary depending on your environment. Battery units do not have an external antenna and as such may not be capable of these distances in areas without ideal RF conditions.



User Manual Download



Warranty: 3 years
