For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.
SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket! SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets.
EASY CONNECTION
All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON compatible and barrier strip inputs. It is another small step that makes the installation easy.
ROTATABLE WAVEGUIDES
SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.
90° x 60° or 60° x 90°….you decide.
SUPPORT WITH EASE
All full range models in the SIGMA-X series are supported with EASE 3 .gll files.
SPECIFICATIONS
|
Model Name
|

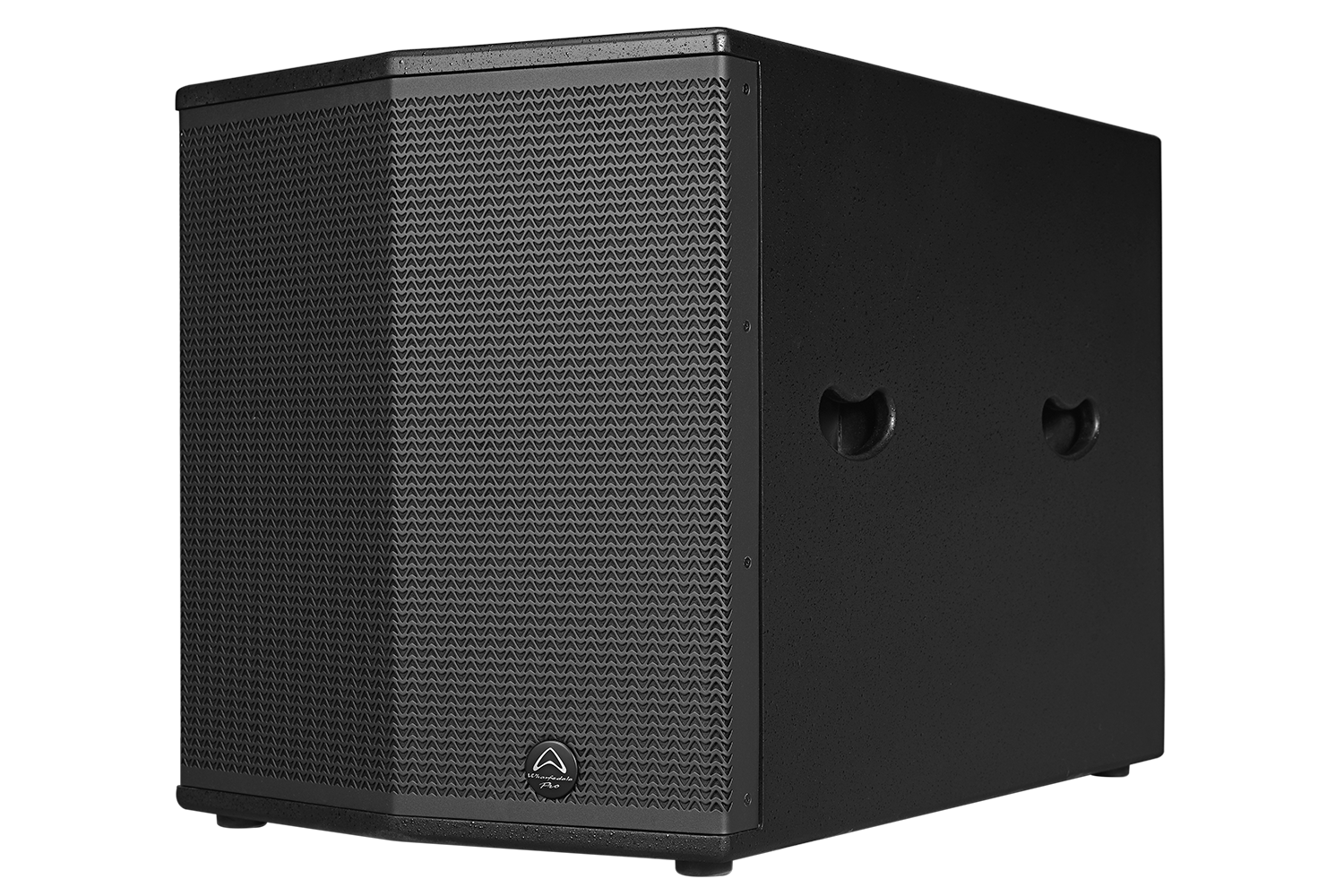

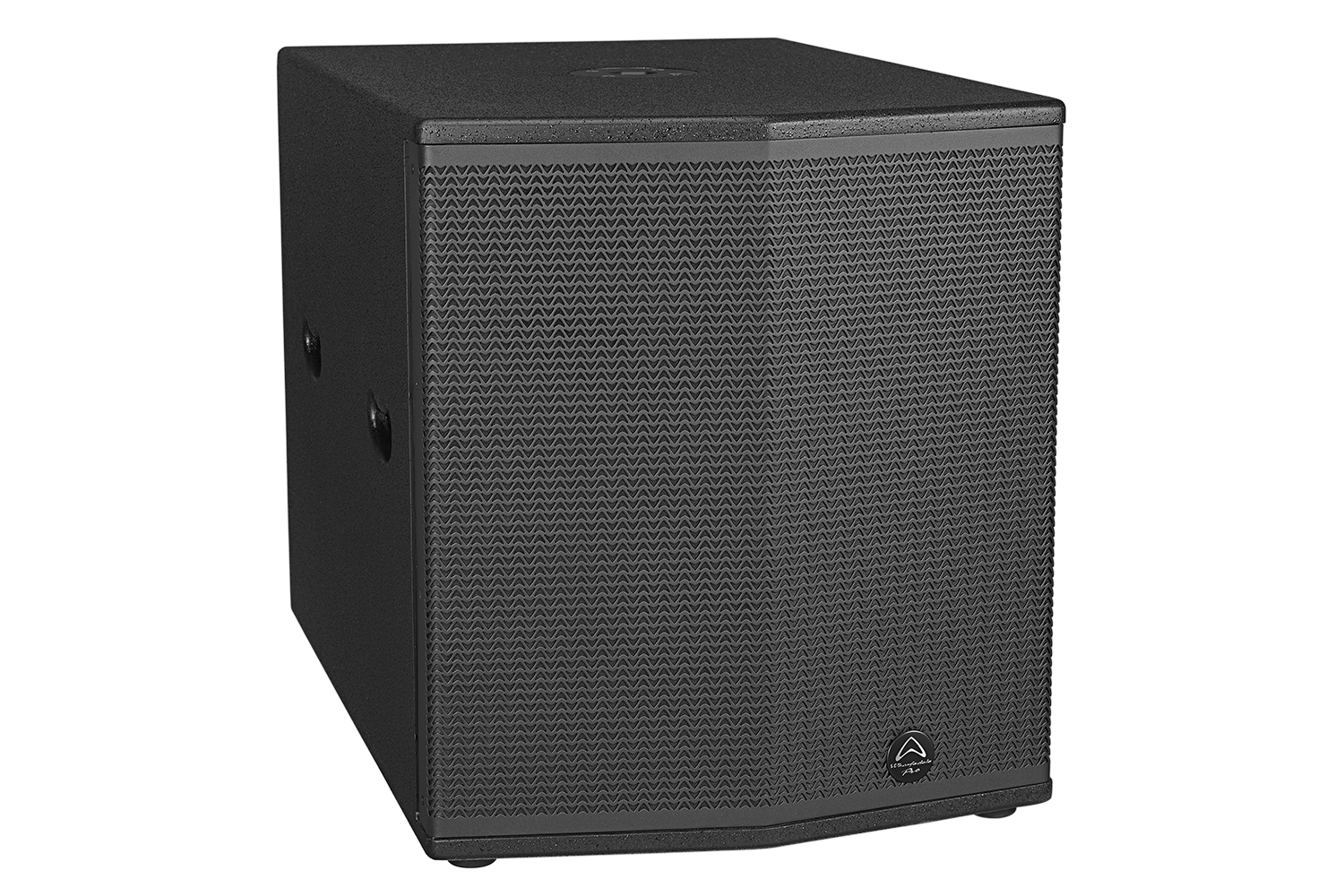

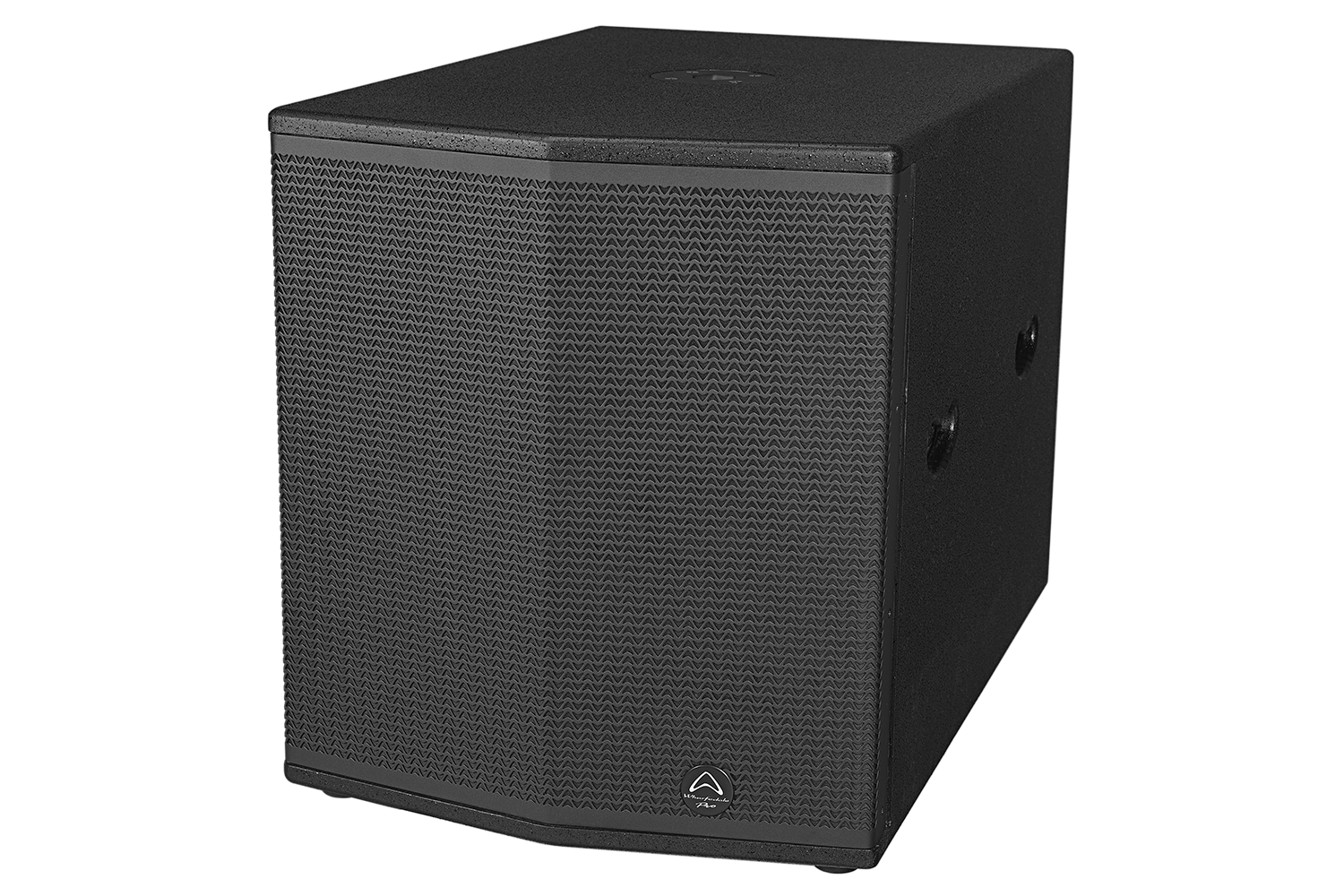

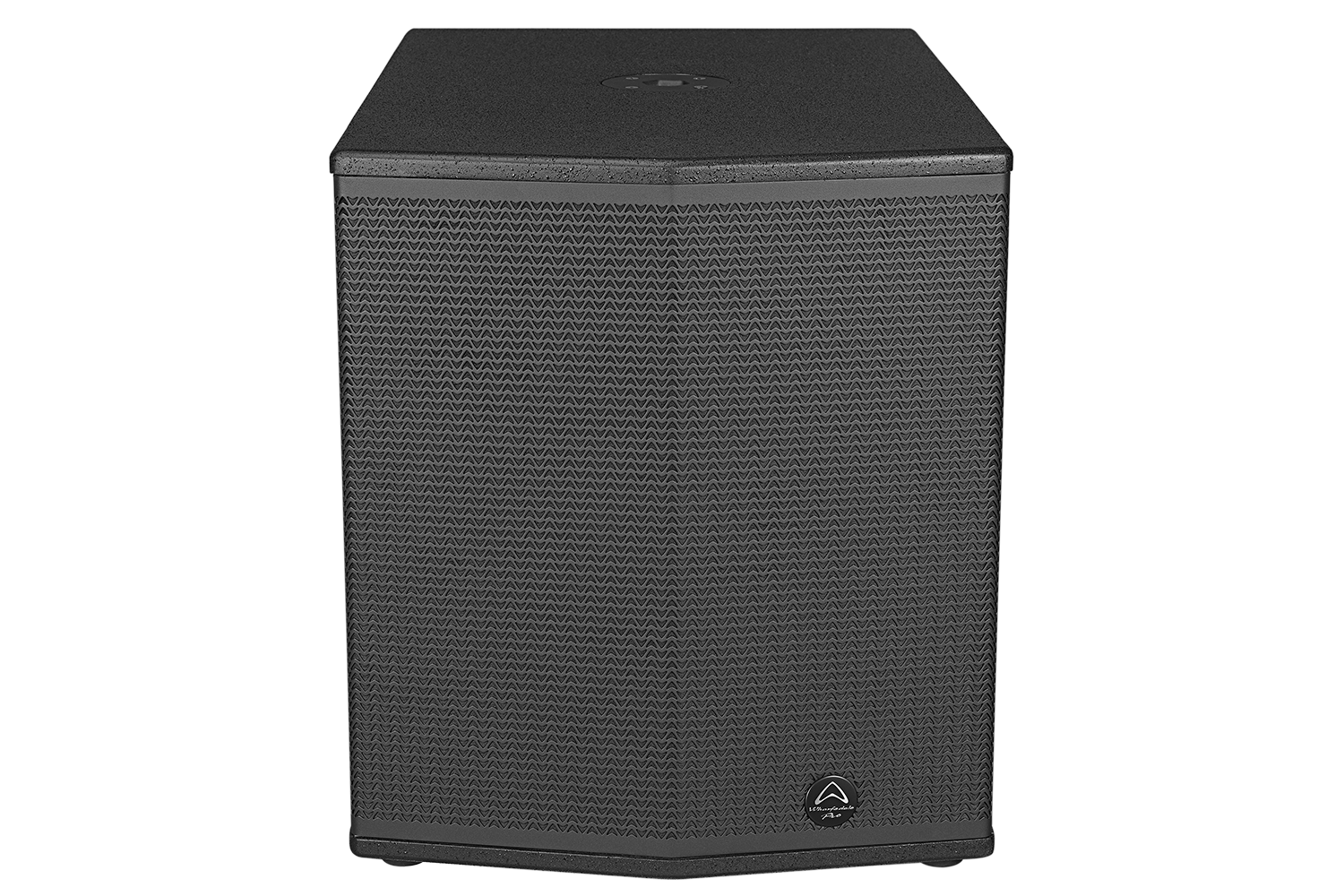

SIGMA-X18B
|
|
System Type
|
Passive
|
|
Configuration
|
Subwoofer
|
|
Frequency Response (+/-3 dB)
|
35 Hz – 250 Hz
|
|
Frequency Range (-10 dB)
|
30 Hz – 250 Hz
|
|
Sensitivity 2.83 V / 1 m
|
100 dB
|
|
Calculated Maximum SPL @1 m
|
133 dB
|
|
System Rated Impedance
|
4 Ω
|
|

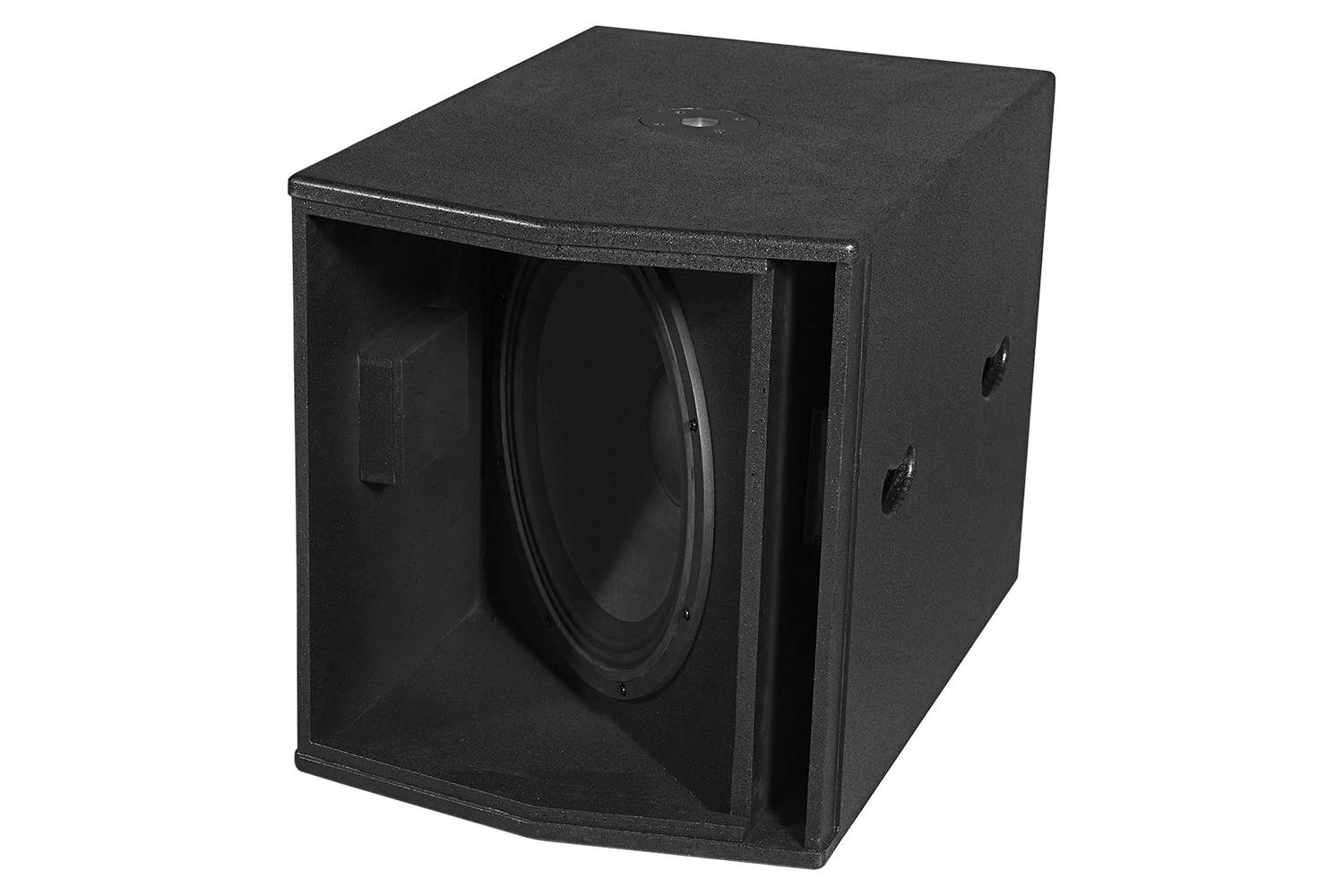

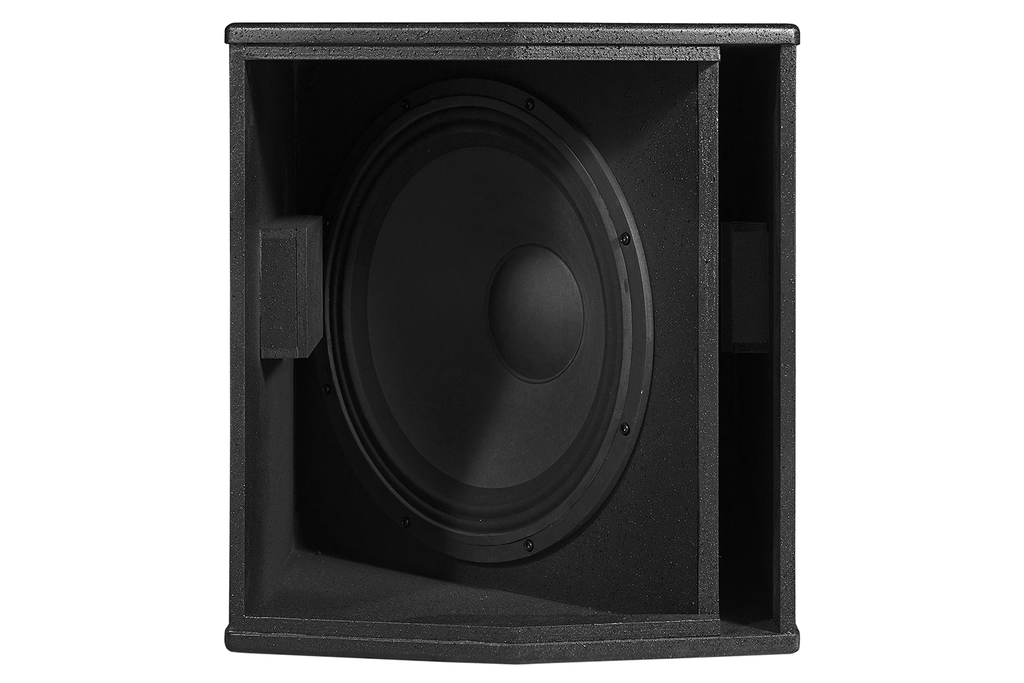

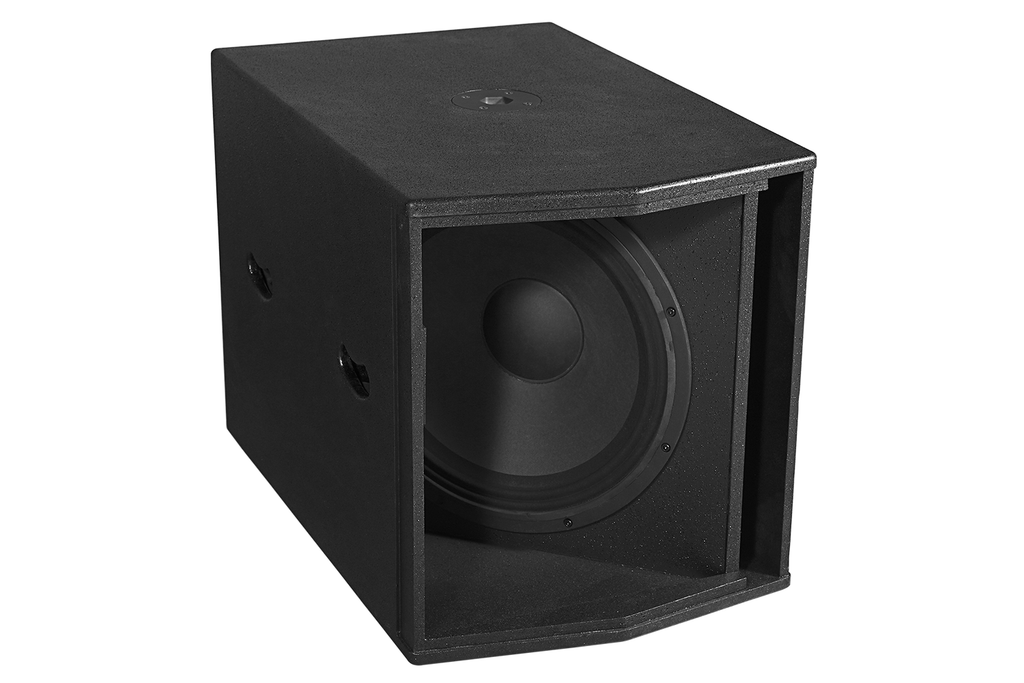

Low Frequency Transducer
|
|
|
Size (mm / inches)
|
457 mm / 18”
|
|
Voice Coil Size (mm / inches)
|
64 mm / 2.5”
|
|
Rated Impedance
|
4 Ω
|
|
LF Power re:AES2-2012
|
500 W
|
|
High Frequency Transducer
|
|
|
HF Driver Type
|
n/a
|
|
Coil Size (mm / inches)
|
n/a
|
|
Exit Size (mm / inches)
|
n/a
|
|
Diaphragm Material
|
n/a
|
|
Rated Impedance
|
n/a
|
|
HF Power re:AES2-2012
|
n/a
|
|
Waveguide Type
|
|
|
Nominal Coverage (H x V)
|
na
|
|
LF Driver
|
1 x 18″
|
|
HF Driver
|
n/a
|
|
Power
|
|
|
System Continuous Power
|
500 W
|
|
System Programme Power
|
1000 W
|
|
System Peak Power
|
2000 W
|
|
Crossover frequency
|
150 Hz
|
|

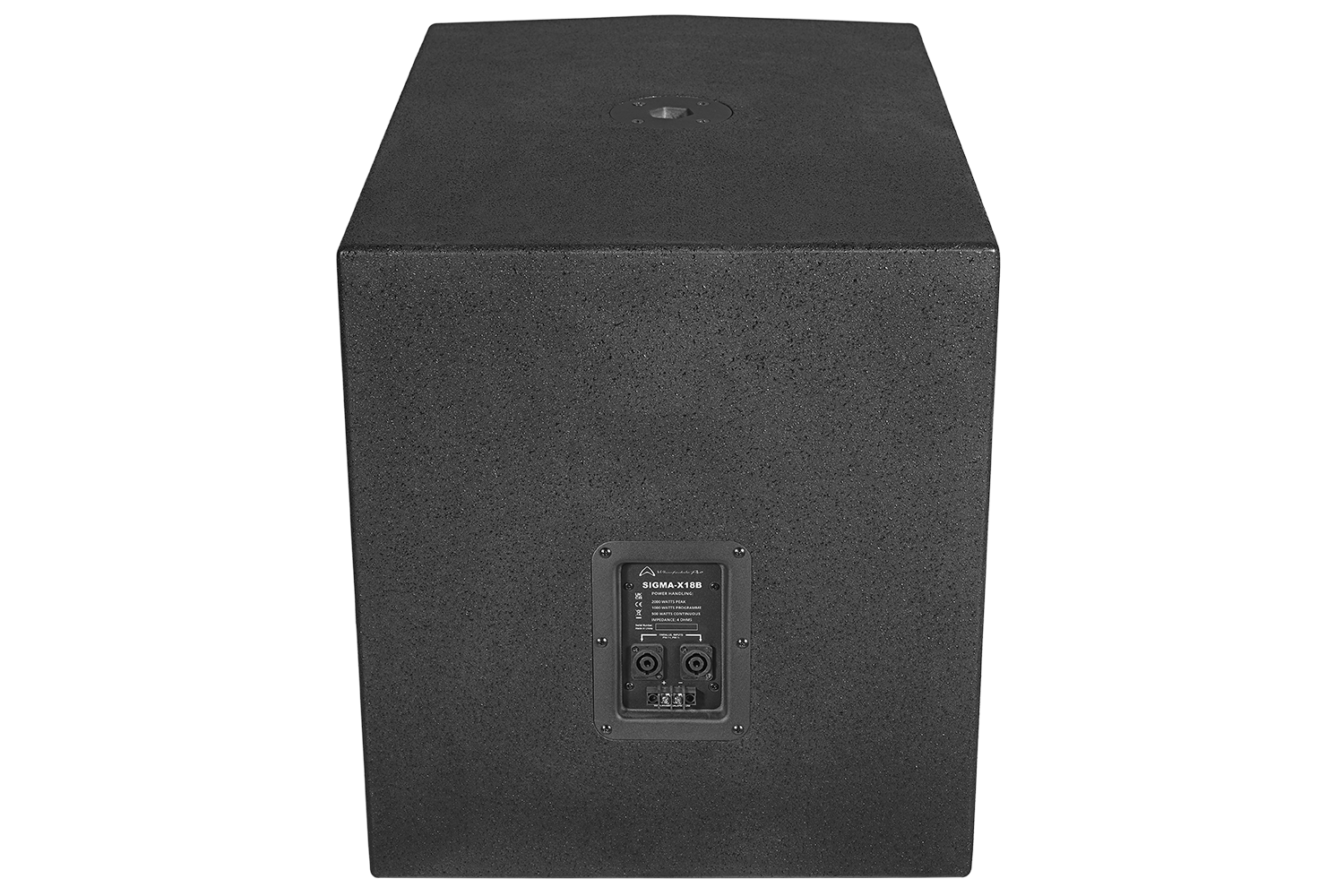

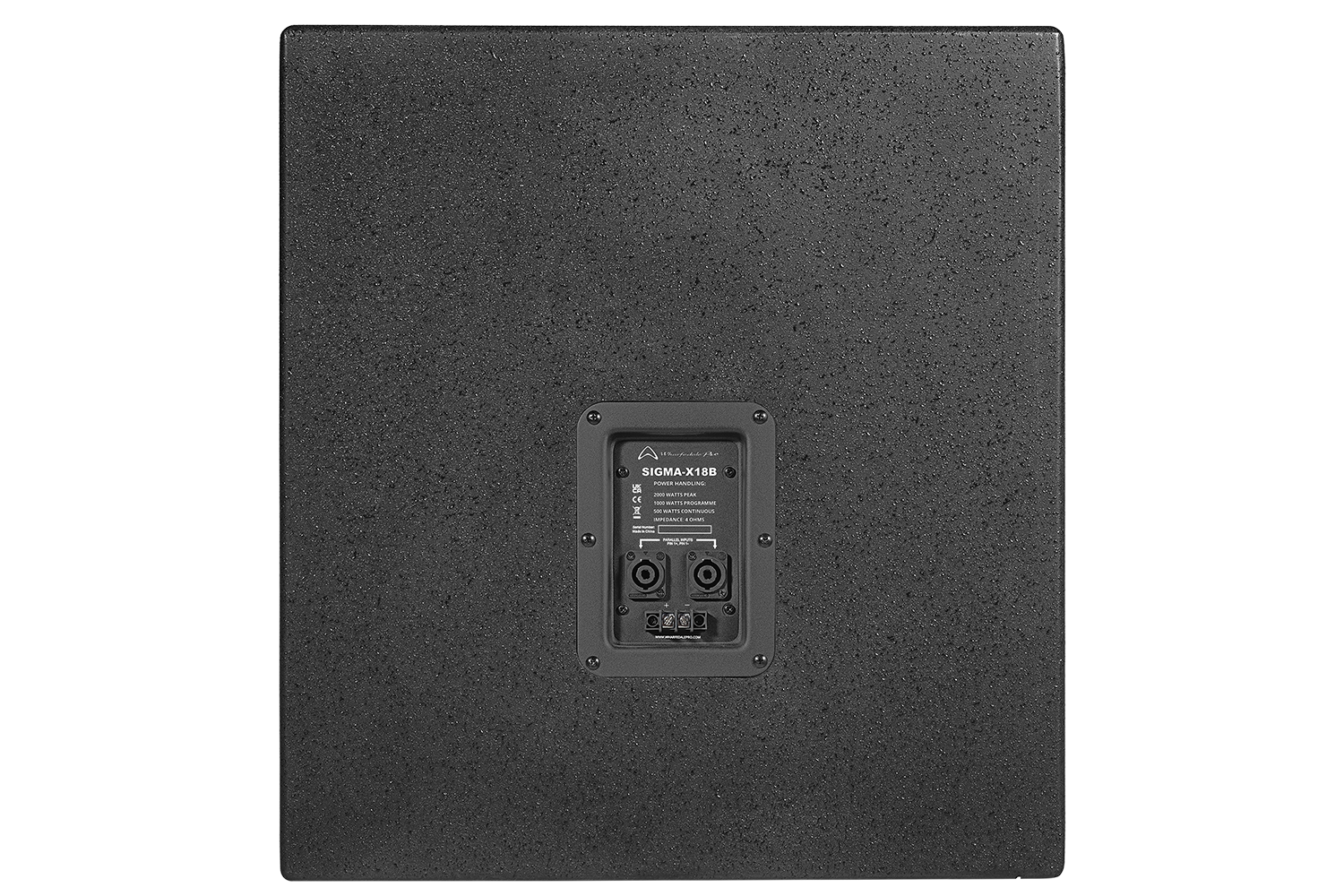

Input Connector
|

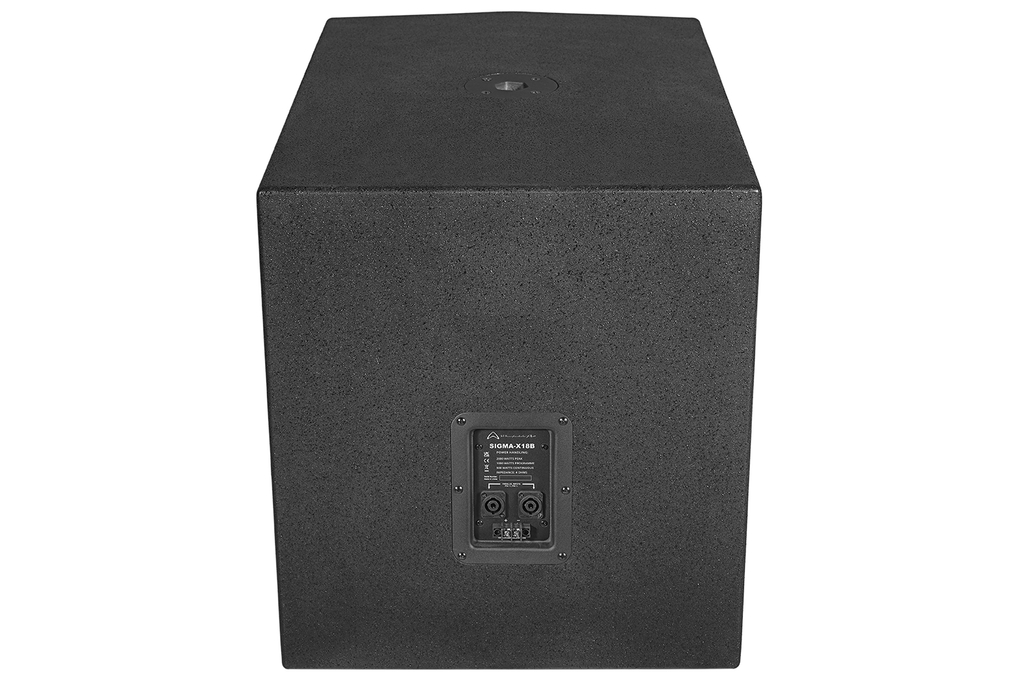

2 x speakON / 1x Barrier Strip
|
|
Hardware
|
35 mm pole socket
|
|
|
|
|
|

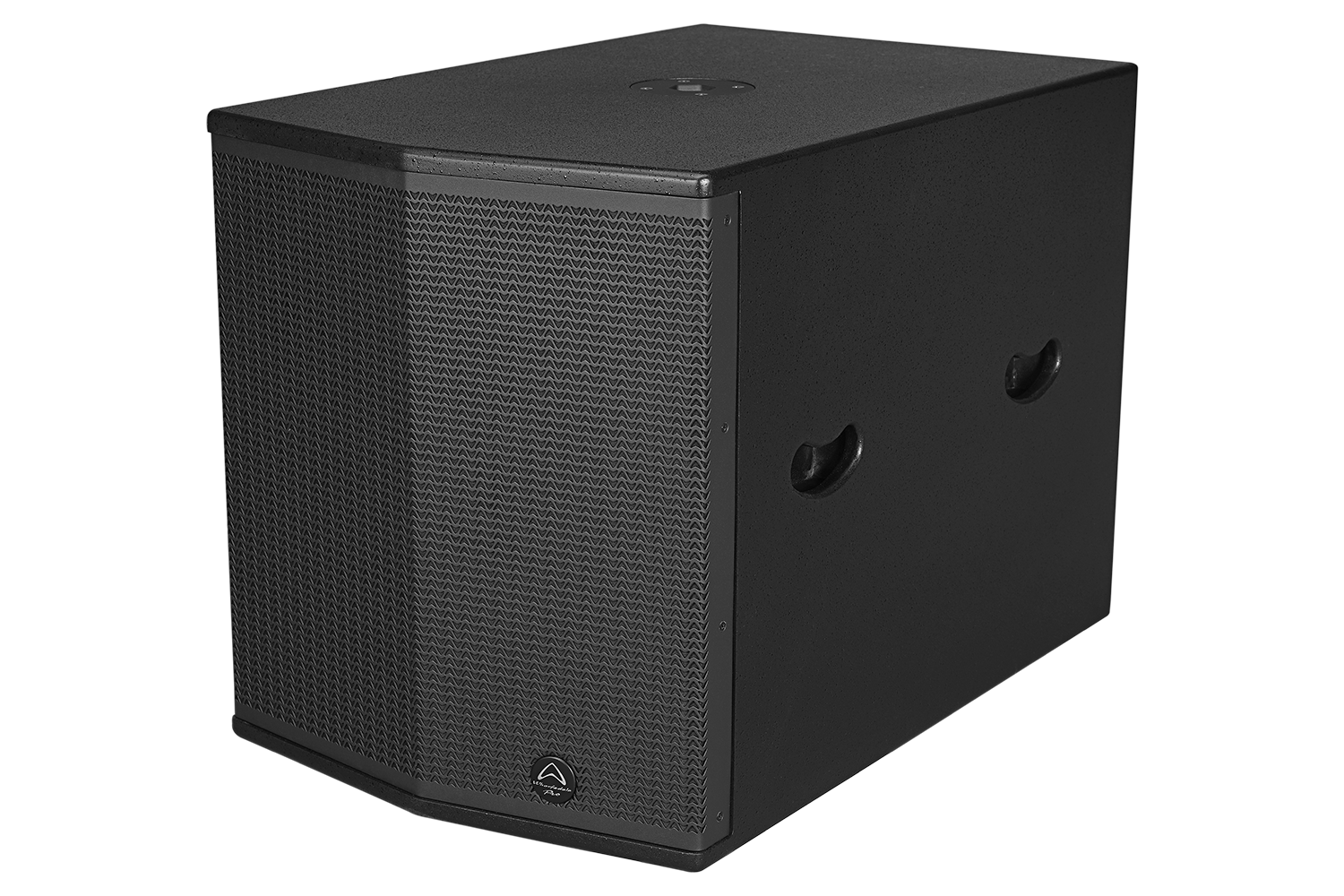

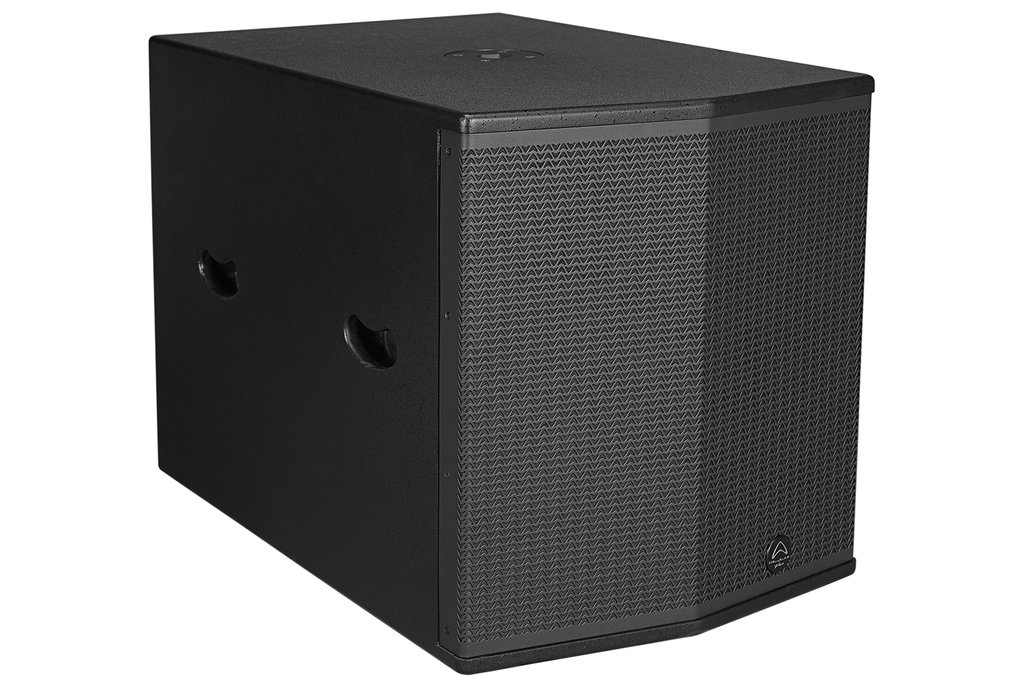

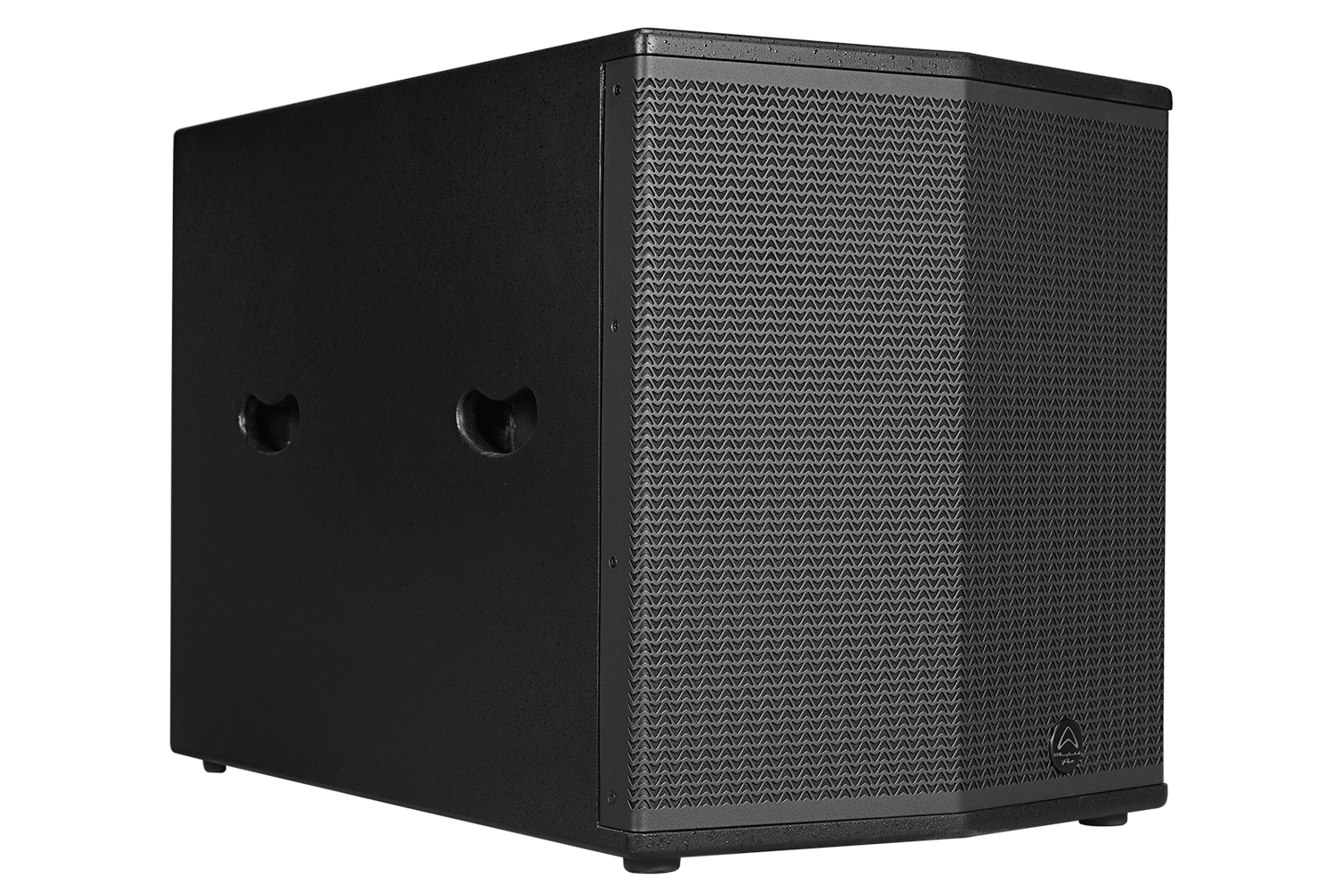

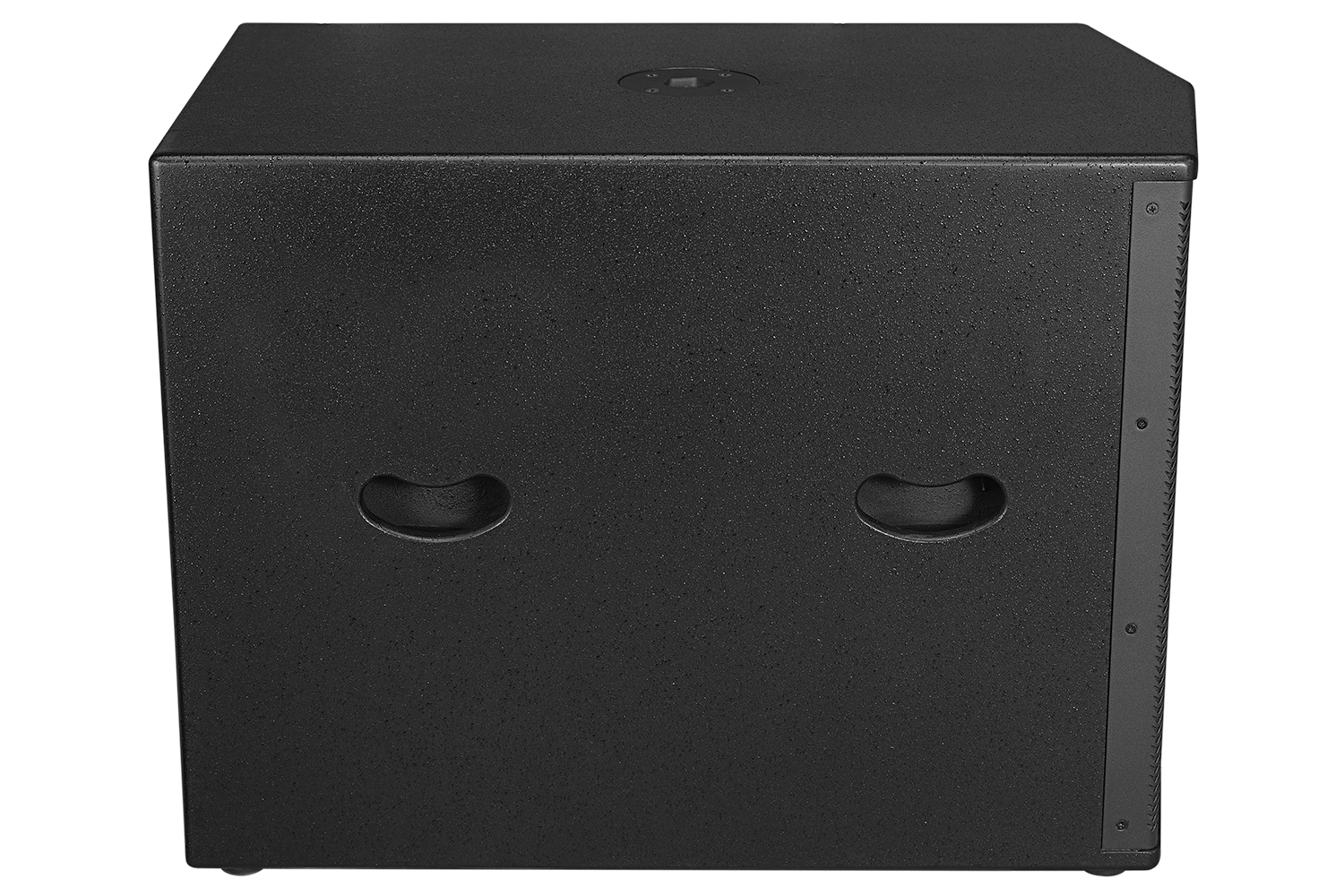

4 handles on sides
|
|
Enclosure
|
|
|
Enclosure Material
|
18 mm MDF
|
|
Finish
|
Black Paint / White Paint
|
|

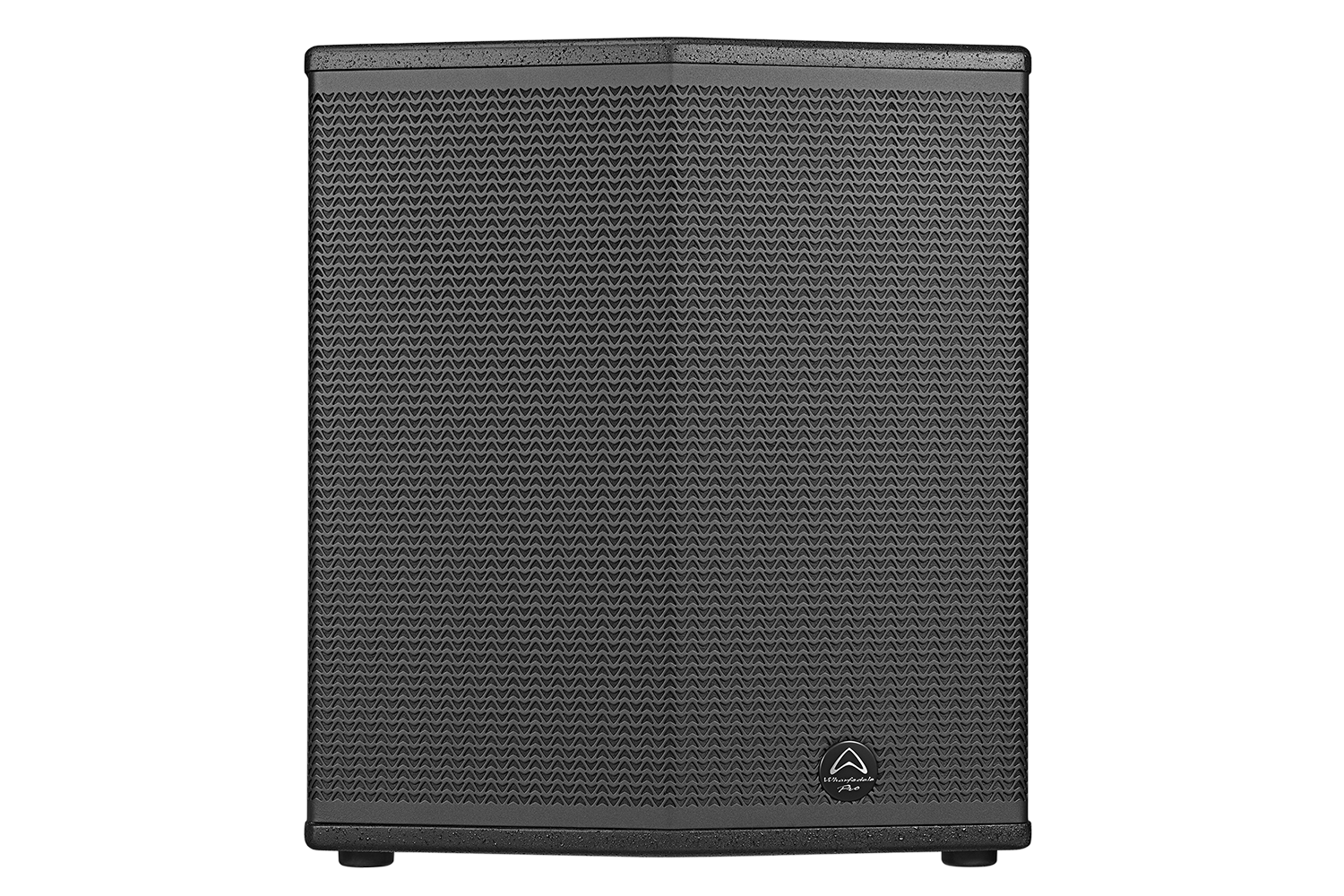

Grille Material & Finish
|
1.2 mm steel, painted
|
|
Dimensions – Unpacked
|
|
|
Height
|
554 mm / 21.25″
|
|
Width Front
|
502 mm / 20″
|
|
Width Rear
|
502 mm / 20″
|
|
Depth
|
780 mm / 30.8″
|
|
Dimensions – Packed
|
|
|
Height
|
649 mm / 25.5″
|
|
Width Front
|
588 mm / 22.75″
|
|
Width Rear
|
588 mm / 22.75″
|
|
Depth
|
865 mm / 34″
|
|
Weight
|
|
|
Net Weight
|
39.1 kg / 86 lbs
|
|
Gross Weight
|
46.4 kg / 102 lbs
|
|
Optional Wall-mount bracket
|
n/a
|
