For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.
SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket! SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets.
EASY CONNECTION

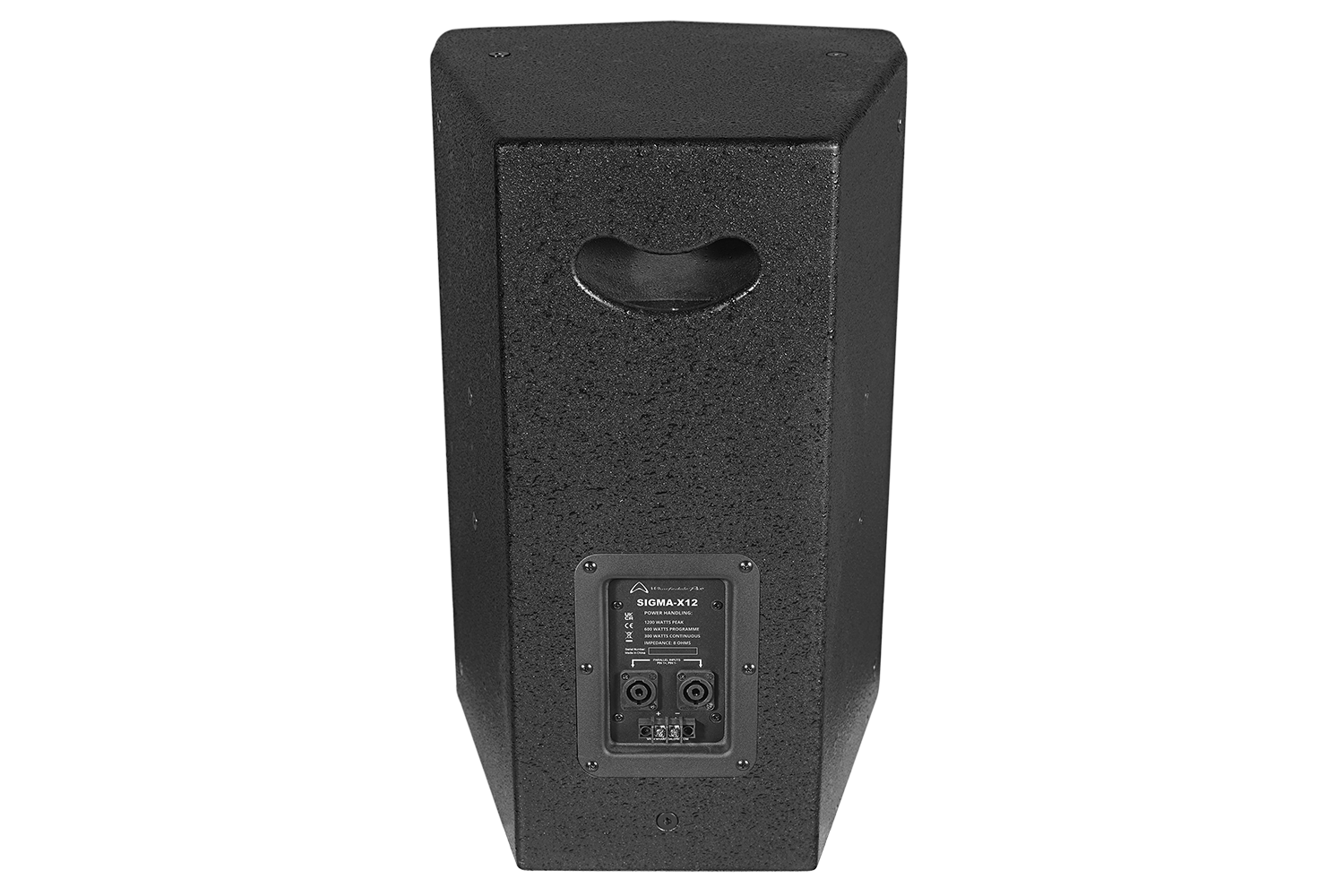

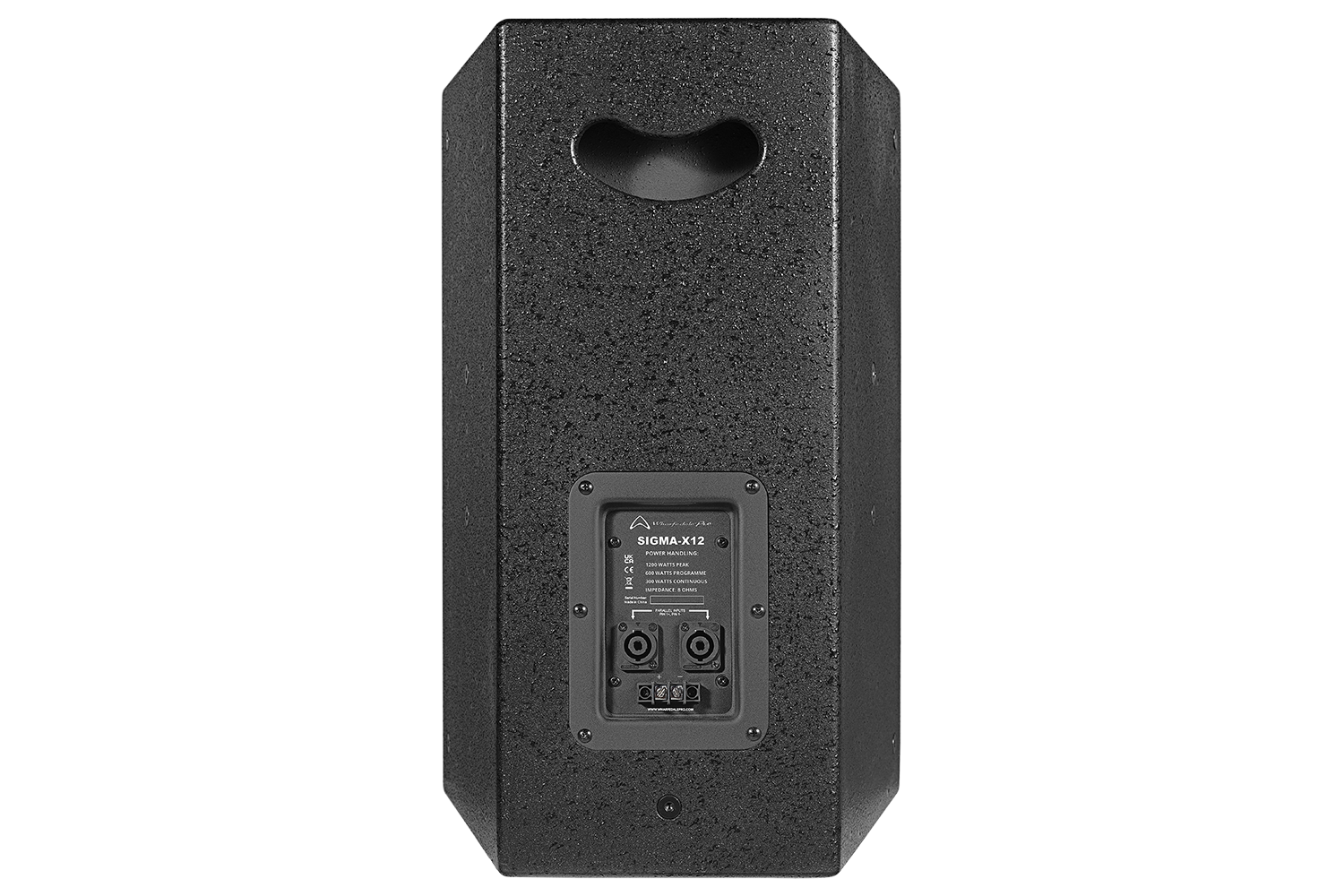

All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON compatible and barrier strip inputs. It is another small step that makes the installation easy.
ROTATABLE WAVEGUIDES
SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.
90° x 60° or 60° x 90°….you decide.
SUPPORT WITH EASE
All full range models in the SIGMA-X series are supported with EASE 3 .gll files.
SPECIFICATIONS
|
Model Name
|

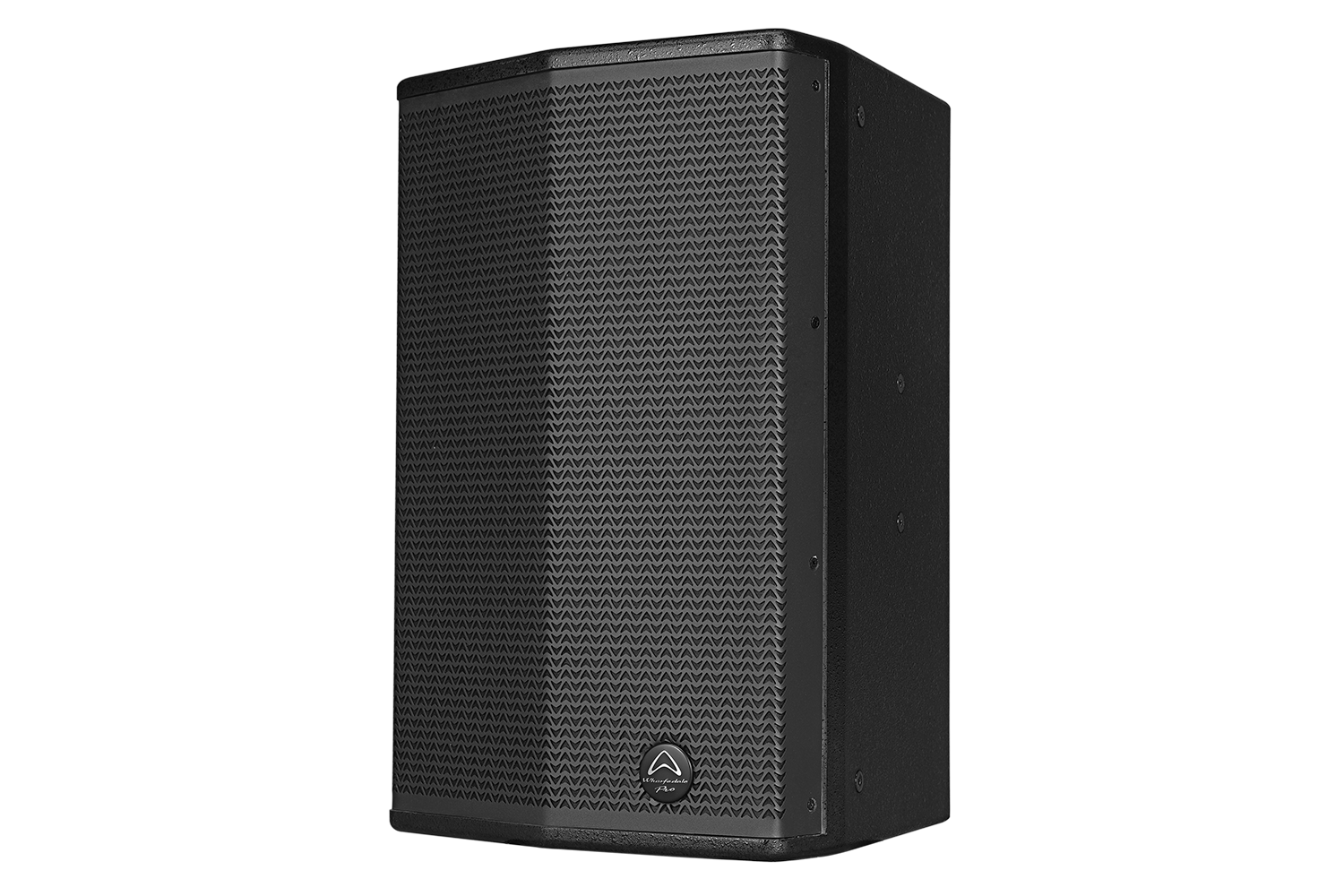

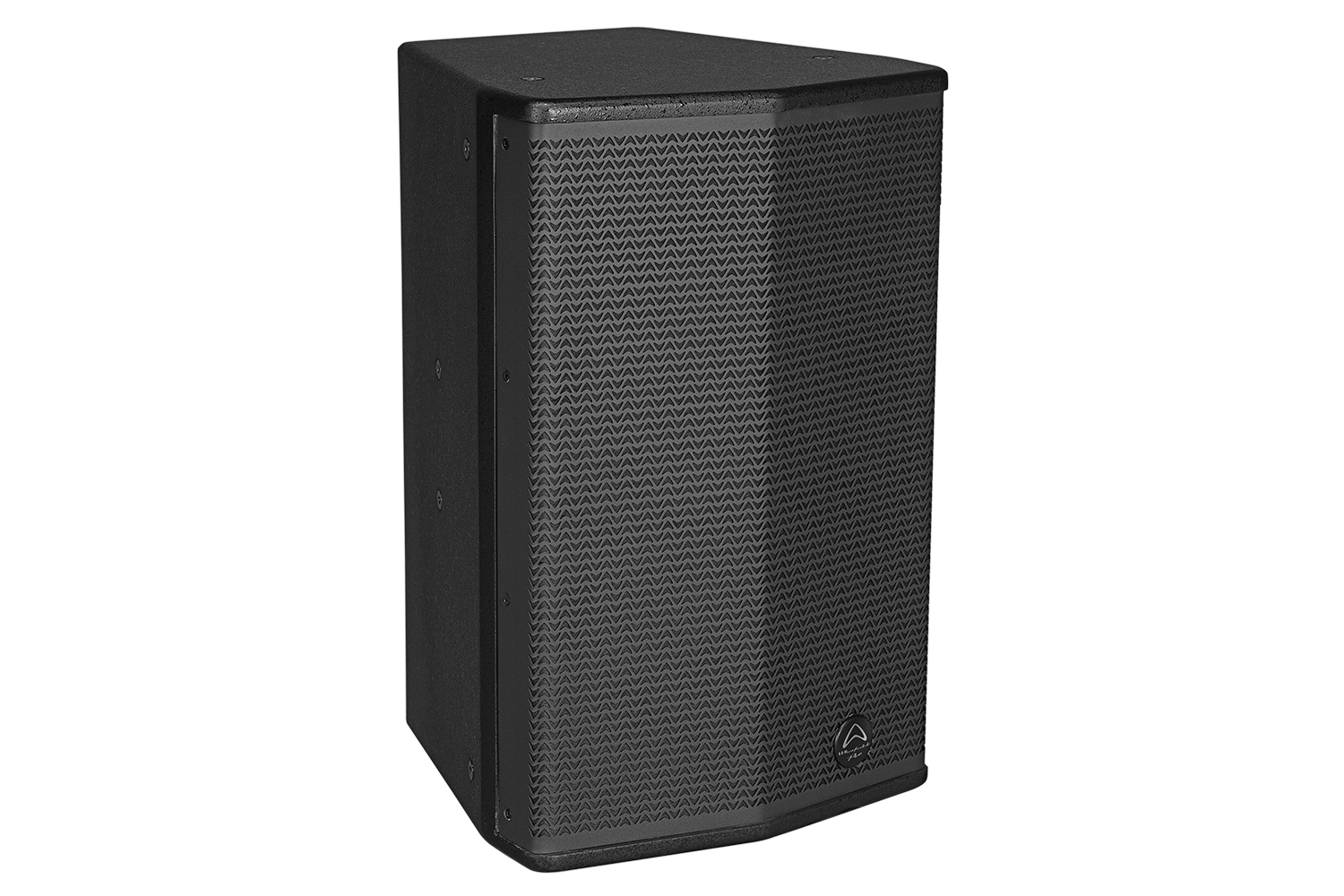

SIGMA-X12
|
|
System Type
|
Passive
|
|
Configuration
|
Two-Way
|
|
Frequency Response (+/-3 dB)
|
60 Hz – 18 KHz
|
|
Frequency Range (-10 dB)
|
55 Hz – 20 KHz
|
|
Sensitivity 2.83 V / 1 m
|
98 dB
|
|
Calculated Maximum SPL @1 m
|
129 dB
|
|
System Rated Impedance
|
8 Ω
|
|
Low Frequency Transducer
|
|
|
Size (mm / inches)
|
305 mm / 12”
|
|
Voice Coil Size (mm / inches)
|
64 mm / 2.5”
|
|
Rated Impedance
|
8 Ω
|
|
LF Power re:AES2-2012
|
300 W
|
|
High Frequency Transducer
|
|
|
HF Driver Type
|
Compression Driver
|
|
Coil Size (mm / inches)
|
44 mm / 1.75”
|
|
Exit Size (mm / inches)
|
1″
|
|
Diaphragm Material
|
Titanium
|
|
Rated Impedance
|
8 Ω
|
|
HF Power re:AES2-2012
|
40 W
|
|
Waveguide Type
|
Constant Directivity /
Rotatable
|
|
Nominal Coverage (H x V)
|
90˚ x 60˚
|
|
LF Driver
|
1 x 12″
|
|
HF Driver
|
1 x 1.75″ Titanium Compression Driver
|
|
Power
|
|
|
System Continuous Power
|
300 W
|
|
System Programme Power
|
600 W
|
|
System Peak Power
|
1200 W
|
|
Crossover frequency
|
2.2 KHz
|
|
Input Connector
|
2 x speakON / 1x Barrier Strip
|
|
Hardware
|

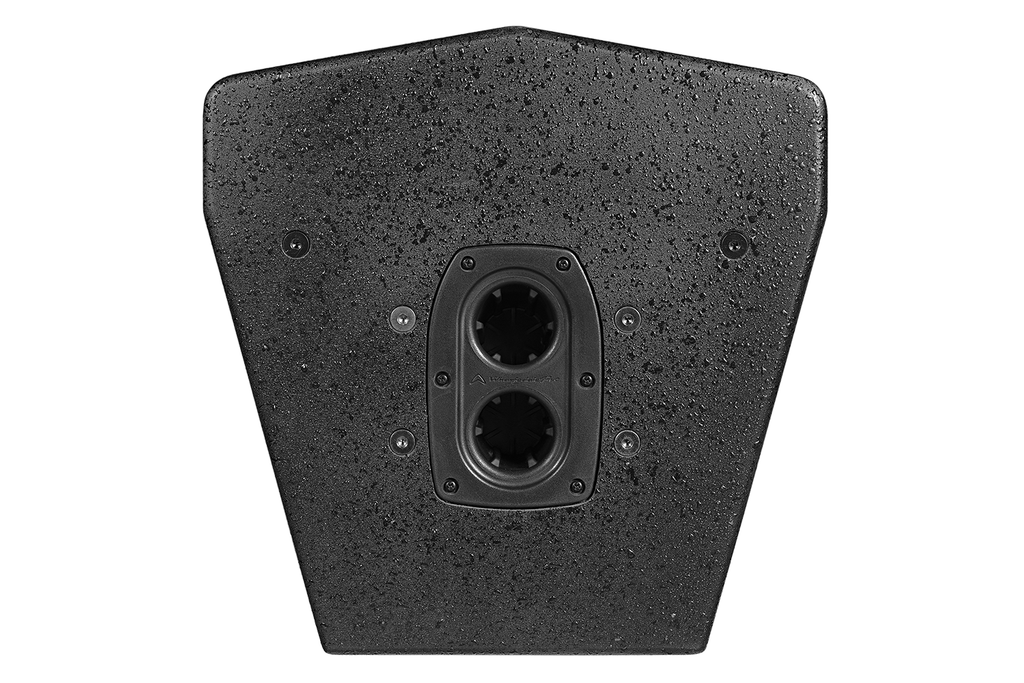

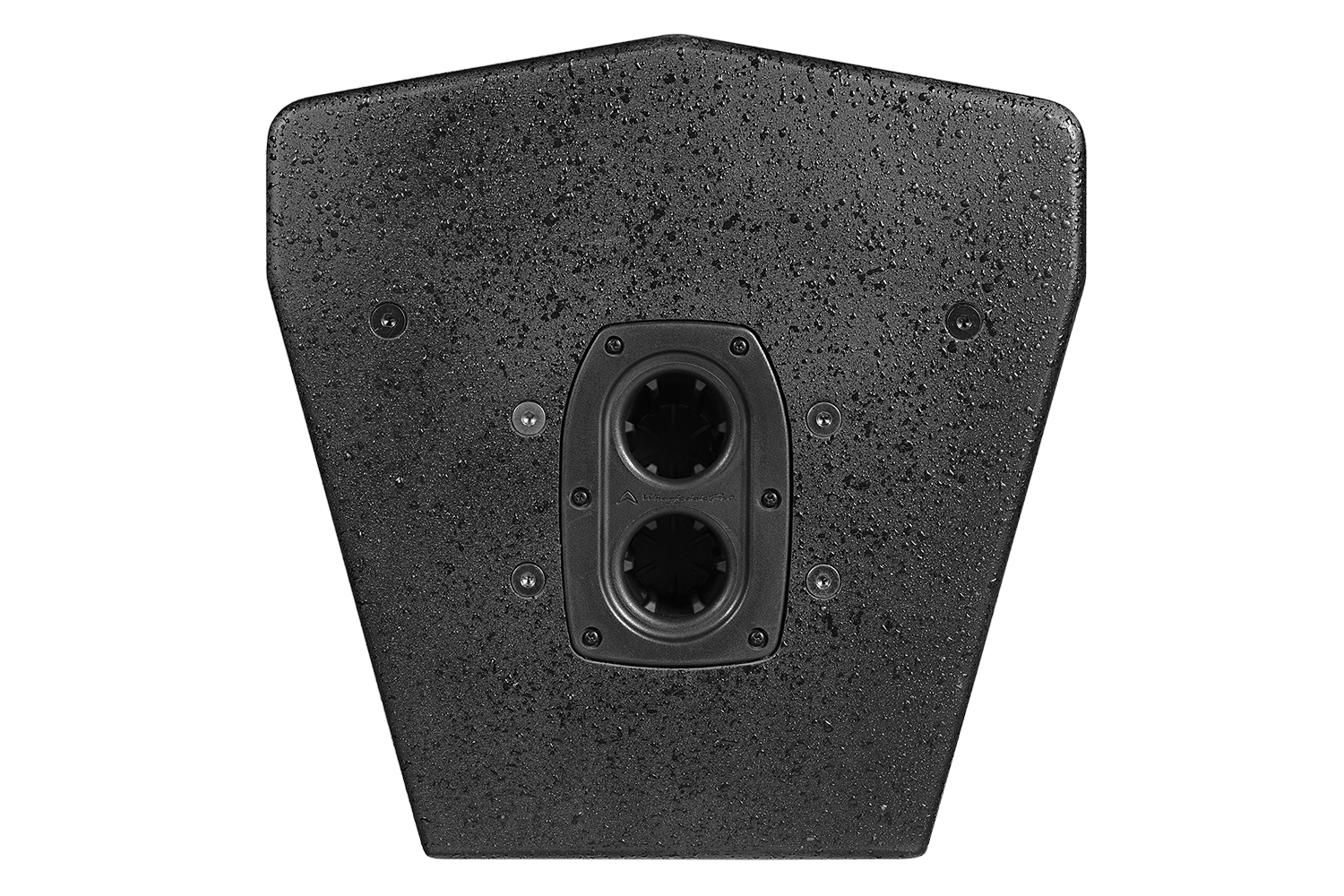

Dual-angle (0° / 10°) 35 mm socket
|
|
|
M8 x 17
|
|
|
1 handle on back
|
|
Enclosure
|
|
|
Enclosure Material
|
15 mm MDF
|
|
Finish
|
Black Paint / White Paint
|
|
Grille Material & Finish
|
1.2 mm steel, painted
|
|
Dimensions – Unpacked
|
|
|
Height
|
551 mm / 21.7″
|
|
Width Front
|
354 mm / 14″
|
|
Width Rear
|
218 mm / 8″
|
|
Depth
|
359 mm / 14″
|
|
Dimensions – Packed
|
|
|
Height
|
616 mm / 24.3″
|
|
Width Front
|
468 mm / 18.4″
|
|
Width Rear
|
260 mm / 10.2″
|
|
Depth
|
404 mm / 15.9″
|
|
Weight
|
|
|
Net Weight
|
19.1 kg / 42.02 lbs
|
|
Gross Weight
|
20.74 kg / 48.2 lbs
|
|
Optional Wall-mount bracket
|
WPB-1 / WPB-2
|
