For the SIGMA-XV Column array, either use the included U bracket, or for even more adjustment, use the optional WPB-SV which gives up to 15° tilt and 180° of rotation.
SIGMA-X full range cabinet models all have 17 x M8 rigging points, PLUS 35 mm pole sockets. Fly or wall bracket! SIGMA-X8, X10, X12 and X15 can use the optional WPB-1 or WPB-2 wall brackets.
EASY CONNECTION
All SIGMA-X models (with the exception of the 70 V / 100 V T models) are equipped with both speakON compatible and barrier strip inputs. It is another small step that makes the installation easy.
ROTATABLE WAVEGUIDES
SIGMA-X8, SIGMA-X10, SIGMA-X12 AND SIGMA-X15 feature a rotatable waveguide.
90° x 60° or 60° x 90°….you decide.
SUPPORT WITH EASE
All full range models in the SIGMA-X series are supported with EASE 3 .gll files.
SPECIFICATIONS
| Model Name |

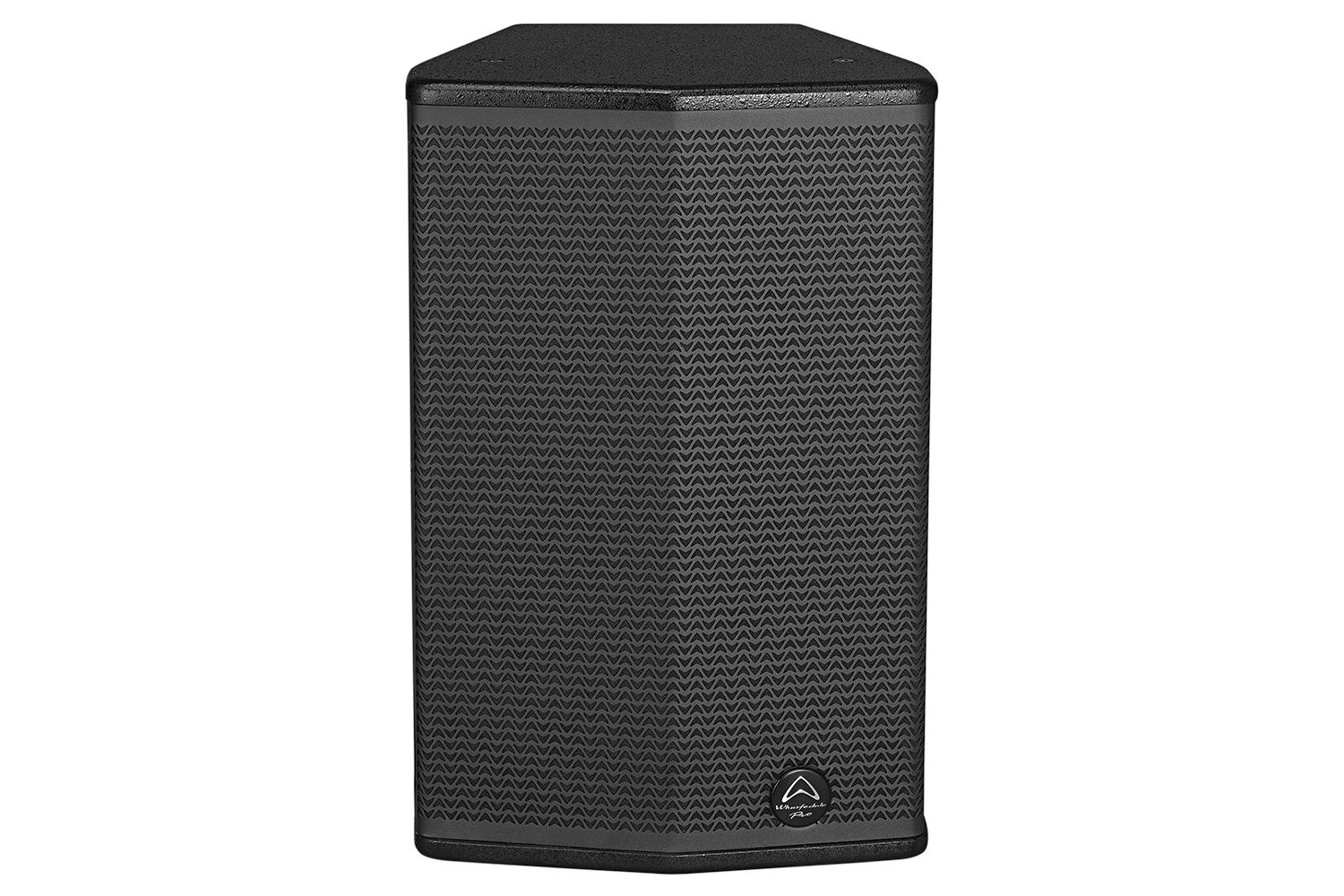

SIGMA-X10 |
| System Type |
Passive |
| Configuration |
Two-Way |
| Frequency Response (+/-3 dB) |
65 Hz – 18 KHz |
| Frequency Range (-10 dB) |
60 Hz – 20 KHz |
| Sensitivity 2.83 V / 1 m |
97 dB |
| Calculated Maximum SPL @1 m |
126 dB |
| System Rated Impedance |
8 Ω |
| Low Frequency Transducer |
|
| Size (mm / inches) |
254 mm / 10” |
| Voice Coil Size (mm / inches) |
38 mm / 1.5” |
| Rated Impedance |
8 Ω |
| LF Power re:AES2-2012 |
200 W |
| High Frequency Transducer |
|
| HF Driver Type |
Compression Driver |
| Coil Size (mm / inches) |
44 mm / 1.75” |
| Exit Size (mm / inches) |
1″ |
| Diaphragm Material |
Titanium |
| Rated Impedance |
8 Ω |
| HF Power re:AES2-2012 |
40 W |
| Waveguide Type |
Constant Directivity / Rotatable |
| Nominal Coverage (H x V) |
90˚ x 60˚ |
| LF Driver |
1 x 10″ |
| HF Driver |
1 x 1.75″ Titanium Compression Driver |
| Power |
|
| System Continuous Power |
200 W |
| System Programme Power |
400 W |
| System Peak Power |
800 W |
| Crossover frequency |
2.4 KHz |

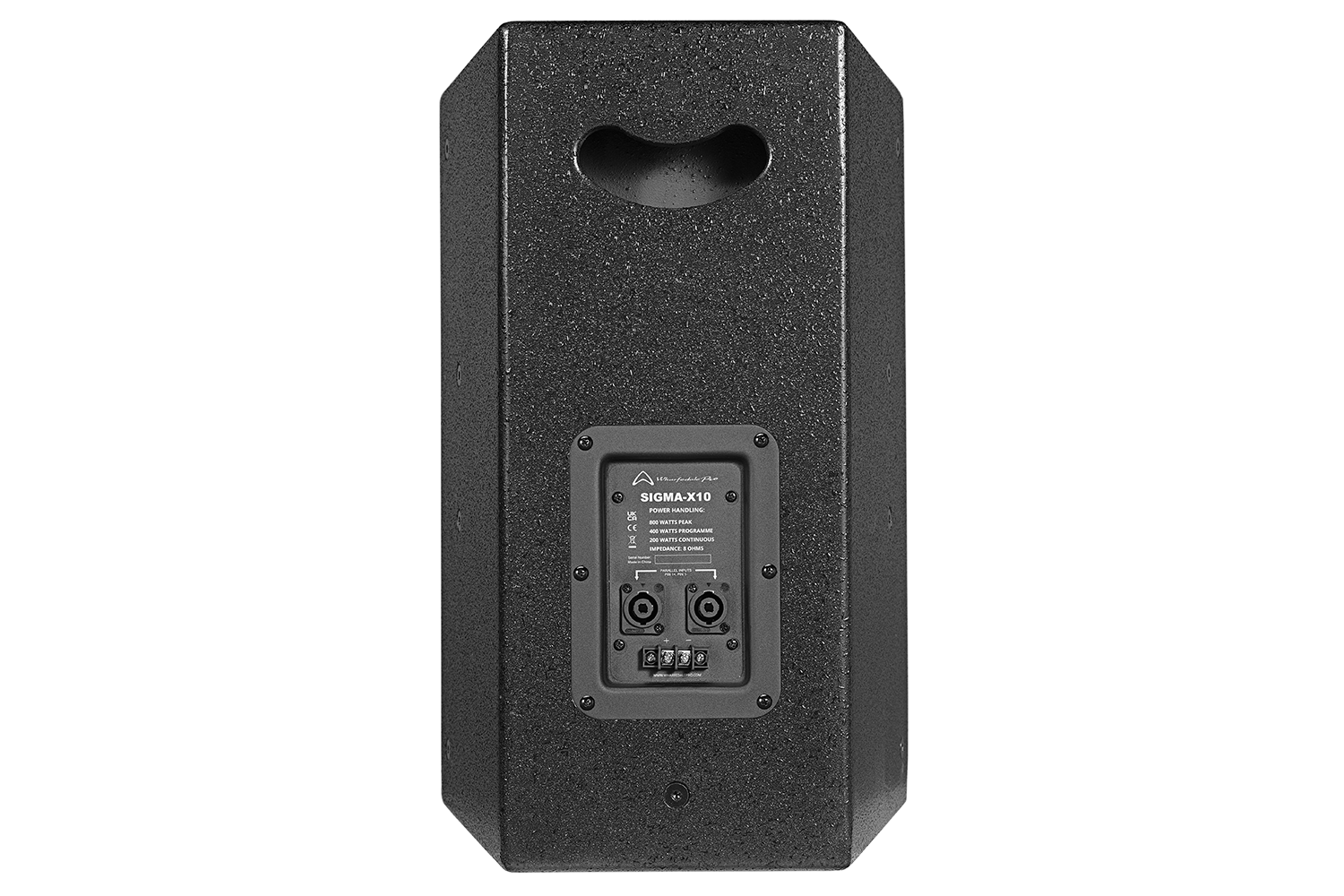

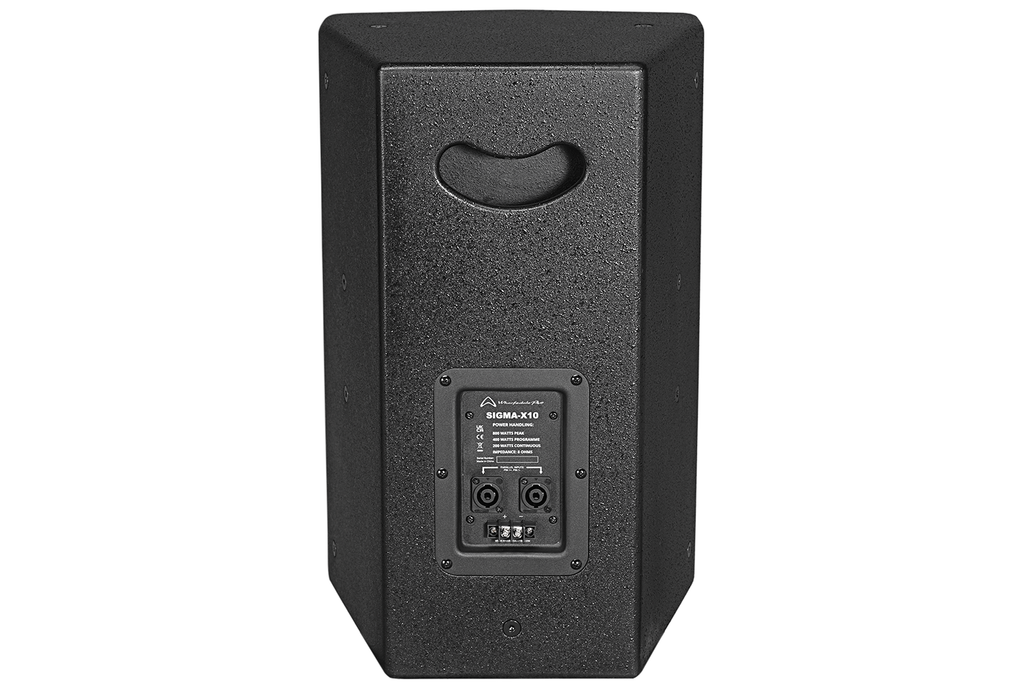

| Input Connector |
2 x speakON / 1x Barrier Strip |
| Hardware |

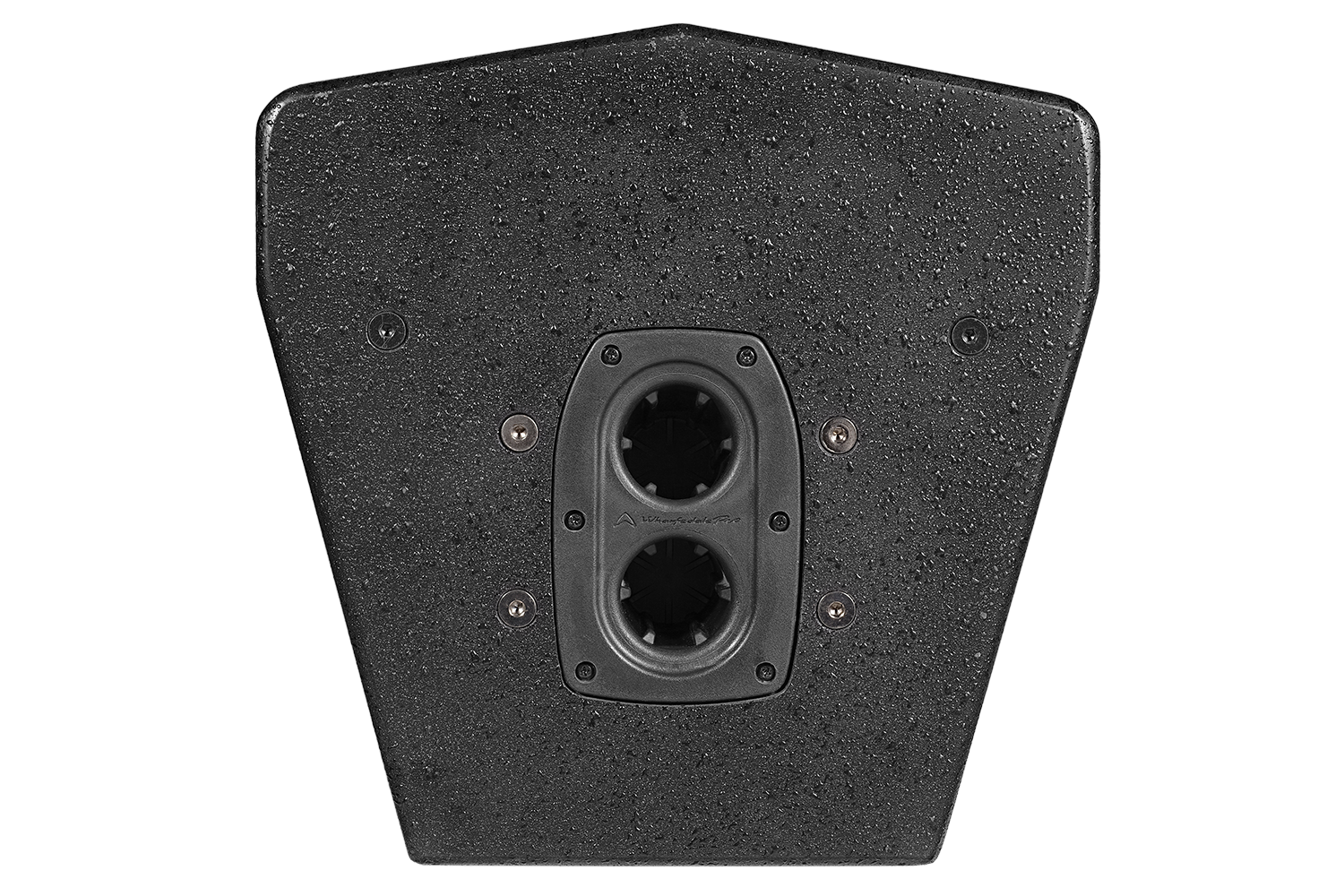

Dual-angle (0° /10°) 35 mm socket |
|
M8 x 17 |
|
1 handle on back |
| Enclosure |
|
| Enclosure Material |
15 mm MDF |
| Finish |
Black Paint / White Paint |
| Grille Material & Finish |
1.2 mm steel, painted |
| Dimensions – Unpacked |
|
| Height |
520 mm / 20.5″ |
| Width Front |
338 mm / 13.3″ |
| Width Rear |
213 mm / 8.4″ |
| Depth |
338.3 mm / 13.3″ |
| Dimensions – Packed |
|
| Height |
585 mm / 23″ |
| Width Front |
441 mm / 17.3″ |
| Width Rear |
251 mm / 9.9″ |
| Depth |
389 mm / 15.3″ |
| Weight |
|
| Net Weight |
17.1 kg / 37.62 lbs |
| Gross Weight |
18.8 kg / 41.4 lbs |
| Optional Wall-mount bracket |
WPB-1 / WPB-2 |
