Overview
RANE's SEVENTY solid steel mixer features 3 new MAG FOUR faders and 16 Akai Professional dual layer MPC pads with mode controls. Its intuitive layout and 6 FX buttons offer instant access to post-fader Flex FX and Serato DJ's software FX. With 114dB signal-to-noise ratio, its industry-leading performance includes dual USB connections for two DJs, switchable Phono/CD inputs per deck, switchable line/microphone combo inputs, balanced XLR master outputs, dual 3.5mm and ¼-inch headphone outputs, and ¼-inch jack booth outputs. TWELVE motorized control turntable and dual USB inputs, phono, line and aux inputs complete the SEVENTY's arsenal.
Features
-
Intuitive High-Performance Layout.
-
(3) MAG FOUR contactless faders.
-
External crossfader tension-adjustment control.
-
Solid steel construction & front guard handle protection.
-
(6) Dual post-fader internal FLEX FX engines.
-
Serato DJ FX controls.
-
Independent pad modes for each channel.
-
(32) MIDI-Assignable Pads.
-
Browse and track select controls.
-
Intuitive Instant Double buttons, toggle as Sync On-Off or Silent Cue mode.
-
Dedicated loop controls.
-
Dual diecast aluminum 180° rotatable FX paddles.
-
RANE TWELVE Connection Hub.
-
Dual microphone inputs.
-
Industry leading signal-to-noise ratio of 114dB.
-
Dual USB connections for DJ handoffs.
-
16 Akai Professional MPC performance pads.
Technical Specifications
| Digital Audio | |
|---|---|
| Converters | AKM High Definition Audio; 24-bit PCM, 48 kHz |
| Digital Signal Processing | 32-bit, floating point, double precision |
| Dynamic Range (A-weighted, unity gain) |
ADC: 114 dB DAC: 114 dB CD Input to Analog Output: 111 dB CD Input to USB Output: 114 dB USB Input to Analog Output: 114 dB |
| Inputs | |
| Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable) |
Analog Gain: 30 dB (Mic), 4.75 dB (Line) Maximum Input: 0.126 Vrms (Mic), 2.3 Vrms (Line) Gain Trim: Off to +20 dB (unity at center) |
| Aux Inputs 1/2 (RCA stereo pairs) |
Maximum Input: 4 Vrms Dynamic Range (A-weighted): 114 dB |
| CD/Phono Inputs 1/2 (RCA stereo pairs, switchable) |
CD: Line Maximum Input: 4 Vrms Dynamic Range (A-weighted): 114 dB Phono: RIAA RIAA Curve: +0.1/-0.2 dB Gain (@ 1 kHz): 30 dB Maximum Input (@ 1 kHz): 126 mV |
| Session Input (RCA stereo pair) |
Maximum Input: 4 Vrms Dynamic Range (A-weighted): 114 dB |
| Outputs | |
| Main Outputs (XLR) | Frequency Response: 20 Hz to 20 kHz (± 0.2 dB) Maximum Output: 8 Vrms THD+N (@ 1 kHz, 4 Vrms): 0.002% |
| Booth Outputs (1/4"/6.35 mm TRS) | Frequency Response: 20 Hz to 20 kHz (± 0.2 dB) Maximum Output: 8 Vrms THD+N (@ 1 kHz, 4 Vrms): 0.002% |
| Session Outputs (RCA stereo pair) | Frequency Response: 20 Hz to 20 kHz (± 0.2 dB) Maximum Output: 8 Vrms THD+N (@ 1 kHz, 4 Vrms): 0.002% |
| Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS) |
Maximum Output Voltage: 4 V (no load) THD+N (@ 1 kHz, 2 Vrms): 0.003% Output Power: 96 mW (50 ohms) Controls: On/Off muting |
| General | |
| Display | 1.6" OLED (diagonal) |
| Pads | (16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each) |
| Faders | (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader) |

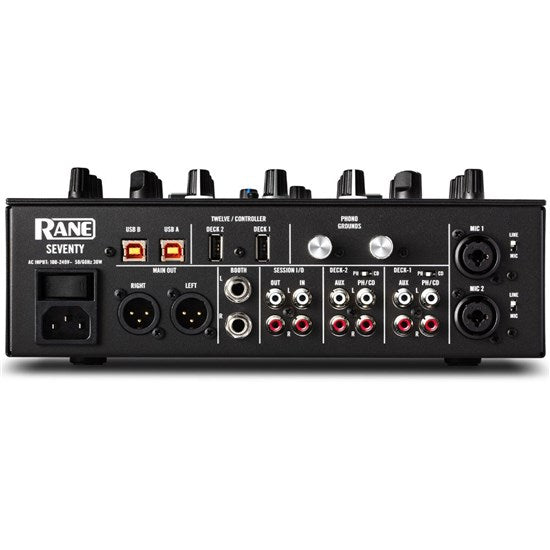

| Connectors | (2) XLR outputs (Main) (2) 1/4" (6.35 mm) TRS outputs (Booth) (4) RCA stereo input pairs (Deck 1–2) (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1–2) (1) RCA stereo input pair (Session) (1) RCA stereo output pair (Session) (1) 1/4" (6.35 mm) TRS output (Headphones) (1) 1/8" (3.5 mm) TRS output (Headphones) (1) 1/4" (6.35 mm) TRS input (Footswitch) (2) USB Type-A ports (Deck 1–2 USB Controllers) (2) USB Type-B ports (1) IEC power cable input |
| Power | Connection: IEC Voltage: 100–240 V, 50/60 Hz Consumption: 30 W |
| Dimensions (width x depth x height) |
11.2" x 17.5" x 4.13" 285 x 445 x 105 mm |
| Weight | 12.3 lbs. 5.6 kg |
