Rane ONE MKII Motorized DJ Controller

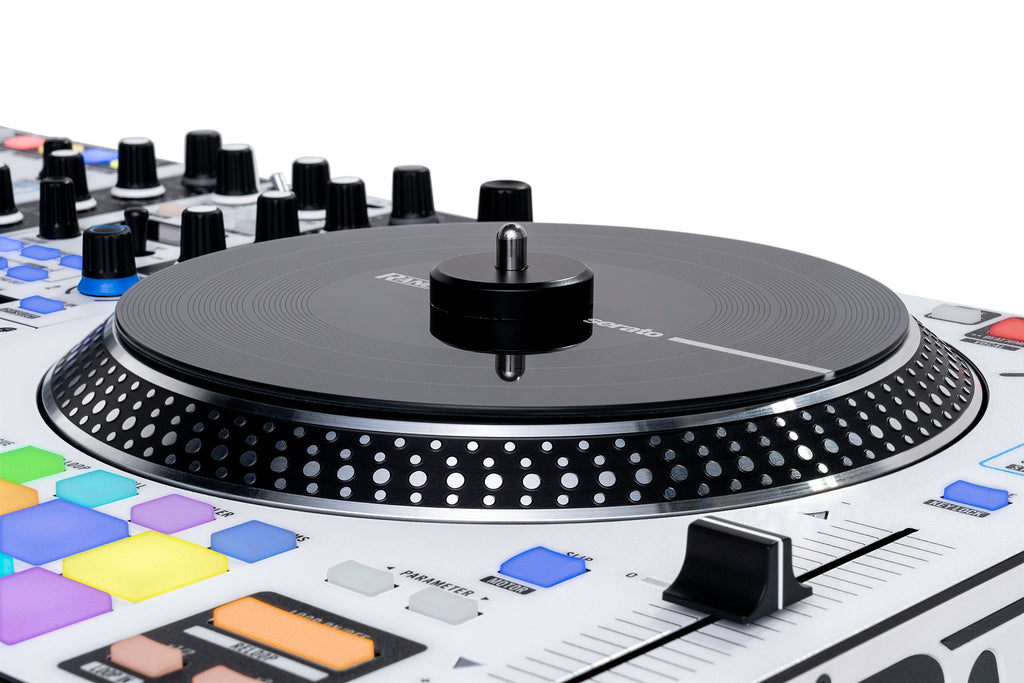

The RANE ONE MKII is a cutting-edge motorized DJ controller built for pros who demand total creative control on stage. Engineered for open-format sets, its high-torque, motorized platters deliver a tactile, precise feel, while advanced digital controls keep you in command. Harness Fader FX to transform volume faders into dynamic pitch, filter, roll, and ring modulator effects with four tone generators included. Boasting 29 built-in hardware effects and a sharp display, it fuels endless creativity for electrifying club and live performances. Unlock new levels with Stems controls in Serato DJ Pro, isolating vocals or beats and twisting tracks live. Custom pad modes, tension-tweakable faders, and a smooth MAG FOUR crossfader put flawless mixing power in your hands. Finished in bold white, the ONE MKII stands out visually and functionally, ready to adapt to your signature style. Rugged, portable, and fiercely flexible—the ultimate weapon for trailblazing DJs who refuse limits

1. Dynamic Internal FX Suite 29 meticulously crafted internal effects, offering DJs an extensive palette of sonic possibilities. From subtle enhancements to transformative soundscapes and even fader-controlled transition FX, elevating the creative potential of every performance.

2. Stems Controls for Creative Flexibility

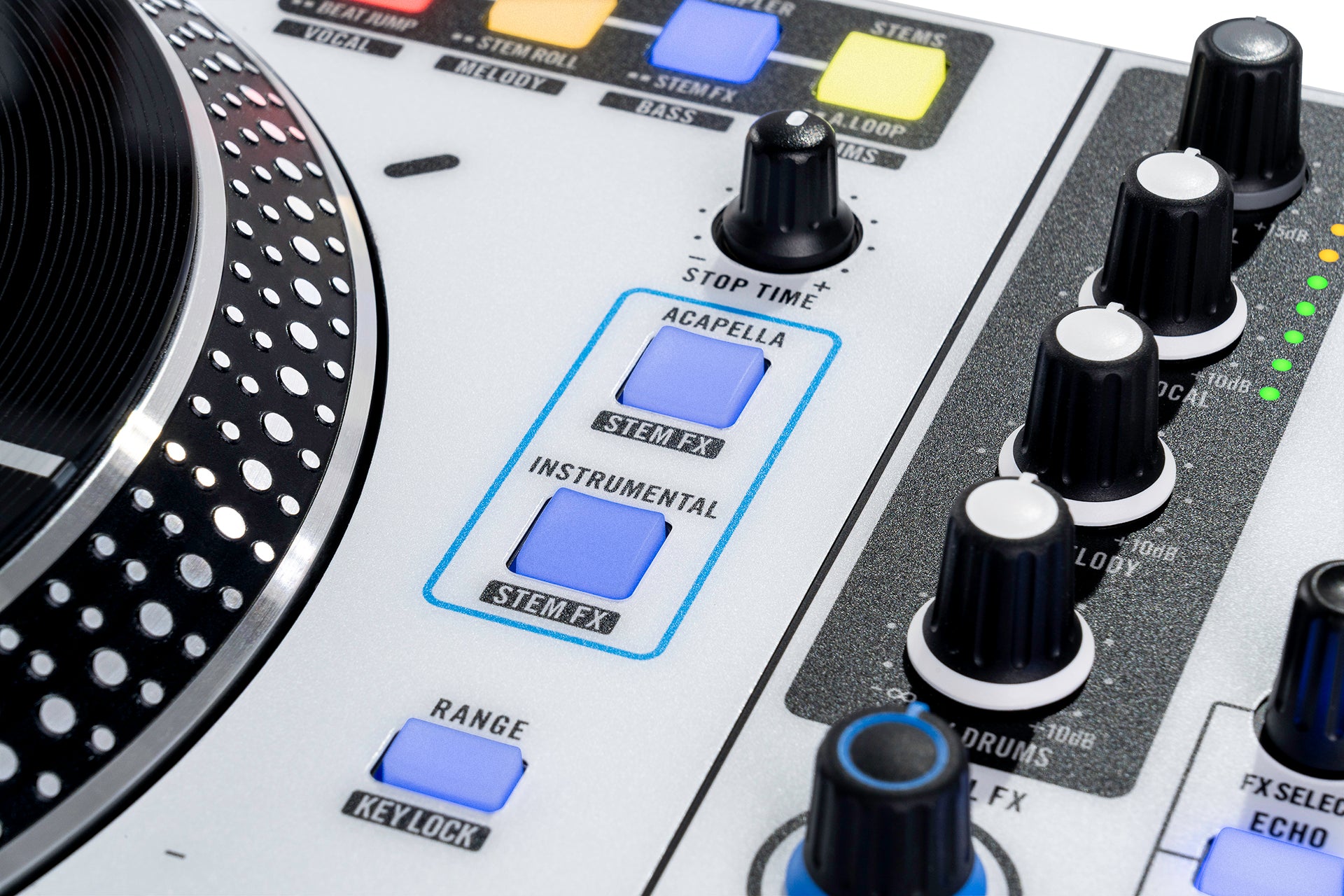

o Acapella and Instrumental Buttons: Effortlessly isolate vocals or instrumentals for unique transitions and remixes in real time.

o Stems Level Control: Seamlessly adjust the balance of individual audio elements with the EQ knobs.

o Stems Pad Mode: Quickly mute and apply FX to individual stem parts.

o Stems Roll Pad Mode: Stem Roll pad mode is a new performance pad mode that allows the user to apply loop rolls to individual or multiple stem parts.

o Stems FX Pad Mode: Stem FX pad mode is a new performance pad mode that allows users to apply Echo Out, Roll Out, Brake, or Delay FX to individual or multiple stem parts.

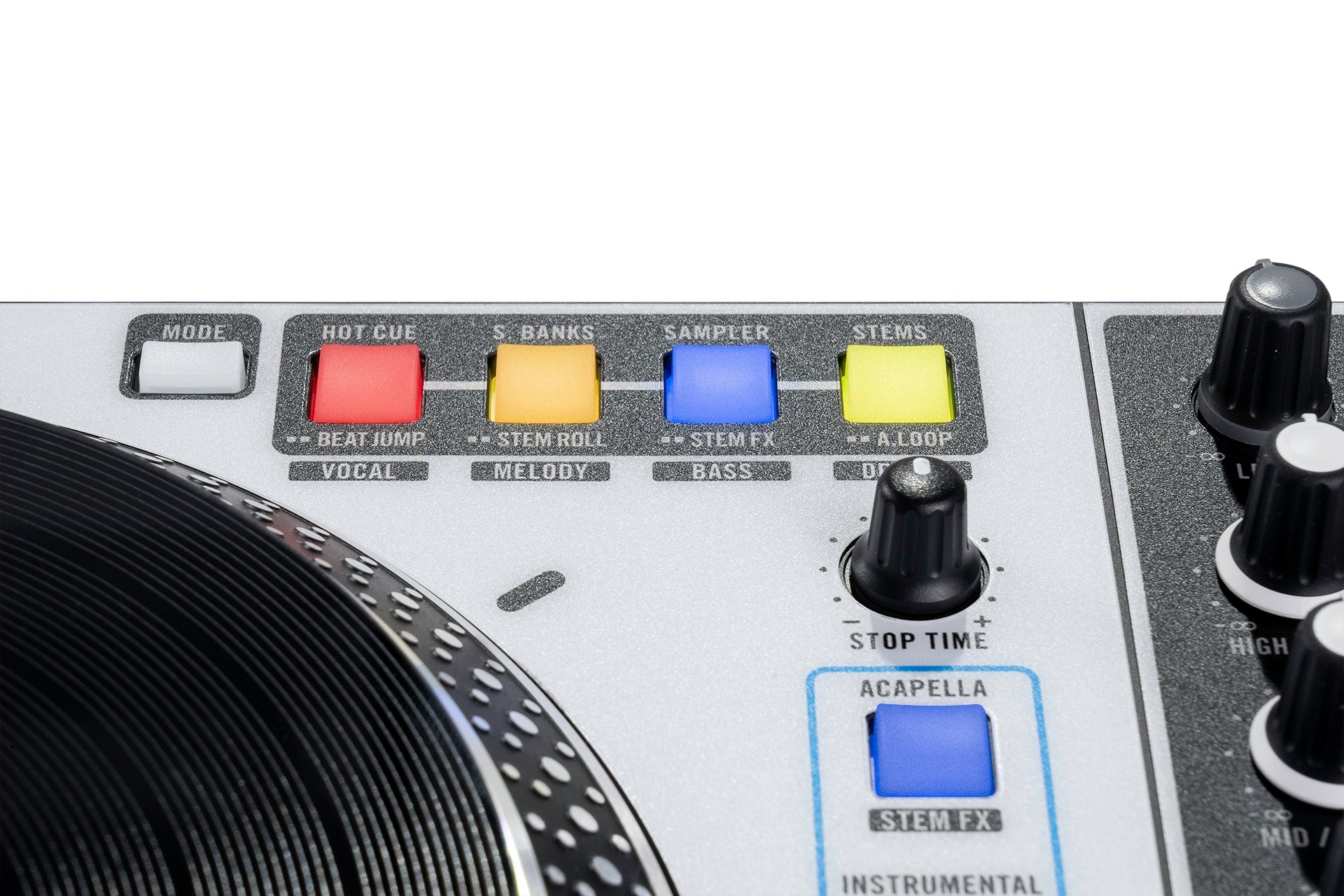

3. Secondary Pad Buttons Access multiple pad modes simultaneously with dedicated secondary buttons above the platter, streamlining performance workflows and unlocking greater creative freedom without sacrificing simplicity.

4. Channel FX The Filter knob on each deck can access four different Channel FX, providing hands-on control of the Filter, Filter Roll, Flanger, and Noise FX.

5. PRECISION FEEL Channel Faders Experience a new level of tactile precision with ultra-smooth, accurate, and tension-adjustable control that empowers intricate and dynamic mixing.

6. Stunning White Colorway The MKII introduces a stylish white finish, combining aesthetics with function. This makes it an eye-catching centerpiece of any DJ setup while improving control surface visibility.

· Added DSP, OLED, joystick, and HW/SW button for FX control

· Add Channel FX buttons to enable/disable Channel FX and select the FX

· Touch strips replaced with 4 buttons to access multiple pad modes simultaneously—performance pads beneath the platters can also be split to access 2 pad modes, so users can access 3 different pad modes on each deck

· Added a mode button for the secondary pad group

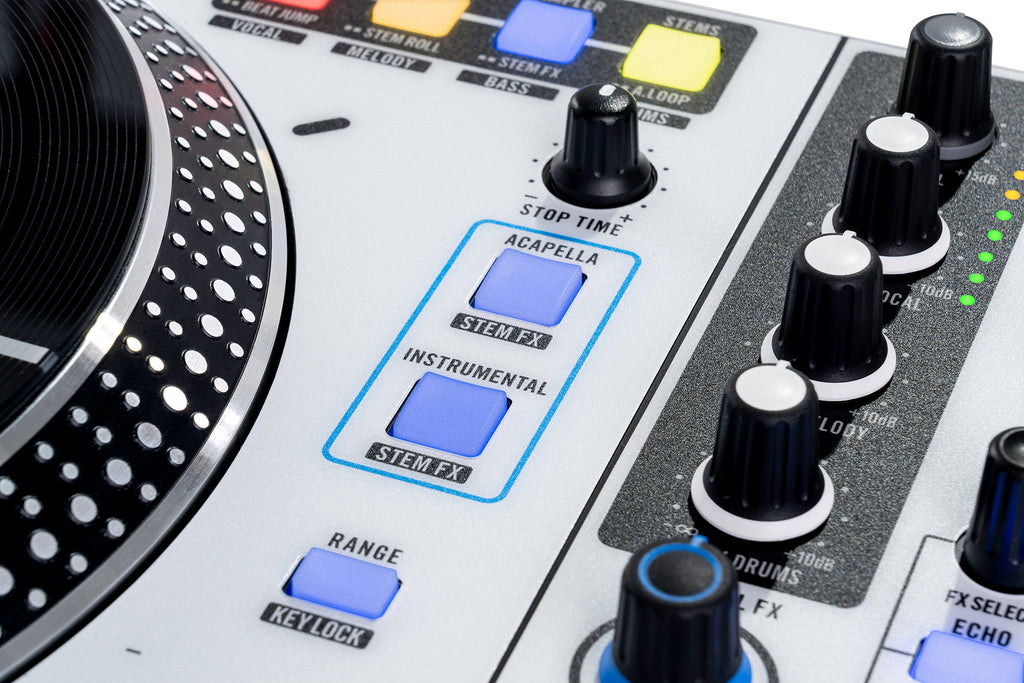

· Repurposed the Slip button for Acapella

· Repurposed the Censor button for Instrumental

· Repurposed the Range/Keylock button for Slip

· Replaced the standard channel/up faders with PRECISION FEEL faders

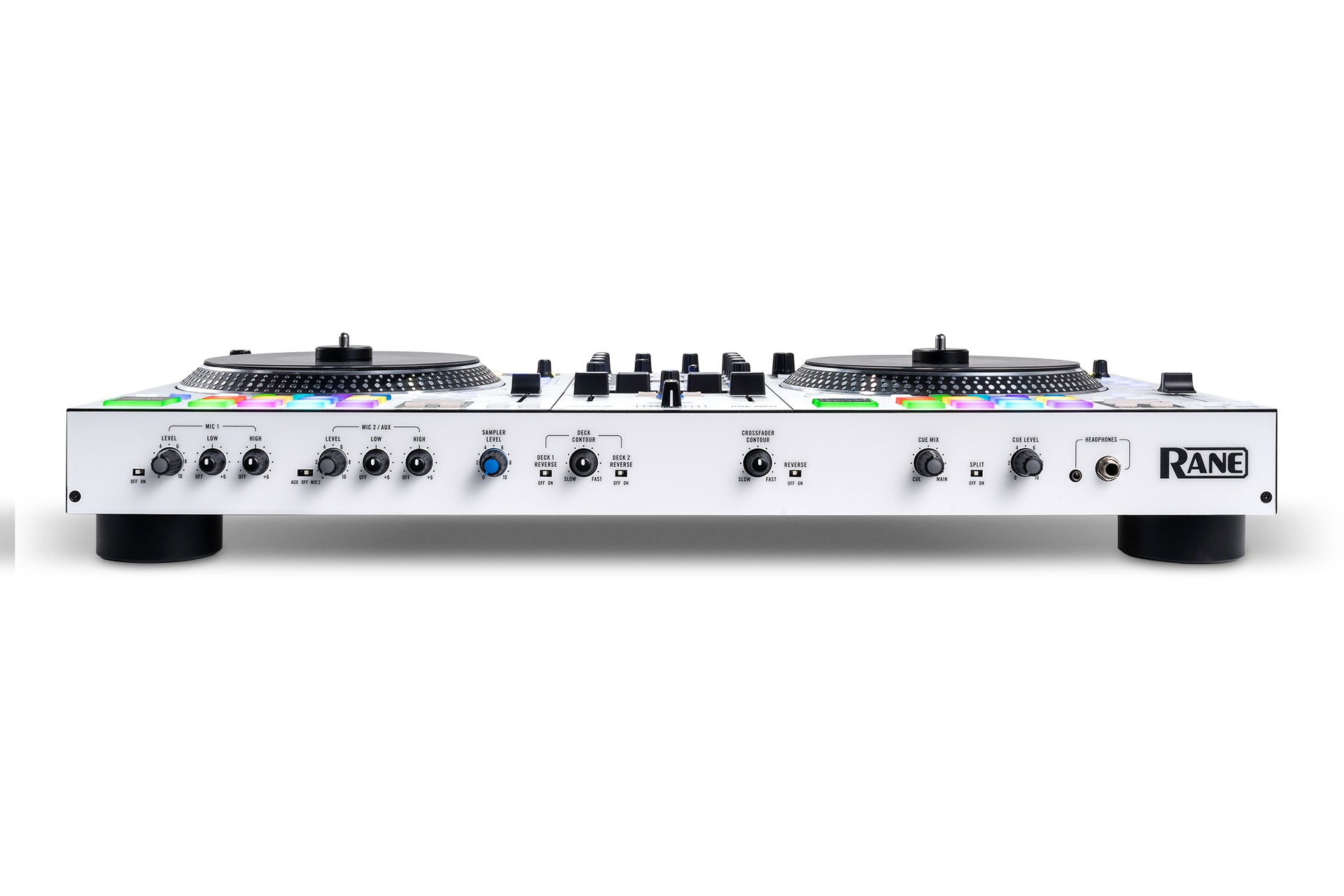

· Added dedicated Sampler volume knob on front panel

· Colorway: White

Digital Audio

Converters: Cirrus Logic, 24-bit PCM, 48 kHz

Digital Signal Processing: 32-bit, floating point, double precision

Dynamic Range (A-weighted, unity gain):

ADC: 113 dB

DAC: 113 dB

CD Input to Analog Output: 110 dB

CD Input to USB Output: 113 dB

USB Input to Analog Output: 113 dB

Inputs

Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)

Analog Gain: 25 dB

Maximum Input: 110 mV

Gain Trim: Off to +26 dB (unity at center)

Tone Control: 2-band

Aux Input (RCA stereo pair)

Maximum Input: 4 Vrms

Dynamic Range (A-weighted): 114 dB

Gain Trim: Off to +12 dB

Tone Control: 2-band

CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)

CD

Maximum Input: 4 Vrms

Gain Trim: Off to +12 dB

Tone Control: 3-band, full-cut to +10 dB

THD+N (20 kHz BW @ 1 kHz): 0.004%

Phono

RIAA Curve: +/- 0.25 dB

Gain (@ 1 kHz): 31.5 dB

Maximum Input (@ 1 kHz): 106 mV

·Dynamic Range (A-weighted): 102 dB

Outputs:

Main Outputs (XLR)

Gain Trim: Off to 0 dB

Maximum Output: 8 Vrms

THD+N (20 kHz BW @ 1 kHz): 0.004%

Frequency Response: Flat

Booth Outputs (XLR)

Gain Trim: Off to 0 dB

Maximum Output: 8 Vrms

THD+N (20 kHz BW @ 1 kHz): 0.004%

Frequency Response: Flat

Master Outputs (RCA stereo pair)

Maximum Output: 4 Vrms

THD+N (20 kHz BW @ 1 kHz): 0.004%

Frequency Response: Flat

Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS)

Maximum Output Voltage: 4 Vrms (no load)

Output Power: 50 mW (50 ohms)

Dynamic Range (A-weighted): 108 dB

Pads

16x multi-color back-lit pads (8 per deck, 10 modes each)

Secondary performance pad buttons with 8 pad modes

Faders

(1) MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls

(2) PRECISION FEEL tension-adjustable faders with Contour knob and Reversal switches

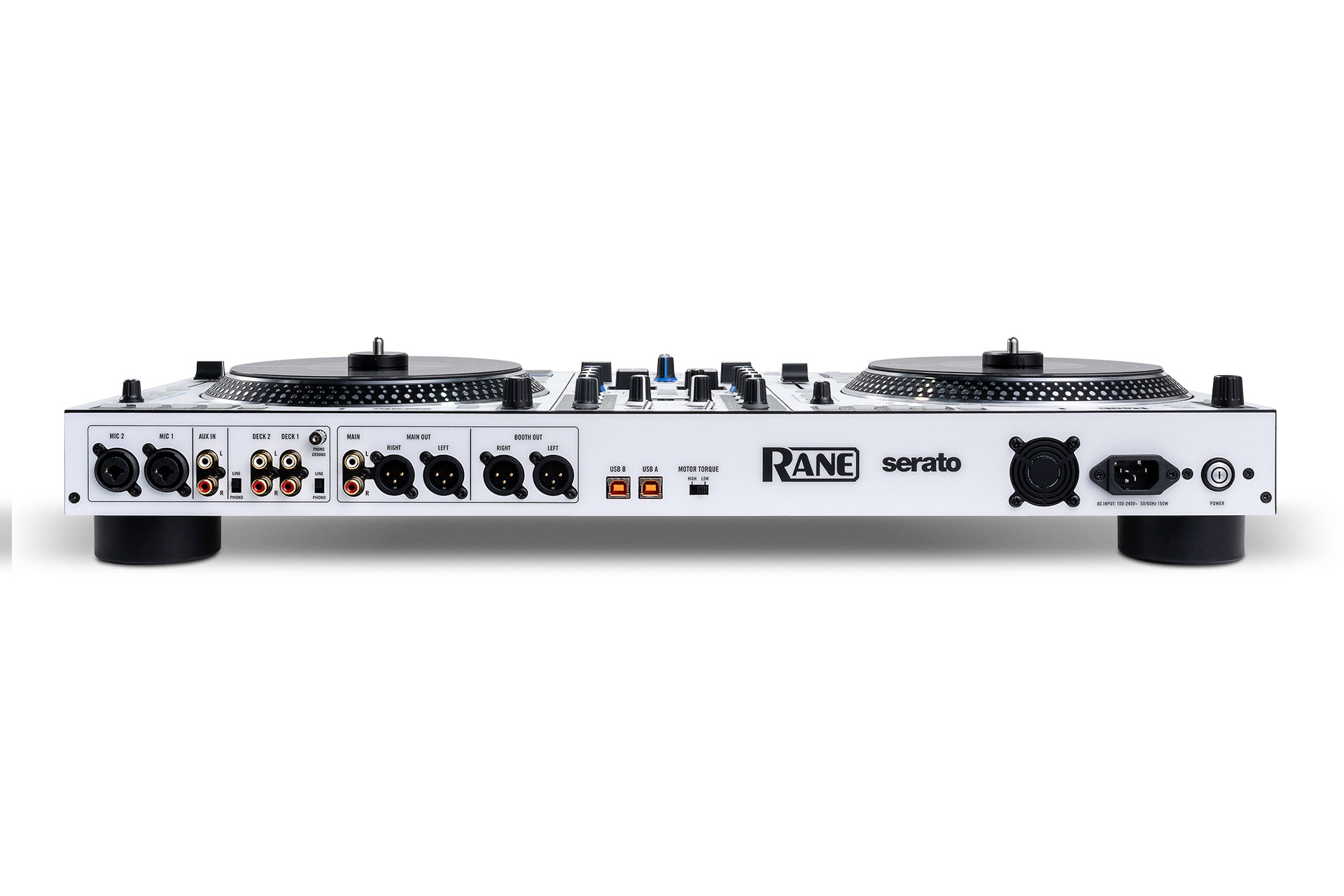

Connectors :

o (2) XLR outputs (Main)

o (2) XLR outputs (Booth)

o (1) RCA stereo output pair (Master)

o (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1-2)

o (2) RCA stereo input pairs (Deck 1-2)

o (1) RCA stereo input pair (Aux)

o (1) 1/4” (6.35 mm) TRS output (Headphones)

o (1) 1/8” (3.5 mm) TRS output (Headphones)

o (2) USB Type-B ports

o (1) IEC power cable input

Power Connection: IEC

Voltage: 100–240V, 50/60 Hz

Consumption: 50 W

Dimensions: W x D x H: 26.5” x 13.6” x 4.9” (674 x 345 x 124.3 mm)

Weight: 24.56 lbs. (11.14 kg
