Pioneer DJ DJM-S5



Scratch-style 2-channel DJ mixer (gloss red) This new scratch-style 2-channel DJ mixer for Serato DJ Pro is ideal if you’ve experimented with battle mixing and scratching and want to expand your skills, or if you’re completely new to the scene and want to dive straight in. Equipped with a range of tools to help perfect your sound, this mixer gives you full control over your sets. Make your music stand out by fine-tuning the 3-band EQ and detailed digital sound effects.



• MAGVEL FADER PRO crossfader

• Effect levers

• Performance Pads

• Scratch Cutter

• Crossfader Hot Cue

• USB bus power and standalone mixer versatility

• Serato DJ Pro

• Stream your set easily


MIDI Control	Assignable (click here to see the details)
Compatible DJ Software	Unlocks Serato DJ Pro
DVS Control	Unlocks Serato DVS
Software System Requirements	Visit serato.com for its specifications.
Accessories	DJM-S5 USB cable Quick Start Guide Precautions for Use Warranty (for some regions)

Specifications

Width	245 mm
Height	107.9 mm
Depth	363.5 mm
Weight	3.4 kg
Power Consumption	5V/500mA
S/N Ratio USB	108 dB (USB) 94 dB (LINE) 82 dB (PHONO) 75 dB (MIC) 94 dB (AUX)
Distortion	0.003 % (USB) 0.007 % (LINE)

Master

Level Meter Size	7 segment

Channels

EQ/ISO	3 band
EQ/ISO Range	–∞ dB to +6 dB

Performance Control

Channels	2
Sound Color FX	Filter

Crossfader

Crossfader Type	MAGVEL FADER PRO

Mic

Mic Connection	XLR / 1/4-inch Combo Jack

Sound card

Connection	USB (Type-C)
Sample Rate	24 bit
Frequency	48 kHz

Terminals

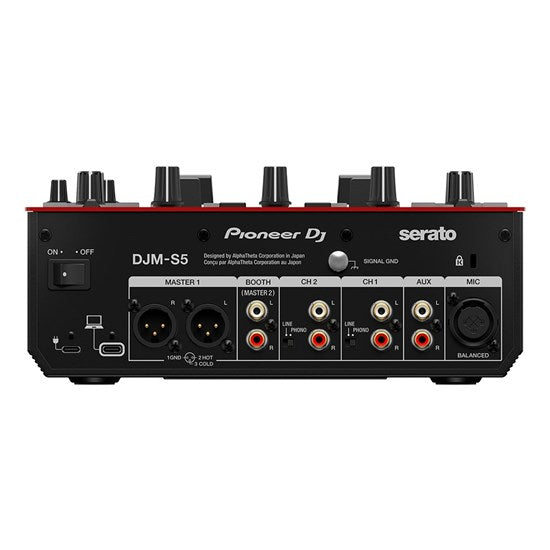

Inputs	2 PHONO/LINE (RCA) 1 MIC (XLR & 1/4 inch Combo Jack) 1 AUX (RCA)
Outputs	1 MASTER (XLR) 1 BOOTH/MASTER (RCA) 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
USB	2 sets USB Type-C port (PC/Mac connection & power supply ×1, Only power supply ×1)
