Description
Overview

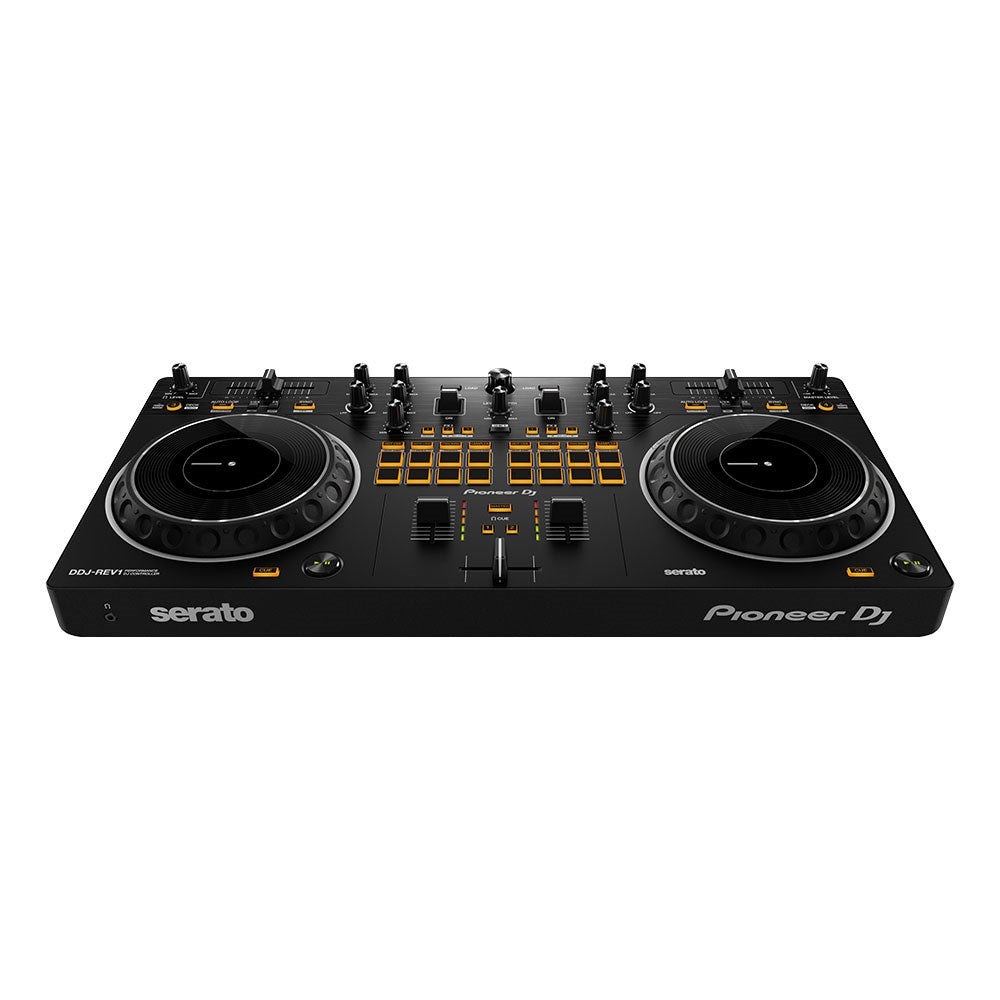

Pioneer's DDJ-REV1 is a two-channel DJ controller built for battle-style performance and featuring an intuitive layout. It mirrors professional DJM-S mixers and PLX turntables, with tempo sliders arranged horizontally at the top of the deck. Performance pads and Lever FX paddles by the mixer give DJs sound-altering power. The larger jog wheels enable great scratching. Tracking Scratch simplifies the process, automatically returning the track to the cue point when the jog wheel moves from backward to forward. All four decks in Serato DJ Lite are playable with this controller, and DJs get a free three-month TIDAL HiFi subscription.
Features
-
Brand-new battle-style layout
-
Bigger jog wheels
-
Lever FX
-
Tracking Scratch: Get a helping hand with scratching
-
Mixed microphone audio: Easily add your voice while you’re streaming
-
Serato DJ Lite integration: Enjoy full use of the free software
Technical Specifications
Compatible DJ Software |
|
|---|---|
Software System Requirements |
|
Accessories |
|
Specifications
Frequency Range |
20 - 20000 Hz |
|---|---|
Width |
526 mm |
Height |
59.2 mm |
Depth |
255.5 mm |
Weight |
2.1 kg |
Soundcard |
24 bit/48 kHz |
Signal-to-Noise Ratio |
103 dB |
Distortion |
< 0.005 % |
Power Supply |
USB Type-B bus powered |
Power Consumption |
5V 500mA |
Performance Control
Channels |
2 |
|---|---|
Deck Control |
4 |
Trim knob |
Yes |
Jog Wheel (Dimensiones máximas) |
154 mm |
Filter |
Yes |
Sampler |
Yes |
Hot Cues |
4 |
Pad Modes |
|
Manual Loop |
Yes |
Autoloop |
Yes |
Fader
Channel Fader Start |
Yes |
|---|---|
Crossfader Start |
Yes |
Crossfader Curve Adjust |
Yes |
Terminals
Inputs |
1 MIC (1/4 inch TS Jack) |
|---|---|
Outputs |
|
USB |
1 USB B port |
