Event Lighting PANX44 - 4x4 40W COB RGB+CW+WW Pixel Control Panel

Event Lighting
Price:
$1,589.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

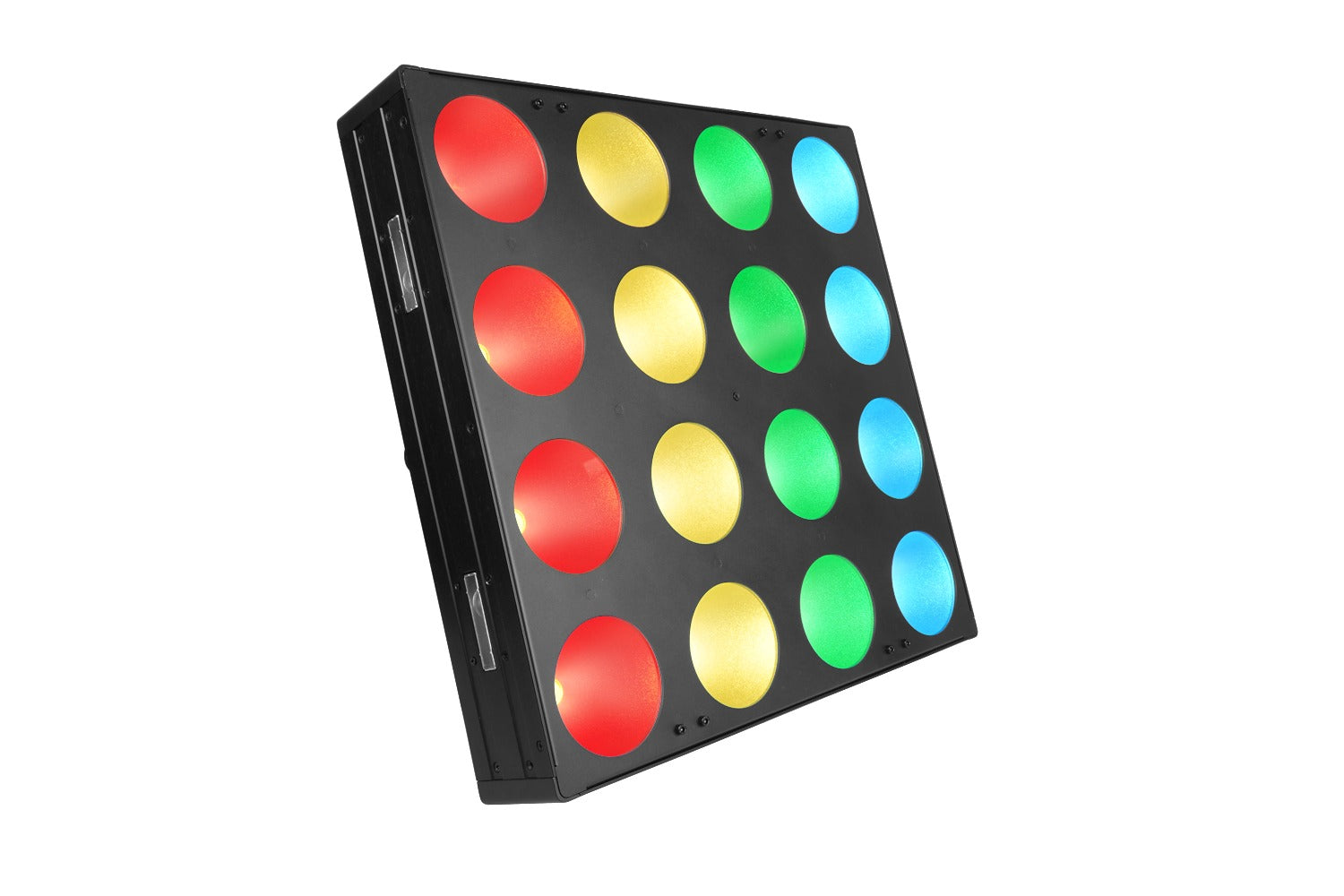

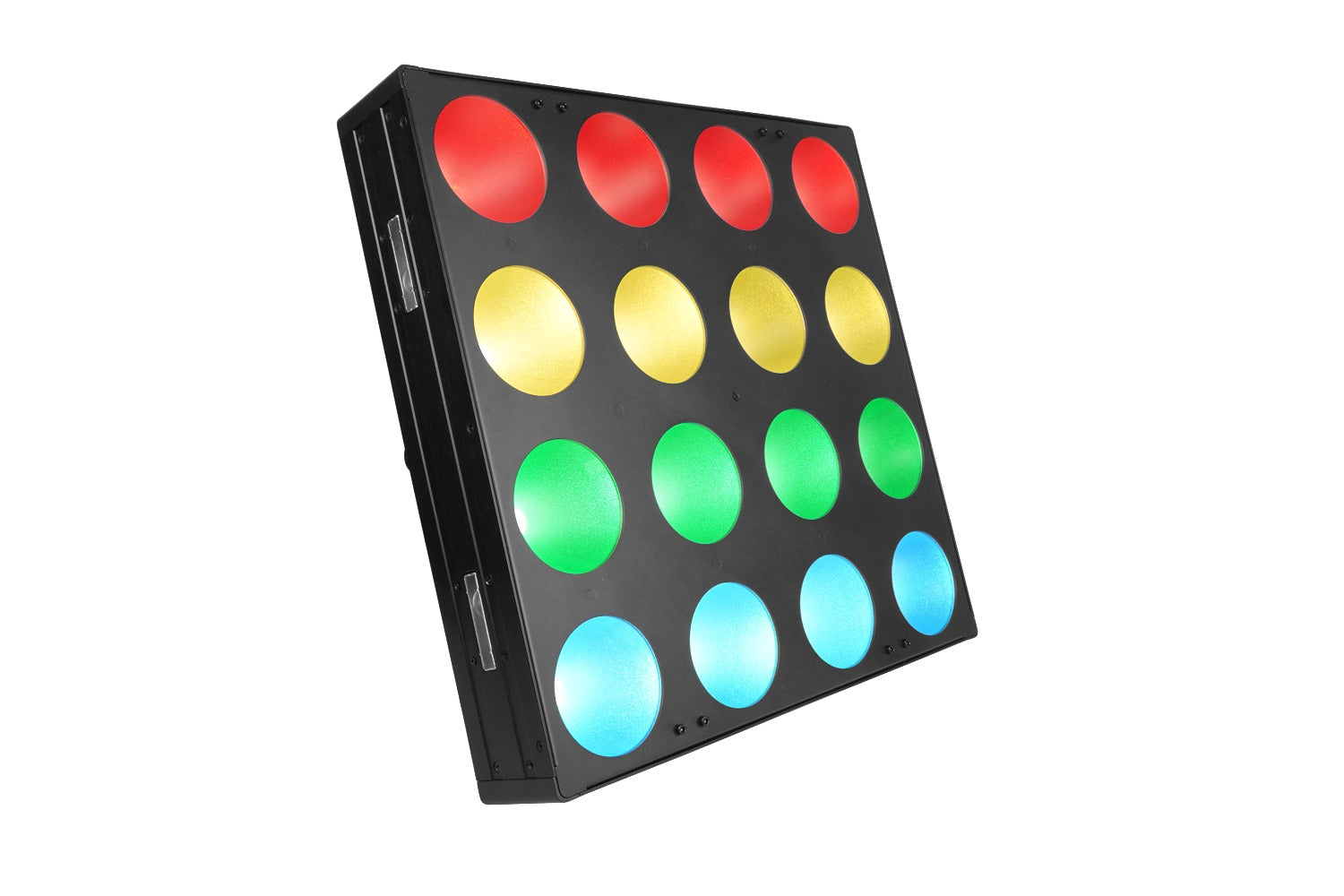

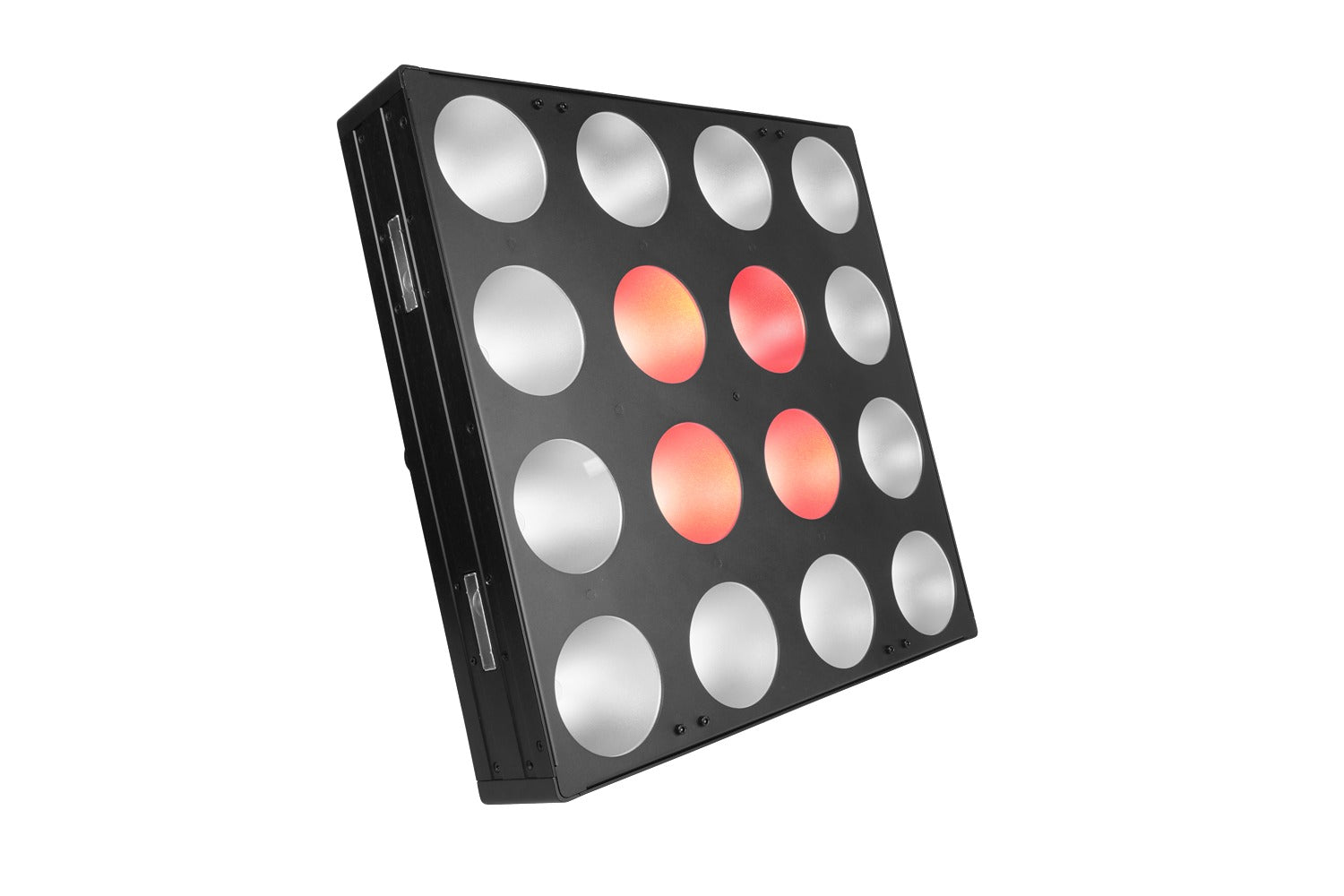

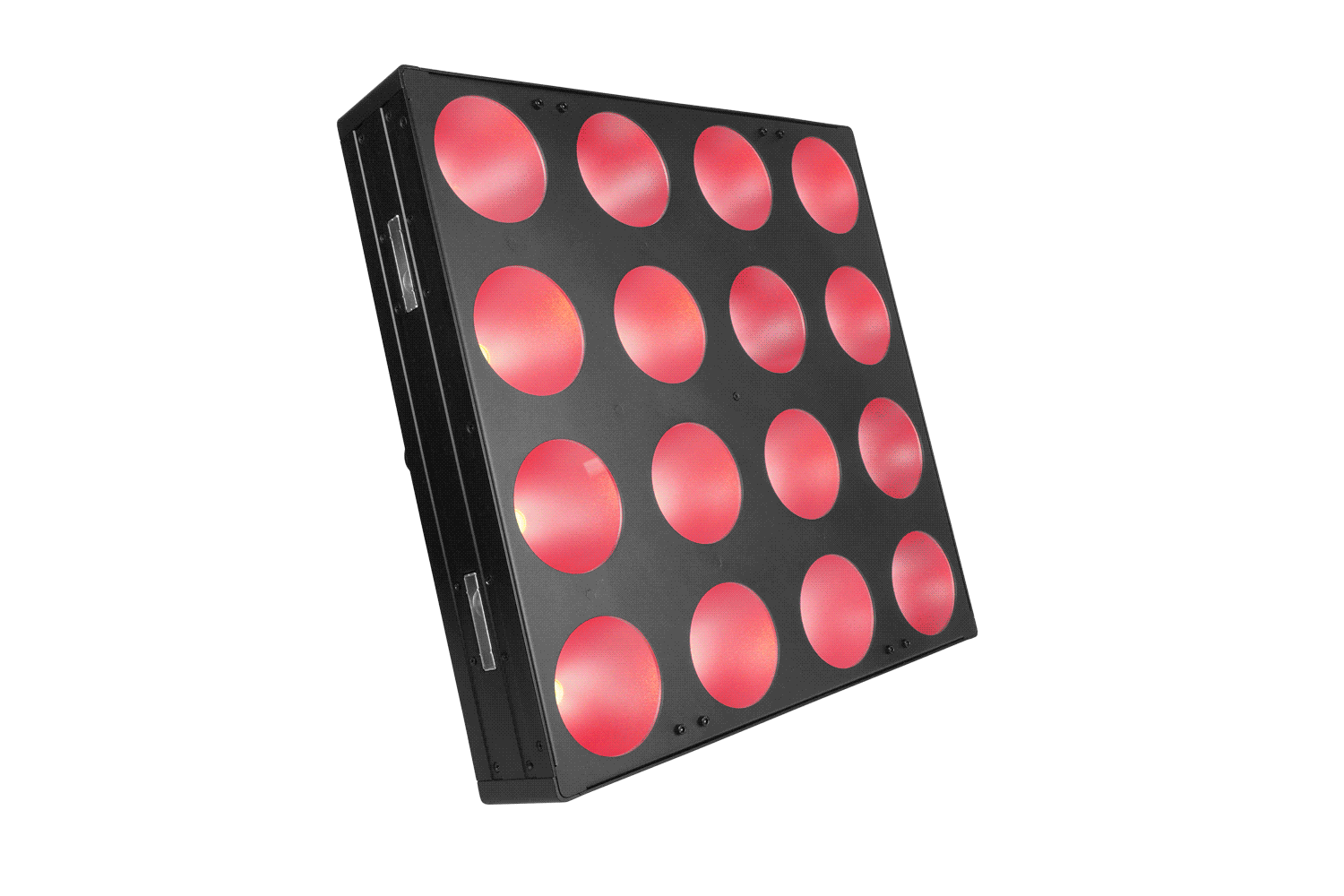

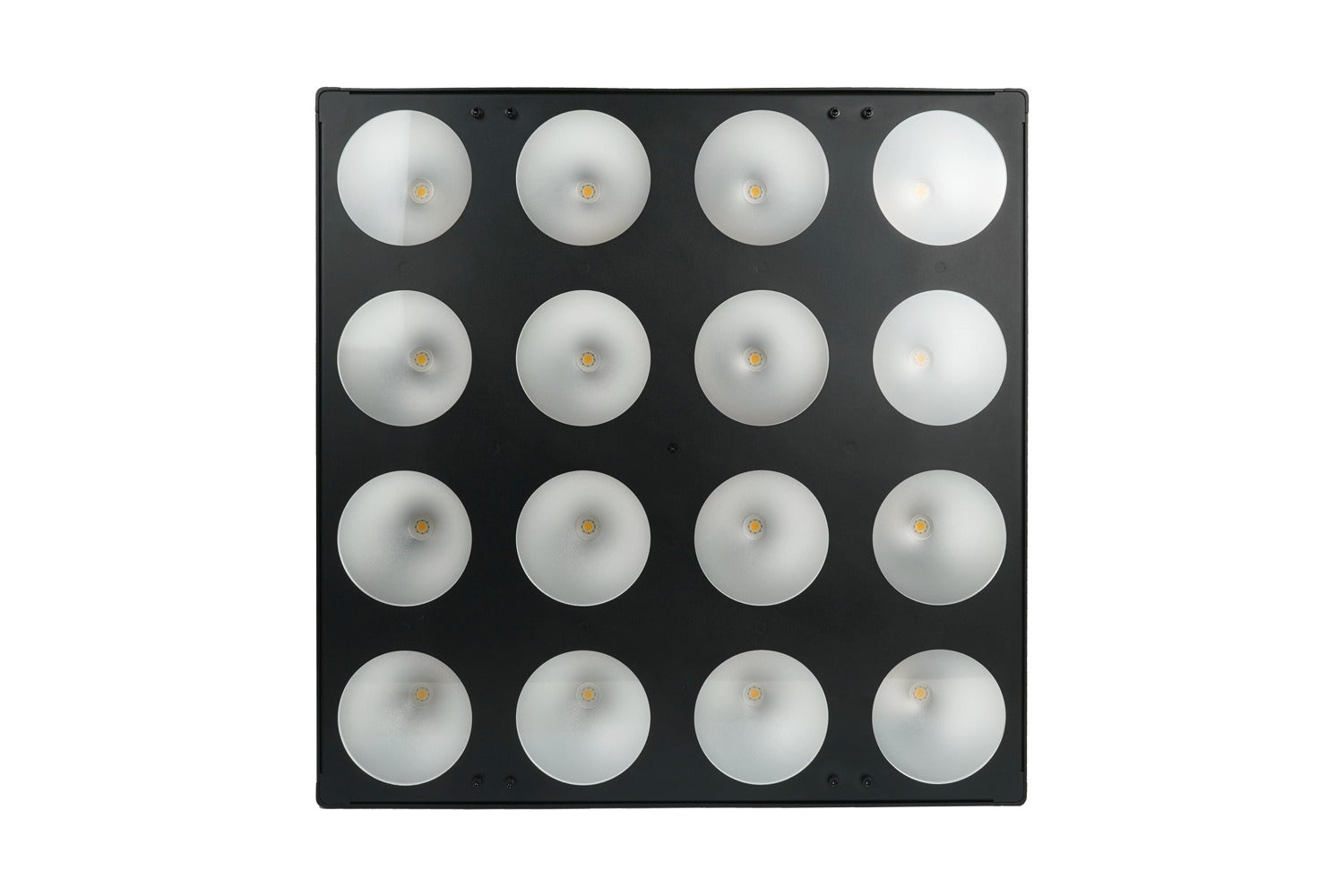

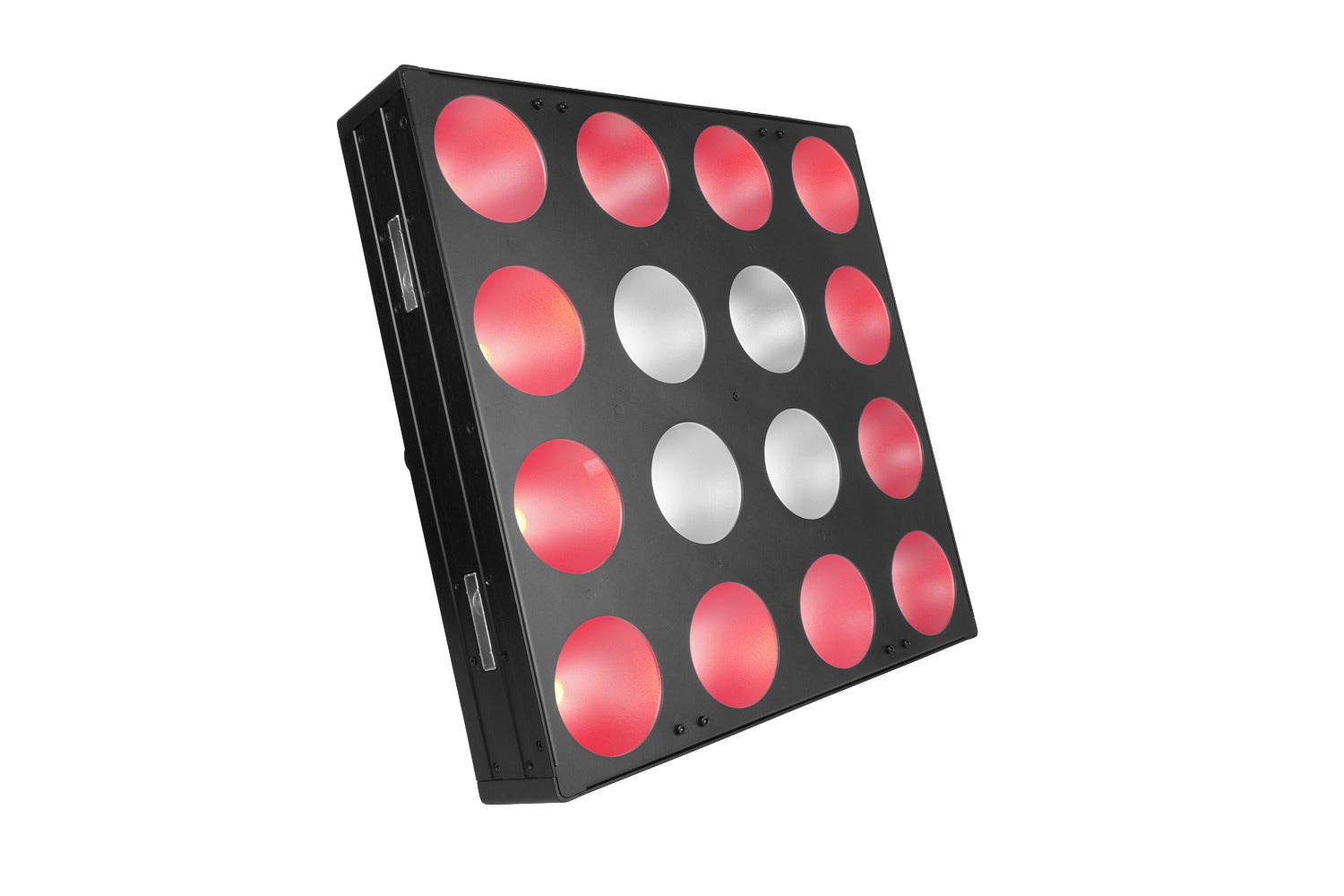

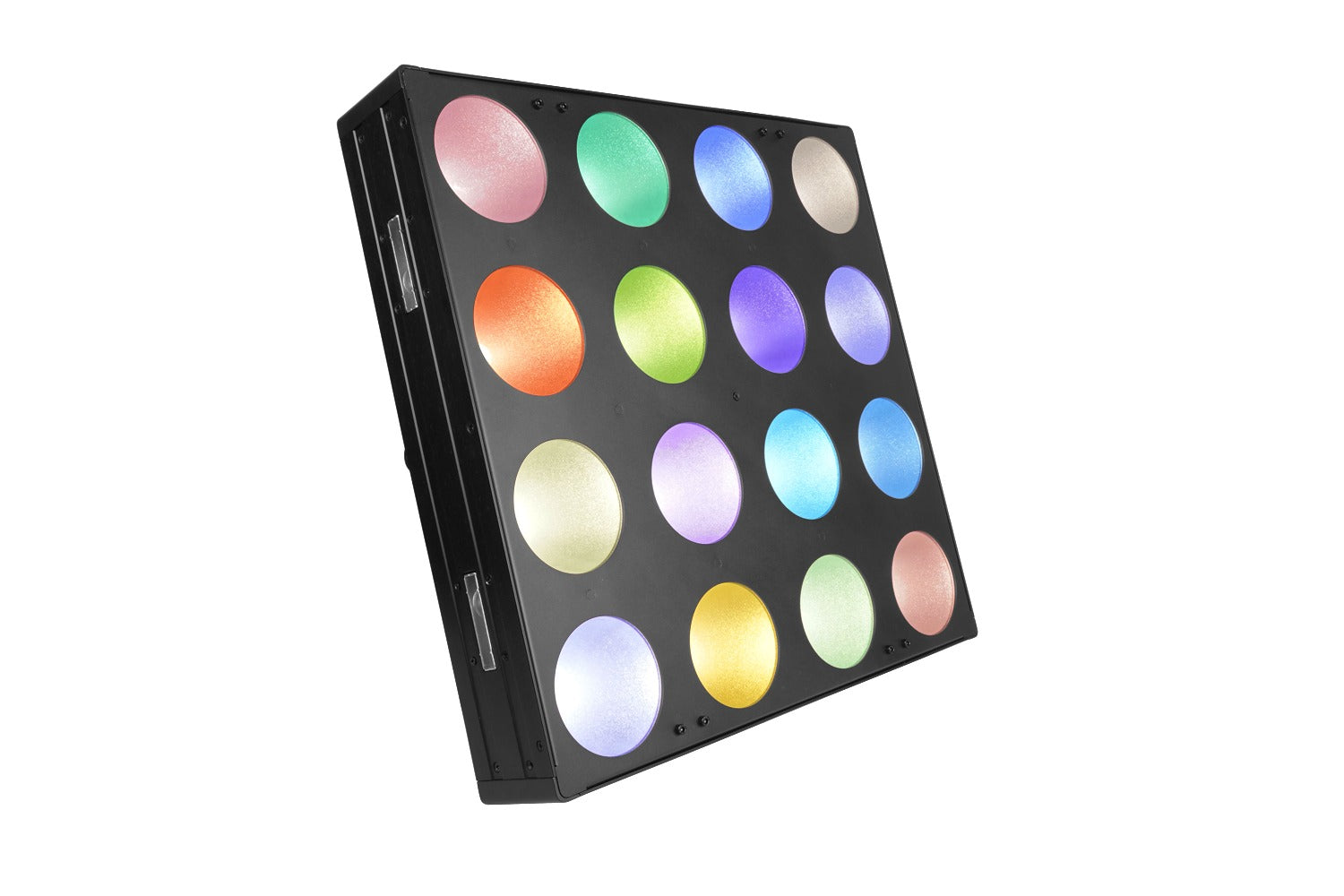

    The Event Lighting PANX44 packs sixteen powerful 40W RGB+CW+WW COB LEDs into a sleek 4x4 layout, delivering a sharp 40° beam perfect for bold wash effects and striking cyclorama lighting.

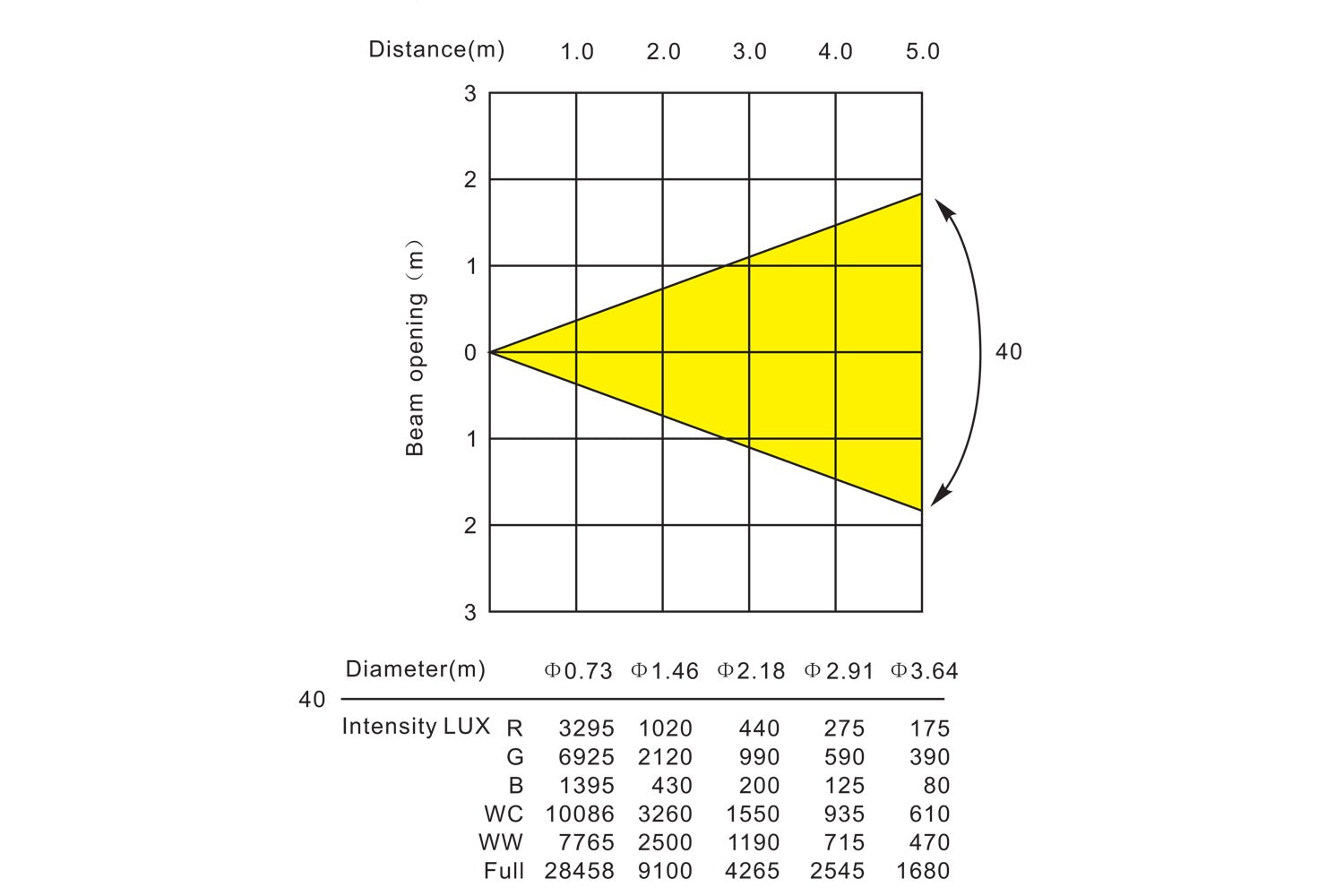

    Photometrics

    • Light Source: 4 x 4 40W RGB+CW+WW COB LEDs
    • Beam Angle: 40°
    • Field Angle: 60°
    • Output: 9100 lux @ 2m Full on
    • PWM: 1,200Hz
    • LED Lifespan: 50,000 hours

    Effects

    • Dimming: 5 x 16-bit Dimming Curves
    • Strobe: 1~25Hz

    Power

    • Input Voltages: 100~240V AC, 50/60Hz, 400W
    • Power Connection: True1 in /out

    Control

    • Operational Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase, WDMX (optional)
    • Display: 4-button LCD control panel
    • Control Protocol: DMX512
    • DMX Channels: 1 / 2 / 3 / 4CW / 4WW / 8 / 11 /82

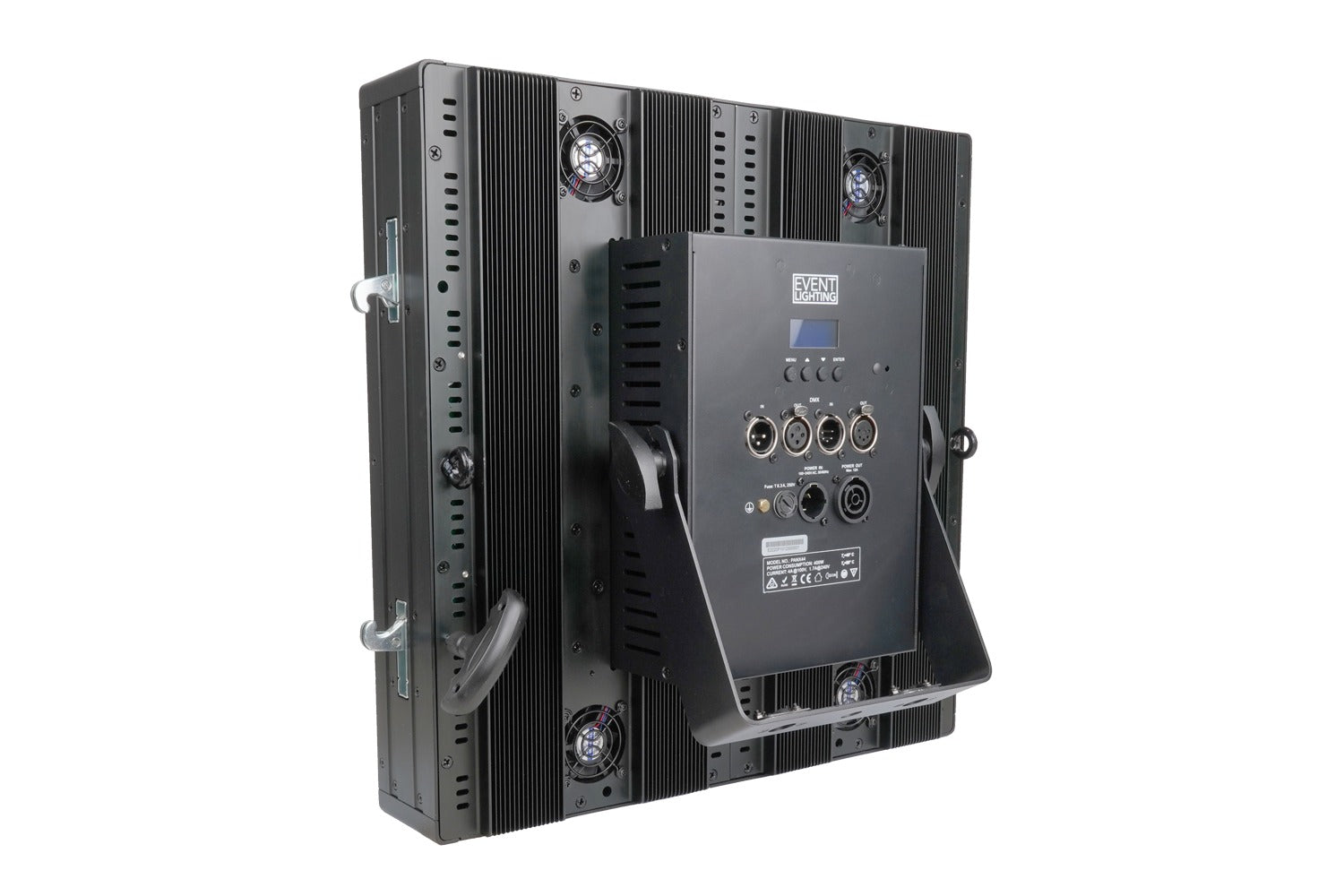

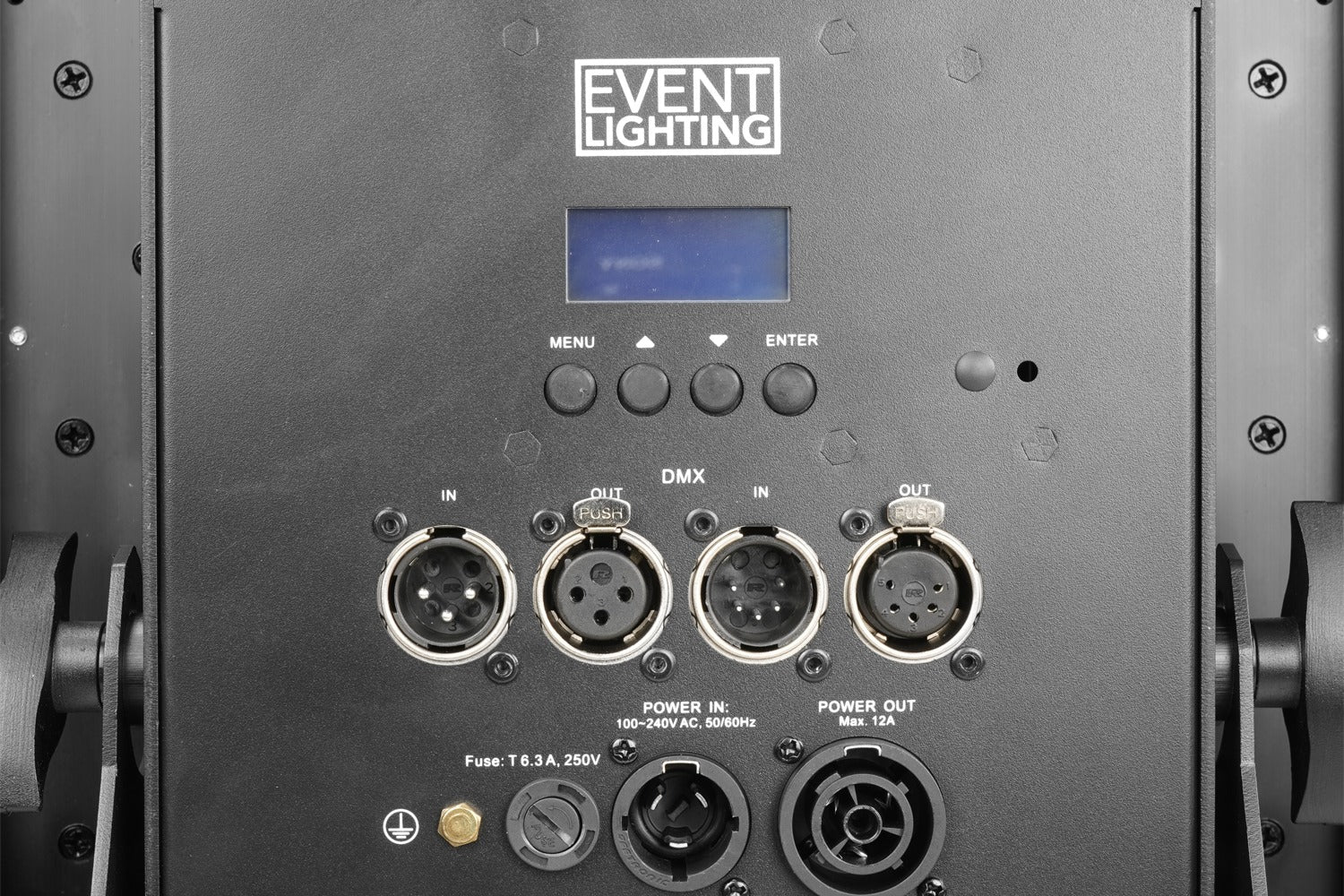

    • Control Interface: 5-pin & 3-pin XLR in / out
    • Software Upgrade via DMX: Yes

    Housing

    • Housing Materials: Aluminium Housing, matte black

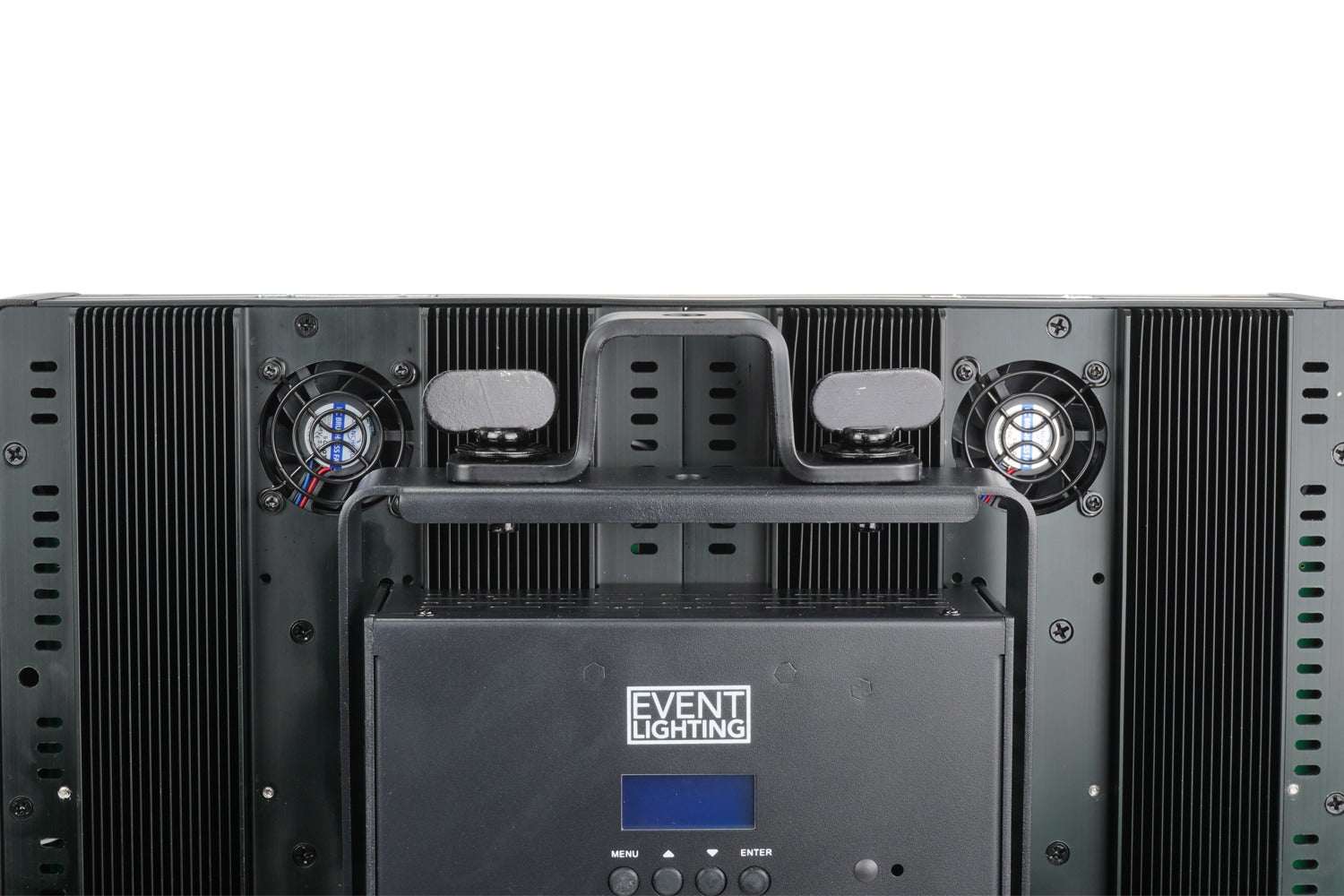

    • Cooling: 4 Fans

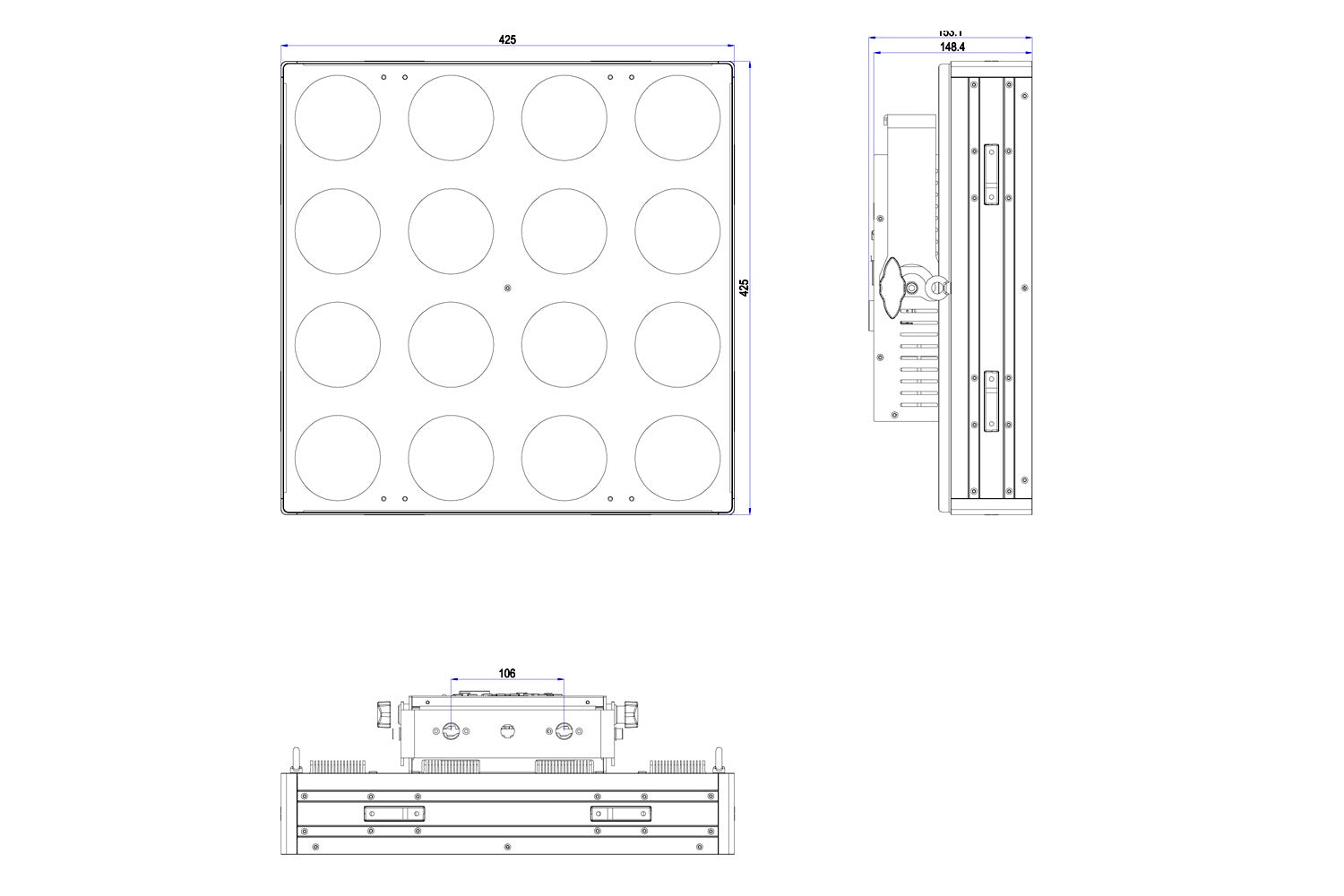

    • Dimension: 425 x 425 x 141mm
    • Net Weight: 10.7 kg

    Rigging

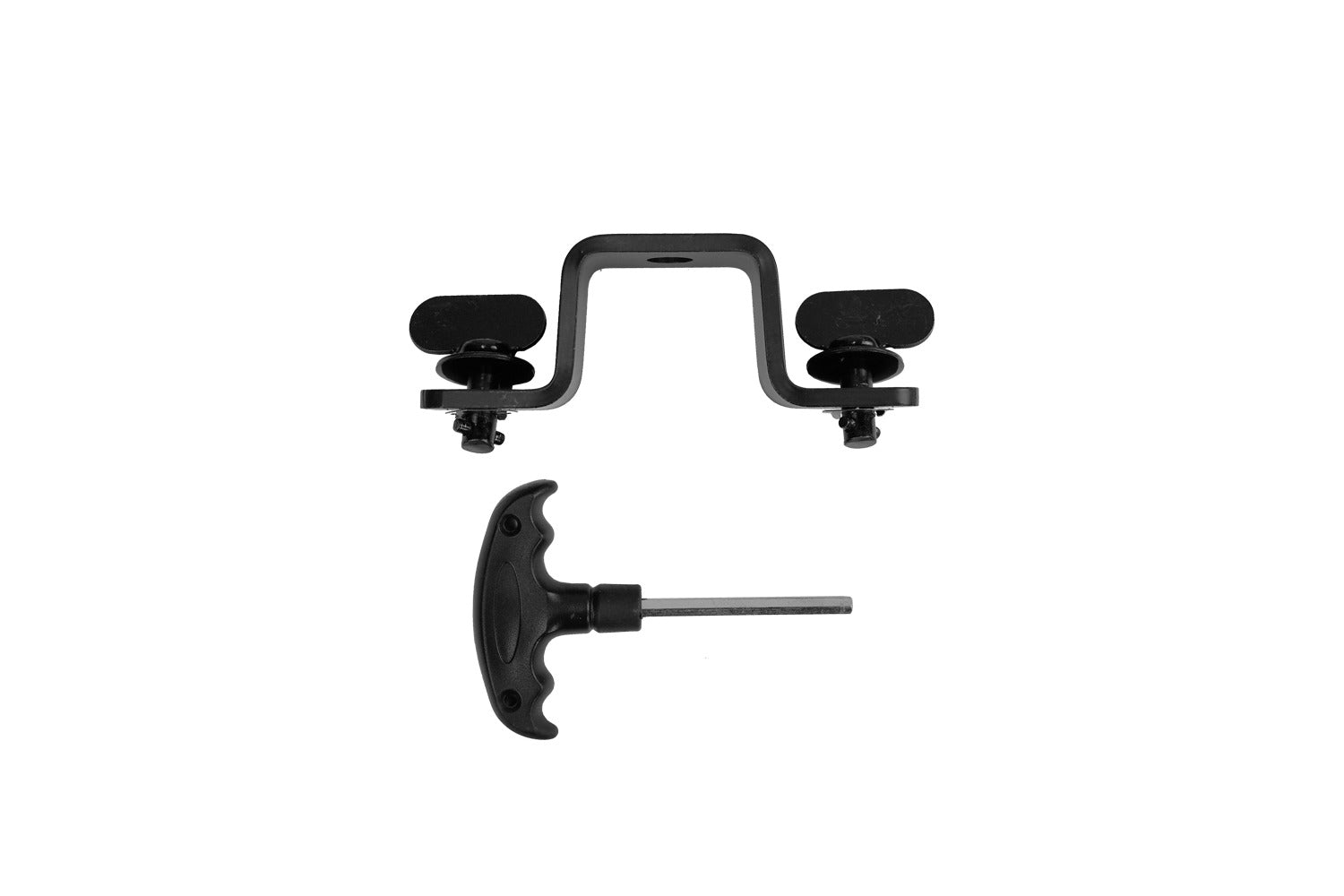

    • Coffin Latch - All Sides with Hex key (included)

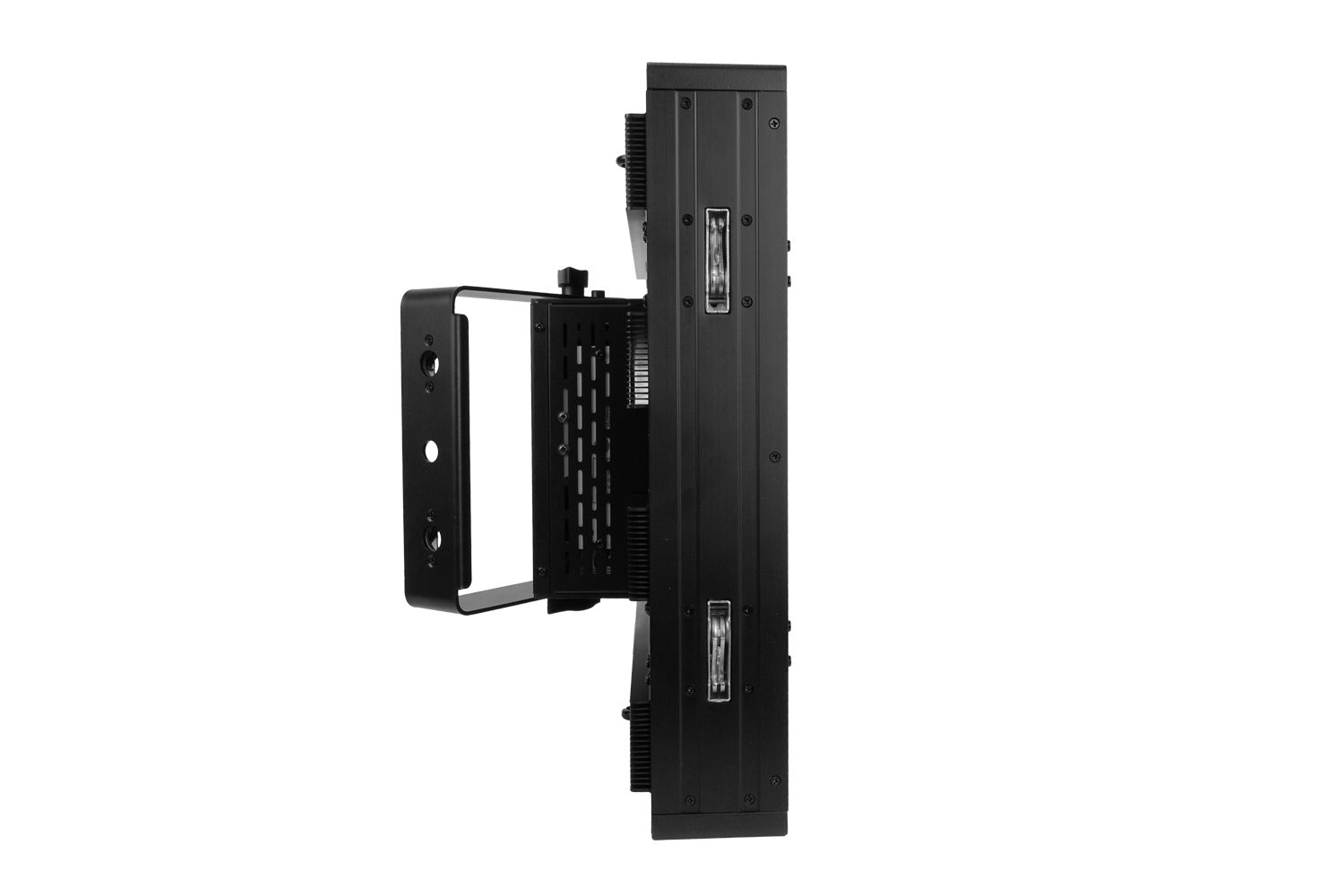

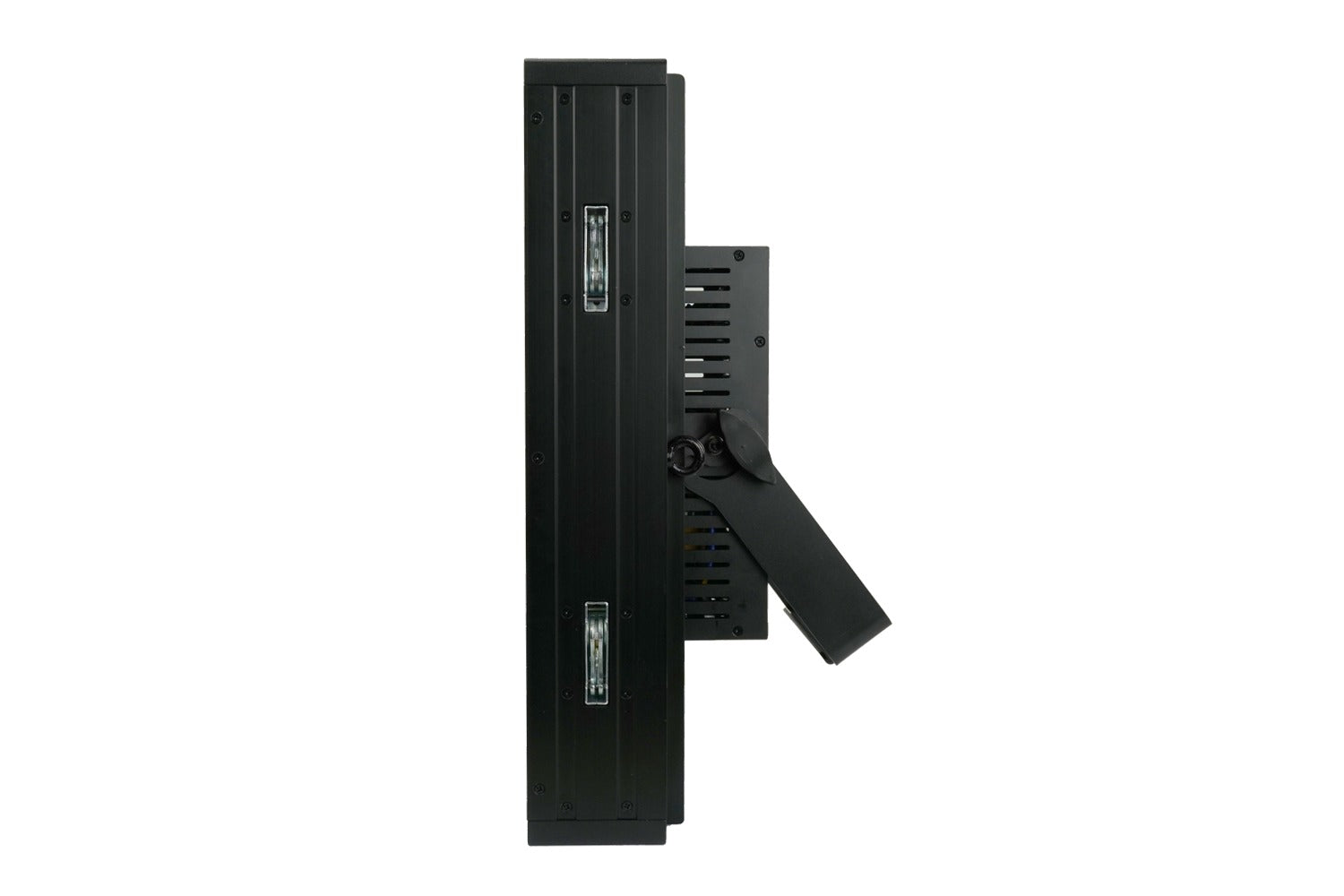

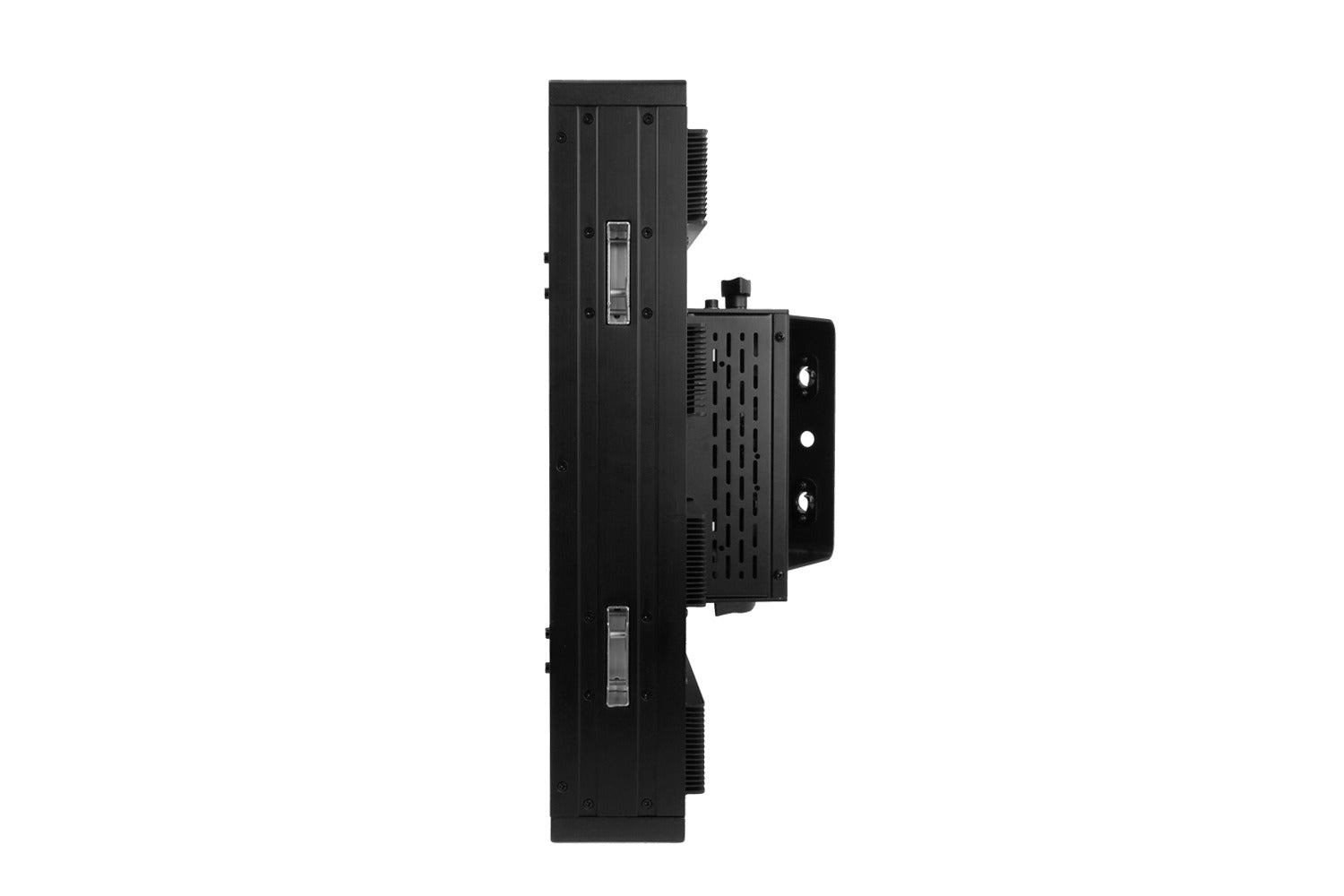

    • Omega bracket (included)





    Download Product Datasheet

    Download User Manual

    Warranty: 3 years
