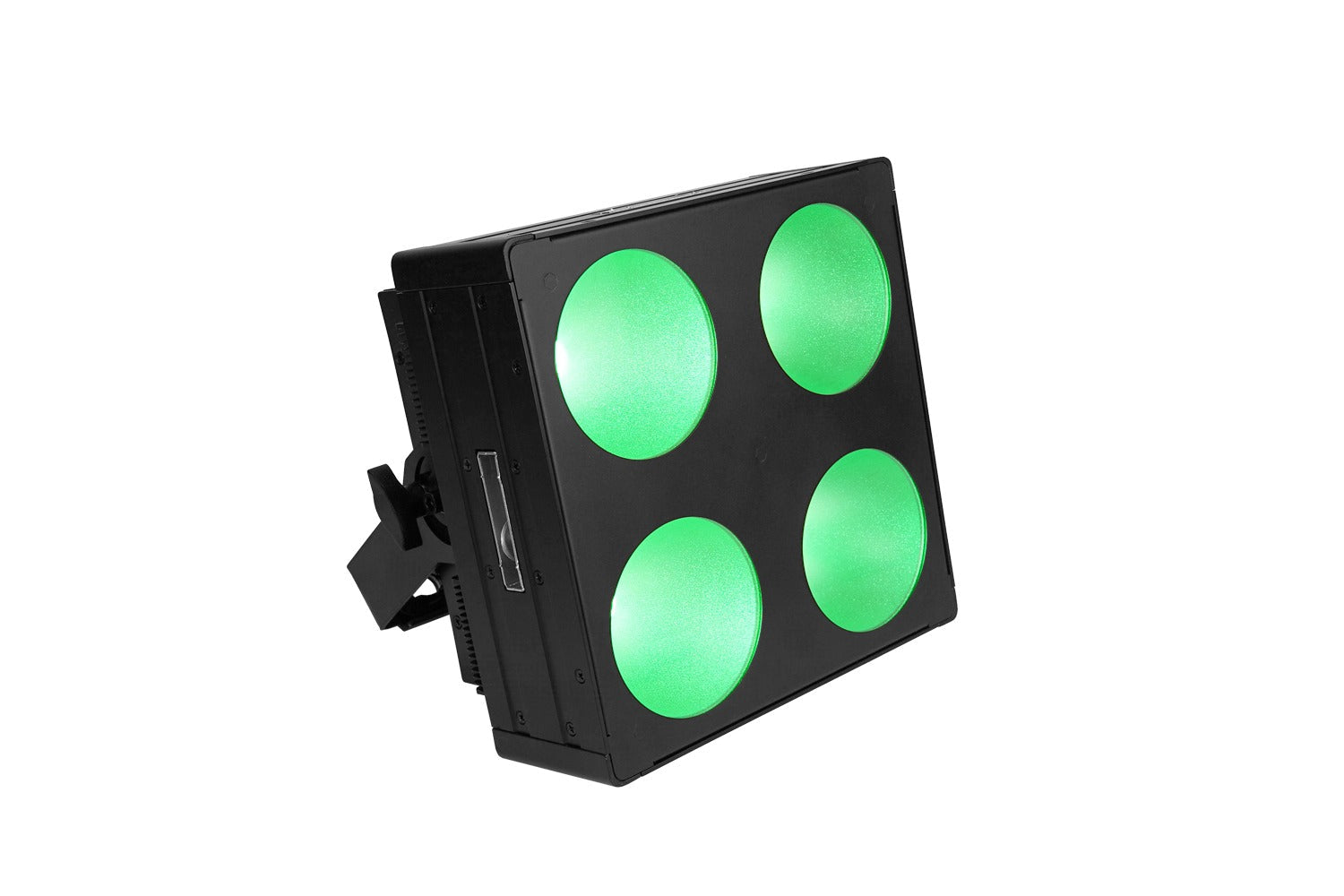

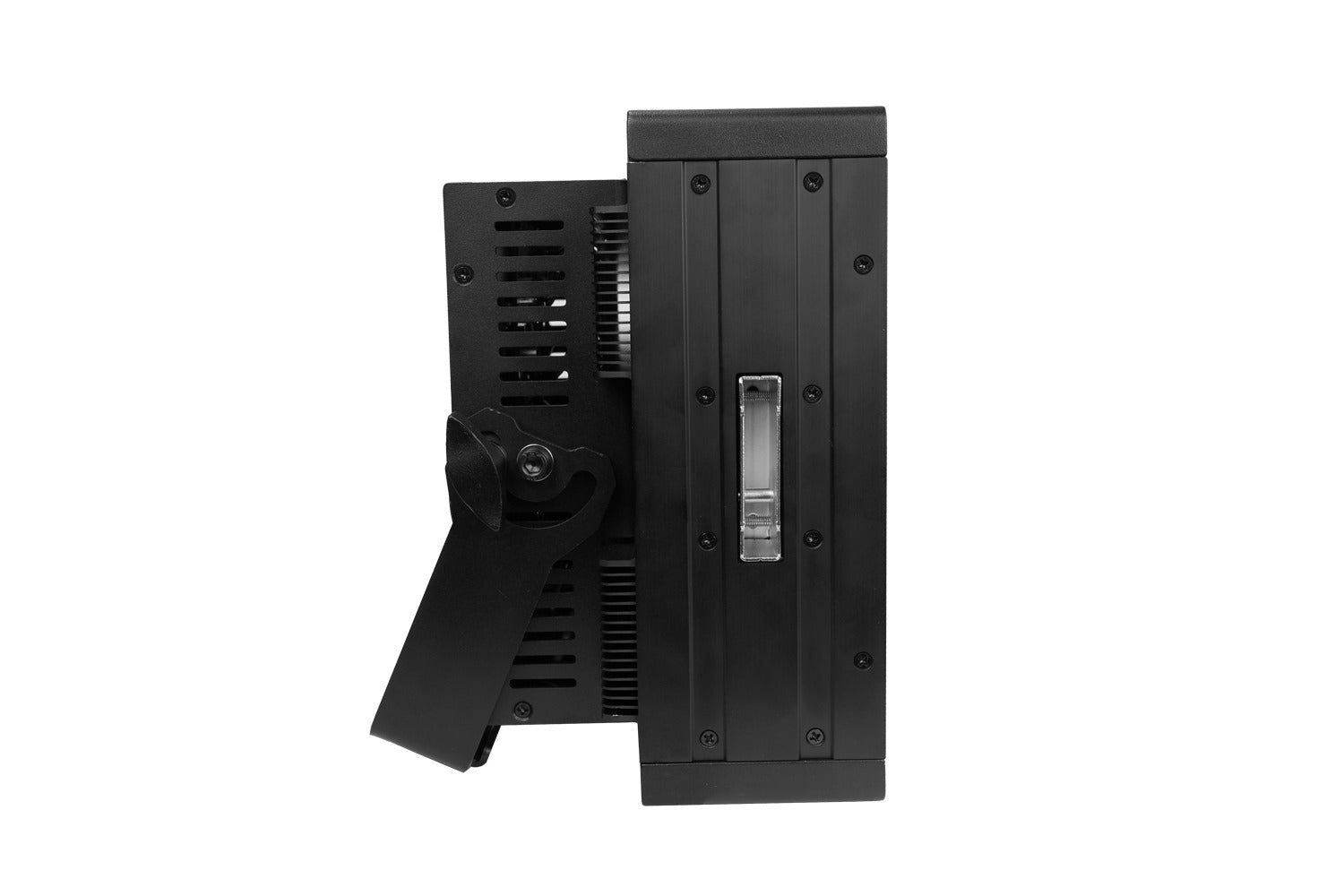

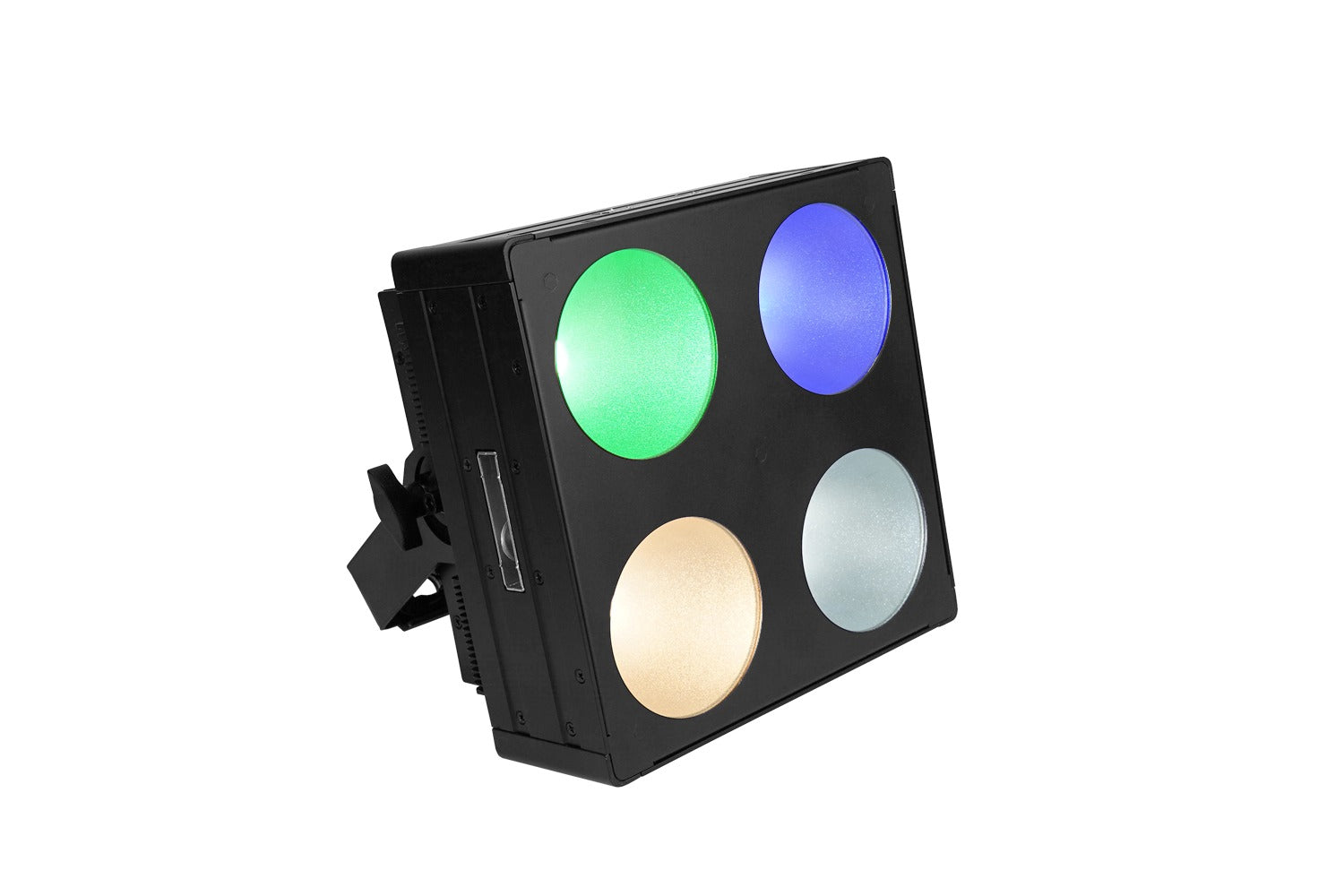

Event Lighting PANX22 - 2 x 2 40W COB RGB+CW+WW Pixel Control Panel

Event Lighting
Price:
$639.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

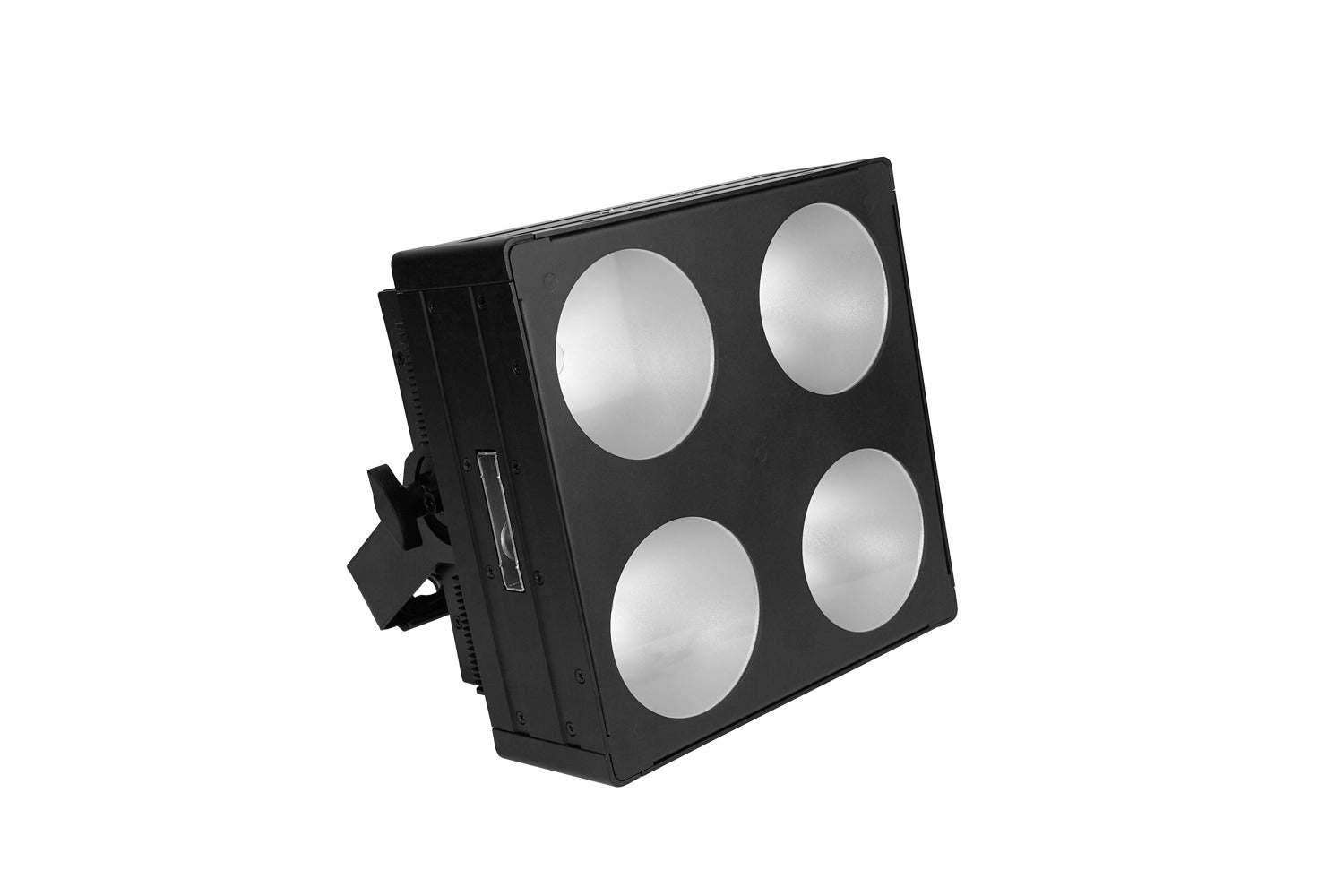

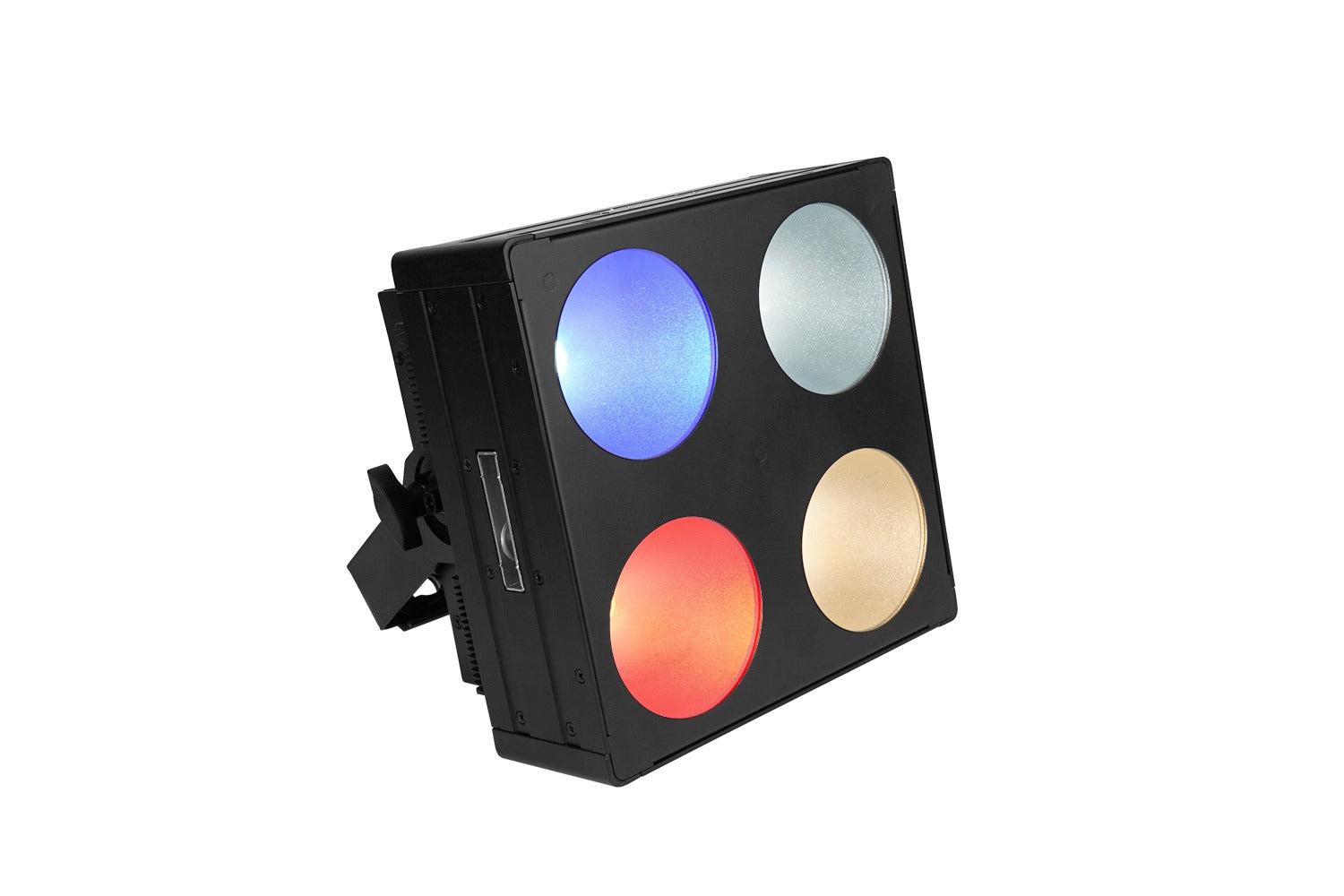

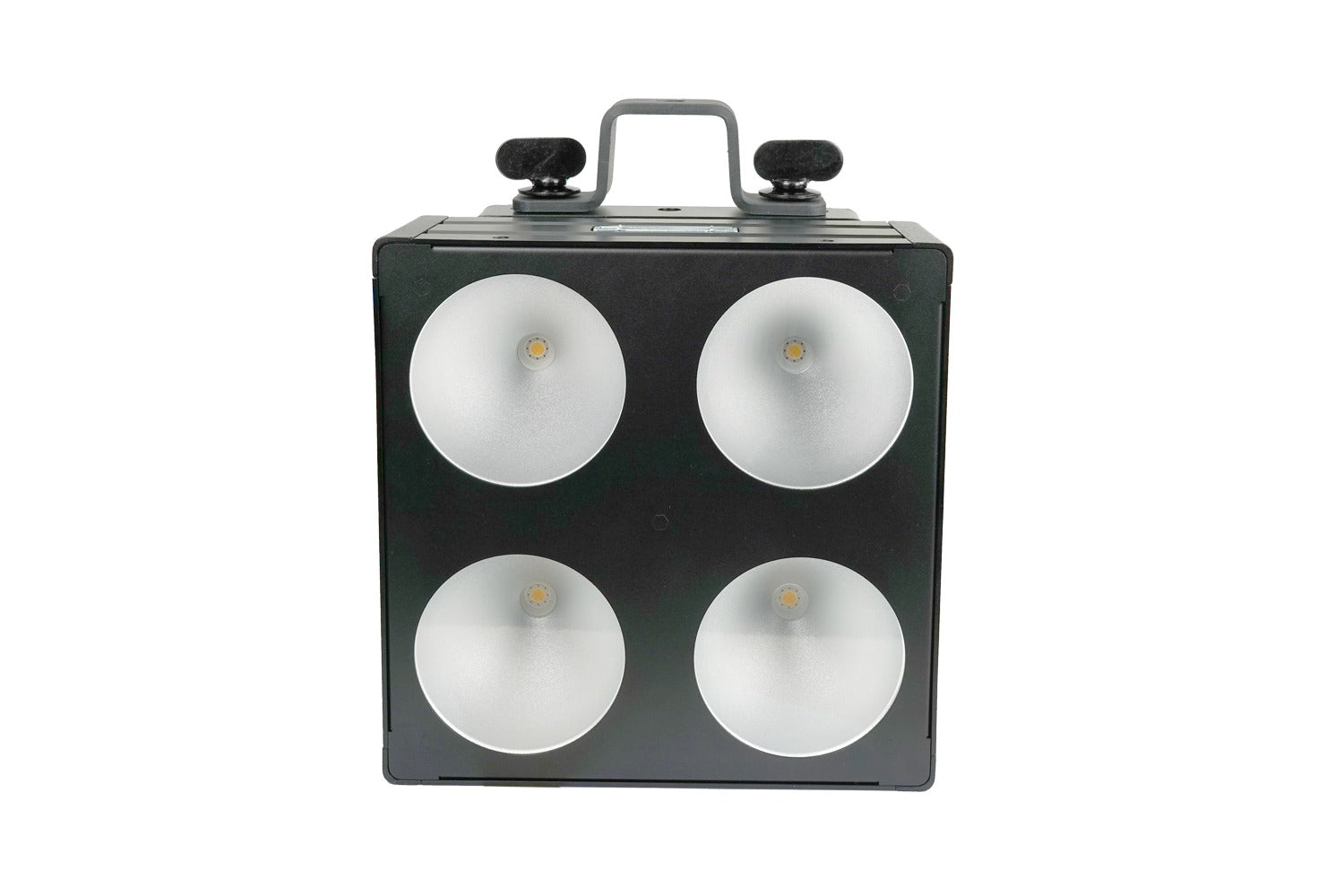

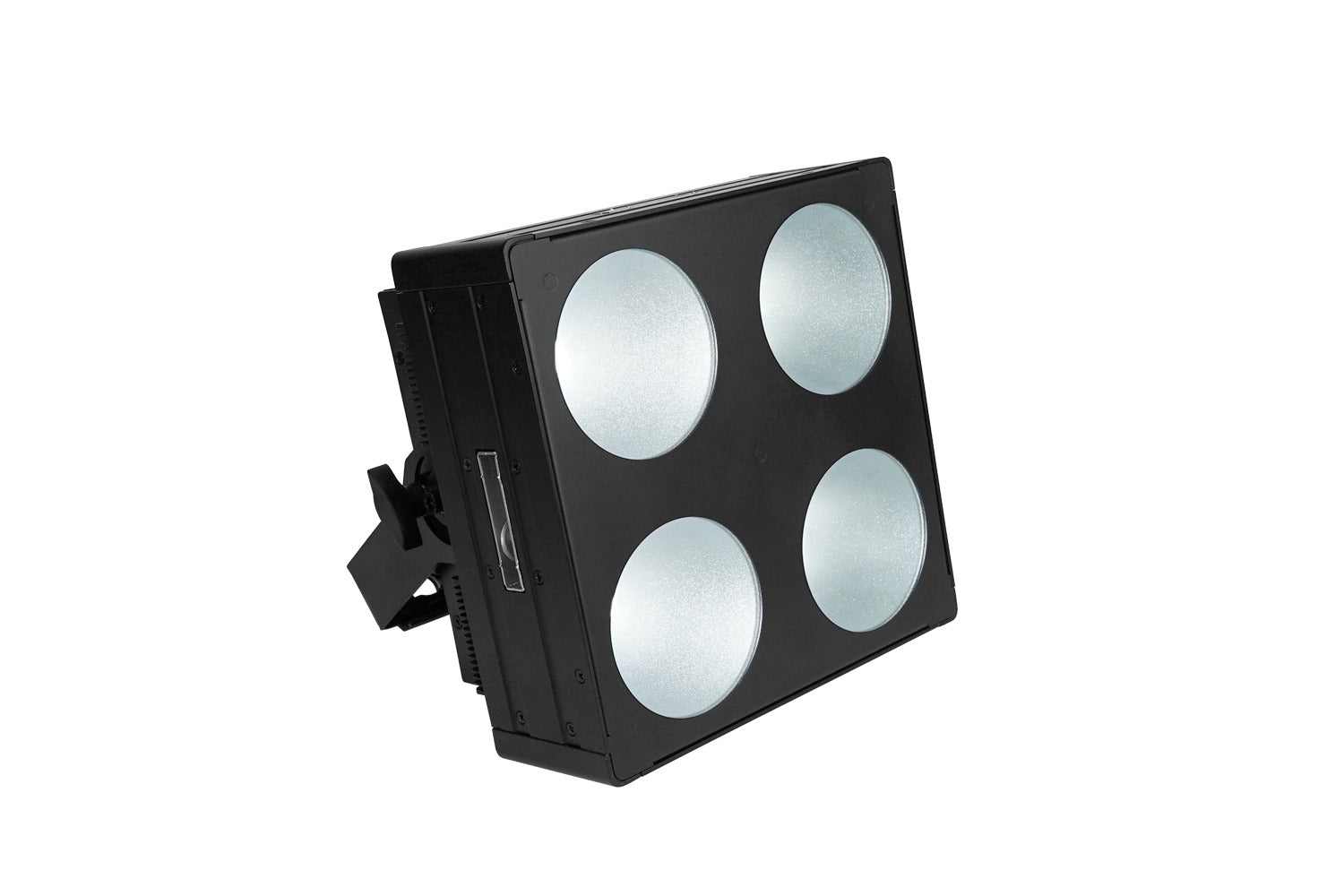

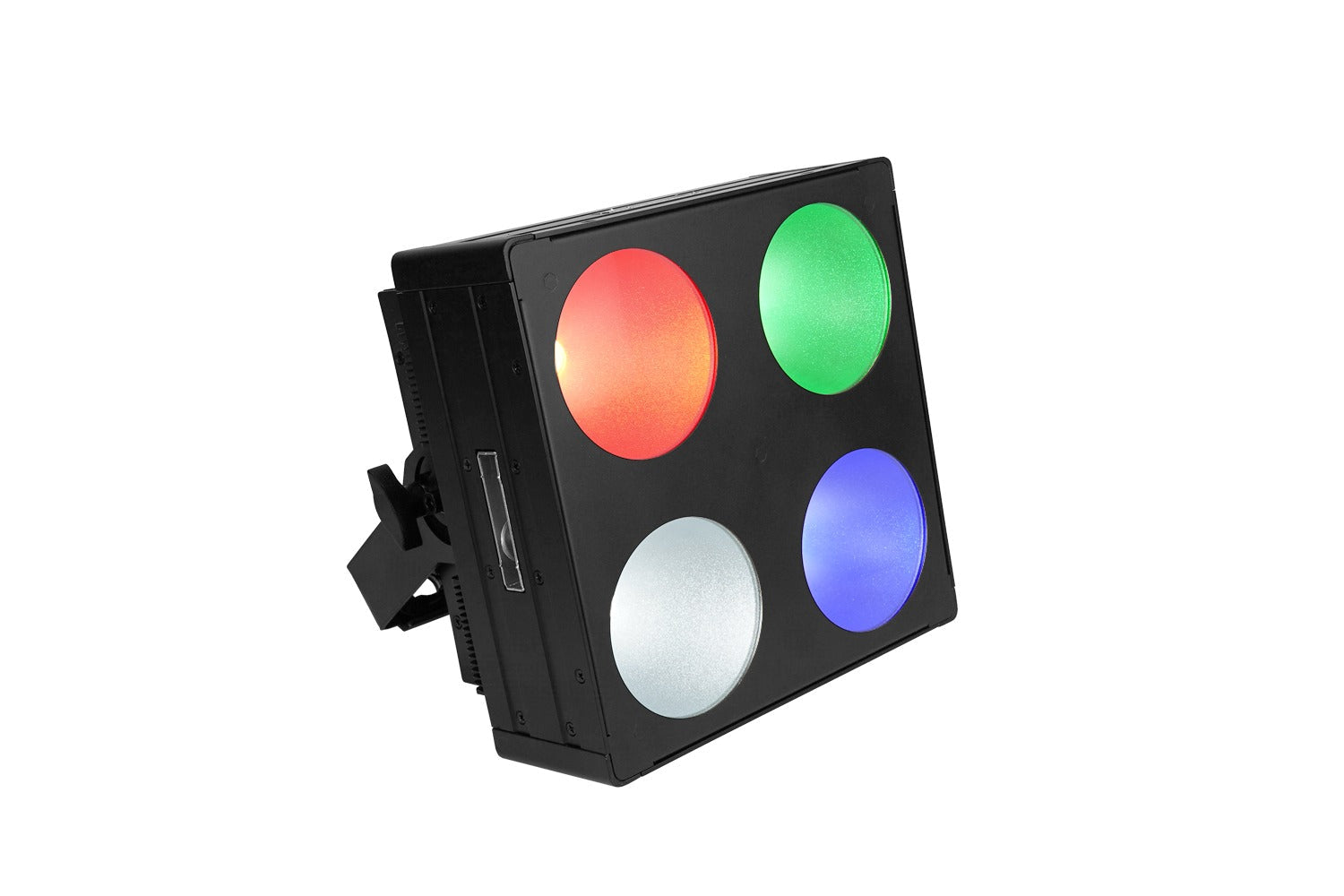

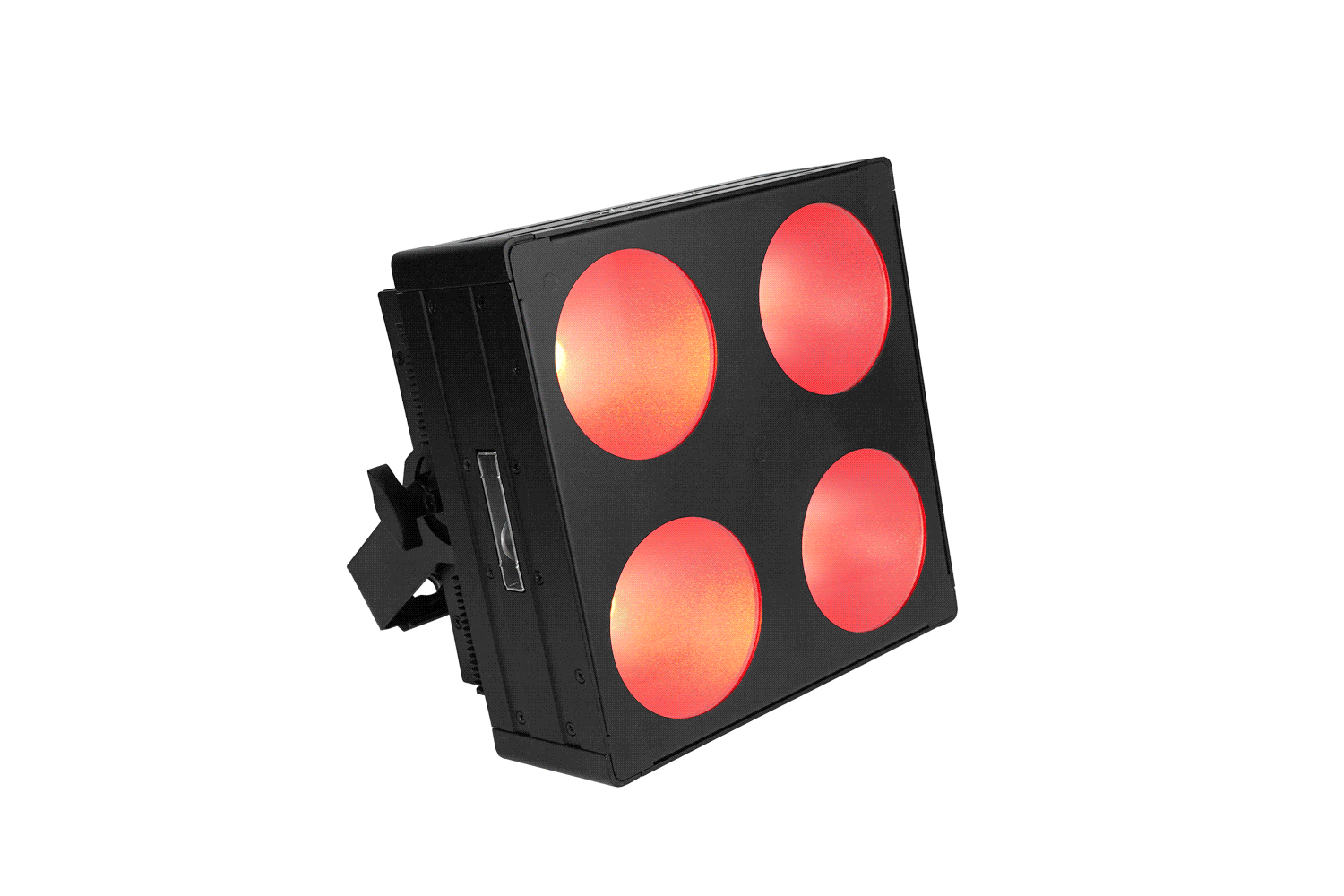

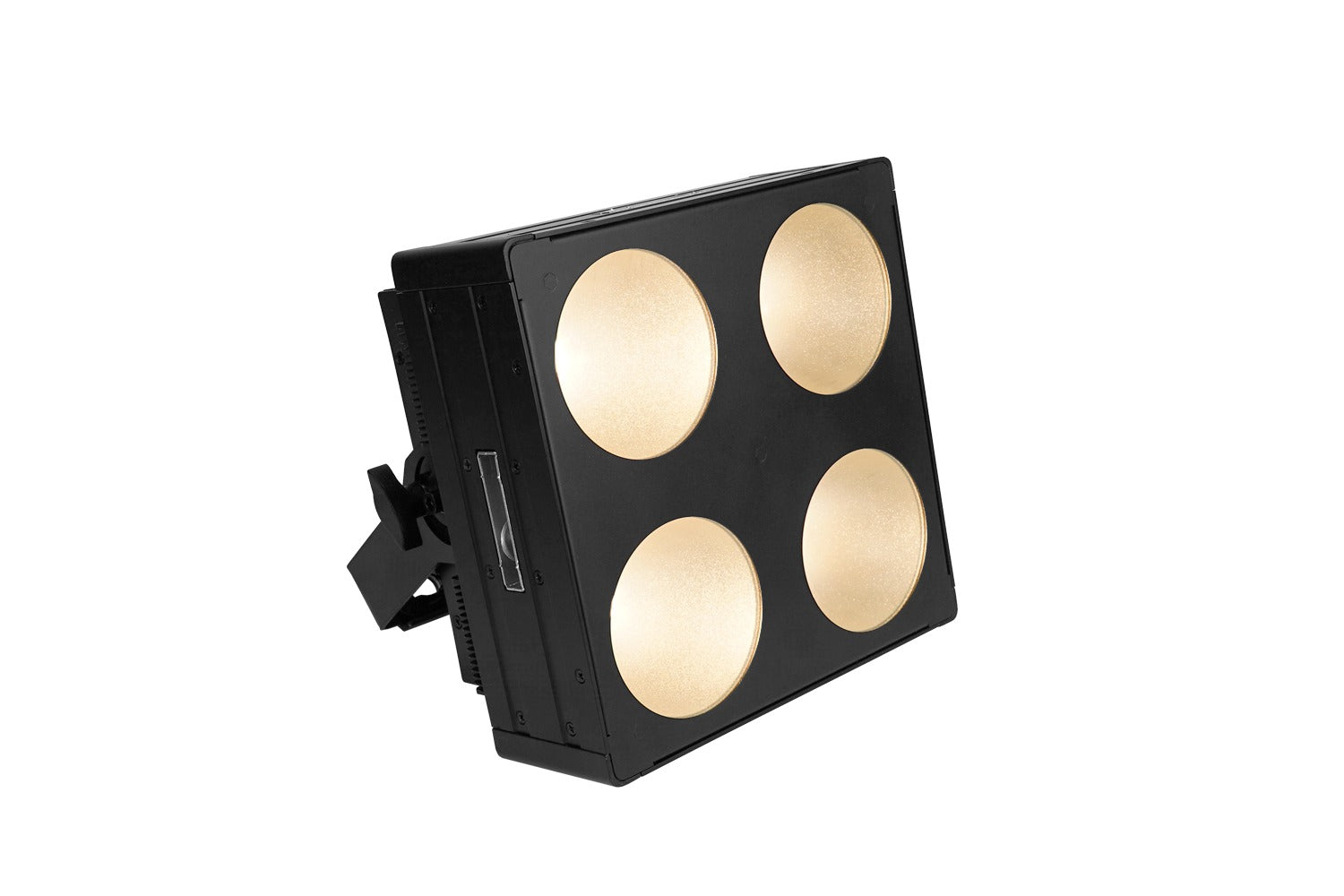

    Meet the Event Lighting PANX22, packed with 2 x 2 dazzling 40W RGB+CW+WW COB LEDs and a perfect 40° beam angle—just right for washing over your stage or lighting up cycloramas. Plus, its fan-free aluminium design means it stays whisper-quiet and hassle-free, so you can focus on the fun!

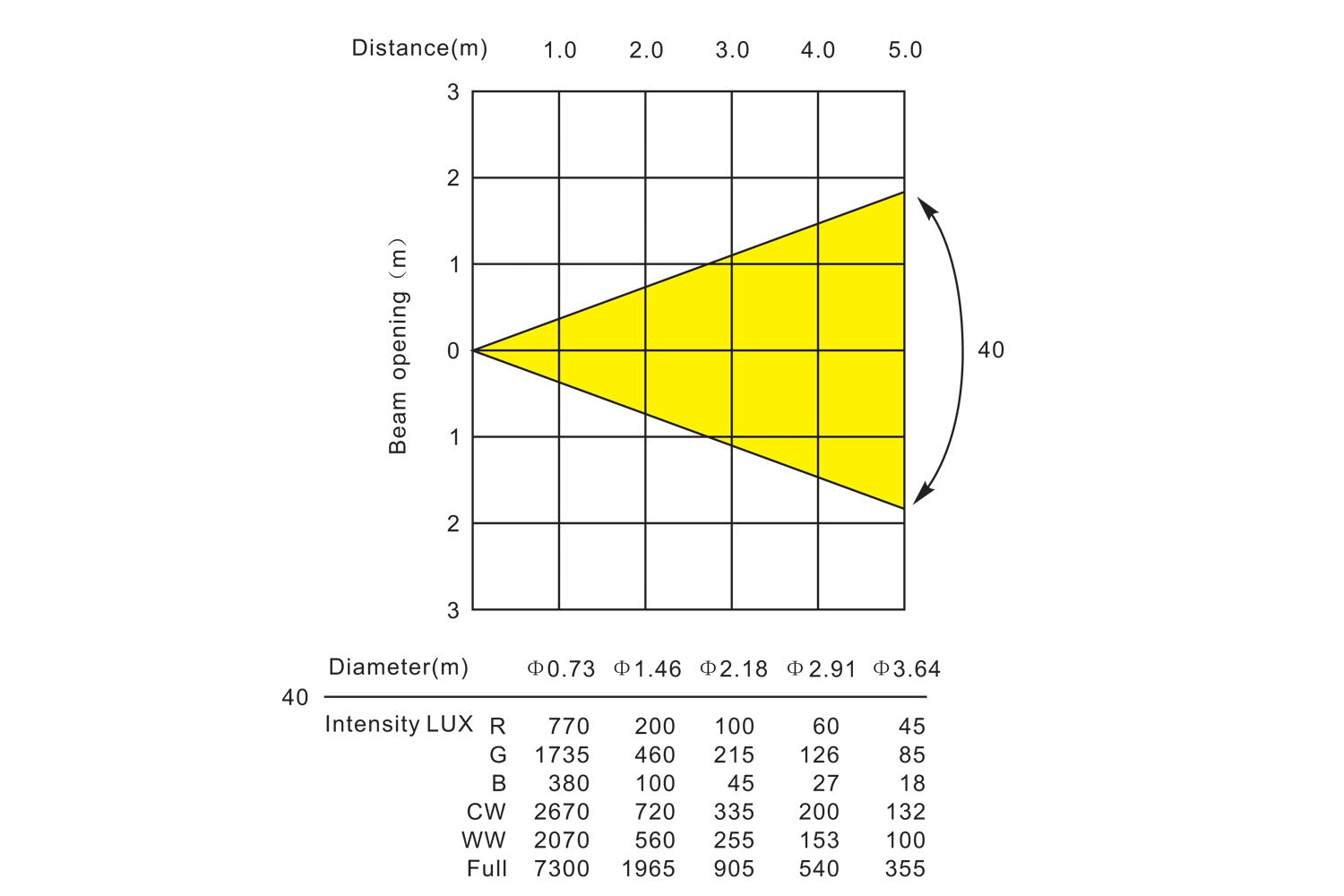

    Photometrics

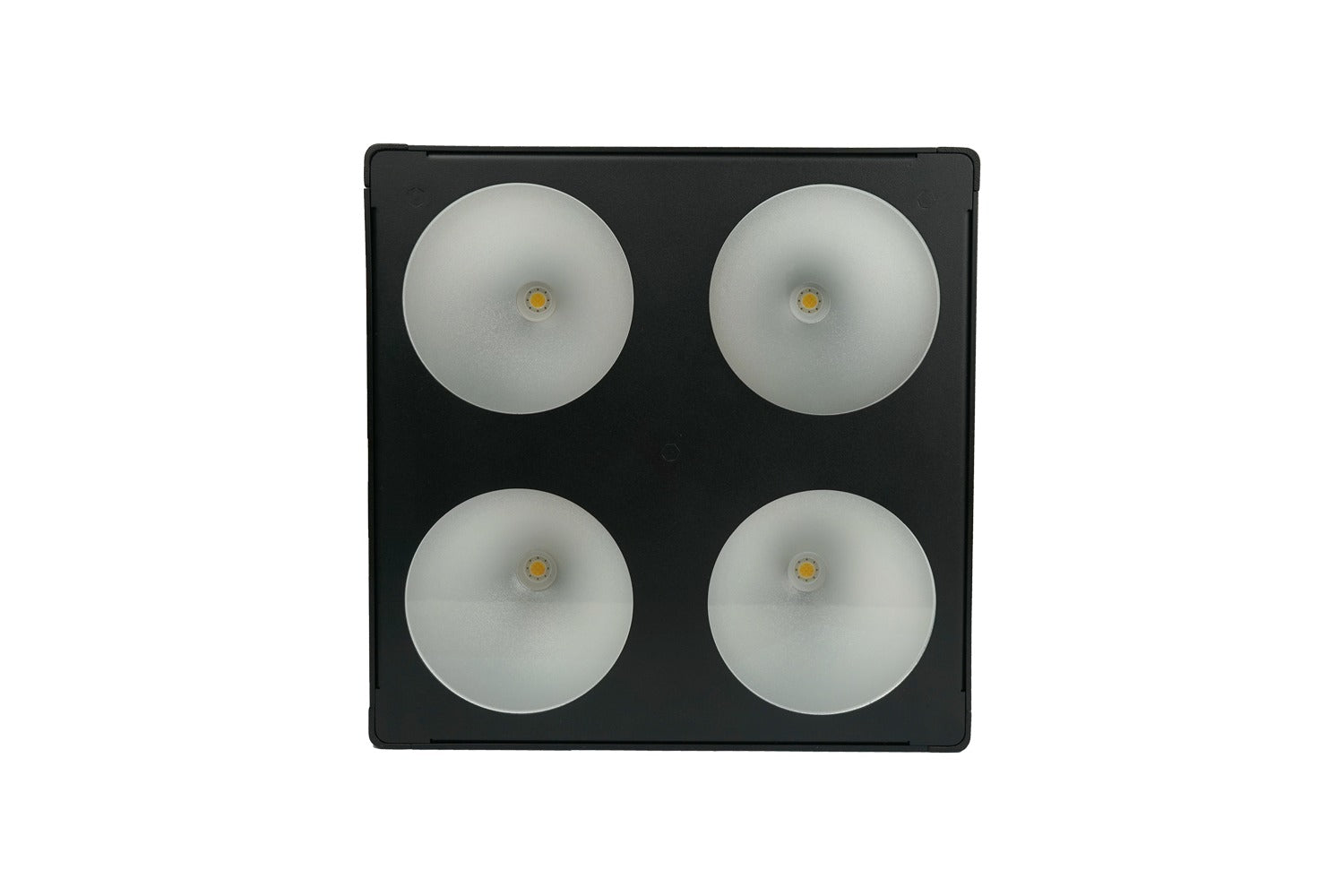

    • Light Source: 2 x 2 40W RGB+CW+WW COB LEDs
    • Beam Angle: 40°
    • Field Angle: 60°
    • Output: 1965 lux @ 2m Full on
    • PWM: 1,200Hz
    • LED Lifespan: 50,000 hours

    Effects

    • Dimming: 5 x 16-bit Dimming Curves
    • Strobe: 1~25Hz

    Power

    • Input Voltages: 100~240V AC, 50/60Hz, 120W
    • Power Connection: True1 in /out

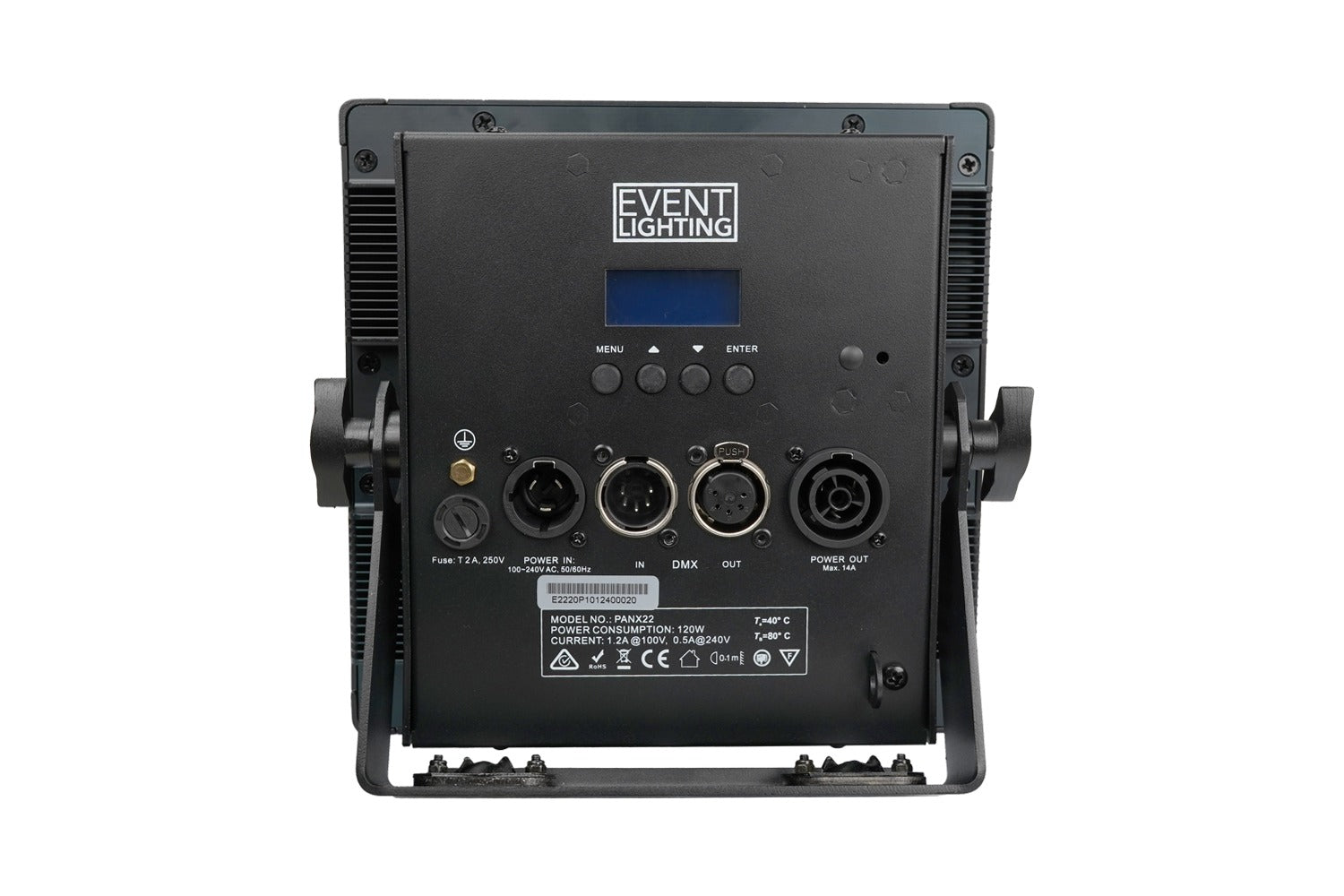

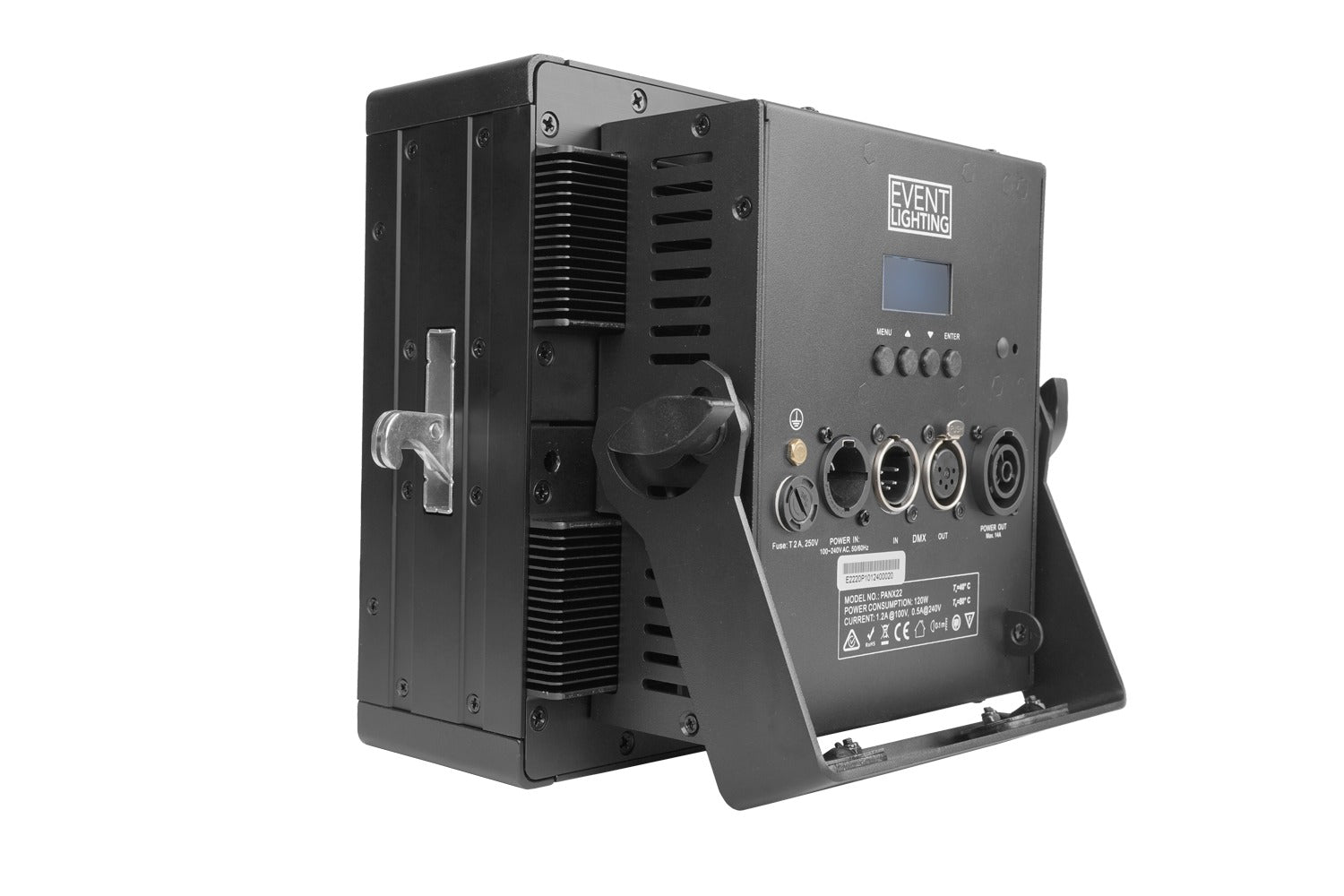

    Control

    • Operational Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase, WDMX (optional)
    • Display: 4-button LCD control panel
    • Control Protocol: DMX512
    • DMX Channels: 1 / 2 / 3 / 4CW / 4WW / 8 / 11 /22
    • Control Interface: 5-pin XLR in / out
    • Software Upgrade via DMX: Yes

    Housing

    • Housing Materials: Aluminium Housing, matte black
    • Cooling: Fanless Cooling

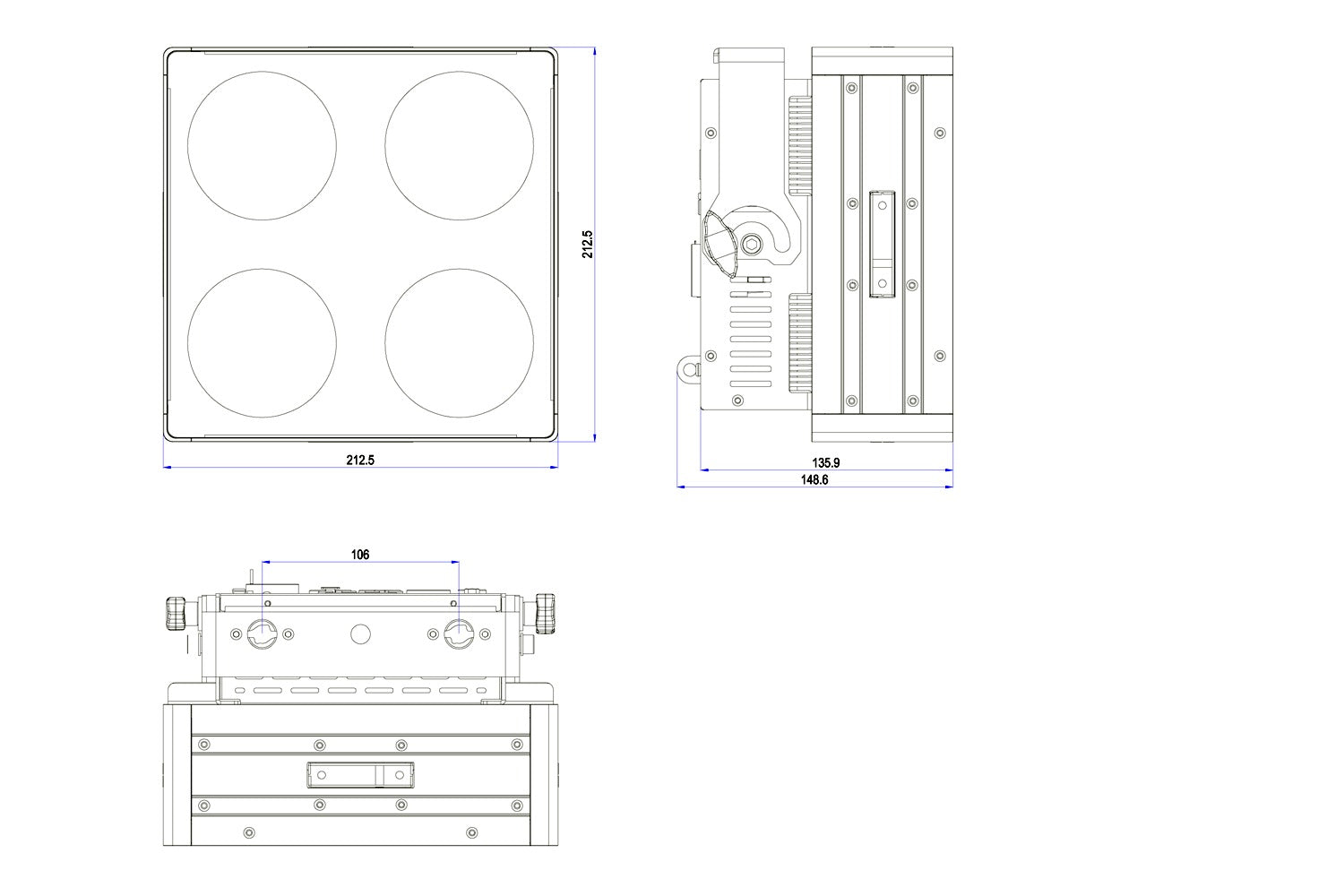

    • Dimension: 213 x 213 x 136mm
    • Net Weight: 3.85kg

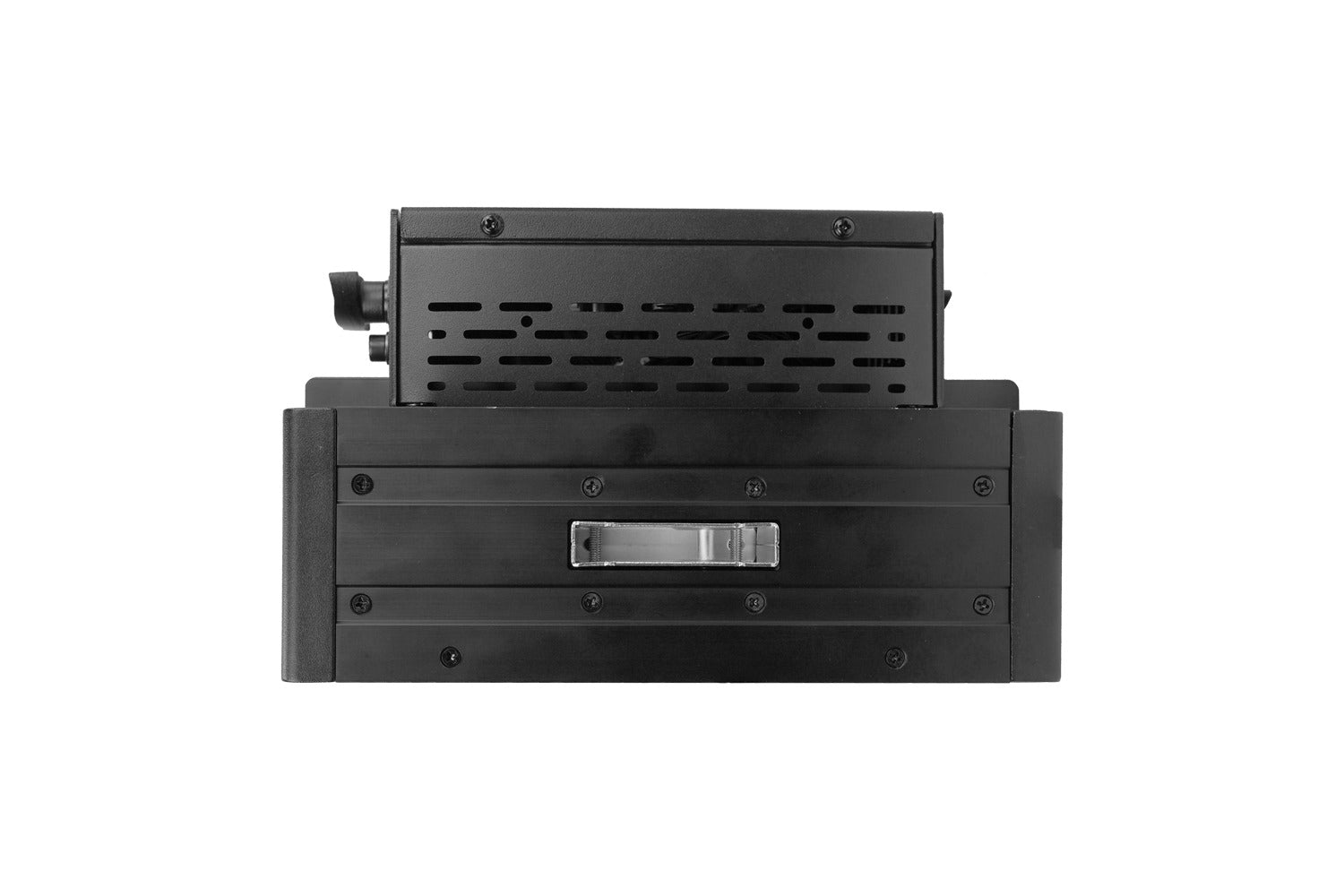

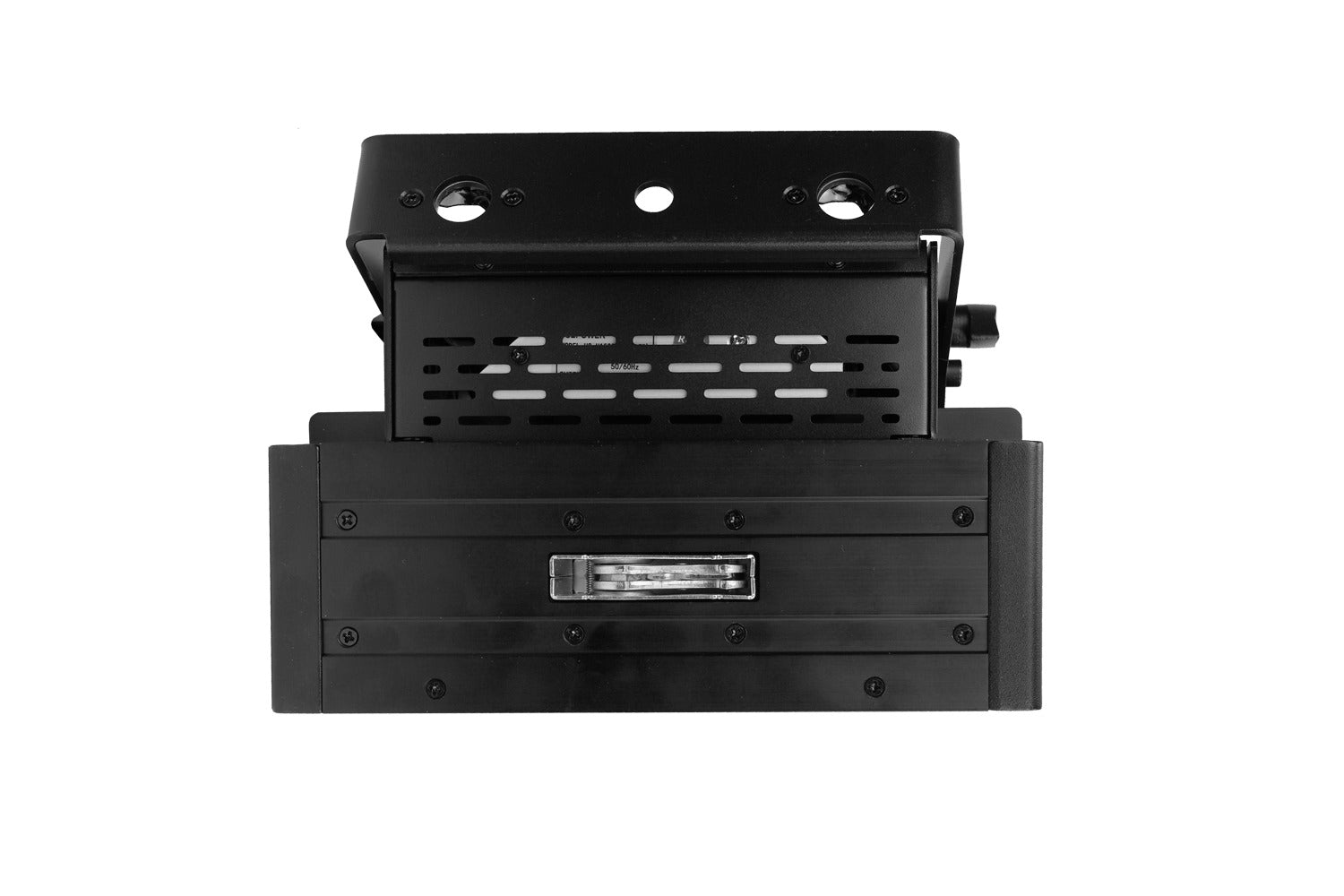

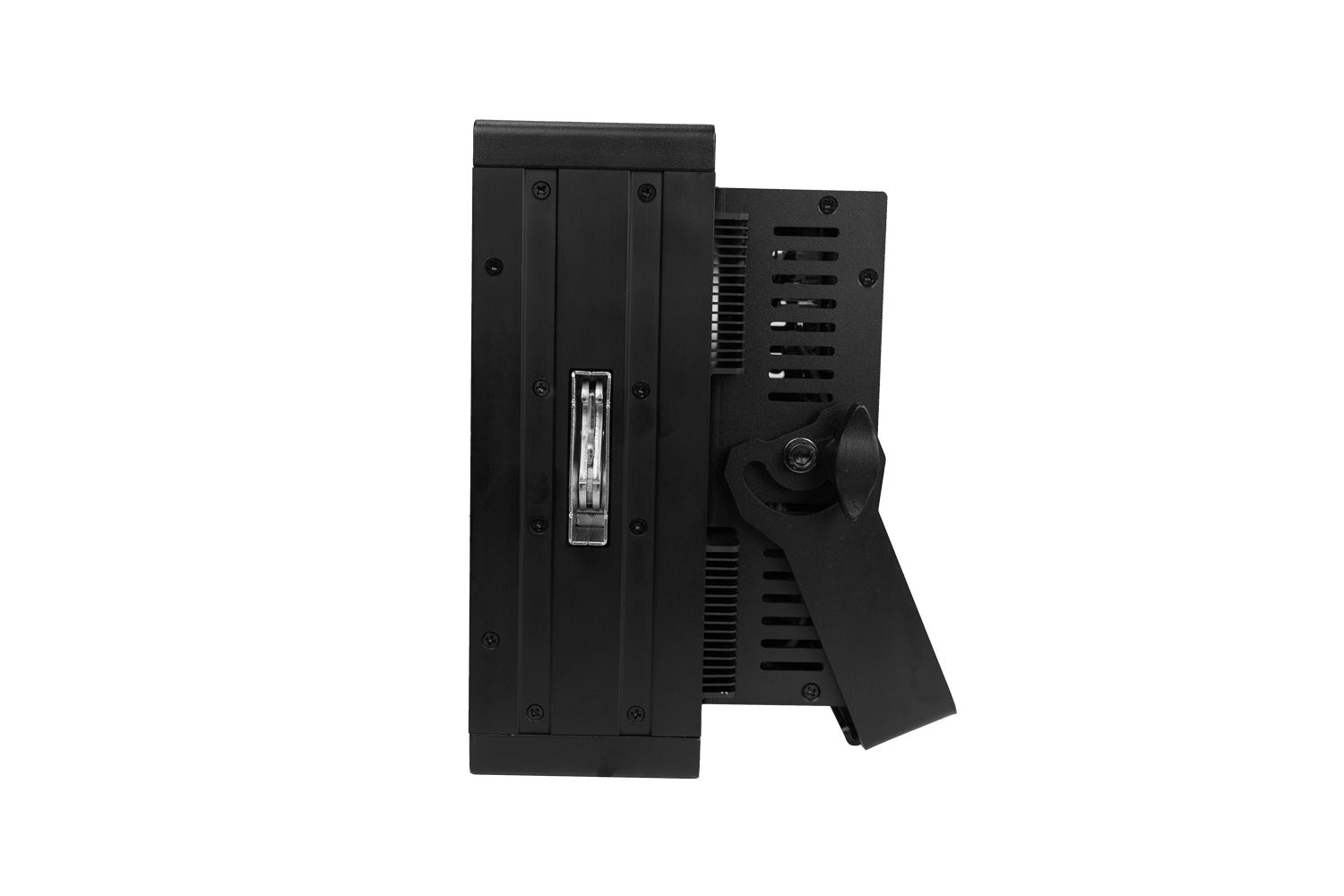

    Rigging

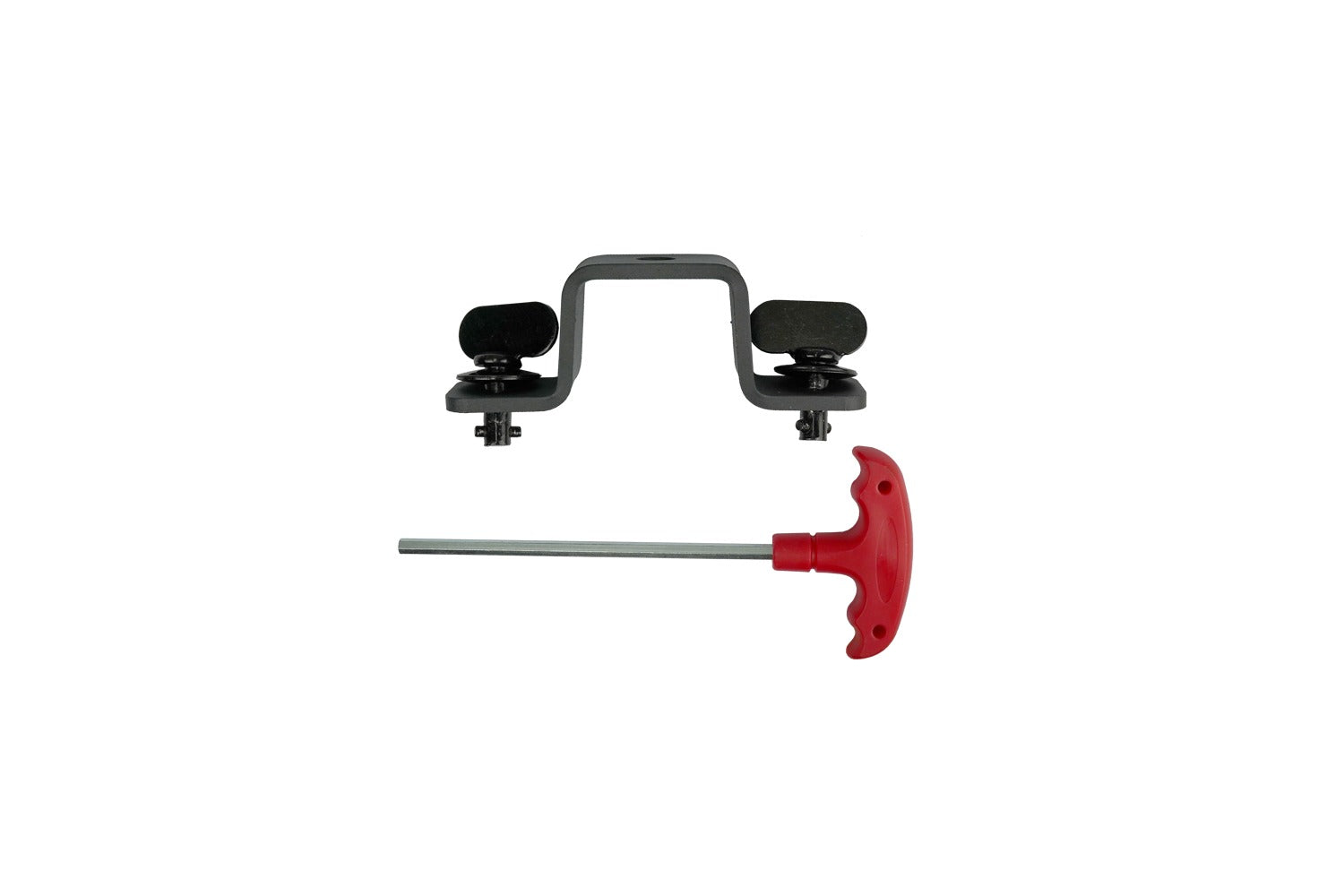

    • Coffin Latch - All Sides with Hex key (included)
    • Omega bracket (included)





    Download Product Datasheet

    Download User Manual

     Warranty: 3 years
