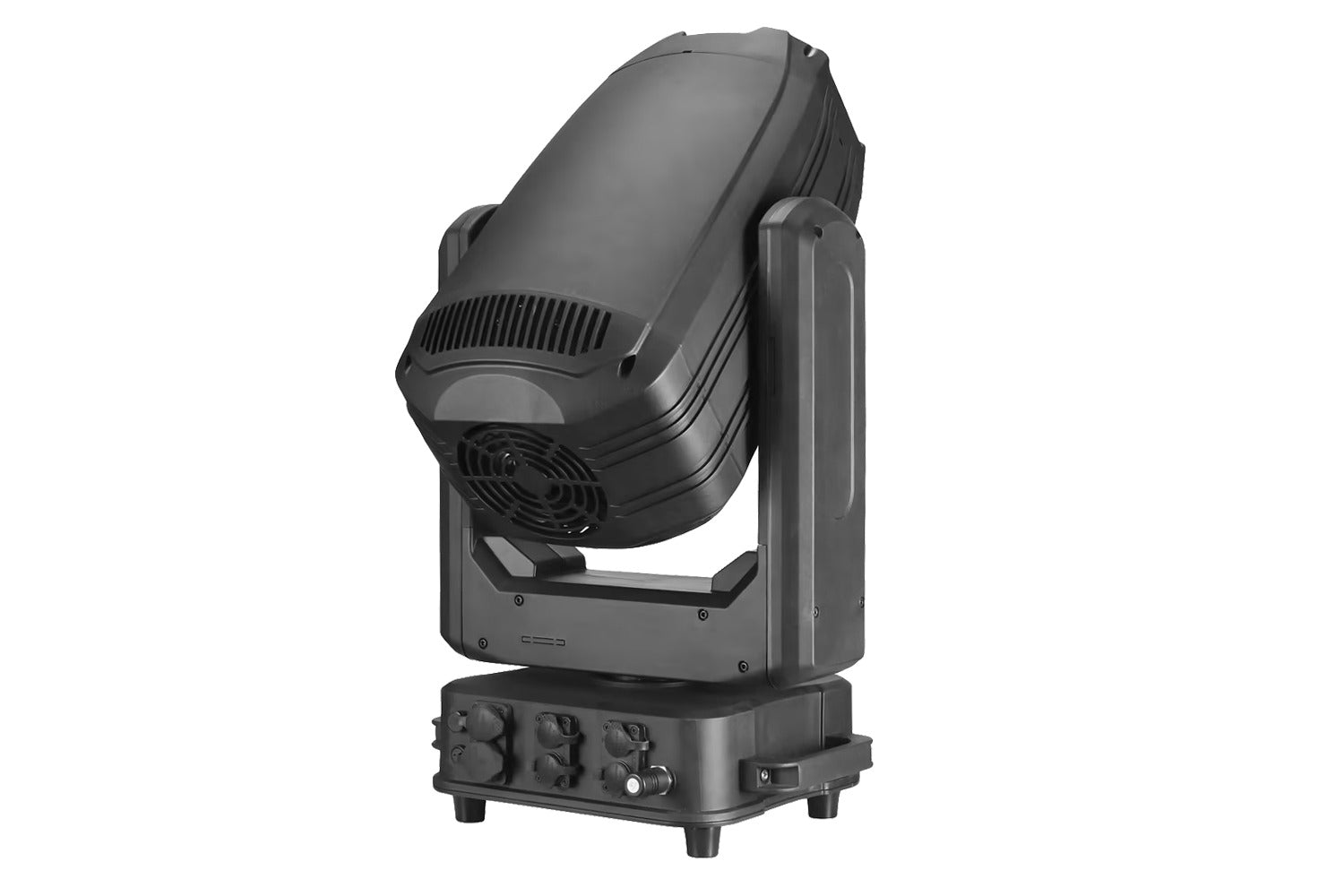

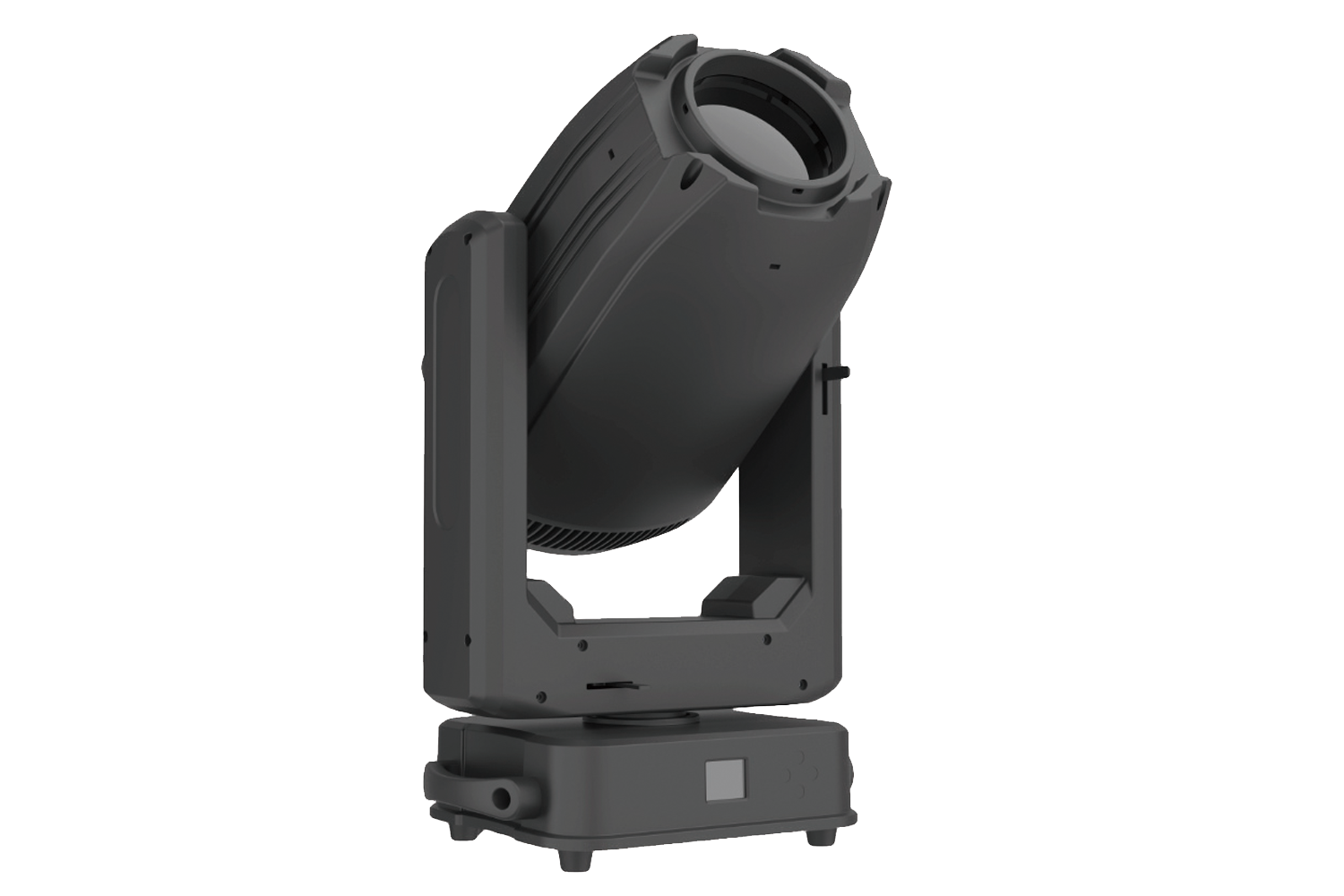

Event Lighting OUTBACK350H - Outdoor 350W LED Moving Head Hybrid

Built specifically to withstand outdoor conditions, the Event Lighting OUTBACK350H features a powerful 350W white LED source with an impressive 69,703 lux output at 5m (3° beam angle) delivering exceptional brightness with a crisp 8,000K colour temperature. Versatile colour capabilities include dual colour wheels , plus CMY+CTO colour mixing for precise colour control. The dual rotating gobo wheels offer extensive pattern options with indexing and shaking functions for dynamic effects. Control options include 3 and 5 pin dmx as well as included WDMX capabilities.

Specifications:

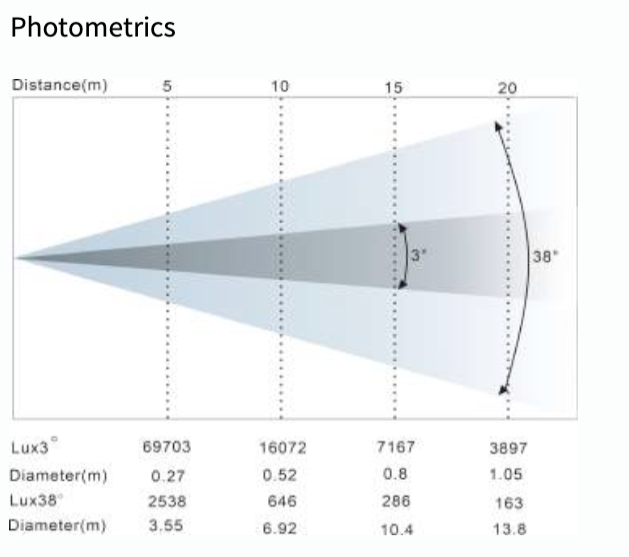

Photometrics

• Light Source: 350w LED White
• Beam Angle: 3°-38°
• Output: 69,703 lux @ 5m at 3°
• CCT: 8,000K

• CRI: >70 / 90 (optional)
• Led lifespan: > 20,000 hours

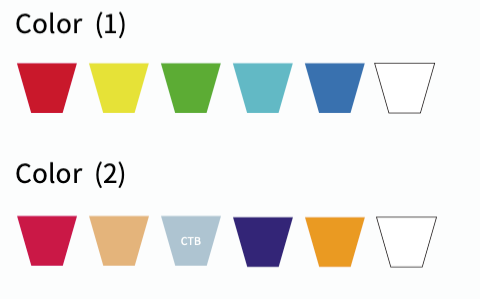

Colour

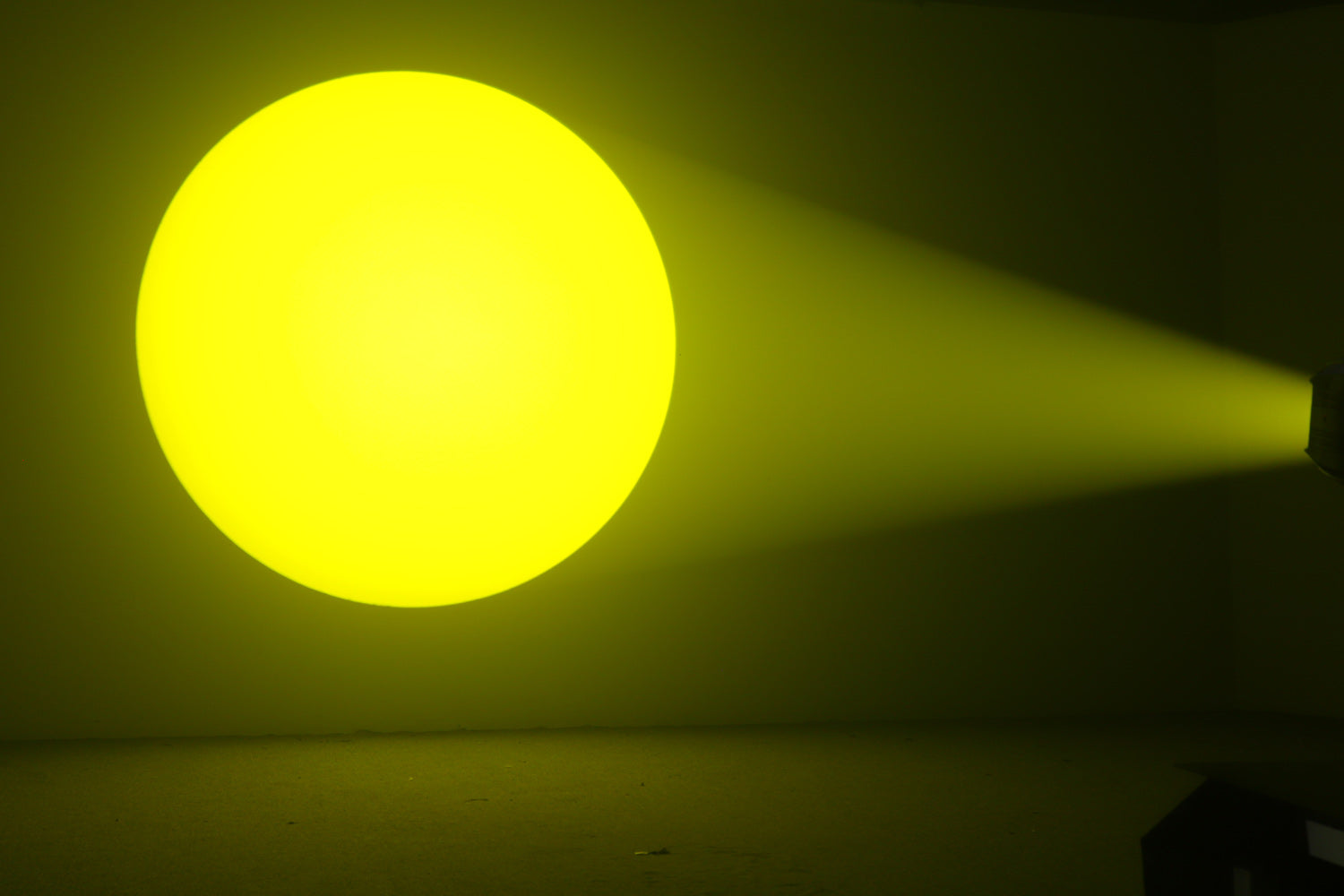

• 5 Colour + Open (first wheel)
• 5 Colour + Open (second wheel)
• Colour Mixing: CMY + CTO

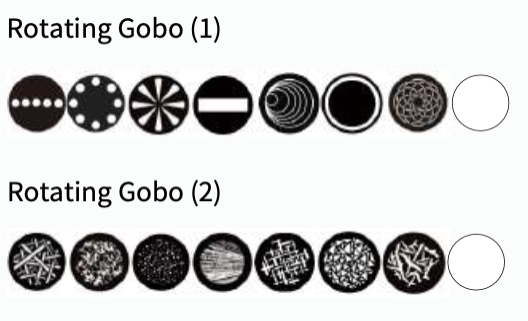

Gobos

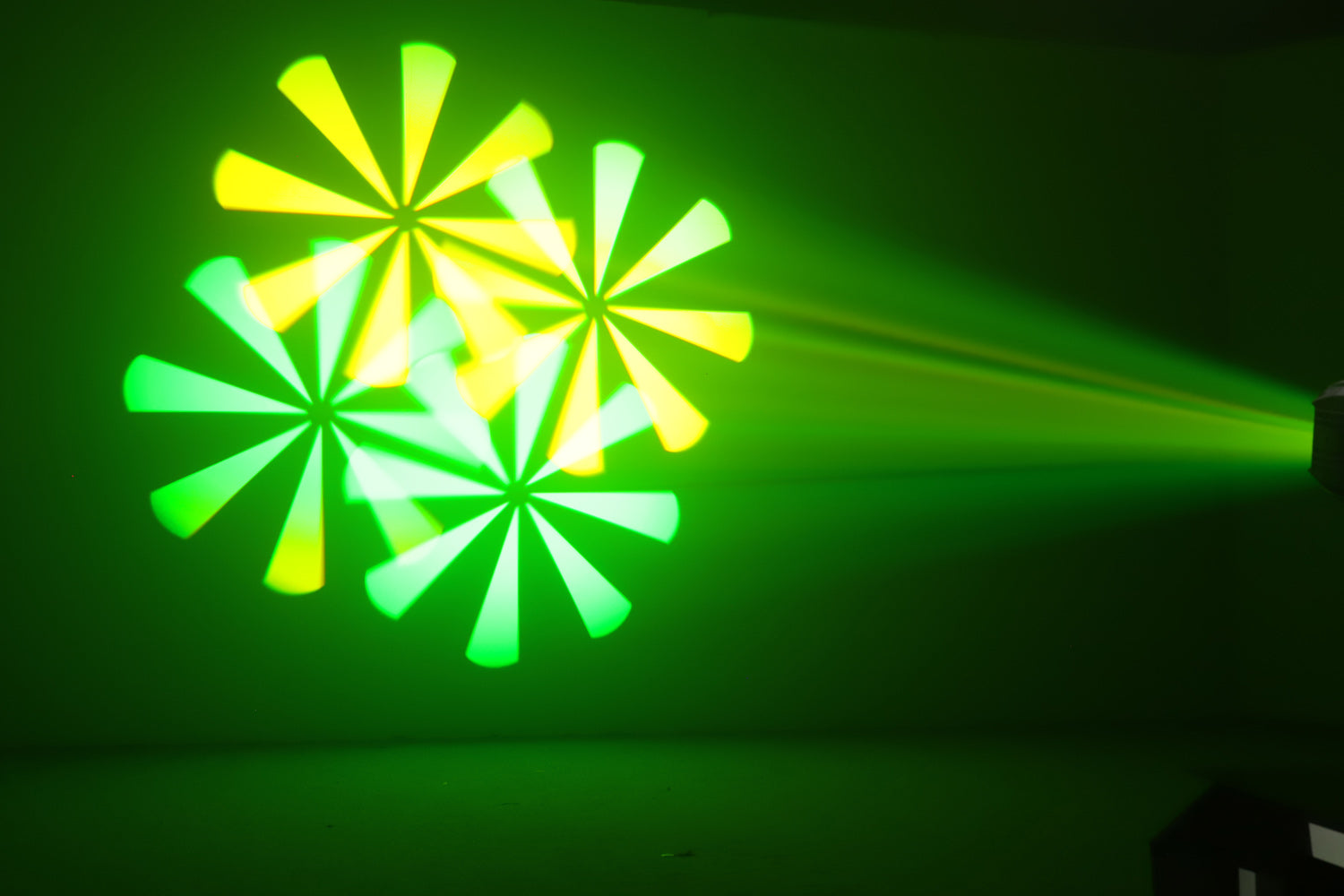

• Rotating: 7 + Open (first wheel)

• Rotating: 7 + Open (second wheel)
• Gobo Shaking: Yes

• Gobo Indexing: Yes

Effects

• Dimming: 0~100%
• Strobe: 1 - 25 Hz
• Zoom: Motorised 3° to 38°

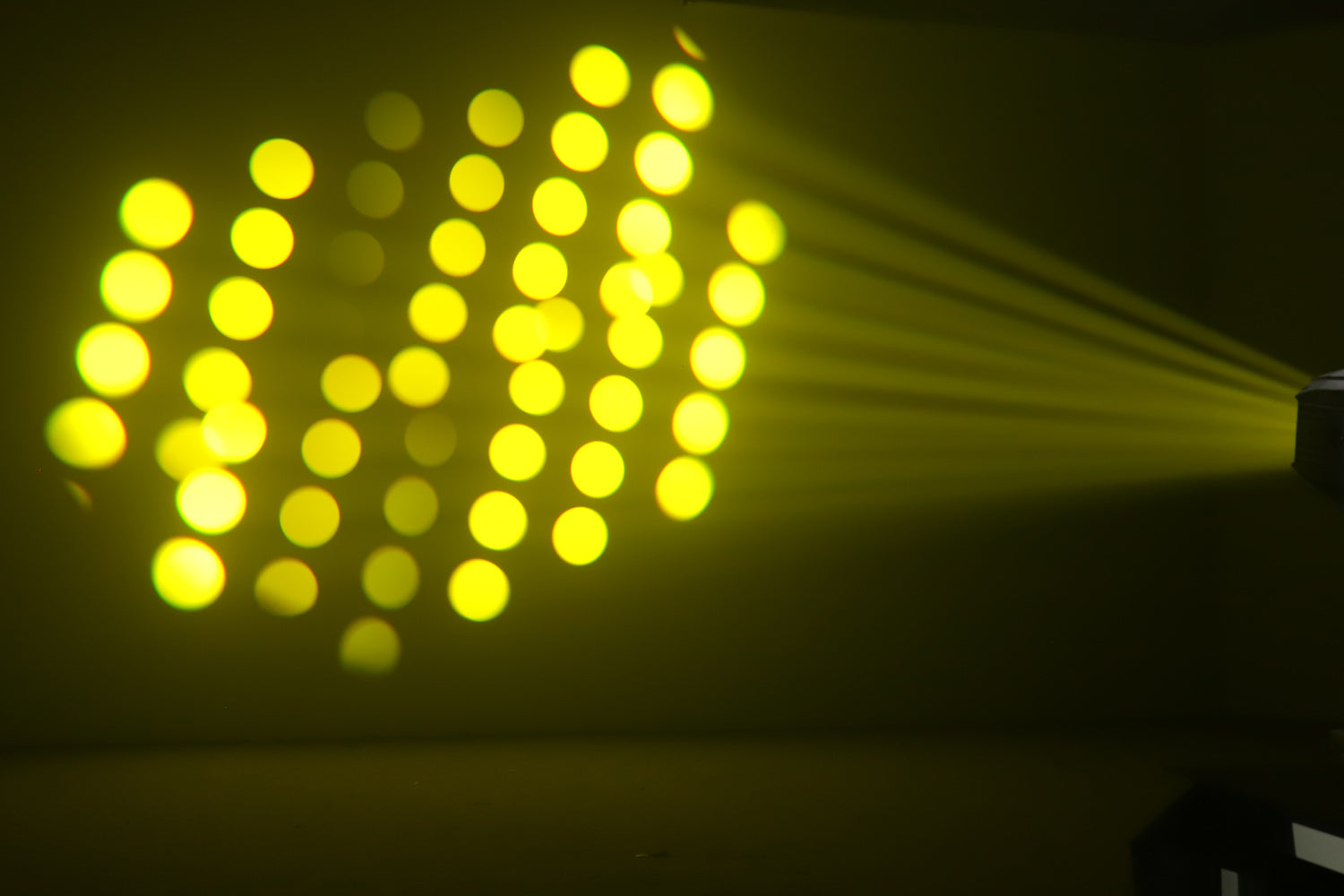

• Prism(1): 4-Facet circular prism, indexing

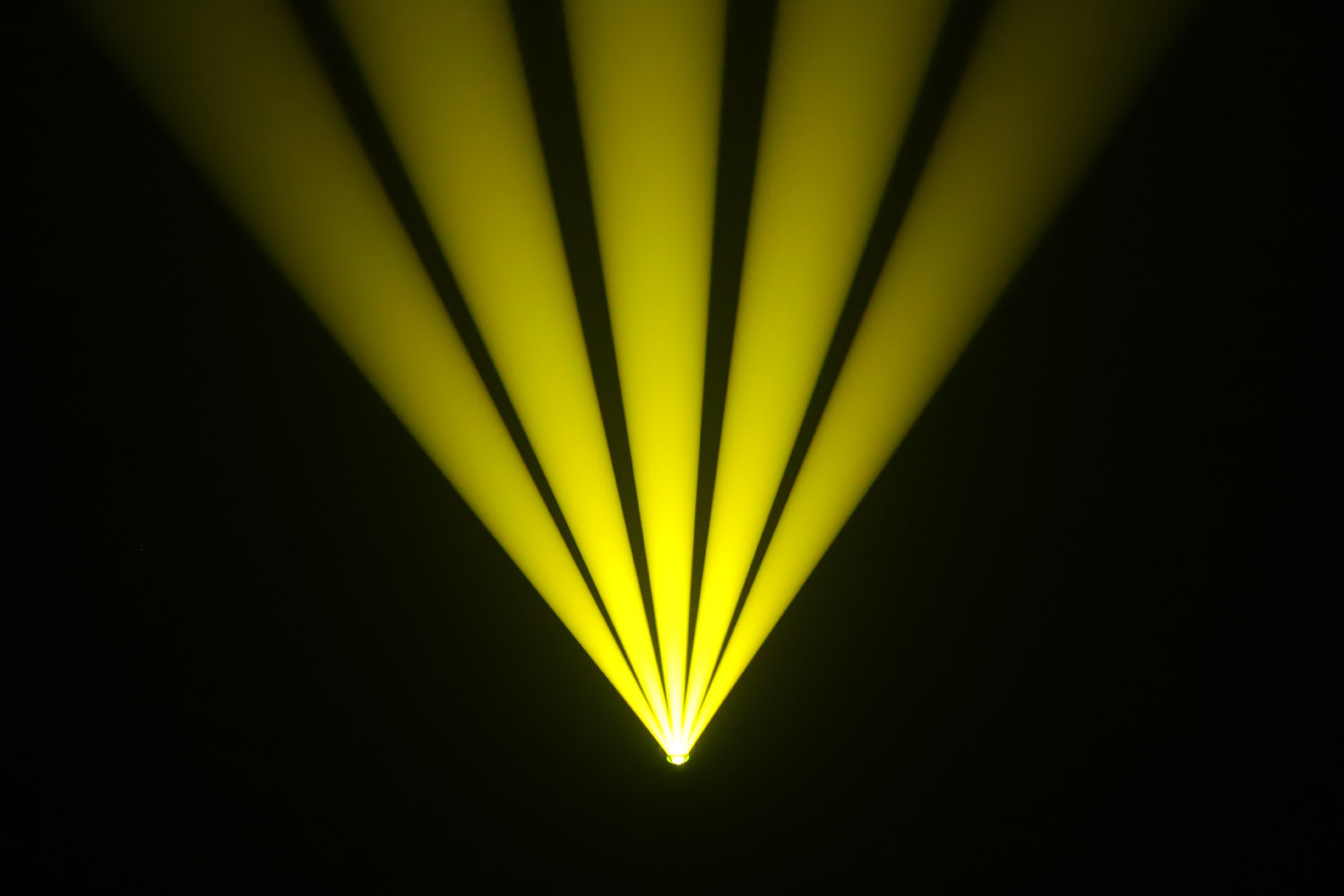

• Prism(2): 4-Facet linear prism, indexing
• Frost: Yes


Movement

• 16 bit resolution
• Auto repositioning
• Pan: 540°
• Tilt: 270°

Power

• Max power consumption: 500W
• Input Voltage: 100~240V AC, 50/60Hz
• Connection: True1 in/out

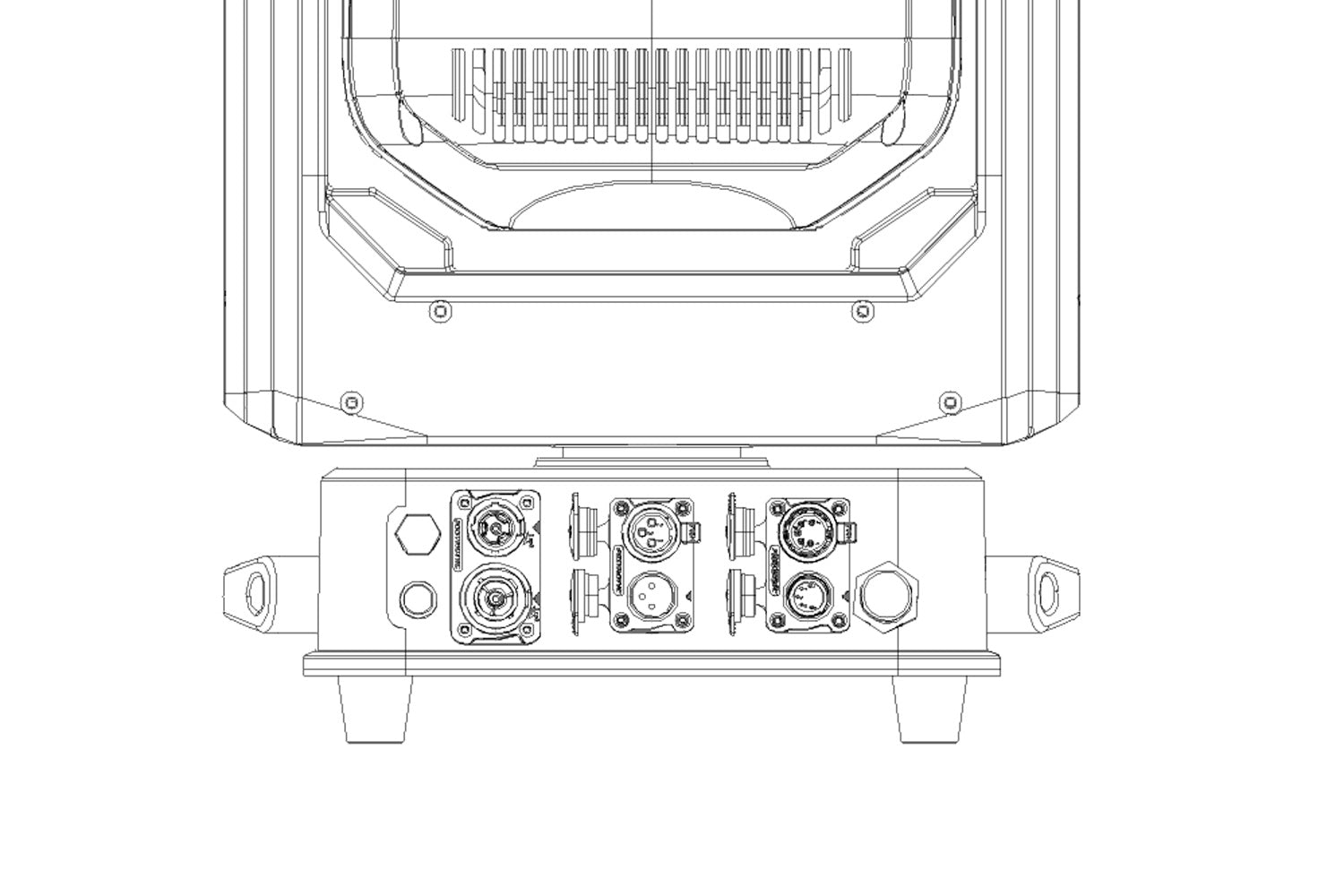

Control

• Control Protocol: DMX512, RDM
• WDMX Included
• DMX Channels: 27 / 30
• Interface: 3-pin/5-pin XLR,
• Display: TFT control panel

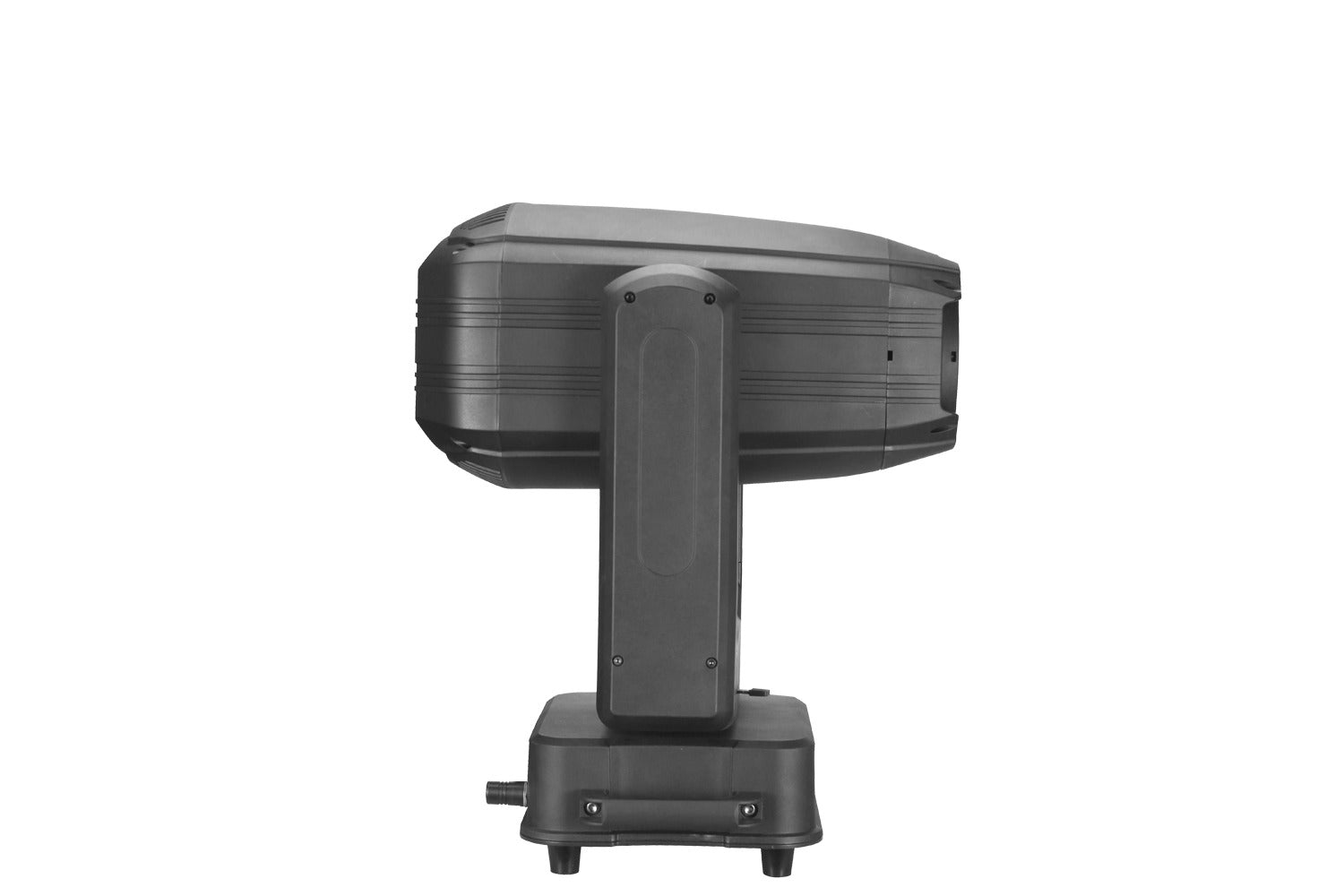

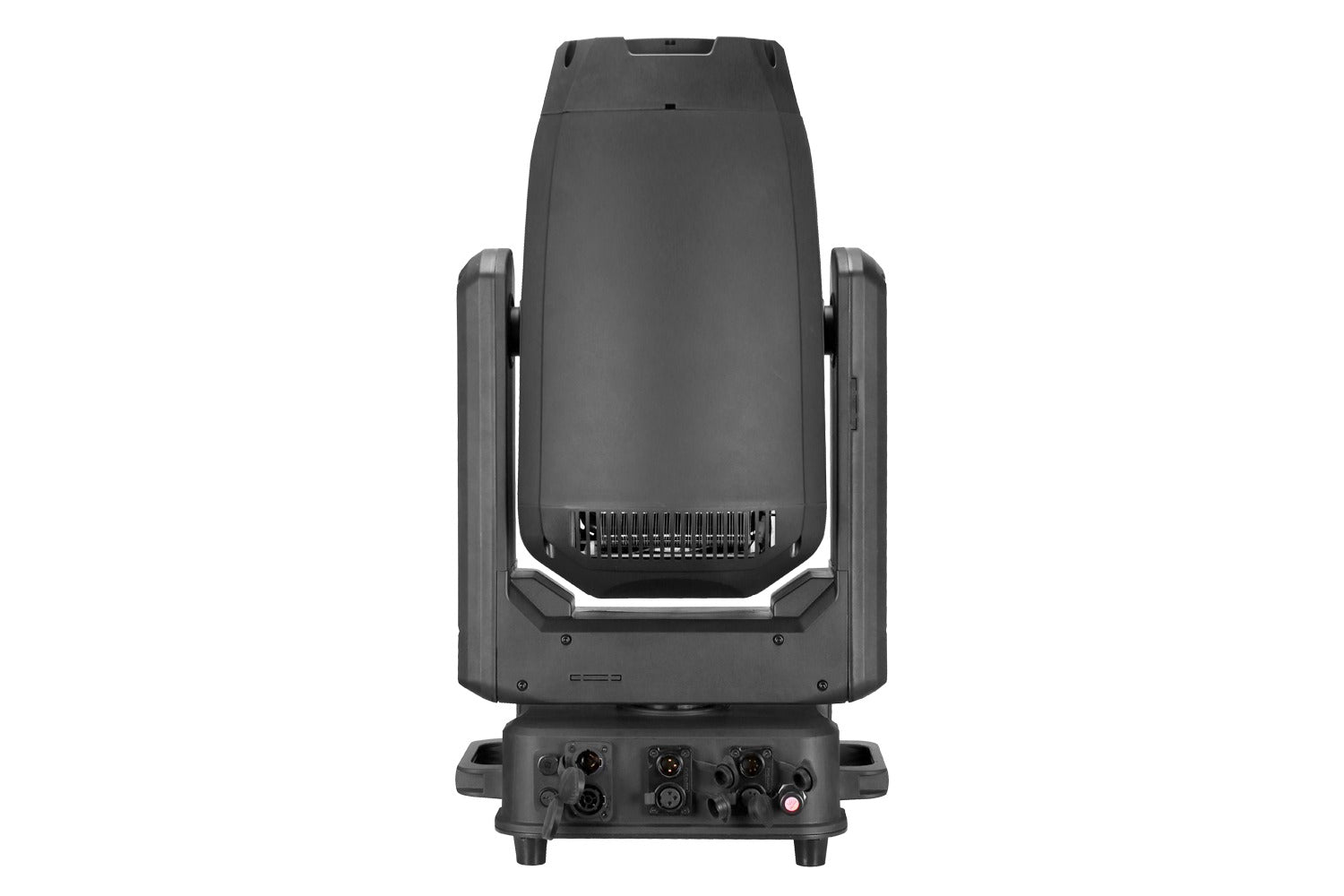

Housing

• Materials: ABS & Steel, matte black finish
• Protection: High temperature automatic protection
• IP rating: IP65

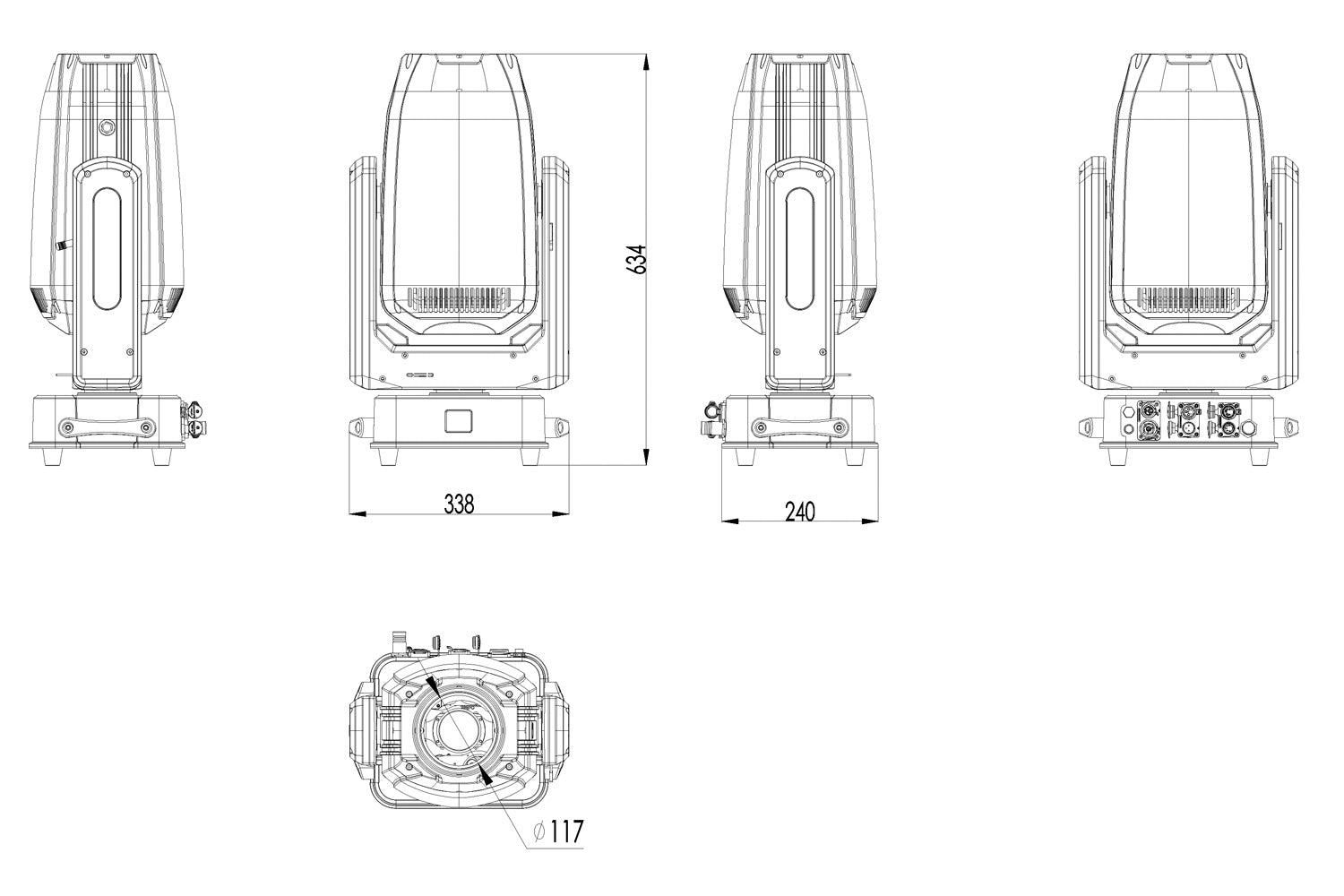

• Dimensions: 412 x 610 x 254mm
• Net Weight: 20.0 kg
