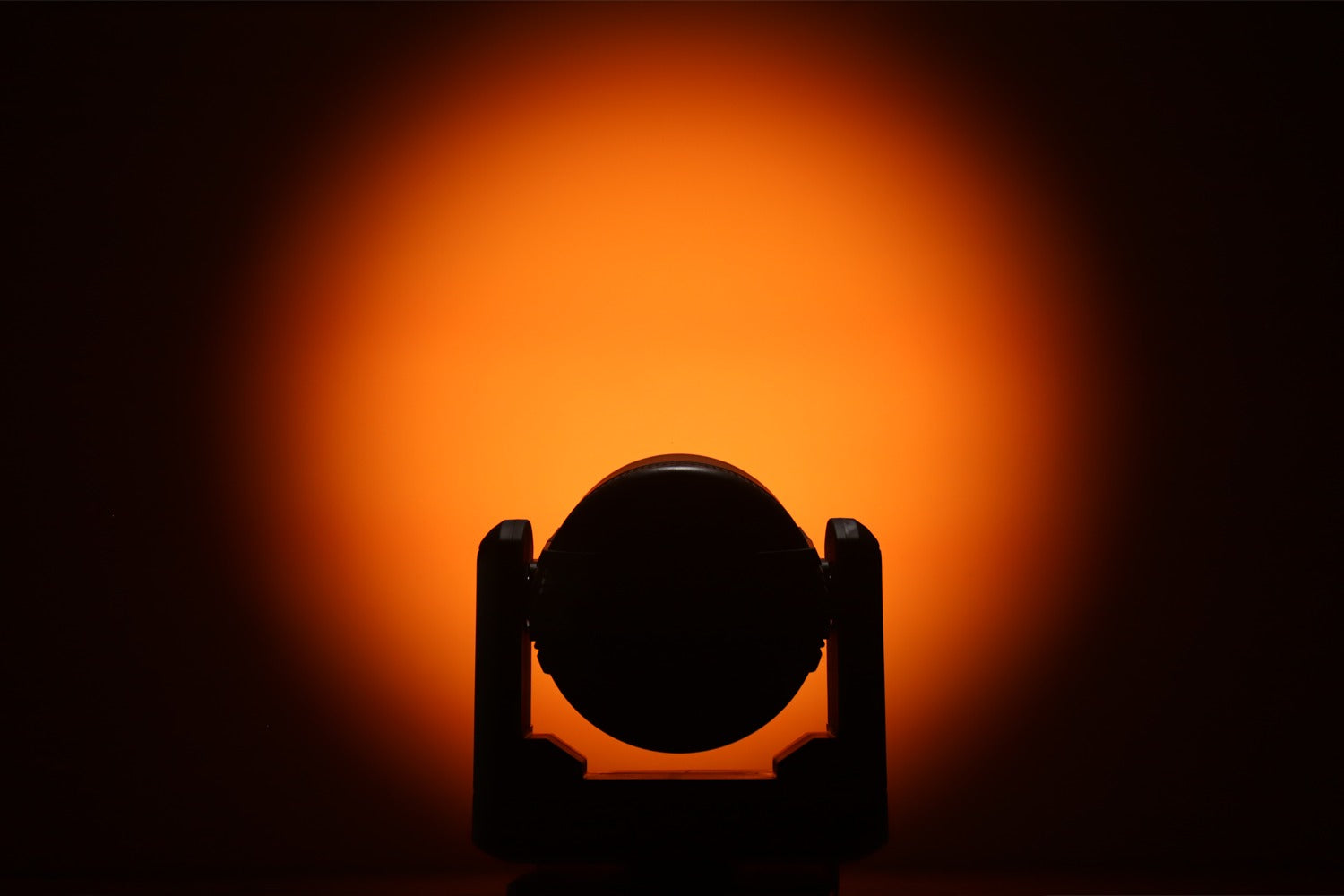

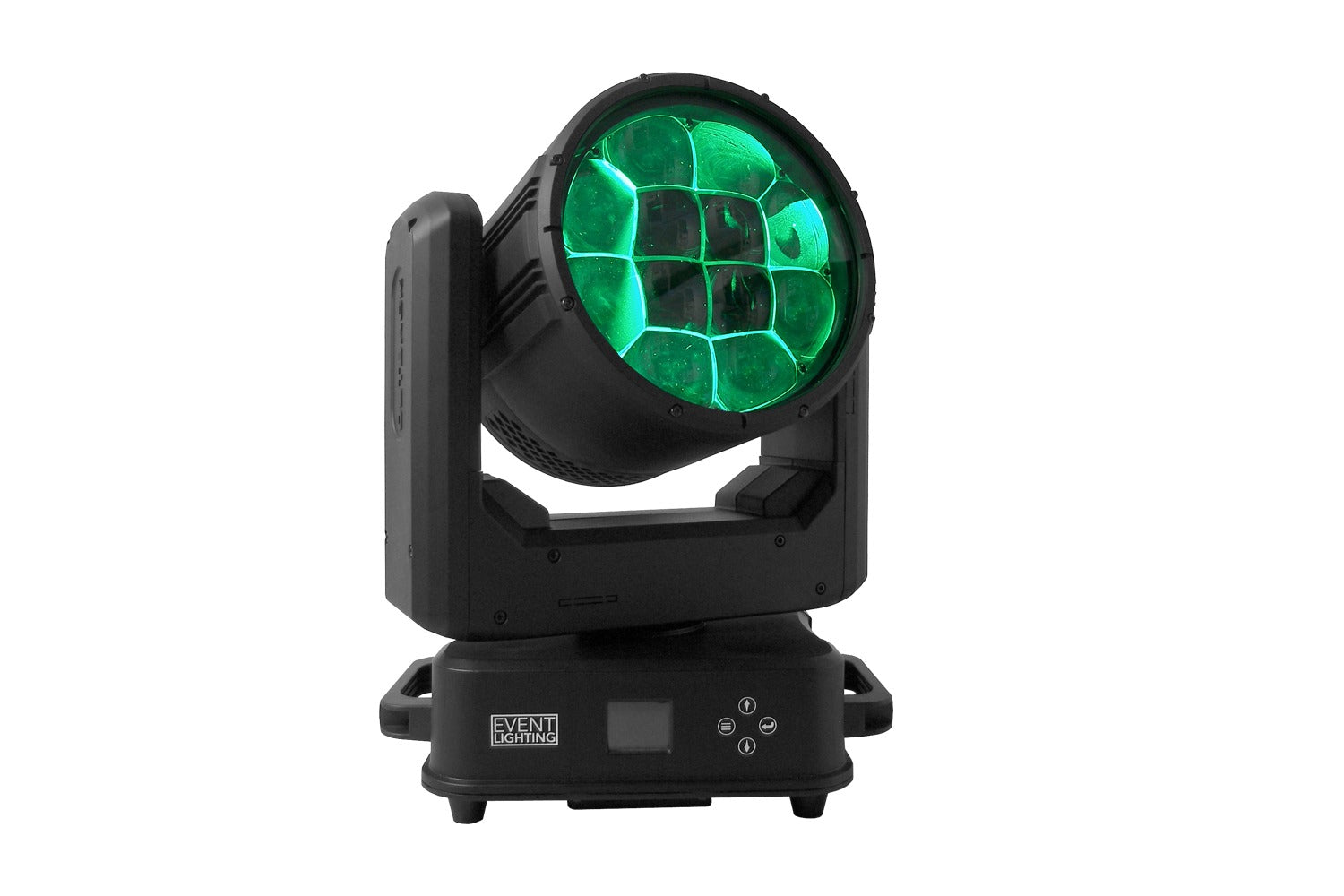

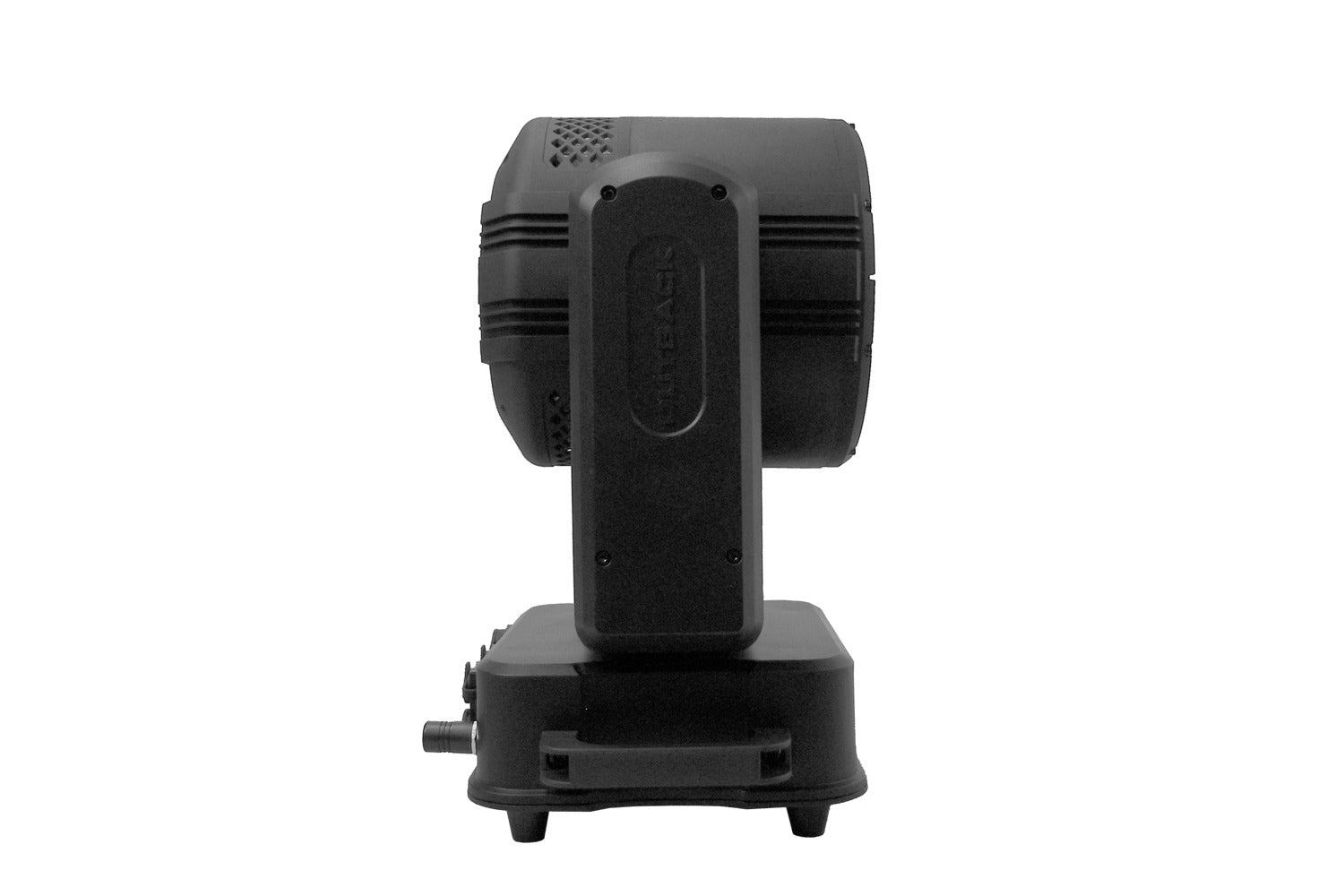

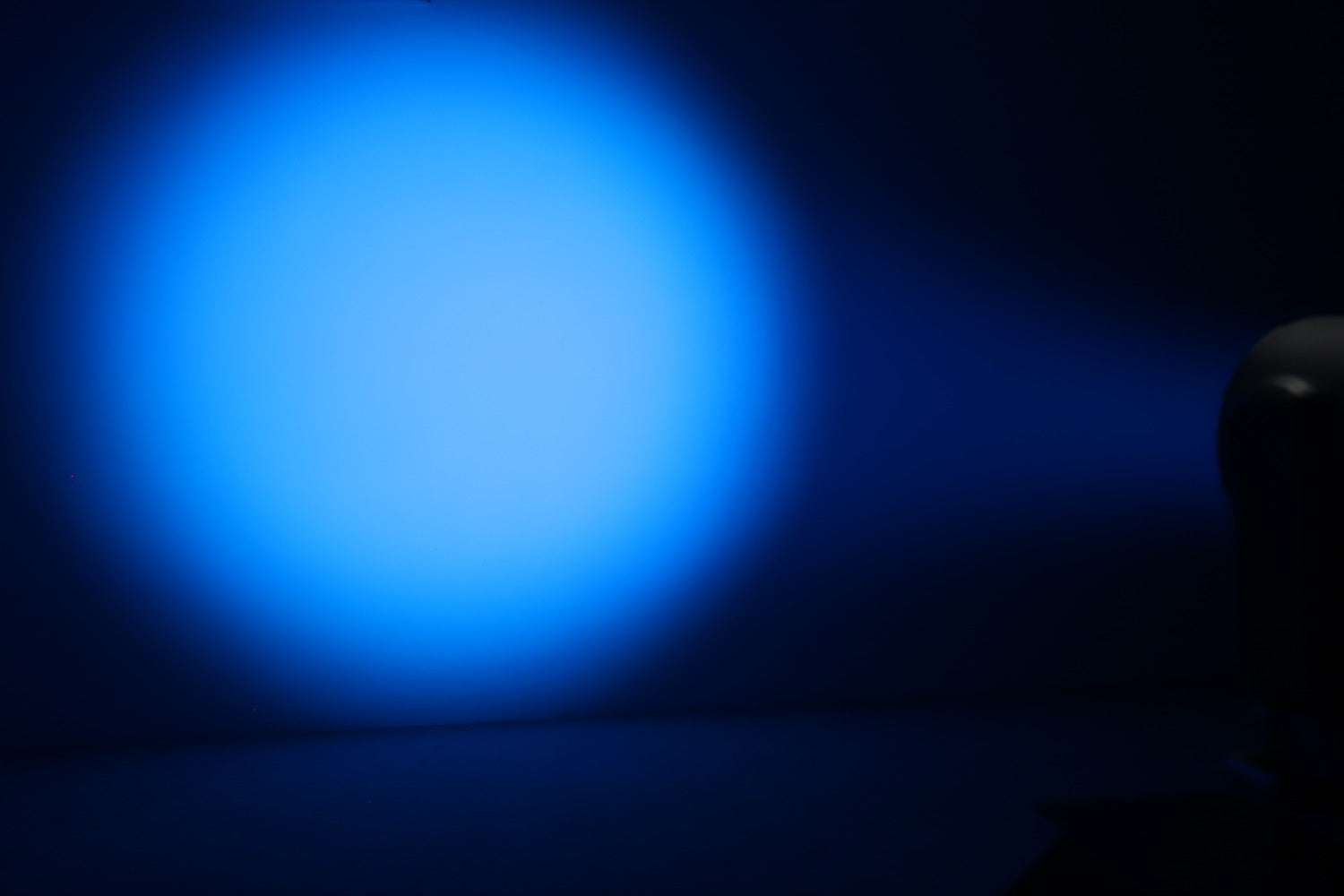

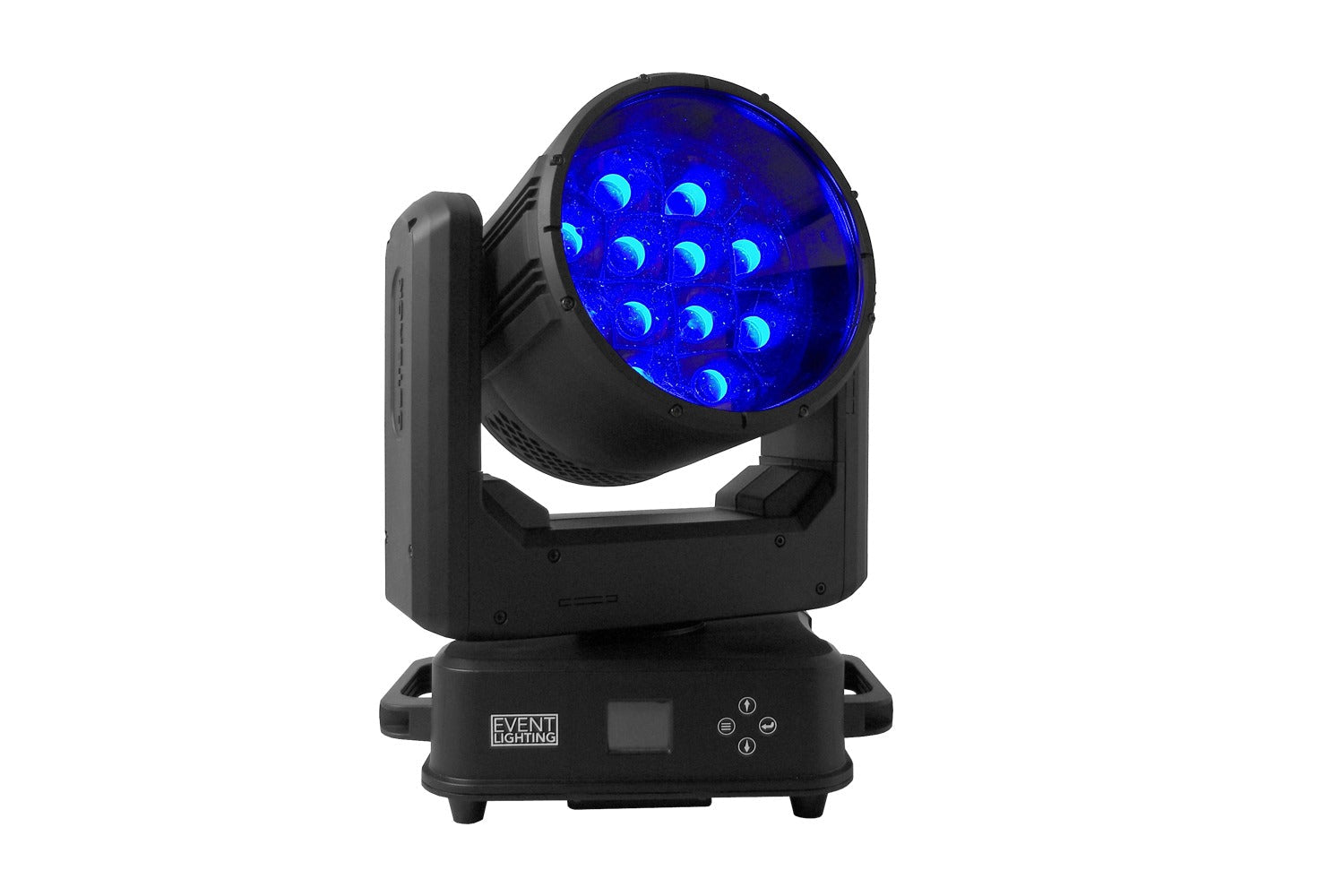

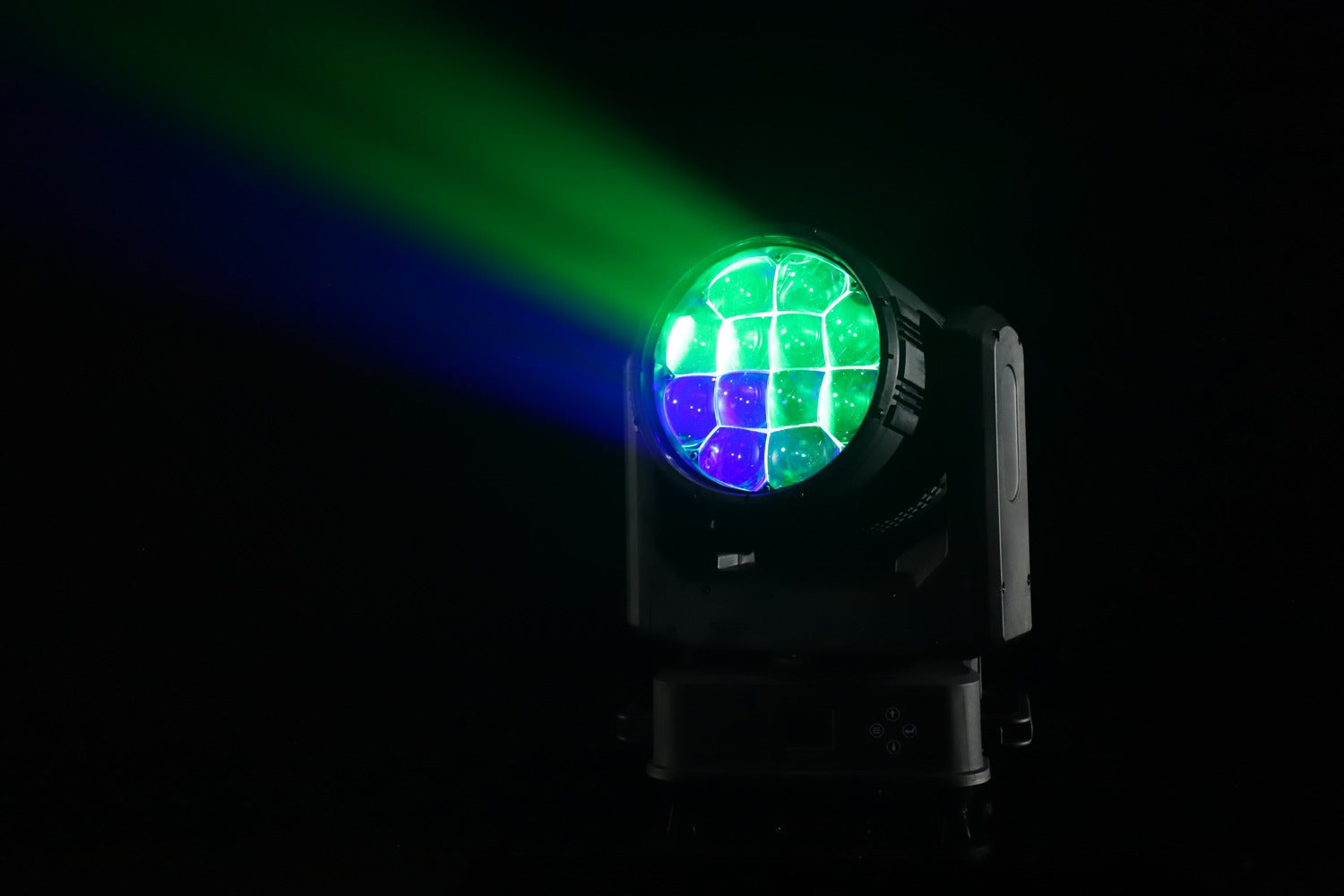

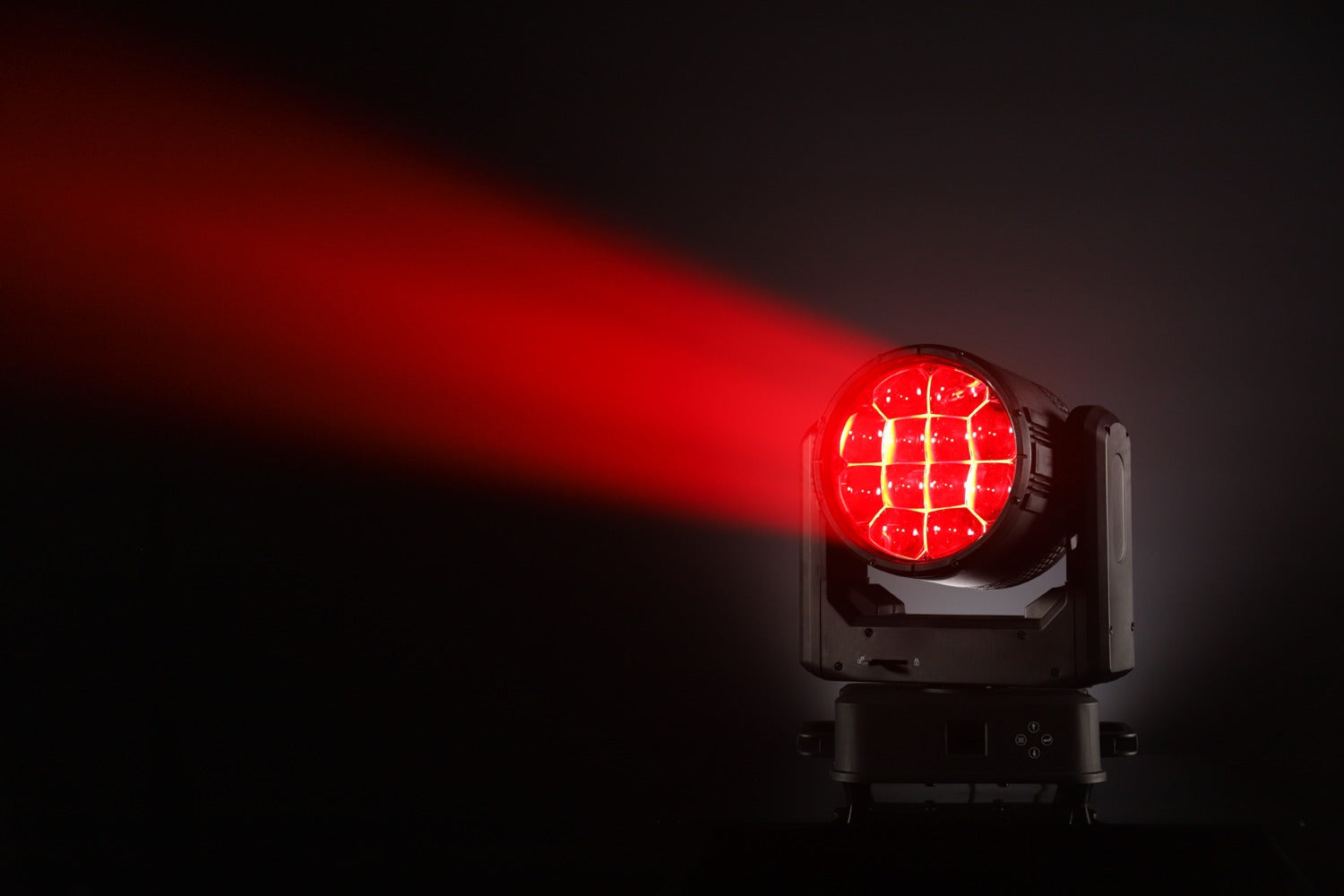

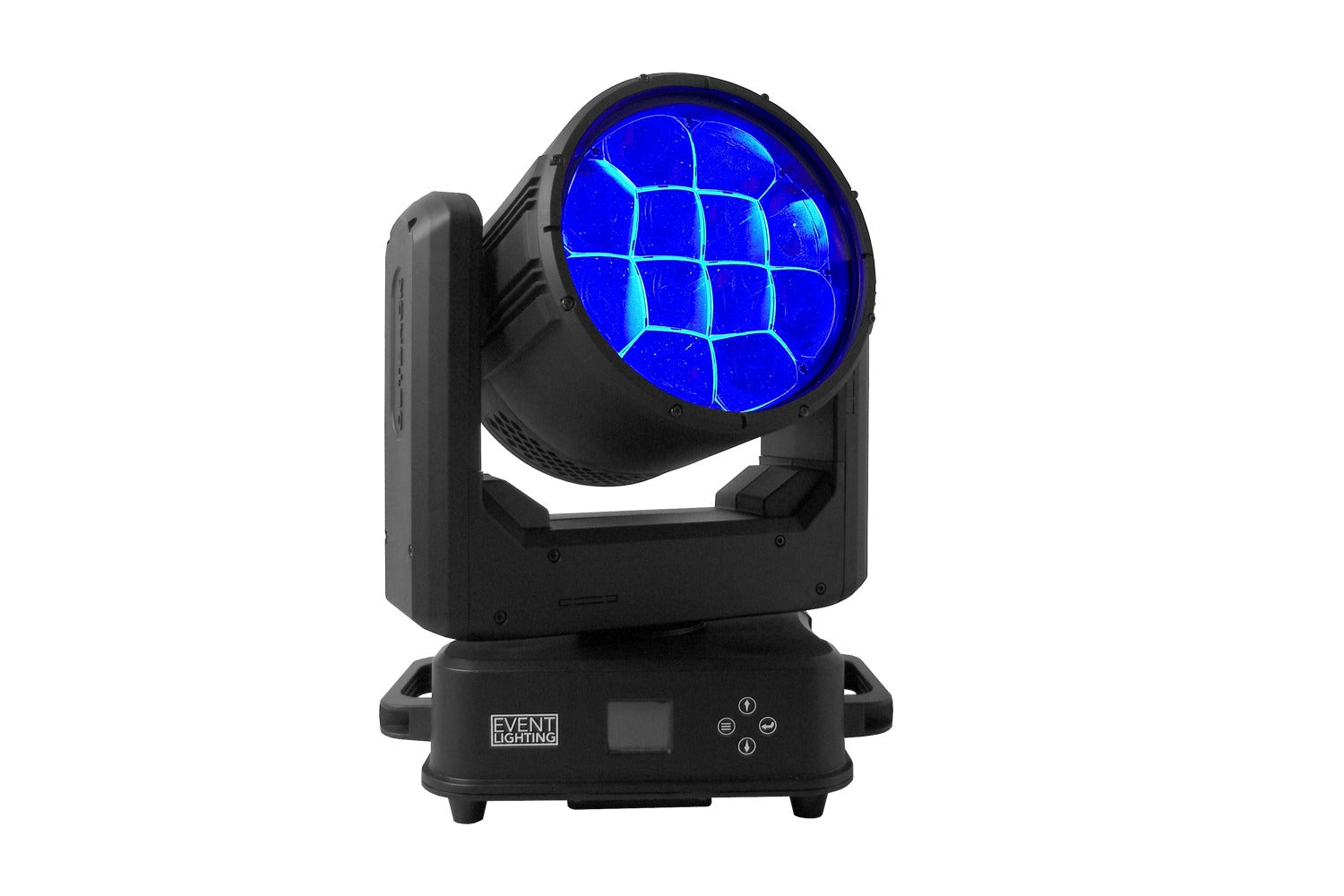

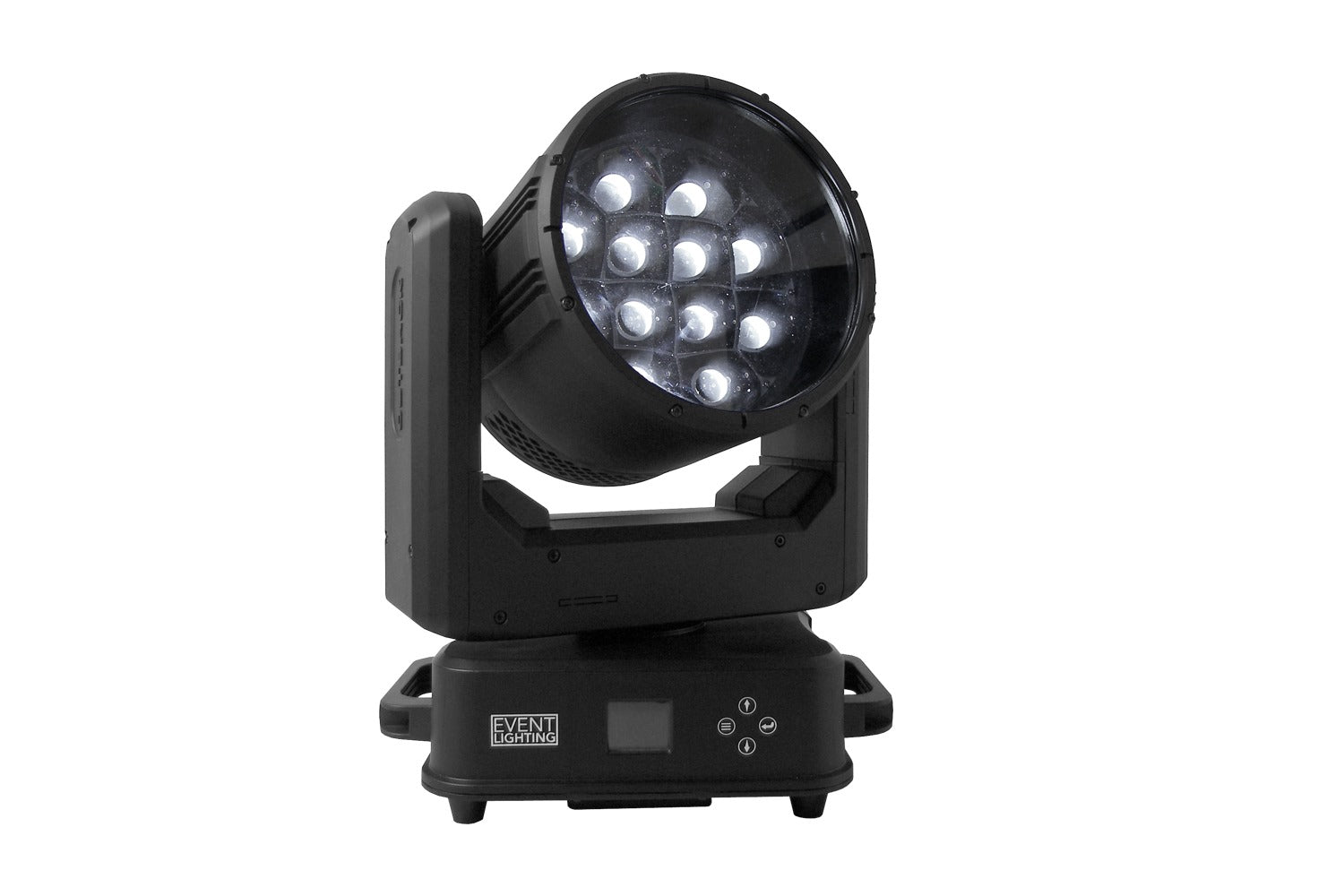

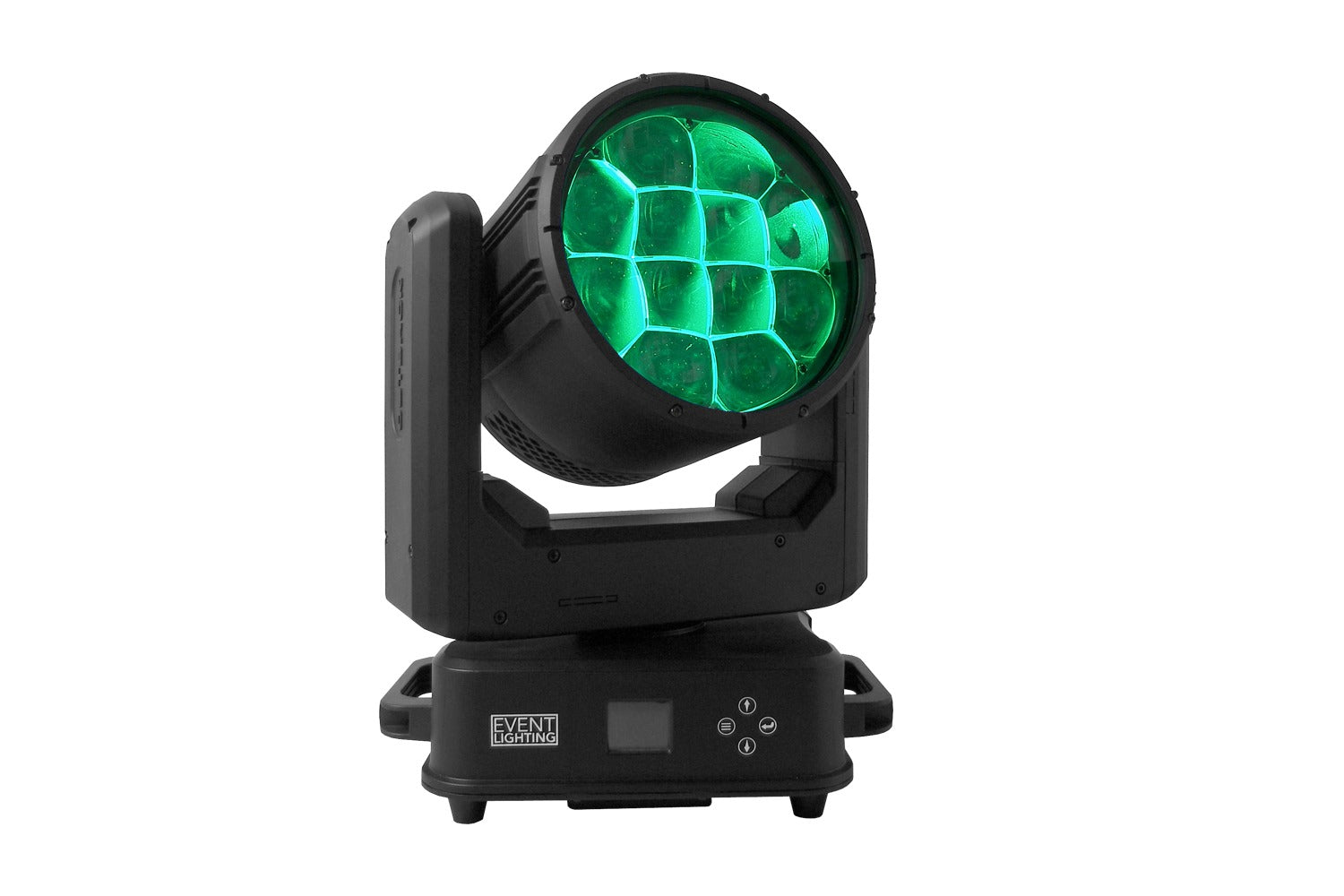

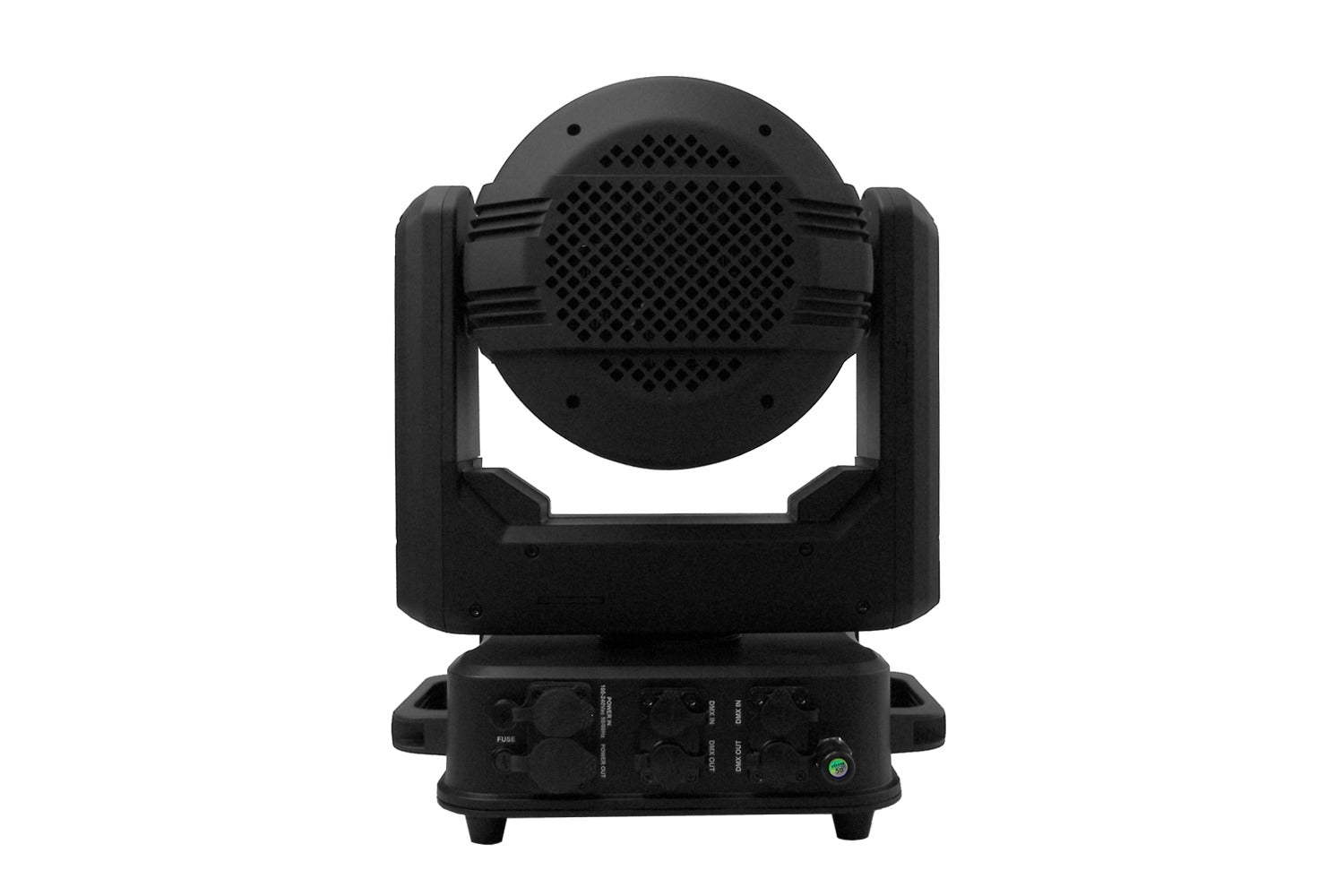

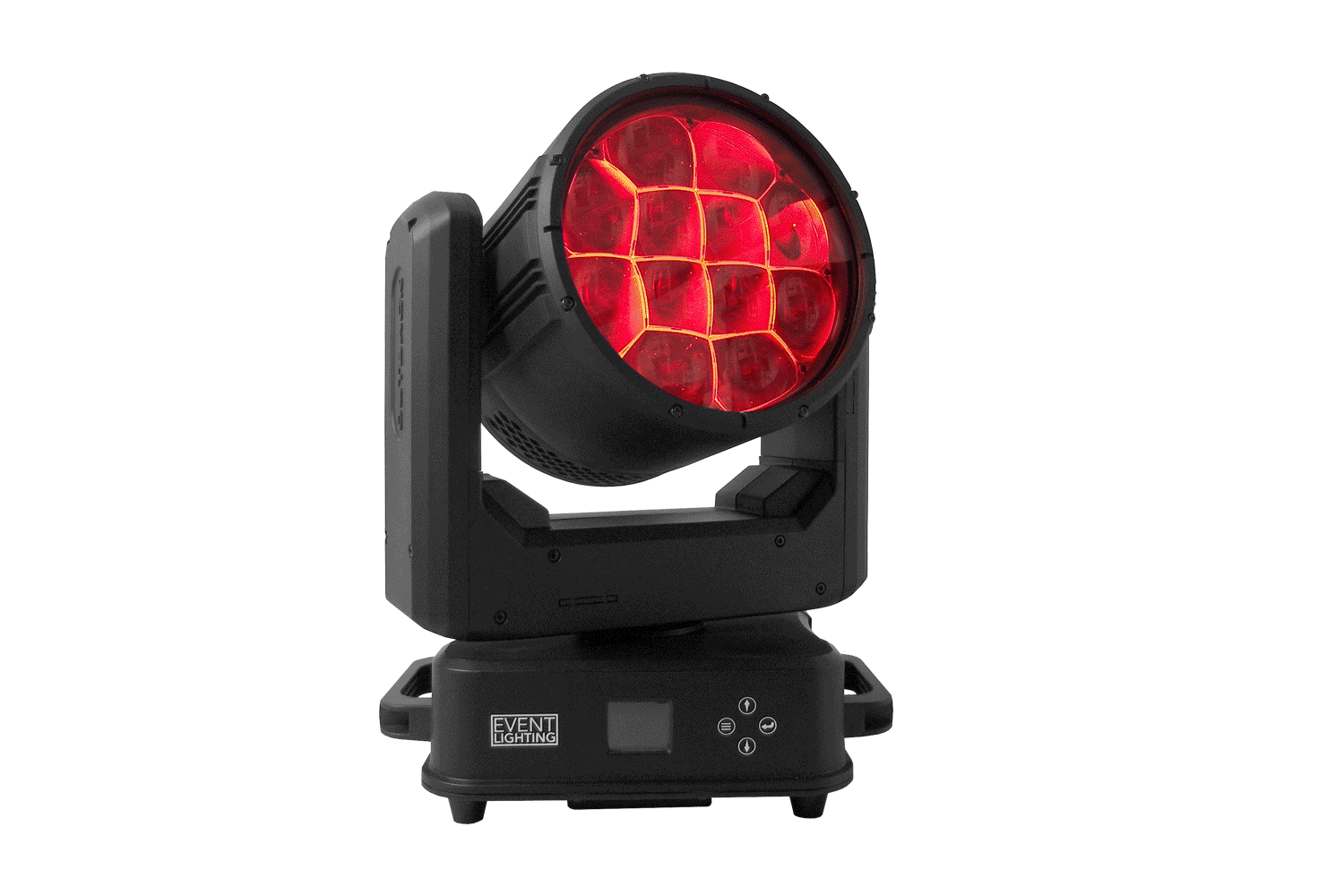

Event Lighting OUTBACK12X40W - 12 x 40W Zoom Wash Outdoor Moving Head

Event Lighting OUTBACK12X40W - 12 x 40W Zoom Wash Outdoor Moving Head

Specifications:

Photometrics

• Light Source: 12 x 40W RGBW 4-in-1 LEDs
• Beam Angle: 3°- 25°
• Zoom Angle: 3°- 45°

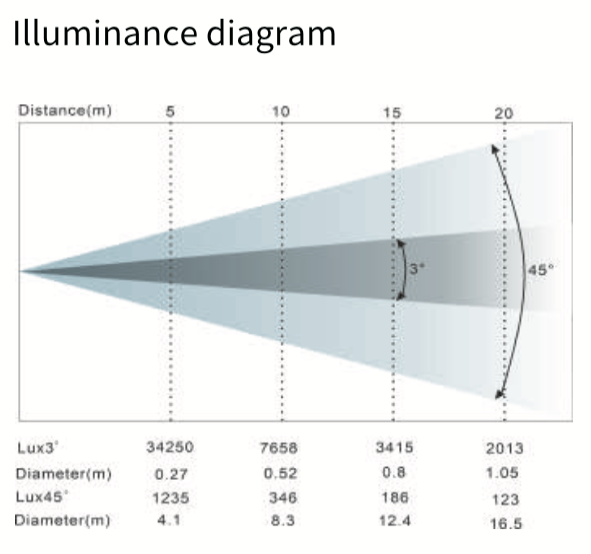

• Output: 34,250 lux @ 3°, 5m
• CCT: 2,500 - 10,000K

• CRI: >70
• Led lifespan: > 20,000 hours

Effects

• Dimming: 0-100%
• Pixel Control: Yes
• Strobe: 1 - 25 Hz
• Zoom: Motorised, 3°-45°

Movement

• 16 bit resolution
• Auto repositioning
• Pan: 540°
• Tilt: 270°

Power

• Input Voltage: 100-240V AC, 50/60Hz
• Max power consumption: 560W

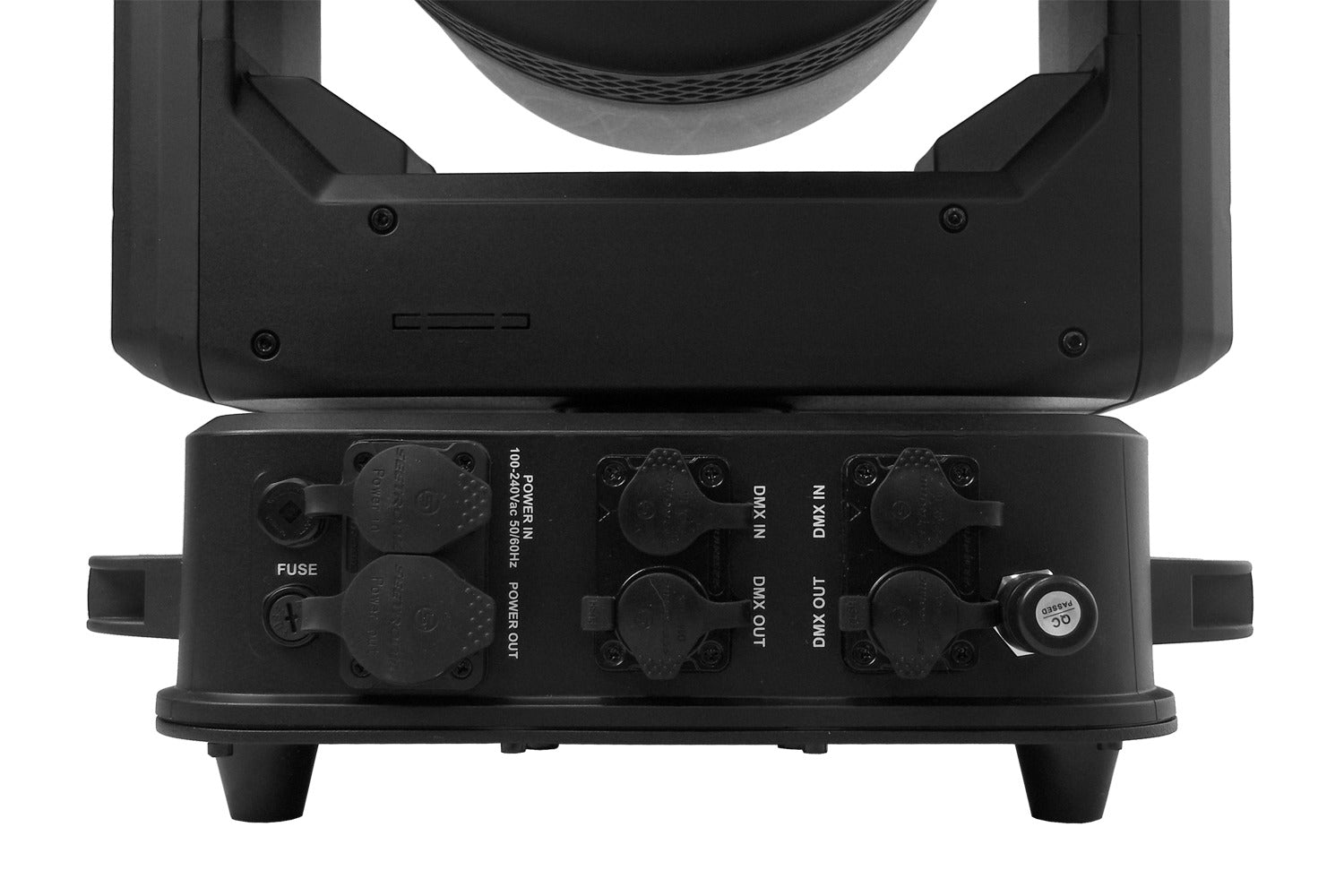

• Connection: True1 in/out

Control

• Control Protocol: DMX512, RDM

• DMX Channels: 17 /  29 / 61

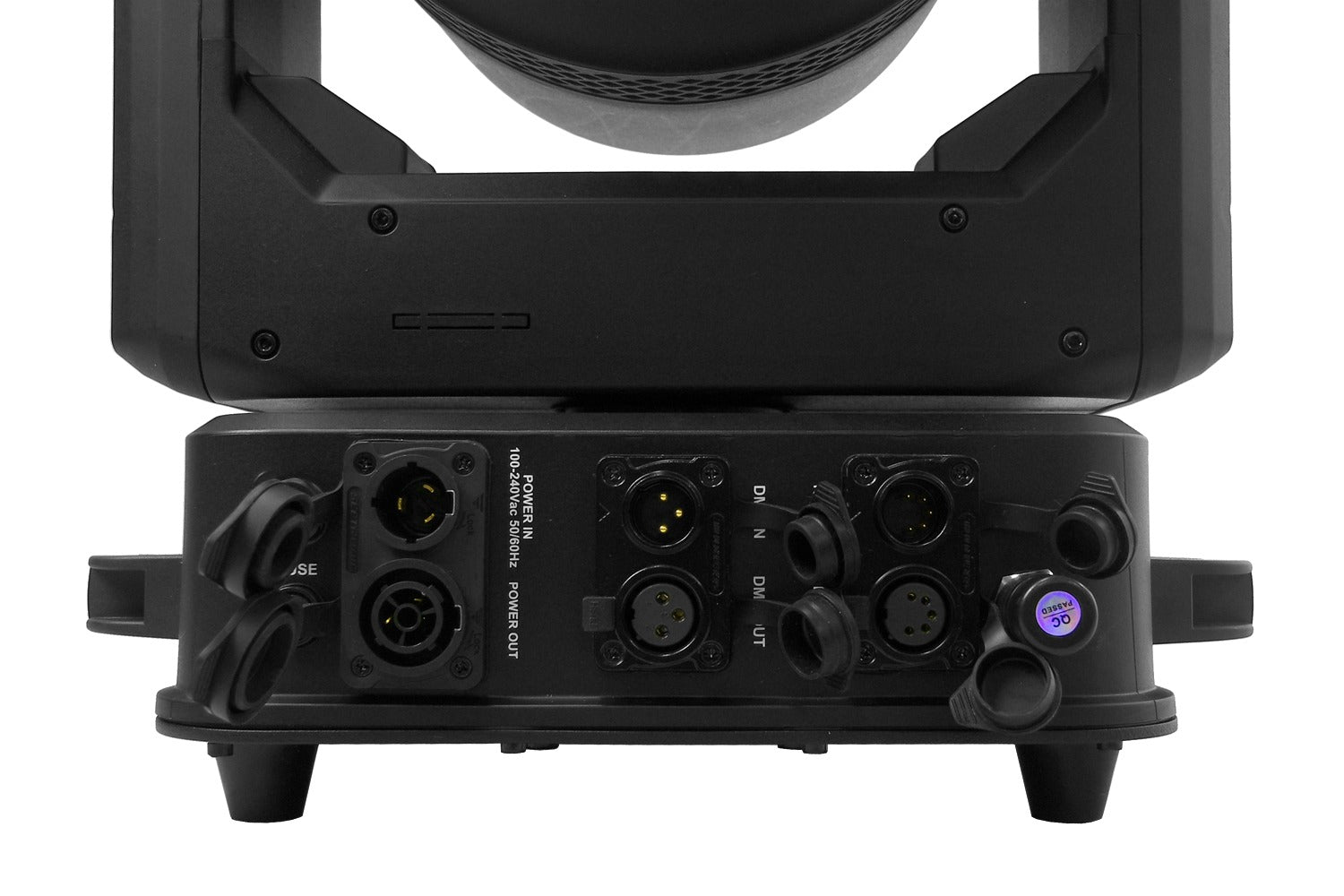

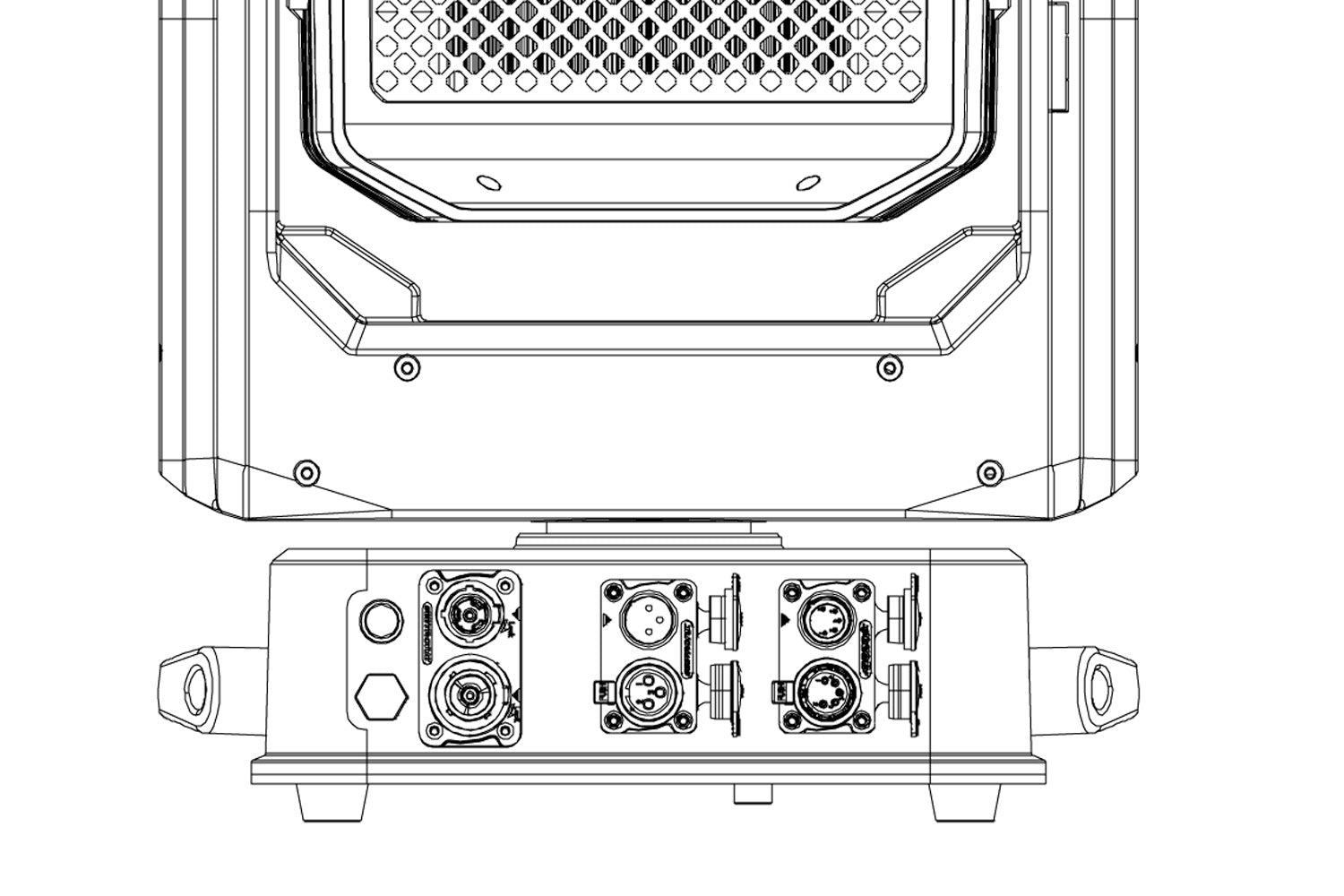

• Interface: 3-pin/5-pin XLR (in/out)

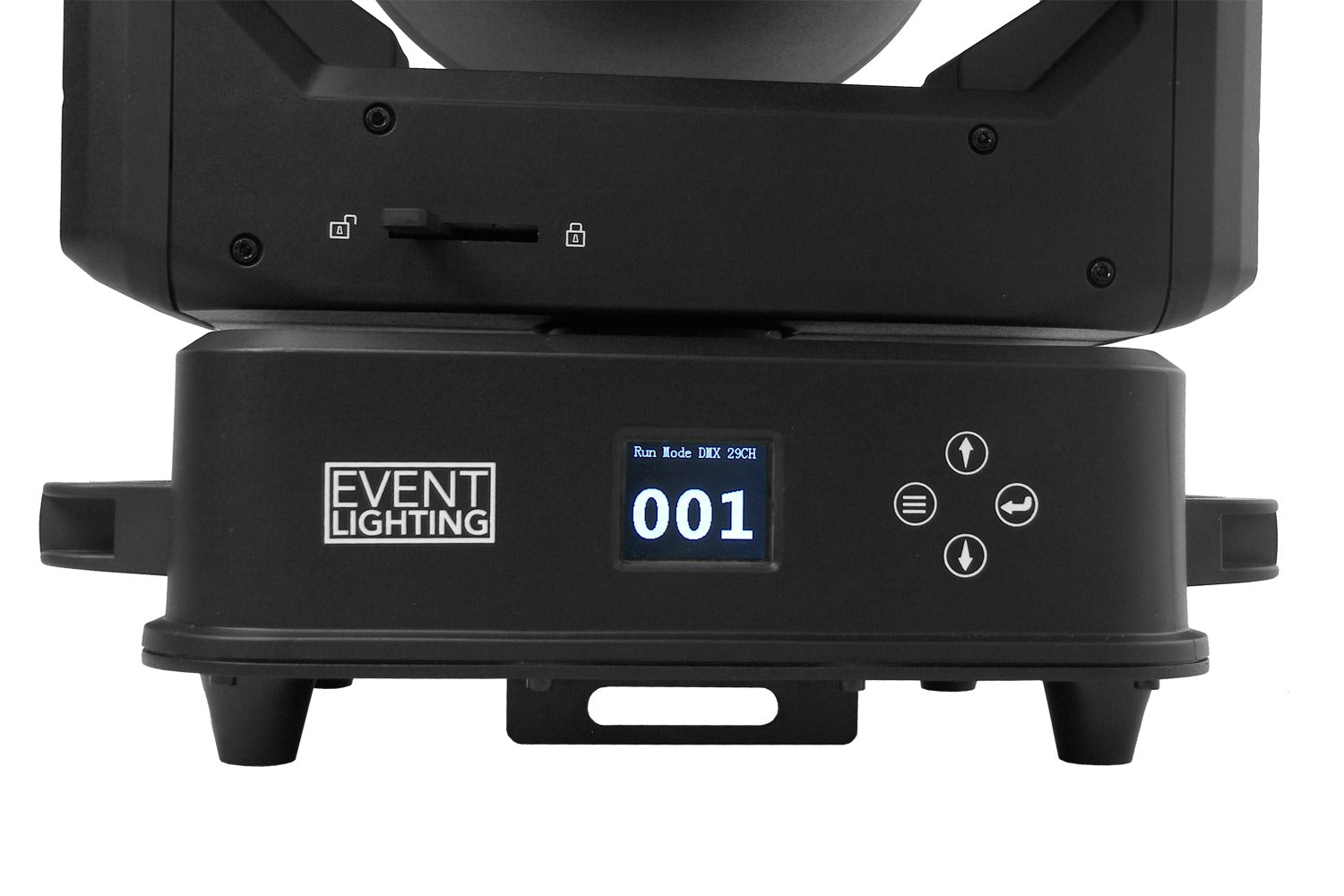

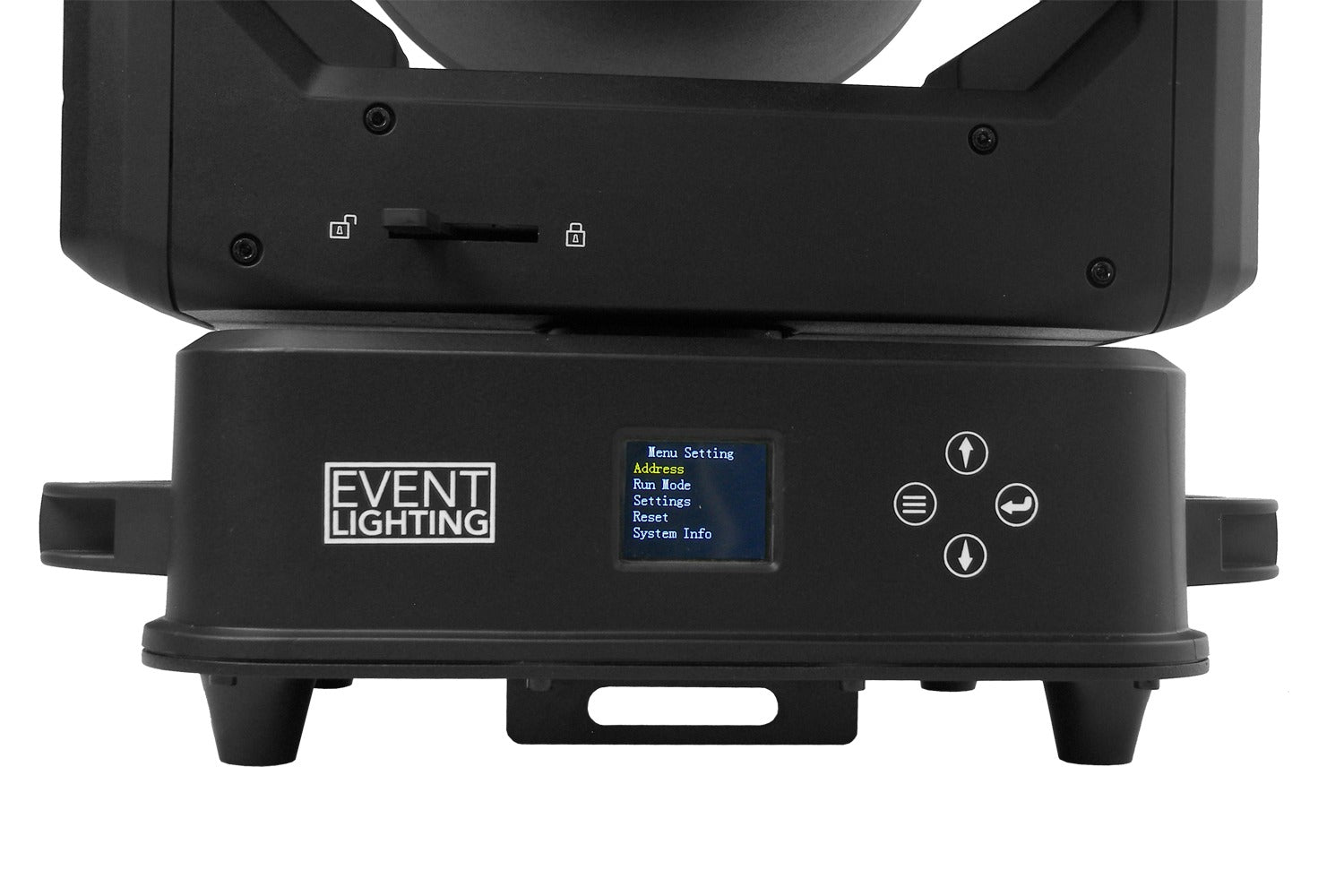

• Display: TFT control panel


Housing

• Materials: ABS & Steel, matte black finish
• Protection: High temperature automatic protection
• IP rating: IP65
• Dimensions: 337 x 240 x 474mm
• Net Weight: 11 kg



Download Product Datasheet

Download DMX Chart

Download user manual

Warranty: 3 years
