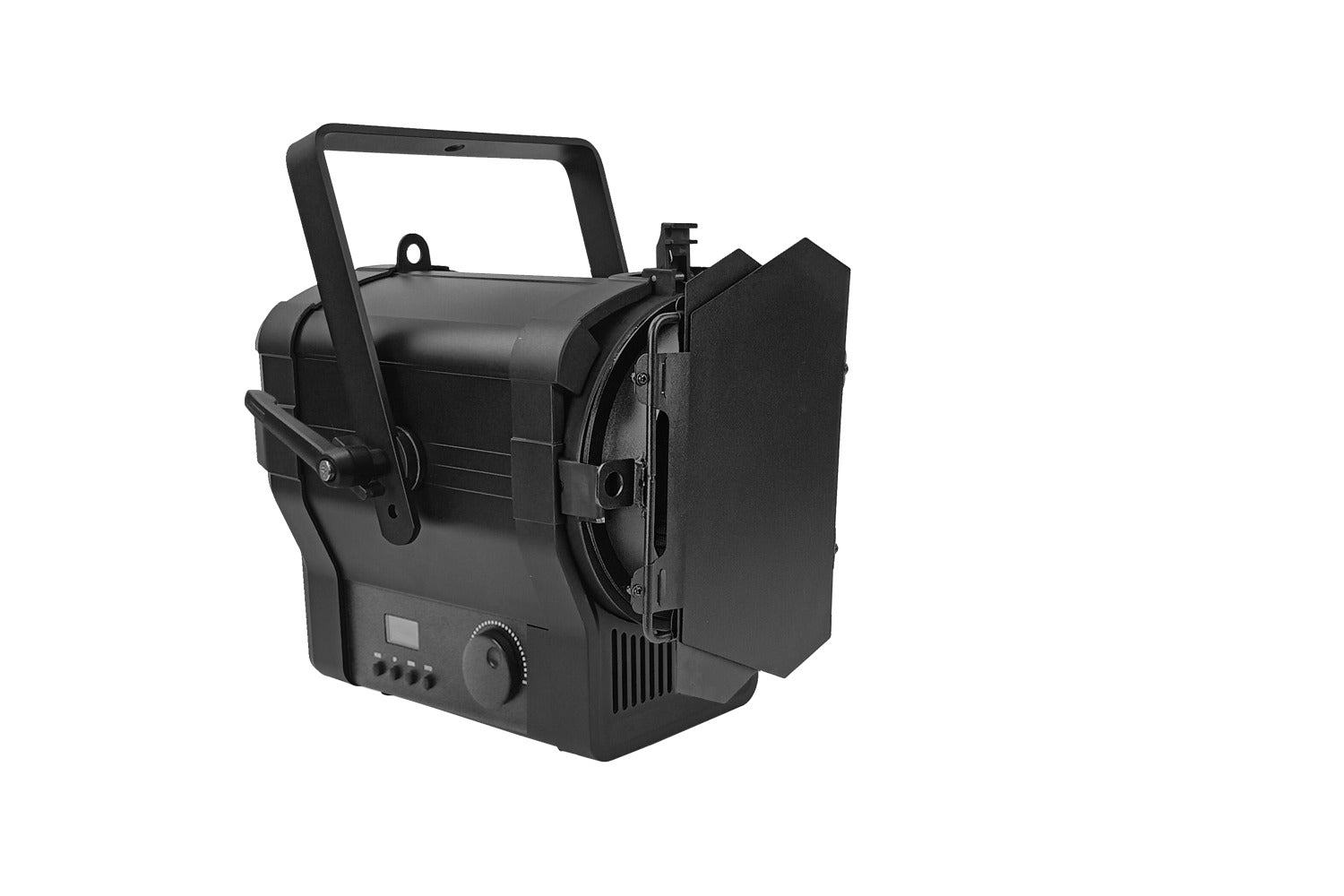

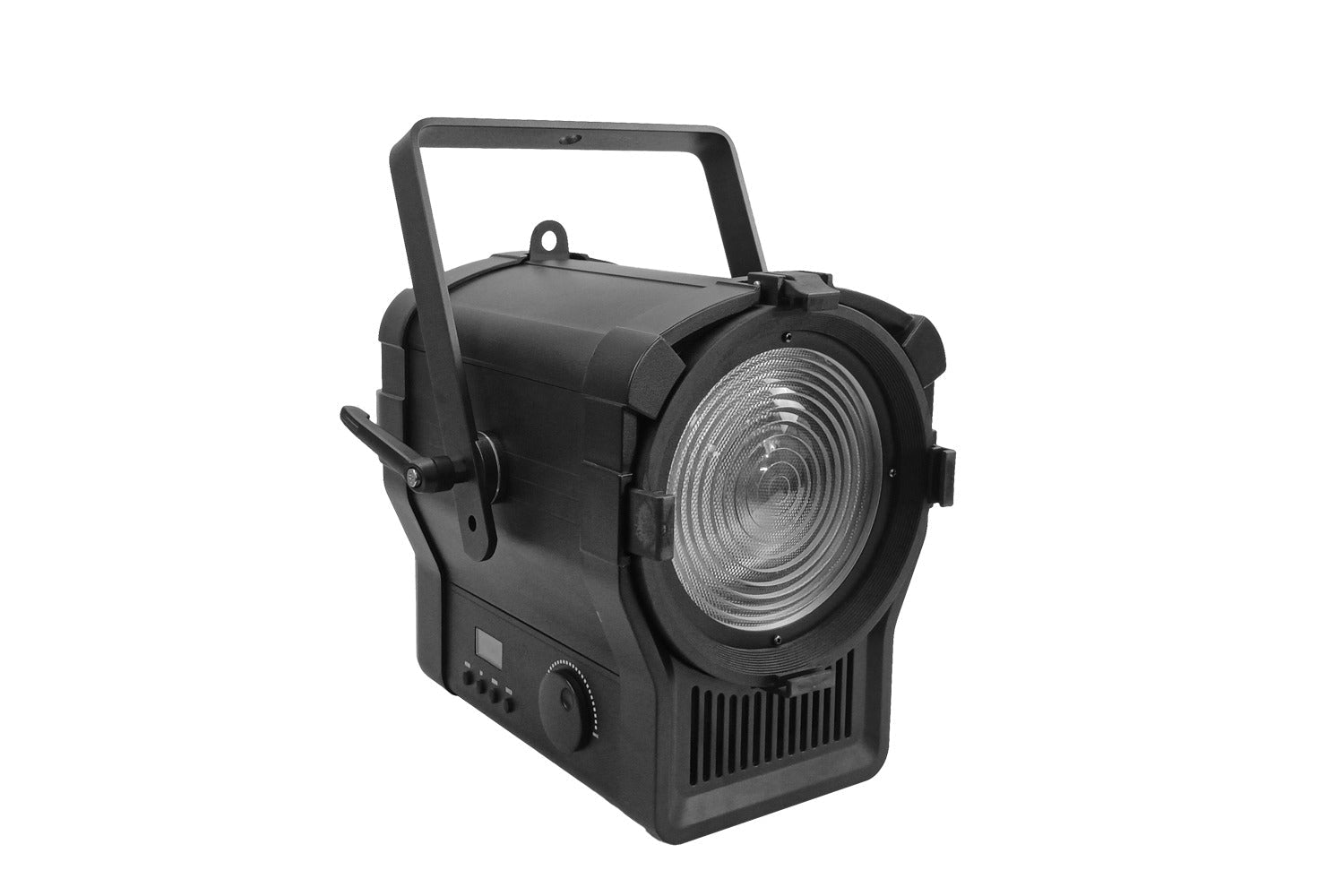

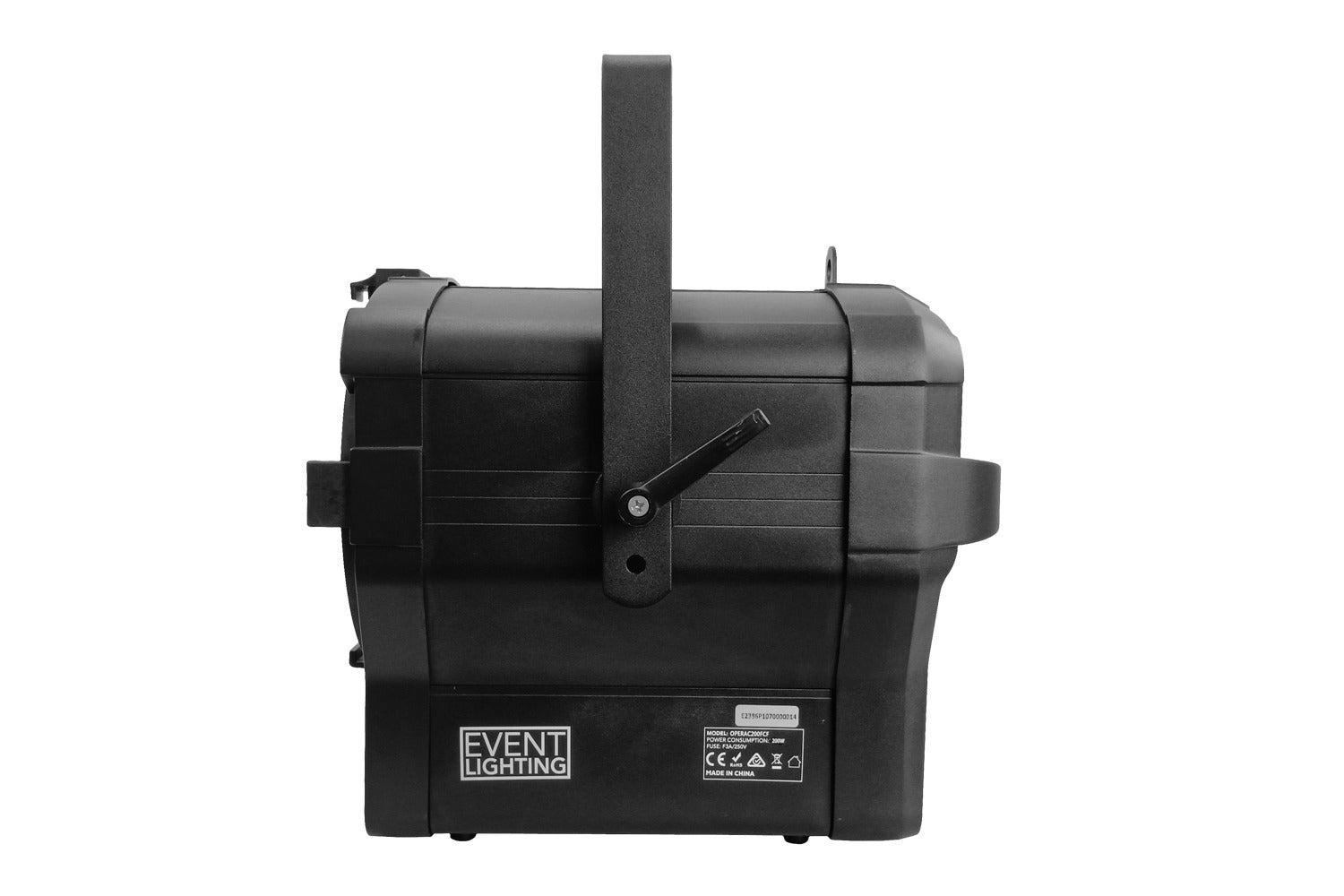

Event Lighting OPERAC200FCF - Compact Fresnel Engine with 200W COB RGBW LED

Event Lighting Opera Compact Series Fresnel with 200W COB RGBW LED Engine, 14°-55° Manual Zoom, True1 in/out, 5 pin DMX in/out, includes gel frame & 8 leaf barn door

The 1 Channel Mode allows you to tune the Colour Temperature to match existing fixtures an utilise a single channel dimmer for ease-of-use.

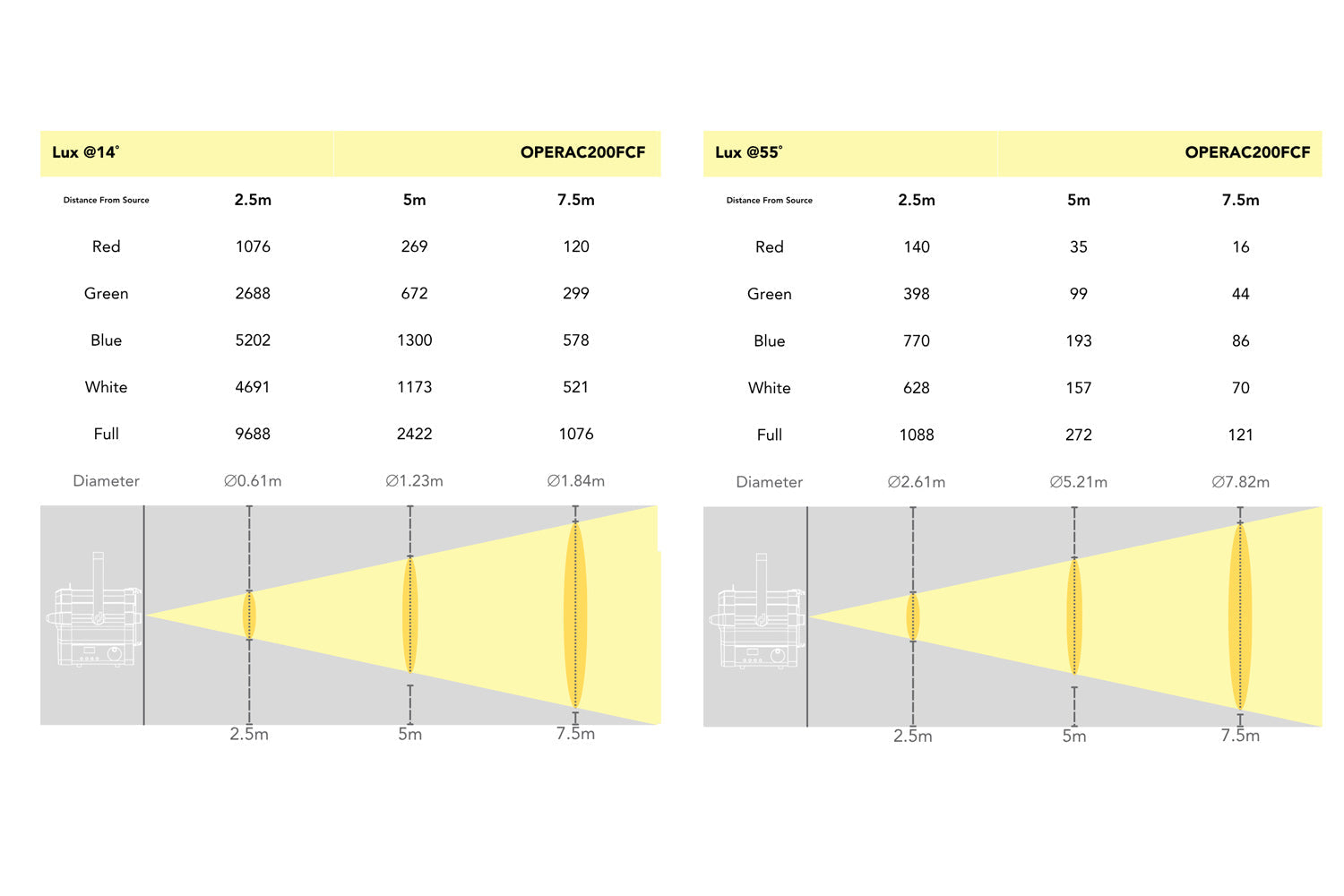

Photometrics

• Light Source: 200W COB RGBW LED
• CRI: 90
• Beam Angle: 14°~55°
• LED Lifespan: 50,000 hours

Effects

• Dimming: 16 bits 0-100%
• Zoom: Manual, 14°~55°

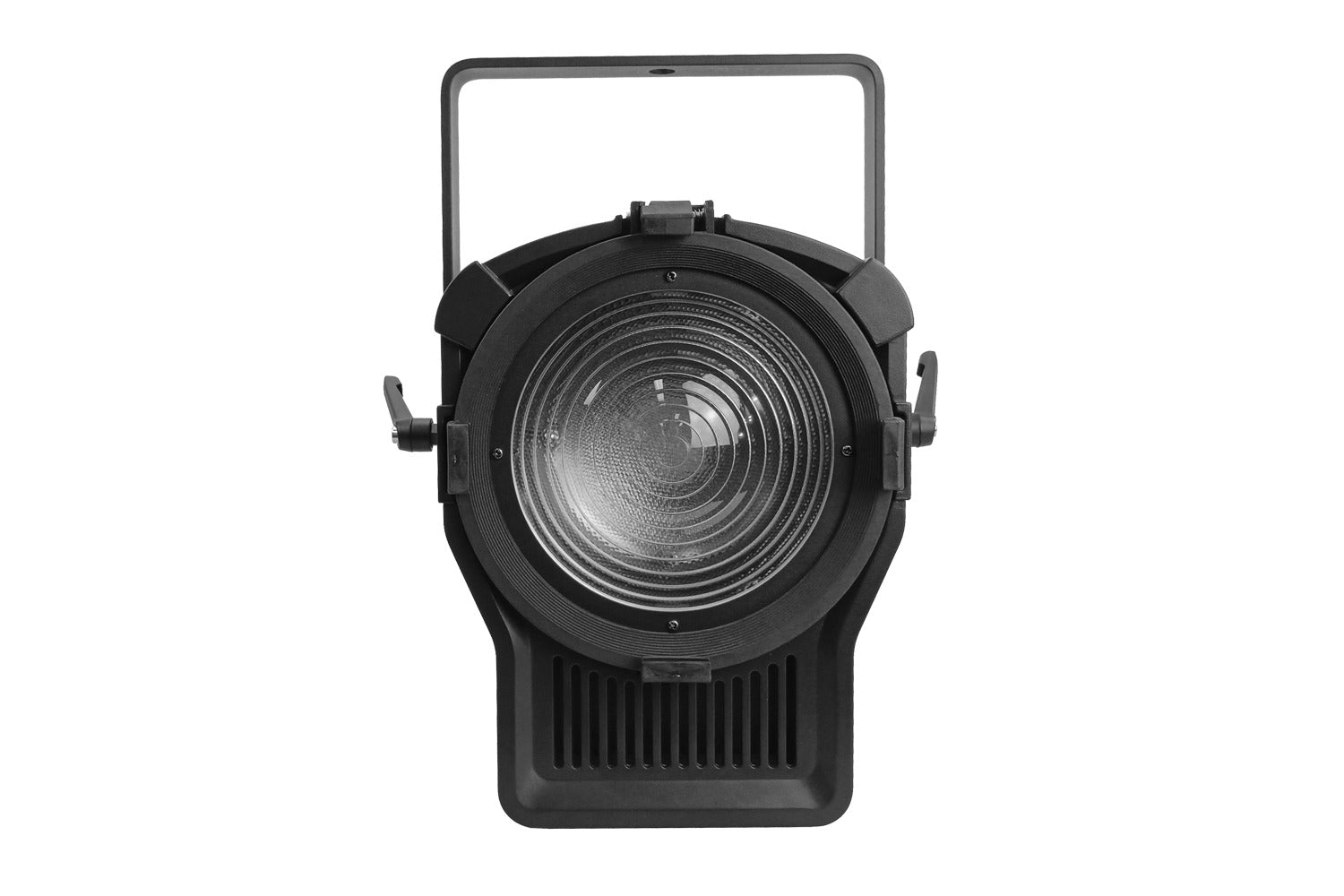

• Optical system: Glass lens set+ 150 mm Fresnel lens

Power

• Power Supply: 100~240V AC, 50/60Hz, 200W

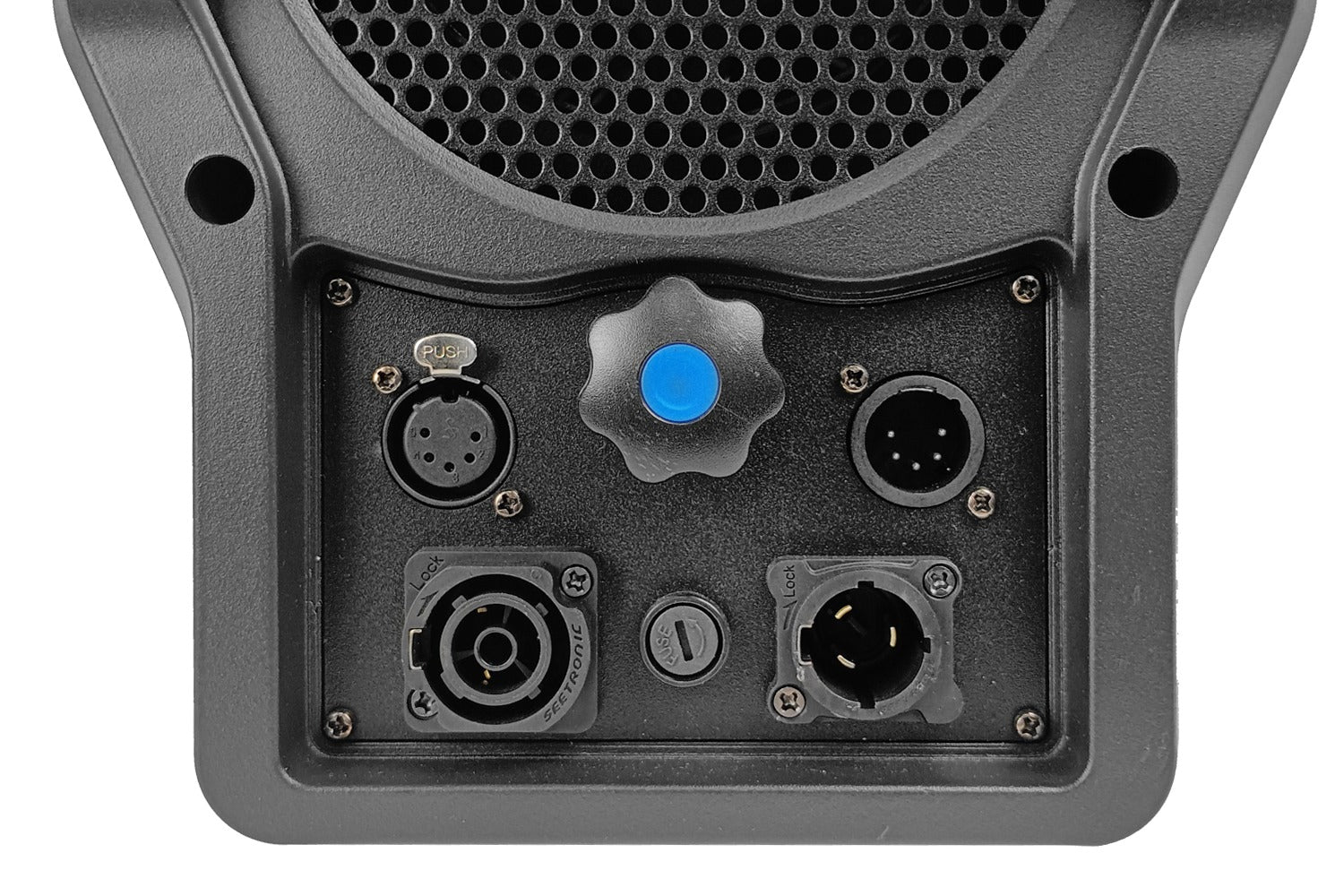

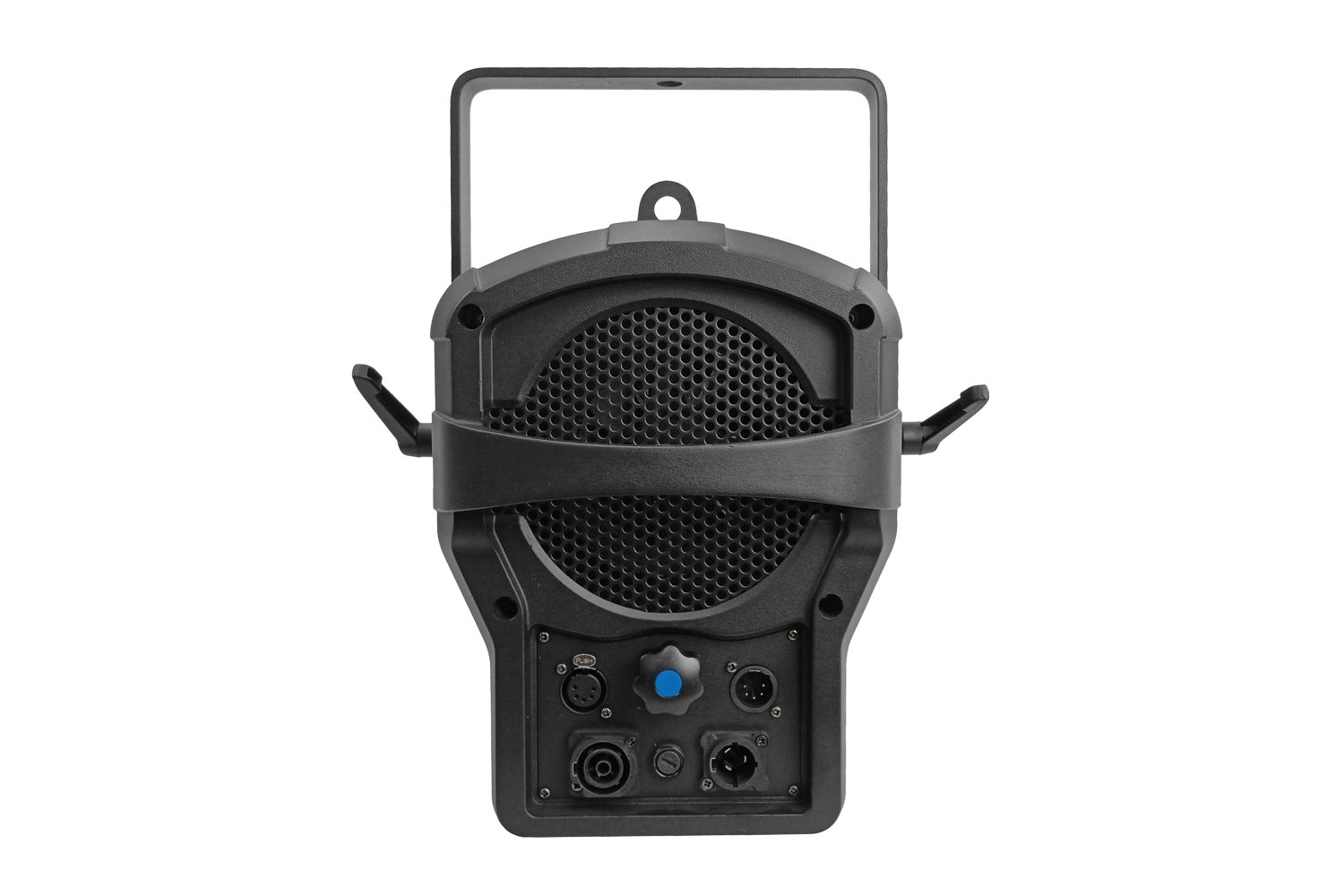

• Power Connection: True1 in/out

Control

• Operational Modes: DMX, RDM, Manual

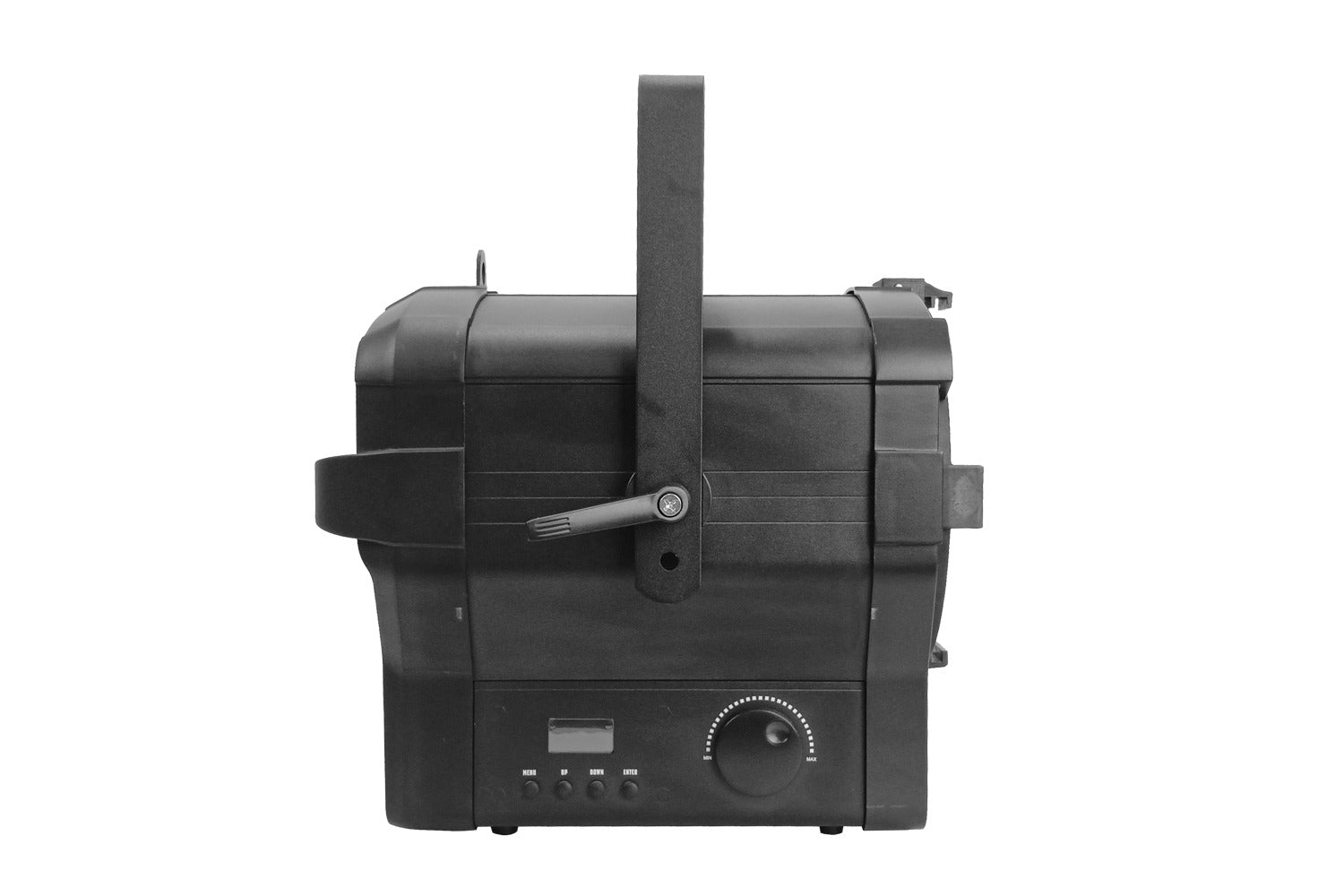

• Display: 4-button TFT-LCD control panel
• Control Protocol: DMX512
• Control Interface: 5 pin XLR - in/out
• DMX Channels: 1CH /  2CH / 4CH / 5CH / 9CH / 13CH / 9H-CH optional

Housing

• Housing Materials: Die-cast aluminum, matte black finish
• Tilt angle: ±90°
• Ambient environment: -10℃～40℃
• Cooling: Silent fan, intelligent automatic temperature regulation system
• Net Weight: 8.2kg

• IP rate: IP20

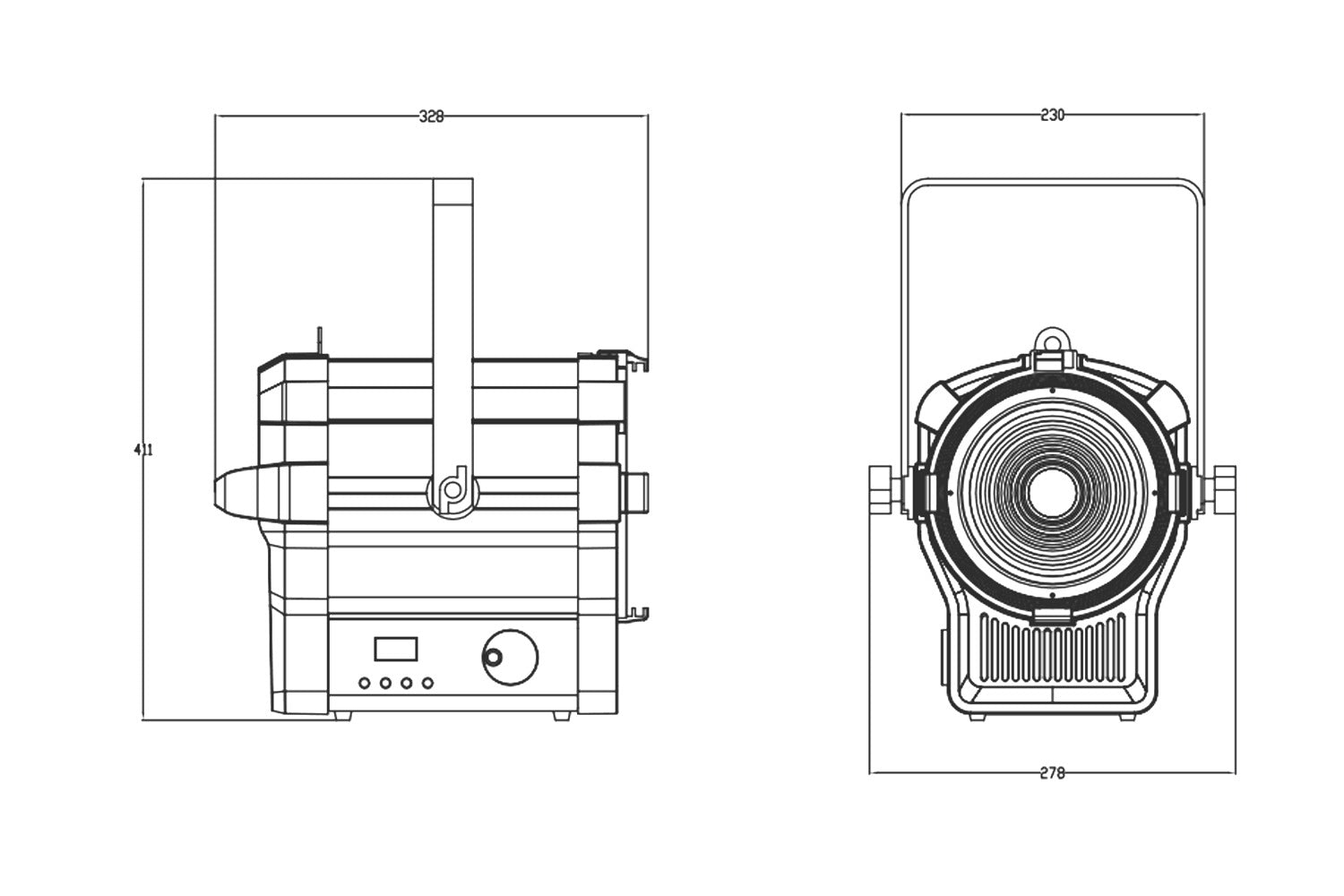

• Overall Size: 328 x 411 x 278mm

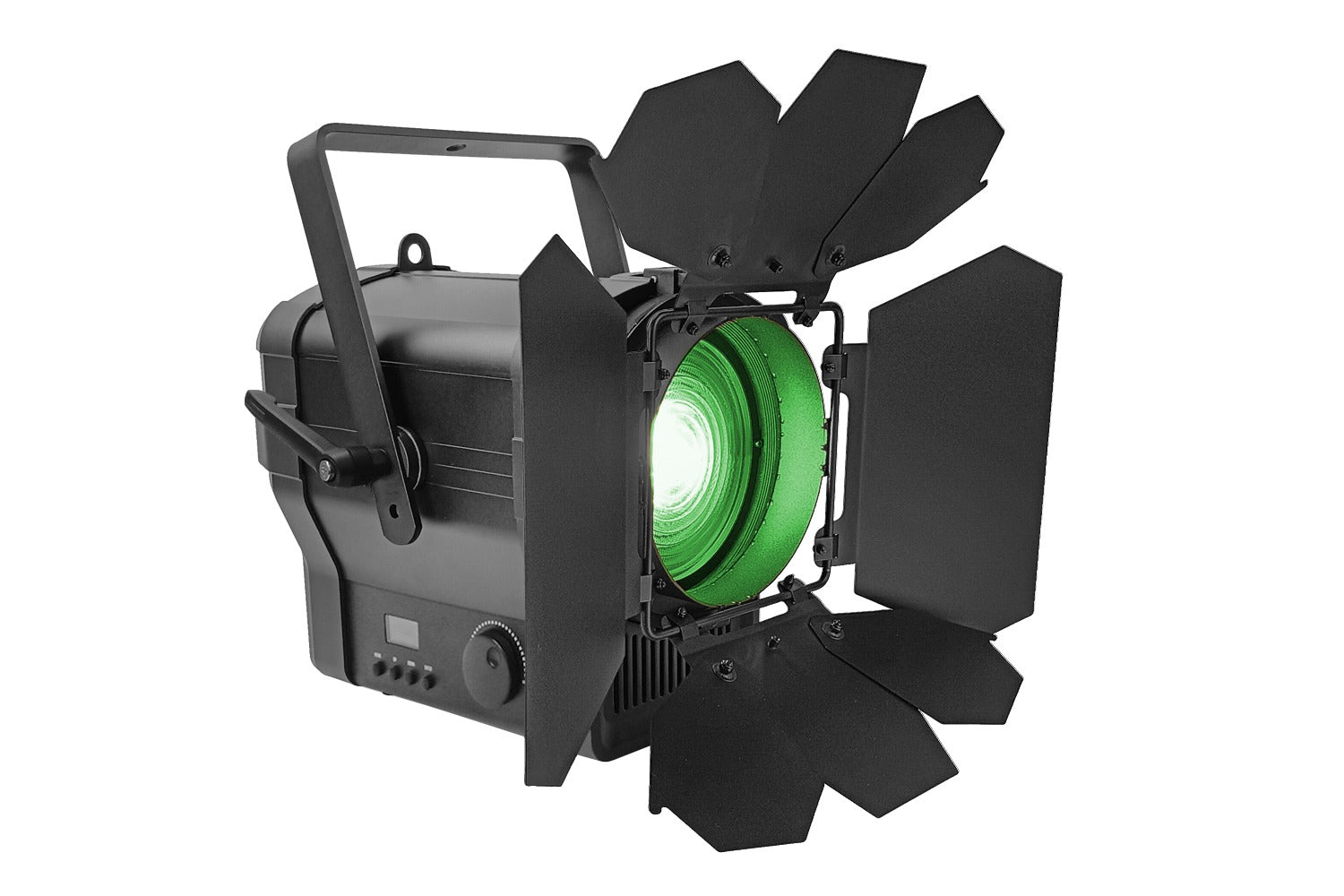

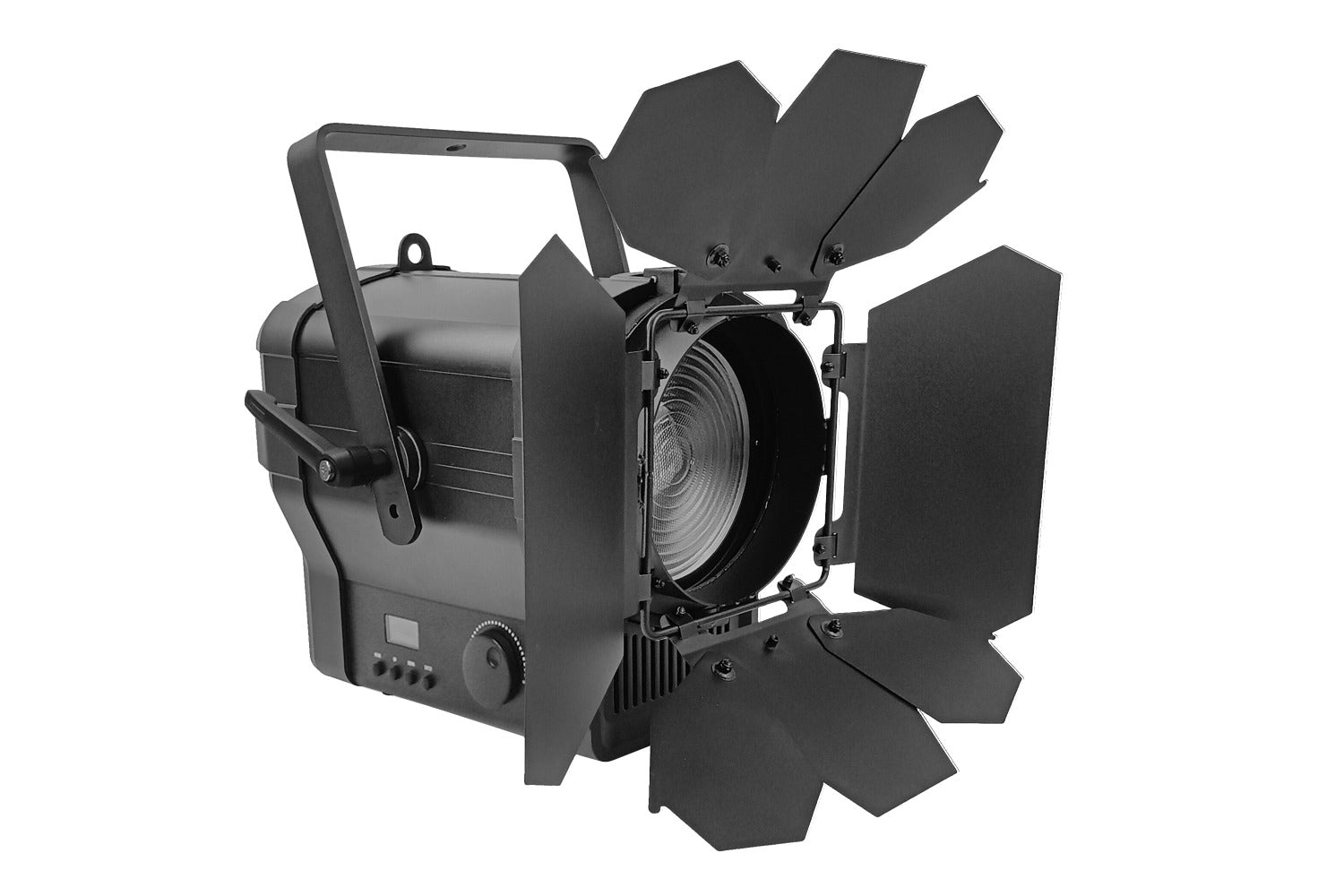

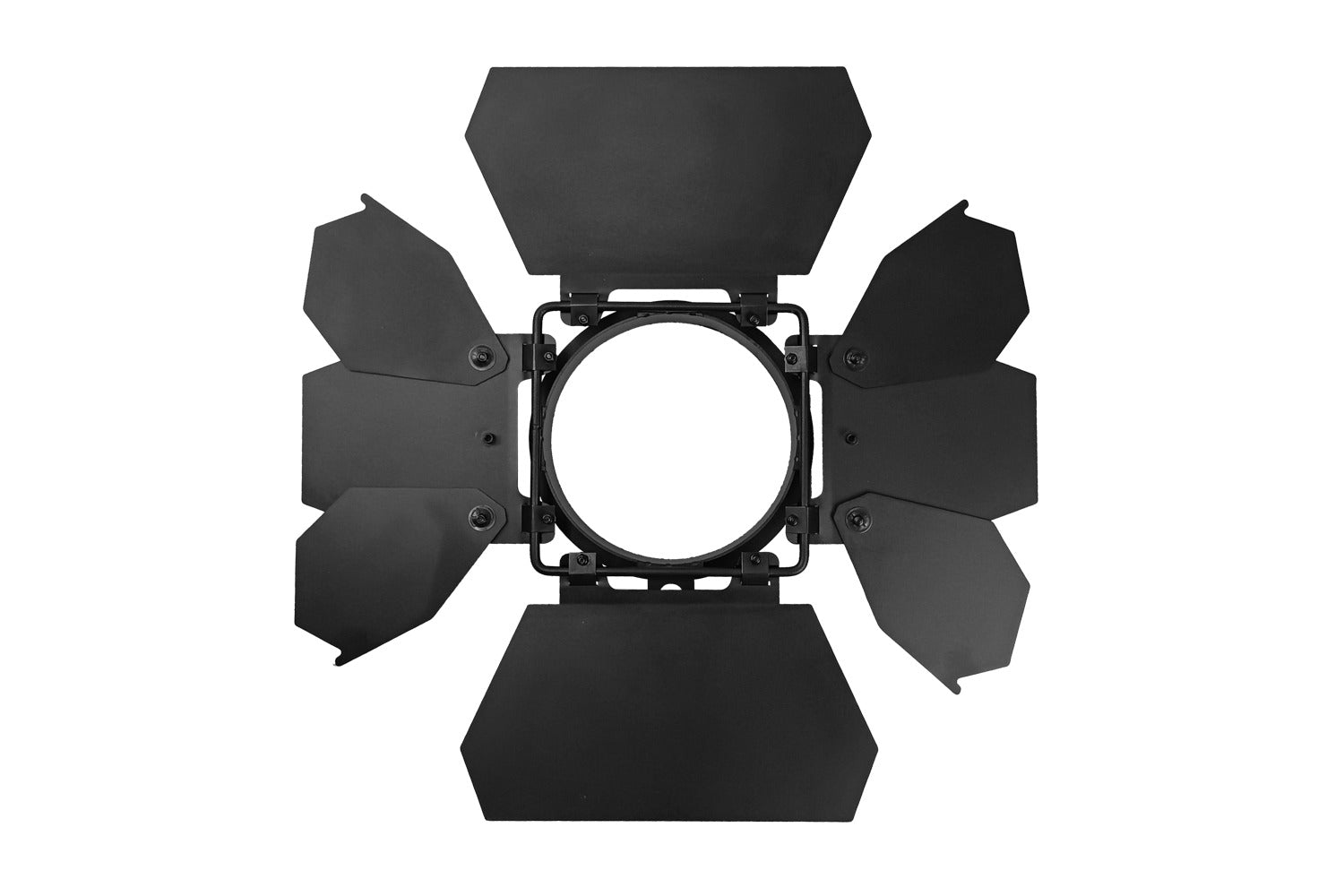

• 8-Leaf Barndoor included

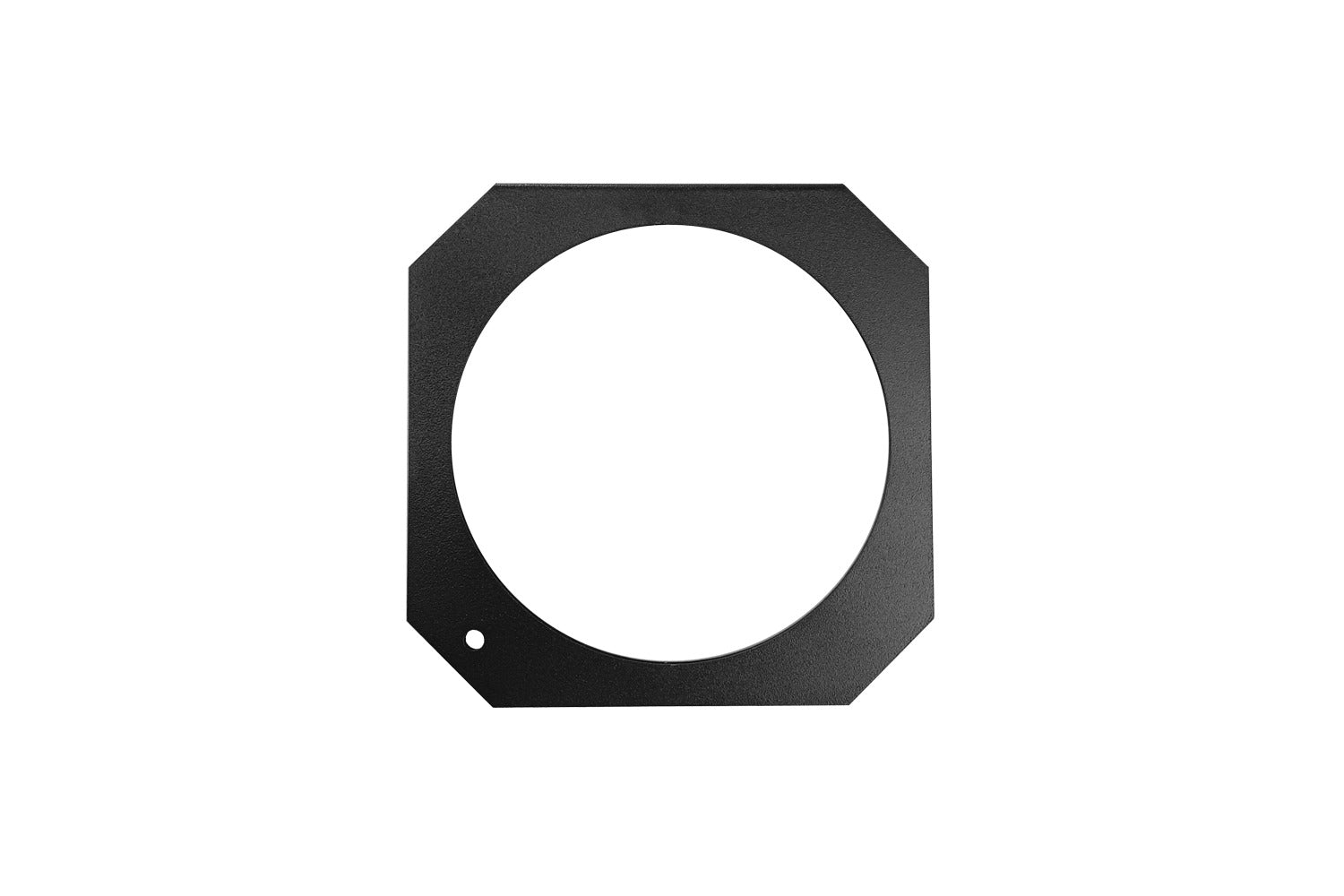

• Gel Frame included

Download user manual

Warranty: 3 years
