Description

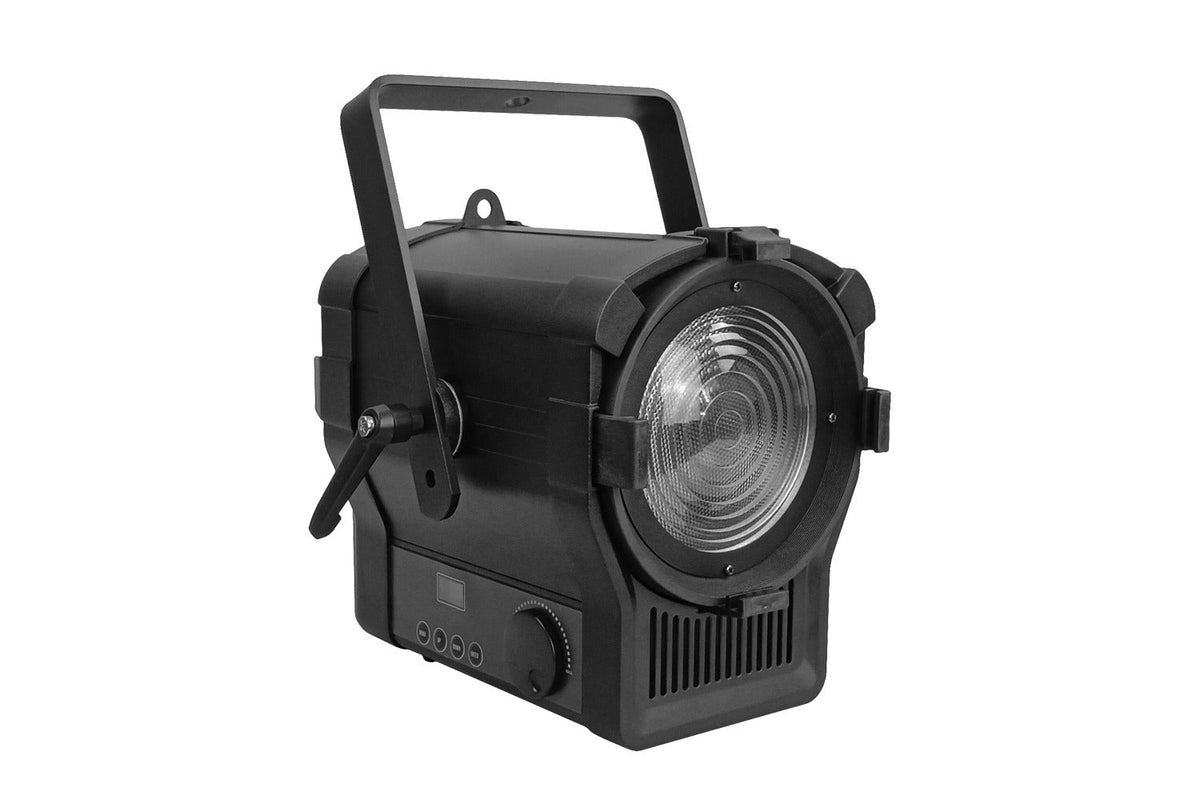

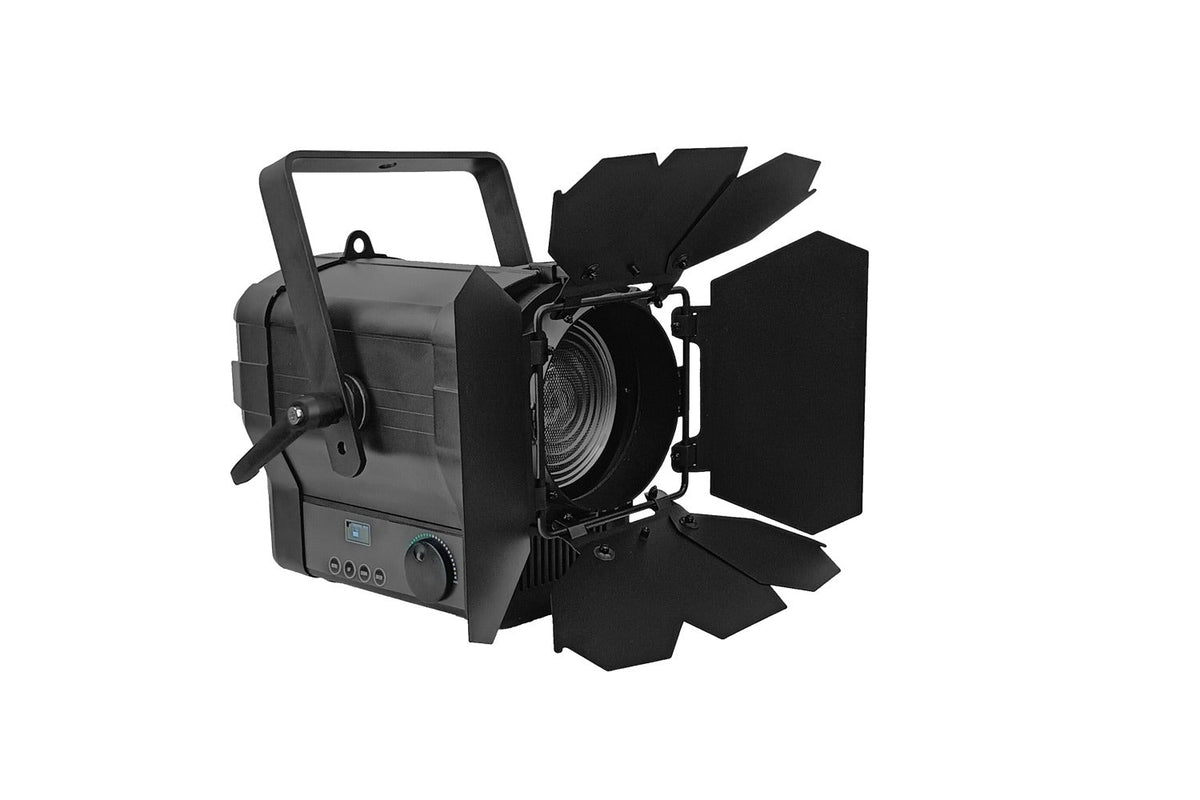

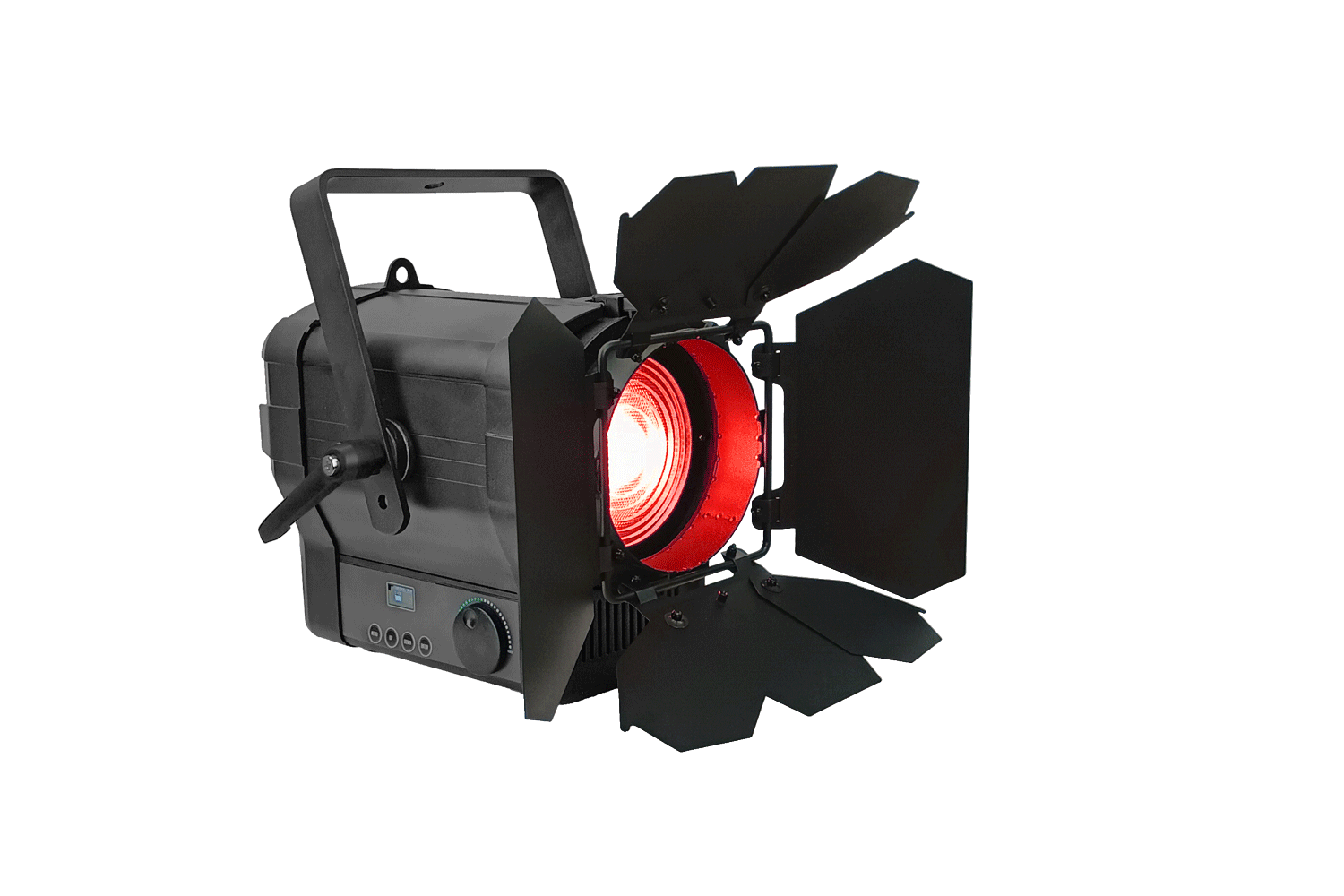

Event Lighting Opera Compact Series Fresnel with 100W COB RGBW LED Engine, 22°-62° Manual Zoom, True1 in/out, 5 pin DMX in/out, includes gel frame & 8 leaf barn door
The 1 Channel Mode allows you to tune the Colour Temperature to match existing fixtures an utilise a single channel dimmer for ease-of-use.

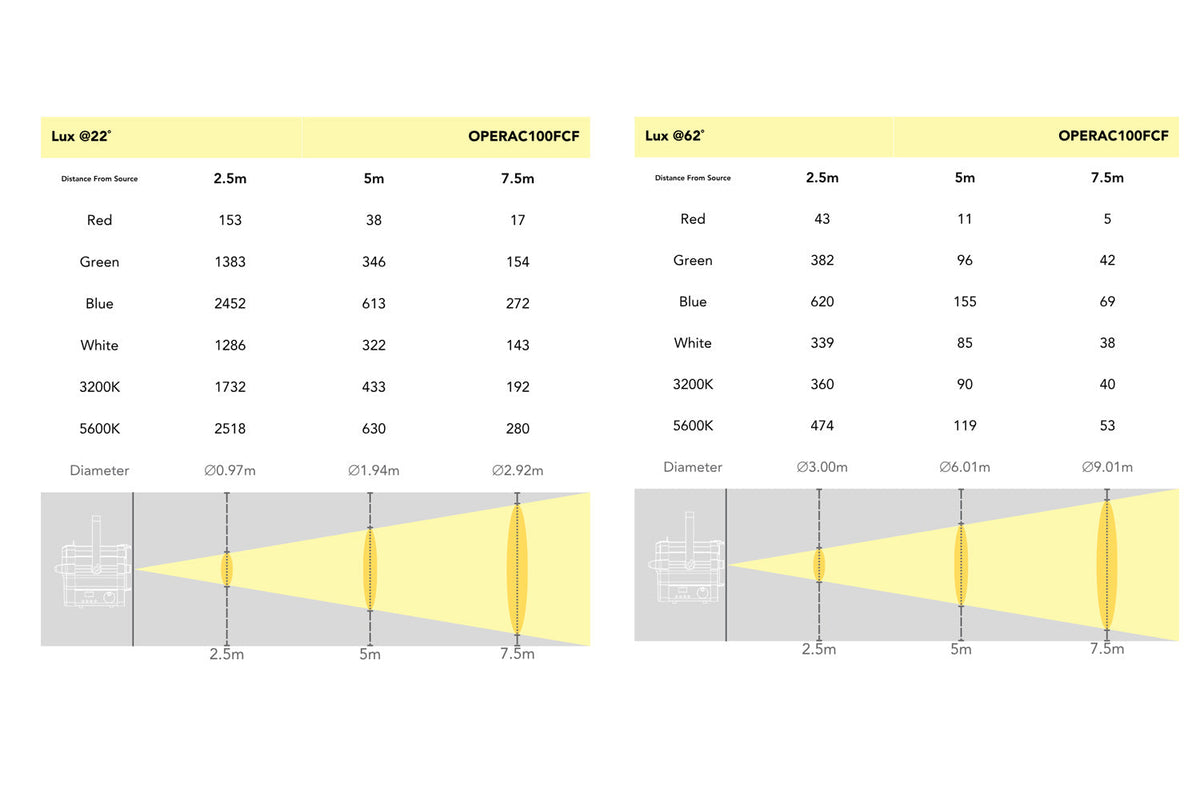

Photometrics
- Light Source: 100W COB RGBW LED
- CRI: 90
- Beam Angle: 22°~62°
- LED Lifespan: 50,000 hours
Effects
- Dimming: 16 bits 0-100%,
- Zoom: Manual, 22°~62°

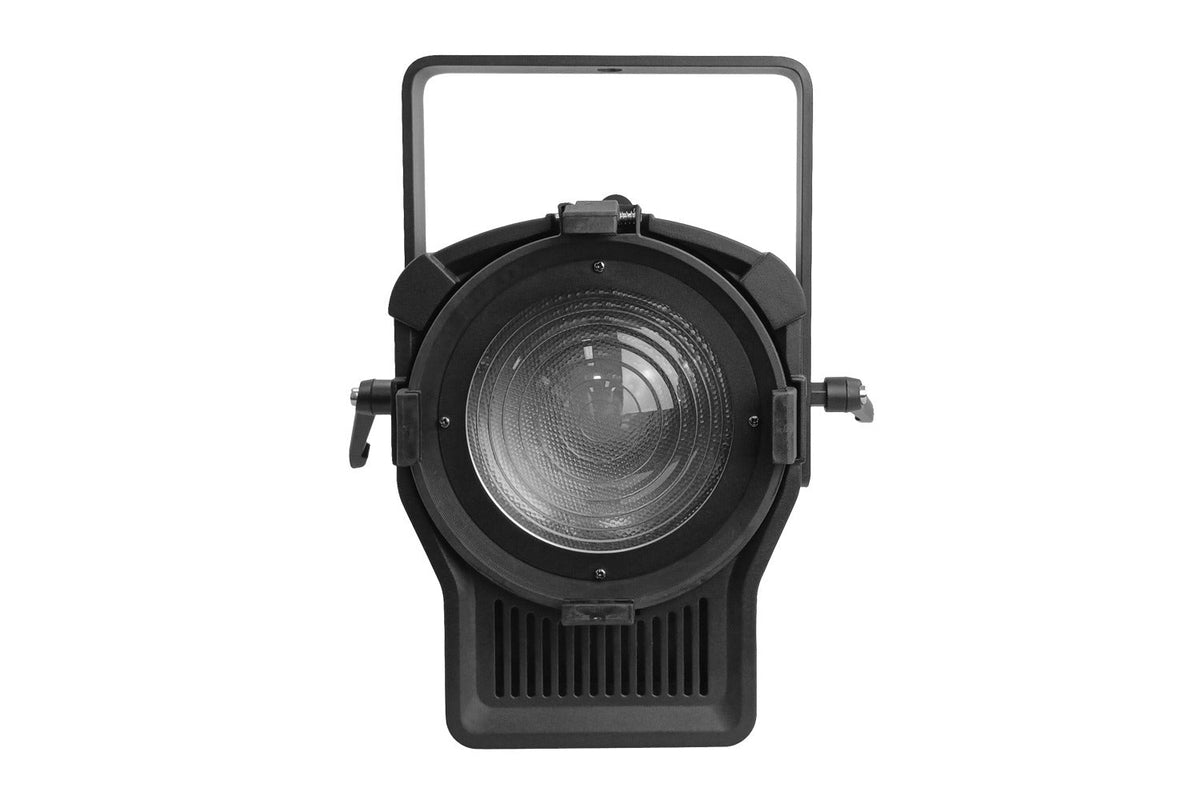

- Optical system: Glass lens set+ 120 mm Fresnel lens
Power
- Power Supply: 100~240V AC, 50/60Hz, 100W
- Power Connection: True1 in/out
Control
- Operational Modes: DMX, RDM, Manual

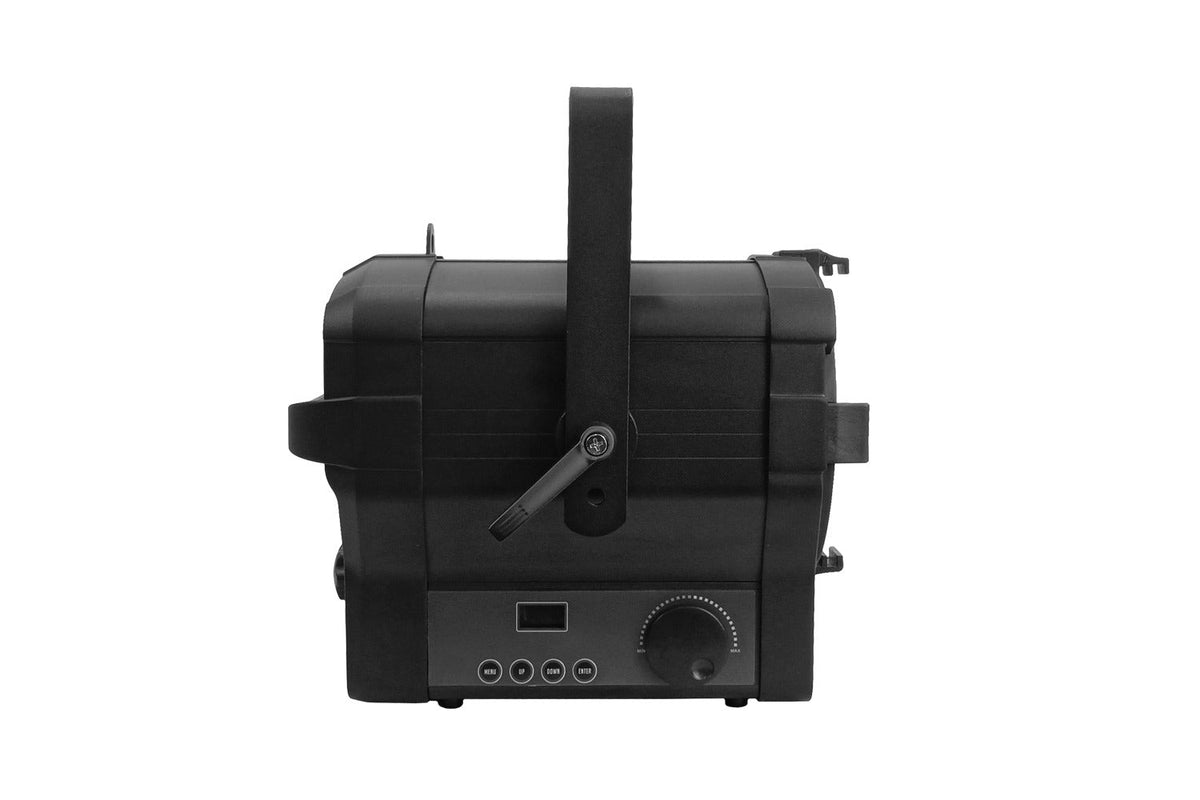

- Display: 4-button TFT-LCD control panel
- Control Protocol: DMX512

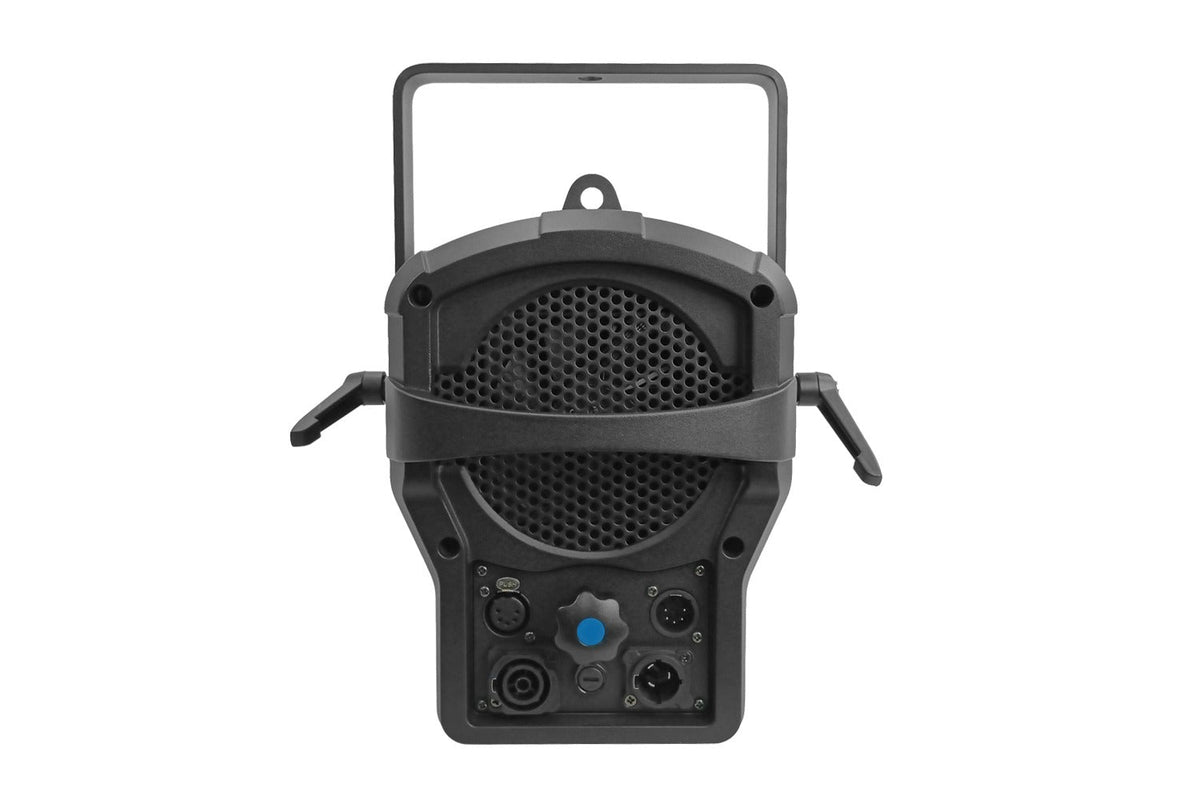

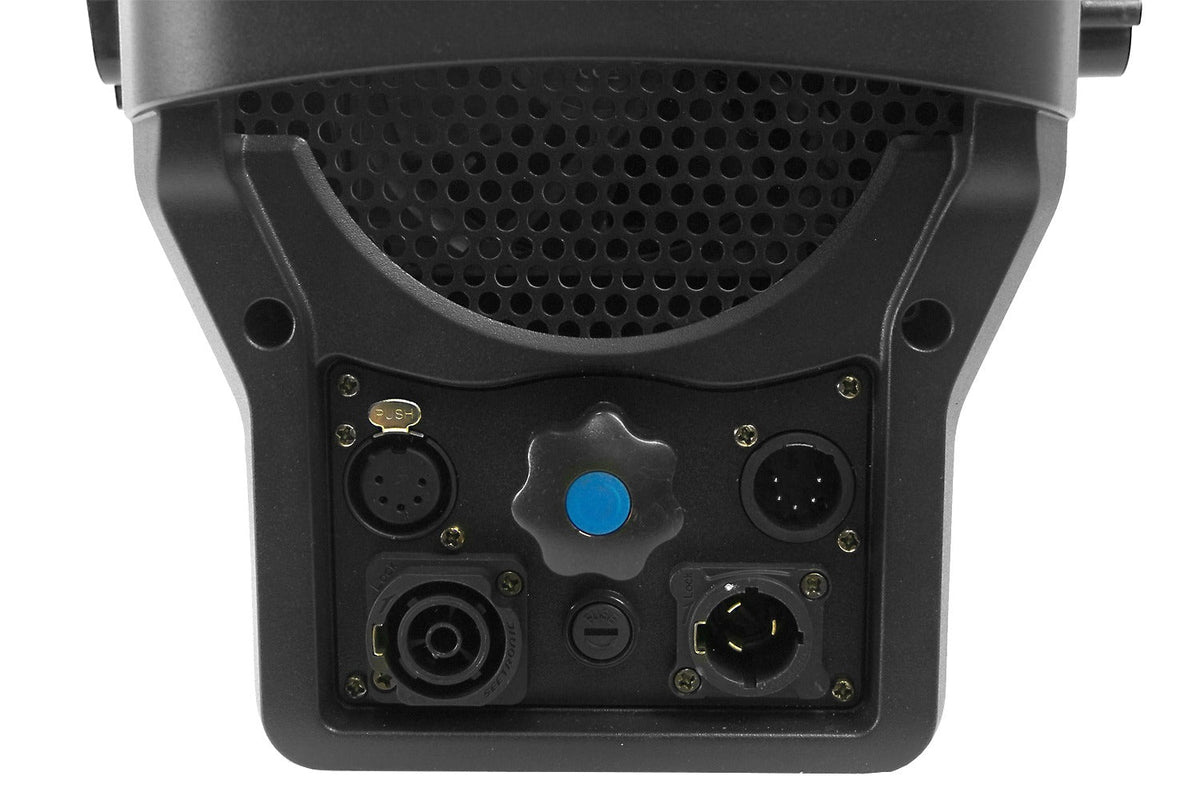

- Control Interface: 5 pin XLR - in/out
- DMX Channels: 1-CH / 2-CH / 4-CH / 5-CH / 7-CH / 9-CH / 13-CH / 9H-CH optional
Housing
- Housing Materials: Die-cast aluminium, matte black finish
- Tilt angle: ±90°
- Ambient environment: -10℃～40℃
- Cooling: Silent fan, intelligent automatic temperature regulation system
- Net Weight: 6.7kg
- IP rate: IP20

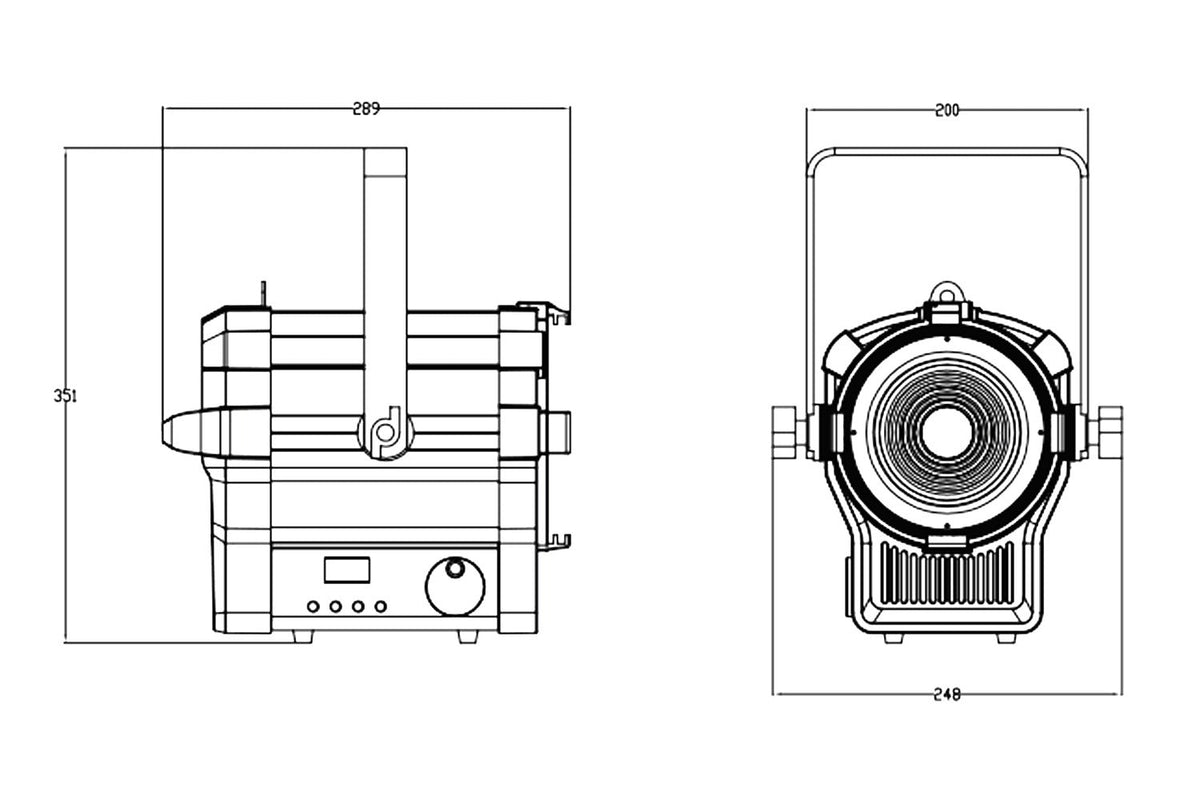

- Overall Size: 289 x 351 x 248mm

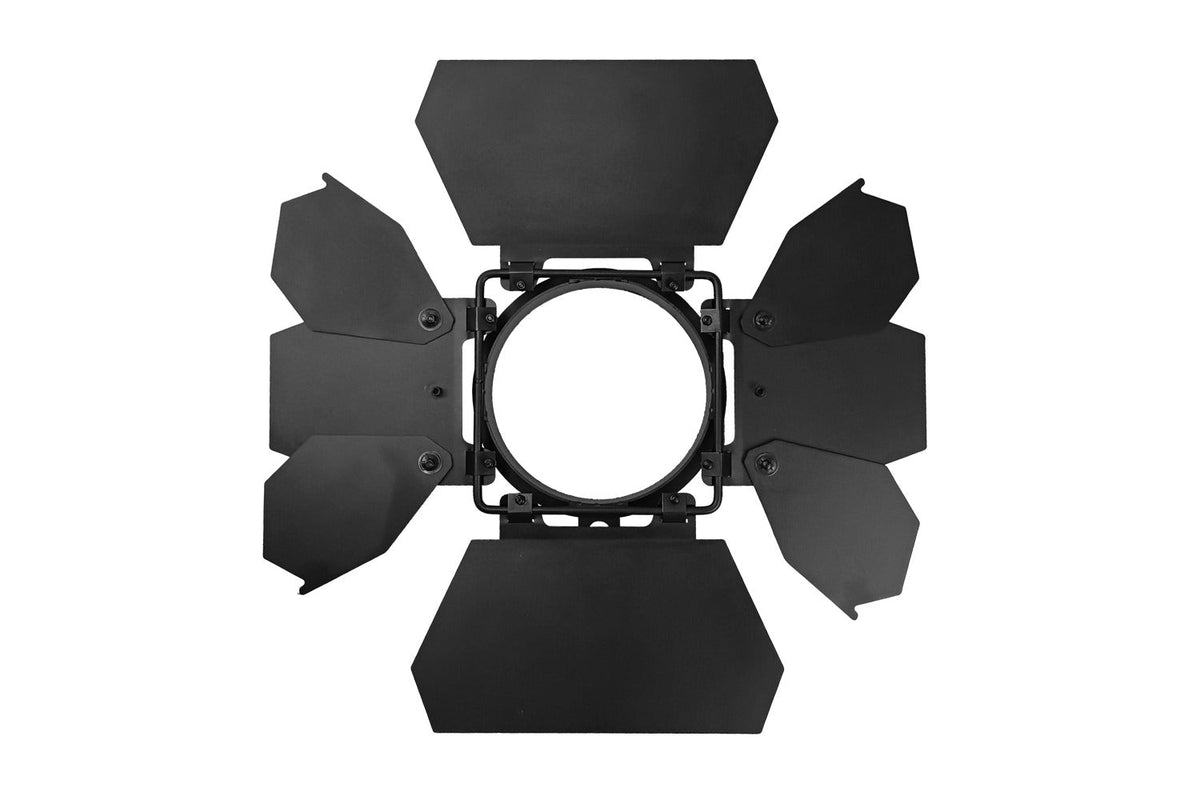

- 8-Leaf Barndoor included

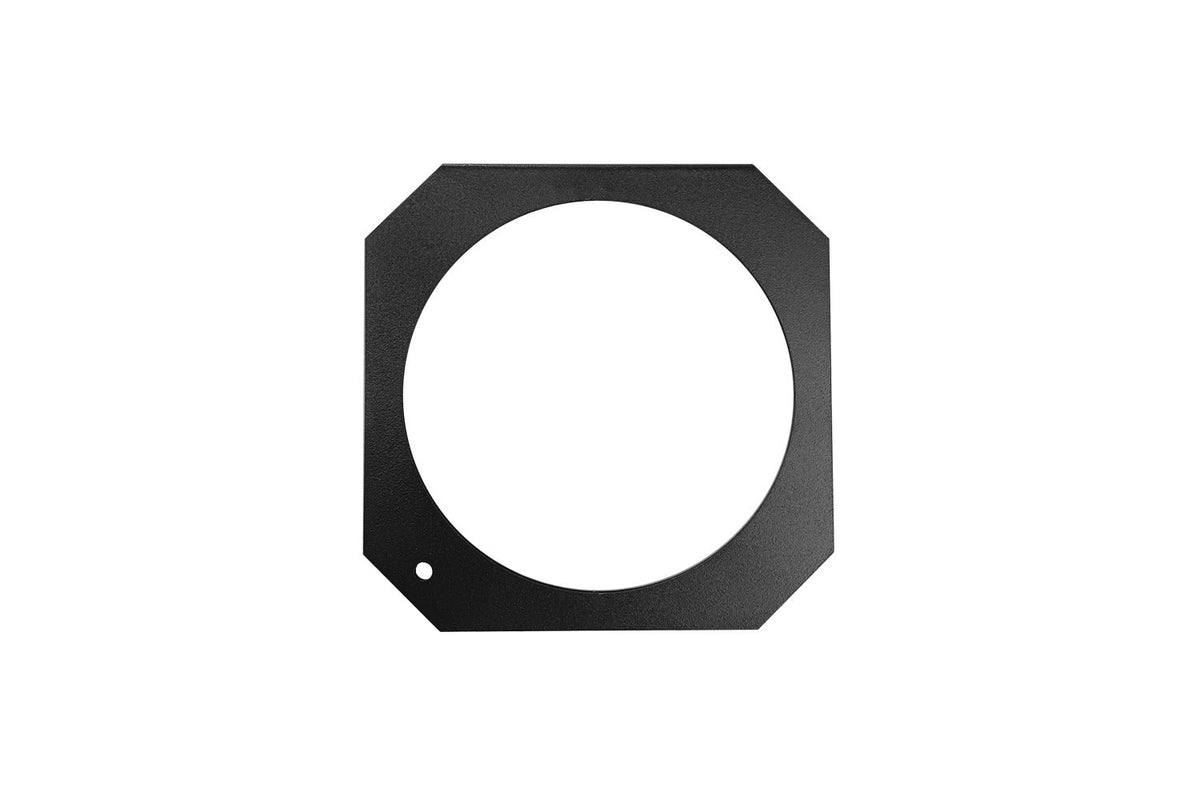

- Gel Frame included
Warranty: 3 years
