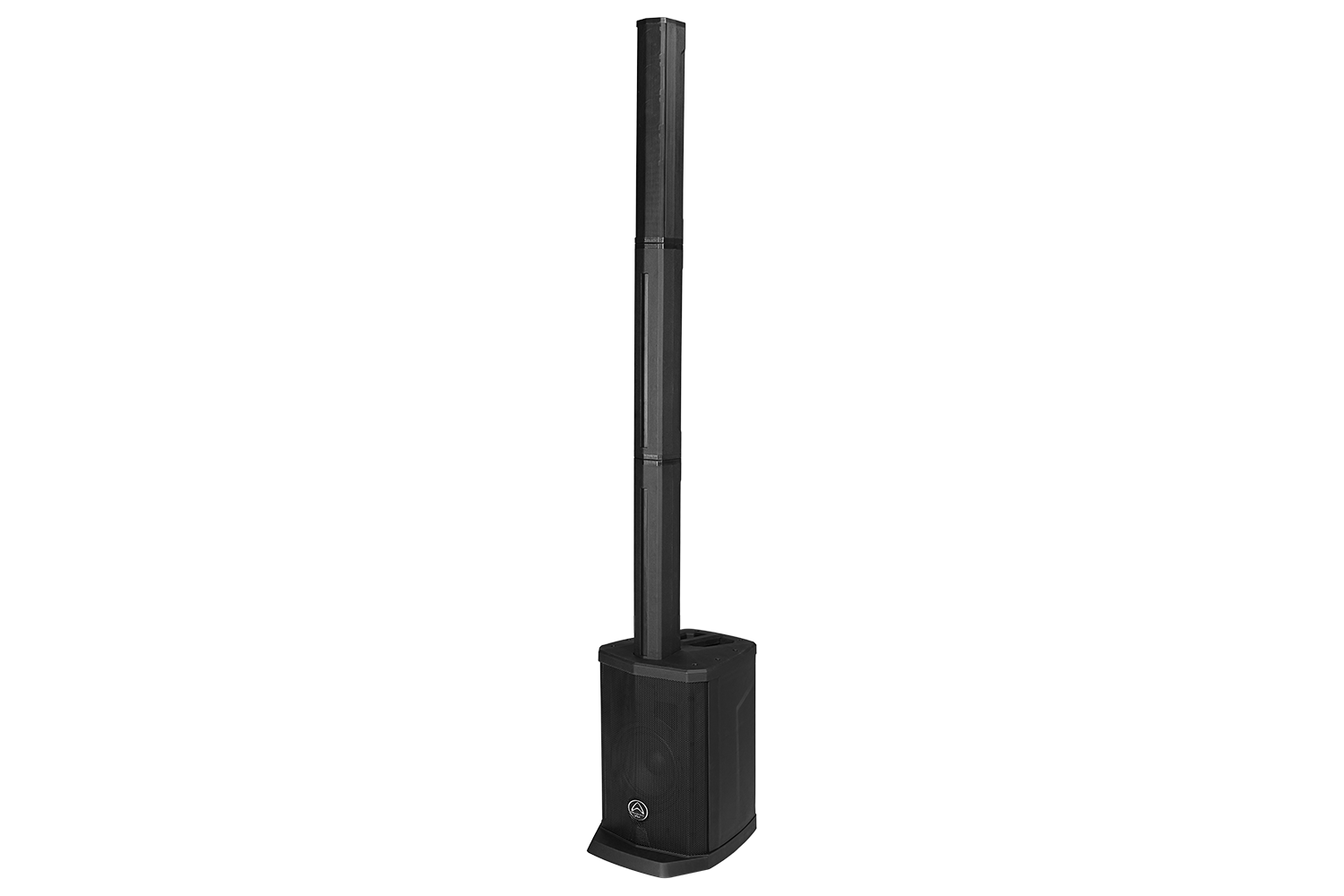

IS-48 ACTIVE ENTERTAINMENT SYSTEM
8” active sub with 4 x 2.5″ Full Range drivers
- 2 x LED Elements with 4 light modes (inc. ‘Off’)
- Bluetooth, SD and USB inputs
- TWS Pairing
- 2 x mic / 3 x line inputs
- IR Remote control
- Internal echo effect
- Easy setup and….easy pack away!

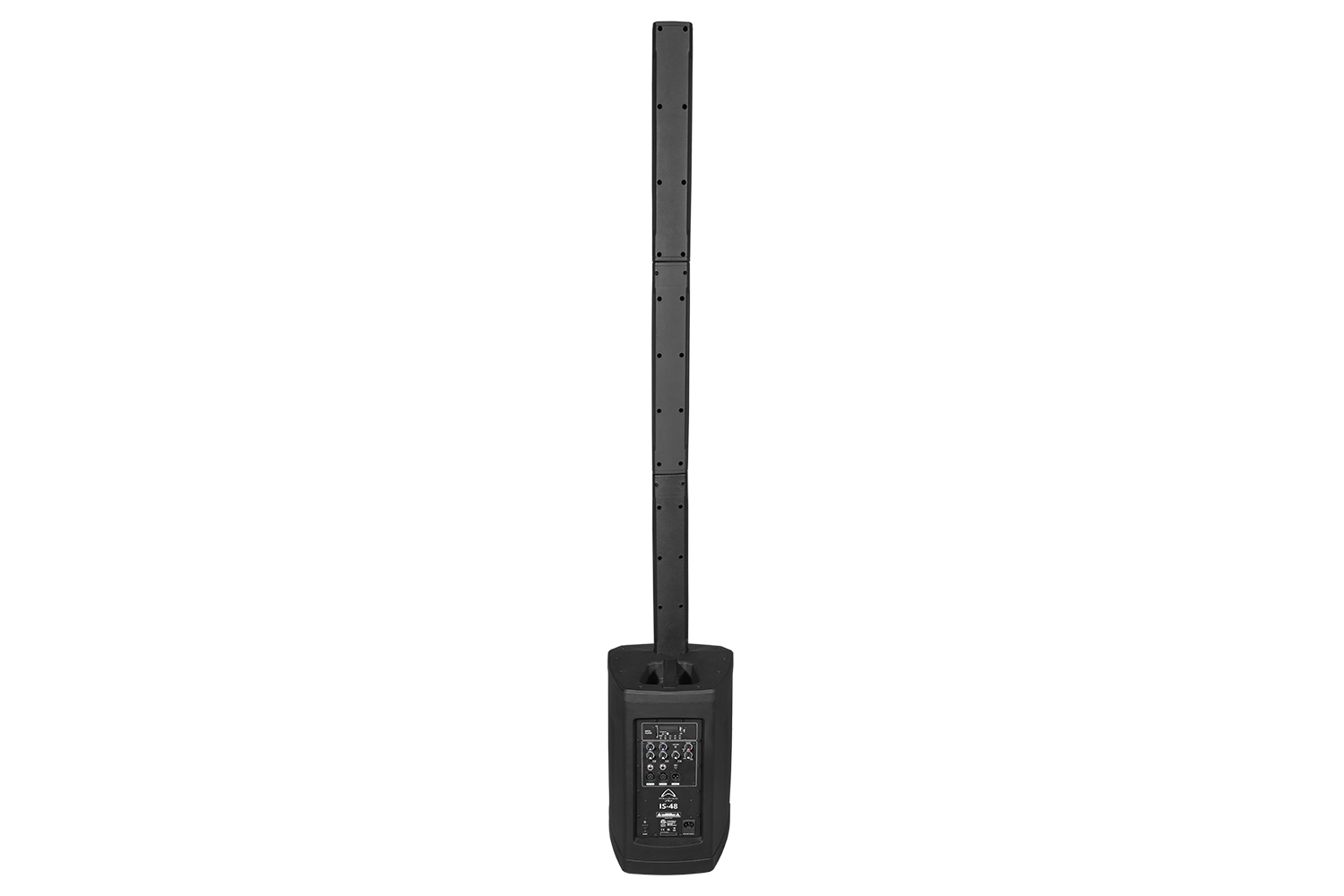

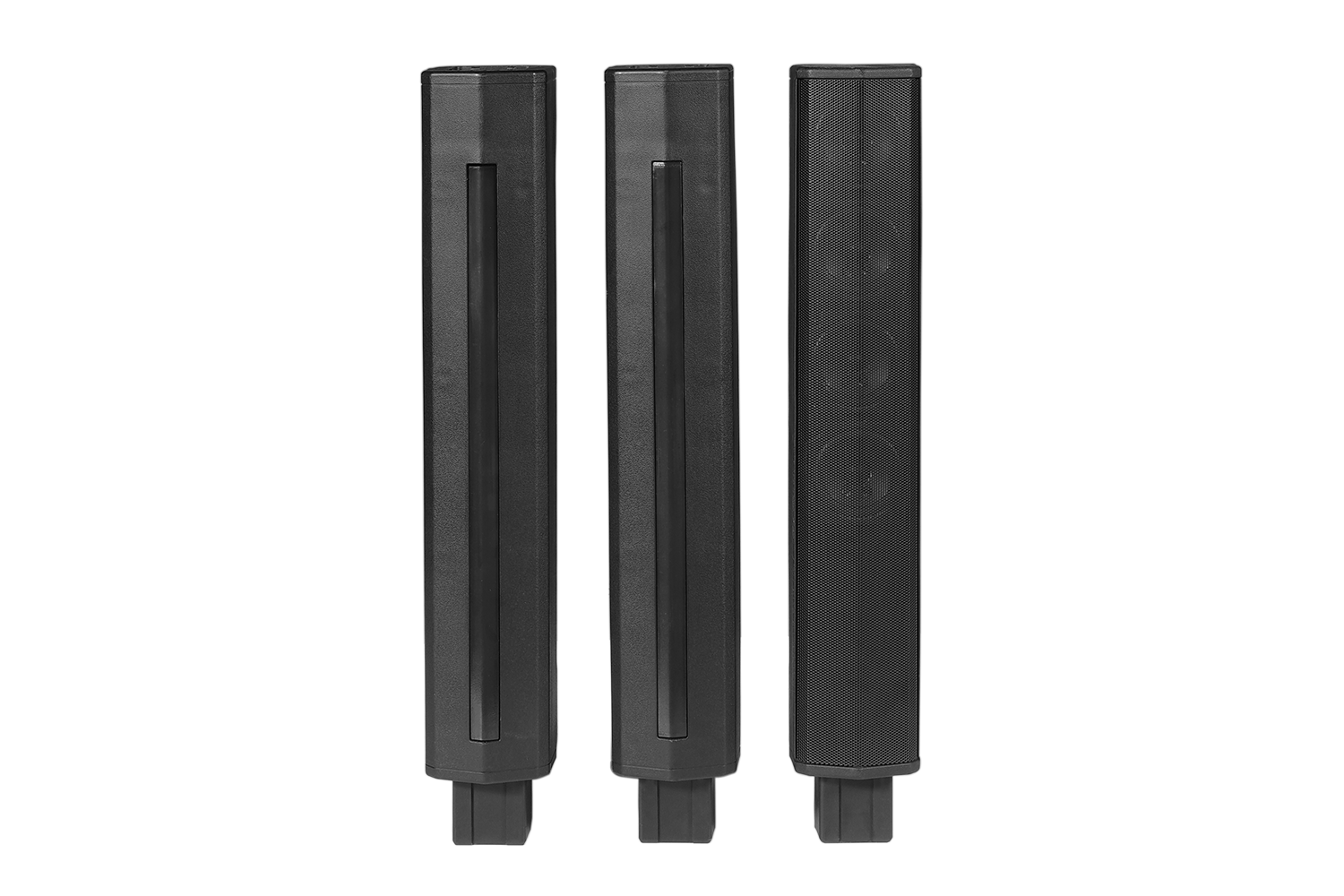

CONNECT THE COLUMNS

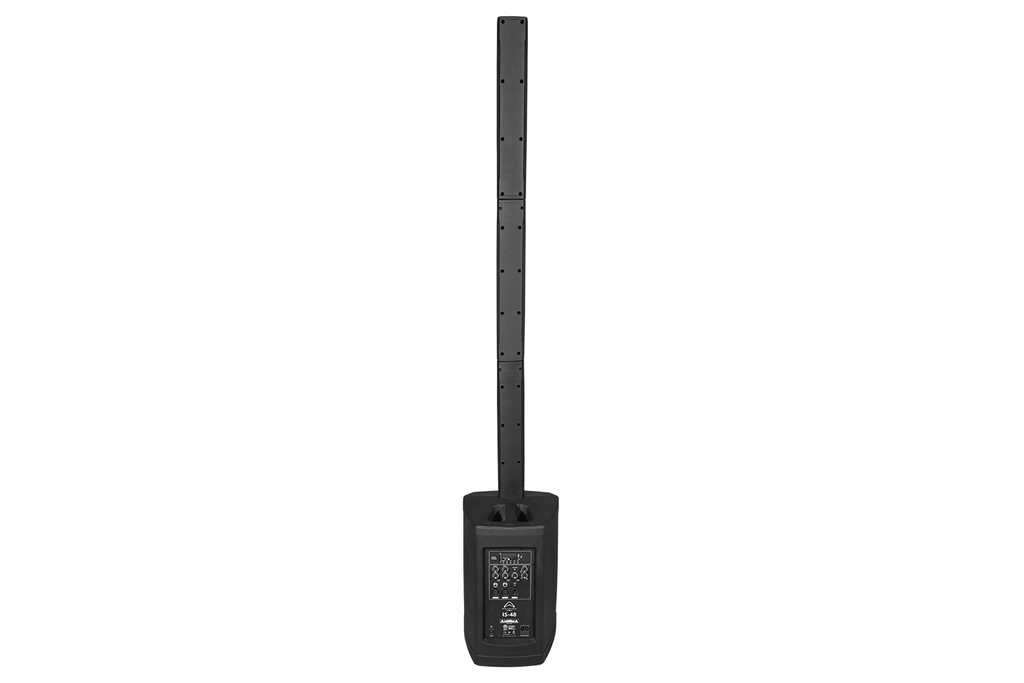

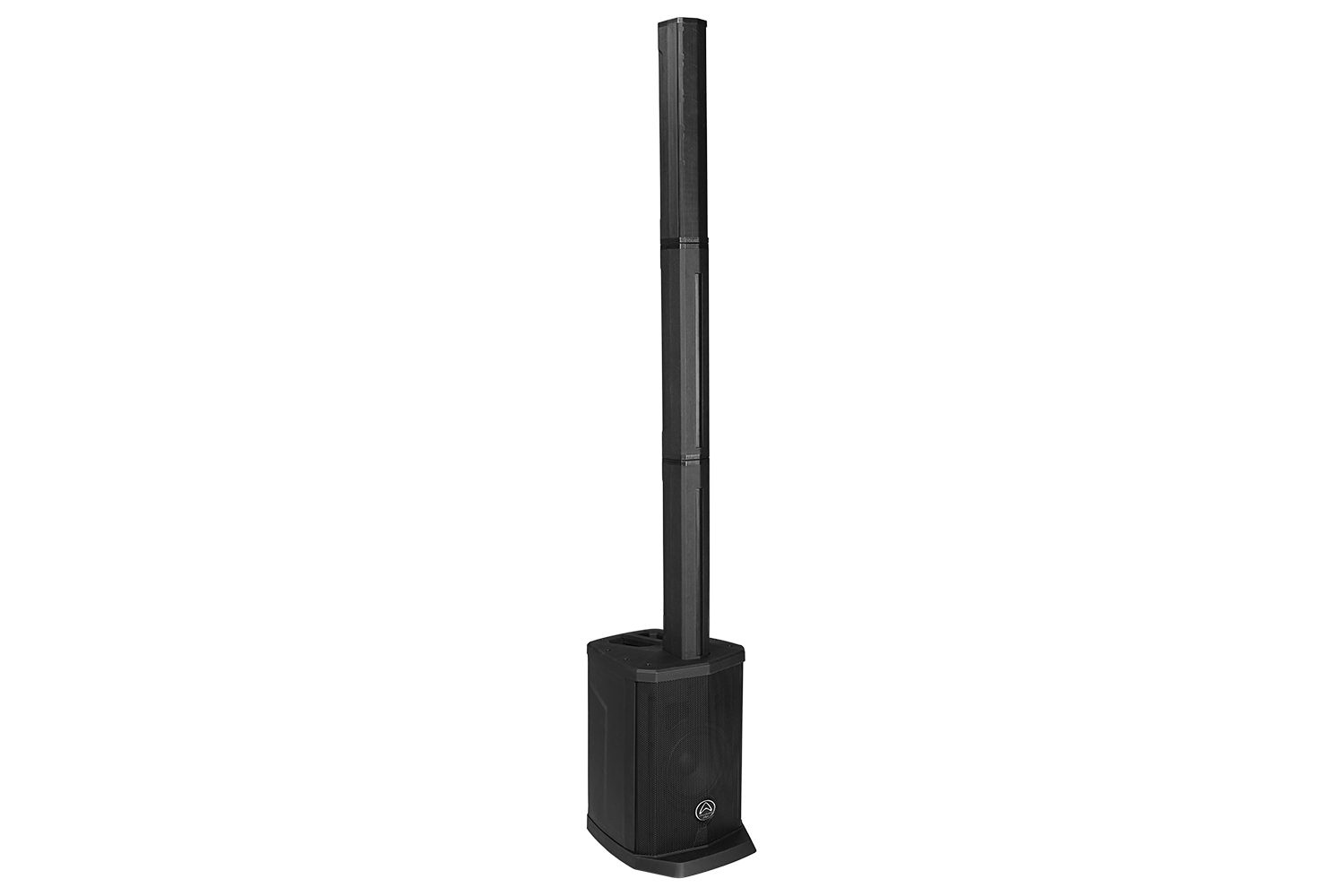

IS-48 uses a 3-section column design. Two of the 3 columns are used for the internal LED lighting. The third column houses 4 x Full Range drivers. The columns connect directly with inbuilt connectors. Easy to set up – easy to pack away!
SUBWOOFER ENGINE

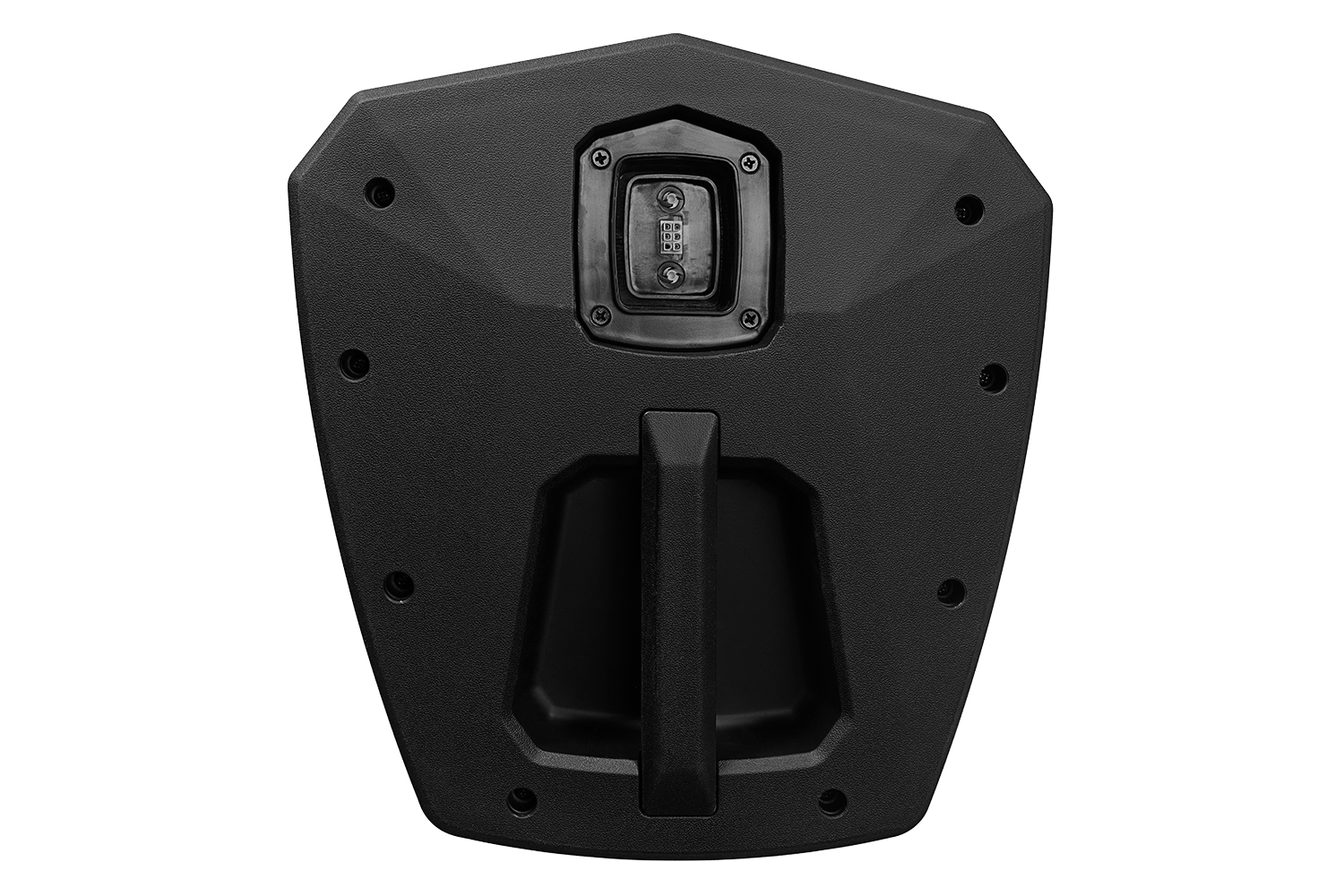

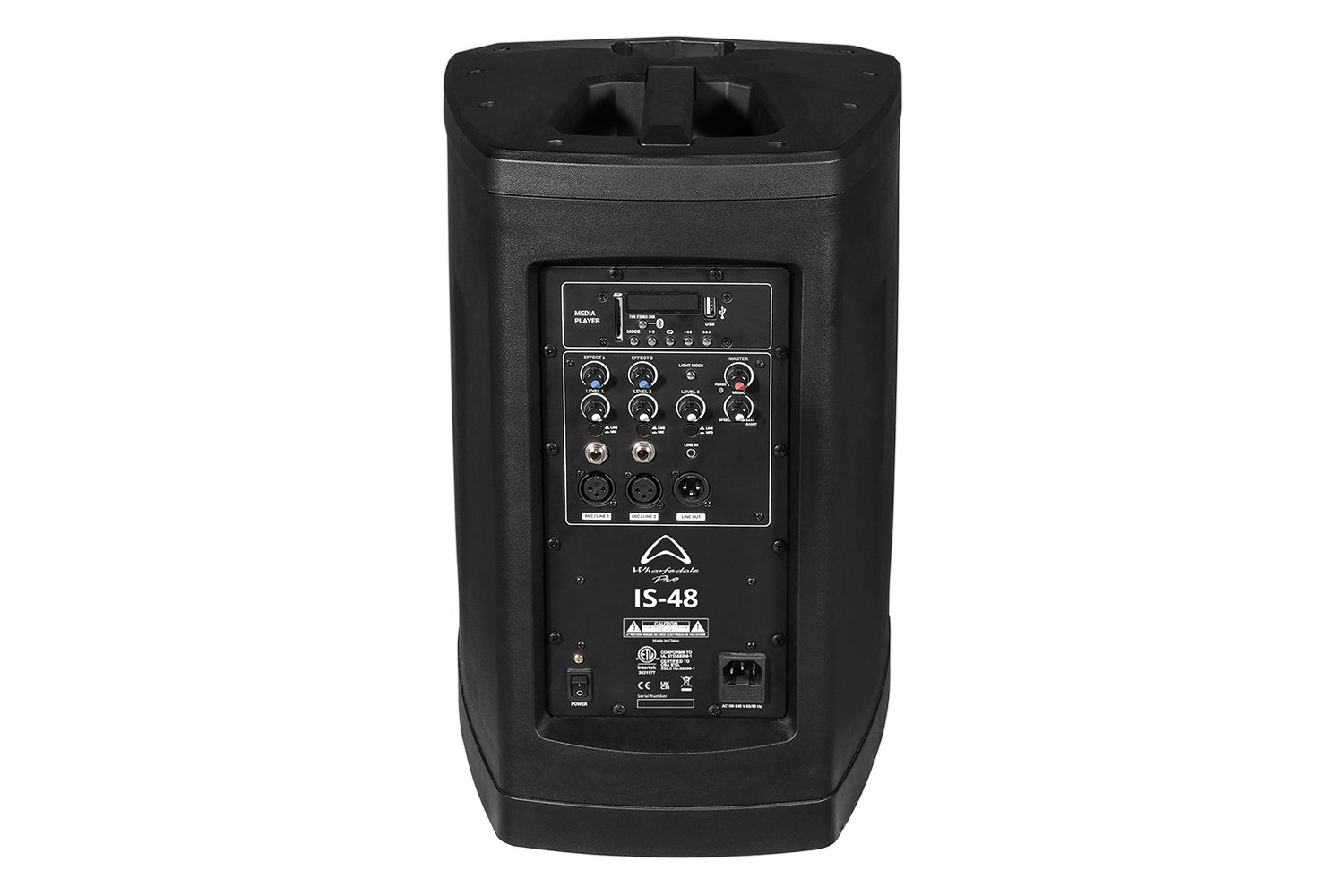

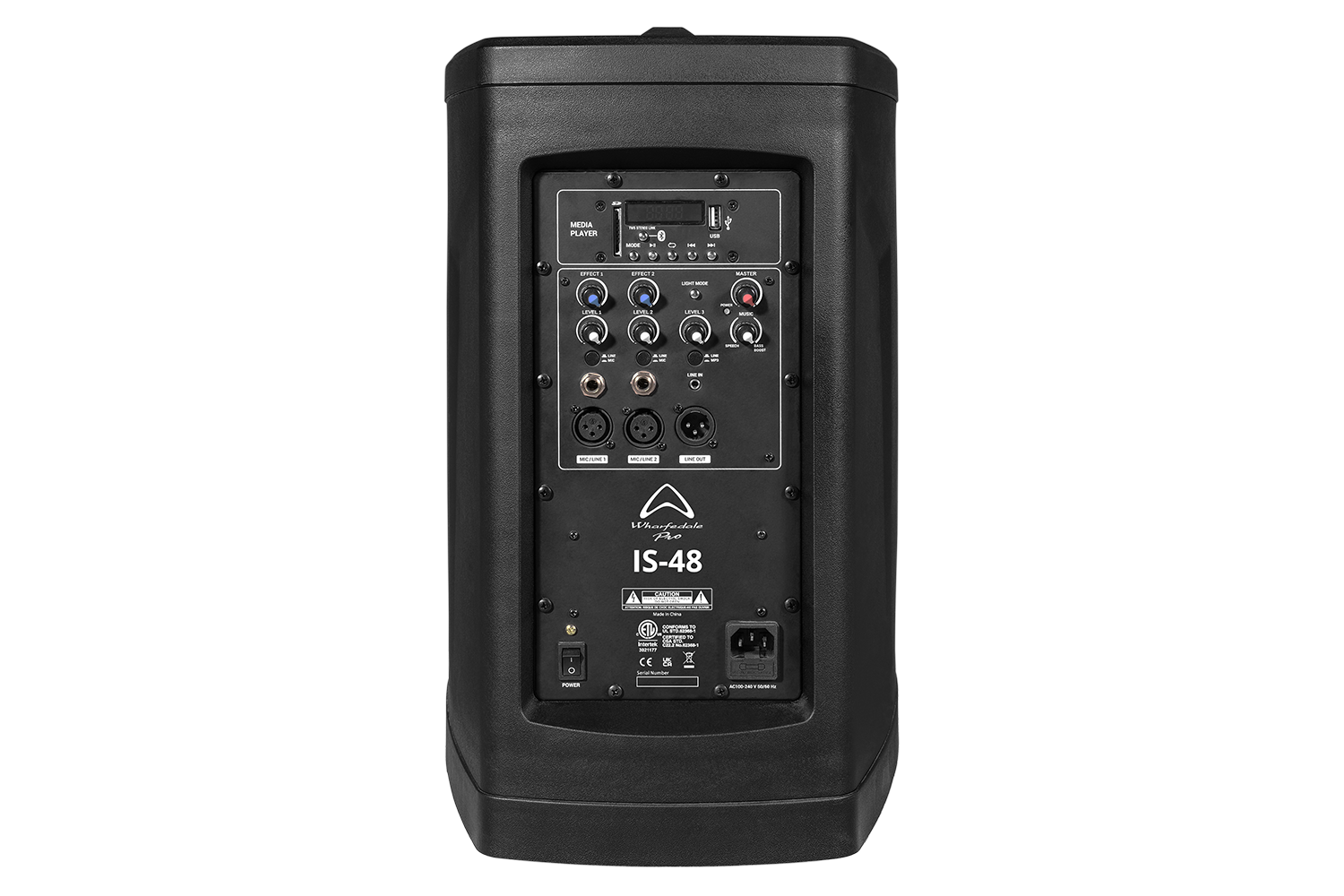

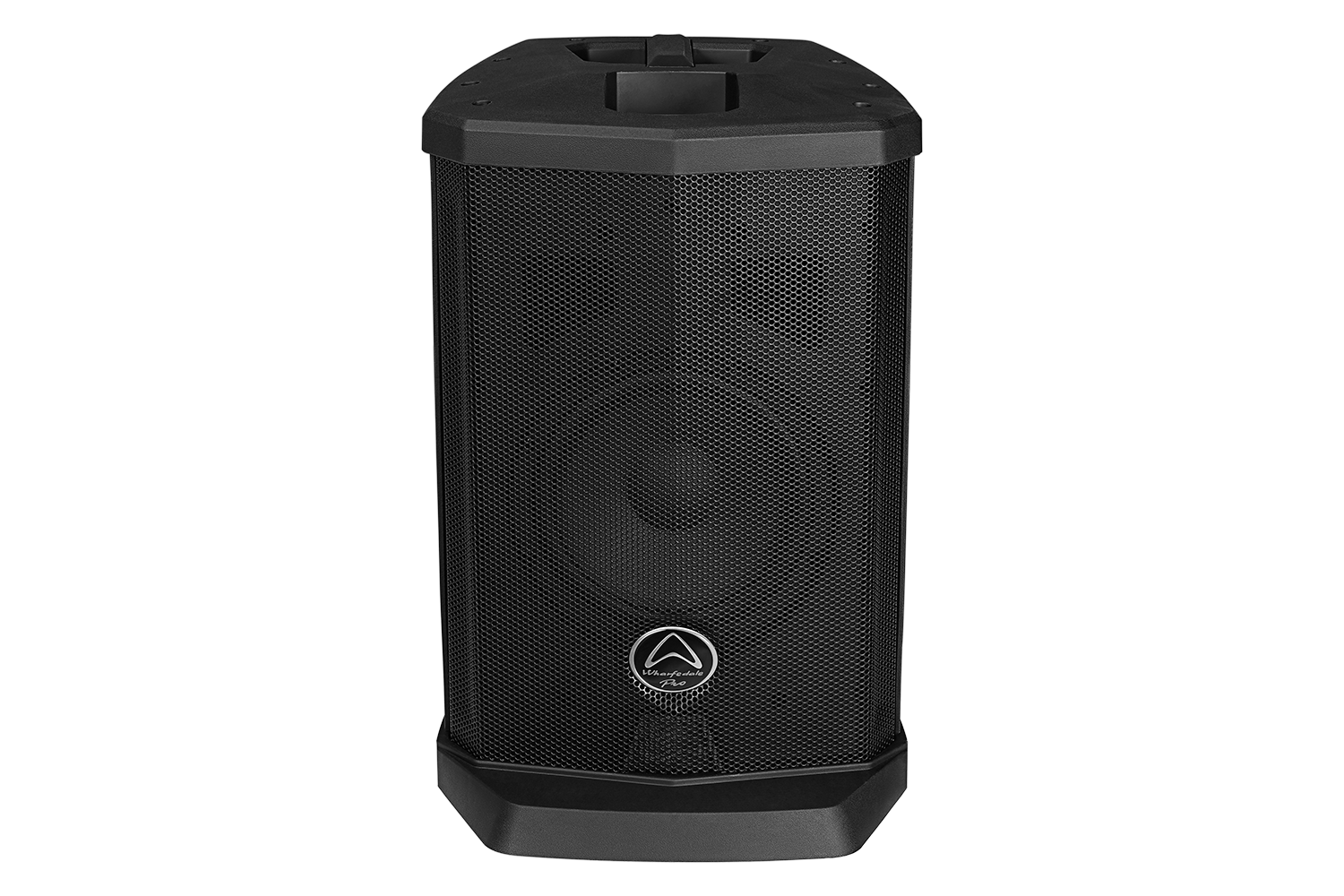

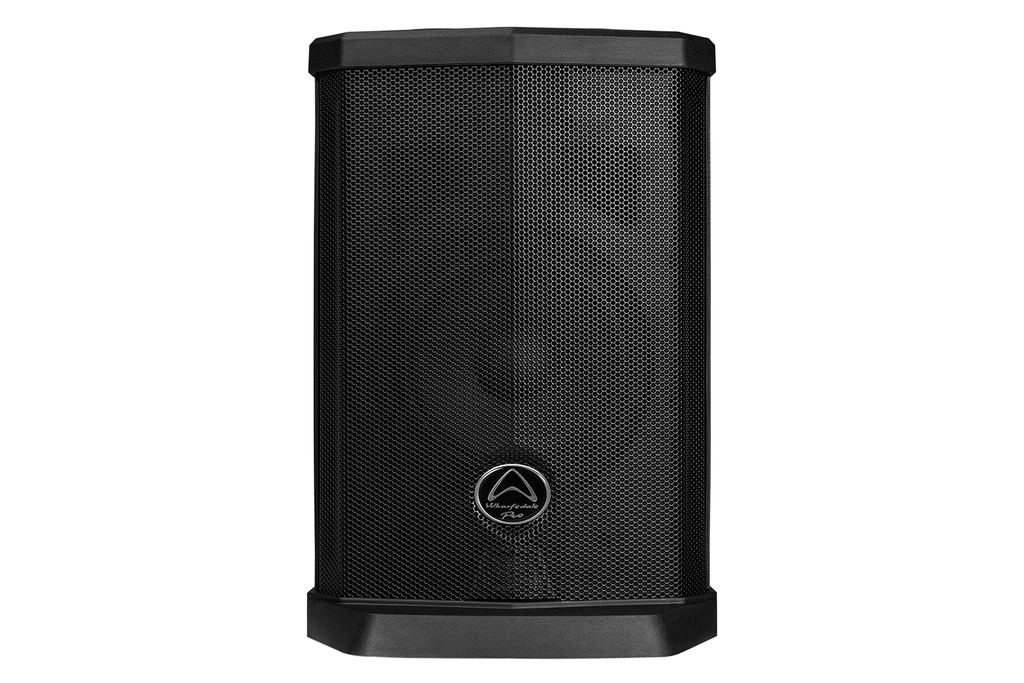

The “base” of the system (see what we did there?) is the 8.0″ active subwoofer. Along with providing the bass, it houses the power amplifiers and mixer control for the system. The columns connect directly to the top of this subwoofer meaning that no cables are required.
WIRELESS CONNECTIVITY
Bluetooth connection is simple. Just pair your mobile device with a single IS-48.
For a stereo system using 2 units of IS-48, the TWS mode allows for wireless stereo pairing.
Talking of wireless control…..
The IS-48 comes with a handy IR remote control too giving control over the internal media centre.

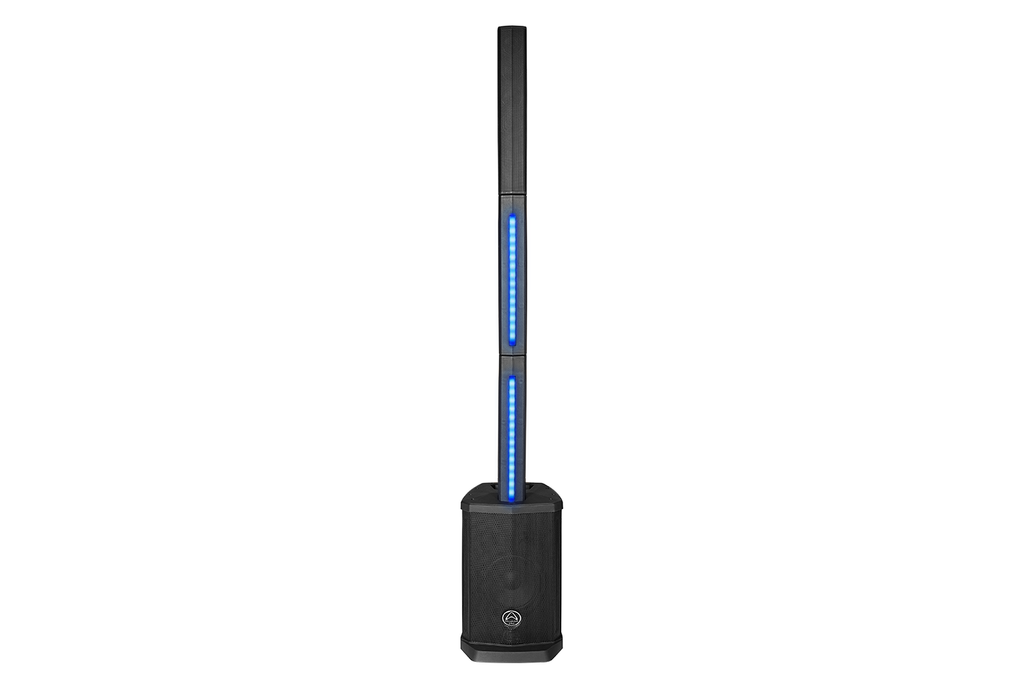

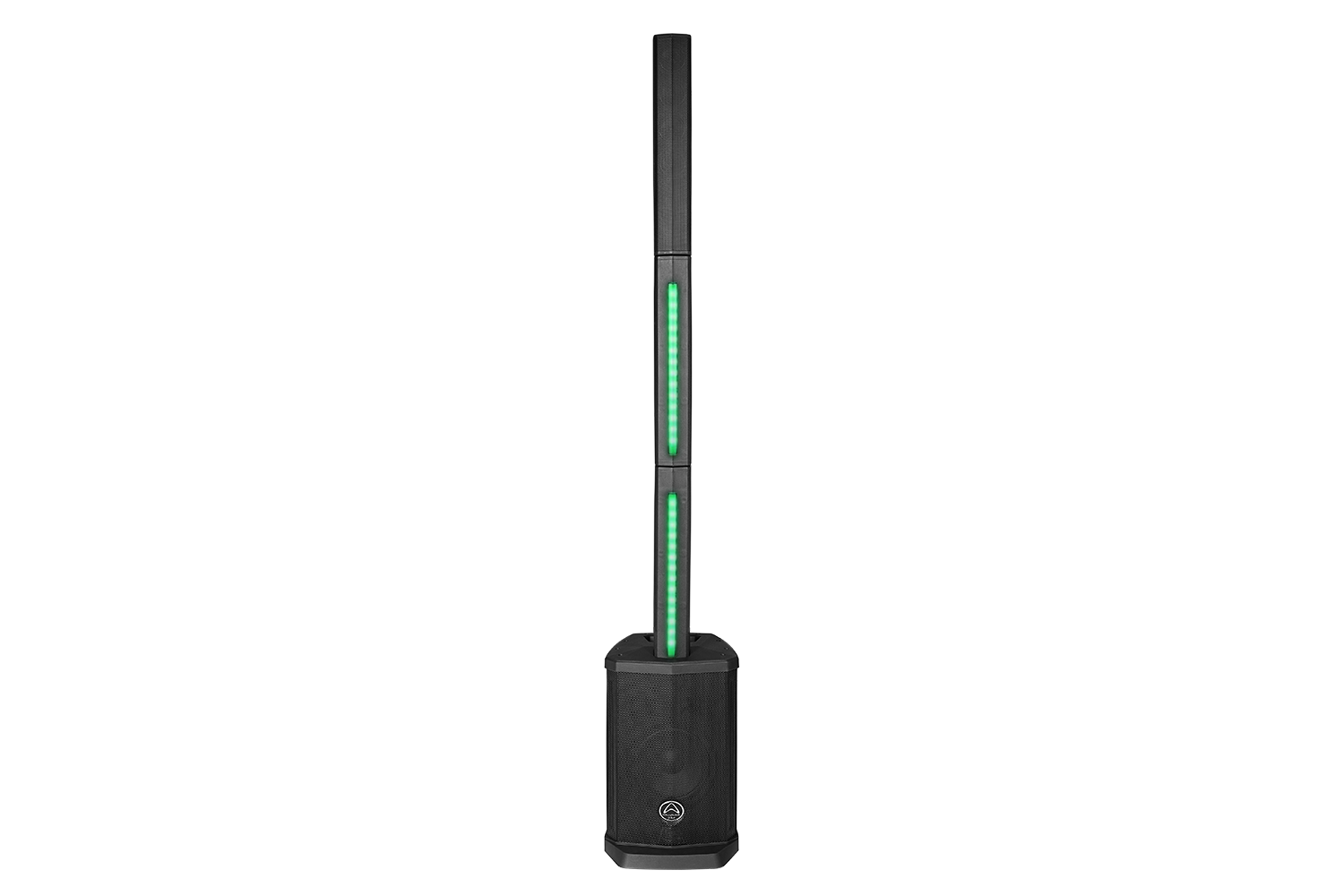

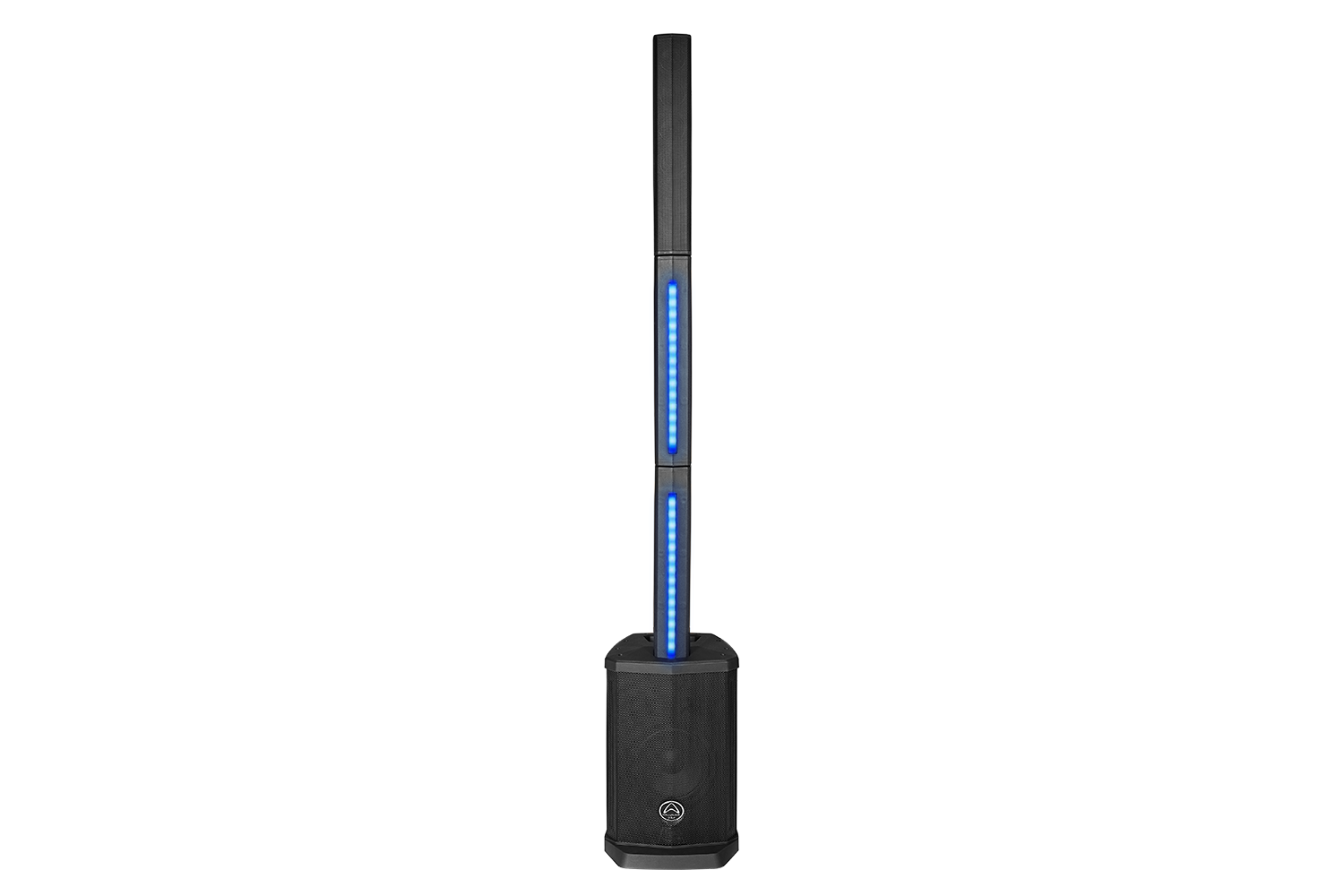

INTERNAL LED LIGHTING
4 different interactive lighting modes are available plus an…. ‘Off’.
Impressive illumination on stage!
SPECIFICATIONS
| Model Name | IS-48 |
|---|---|
| Speaker Type | 2 way active system |
| Frequency Response (-6 dB) | 40-20 KHz |
| Max SPL | 106 dB |
| Full Range Drivers | 4 x 2.5″ |
| Type Full Range | Ferrite |
| Voice Coil Full Range | 0.5″ |
| LF Driver | 1 x 8″ |
| Type LF | Ferrite |
| LF Driver voice coil | 1.2″ |
| Directivity (HxV) | H90° x V50° |
| Amplifier | |
| Amp Class | Class D |
| Power (Continuous) | 70 W (LF) + 30 W (FR) |
| Cooling | Passive cooling |
| Controls | LEVEL、MUSIC、EFFECT、MASTR VOL |
| Limiter | Analog limiter |
| Crossover Frequency LF-FR | 250 Hz |
| Input | |
| Signal Input | XLR/6.35JACK /3.5JACK/BT/USB/SD |
| Signal Output | XLR |
| Power Supply | AC100 V – 230 V |
| Power Socket | 3 pin socket |
| Housing Polypropylene | pp |
| Handles | one on top |
| Fittings | Integrated fast lock |
| Width | 317.8 mm |
| Height | 1862.5 mm |
| Depth | 399 mm |
| Weight(Net/GW) | 16 Kg / 17.5 Kg |
