Description
Analogue Audio Over Network Cable

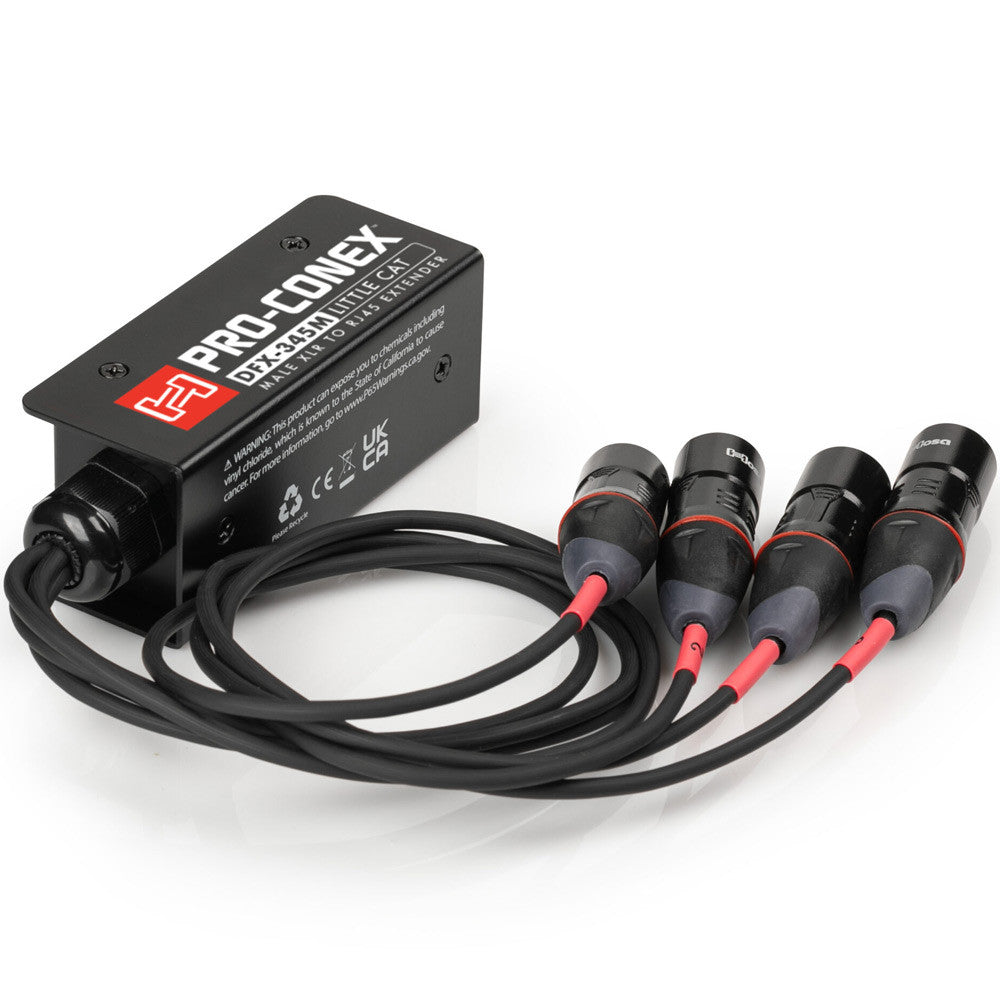

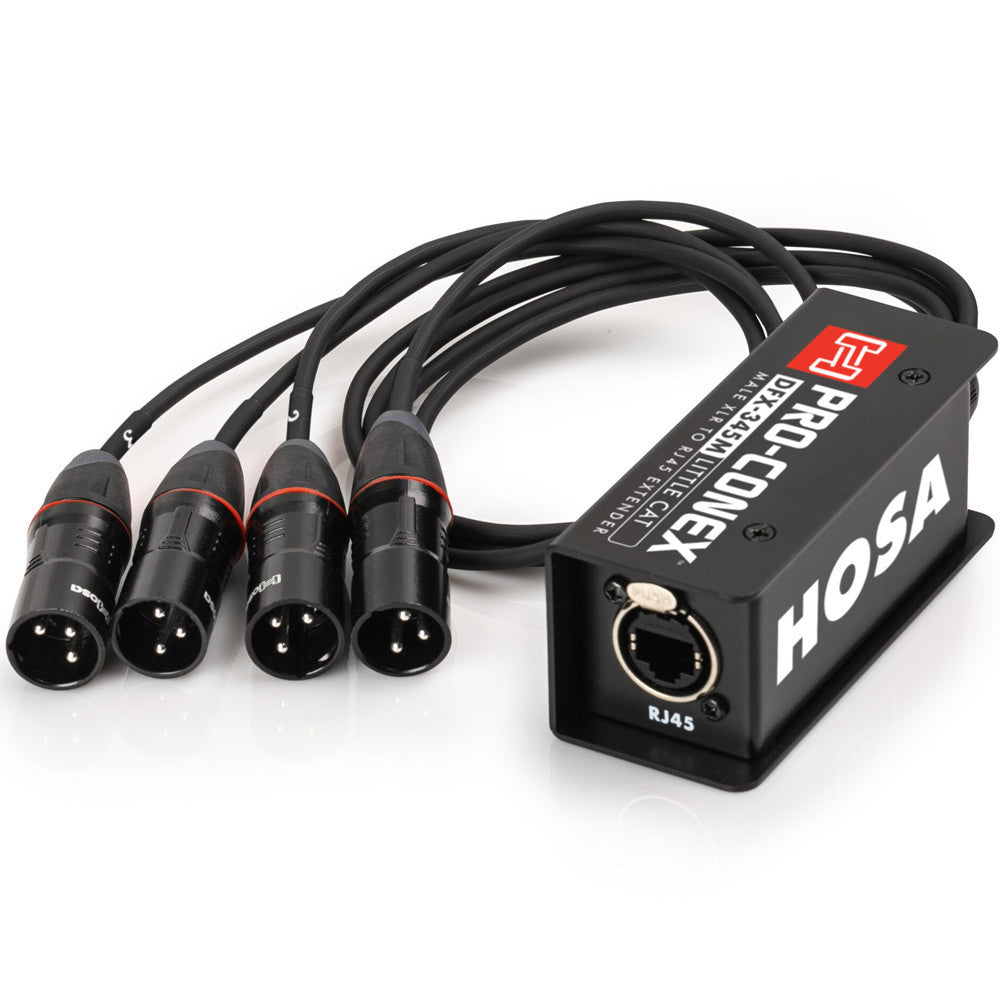

The Hosa DFX345M Pro-Conex Male XLR to RJ45 Extender is a lightweight audio snake that transmits four channels of analogue audio using standard network cabling. It delivers professional multi-core snake performance without the bulk or cost, making it ideal for venues, studios, and installations where space and weight matter.
XLR Male Configuration
The DFX-345M features a male fan-out connector, designed to plug directly into mixing console inputs, audio interfaces, or stage boxes. Perfect for routing microphone and line-level signals from remote locations.
No Conversion, No Latency
Pure analogue operation means zero digital conversion, zero latency, and no external power. The shielded Ethernet cable carries balanced audio and AES3 signals transparently, extending your inputs without compromise.
Lightweight, Cost-Effective Long Runs
Replace heavy multi-channel snakes with field-replaceable network cables. Use existing building infrastructure to route audio between rooms, eliminating expensive new cable pulls and reducing setup time.

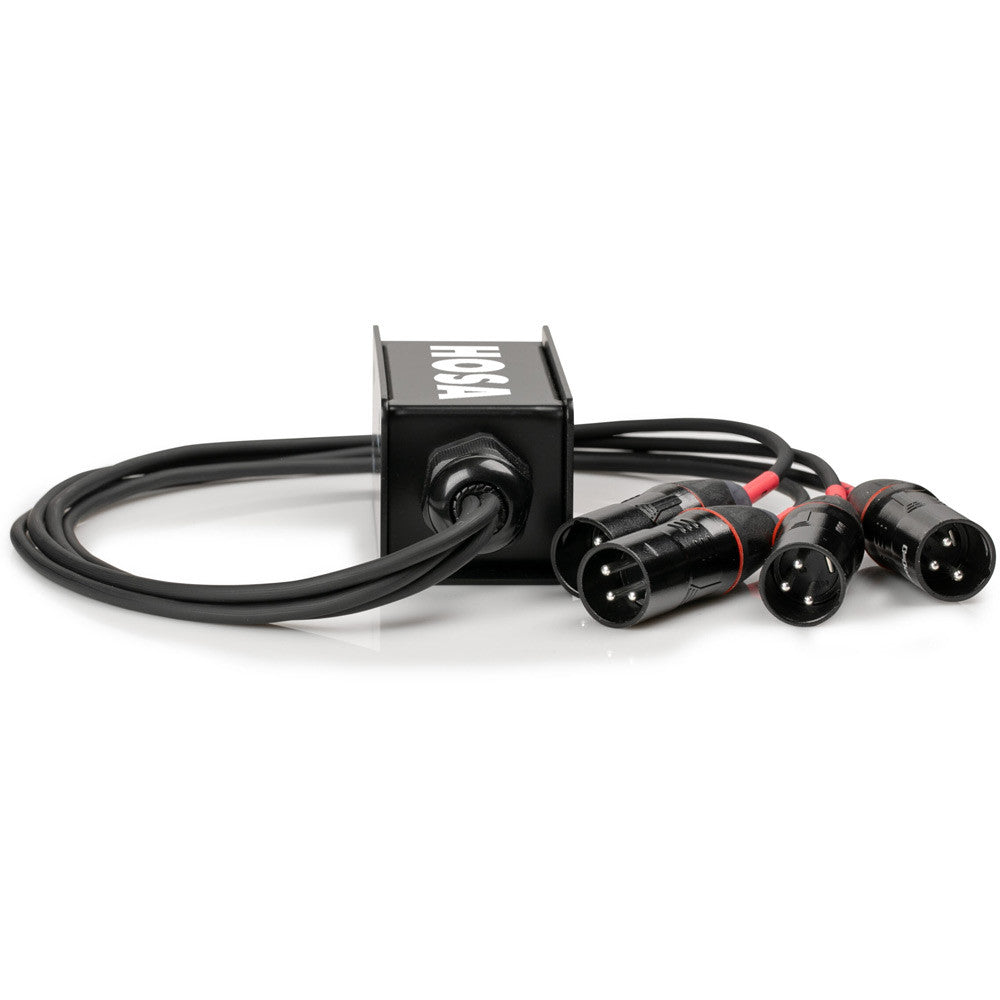

Integrated Breakout Whip
Hard-wired breakout design connects directly to your gear—no extra patch cables needed. Fewer connection points mean faster setup and greater reliability.
Ideal For
- Corporate boardrooms and conference setups
- Schools, churches, and office AV systems
- Stage sub-snakes for drums, keyboards, and pedalboards
- Studio interconnects via structured wiring
- Mobile recording and broadcast deployment
Key Features
- High-Efficiency Transmission: Sends 4 channels of balanced audio or AES3 signals over widely available shielded Cat cable. Integrated Breakout Whip: 4-channel XLR fan-out connects directly to equipment, eliminating the need for extra patch cables.
- Passive Design: Requires no power supply or batteries—simply plug in and transmit.

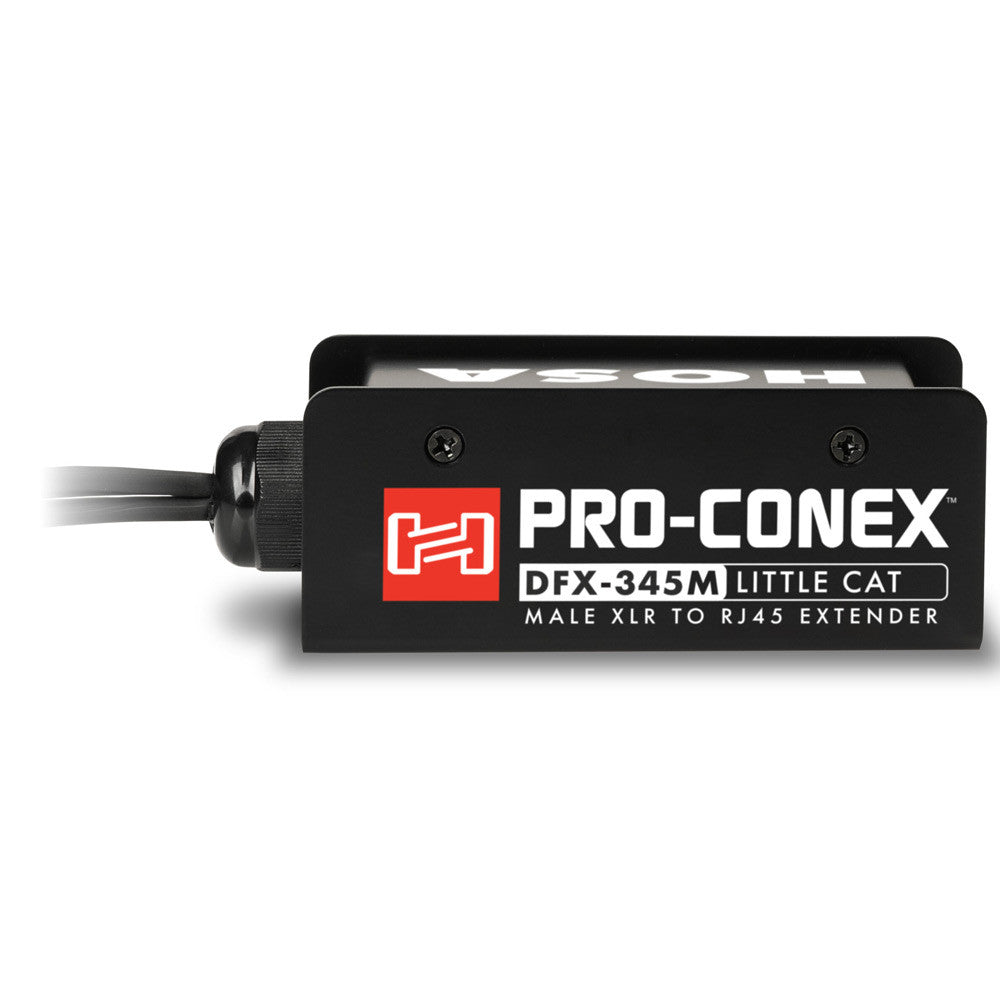

- Heavy-Duty Enclosure: Galvanized steel housing protects internal connections from impact and crushing forces.
- Locking Connections: Features a locking RJ45 Ethercon- (and Hosa EtherLok) compatible chassis connector to prevent accidental disconnects.
Technical Specifications
- Series: Hosa Little Cat (DFX Series)
- Form Factor: Breakout Snake (Box to Fan-out)
- Channels: 4-Channel Balanced
- Transmission Medium: Shielded CAT5e, CAT6, or CAT7 Cable (STP/FTP)
- Connectors (CAT End): Locking RJ45 (Ethercon & EtherLok Compatible)
- Connectors (Model DFX-345M): 3-Pin XLR Male Fan-out
- Connectors (Model DFX-345F): 3-Pin XLR Female Fan-out
- Housing: Galvanized Steel with Integrated Strain Relief
