Description
Overview

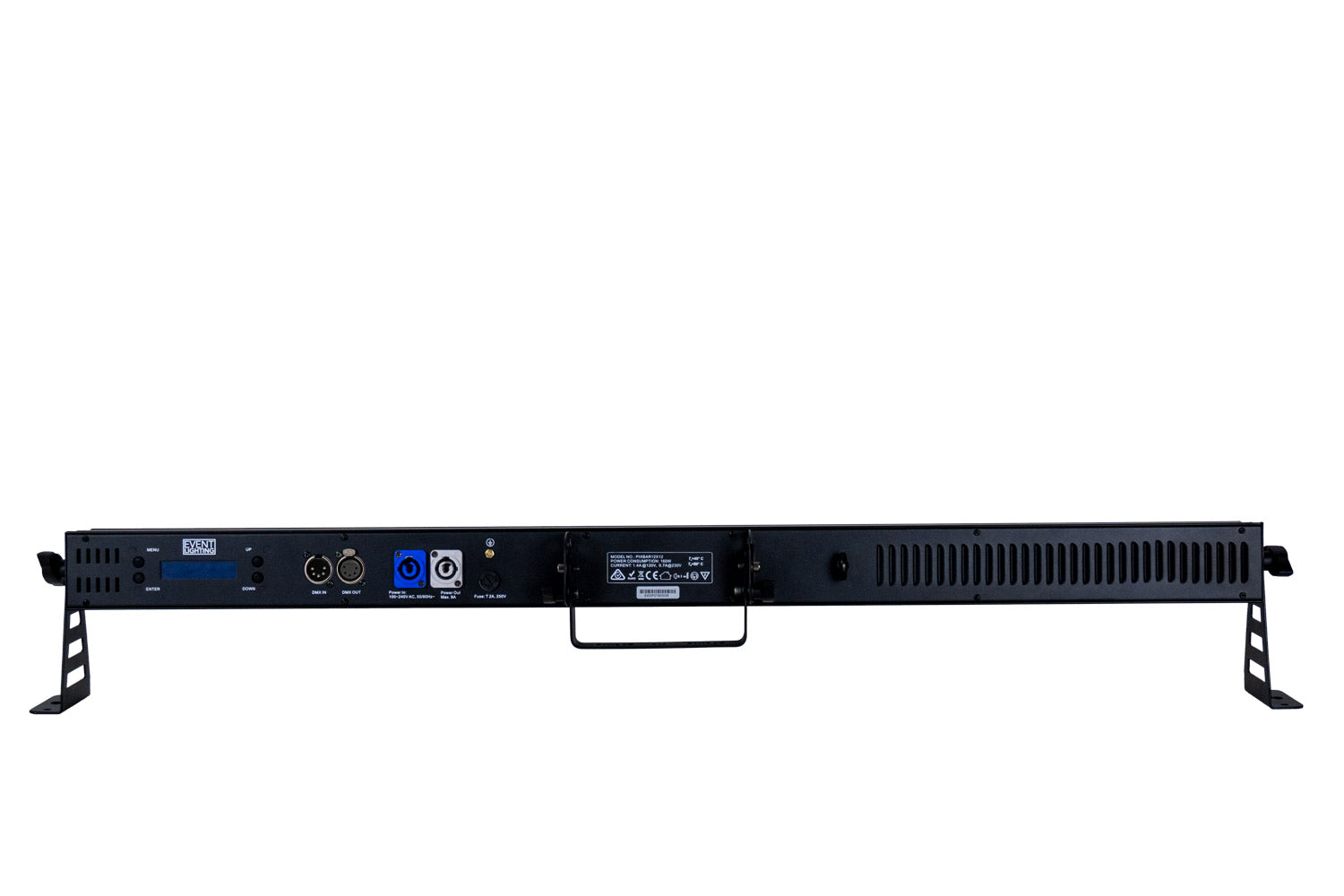

Event Lighting PIXBARs are perfect for fixed installations and productions. All models feature pixel control, an aluminium housing and fanless operation, making them silent and virtually maintenance free. You can rely on Event Lighting PIXBARs for reliable soundless operation, as well as a long product lifetime due to their durable aluminium housing.Features
hotometrics
- Light Source: 12x 12 W RGBWAU LEDs
- Beam Angle: 30° (optional: 55°)
- Output: 2,050 lux @ 2 m RGBWAU full on
- PWM: 12,000 Hz
- LED Life: 50,000 hours
Effects
- Dimming: 4x 16-bit Dimming Curves
- Strobe: 1~30 Hz
Technical Specifications
Power
- Input Voltages: 100~240 V AC, 50/60 Hz, 150 W
- Power Connection: Neutrik® powerCON in/out
Control
- Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channels: 3 / 4 / 6 / 8 / 12 / 24 / 72 / 74
- Control Interface: 5-pin XLR
- Software Upgrade via DMX: Yes
Housing
- Housing Materials: Aluminium, matte black finish
- Cooling: Fanless Cooling
- Dimension: 1050 x 165 x 80 mm
- Net Weight: 4.5 kg
