Description
Overview

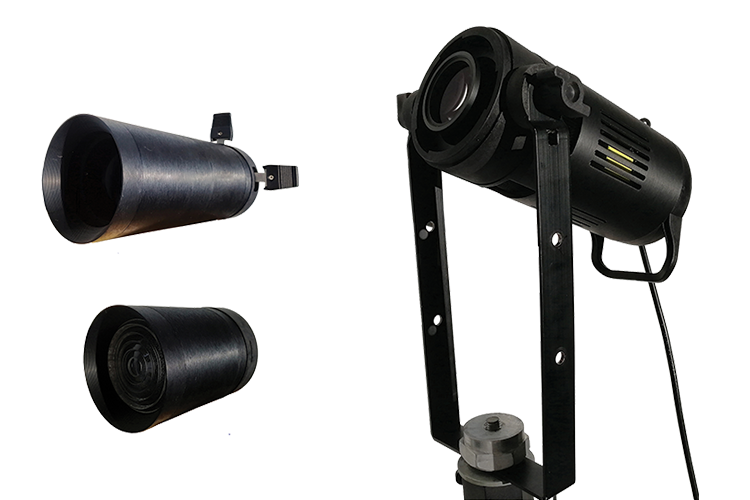

The versatile ZOOMPRO system is comprised of a 200 W Warm White LED Engine, with a choice of lenses. Options include two zoom profile lenses, fresnel lens and cyc lens. It is ideal for lighting film, television, events, and theatrical applications. The manual zoom allows for precision to create the perfect look for any scene.
Features
Photometrics
- Light Source: 3200 K 200 W COB LED
- CRI: 95
- PWM: 16,000 Hz
- LED Lifespan: 50,000 hours
- PROFILE Lens: ZPLP1828
- Output: 1896 lux @ 5 m at 18°, 1692 lux @ 5 m at 28°
- Beam Angle: 18°- 28°
- PROFILE Lens: ZPLP2636
- Output: 1896 lux @ 5 m at 26°, 1692 lux @ 5 m at 36°
- Beam Angle: 26°- 36°
- FRESNEL Lens: ZPLF 80mm Fresnel
- Beam Angle: 16°- 25°
- Field Angle: 30°- 55°
- Output: 2198 lux @ 2.5 m at 16°, 1685 lux @ 2.5 m at 25°
- CYC Lens: ZPLCYC
- Output: 210 lux @ 2.5 m at 120°
- Beam Angle: 120°
Effects
- Dimming: 0~100%, 8-bit / 16-bit
- Strobe: 1~25 Hz
- Zoom: Manual
Power
- Input Voltage: 100~240 V AC, 50/60 Hz, 200 W
- Power Connection: Fixed
Control
- Operational Modes: DMX, Manual & Master / Slave
- Display: 4-Button LCD control panel
- DMX Protocol: DMX512
- DMX Channel Mode: 1 / 2 / 3
- DMX Interface: 5-pin XLR
Housing
- Housing Materials: Aluminium, matte black finish
- Cooling: Sensor Thermostat Controlled Variable Speed Fan
- Dimension: LED Engine: 241 X 105 X 310 mm
- Profile Lens: 262 X 192 X 192 mm
- Fresnel Lens: 105 X 105 X 151 mm
- Net Weight: LED Engine 9kg
- Profile Lens: 1.9 kg
- Fresnel Lens: 0.9 kg
- Cyc Lens: 0.4 kg
