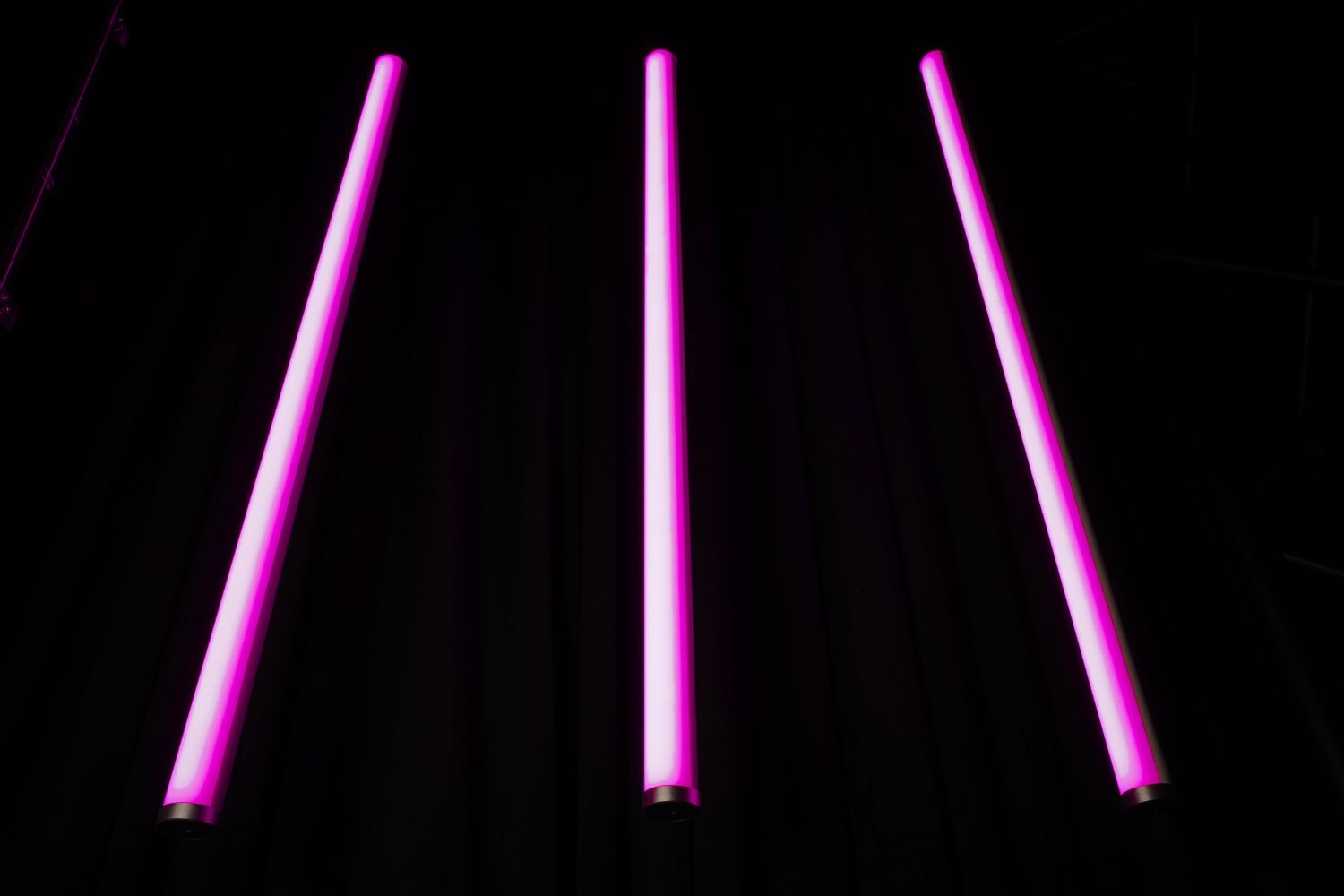

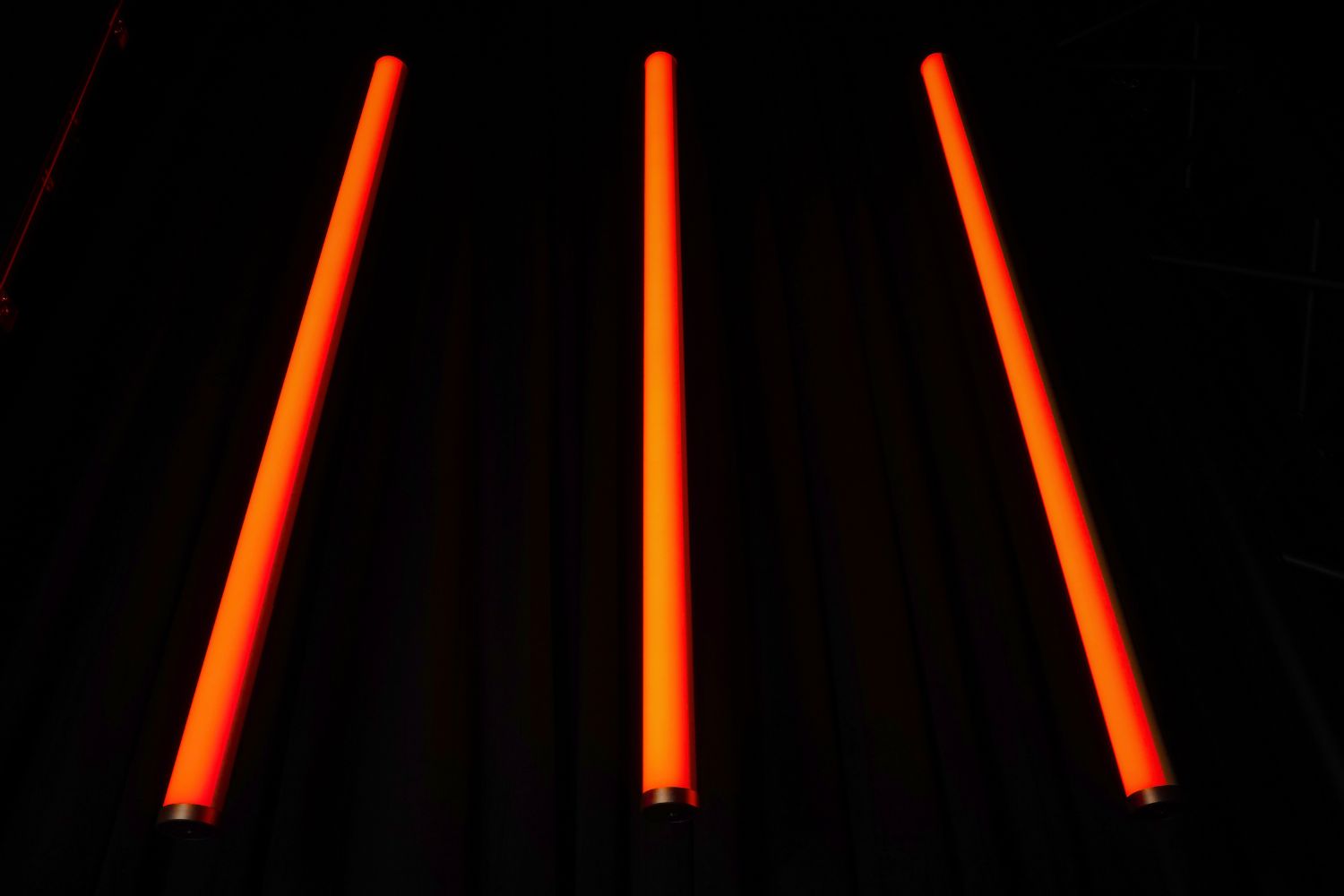

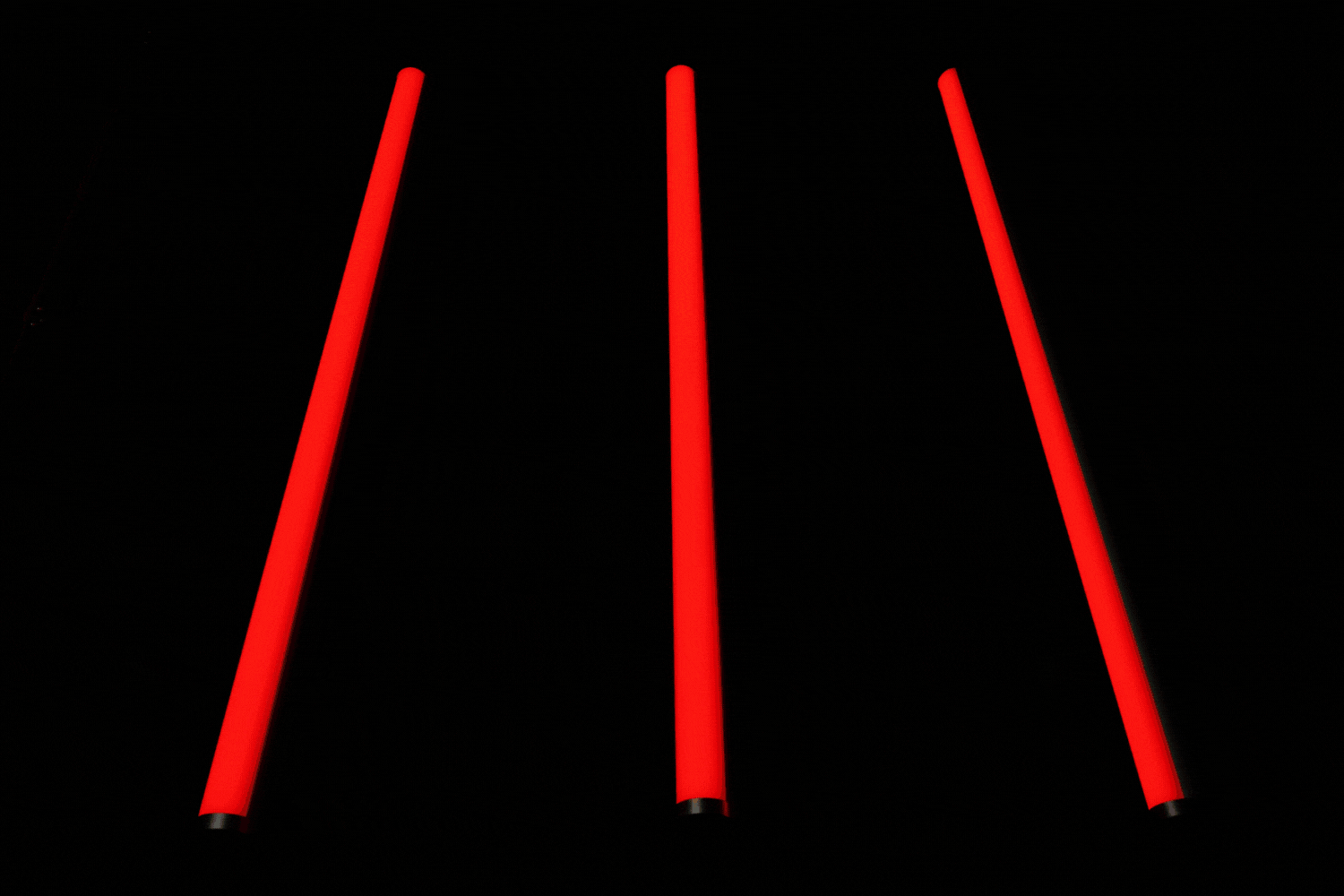

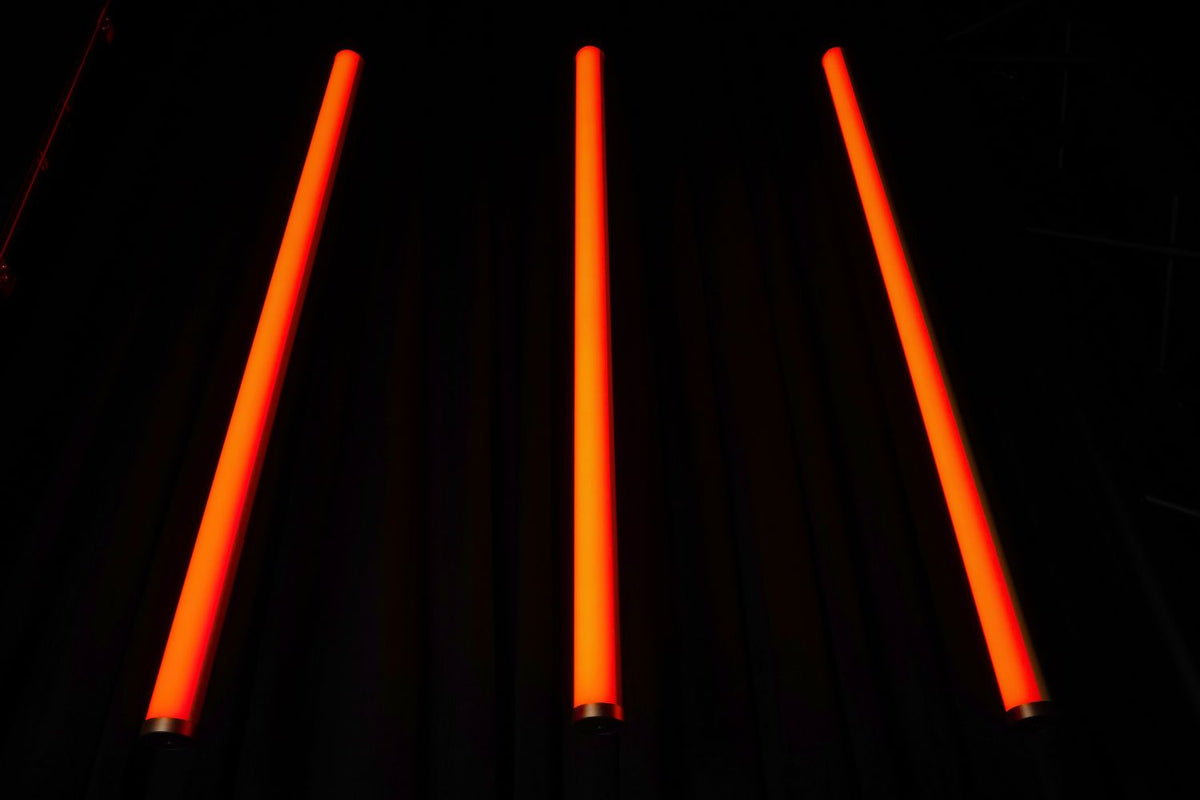

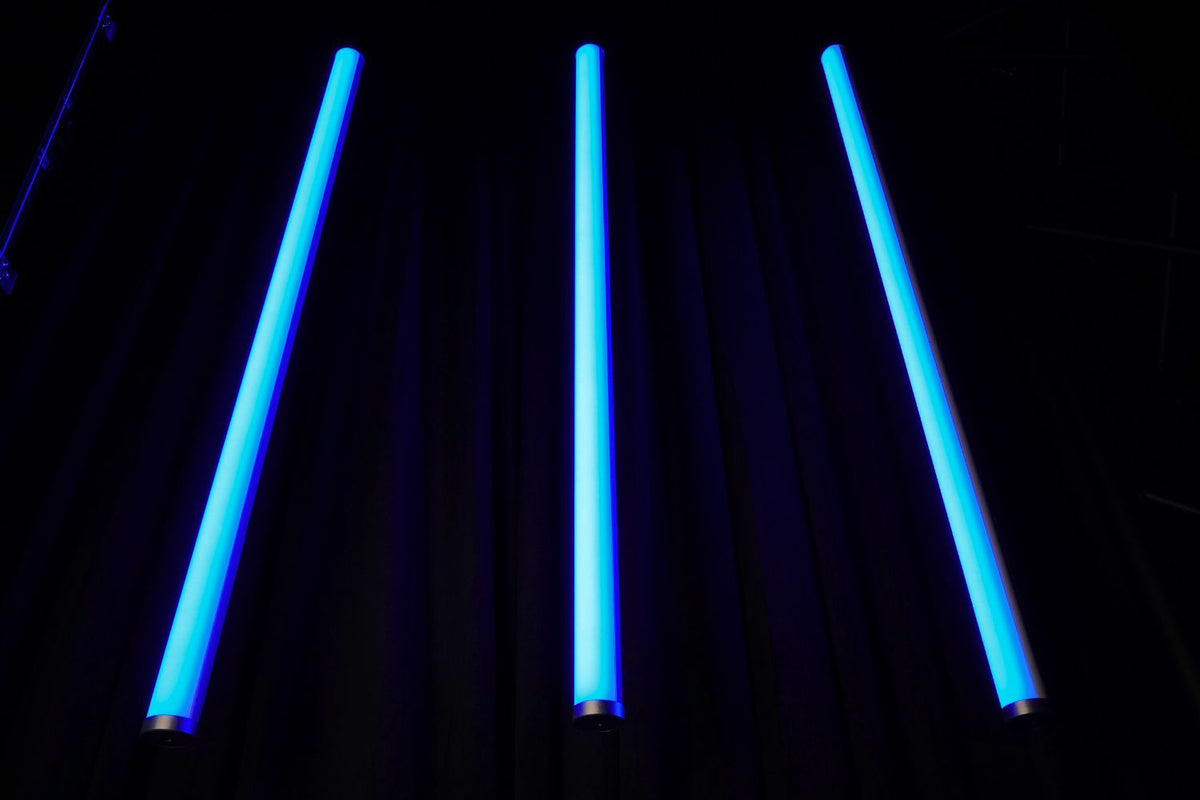

Event Lighting EVENTTUBEKIT - Outdoor LED Tube Package of 8 in a Road Case

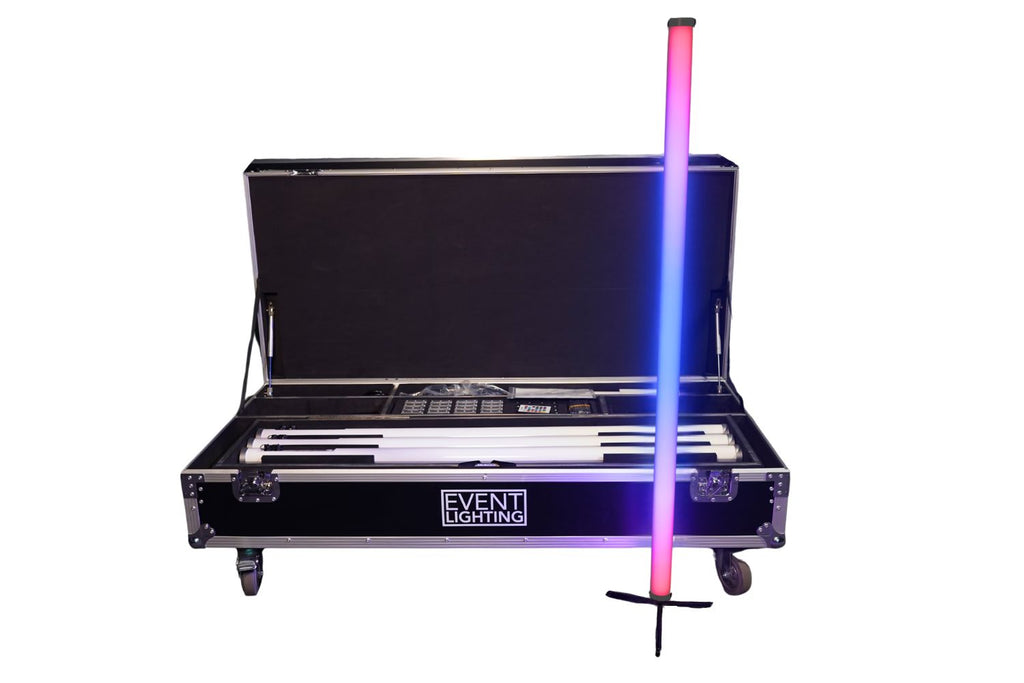

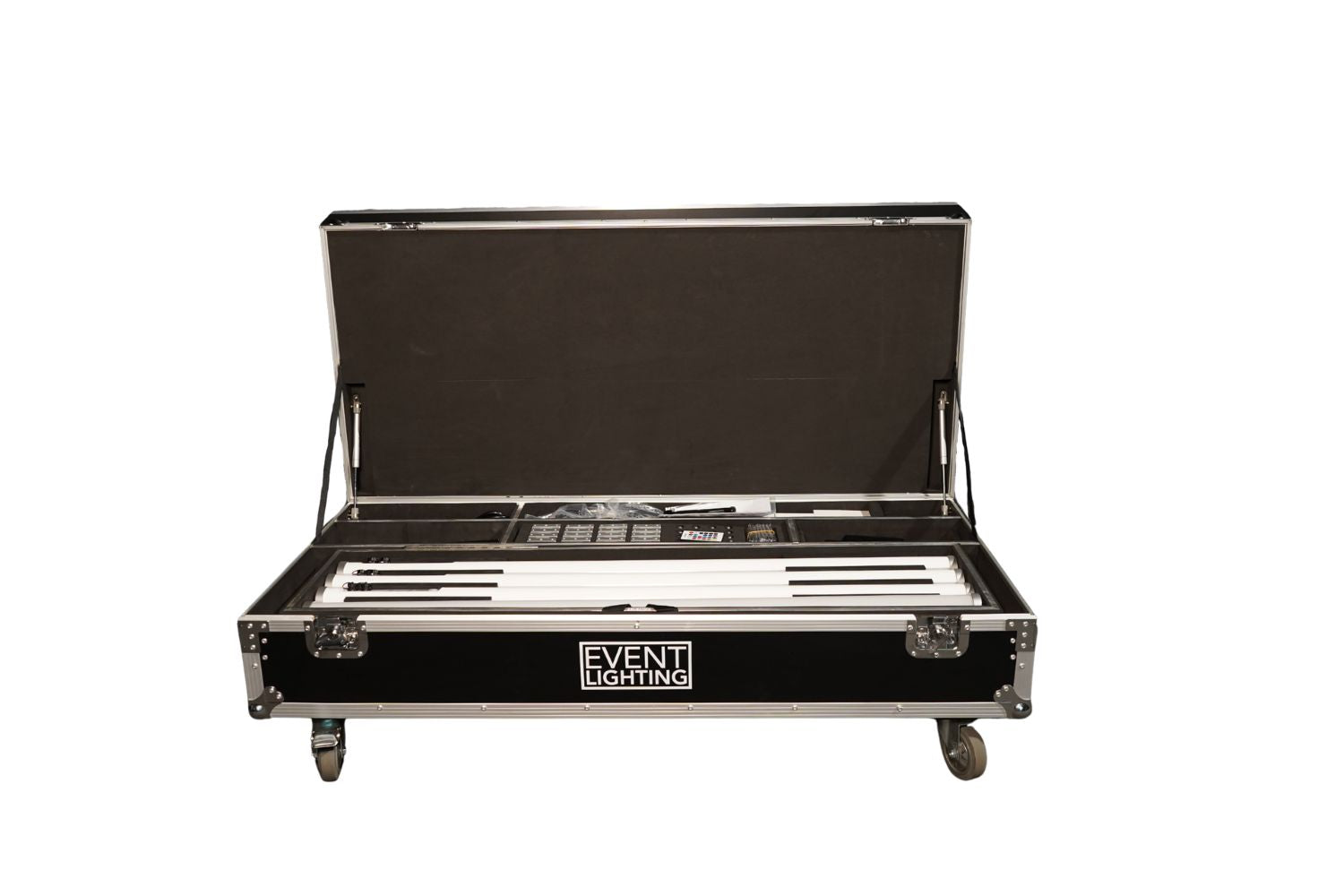

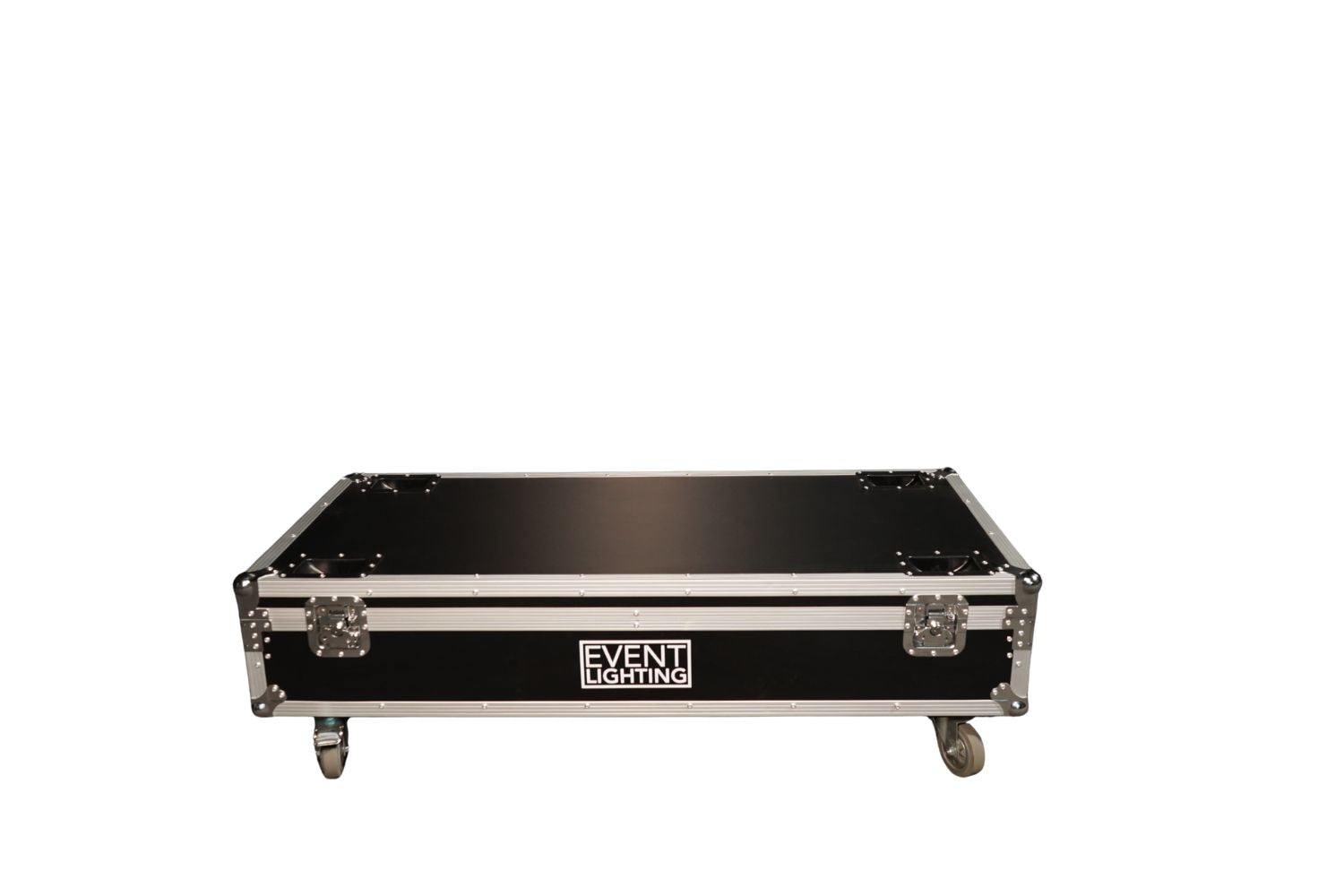

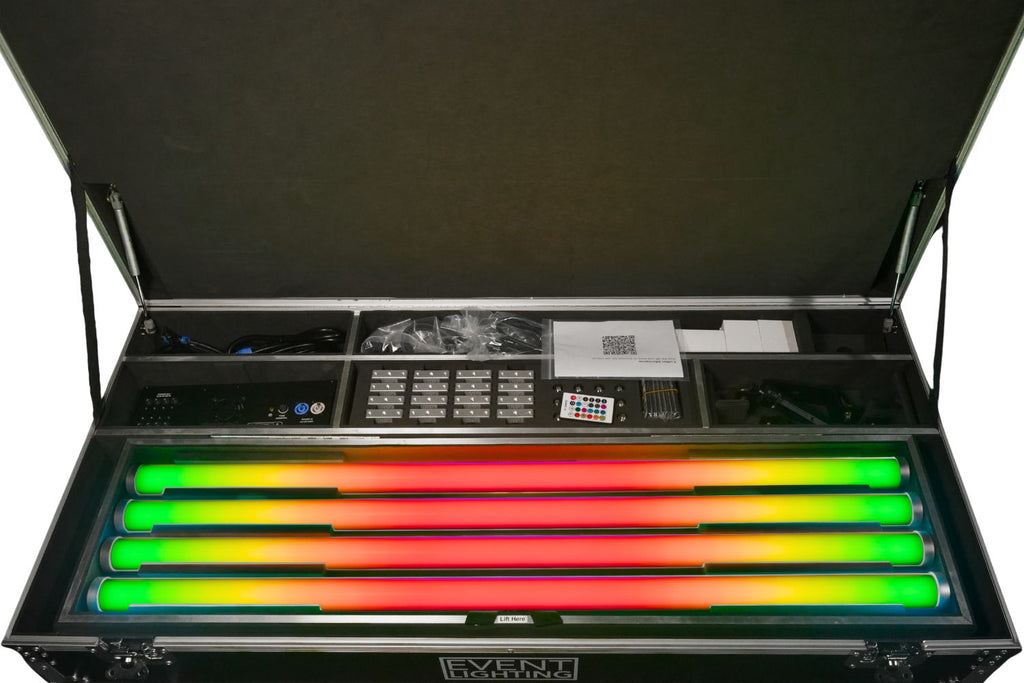

The Event Lighting EVENTTUBEKIT packs 8 battery-powered IP65 RGBW LED tubes into a rugged road case, engineered for film sets, festivals, and live events. Each tube commands 288 individual LEDs with 32-segment pixel mapping—push creative boundaries with intricate color sequences and dynamic effects. Control via DMX512, wireless DMX, mobile app, or IR remote. Run up to 20 hours per charge. The complete kit includes charging station, cables, remotes, and a full rigging arsenal: 16 clamps, 16 holders, floor stands, and mounting plates. Grab it, deploy it, own the space.

Photometrics

• Light Source: 288 pcs x 0.3W RGBW 4in1 LEDs (per Tube)
• Beam Angle: 180˚
• Pixel Control: 32-segment
• Colours: 16.7 million colours (0~100% Saturation Dimming)
• LED Lifespan: 50,000 Hours

Effects

• Dimmer from 0~100% Linear dimming
• Strobe: 1~20 Hz

Power

• Power Consumption: 50W
• Charging Voltage: DC12.6V/2A
• Battery Specification: 12.6V / 18Ah (21,700 4.2V / 4.5Ah*12 cells)
• Charge Time: 8-10 Hours (Approx.)
• Battery Charges: ≥300 times
• Battery Life: 20 Hours (Max.)

Control

• Control Options: DMX512, WDMX, Mobile App WiFi Control, IR Remote, Auto, Manual, Sound Active, Master/Slave
• DMX Modes: 2 / 4 / 6 / 11 / 32 / 64 / 128 CH
• 2.4G Communication Distance: 200m (218.7yd)
• Wifi Communication Distance: 30m (32.8yd)
• Band: 2.4G ISM, 126 Channel Frequencies
• Maximum Transmit Power: 20dBm
• Receiver Sensitivity: -94dBm

Housing

• Cooling: Convection Cooling System
• IP Rating: IP65
• Temperature Protection: 60˚C / 140˚F
• Dimensions (Total): 1380 x 630 x 400mm / 54.3" x 24.8" x 15.7"
• Weight (Total): 45kg / 99lbs 3.3oz
• Dimensions (Per Tube): ⌀52 x 1190mm / ⌀2.1" x 46.8"
• Weight (Per Tube): 1.72kg / 3lbs 12.7oz

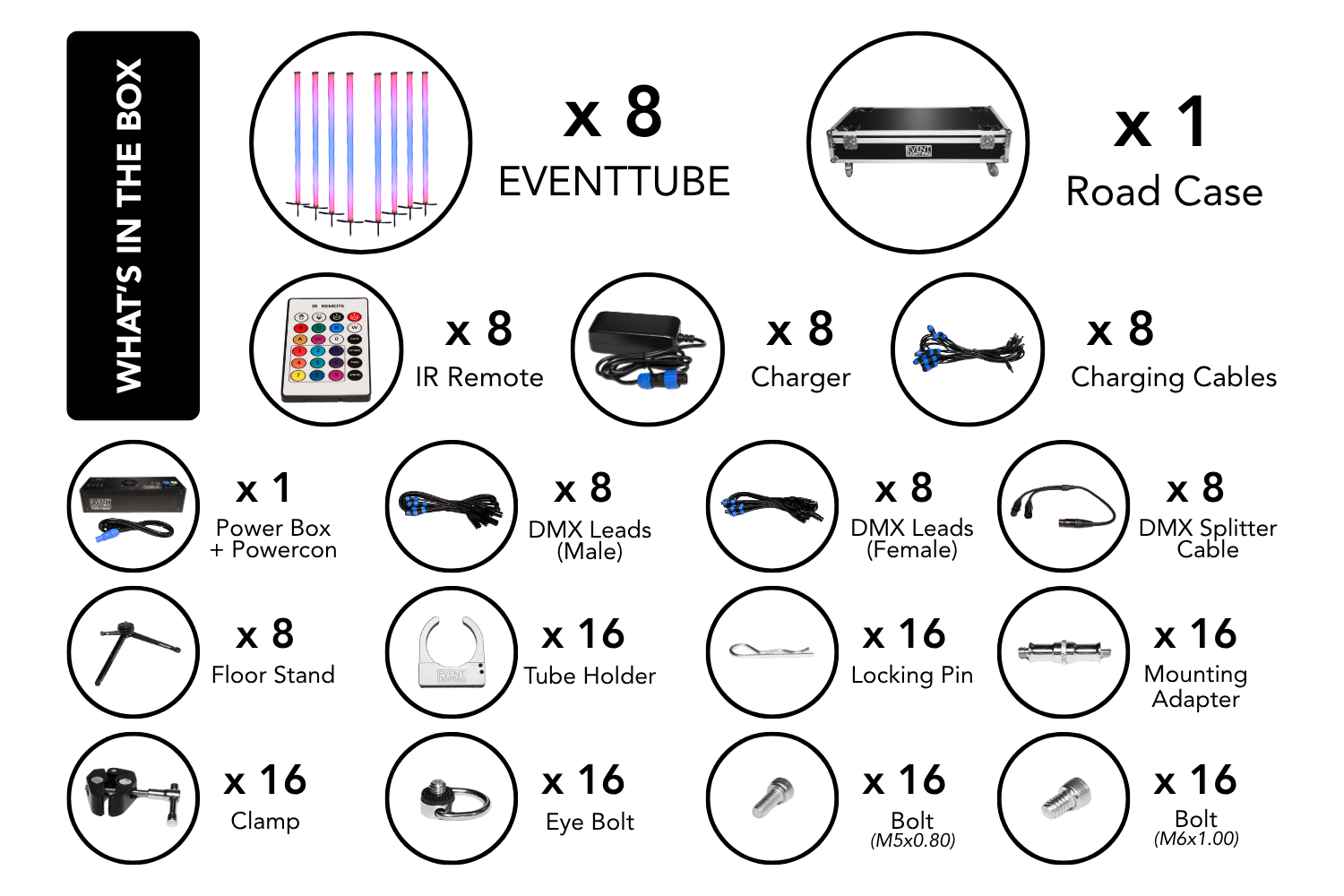

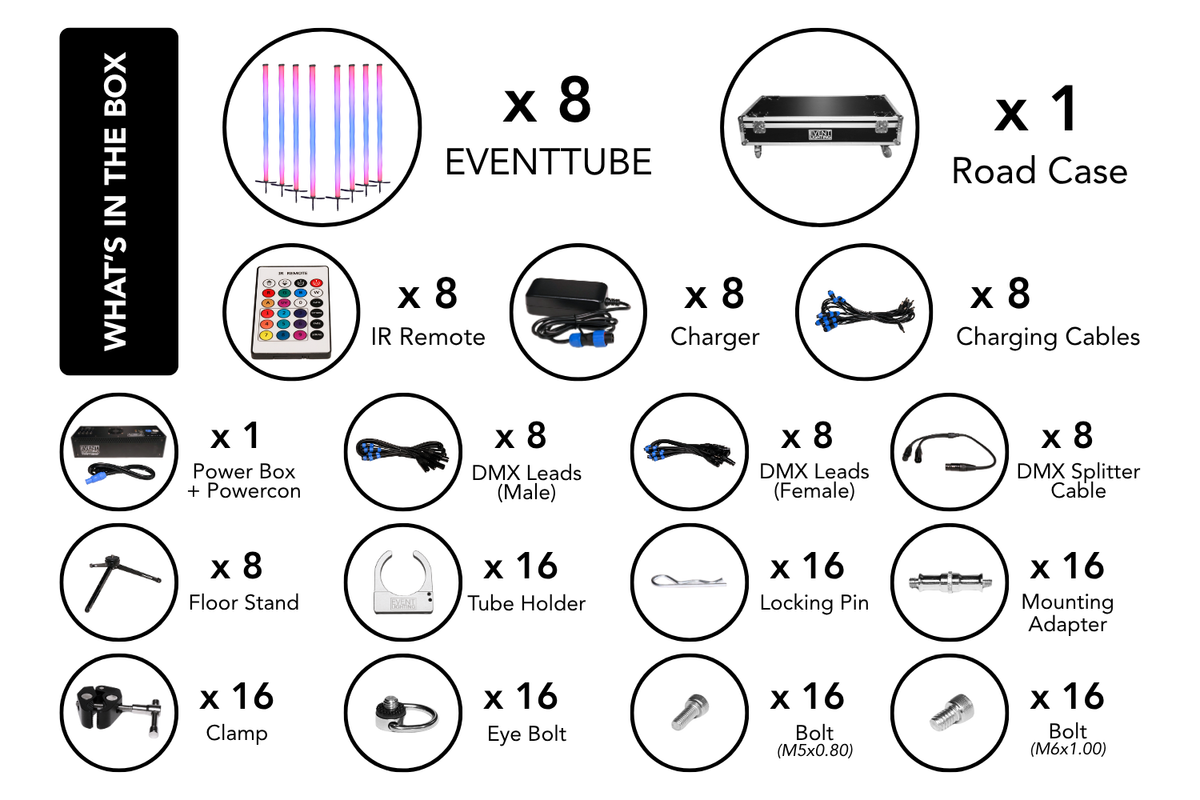

Included Accessories:

• Mounting & Rigging Essentials:
  • 16 x Tube Holder
  • 8 x Floor Stand
  • 16 x Mounting Adaptor
  • 8 x Wing Plate
  • 2 x Cross Plate
  • 16 x Attaching Clamp
  • 16 x Eye-bolt
  • 16 x M5x0.80 Bolt
  • 16 x M6x1.00 Bolt
• Power & Connectivity:
  • 8 x Chargers and 8 x Charging Cables
  • 1 x Power Box (for Consolidated Charging)
  • 16 x DMX Cables (8 x Male, 8 x Female)
  • 8 x DMX Splitter Cables
