Description

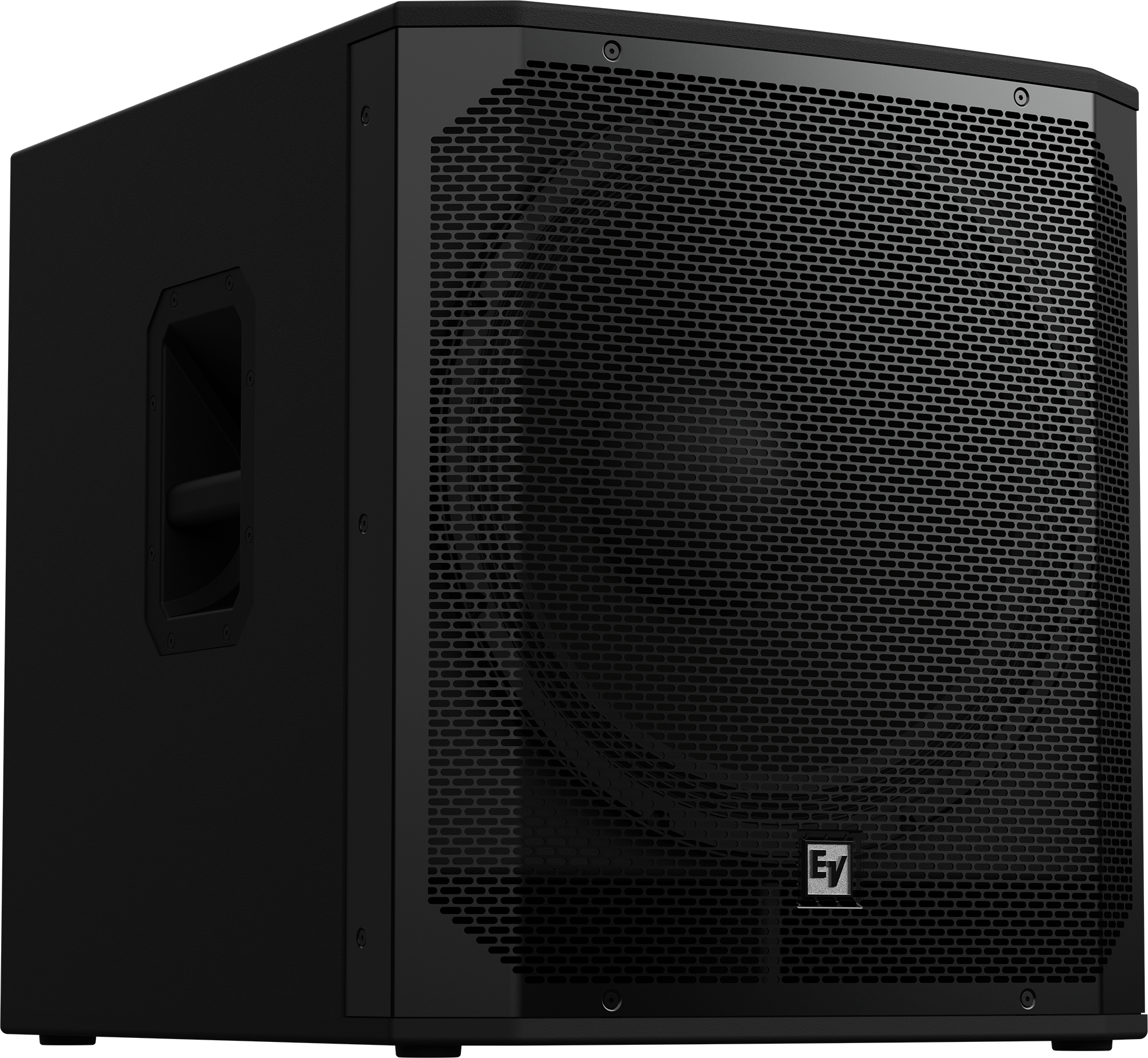

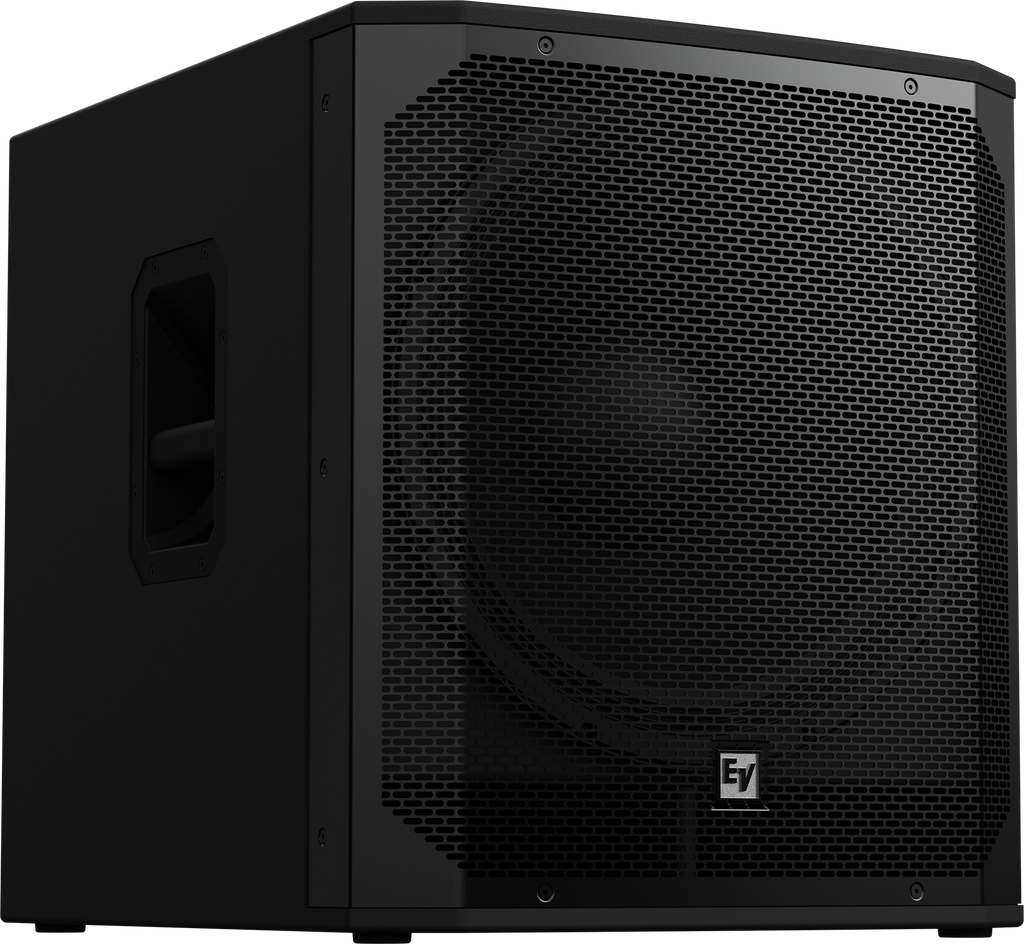

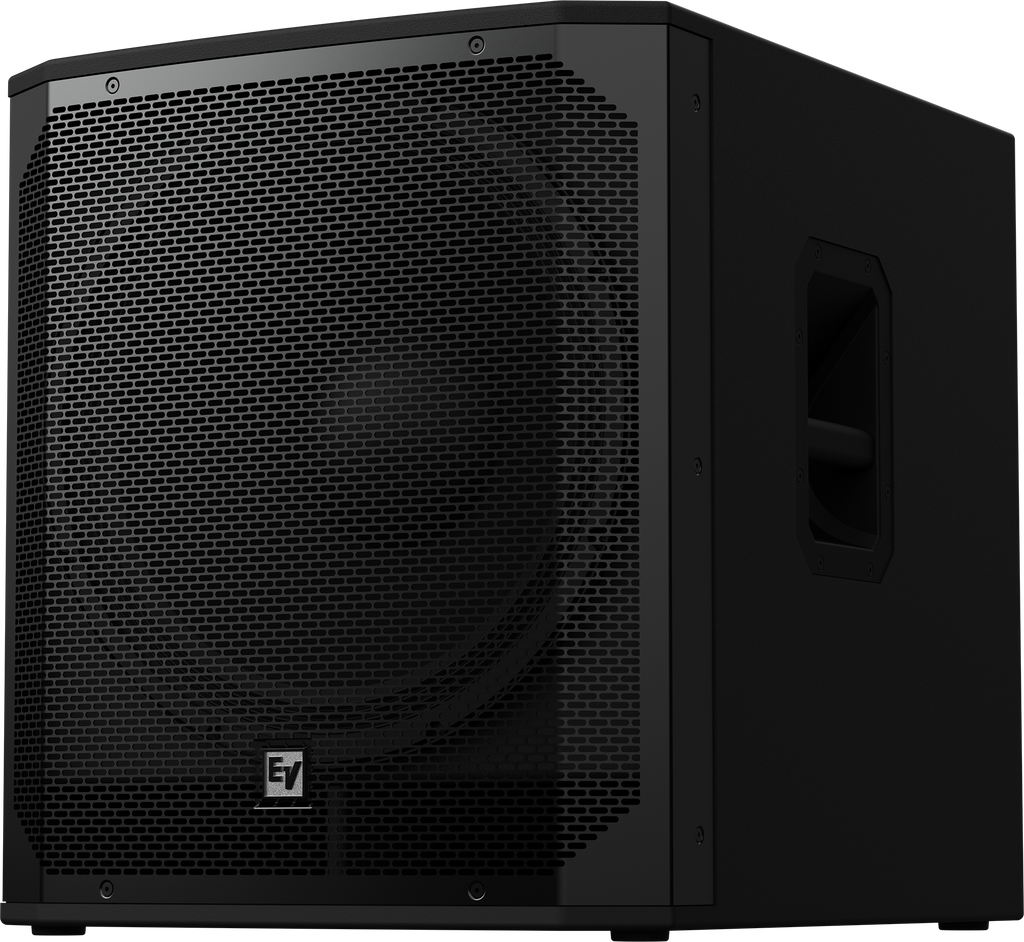

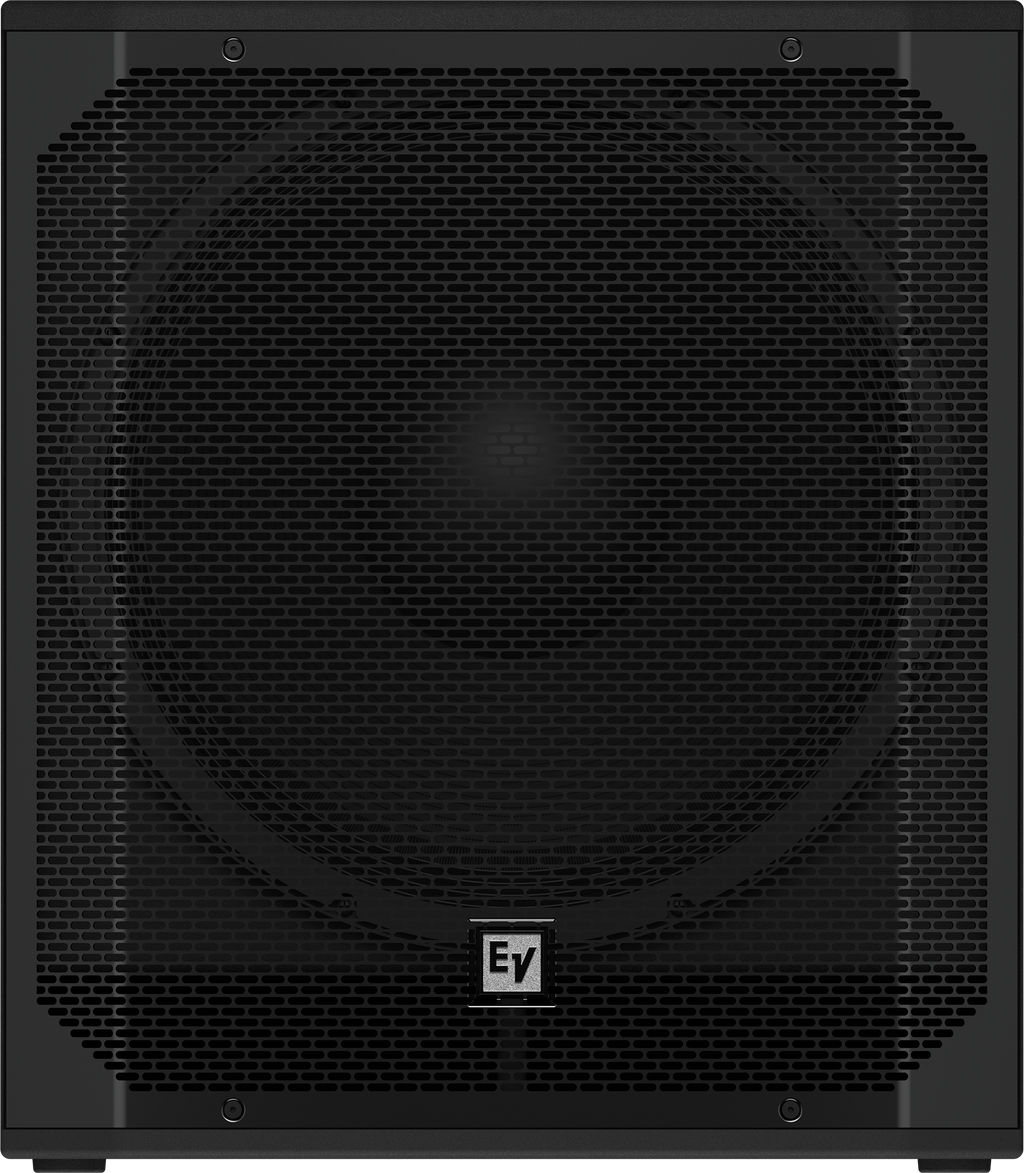

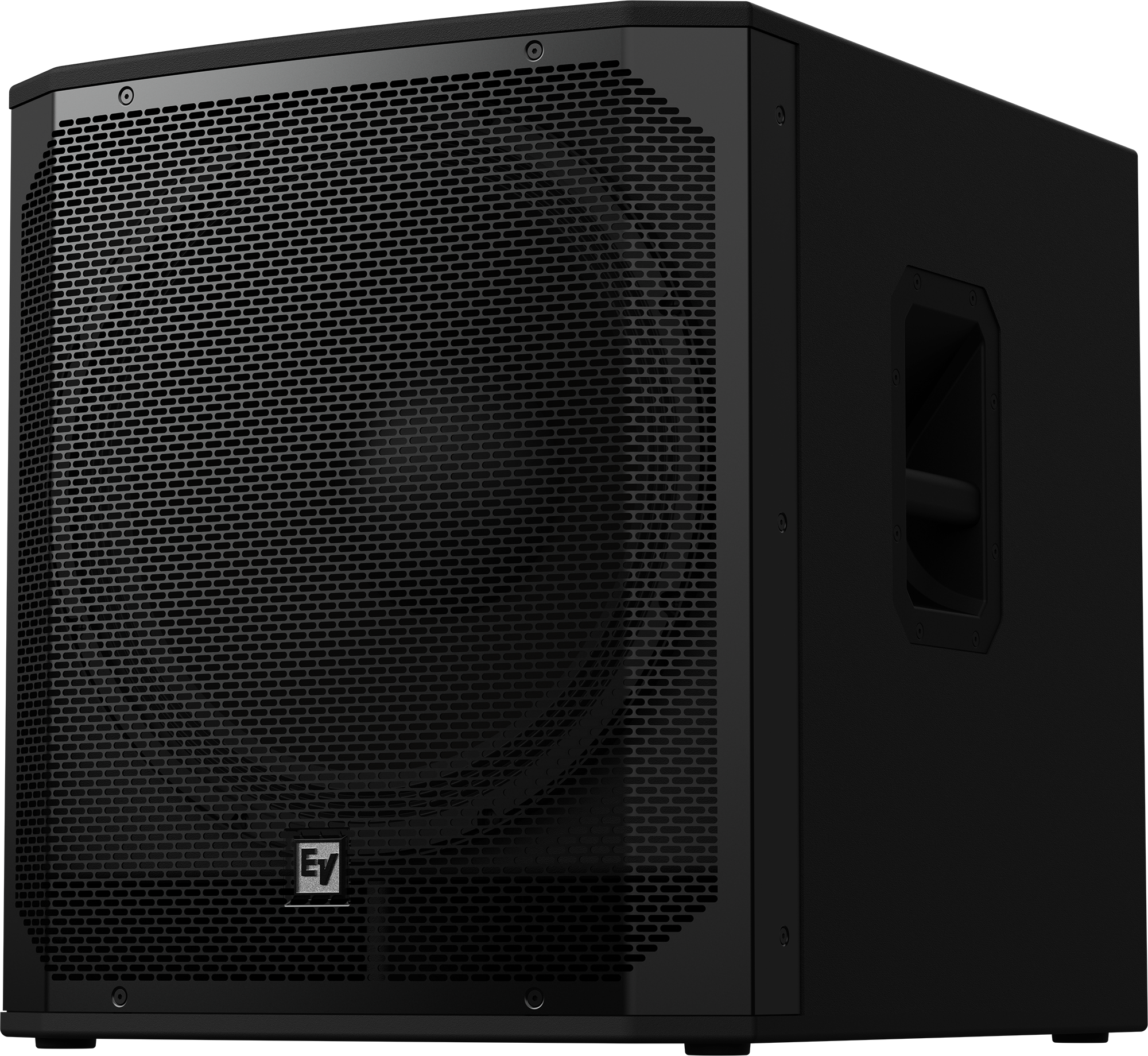

Engineered for fearless performers and DJs who demand serious low-end punch without compromise. The Electro-Voice EVIVA 18SP Powered 18" Subwoofer packs a 1000W amplifier and robust 18" driver into a surprisingly portable 30.7 kg package, delivering a commanding 132 dB SPL across 38–200 Hz. Dual XLR/TRS inputs with pass-through connectivity let you chain multiple EVIVA units into a powerhouse system. Intuitive controls—MUSIC/LIVE modes, adjustable low-pass filter, and polarity reverse—give you instant command over your sound. Built tough with metal handles, anti-slip feet, and M20 pole mount compatibility, this subwoofer thrives in mobile rigs and permanent installations alike. Universal 100–240V auto-switching power means you're ready to go anywhere. Pair it with EVIVA tops and unleash the bass your audience won't forget.
| Frequency response (-3 dB) (Hz) 1 | 45 Hz – 150 Hz |
| Frequency range (-10 dB) (Hz) 1 | 38 Hz – 200 Hz |
| Maximum sound pressure level at a distance of 1 m (dB) 2,3 | 132 dB |
| Amplifier rating (W) | 1000 W |
| Power consumption (V, Hz) 4 | 100 - 240 V~, 50 - 60 Hz, 0.6 - 0.4 A |
| LF transducer size (in) | 18 in |
| LF transducer type | WECA2188H woofer |
| LF transducer magnet material | Ferrite |
| Crossover frequency (Hz) | 100 Hz (default) 150 Hz (optional) |
| Connector type | (2) XLR/TRS combo jack line in (2) XLR pass through out |
| Enclosure | 15 mm plywood, internally braced, with textured paint |
| Grille material | Powder coated steel |
| Color | Black |
| Dimensions (H x W x D) (mm) | 597 mm x 520 mm x 620 mm |
| Dimensions (H x W x D) (in) | 23.50 in x 20.47 in x 24.41 in |
| Shipping dimensions (H x W x D) (mm) | 650 mm x 602 mm x 674 mm |
| Shipping dimensions (H x W x D) (in) | 25.59 in x 23.70 in x 26.54 in |
| Weight (kg) | 30.7 kg |
| Weight (lb) | 67.6 lb |
| Shipping weight (kg) | 36.9 kg |
| Shipping weight (lb) | 81.3 lb |
1 Full-space measurement using MUSIC DSP preset.
2 Half-space measurement using LIVE DSP preset and 150 Hz low pass.
3 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
4 Current rating is 1/8 power.
