Description

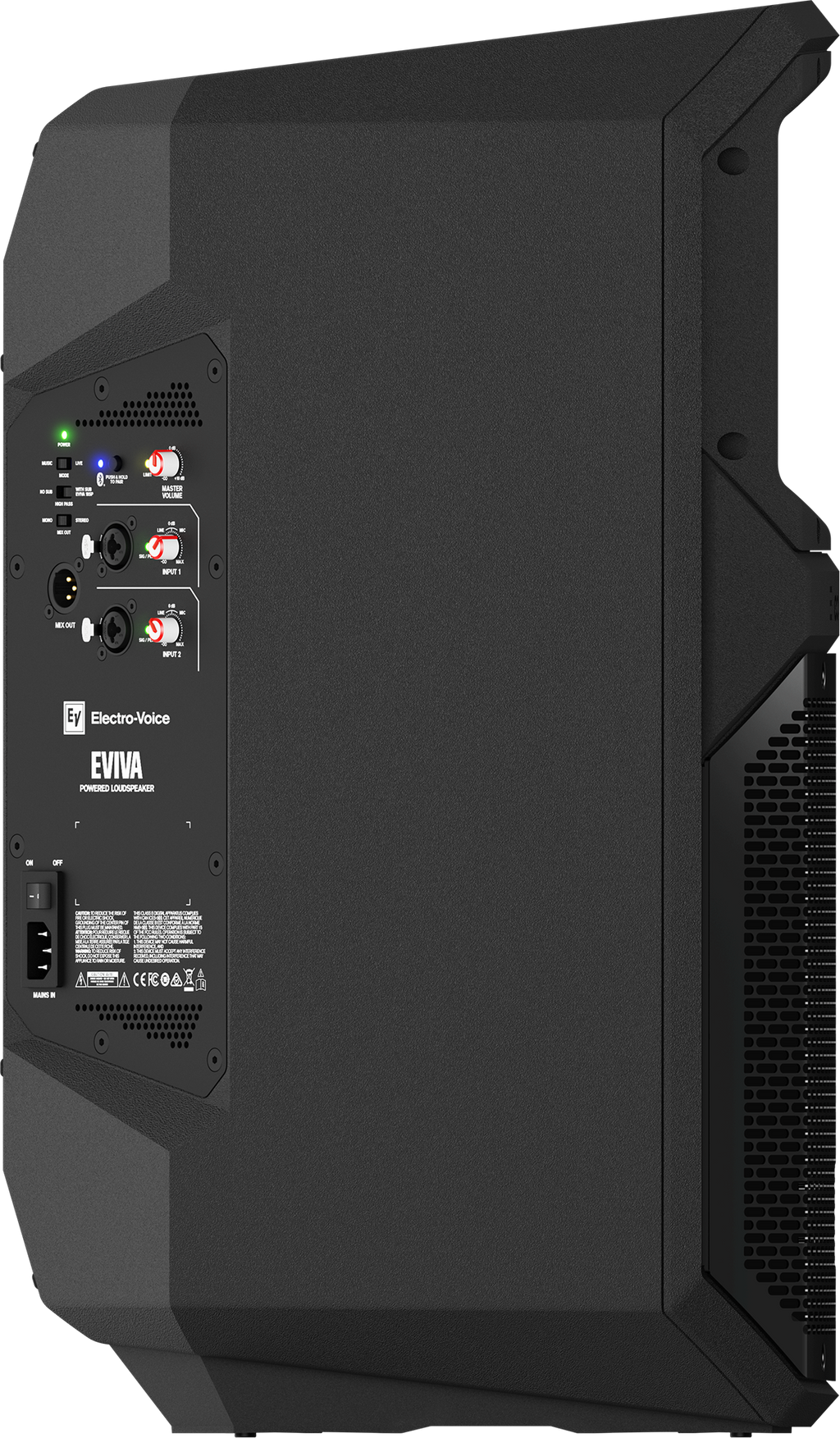

Unleash professional-grade sound with the Electro-Voice EVIVA 12P—a 12" powered speaker engineered for performers who refuse to compromise. Packed with Electro-Voice's legendary SST technology and a custom neodymium compression driver, this beast delivers 125 dB of crystal-clear output across a 90° x 60° coverage pattern. At just 12 kg, it's featherweight yet fearless, with a 1000W amplifier and dual XLR inputs plus Bluetooth connectivity for instant setup. The robust composite enclosure and intuitive controls let you switch between Music and Live modes on the fly. Whether you're commanding a small venue or building a multi-speaker system, the EVIVA 12P combines raw power with audacious design—backed by Electro-Voice's uncompromising quality standards and premium industrial styling.
Specifications
- Signature Electro-Voice sound quality with selectable MUSIC/LIVE mode
- 1000 W power rating with high 125 dB maximum SPL
- Flexible mic/line input connections and easy single-knob adjustment with dual color input signal metering and peak detection
- Bluetooth® audio streaming with switchable mono/stereo mix output
- Universal mains voltage 100 V ~ 240 V auto-switching delivers reliable performance

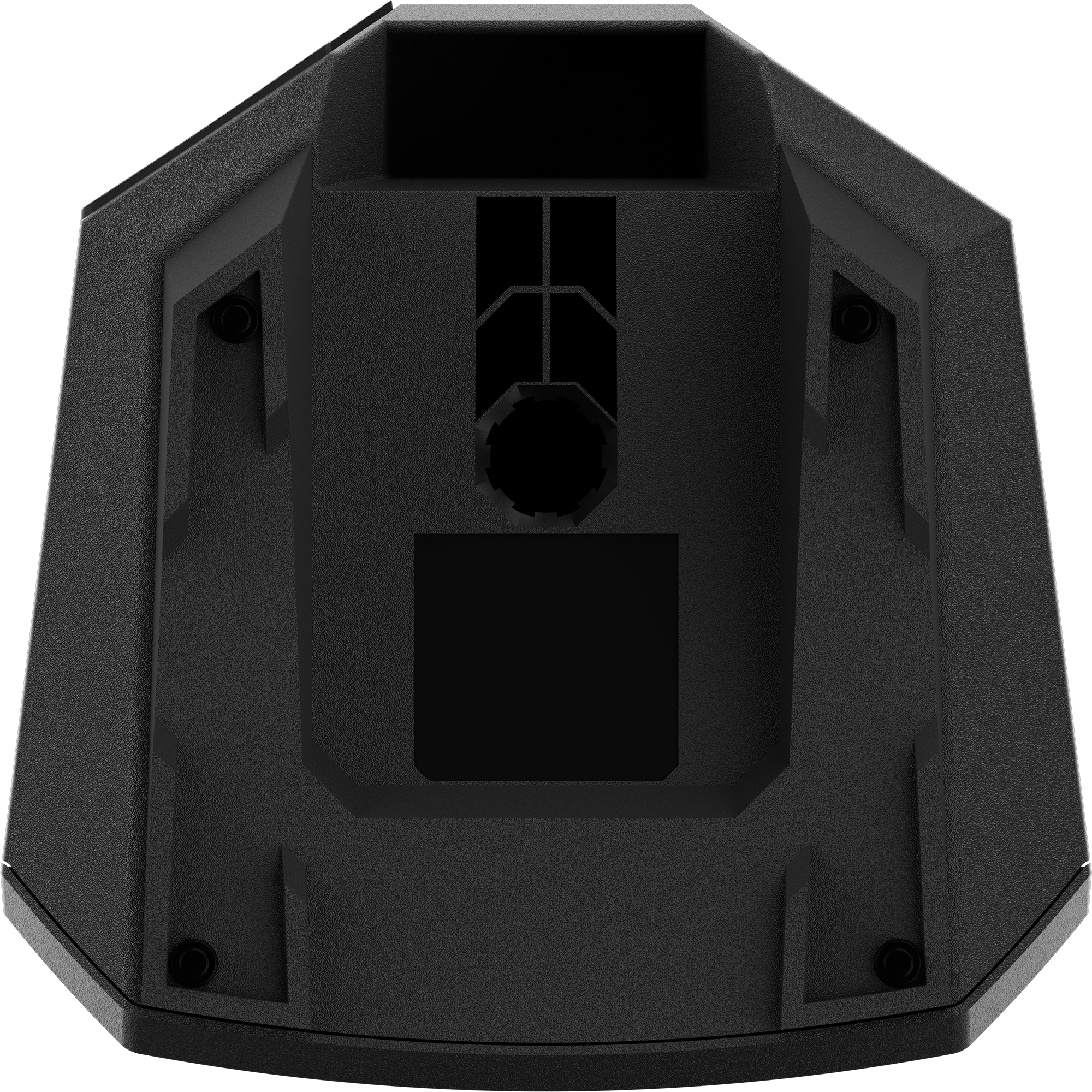

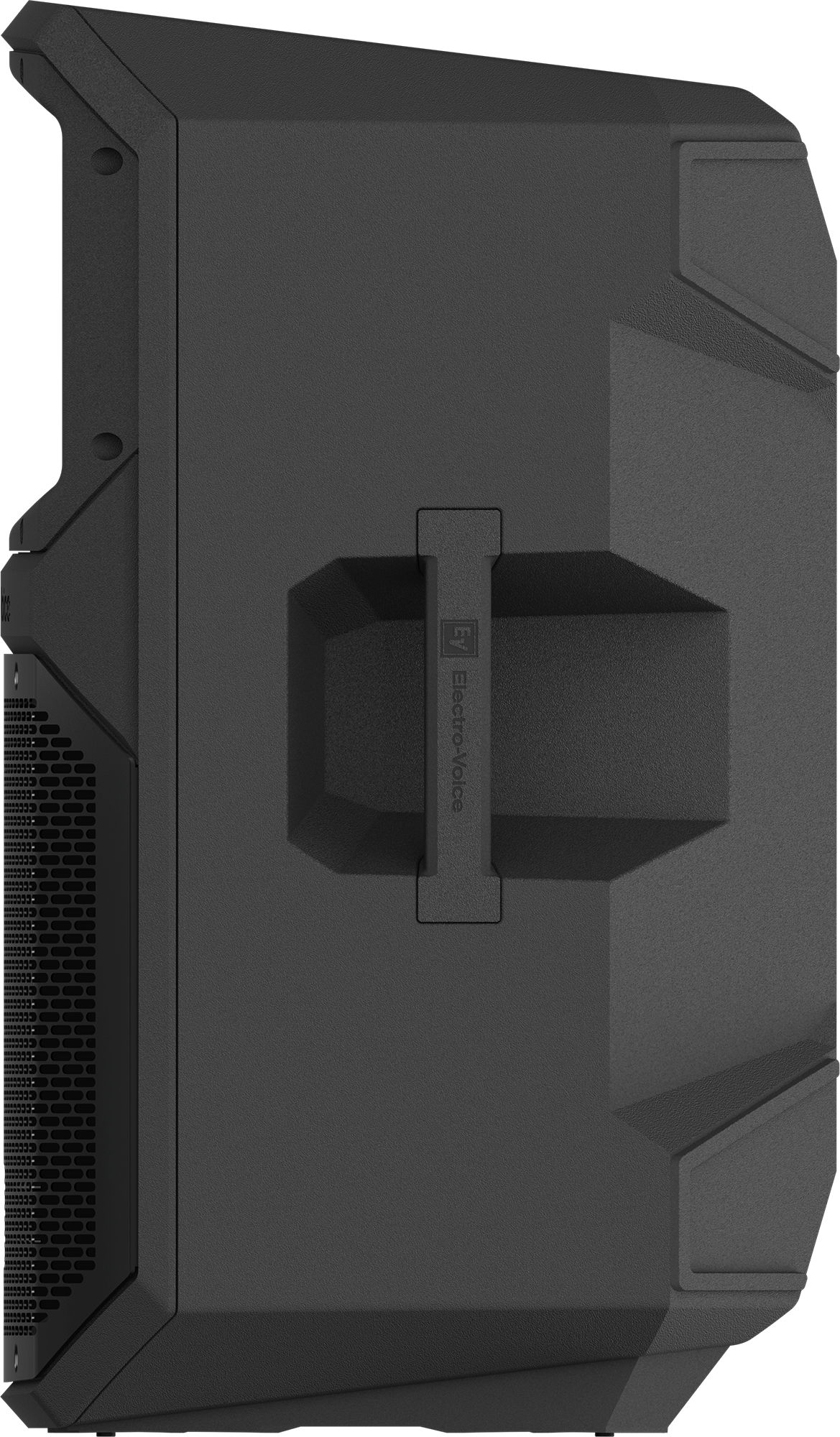

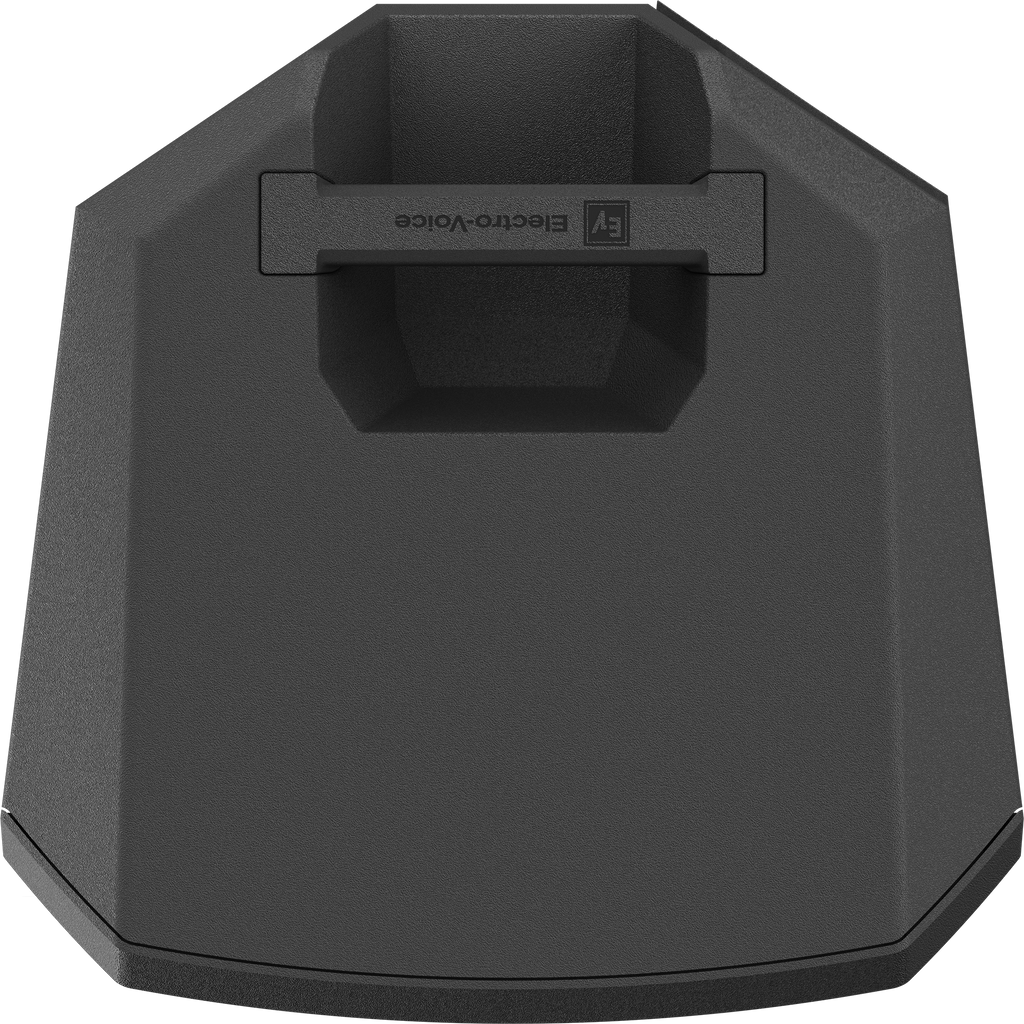

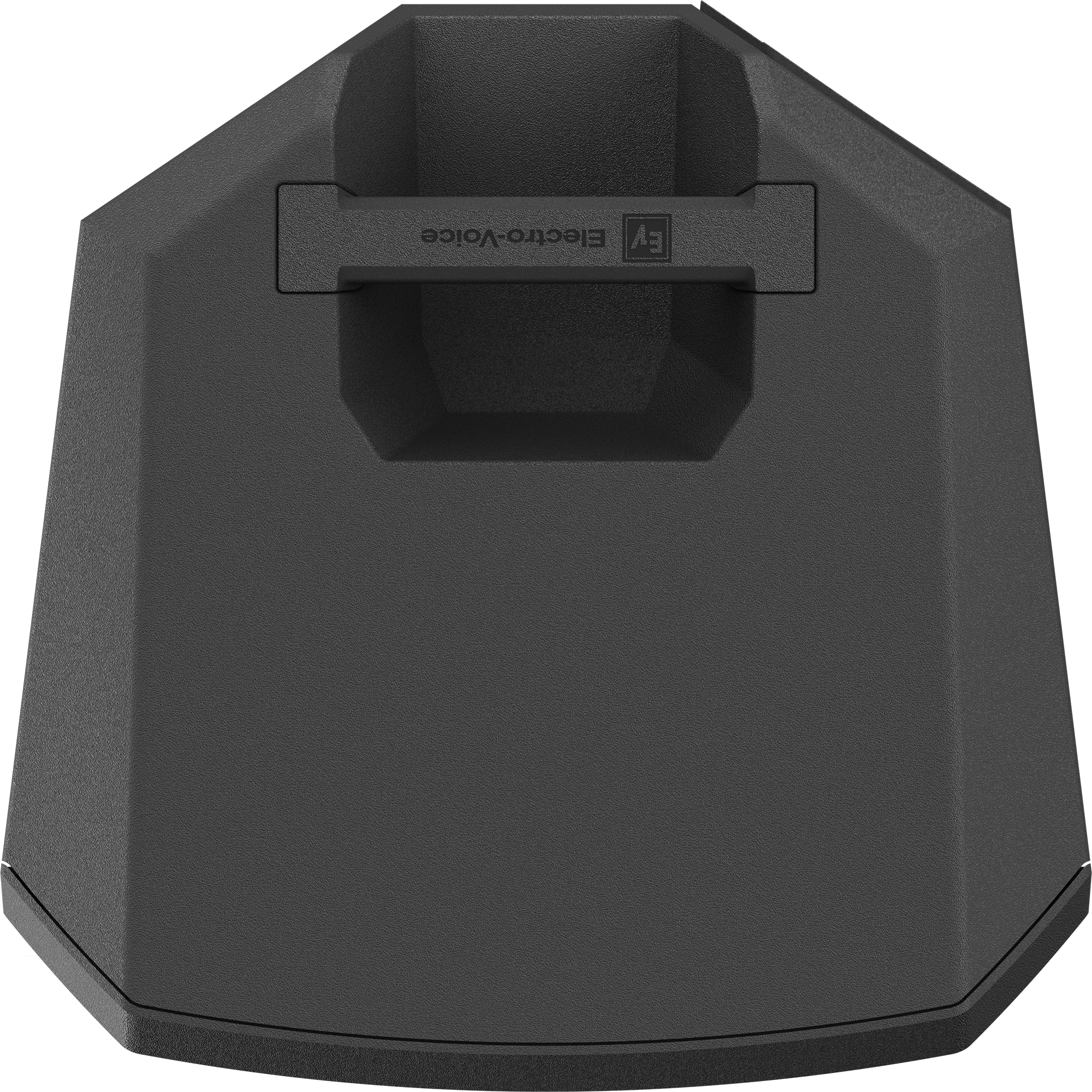

- Ergonomic, lightweight design with side and top handles, bottom grab pocket and anti-skid bottom feet
- 12kg
| Frequency response (-3 dB) (Hz) 1 | 63 Hz – 18,000 Hz |
| Frequency range (-10 dB) (Hz) 1 | 50 Hz – 20,000 Hz |
| Maximum sound pressure level at a distance of 1 m (dB) 2, 3 | 125 dB |
| Coverage angle HxV (°) | 90° x 60° |
| Amplifier rating (W) | 1000 W |
| Power consumption (V, Hz) 4 | 100 - 240 V~, 50 - 60 Hz, 1.0 - 0.5 A |
| LF transducer size (in) | 12 in |
| LF transducer type | WECA2124H woofer |
| LF transducer magnet material | Ferrite |
| HF transducer size (in) | 1 in |
| HF transducer type | DENA2504H compression driver |
| HF transducer diaphragm material | Titanium-coated PEI |
| HF transducer magnet material | Neodymium |
| Crossover frequency (kHz) | 2.2 kHz |
| Connector type | (2) XLR Combo mic/line input (1) XLR mix output |
| Enclosure | Composite |
| Grille material | Powder coated steel |
| Color | Black |
| Dimensions (H x W x D) (mm) | 603 mm x 353 mm x 352 mm |
| Dimensions (H x W x D) (in) | 23.74 in x 13.89 in x 13.86 in |
| Shipping dimensions (H x W x D) (mm) | 645 mm x 410 mm x 410 mm |
| Shipping dimensions (H x W x D) (in) | 25.39 in x 16.14 in x 16.14 in |
| Weight (kg) | 12.0 kg |
| Weight (lb) | 26.5 lb |
| Shipping weight (kg) | 15.5 kg |
| Shipping weight (lb) | 34.2 lb |
1 Full-space measurement using MUSIC DSP preset.
2 Full-space measurement using LIVE DSP preset.
3 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
4 Current rating is 1/8 power.
