Description
Overview

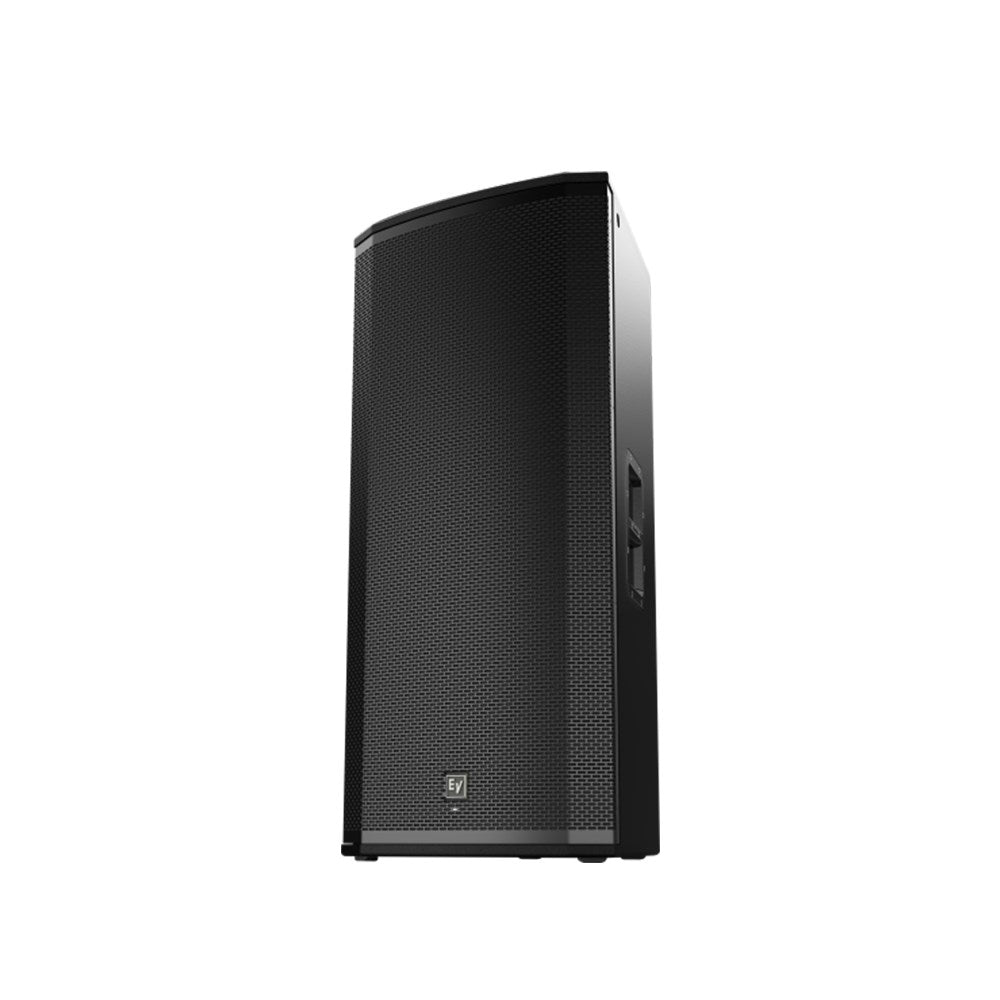

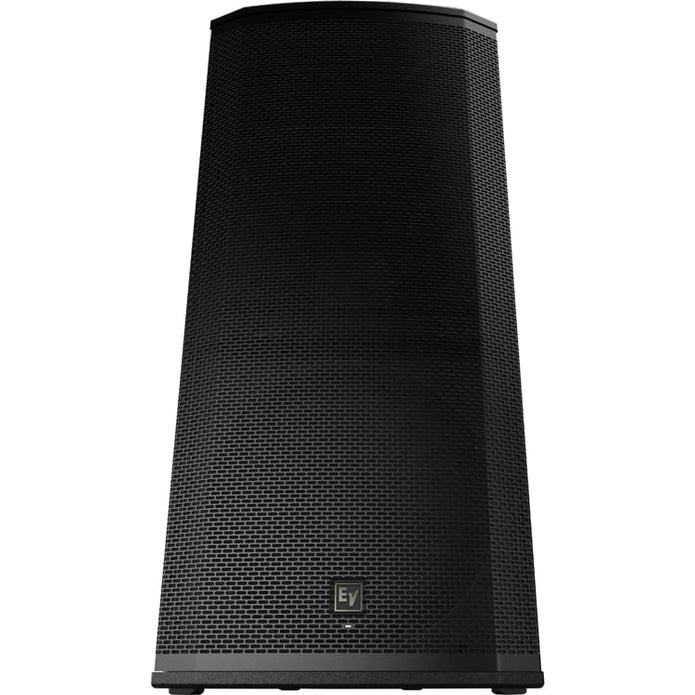

ETX powered loudspeakers are the top-of-the-line members of the EV portable sound family.
The ETX series combines intelligent FIR-Drive technology with innovative industrial design to deliver stunning performance and unbeatable versatility in the most demanding applications. EV-engineered components ensure superior sound quality and the utmost reliability.
They are ideal for pro musicians, DJs, mobile entertainers and rental companies looking for high-end compact sound reinforcement and will ensure concert quality finesse in small-to-medium permanent installations. Each model provides sound quality, power and features beyond the reach of other similarly sized professional grade powered speakers —tour-quality sound in a tidy, easy-to-use package.
Features

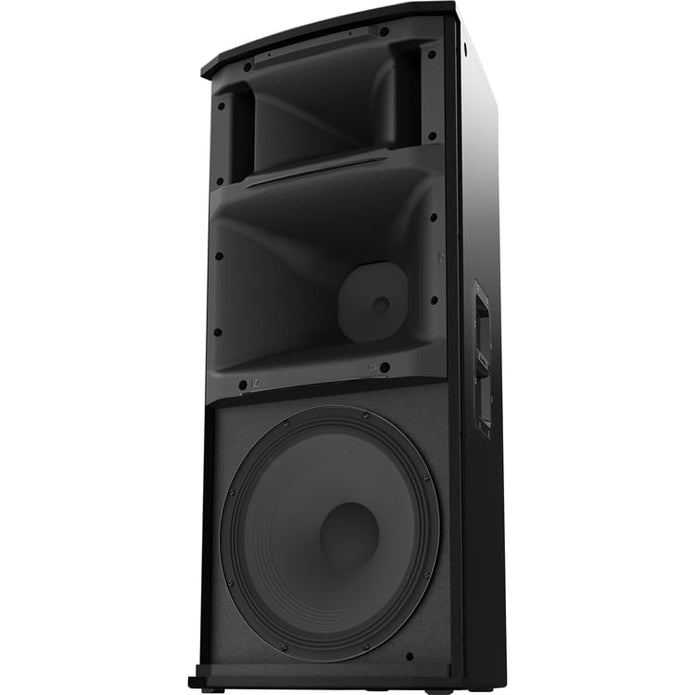

- 15-inch LF SMX woofer
- 6.5-inch MF driver
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 136 dB peak SPL
Technical Specifications
| Coverage (H x V) | 60° x 40° |
| Power Rating | 2000 W |
| LF Transducer | SMX2151 380 mm (15 in) |
| MB Transducer | EVS-6C 6.5-in mid-bass driver |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 700 Hz, 2900 Hz |

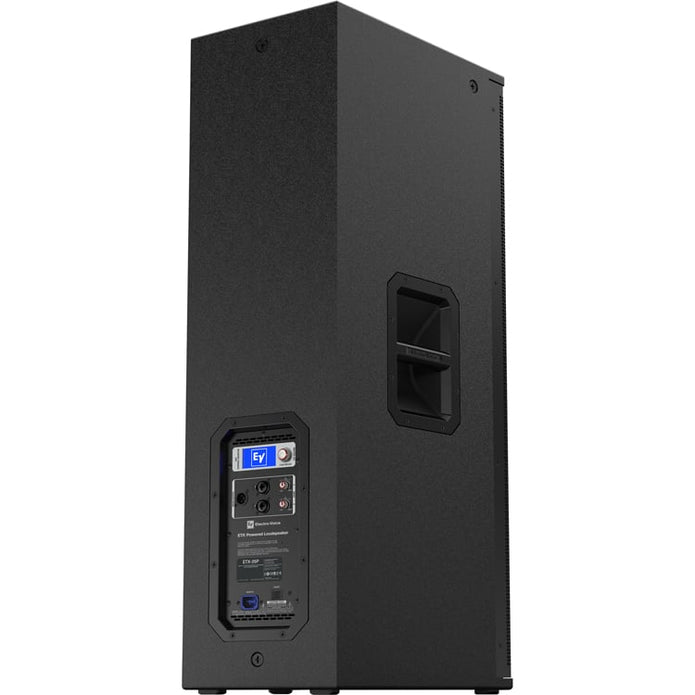

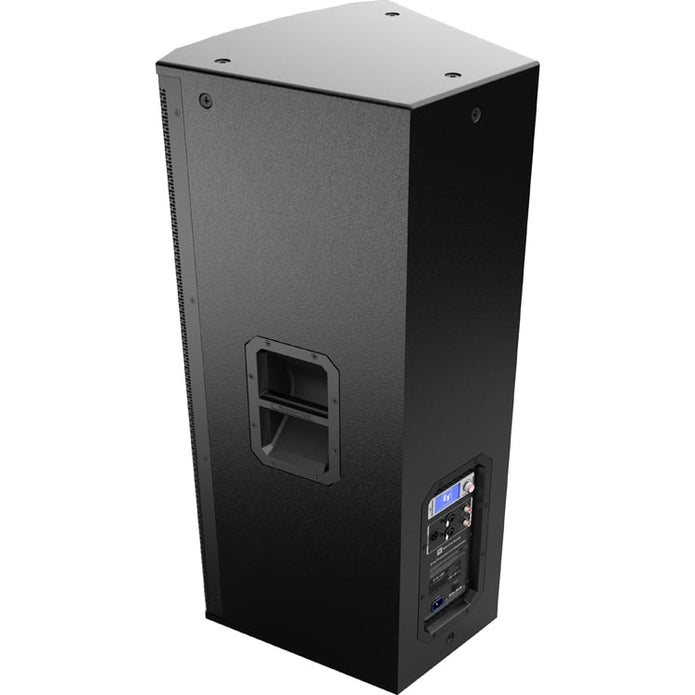

| Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure | 18mm Plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Suspension | (8) M10 suspension points |
| Dimensions (H x W x D) | 1023 mm x 469 mm x 426 mm (40 in x 18 in x 17 in) |
| Net Weight | 38.2 kg (84.2 lb) |
| Shipping Weight | 42.8 kg (94.4 lb) |
| Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³ |
