Description
Overview

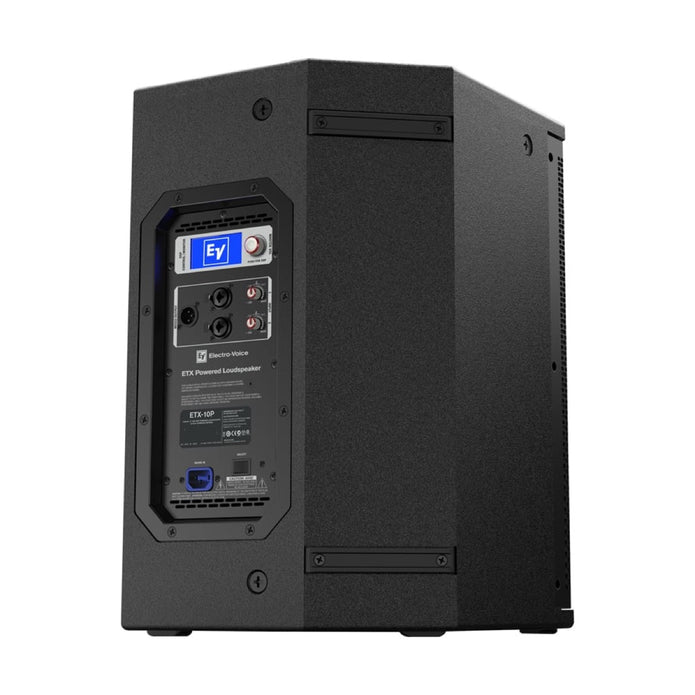

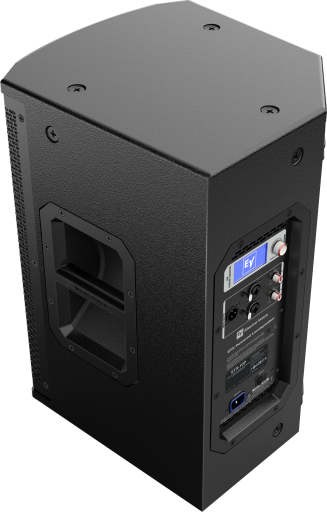

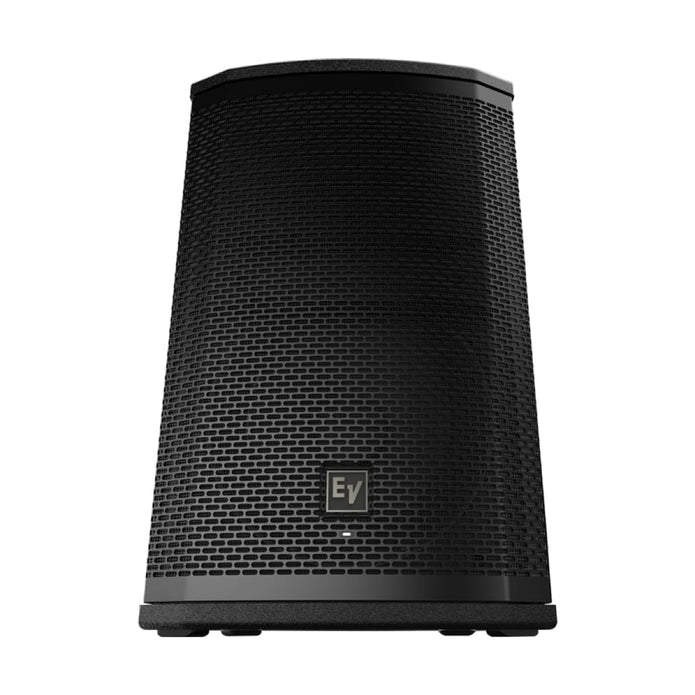

The Electro-Voice ETX-10P packs concert-quality sound into a tidy, easy-to-use powered speaker. Its Class D amplifier delivers 2,000 watts through high-sensitivity transducers, providing you with full-range sound and earth-shaking output. And everyone will hear it, thanks to the consistent coverage provided by EV's patented Signal Synchronized Transducer (SST) waveguide design. Digital signal processing puts a range of performance optimization and protection tools at your fingertips. And whether you mount it on a tripod or use it as part of an array, the Electro-Voice ETX-10P's rugged wood enclosure will easily tackle hard worlds of touring.
Feature
- 2,000W Class D amplifier with 10" woofer and 1.25" high-frequency titanium compression driver
- 88Hz-20kHz frequency range and 134dB maximum SPL deliver full-range sound and earth-shaking output
- Signal Synchronized Transducer (SST) waveguide design ensures that your audience experiences precise and consistent coverage
- FIR-Drive uses DSP to optimize transducer linearity
- 2-channel mixer with XLR/TRS combo inputs along with a range of performance optimization and protection tools
- QuickSmartDSP provides effective system optimization with presets for your application and location
- Programmable crossover for easy subwoofer integration
- Blower-controlled thermal management allows you to work in hot environments
- Mount it on a tripod, add it to an array, or suspend it
- Light weight and built-in handles for easy transportation
- Rugged, road-ready construction
Technical Specifications
| Coverage (H x V) | 90° x 60° |
| Power Rating | 2000 W |
| LF Transducer | SMX2100 254 mm (10 in) |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 1700 Hz |
| Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure | 18mm Plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Suspension | (8) M10 suspension points |
| Dimensions (H x W x D) | 526 mm x 330 mm x 365 mm (21 in x 13 in x 14 in) |
| Net Weight | 20.3 kg (44.8 lb) |
| Shipping Weight | 22.9 kg (50.5 lb) |
| Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³ |
