Description
Overview

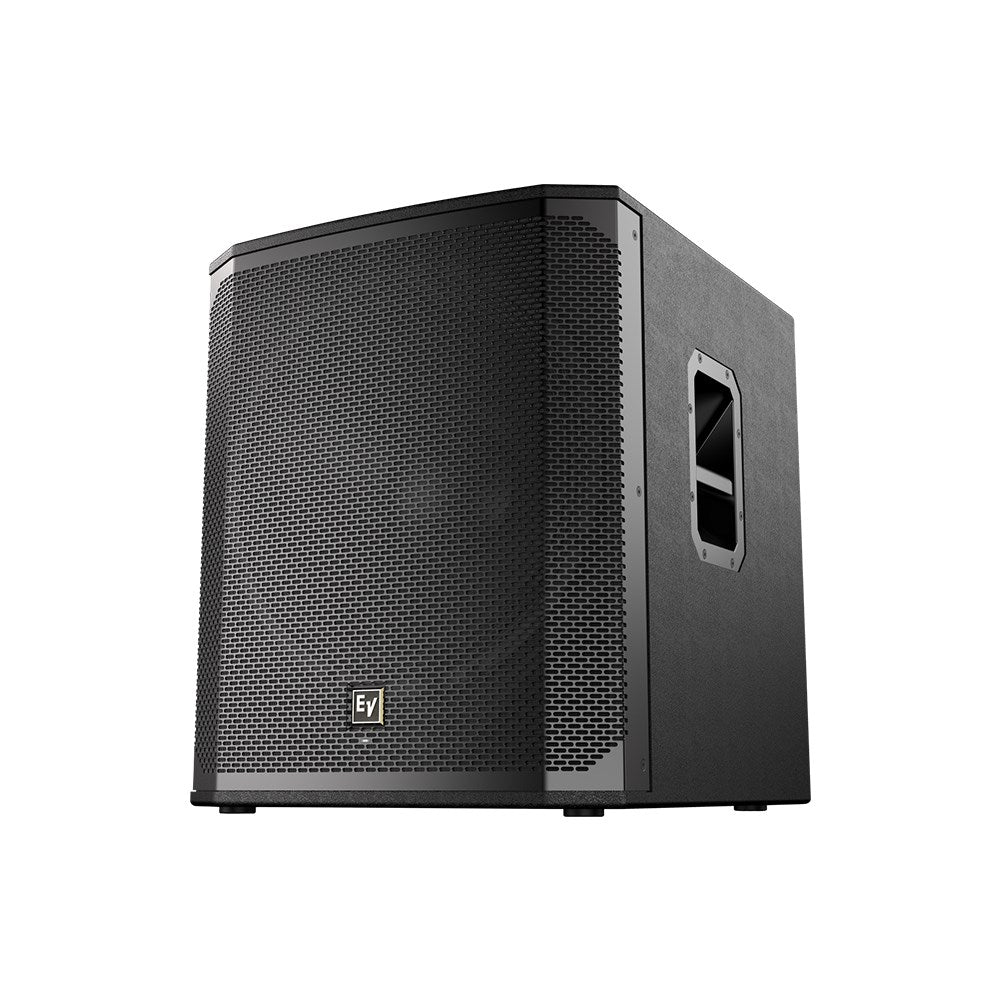

The Electro-Voice ELX200-18SP is a powered subwoofer of a new generation that was made to provide the portability, power, and performance that today's mobile entertainers require. This 18-inch sub has integrated QuickSmartDSP, high-efficiency Class-D power amplifiers (up to 1200 W), and EV-designed and engineered transducers that deliver up to 132 dB SPL. With three presets (Music, Live, and Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Settings for Store and Recall), visual monitoring of limiter status, input level control and meters, and master volume control for optimal gain structure, powered subwoofer models make setup simple. With their lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for simple lifting, powered ELX200 models are ideal for both portable and installed applications.
Using Bluetooth® Low Energy (BTLE) technology, the new QuickSmart Mobile wireless control and monitoring application makes it possible to control, configure, and monitor up to six powered ELX200 loudspeakers simultaneously. Control your system while standing in front of your speakers rather than behind them, and get alerts when your system is being overdriven. In a few countries, Bluetooth® is available.Black
Features
- EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
- QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High-efficiency 1200 W Class-D power amplifier delivers up to 132 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
- Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
Technical Specifications
| Power rating | 1200 W |
| LF transducer | EVS-18L 457 mm (18 in) |
| Low-Pass frequency | Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Connectors | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Color | Black or White |
| Dimensions (H x W x D) | 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in) |
| Net weight | 29.0 kg (64 lb) |
| Shipping weight | 33.1 kg (73.0 lb) |
| Power consumption | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³ |
