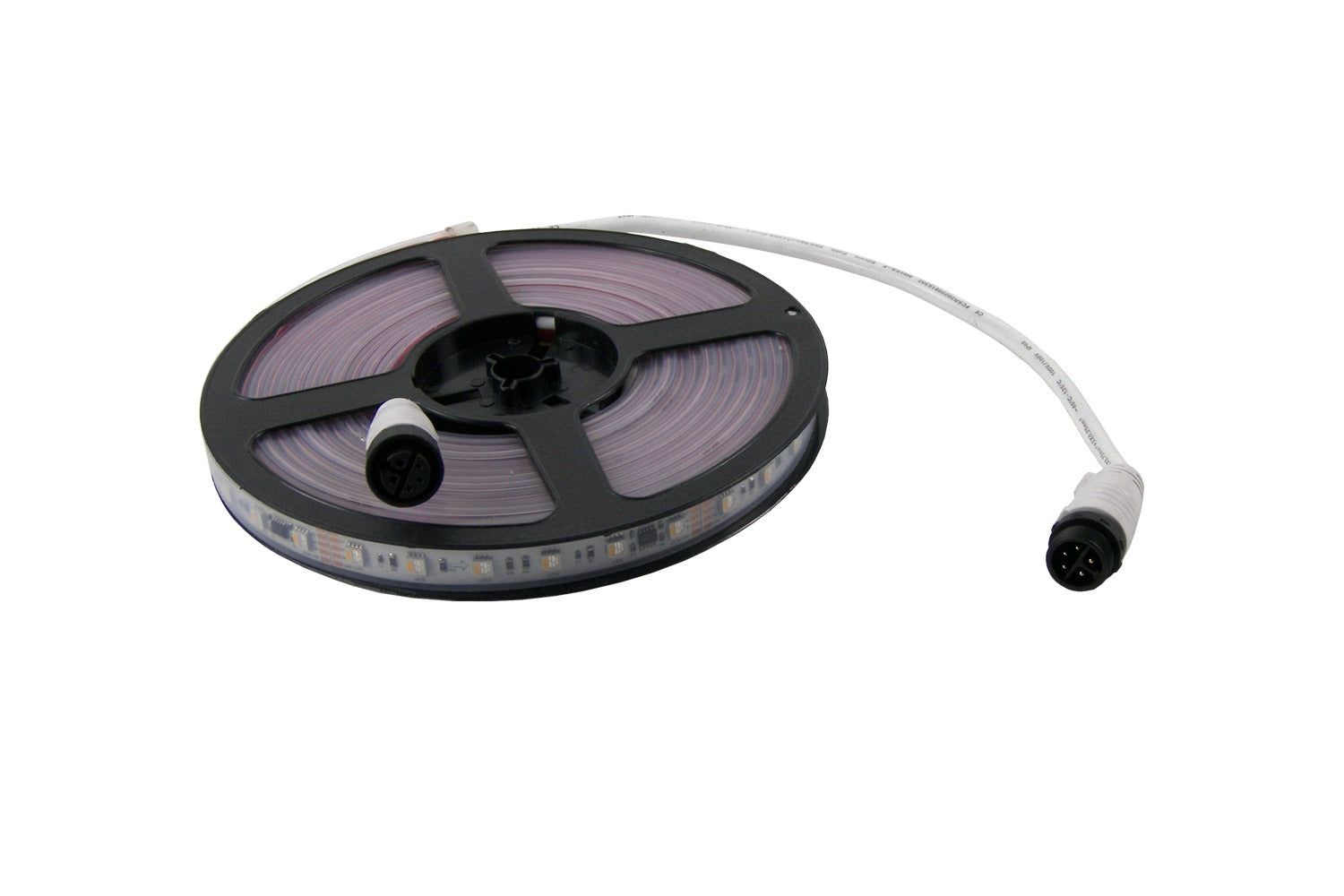

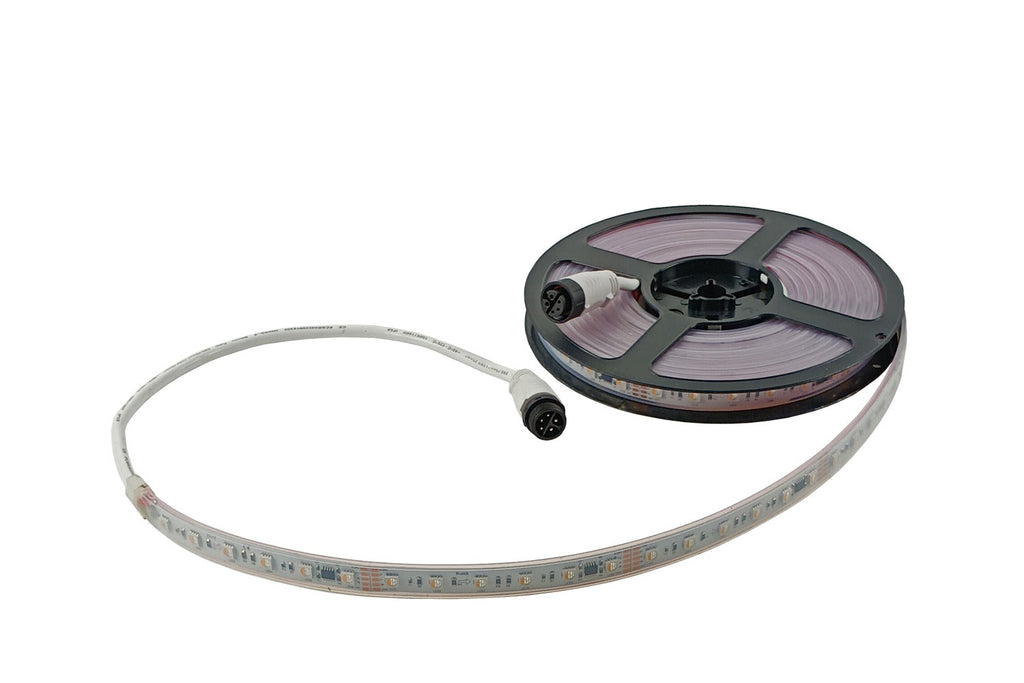

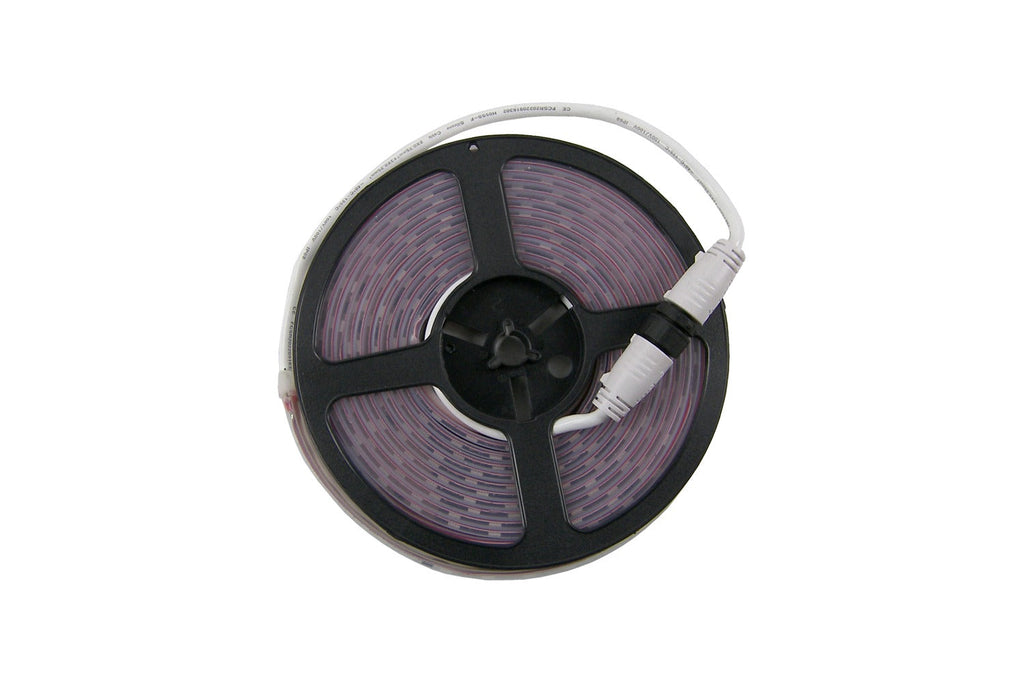

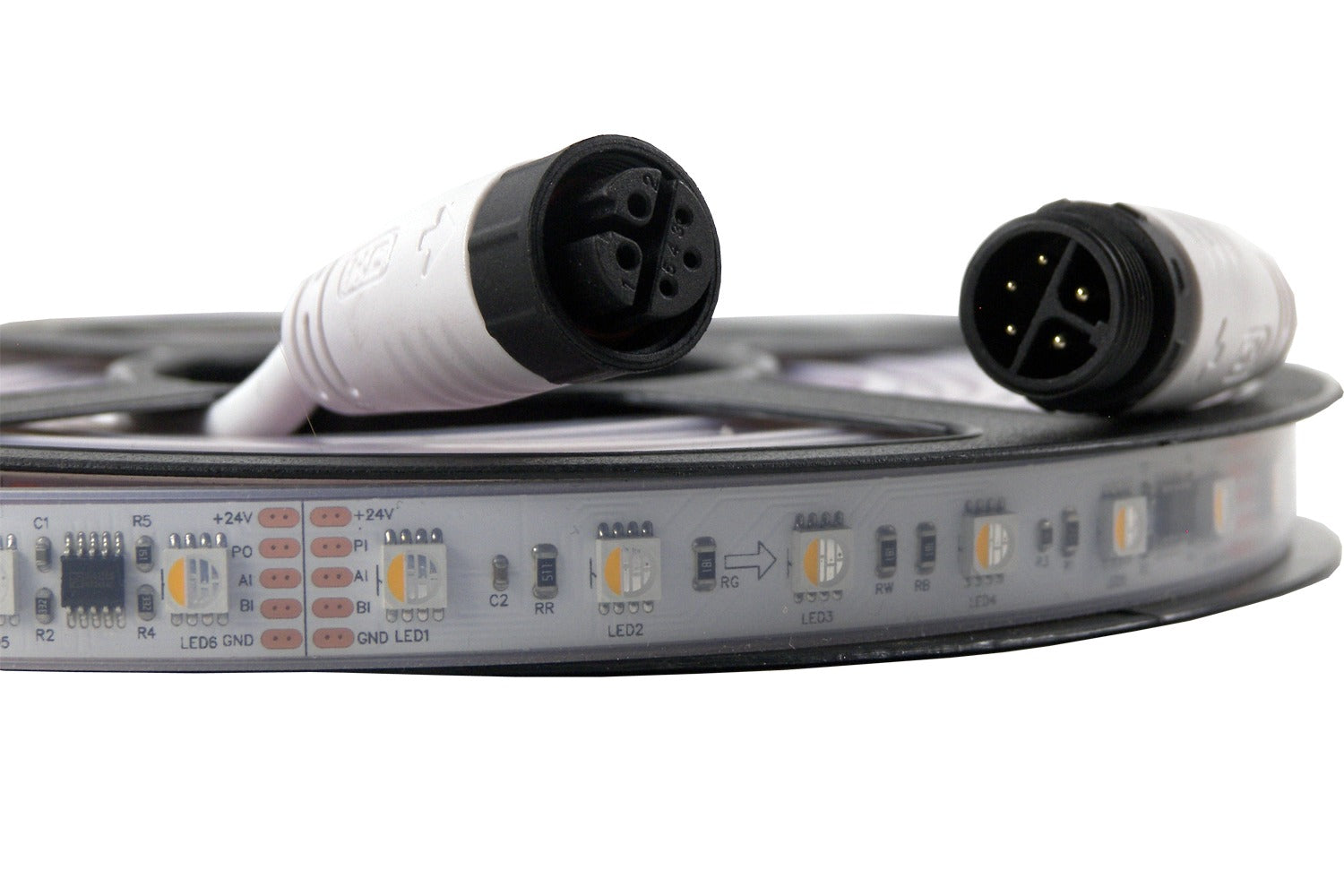

Event Lighting DMXTAPERGBW60 - DMX Controllable RGBW LED Tape (5m)

DMXTAPERGBW60 - LED tape RGBW 60 LEDs/m DMX controllable /100mm, 24VDC, 15W/M 12mm width, colour temperature 3000 on white, 5m length.

Photometrics

• Light Source: RGBW LEDs
• 60 LEDs per metre
• Colour temperature: 3000k
• LED Lifespan: 50,000hrs
• Pixel Pitch: 16mm

Power

• Input: 24VDC
• Power Consumption: 15W/ metre
• Recommended Power Supply: 1 x IP2PSU150 per 5m of LED Tape (reccomended), up to 10m. More than 10m, additional IP2PSU150 required.

Control

• DMX controllable 60 LED/1000mm - 6 LED/Segment
• ARCW - Programmer (required for programming)
• DMX Channels: 200CH total, 4CH per Segment

Housing

• Overall Length: 5000 mm
• Width: 12mm

Additional Products:

• IP2EXT - Extension for RGB LED Tape/Architectural Products
• IP2DMX - DMX Adapter for Architectural Series
• DMX Controller (Optional)
• IP2T - T cable
