Description

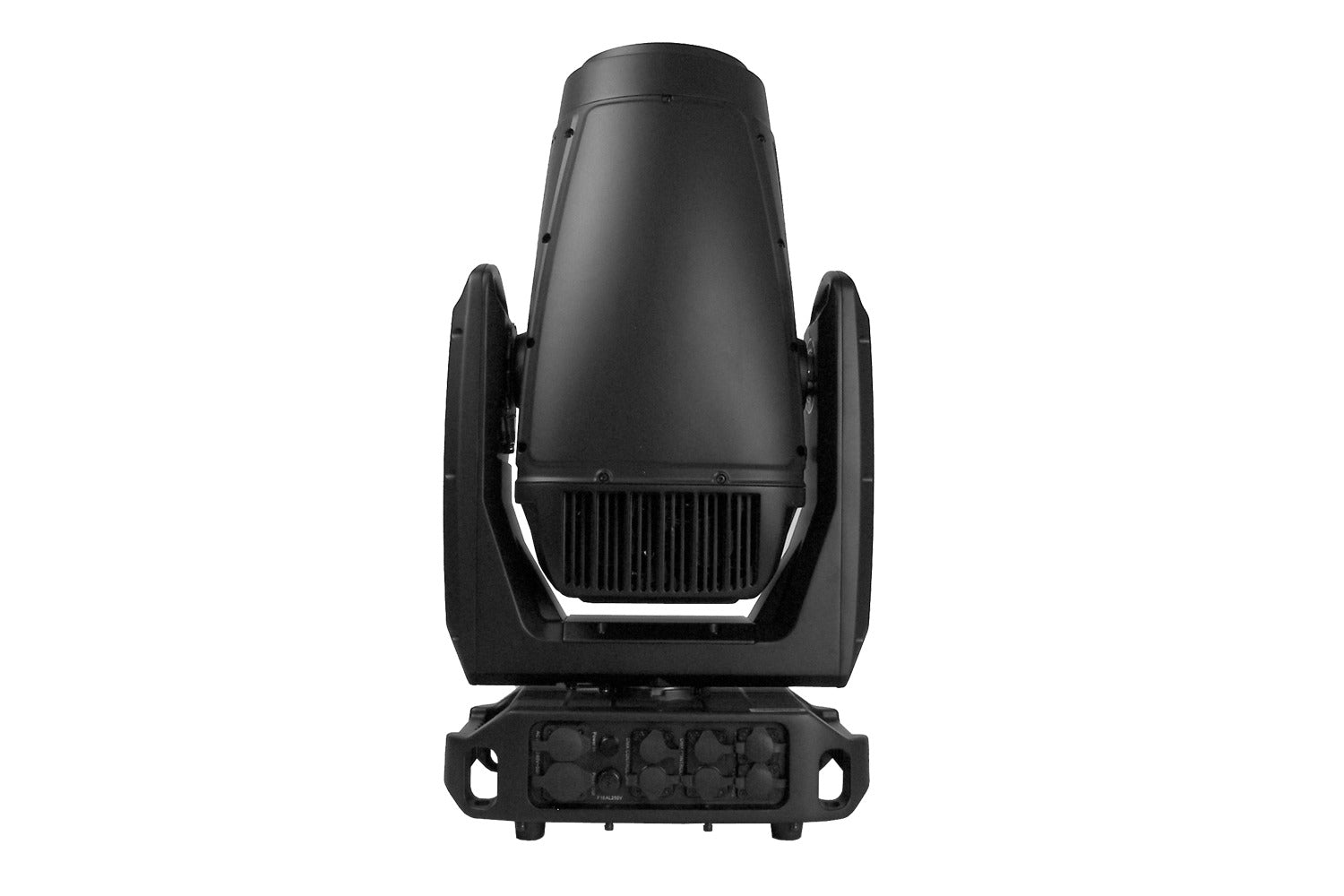

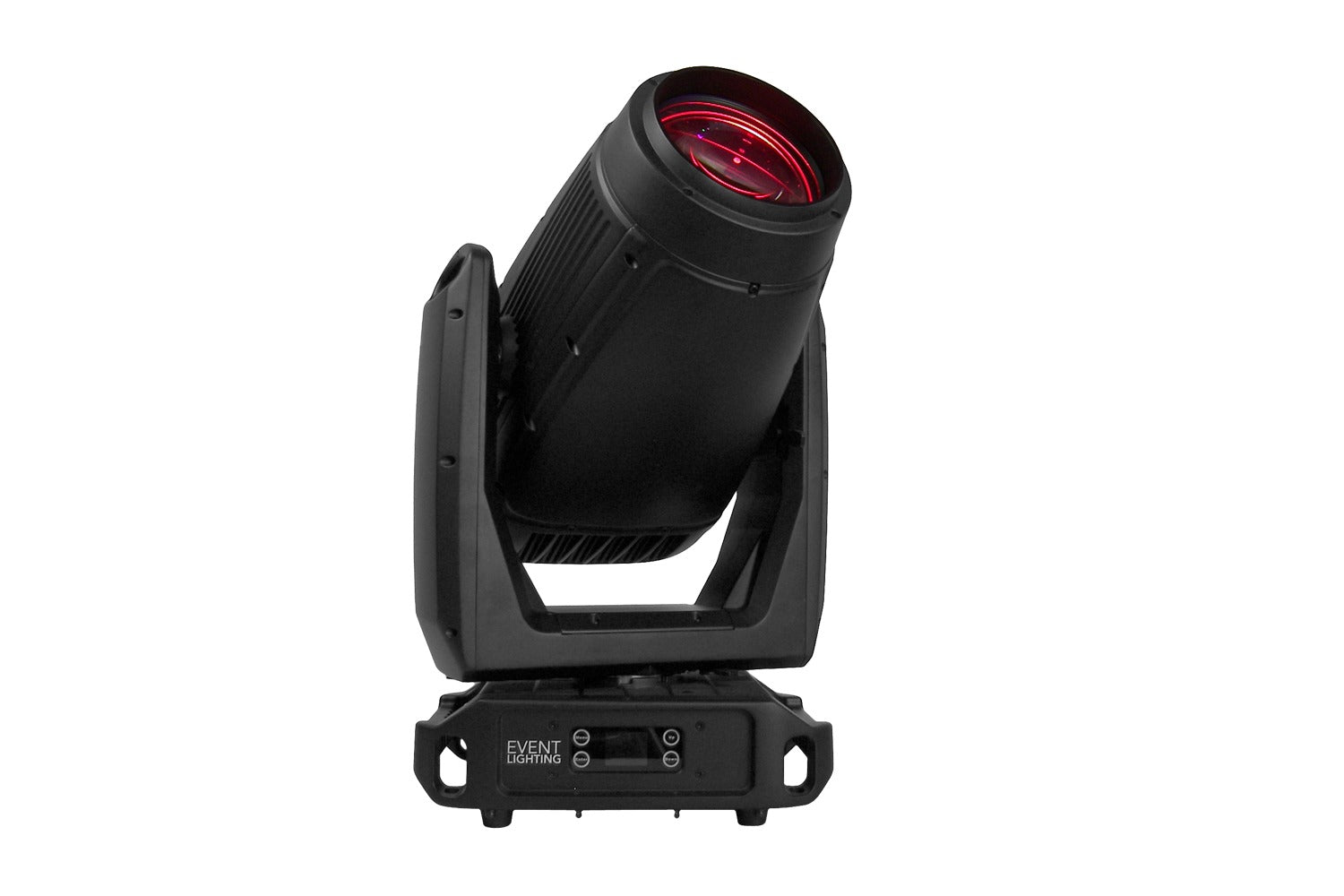

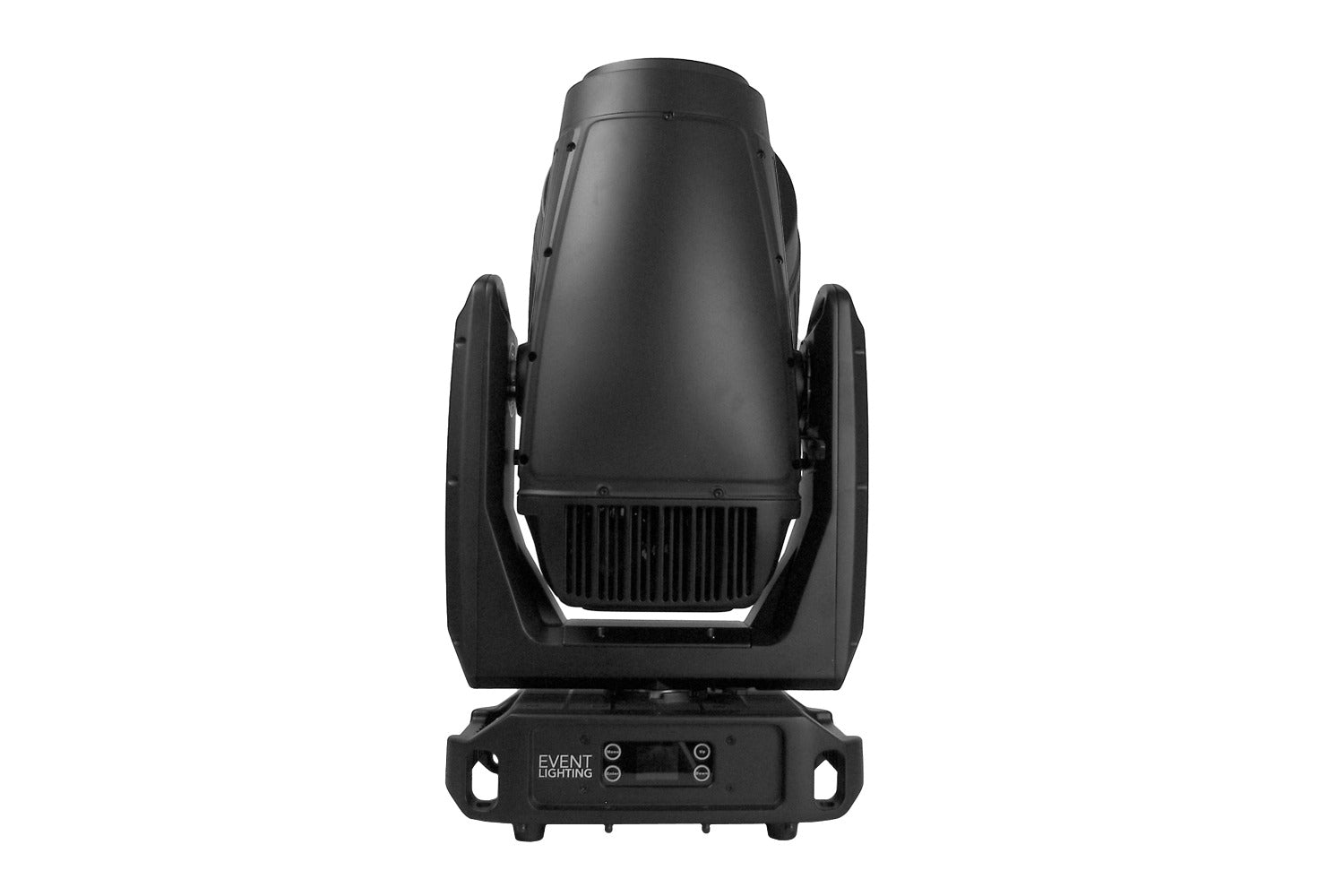

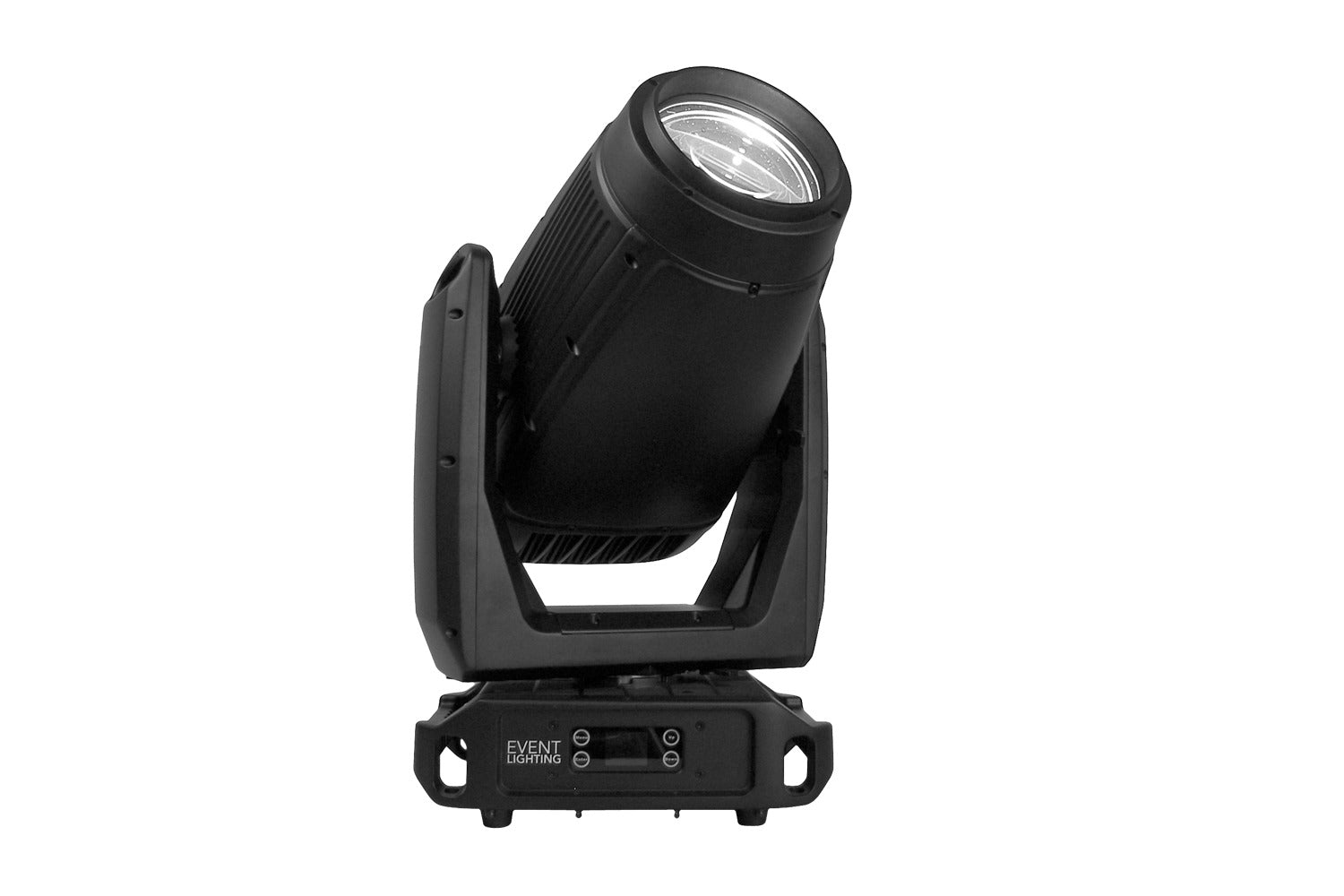

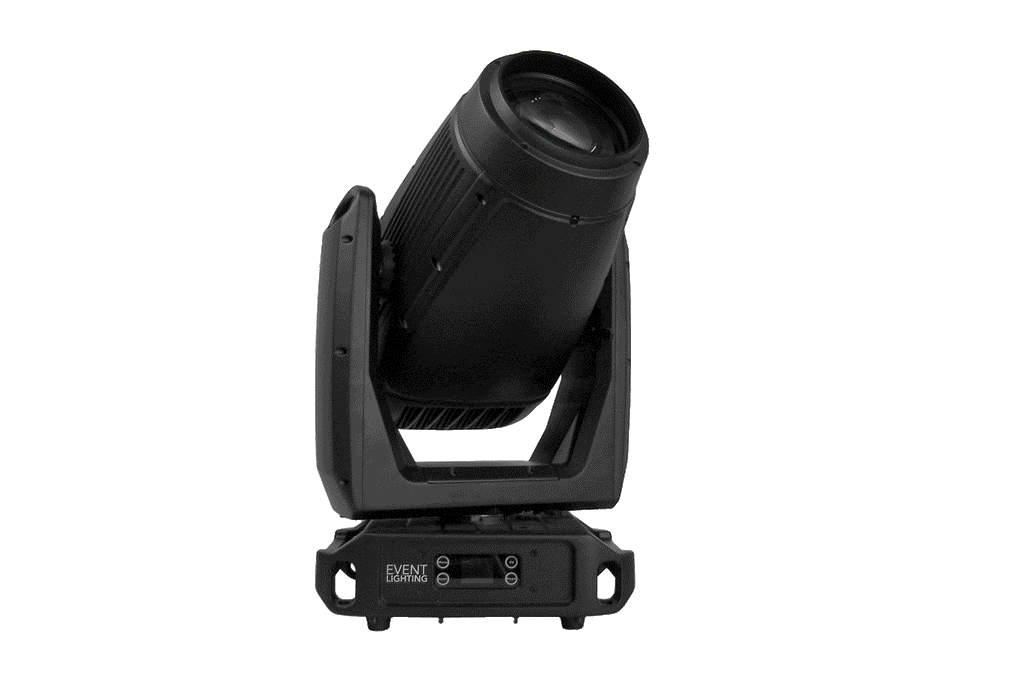

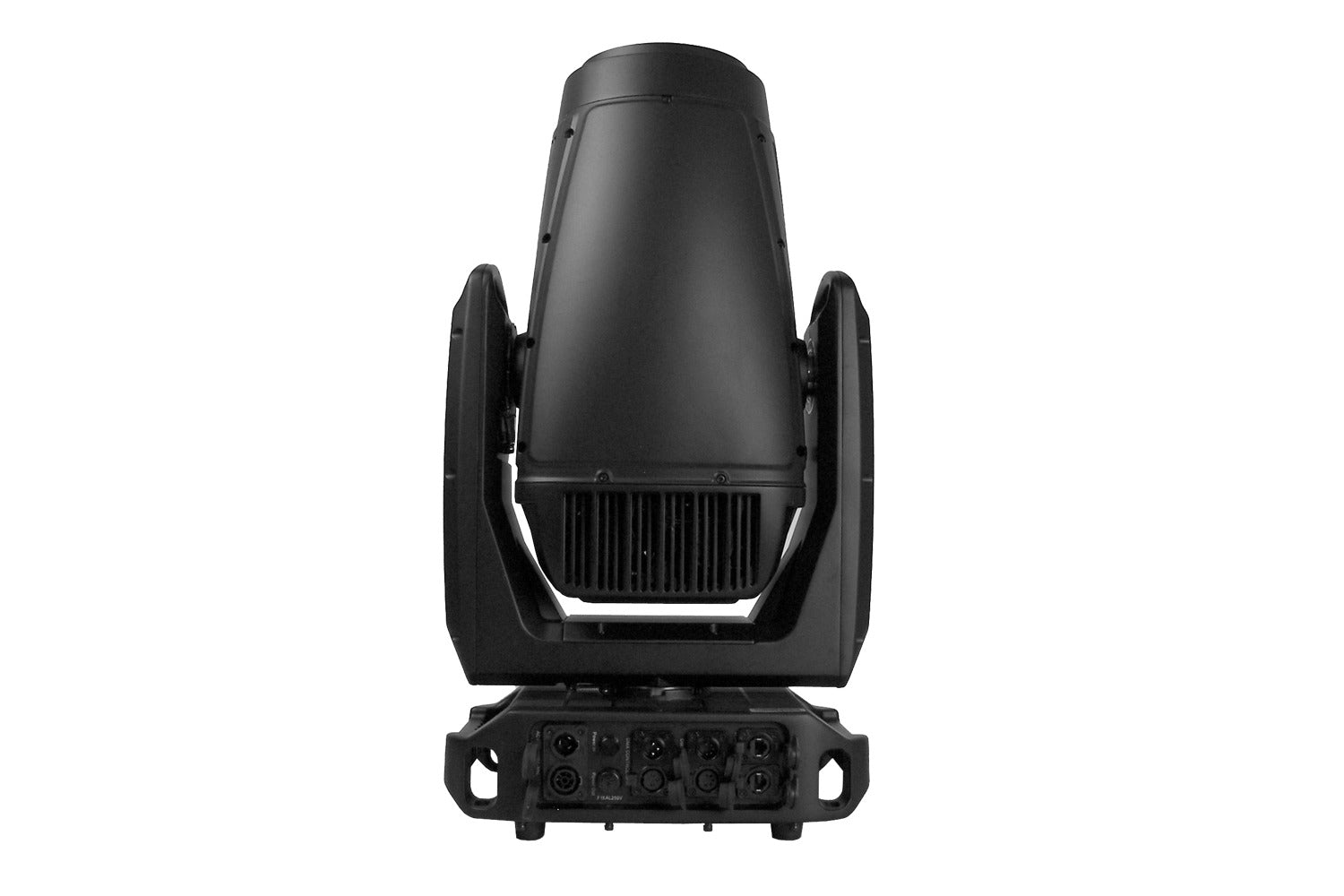

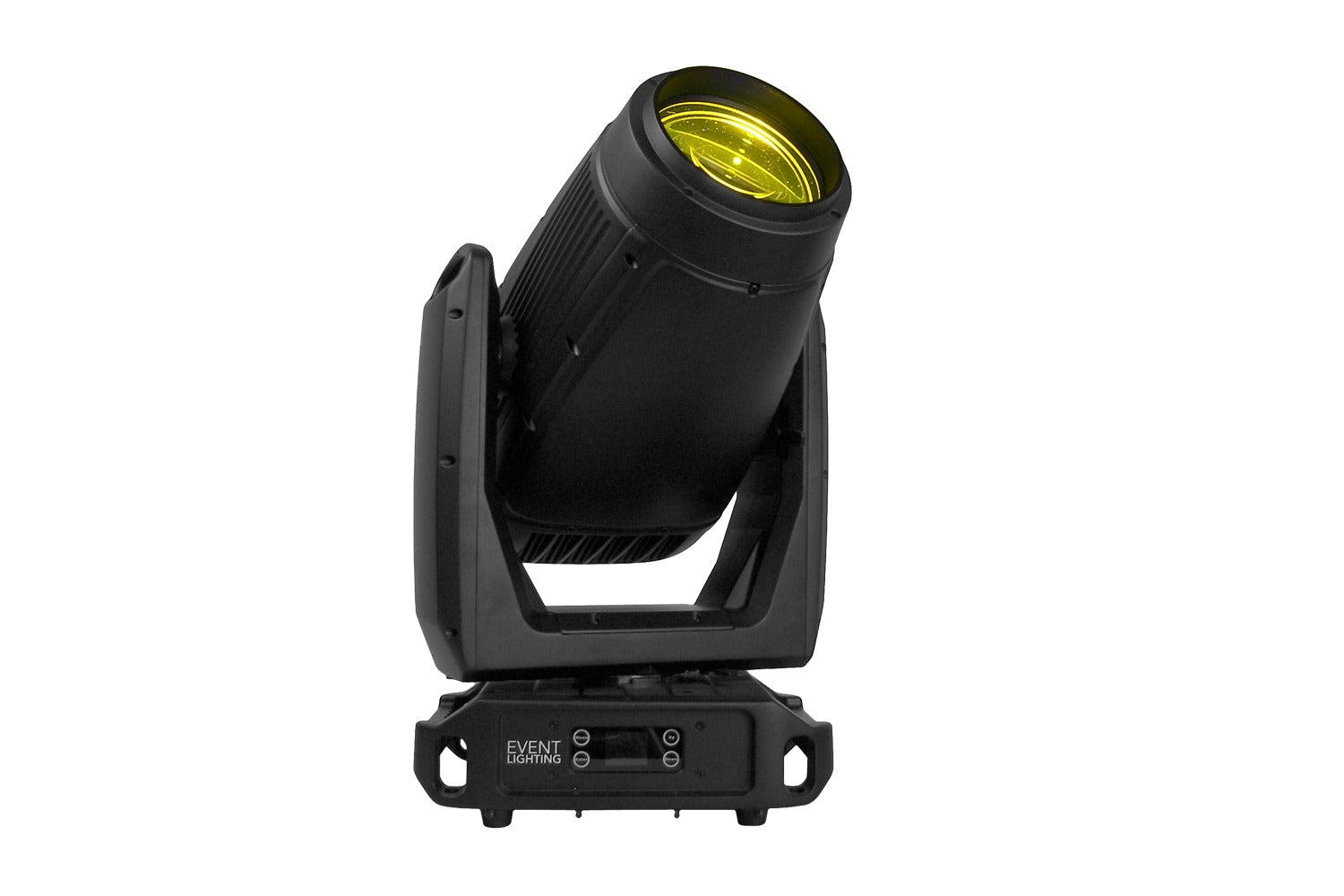

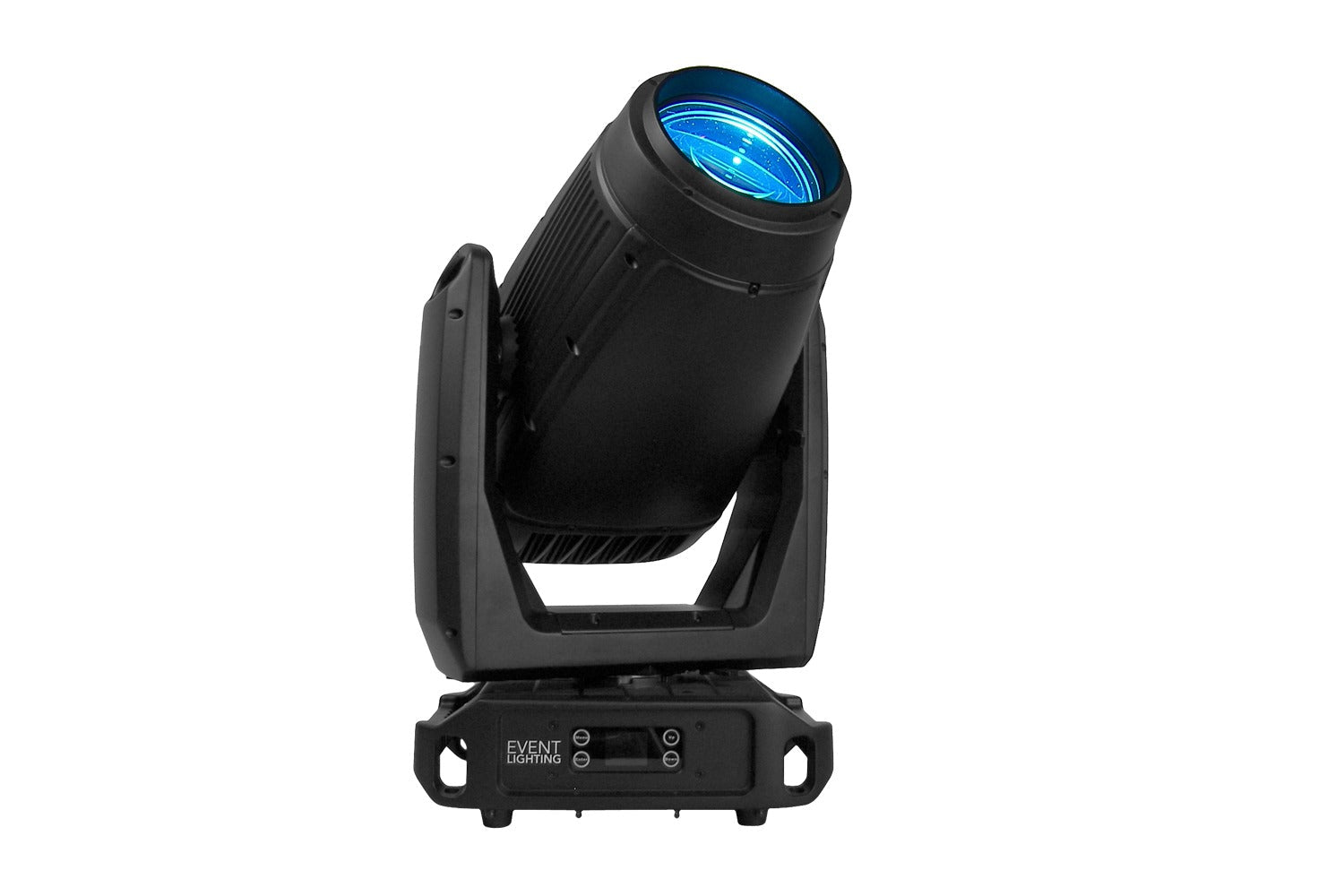

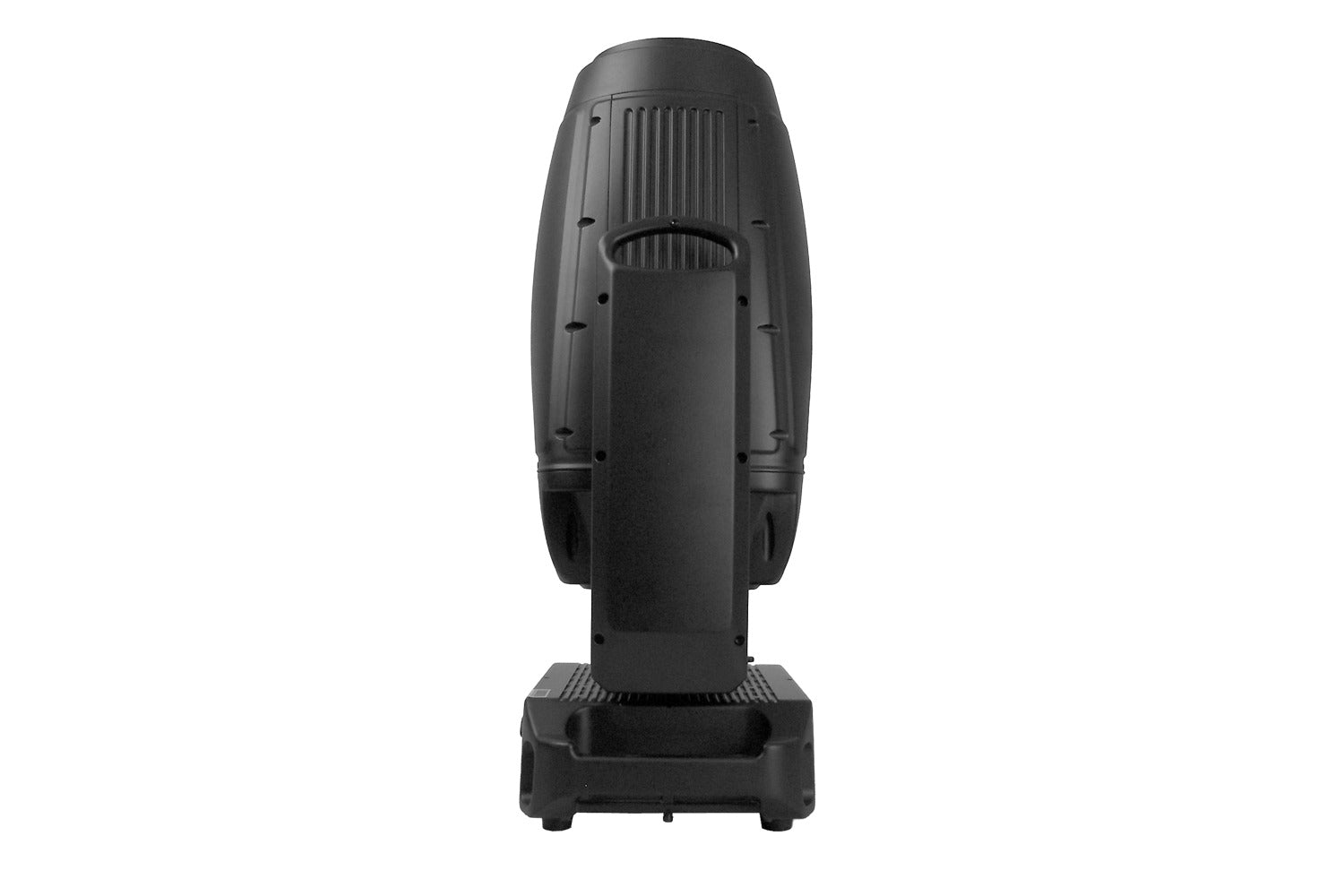

Event Lighting DELUGEM800HF - Outdoor 800W LED Moving Head Hybrid Built specifically to withstand outdoor conditions, the DELUGEM800HF features a powerful 800W white LED source with an impressive 121,000 lux output at 5m (4.5° beam angle) delivering exceptional brightness with a crisp 7,000K colour temperature. Versatile colour capabilities include 5-colours colour wheel with CMY colour mixing and CTO colour correction for precise colour control. The rotating gobo wheel plus animation wheel offer extensive pattern options with indexing and shaking functions for dynamic effects. Control options include 3 and 5 pin dmx as well as RJ45 connection capabilities.
Specifications:

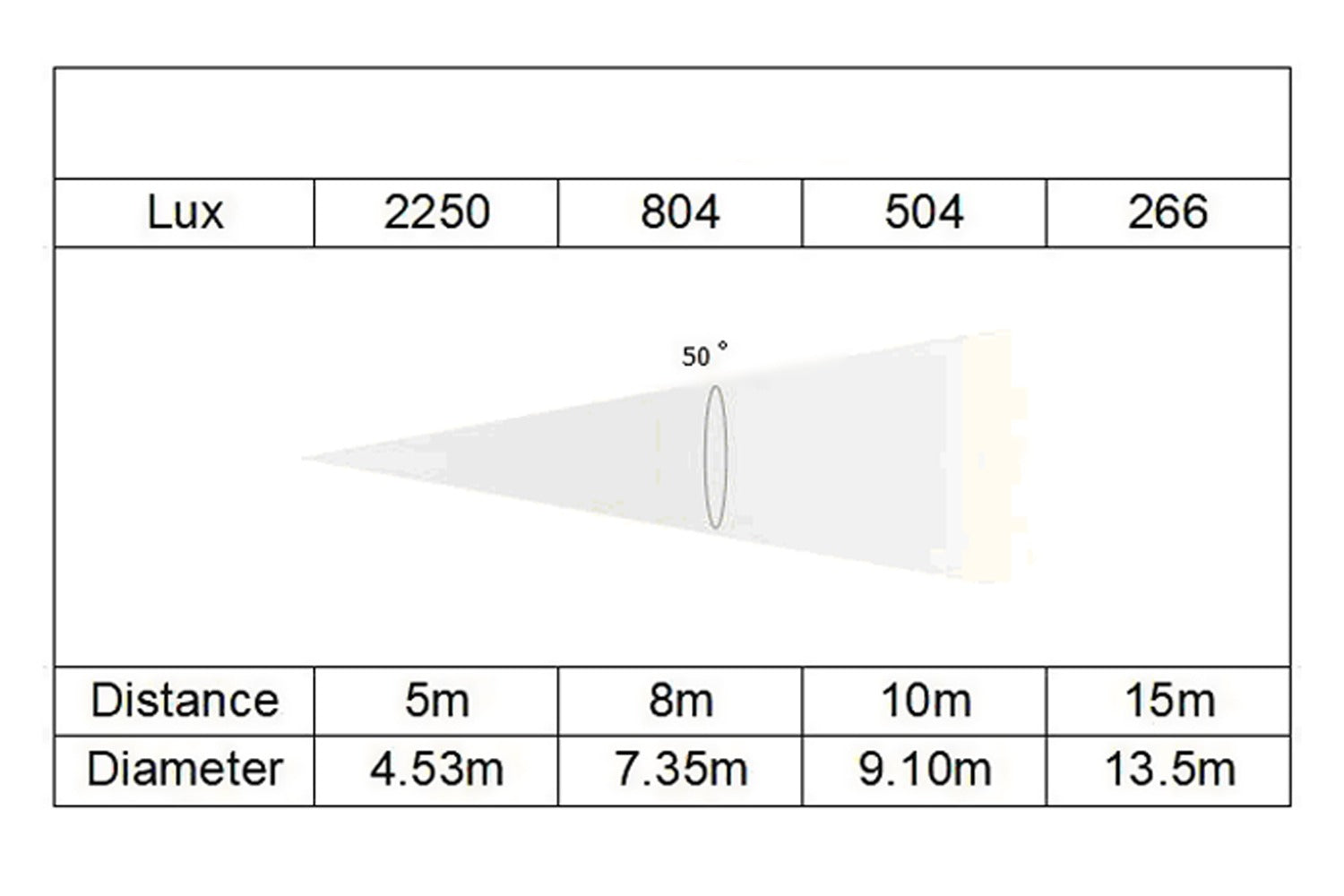

Photometrics
- Light Source: 800W LED Engine
- Beam Angle: 5.5°-50°
- Output: 121,000 lux @ 5m at 4.5°
- CCT: 7,000K
- CRI: >70 / 90
- Led lifespan: > 20,000 hours

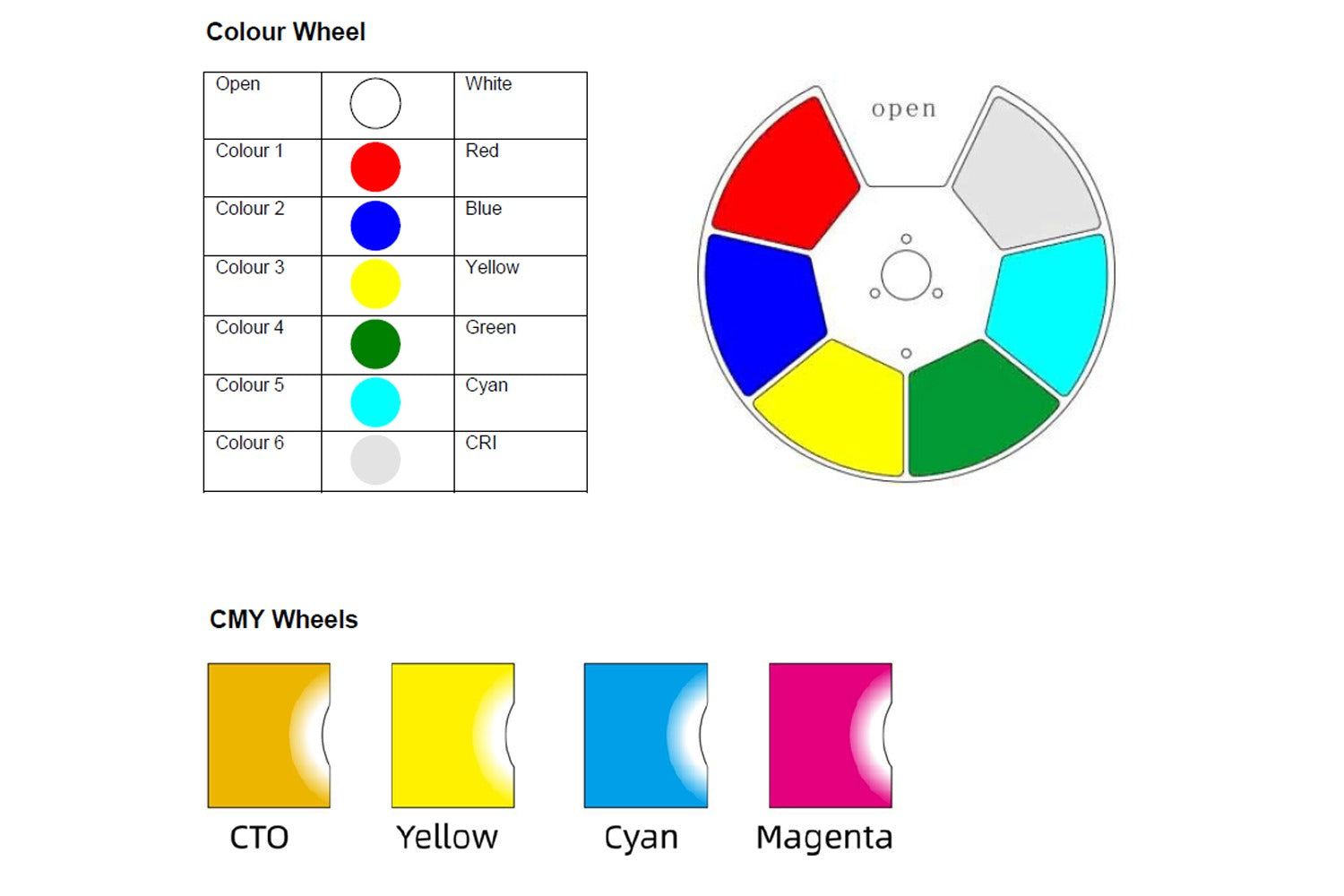

Colour
- 5 Colour + CRI
- Colour Mixing: CMY + CTO

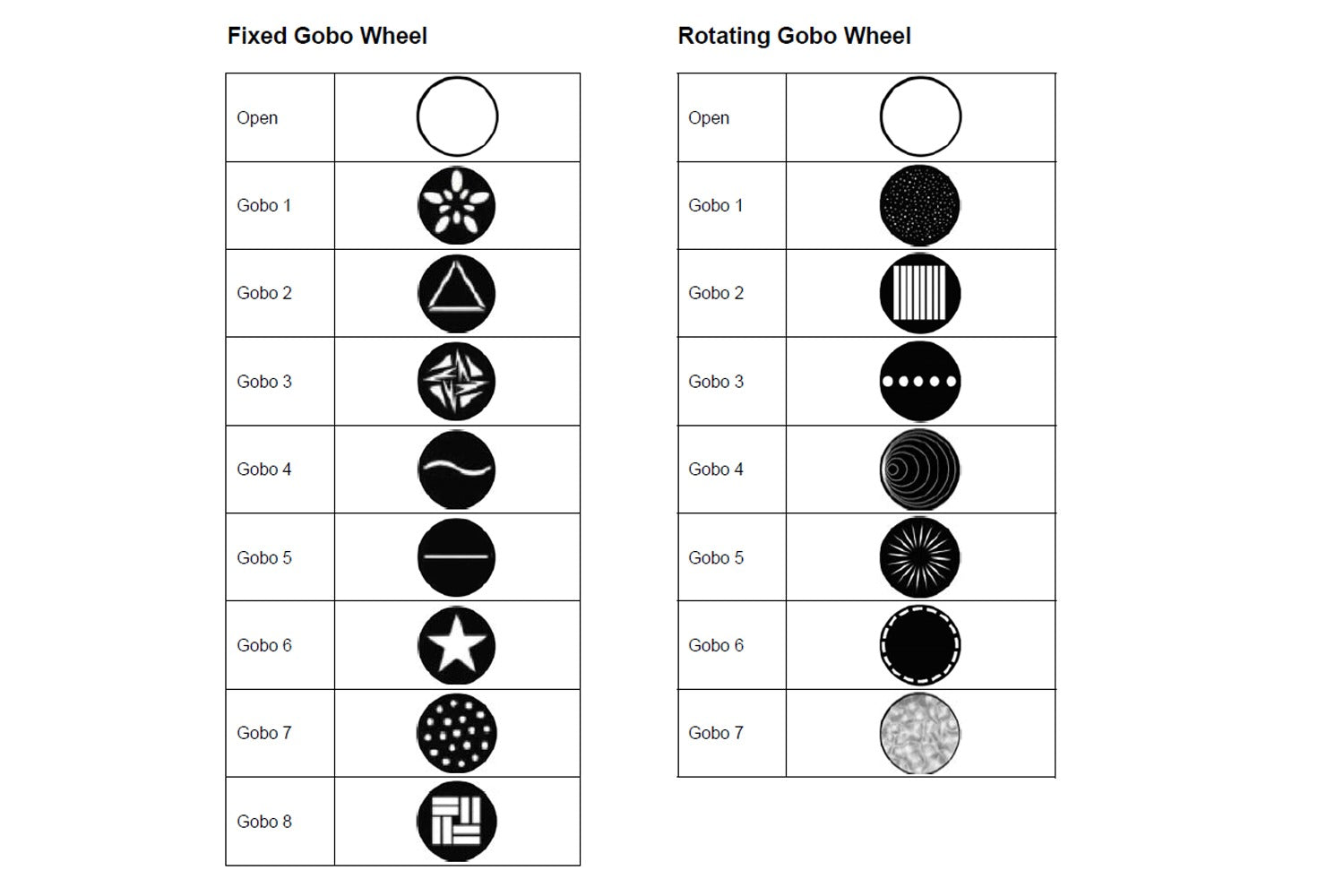

Gobos
- Static: 8 + Open
- Rotating: 7 + Open
- Animation wheel
- Gobo Shaking: Yes
- Gobo Indexing: Yes
Effects
- Dimming: 0~100%
- Strobe: 1 - 25 Hz
- Zoom: Motorised 4.5° to 50°

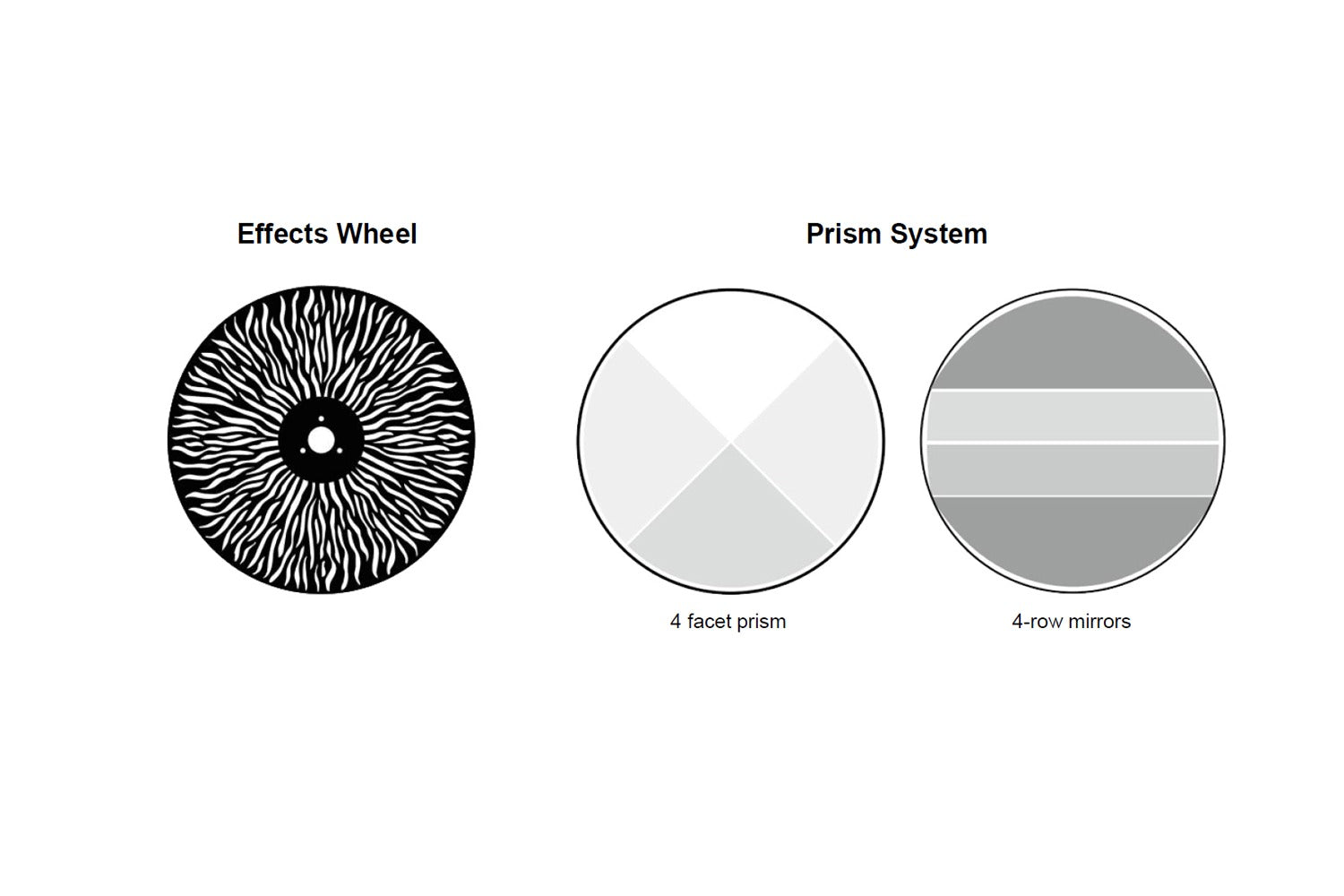

- Prism(1): 4-Facet prism, indexing
- Prism(2): 4-Facet prism, indexing
- Frost: Yes
- Iris: Yes
Movement
- 16 bit resolution
- Auto repositioning
- Pan: 540°
- Tilt: 260°
Power
- Max power consumption: 910W
- Input Voltage: 100~240V AC, 50/60Hz
- Connection: True1 in/out
Control
- Control Protocol: DMX512, RDM, Art -Net, sACN
- DMX Channels: 23 / 32S / 32F / 42

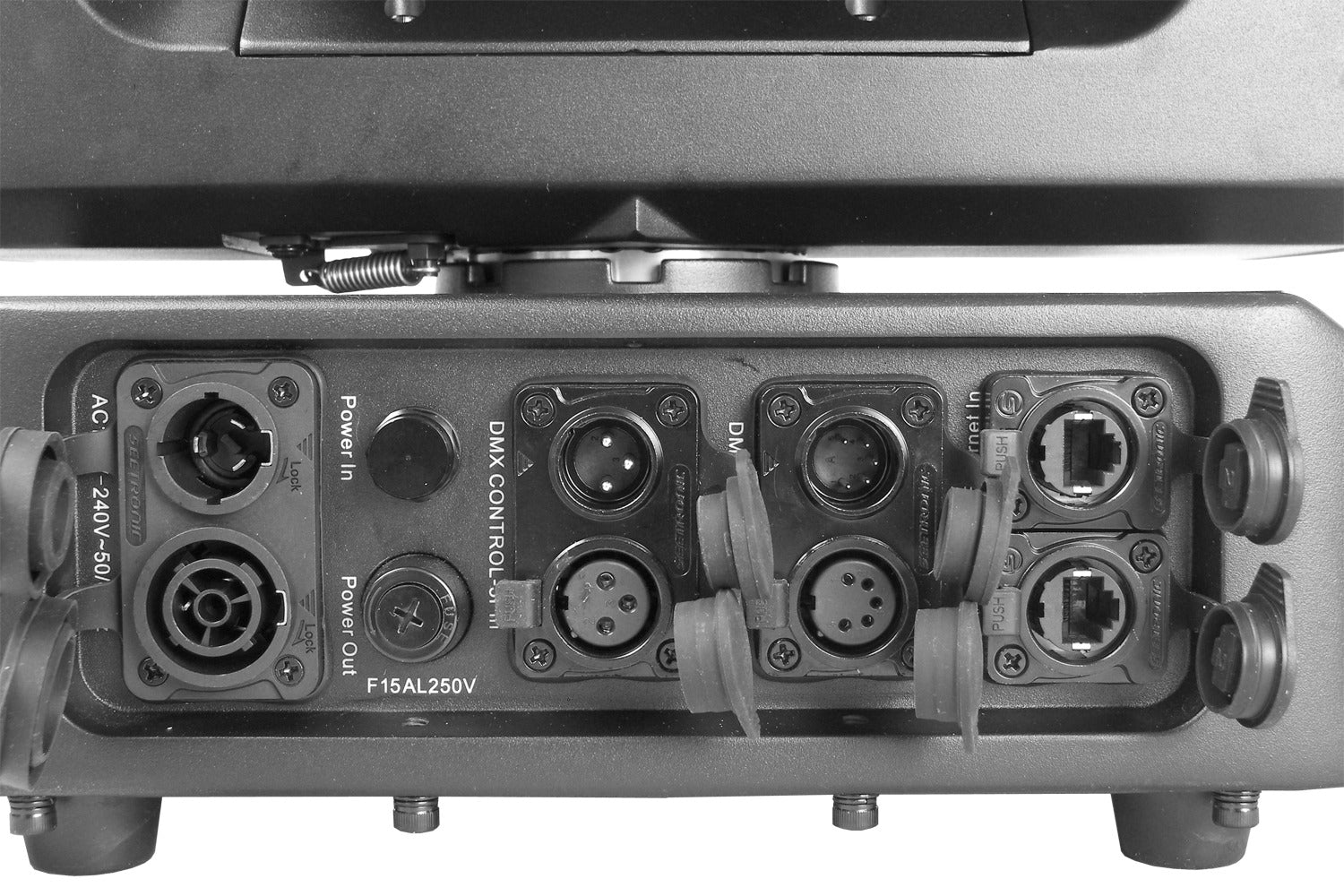

- Interface: 3-pin/5-pin XLR in / out, RJ45 in / out

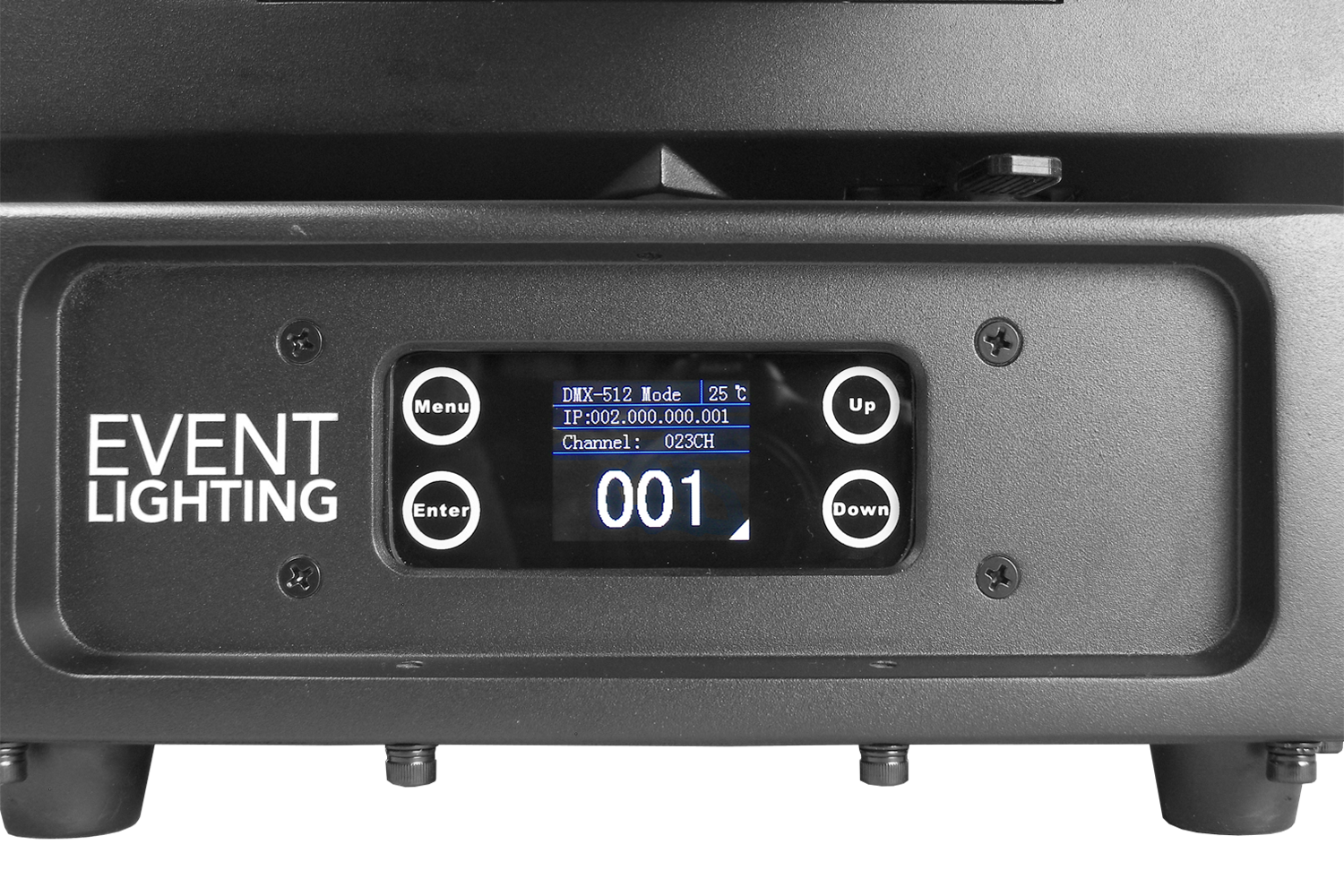

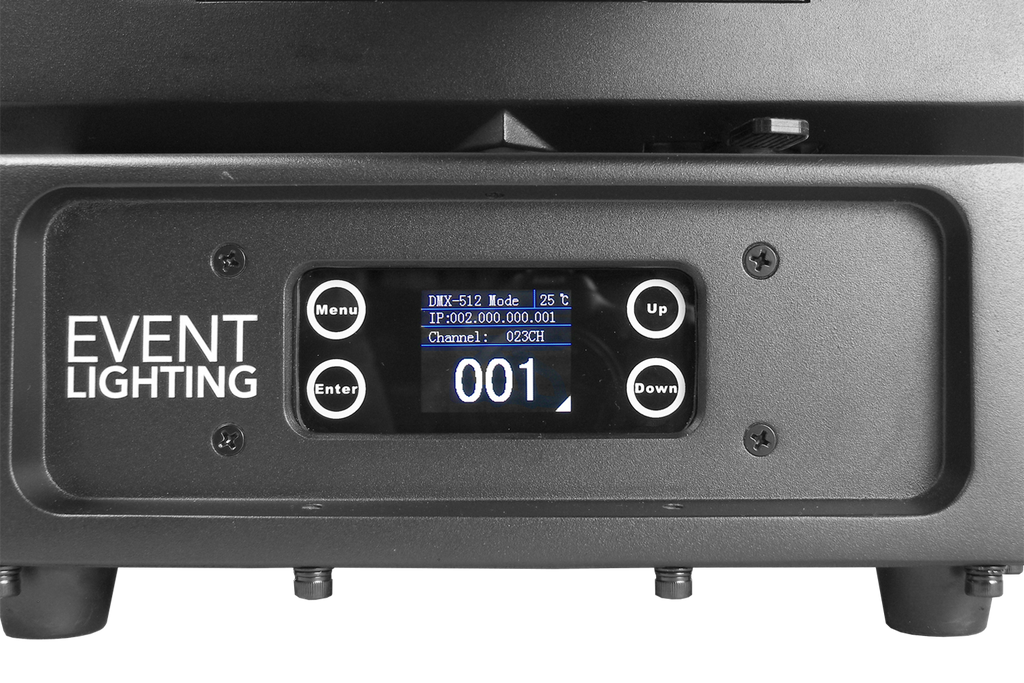

- Display: LCD control panel with 4 touch buttons
Housing
- Materials: ABS & Steel, matte black finish
- IP rating: IP65

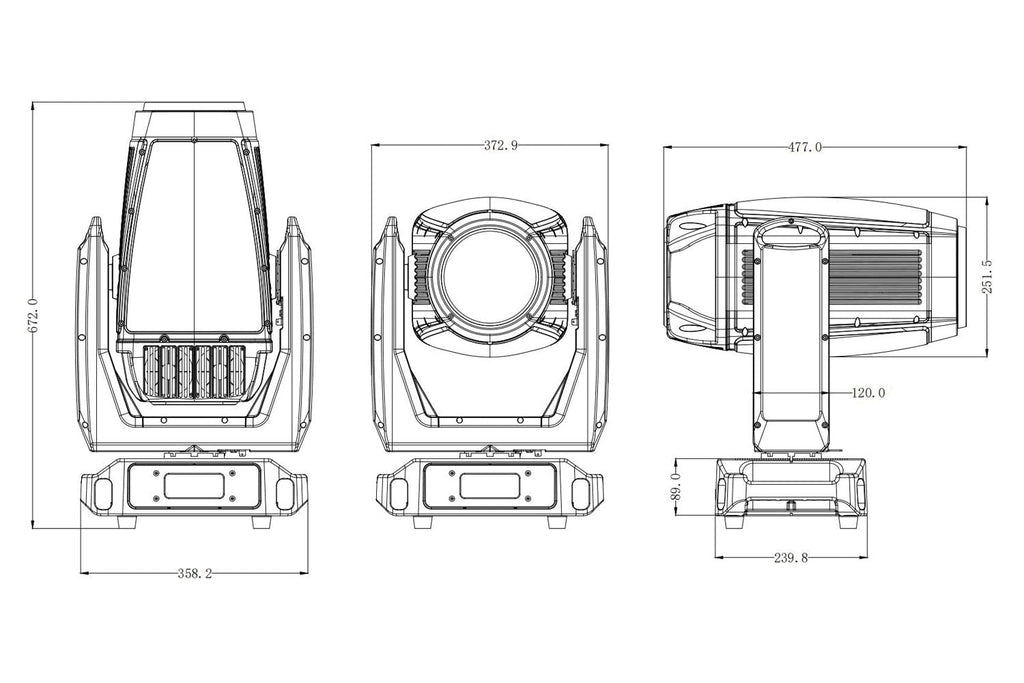

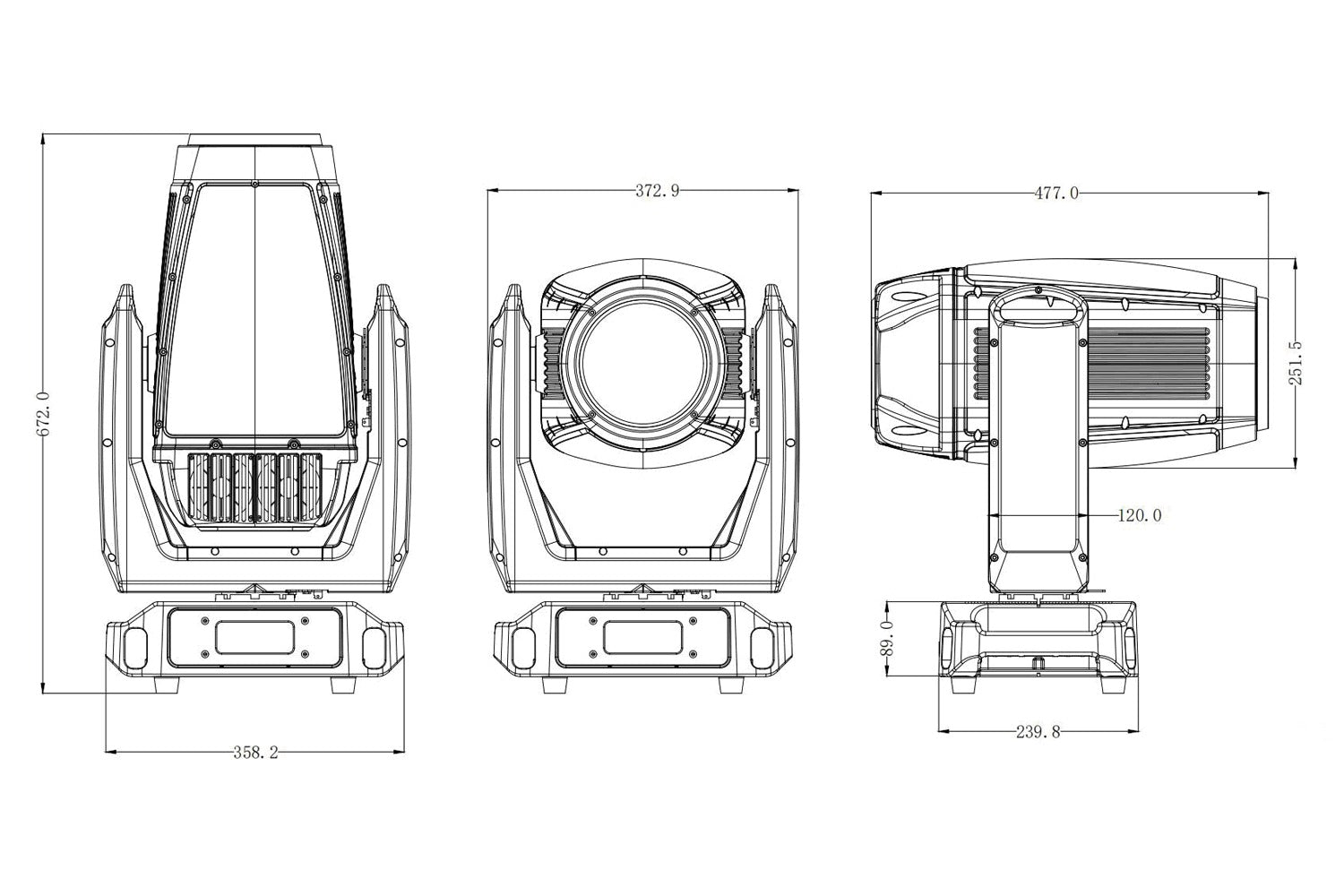

- Dimensions: 358.2 x 239.8 x 658mm
- Net Weight: 29 kg
