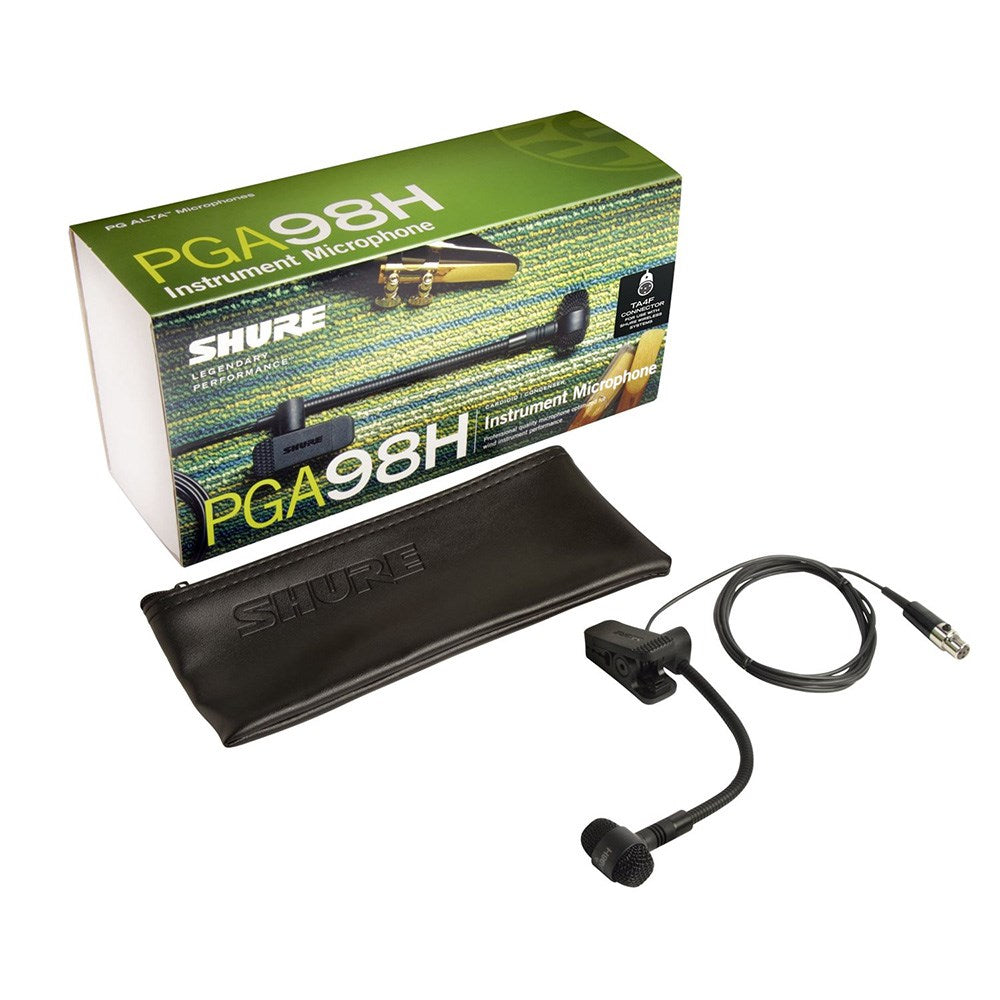

Shure PGA98H+TQG TA4F connector

Sale price$239.00


The PGA98H is a professional quality cardioid condenser microphone optimized for wind instruments, including woodwinds and brass. Featuring a flexible, discrete gooseneck design with highly durable construction, in-line preamplifier and horn clamp, TA4F connector for use with wireless systems, the PGA98H is ideal for both live performance and recording.


Tailored microphone cartridge design for clear reproduction of wind instrument sound sources
Flexible gooseneck design makes accurate positioning quick and easy
Integrated horn clamp for quick and easy mounting for wind instruments
In-line preamplifier provides phantom power and a direct XLR connection
Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
Updated industrial design with black metallic finish and grille for unobtrusive visual presence
Available with and without XLR Cable for flexibility in gear choice
With TA4Ff connector for use with wireless bodypack systems (no preamplifier provided)
Zipper pouch included for additional protection during storage or transport
Legendary Shure quality design and construction for exceptional performance in rigorous environments


Type: Electret Condenser
Polar Pattern: Cardioid
Frequency Response: 60 to 20,000 Hz
Output Impedance at 1 kHz, open circuit voltage: 850 Ω
Sensitivity at 1 kHz, open circuit voltage: -52 dBV/Pa[1] (2.51 mV)
Maximum SPL: 1 kHz at 1% THD, 1 kΩ load, typical, 130 dB SPL
Self Noise: A-weighted, typical, 27 dB SPL-A
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector: Three-pin professional audio (XLR), male
Weight: 245 g (0.5 lbs)
Housing: Cast Zinc
Power Requirements: 11 to 52 V DC phantom power (2 mA)
