Description
Overview

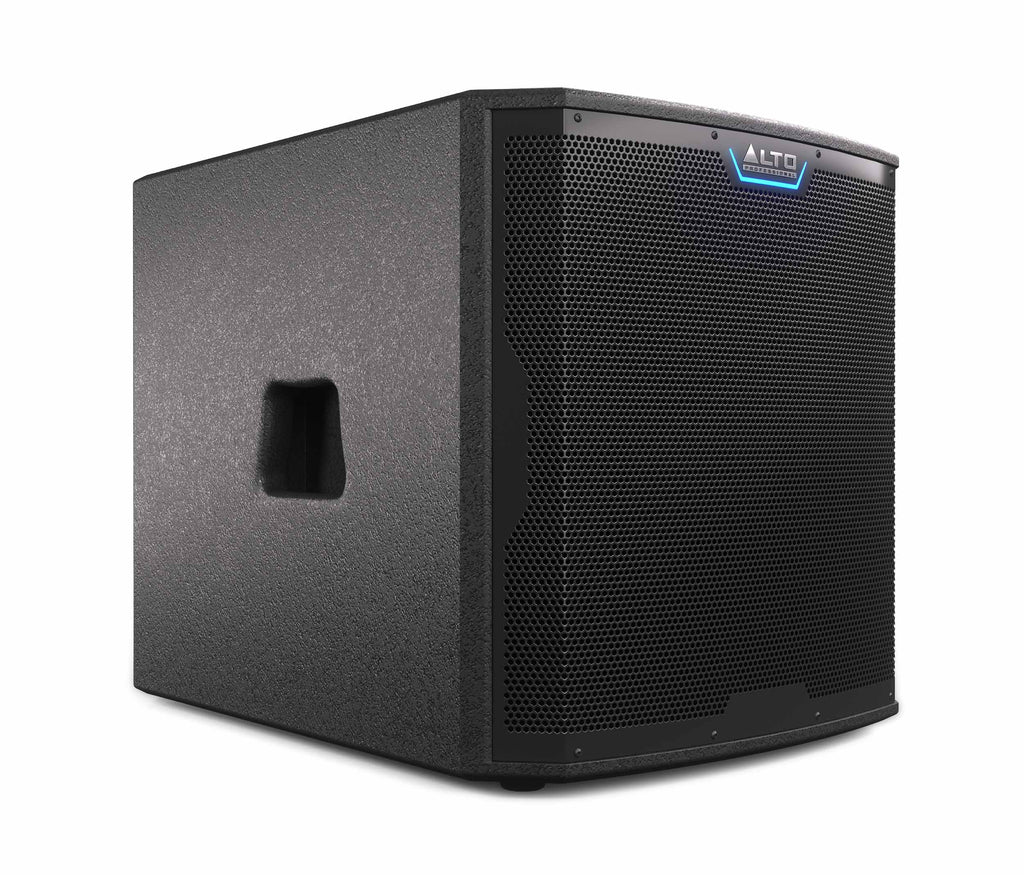

The Alto Professional TS15S active subwoofer delivers tight, punchy low-end presences for balanced listening experiences. Featuring a 2500W Class D amplifier, this sub packs the necessary heft and weight to any performance for a full and complete sonic representation. Constructed with a premium internally braced composite cabinet enclosure, this sub eliminates unnecessary rumbles and rattles. An onboard EQ and Phase Alignment let it integrate into any system. Dedicated inputs can easily link to Alto Professional full-range loudspeakers or other standard loudspeakers.
Features
- 2500W of Thunderous Bass
-
High-efficiency Class D amplifier
-
Transducer: 15-inch driver with 3-inch high-temperature voice coil A Subwoofer That’s Built to Last
-
Rugged, internally-braced front-ported MDF cabinet with integrated
-
36mm pole socket
-
Mark-resistant splatter-spray finish always looks good, even with heavy use
-
Electronic clip, thermal and transducer overdrive protection
-
Rock-Solid Sound from the Bottom, Up
-
The Perfect Match for Your Live Sound Setup
-

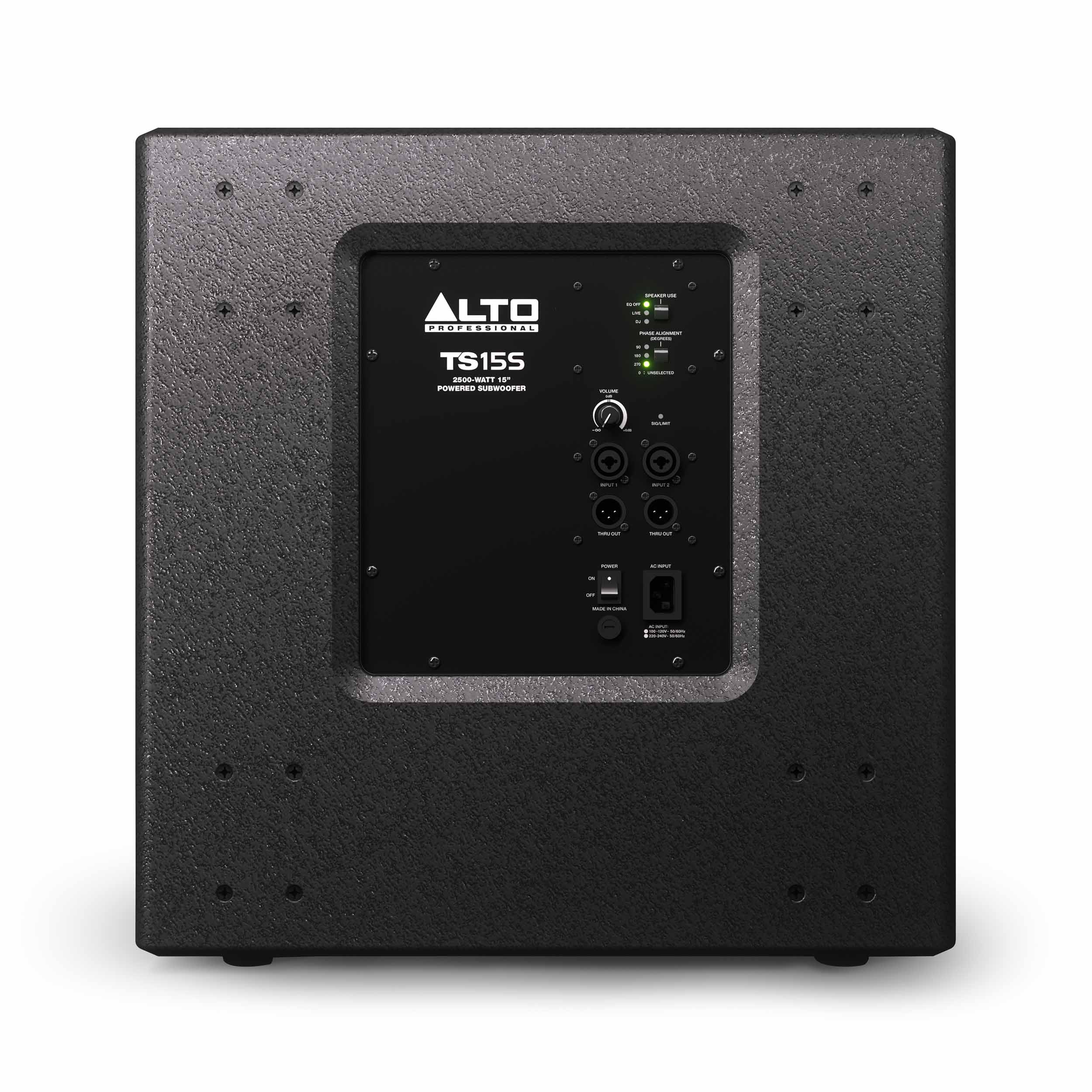

• (2) XLR+1/4-inch combo inputs
-
• (2) XLR thru outputs for linking
-
• User-selectable EQ tunings (Off, Live, DJ)
-
• Phase Alignment selector switch (0°/90°/180°/270°)
Technical Specifications
|
Output Power |
2500Wpeak@4 Ω |
|
Transducer Low |
15” (381 mm) woofer; 3” (76.2 mm) high-temperature voice coil |
|
Frequency Response |
36 Hz – 110 Hz (- 3 dB) |
|
Frequency Range |
36Hz–110Hz(-10dB) |
|
Maximum SPL |
132dB(@1m) |
|
Connections |
(2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input |
|
External Controls |
Volume control, signal/clip limiter with LED, speaker use button, proximity button, power switch with LED |
|
Electronic Protections |
Electronic clip, thermal and transducer overdrive protection |
|
Enclosure |

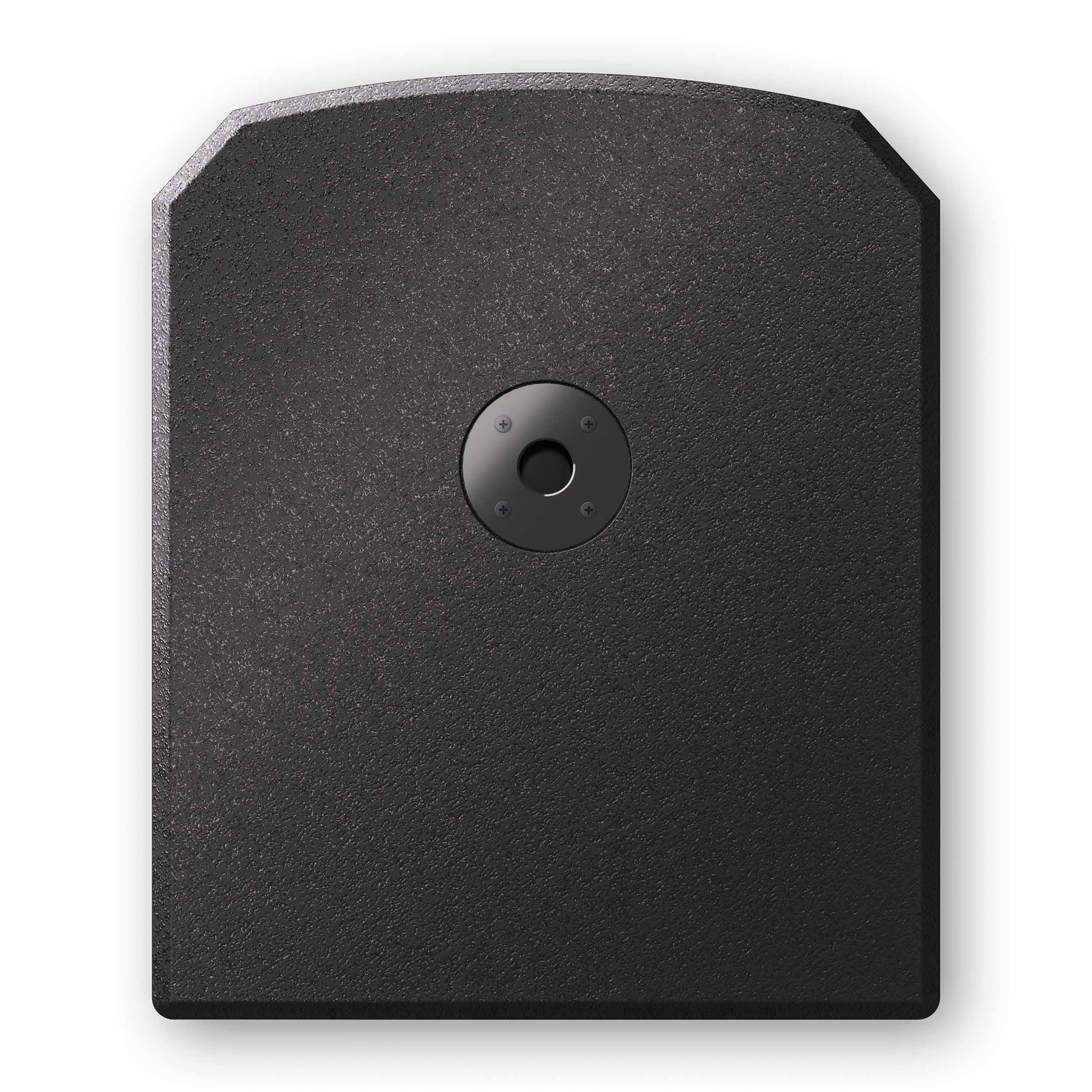

Internally braced MDF cabinet; 36 mm mounting pole socket on top panel Caster Insert Thread Gauge: M6 x 1.00 mm |
|
Power |
Connection: Standard IEC cable |
|
Dimensions (height x width x depth) |
21.3” x 20.6” x 24.7” / 541 x 523 x 627 mm |
|
Weight |
87.1 lbs. / 39.51 kg |
