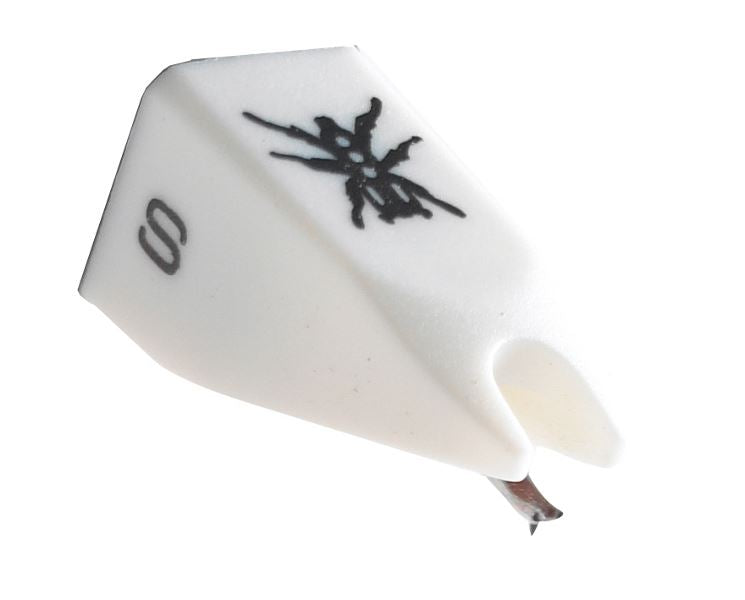

Ortofon Replacement stylus QBert for Ortofon QBert OM

Sale price$84.00
Contact us for availability




Turntablists and mix DJs will recognize the enhanced output and tracking capabilities of the Ortofon Replacement stylus QBert. It delivers a subdued high end to reduce surface noise from vinyl, and a boosted mid-range to push scratching to the forefront. The QBert's superb tracking allows it to precisely track the grooves of records and is optimized for scratch DJs. Its robust output makes it perfect for all music genres with deep bass frequencies.

World-renowned hip-hop artist and turntablist DJ QBert partnered with Ortofon to develop the QBert series from the ground up. This series offers stellar control, a heightened output, and low wear and tear on records. Ortofon also modified the high frequencies to reduce sonic artifacts from older records and settled on a slightly boosted mid-range to aid scratching and cut through the mix. Quality Danish craftsmanship.

Output voltage at 1000Hz, 5cm/sec. -  11 mV
Channel balance at 1kHz  -  1,5 dB
Channel separation at 1kHz -  22 dB
Frequency response -  20-20.000 Hz -3 dB
Tracking ability at 315 Hz at recommended tracking force -  90 μm
Compliance, dynamic lateral -  12 μm/m N
Stylus type -  Spherical
Stylus tip radius - R 18 μm

Tracking force range -  2.0-4.0 g (20-40 mN)
Tracking force recommended -  3.0 g (30 mN)
Tracking angle -  20°
Internal impedance, DC resistance -  1.680 Ohm
Internal inductance -  920 mH
Recommended load resistance -  47 kOhm
Recommended load capacitance -  200-400 pF
Concorde cartridge weight  - 18.5 g
