GPL SERIES - GENERAL PURPOSE LOUDSPEAKERS
- Compact birch plywood construction
- Beyma Coaxial design drivers
- Multiple mounting options (Yoke brackets included)
- Conical or 80° x 40° (HQ models) dispersion options
- Band-pass or Bass Relex subwoofers
- speakON compatible and barrier strip connections
- FIR Preset libraries and EASE .gll files available for download

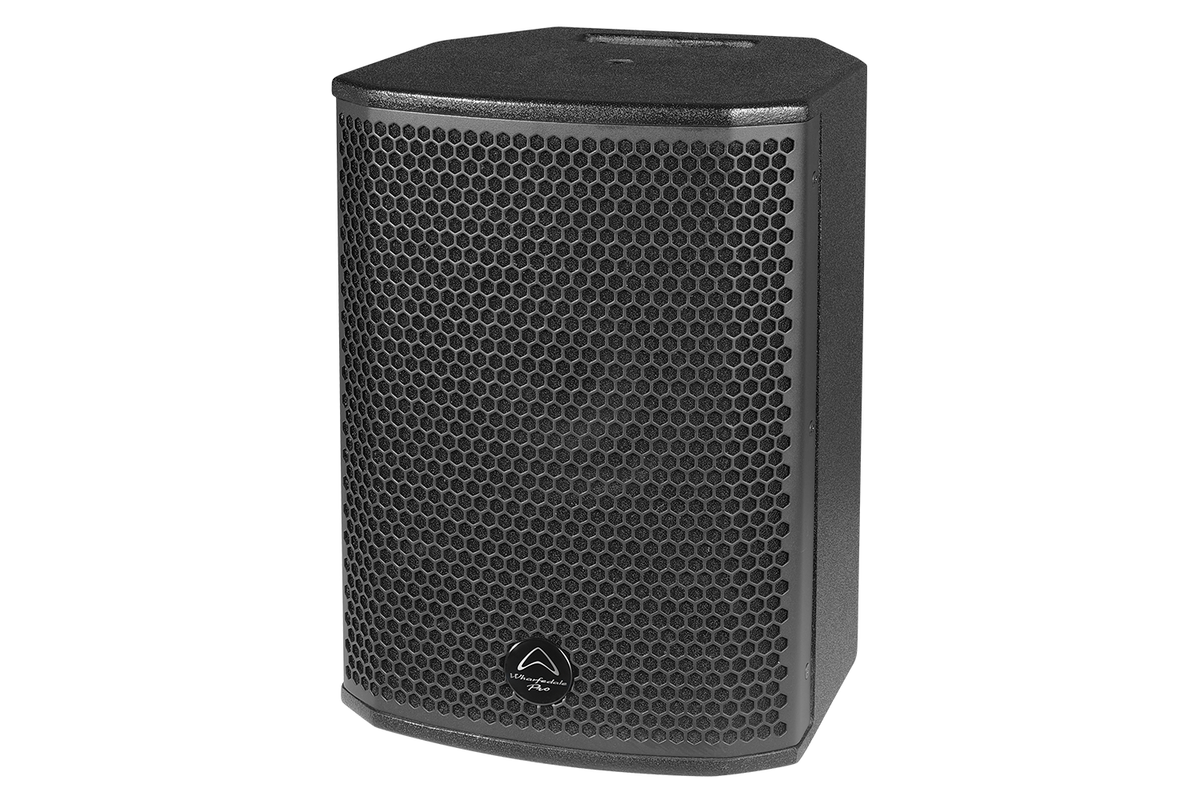

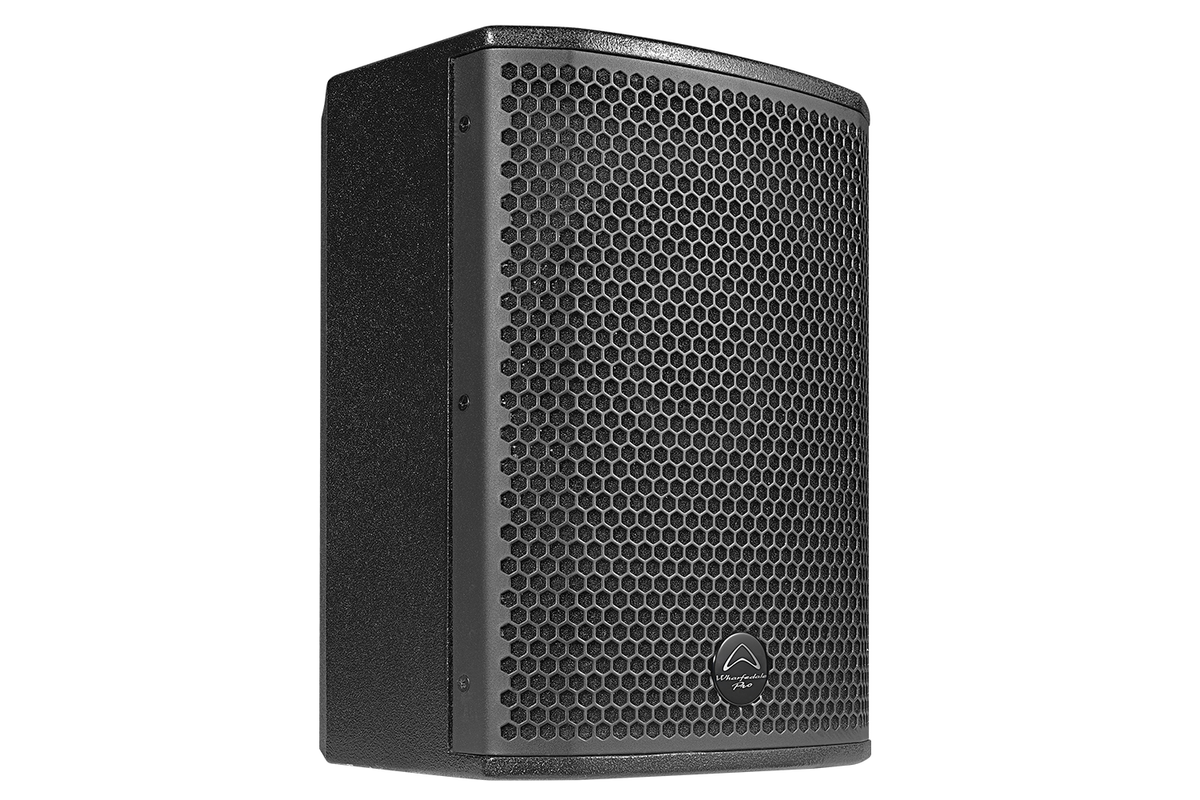

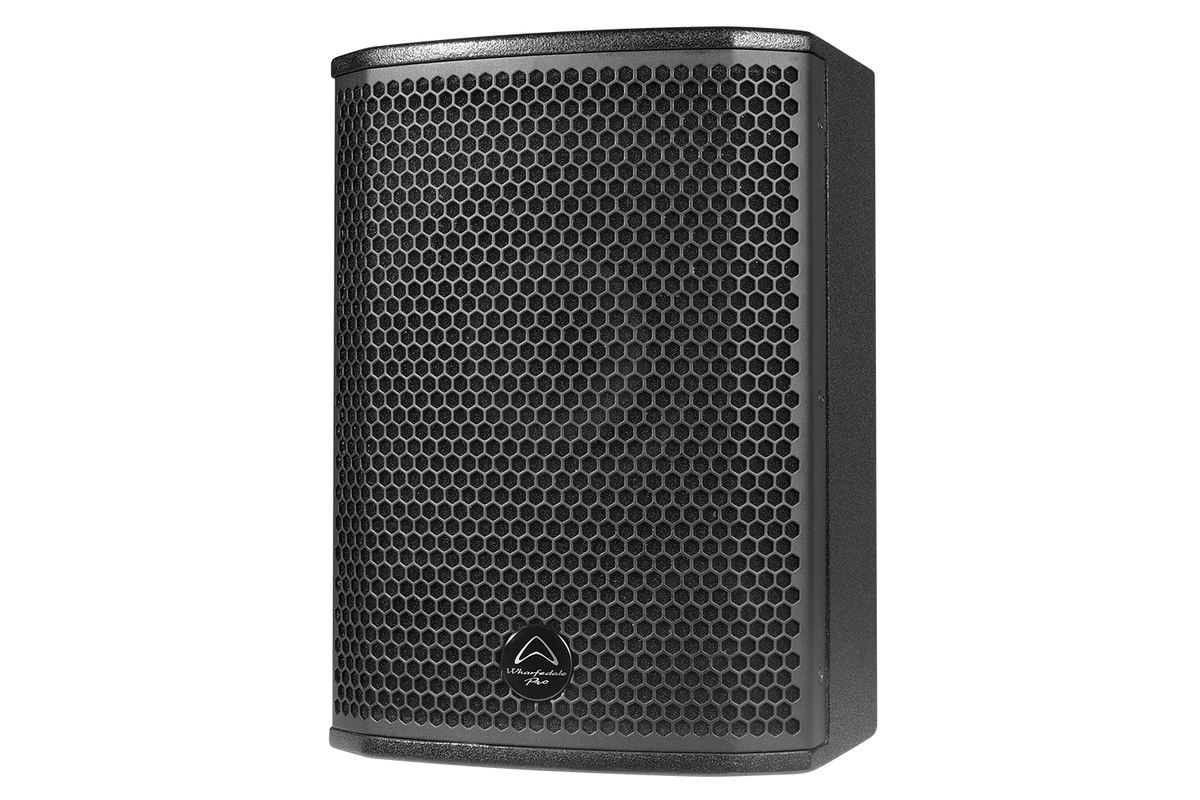

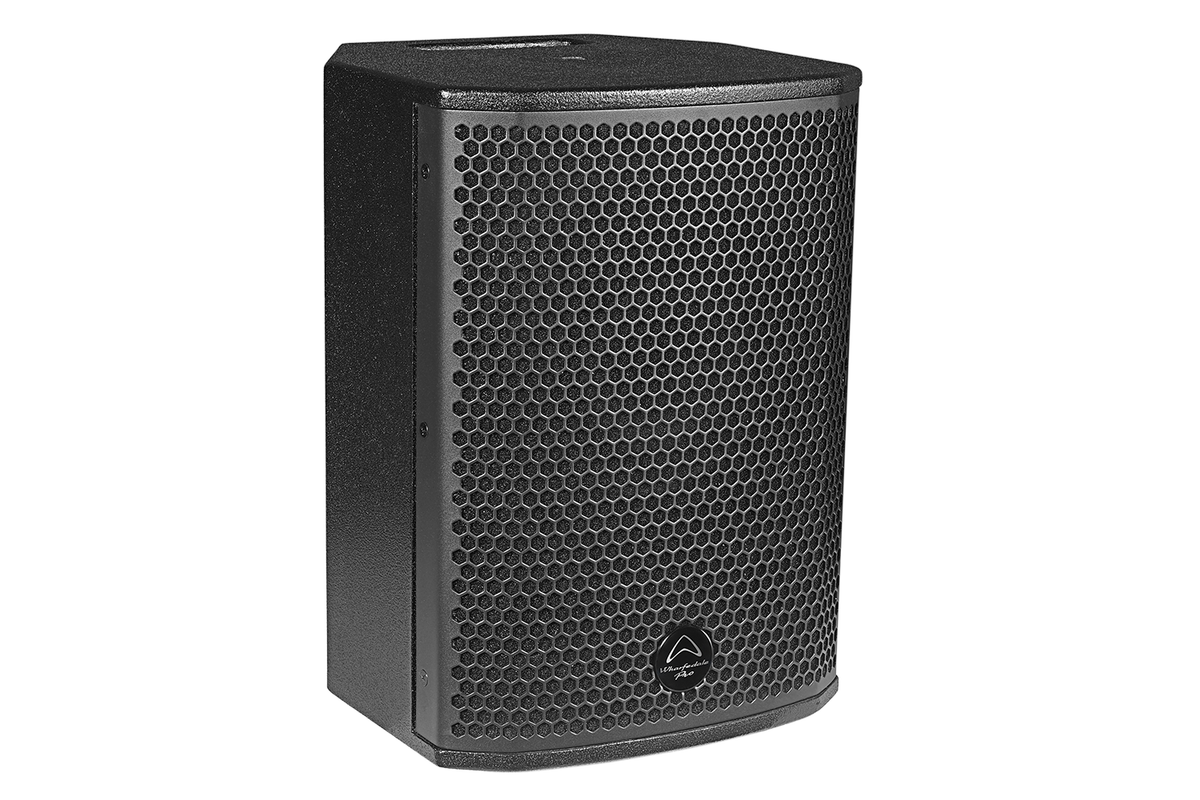

GPL-8
- 70° conical coverage
- 350 W AES (Continuous)
- 700 W Programme
- 1400 W Peak
- 2.5” LF Voice coil
- 128 dB Max SPL @ 1 m
- 70 V / 100 V ’T’ model also available
BIRCH PLYWOOD
All GPL models use premium Baltic birch plywood construction.
Not only does this create a solid and durable cabinet, but it also contributes to the overall sound and character.
GPL is also covered in our most durable and hard wearing Rhino Rock paint finish. This ensures that a GPL loudspeaker will always look as good as the day you installed it.
INSTALLATION HARDWARE
Installations can be complicated enough, so Wharfedale Pro have made GPL series as easy as possible.
GPL-5 and GPL-8 are quickly fixed to a wall using the WPB-3 wall bracket or the included steel yoke. GPL-12, GPL-12HQ, GPL-15 and GPL-15HQ are quickly fixed to a wall using the WPB-1 wall bracket or the included steel yoke.
These models are also compatible with Powerdrive Series 100 or Omnimount Series 60 installation brackets.
SUPPORT WITH EASE
All full range models in the GPL series are supported with EASE FOCUS 3 .gll files.
|
Model Name |
GPL-8 / 8T |
|
System Type |
8″ coaxial passive |
|
Configuration |
two-way |
|
Frequency Response (+/-3 dB) |
|
|
(DP-N preset) |
65 Hz – 20 KHz |
|
Frequency Range (- 10 dB) |
|
|
(DP-N preset) |
53 Hz – 25 KHz |
|
Sensitivity 2.83 V/1 m |
97 |
|
Sensitivity 2.83 V/1 m half space |
/ |
|
Calculated Maximum SPL @1 m |
128 dB |
|
System Peak SPL* |
134 dB |
|
*level at 1 m using pink noise with crest factor 4, with dedicated preset. |
|
|
System Rated Impedance |
8 Ω |
|
Low Frequency Transducer |
|
|
Size |
211.5 mm / 8” |
|
Voice coil size |
63.5 mm / 2.5″ |
|
LF Frame Material |
Aluminium |
|
High Frequency Transducer |
|
|
HF Driver Type |
Compression Driver |
|
Coil Size (mm / inches) |
44.4 mm / 1.75″ |
|
Exit Size (mm / inches) |
25.4 / 1″ |
|
Diaphragm Material |
PM4 |
|
Waveguide Type |
Spherical |
|
Nominal Coverage (H x V) |
70° conical |
|
Special Features |
Shorting cap for extended response |
|
Waterproof LF cone |
Waterproof LF cone |
|
FEA optimized, Shared High performing Ferrite magnet system design |
FEA optimized, Shared High performing Ferrite magnet system design |
|
Driver brand |
Beyma |
|
POWER |
|
|
T Model |
|
|
100 V : 120 / 60 / 30 W |
|
|
100 V : 200 / 100 / 50 W |
– |
|
System Continuous Power (W) |
350 |
|
System Programme Power (W) |
700 |
|
System Peak Power (W) |
1400 |
|
Crossover Frequency |
1.6 KHz |
|
Recommended HPF = BW18dB/oct. |
48 Hz |
|

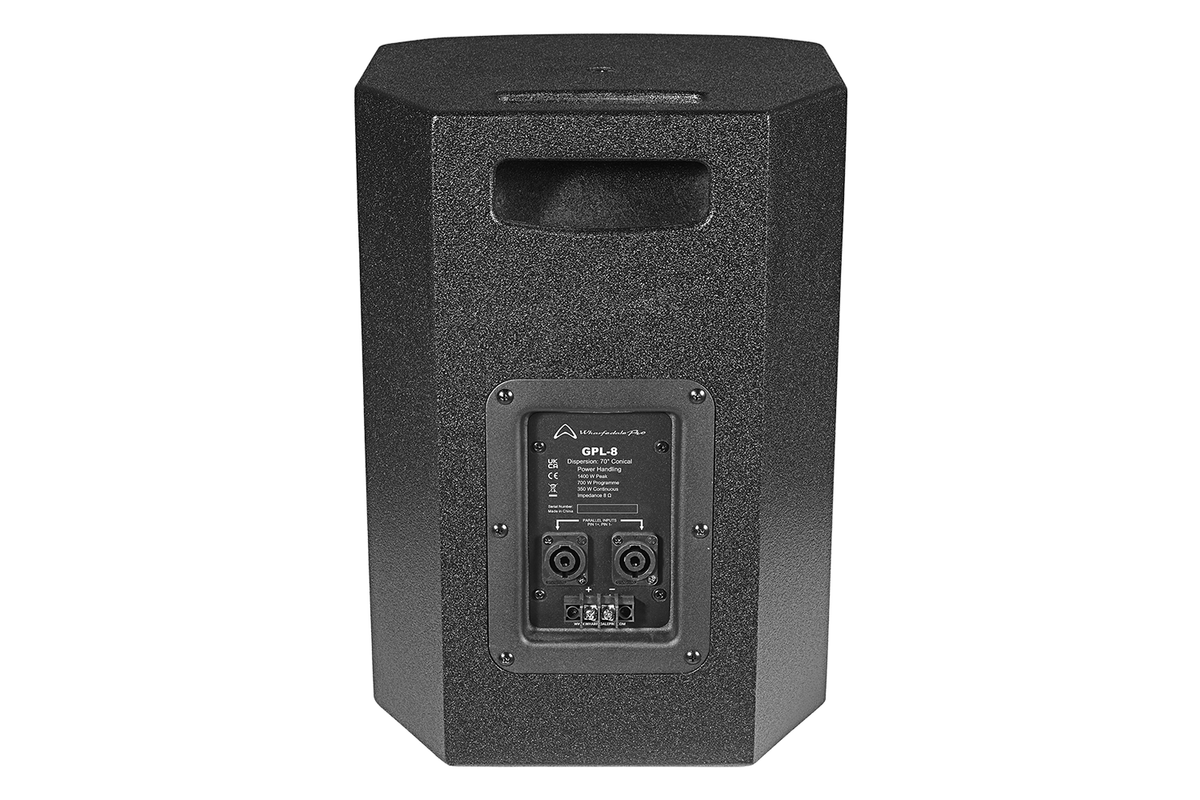

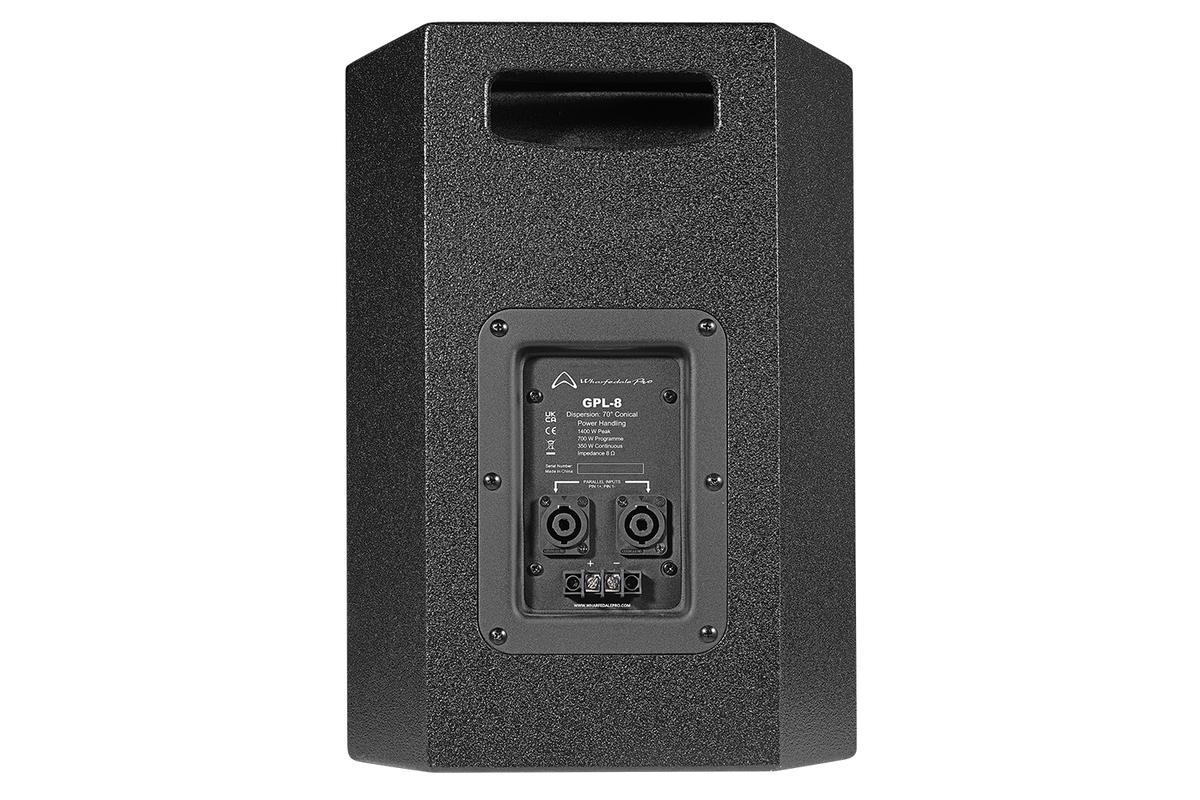

Input Connector |
2 x speakON compatible / 1 x Barrier Strip T Model barrier strip only |
|
Rigging & Hardware: |
2 x M10 threaded rigging points. 4 x M8 threaded points for WPB-3 |
|
Included Accessories |
GPL-8 horizontal flying yoke |
|
Handle |
1 on back |
|
Enclosure |
|
|
Cabinet Type |
Trapezoid |
|
Enclosure Material and finish |
12 mm plywood / Rhino Rock |
|
Colour Options |
Black paint, White on request |
|
Grille Material & Finish |
Powder coated steel |
|
Dimensions – Unpacked (mm / inches): |
|
|
Height |
388 mm / 15.3″ |
|
Width Front |
280 mm / 11.0″ |
|
Width Rear |
180 mm / 7.1″. |
|
Depth |
275 mm / 10.8″ |
|
Dimensions – Packed (mm / inches): |
|
|
Height |
448 mm / 17.6″ |
|
Width Front |
335 mm / 13.2″ |
|
Width Rear |
335 mm / 13.2″ |
|
Depth |
340 mm / 13.4″ |
|
Weight |
|
|
Net Weight |
9.78 kg / 21.52 lbs |
|
Gross Weight |
10.82 kg / 23.80 lbs |
