Description
- Description
DP-F SERIES
THINK DIF-FIR-ENTLY ABOUT AMPLIFIERS
- Huge Class D power in a 1U rack
- 4 discrete amplification channels
- Internal DSP and computer control
- Stable down to 2 Ω. Drive multiple speakers or line array elements
- FIR filtering with 512 taps
- 90 V to 260 V AC working voltage
- Ethernet Network Connectors x 2
- 70 V / 100 V compatible models
DP-2200F
- 2 channels
- 8 Ohm 2 x 2000 W
- 4 Ohm 2 x 3400 W
- 2 Ohm 2 x 4760 W
- 16 Ohm Bridged 1 x 4000 W
- 8 Ohm Bridged 1 x 6800 W
- 4 Ohm Bridged 1 x 9520 W
- 100 V Hi-Z 2 x 3400 W
- 70 V Hi-Z 2 x 2400 W
TAKE CONTROL
Harnessing the power of the internal DSP

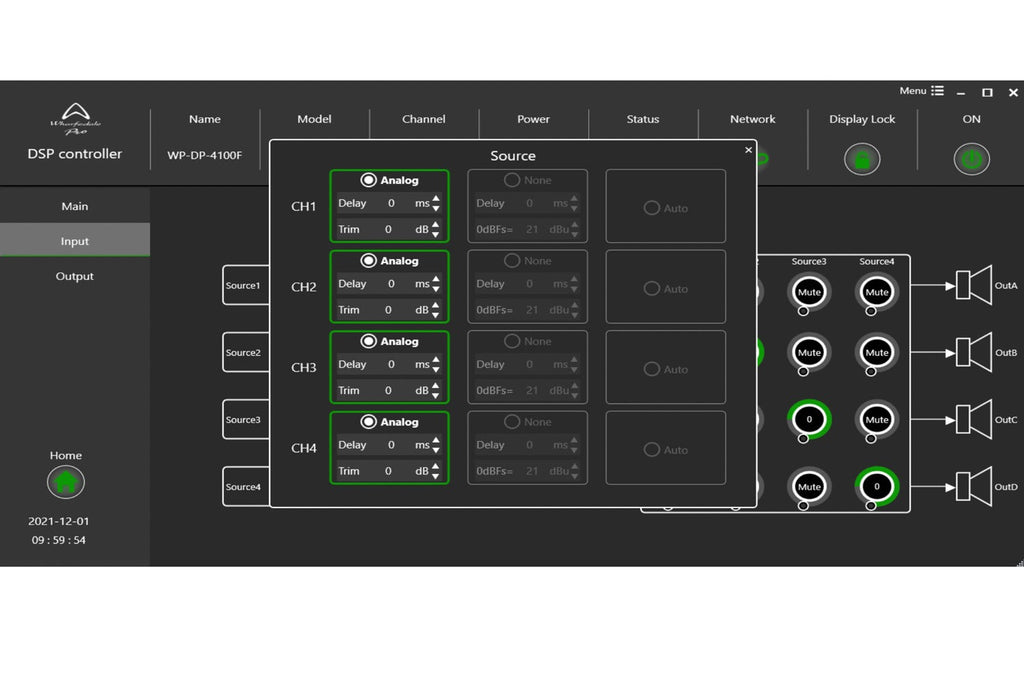

The supplied editing software gives a practical overview of all system parameters and DSP features within the DP-F amplifier.
It is simple to monitor and edit the DP-F remotely.
FIR FILTERS
FIR Filtering gives
- Independent control of magnitude and phase.
- More detailed equalisation.
- Optimization of frequency and power response.
STABLE DOWN TO 2 OHMS
Huge output power and stable down to 2 Ohms
The power output figures of DP-F series are staggering. The rated power outputs are measured at THD = 1%, continuous sinusoidal 1 KHz with each channel working simultaneously.
DP-F amps are also stable down to 2 Ohms. This allows for multiple 8 Ω or 16 Ω speakers to be driven with extreme power.
ETHERNET X 2
Control is via the Ethernet network connectors on the front.
With the supplied control software all parameters can be edited and all performance functions can be remotely monitored.
NEED DANTE ™ ?
BUILD YOUR SYSTEM
DP-F and DP-N amps are made for your big line array!
With just 3 pcs of DP-4100F or DP-4100N……massive systems can be created.
SPECIFICATIONS
| Model | DP-2200F | |
|---|---|---|
| Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) | 8 Ω / Stereo | 2 x 2000 W |
| 4 Ω / Stereo | 2 x 3400 W | |
| 2 Ω / Stereo | 2 x 4760 W | |
| 16 Ω / Bridge | 1 x 4000 W | |
| 8 Ω / Bridge | 1 x 6800 W | |
| 4 Ω / Bridge | 1 x 9520 W | |
| 100 V Hi-Z | 2 x 3400 W | |
| 70 V Hi-Z | 2 x 2400 W | |
| Output RMS voltage | 126.5 V | |
| Maximum Input Level | 8.7 Vrms(+21 dBu)(Default Gain) | |
| Default Gain (Rated Power,1 KHz) | 24 dB | |
| Gain(Rated Power,1 KHz) | 24 dB~42 dB | |
| THD+N | Typical value:0.05%(10% Rated Power,8 Ω) | |
| Cross-Talk | ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω) | |
| Frequency Response | Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω) | |
| Input Impedance | 20 kΩ(Balance),10 kΩ(Unbalance) | |
| Damping Factor | ≥1000(20 Hz-200 Hz,8 Ω) | |
| SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | |
| Main Power | 90~260 VAC,50/60 Hz | |
| Protection | Power under-voltage protection、Amplifier output DC protection、Thermal Protection、 Temperature Power Control、Overload Power Control | |
| Size(W×H×D) | 483 x 45 x 376 mm | |
| Net Weight | 9.3 kg |
