Description
Overview

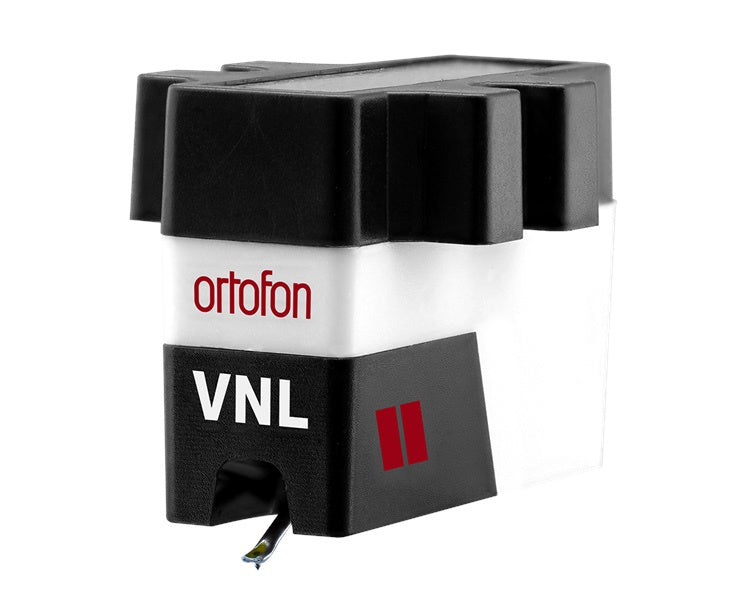

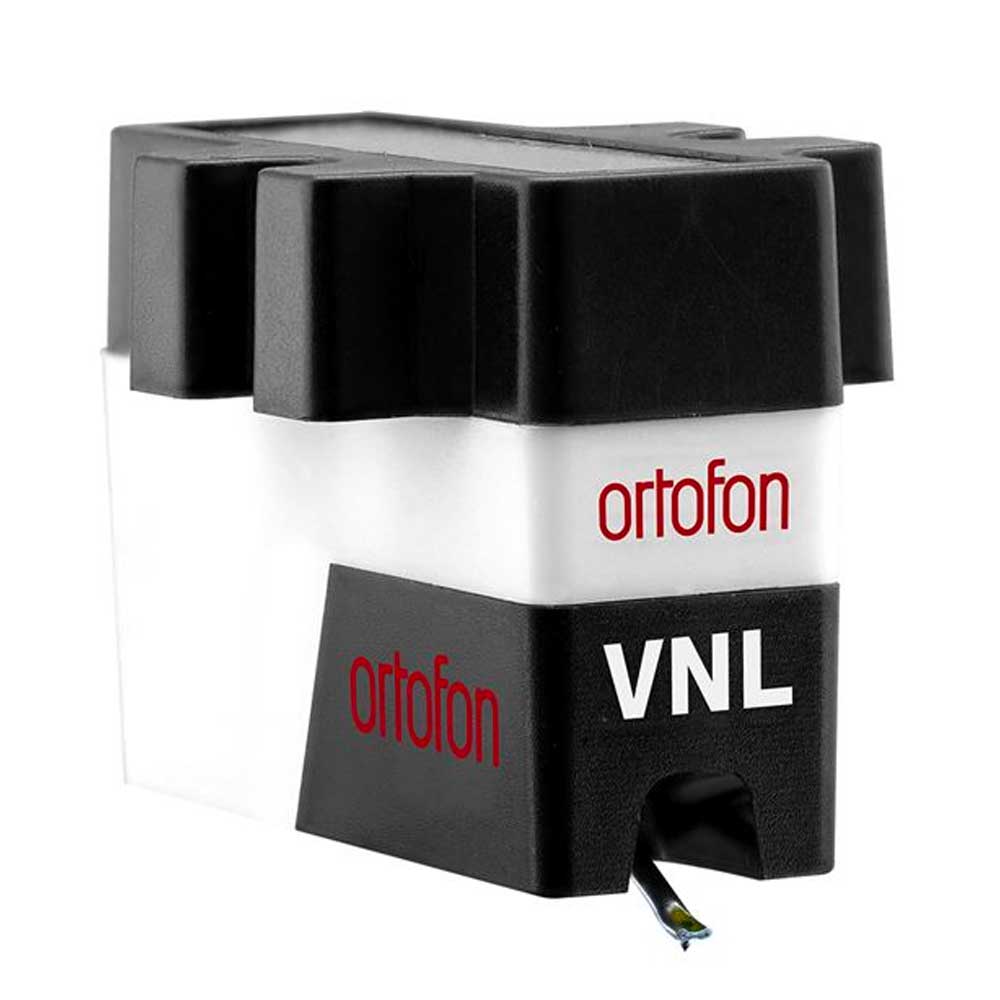

We present the Ortofon VNL Cartridge with Stylus - with VNLII Stylus, a model that is specifically designed to meet the unyielding requirements of contemporary turntablists and portable DJs, in light of this understanding and our significant experience in industrial design and technological know-how.
Features
The Ortofon VNL Cartridge with Stylus - with VNLII Stylus VNL Single cartridge is matched expertly and premounted on our well-liked black SH-4 Headshell and is suitable for use with any common DJ turntable and tonearm.
The tonearm terminal connections on the SH-4 headshell are of the highest calibre and are solid and strong. The adaptability of the VNL Premounted cartridge is one of its most notable qualities. DJs that employ multiple configurations will find it to be an excellent alternative because of the universal mount fitting, which enables usage with a variety of S-shaped tonearms. The headshell's ergonomic design features a long finger lift that is simple to use and pick up, making it perfect for hectic DJ sets. The VNL Premounted cartridge is also ready to use right out of the box thanks to its plug-and-play architecture!
Technical Specifications
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g
Internal impedance, DC resistance - 750 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge weight - 6,5 g
Replacement stylus units: VNL I, VNL II, VNL III
Antiskating: for best backcueing performance use “0”
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel separation at 1kHz - 20 dB
Frequency response 20 Hz - 20 kHz -2/+4 dB
Tracking ability at 315 Hz at recommended tracking force
